Chapter 3

26/01/2024

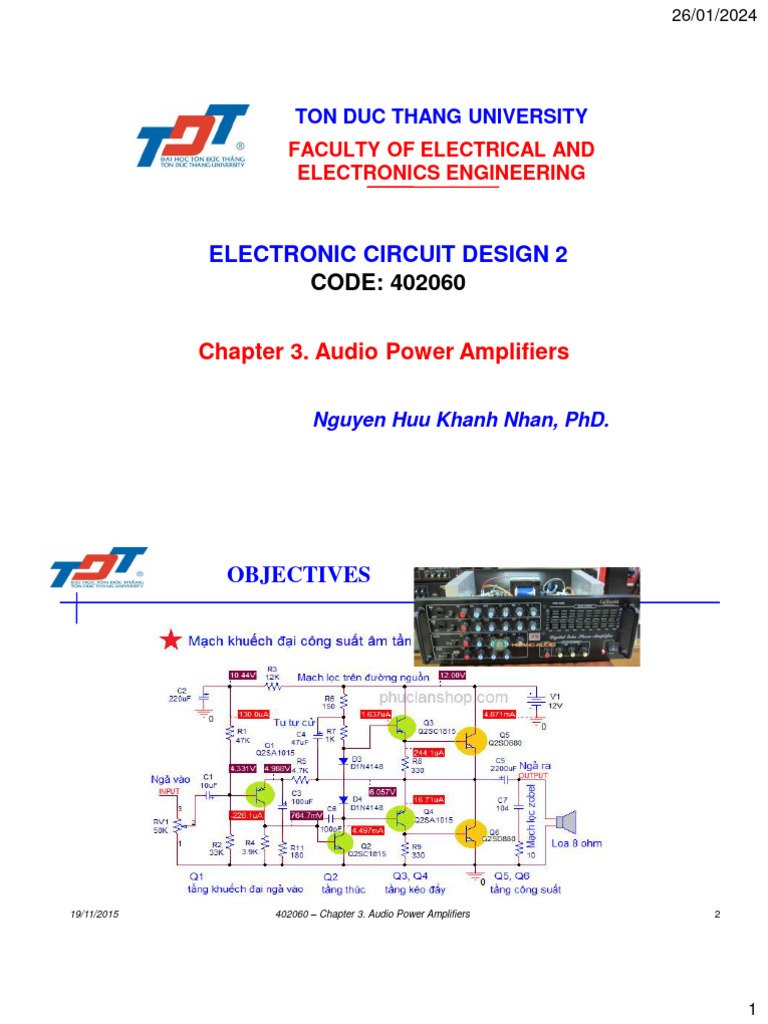

TON DUC THANG UNIVERSITY

FACULTY OF ELECTRICAL AND
ELECTRONICS ENGINEERING
ELECTRONIC CIRCUIT DESIGN 2

CODE: 402060
Chapter 3. Audio Power Amplifiers
Nguyen Huu Khanh Nhan, PhD.
OBJECTIVES
19/11/2015 402060 – Chapter 3. Audio Power Amplifiers 2
1
26/01/2024
OBJECTIVES
 The classification of amplifier output stages on the basis of

the fraction of the cycle of an input sine wave during which
the transistor conducts.
 Analysis and design of a variety of output-stage types
ranging from the simple but power-inefficient emitter follower
class (class A) to the popular push-pull class AB circuit in
bipolar technologies.
 Transistor considerations in the design and fabrication of
high-output power circuits.
 Useful and interesting circuit techniques employed in the
design of power amplifiers.
 Special types of MOS transistors optimized for high-power
applications.
CHAPTER 3. AUDIO POWER

AMPLIFIERS
3.1. Introduction and Classification of Output Stages
3.2. Class A Output Stage
3.2.1. Operation and Characteristics
3.2.2. Power Dissipation
3.3. Class B Output Stage

3.4. Class AB Output Stage

3.4.1. Operation
3.4.2. Biasing the Class AB Circuit
3.5. Variations on the Class B and AB Configuration
2
26/01/2024
3.1. INTRODUCTION AND

CLASSIFICATION OF OUTPUT STAGES
 One important aspect of an amplifier is output
resistance.
 This affects its ability to deliver a load without loss of
gain (or significant loss).
 Large signals are of interest and small-signal models
cannot be applied.
Amplifier Output Circuit Model


Total harmonic distortion is good measure of linearity
of output stage.
 Most challenging aspect of output stage design is

efficiency.
Power dissipation is highly correlated to internal

junction temperature.
3
26/01/2024

 Output stages are classified according to collector
current waveform that results when input signal is applied.
Class A Class B
Class AB Class C

4
26/01/2024
3.2. CLASS A OUTPUT STAGE
402060 – Chapter 3. Audio Power Amplifiers

With => short circuit in DC and open circuit in AC.
 Analysis with DC
 Analysis with AC
with
5
26/01/2024

 Maxswing condition
ICmax=
With
iC  I cm sin .t
when
iL  I Lm sin .t   I cm sin .t
Selected
If Q is a middle point of ACLL
ILm = Icm,max = min{ICmax – ICQ, ICQ}

Ignore Re usually is small, VCEQ ~ VCC don’t depend on ICQ
VCC
I CQ
RL
12
7/7/2012 402060 – Chapter 3. Audio Power Amplifiers
6
26/01/2024

 The total average supply power
2
VCC  Average power dissipation
PCC  VCC I CQ 
RL 2
VCC I2 R
PC  PCC  PL   cm L
 The average load power RL 2
2 2 2
I Lm RL I Cm RL VCC
PL   PC ,min 
2 2 2 RL
2 2
I CQ RL VCC 2
VCC
PL ,max   PC ,max   VCEQ I CQ
2 2 RL RL
 The power-conversion efficiency  Applied factor
2
PL I 2 ( R / 2)  1  I cm 
  Cm L  
PCC VCC I CQ  2  I CQ 
1
 max   50%
2

Applied for integrated circuit
 Output voltage
 Maximum Output voltage
 Minimum Output voltage
or
 Bias current
An emitter follower (Q1) biased with a

constant current I supplied by transistor Q2
7
26/01/2024

3.2.2. Power Dissipation With Signal Waveforms

 The power-conversion efficiency
 The average load power
 Peak output voltage
can be combined to yield
The maximum efficiency attainable is 25%

8
26/01/2024
3.3. CLASS B OUTPUT STAGE

iL  N iC1  iC 2 
402002 - Mạch khuếch đại công suất âm tần 18

9
26/01/2024

 Circuit Operation
(OTL – Output
Transformer Less)

 Circuit Operation
(OCL – Output
Capacitor Less)
10
26/01/2024

 Circuit Operation (OCL – Output
Capacitor Less)
 vi is zero?
 vi goes positive and
exceeds about 0.7 V?
 vi goes negative by
more than about 0.7 V?
=> We conclude that =>
push pull?

 Circuit Operation (OCL – Output Capacitor Less)
11
26/01/2024
 Transfer Characteristic From S. Sedra & C. Smith [2014],

Microelectronic circuits, 7th edition,
Oxford University Press.

 Transfer Characteristic From S. Sedra & C. Smith [2014],
crossover distortion.
Illustrating how the dead band

in the class B transfer
characteristic results in
crossover distortion.
12
26/01/2024

 The power-conversion efficiency
 The average load power
 The average power drawn from

each of the two power supplies
The maximum average power

available from a class B

 The average power drawn from
each of the two power supplies
explain
T /2
1 1
PCC VCC . iC1 (t )dt VCC .I cm
T 0
13
26/01/2024

 The Transistor average power

dissipation:
 The average power dissipation:
 The value of which corresponds

to max average power dissipation:
 Max average power dissipation:

From S. Sedra & C. Smith [2014],

Power dissipation of the class B output stage versus

amplitude of the output sinusoid.
14
26/01/2024

 Reducing Crossover Distortion
• Crossover distortion of class B output stage may be
reduced substantially:
– Employing High-gain Op-amp
– Overall Negative Feedback
• 0.7V dead band is reduced to 0.7/A0.
• Slew-rate limitation of op-amp will cause alternate
turning on and off of output transistors to be noticeable
• More practical solution is class AB stage.

 Reducing Crossover Distortion
Class B circuit with an op amp connected in a

negative-feedback loop to reduce crossover distortion.
15
26/01/2024
3.4. CLASS AB OUTPUT STAGE

3.4.1. Operation
• Crossover distortion can
be virtually eliminated
by biasing the
complementary output
transistor with small
nonzero current.
• A bias voltage VBB is
applied between QN and
QP.
=> For vi =0, v0 =0, and a voltage VBB/2 appears across
the base–emitter junction of each of QN and QP
16
26/01/2024

3.4.1. Operation
 output voltage:
 current IN :
 current IQ =

3.4.1. Operation From S. Sedra & C. Smith [2014],
Transfer characteristic of the class AB stage

17
26/01/2024

3.4.1. Operation Output Resistance
 Output resistance:
 Small-signal emitter resistance N:
 Small-signal emitter resistance P:
At larger load currents, either iN

or iP will be significant, Rout
decreases as the load current
increases.
where reN and reP are the small-signal emitter
resistances of QN and QP, respectively.

3.4.2. Biasing the Class AB Circuit Biasing Using Diodes
• Figure shows class AB circuit
with bias voltage VBB.
• Constant current IBIAS is passed
through pair of diodes D1 and
D2.
• In circuits that supply large
amounts of power, the output
transistors are large-geometry
devices.
• Biasing diodes, however, need
not be large.
18
26/01/2024

3.4.2. Biasing the Class AB Circuit
 Biasing Using the VBE Multiplier
A discrete-circuit class AB output

stage with a potentiometer used in A class AB output stage utilizing a
the VBE multiplier. VBE multiplier for biasing.
 Use of Compound Devices
19
26/01/2024
A class AB output stage

utilizing a Darlington npn and
a compound pnp. Biasing is
obtained using a VBE
multiplier.
20
26/01/2024
BTL = Balanced Transformer Less
BTL = Balanced Transformer Less
TDA8567Q
Audio Power Amplifier with power output 800W 4  25 W BTL quad car radio power amplifier
21
26/01/2024
SUMMARY
Operation of power
amplifier circuits
DC Power
Dissipation
Audio Classification
AC Power
Power of Output
Dissipation
Amplifiers Stages
TST Power
Dissipation
Efficiency and
useful factor
HOMEWORKS
From S. Sedra & C. Smith [2014], Microelectronic

circuits, 7th edition, Oxford University Press.
 HWs are problems

- Section 12.2 (pp.983)
- Section 12.3 (pp.983)
- Section 12.4 (pp.984)
- Section 12.5 (pp.985)
 Reading assignment: 17.1 (pp. 1292) to 17.6
(pp. 1322)
22
