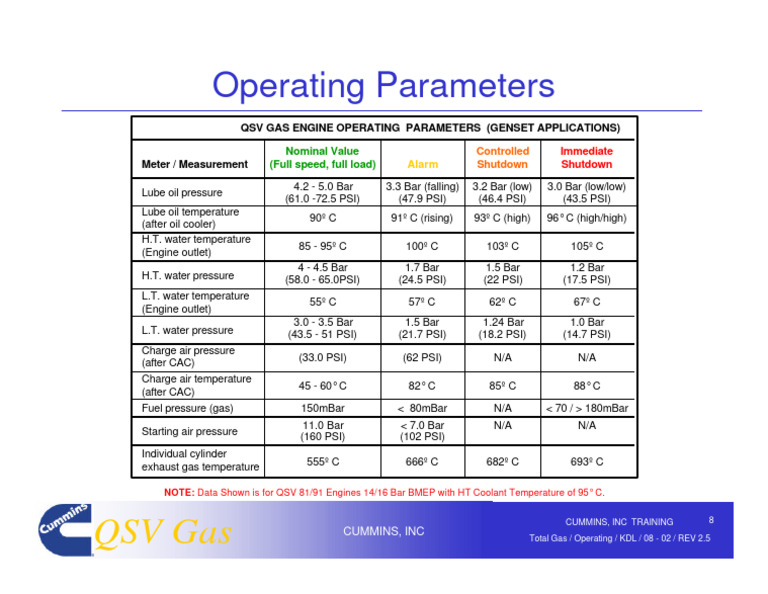

Operating Parameters

QSV GAS ENGINE OPERATING PARAMETERS (GENSET APPLICATIONS)

Nominal Value Controlled Immediate

Meter / Measurement (Full speed, full load) Alarm Shutdown Shutdown

4.2 - 5.0 Bar 3.3 Bar (falling) 3.2 Bar (low) 3.0 Bar (low/low)
Lube oil pressure
(61.0 -72.5 PSI) (47.9 PSI) (46.4 PSI) (43.5 PSI)
Lube oil temperature
90º C 91º C (rising) 93º C (high) 96° C (high/high)
(after oil cooler)
H.T. water temperature
(Engine outlet) 85 - 95º C 100º C 103º C 105º C
4 - 4.5 Bar 1.7 Bar 1.5 Bar 1.2 Bar
H.T. water pressure (58.0 - 65.0PSI) (24.5 PSI) (22 PSI) (17.5 PSI)
L.T. water temperature
55º C 57º C 62º C 67º C
(Engine outlet)
3.0 - 3.5 Bar 1.5 Bar 1.24 Bar 1.0 Bar
L.T. water pressure (43.5 - 51 PSI) (21.7 PSI) (18.2 PSI) (14.7 PSI)
Charge air pressure
(33.0 PSI) (62 PSI) N/A N/A
(after CAC)
Charge air temperature
45 - 60° C 82° C 85º C 88° C
(after CAC)
Fuel pressure (gas) 150mBar < 80mBar N/A < 70 / > 180mBar
11.0 Bar < 7.0 Bar N/A N/A
Starting air pressure (160 PSI) (102 PSI)
Individual cylinder
exhaust gas temperature 555º C 666º C 682º C 693º C

NOTE: Data Shown is for QSV 81/91 Engines 14/16 Bar BMEP with HT Coolant Temperature of 95° C.
