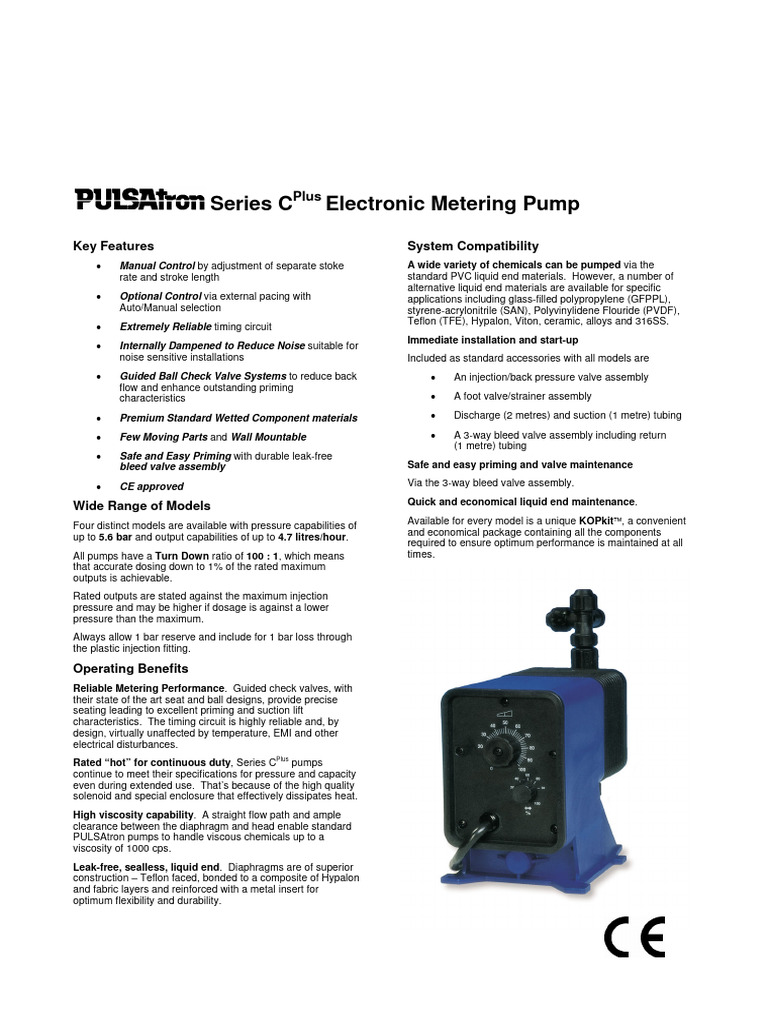

Series CPlus Electronic Metering Pump

Key Features System Compatibility

• Manual Control by adjustment of separate stoke
rate and stroke length
• Optional Control via external pacing with
Auto/Manual selection
• Extremely Reliable timing circuit
• Internally Dampened to Reduce Noise suitable for
noise sensitive installations
• Guided Ball Check Valve Systems to reduce back
flow and enhance outstanding priming
characteristics
A wide variety of chemicals can be pumped via the
standard PVC liquid end materials. However, a number of
alternative liquid end materials are available for specific
applications including glass-filled polypropylene (GFPPL),
styrene-acrylonitrile (SAN), Polyvinylidene Flouride (PVDF),
Teflon (TFE), Hypalon, Viton, ceramic, alloys and 316SS.
Immediate installation and start-up
Included as standard accessories with all models are
• An injection/back pressure valve assembly
• A foot valve/strainer assembly

• Premium Standard Wetted Component materials • Discharge (2 metres) and suction (1 metre) tubing

• Few Moving Parts and Wall Mountable • A 3-way bleed valve assembly including return
(1 metre) tubing
• Safe and Easy Priming with durable leak-free
bleed valve assembly Safe and easy priming and valve maintenance

• CE approved Via the 3-way bleed valve assembly.

Quick and economical liquid end maintenance.
Wide Range of Models
Available for every model is a unique KOPkit™, a convenient
Four distinct models are available with pressure capabilities of
and economical package containing all the components
up to 5.6 bar and output capabilities of up to 4.7 litres/hour.
required to ensure optimum performance is maintained at all
All pumps have a Turn Down ratio of 100 : 1, which means times.
that accurate dosing down to 1% of the rated maximum
outputs is achievable.
Rated outputs are stated against the maximum injection
pressure and may be higher if dosage is against a lower
pressure than the maximum.
Always allow 1 bar reserve and include for 1 bar loss through
the plastic injection fitting.

Operating Benefits
Reliable Metering Performance. Guided check valves, with
their state of the art seat and ball designs, provide precise
seating leading to excellent priming and suction lift
characteristics. The timing circuit is highly reliable and, by
design, virtually unaffected by temperature, EMI and other
electrical disturbances.
Plus
Rated “hot” for continuous duty, Series C pumps
continue to meet their specifications for pressure and capacity
even during extended use. That’s because of the high quality
solenoid and special enclosure that effectively dissipates heat.
High viscosity capability. A straight flow path and ample
clearance between the diaphragm and head enable standard
PULSAtron pumps to handle viscous chemicals up to a
viscosity of 1000 cps.
Leak-free, sealless, liquid end. Diaphragms are of superior
construction – Teflon faced, bonded to a composite of Hypalon
and fabric layers and reinforced with a metal insert for
optimum flexibility and durability.
PULSAtron Series CPlus Electronic Metering Pump Specifications
The standard models available are detailed below.

Maximum Output Tube End Liquid End Materials

Maximum
Connections
Model Designation KOPkit Pressure Voltage
ID x OD
Litres (bar) Pump
mls per (inches) Seat &
per Head & Balls
Stroke O-Rings
Hour Fittings
LD02S2-VTC1-CZXXX 0.9 0.12 K2VTC1
LD03S2-VTC1-CZXXX 1.9 0.25 K3VTC1
5.6 1/4 x 3/8 PVC TFE Ceramic 230
LD04S2-VTC1-CZXXX 3.8 0.51 K4VTC1
LD54S2-VTC1-CZXXX 4.7 0.63 K4VTC1

Options
• External Pacing with Auto/manual Switch – Change 5th digit “S” to “E”

• 115V – Change 6th digit “2” to “1”

• Any other options regarding tube sizes or materials of construction – on request

Maximum Stroke
Reproducibility Maximum Stroke
Stroke Frequency Overall Turn
@ Maximum Viscosity Length Turn
Frequency Turn Down Down ratio
Capability (CPS) Down Ratio
(SPM) Ratio
± 3% 1000 125 10 : 1 10 : 1 100 : 1

Average
Current Average
Peak Input
Draw (Amps) Input Power
Power Input Power
@ @ @ Maximum
(Watts)
115 230 SPM (Watts)
VAC VAC
115 VAC/50-60 Hz/1 ph 230 VAC/50-60 Hz/1 ph 0.6 0.3 130 50

Liquid End Material Options

Check Valves Injection
Valve
Pump Head Diaphragm Fittings Bleed Valve Assembly and Tubing
Seats/O-Rings Balls
Foot valve
Assembly
• GFPPL • Return is Clear
• Ceramic Same as fitting
• PVC Teflon faced • Teflon • GFPPL Same as fitting PVC
• Teflon and check
• SAN Hypalon • Hypalon • PVC and check • Suction/Delivery
• 316 SS valve selected,
• PVDF backed • Viton • PVDF valve selected is white
• Alloy C except 316 SS
• 316 SS polyethylene
Note; Teflon, Hypalon and Viton are registered trademarks of E.I. DuPont Company.

Dimensions

KOPkit™
Available for every model, the KOPkit provides an economically priced
package of components required for routine maintenance. The kit
typically contains

• Suction and discharge valve cartridges complete with O-

rings

• Complete pump head

• Diaphragm

• Secondary O-ring seal

Dimensions (mm) • Head screws and washers

Shipping
Model A B C D E
Weight (kg)
LD02 244 208
LD03
127 241 165 4.54
LD04 252 216
LD54

Publication WTP/Ptron/CPlus/02/05
