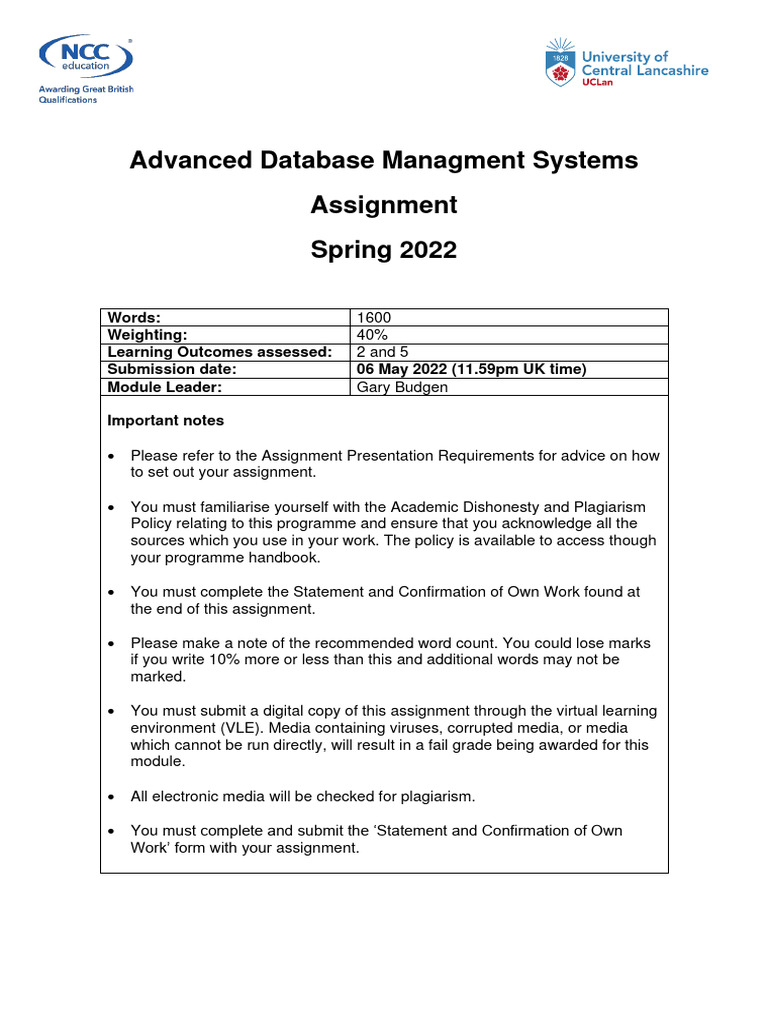

University of Central Lancashire

BSc (Hons) Business Computing and Information

Systems

Advanced Database Managment Systems

Assignment
Spring 2022

Words: 1600
Weighting: 40%
Learning Outcomes assessed: 2 and 5
Submission date: 06 May 2022 (11.59pm UK time)
Module Leader: Gary Budgen

Important notes

• Please refer to the Assignment Presentation Requirements for advice on how

to set out your assignment.

• You must familiarise yourself with the Academic Dishonesty and Plagiarism
Policy relating to this programme and ensure that you acknowledge all the
sources which you use in your work. The policy is available to access though
your programme handbook.

• You must complete the Statement and Confirmation of Own Work found at
the end of this assignment.

• Please make a note of the recommended word count. You could lose marks
if you write 10% more or less than this and additional words may not be
marked.

• You must submit a digital copy of this assignment through the virtual learning
environment (VLE). Media containing viruses, corrupted media, or media
which cannot be run directly, will result in a fail grade being awarded for this
module.

• All electronic media will be checked for plagiarism.

• You must complete and submit the ‘Statement and Confirmation of Own
Work’ form with your assignment.
Assignment Guidance

The learning outcomes assessed in this assignment are as follows:

Learning Description Assessment Criteria

Outcome
LO5 Demonstrate a practical • Shape for ER diagram
understanding of advanced
SQL. • Relationships for ER diagram
LO2 Design and implement a
database system for a given • Correct use of notation (UML, SQL, Data
business scenario using Dictionary)
advanced data modelling
• Appropriate screen dumps
techniques.
• Presentation of report

• It is the student’s responsibility to familiarise themselves with the NCC Education

Academic Misconduct policy.

• Any assignment submitted after the submission deadline, without prior approval, will be
given 0% and the student will be referred.

• The late assignment submission may be marked as a referral attempt, but only a
maximum mark of 40% can be awarded for that particular assessment.

• If a student requests an extension to the official submission date this must be done in
writing to the Programme Manager at uclan@nccedu.com at least five full UK working
days before the official submission date.
This request must be accompanied by supporting evidence.

• This assignment is worth 40% of the overall final mark for the module.

• All references should be cited in text and included in a reference section at the end of
the report using the Harvard Referencing Scheme.

• The Statement and Confirmation of Own Work must be completed and submitted with
the assignment.

• This assignment must be submitted by the due date and time as given on the front of
this assignment.

Submission Requirements

You must read and understand NCC Education’s policy on ‘Academic Misconduct’.

You must complete the attached form ‘Statement and Confirmation of Own Work’.
You must attach the completed form to your assignment.

Page 2 of 8
Advanced Database Management Systems © NCC Education Limited 2022
Case Study: Tiptop Kitchens

Background

You have been asked to design and construct a database system for Tiptop Kitchens, a
kitchen supplier based in London, United Kingdom. They supply kitchens fittings, furniture
and appliances for both individual customers and organisations that own or manage large
numbers of properties (such as local councils or housing associations).

Customers are therefore classified as: “Private Individual”, “Housing Association”,

“Council”, “Private Company” or “Other”.

How the company organises its work:

Tiptop Kitchens supply a range of kitchens. Customers make orders for one or more of a
particular kitchen in their range. Each kitchen model (aka ‘kitchen’) consists of a number of
components. Components are classified by type and are supplied by companies located in
different countries.

When a customer order is complete then a delivery date is organised. Note that a delivery
might be for more than one order. Note also that some orders will need to be delivered to
a different address to that of the customer’s main address (for example a Housing
Associate would have their order delivered to the houses where they are having the
kitchens fitted rather than their main office address.)

The system should be capable of storing all the information needed for Tiptop Kitchens to
carry out their business.

Please Note Further details of the case study are shown in the documents below which
give examples of data that can be taken as representative of a much larger data set.

Please note that the data as represented here is not necessarily in a normalised state and
it is the job of you, the database developer, to organise the data in its most optimal state.

Page 3 of 9
Advanced Database Management Systems © NCC Education Limited 2022
Document 1 (Customer Order Document Example 1)

This document is used to record the details of an order by a customer.

Document 2 (Customer Order Document Example 2)

Page 4 of 9
Advanced Database Management Systems © NCC Education Limited 2022
Document 3 List of components of different kitchens models

This document is used to record which components are used for a particular kitchen
model. Note that some kitchen models might use more than one component.

Document 4

This document is used to record information about components including their type code,
their manufacturer and the country of origin of their manufacturer.

Page 5 of 9
Advanced Database Management Systems © NCC Education Limited 2022
Document 5

This is the description of the type codes for components.

Document 6

This document records relevant information about the countries where manufacturers are
based. The Port attribute records where the manufacturer ships their components from.
The Agent attribute records the name of the person working on behalf of Tiptop Kitchens
in that country arranging paperwork such as export licenses.

Document 7 Delivery Information

This document records the details of a delivery.

(Please note: there is only one delivery per day)

End of Case Study

Page 6 of 9
Advanced Database Management Systems © NCC Education Limited 2022
Assignment
You are required to produce a report that addresses all of the following tasks:

Task 1 (20 marks)

Create an ER diagram (using UML notation) of the Tiptop Kitchens system. Please state
any assumptions that you make.

Task 2 (10 marks)

Critically assess the normalisation you have undertaken to produce a set of relations for the
scenario. You should discuss the process of normalisation in general and the specific way
it has been applied in your work.

Task 3 (5 marks)

Create an entity listing for the Tiptop Kitchens system. You should show all the entities you
have identified, their attributes and identify primary and foreign keys.

Task 4 (10 marks)

Create the relevant SQL CREATE TABLE statements for implementing the Tiptop Kitchens
system in a DBMS of your choice (not MS Access). You should provide screen dumps of
both the scripts and the implemented tables to show that the create statements have
worked.

Task 5 (4 marks)

Populate the database with the data shown in the case study.

Discuss the population of the database tables for the Tiptop Kitchens system (order of
population, issues and resolutions and SQL used) supported by appropriate screen dumps.

Questions continue on the next page

Page 7 of 9
Advanced Database Management Systems © NCC Education Limited 2022
Task 6 (16 marks)

Create the following queries. You should provide screen dumps to show each query being
run and the output of the query.

a) Write a query that selects the kitchens models being ordered by Hanson Housing
Association.
b) Write a query that selects the customer details for all customer types of “Private
Individual”.
c) Write a query that selects all the customer details for customers who are having
deliveries on the 30th January 2022.
d) Write a query that shows all components for a Standard Continental Style kitchen.
e) Write a query that shows all components that will be delivered to West Estate,
Ilford, Essex, IG7 2TT.
f) Write a query that produces the components from Sweden that are used in a
Standard Continental Style kitchen.
g) Write a query that shows all components with a component type of ‘Furniture’ that
are part of orders by Jane Petty.
h) Use SQL to produce the information that could be used as the basis for the
customer order document shown in document 1.

Task 7 (5 marks)

Create a set of screen dumps showing all of the data in each table – the data must be
ordered by the primary key.

Task 8 (15 marks)

Critically assess the issues that will need to be addressed with regard to transaction
management for the new database system. You should consider what support for
transactions will be needed, concurrency control and recovery.

Task 9 (10 marks)

Produce a reflective overview of how the database and queries you have created have met
the requirements of the business. Some of the issues you could discuss include how the
data model reflects the structure of data used by the business; the utility of the queries you
have created; and how all the parts of the assignment constitute a usable system. You
should also reflect on any future improvements that could help the business.

The remaining 5 Marks will be awarded for the presentation of the report.

End of Questions

Page 8 of 9
Advanced Database Management Systems © NCC Education Limited 2022
