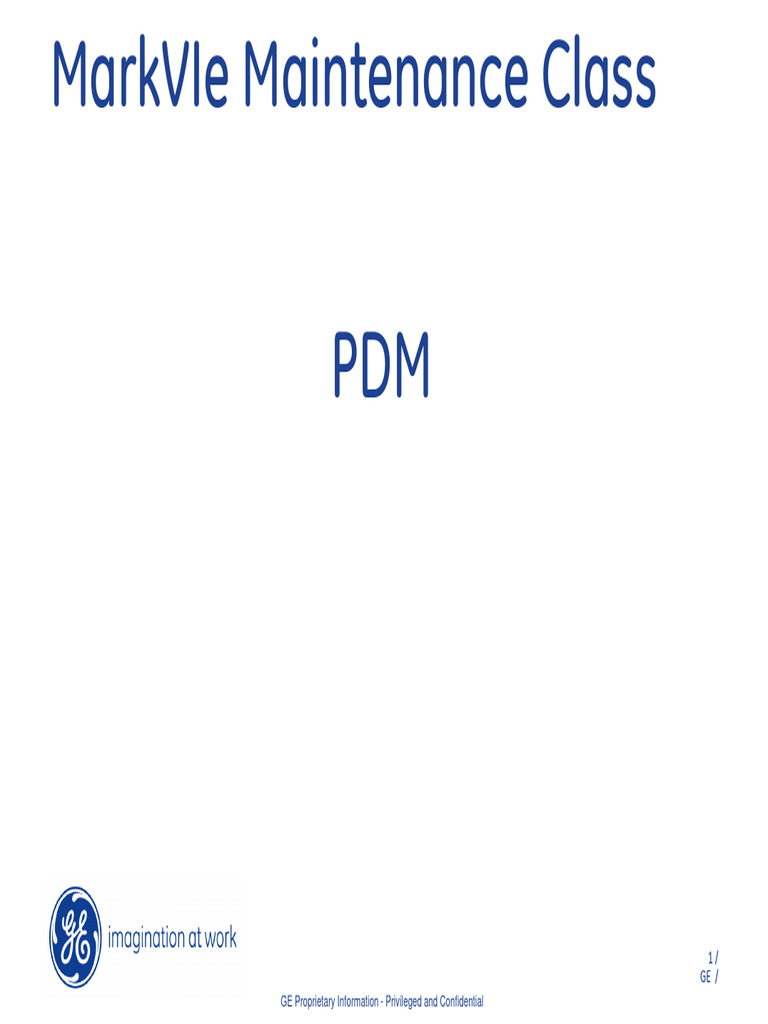

MarkVIe Maintenance Class

PDM

1/
GE /
GE Proprietary Information - Privileged and Confidential
Objective

Learn the different hardware associated with

the PDM (power distribution module) and their
function

2/
GE /
GE Proprietary Information - Privileged and Confidential
Overview

The PDM is not a

module but a
designation for all
boards associated
with Power
Distribution.

3/
GE /
GE Proprietary Information - Privileged and Confidential
Core vs Branch
The PDM is made up of 2 separate functional
types of boards
• Core – Primary power management for a
cabinet or series of cabinets. All core boards
are tied to the PPDA for power monitoring
• Branch – Split the power output from core
components into individual AC / DC circuits
for use in the cabinet. Branch boards are not
tied to the PPDA for power monitoring

4/
GE /
GE Proprietary Information - Privileged and Confidential
Input Power Options

24 VDC
125 VDC
115 VAC
220 VAC

5/
GE /
GE Proprietary Information - Privileged and Confidential
Core Components - JPDB
Designed for up to 2 AC inputs
Includes 2 AC line Filters for incoming power
6 fused and switched outputs
2 fused non switched outputs
Ribbon Cable Connection to PPDA IOPack for
power monitoring
2 versions G1 no provision for JPDR source
selector G2 for use with JPDR source selector

6/
GE /
GE Proprietary Information - Privileged and Confidential
Core Components – JPDB G1

7/
GE /
GE Proprietary Information - Privileged and Confidential
Core Components – JPDB G2

8/
GE /
GE Proprietary Information - Privileged and Confidential
Core Components - JPDF
Designed for 125 VDC input
Includes DC circuit breaker
Provisions for 2 DACA outputs
Total of 10 DC outputs
• 3 fused non switched
• 6 fused switched
• 1 output to TRPx

9/
GE /
GE Proprietary Information - Privileged and Confidential
Core Components – JPDF -2

10 /
GE /
GE Proprietary Information - Privileged and Confidential
Core Components – JPDE
24 / 48 VDC input board
Accepts inputs from battery (includes DC
circuit breaker, Filter and rectifier)
Accepts inputs from 2 DC power supplies
Ribbon Cable Connection to PPDA IOPack for
power monitoring

11 /
GE /
GE Proprietary Information - Privileged and Confidential
Core Components – JPDE -2

12 /
GE /
GE Proprietary Information - Privileged and Confidential
Core Components – JPDS
28 VDC control power output board
Includes PPDA IOPack
3 independent 28 VDC buses with one bulk
power supply input for each bus
3 outputs for CPCI controller racks
3 aux outputs
6 outputs for JPDL for JPDP cards
Ribbon Cable Connection to other Core
components for power monitoring
13 /
GE /
GE Proprietary Information - Privileged and Confidential
Core Components – JPDS -2

14 /
GE /
GE Proprietary Information - Privileged and Confidential
Core Components – JPDS -3

15 /
GE /
GE Proprietary Information - Privileged and Confidential
Core Components – JPDM

28 VDC control power output board

Like the JPDS except fewer outputs and
includes branch circuit protection
3 power supply inputs
3 28 VDC outputs to CPCI controller Racks
3 aux outputs
3 outputs for JPDL or JPDP cards
16 /
GE /
GE Proprietary Information - Privileged and Confidential
Core Components – JPDM -2

17 /
GE /
GE Proprietary Information - Privileged and Confidential
Core Components – PPDA IOPack

Provides power monitoring status for the Core

component circuit boards.
Is connected to either the JPDS or JPDM
boards

18 /
GE /
GE Proprietary Information - Privileged and Confidential
Core Components – DACA
Converts 120 or 220 VAC to 125 VDC

19 /
GE /
GE Proprietary Information - Privileged and Confidential
Core Components – DACA -2

20 /
GE /
GE Proprietary Information - Privileged and Confidential
Branch Components - JPDP

Intermediate 28 VCD power Distribution from

JPDM or JPDS
Outputs to JPDL boards or Ethernet Switches
for IONet.

21 /
GE /
GE Proprietary Information - Privileged and Confidential
Branch Components – JPDP -2

22 /
GE /
GE Proprietary Information - Privileged and Confidential
Branch Components – JPDP -3

23 /
GE /
GE Proprietary Information - Privileged and Confidential
Branch Components - JPDL

28 VDC power distribution from JPDP or JPDS /

JPDM
6 outputs to power IOPacks
Branch circuit protection with Polyfuse devices
Provisions for daisy chain to other JPDL boards

24 /
GE /
GE Proprietary Information - Privileged and Confidential
Branch Components – JPDL -2

25 /
GE /
GE Proprietary Information - Privileged and Confidential
Branch Components – JPDL -3

26 /
GE /
GE Proprietary Information - Privileged and Confidential
Branch Components – JPDA

AC power distribution, power isolation, branch

circuit protection
4 switched, fused (with LED’s indication)
outputs
Provision to daisy chain input power to other
JPDA boards

27 /
GE /
GE Proprietary Information - Privileged and Confidential
Branch Components – JPDA -2

28 /
GE /
GE Proprietary Information - Privileged and Confidential
Branch Components – JPDA -3

29 /
GE /
GE Proprietary Information - Privileged and Confidential
Branch Components – JPDD

DC (125 or 24 VDC) power distribution, power

isolation, branch circuit protection
6 switched, fused (with LED’s indication)
outputs
Provisions for daisy chain to other JPDD
boards

30 /
GE /
GE Proprietary Information - Privileged and Confidential
Branch Components – JPDD -2

31 /
GE /
GE Proprietary Information - Privileged and Confidential
Branch Components – JPDD -3
