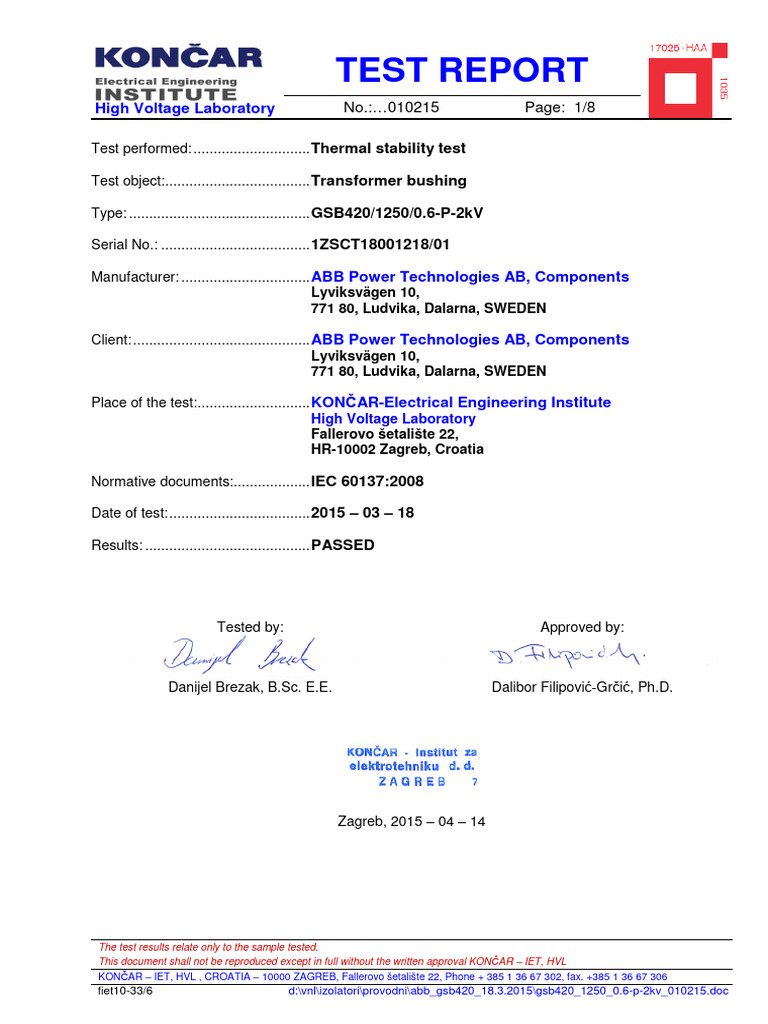

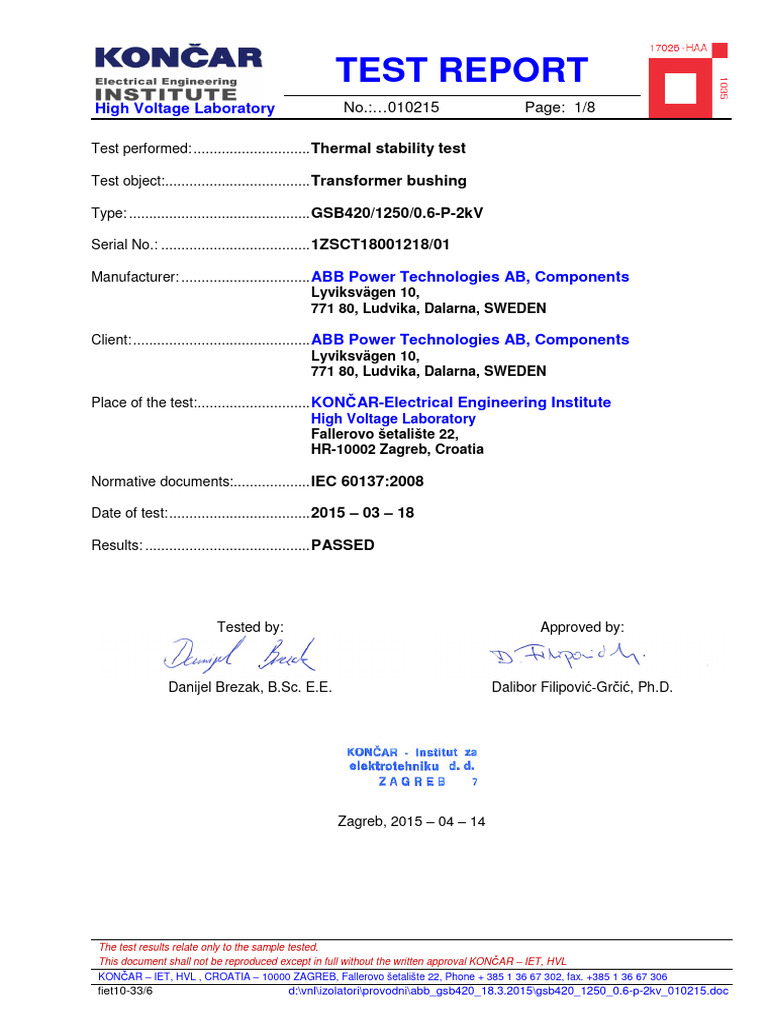

TEST REPORT
High Voltage Laboratory No.:…010215 Page: 1/8
Test performed: ............................. Thermal stability test
Test object:.................................... Transformer bushing
Type: ............................................. GSB420/1250/0.6-P-2kV
Serial No.: ..................................... 1ZSCT18001218/01
Manufacturer: ................................ ABB Power Technologies AB, Components

Lyviksvägen 10,
771 80, Ludvika, Dalarna, SWEDEN
Client: ............................................ ABB Power Technologies AB, Components

Lyviksvägen 10,
771 80, Ludvika, Dalarna, SWEDEN
Place of the test:............................ KONČAR-Electrical Engineering Institute

High Voltage Laboratory
Fallerovo šetalište 22,
HR-10002 Zagreb, Croatia
Normative documents:................... IEC 60137:2008
Date of test: ................................... 2015 – 03 – 18
Results: ......................................... PASSED
Tested by: Approved by:
Danijel Brezak, B.Sc. E.E. Dalibor Filipović-Grčić, Ph.D.
Zagreb, 2015 – 04 – 14
The test results relate only to the sample tested.

This document shall not be reproduced except in full without the written approval KONČAR – IET, HVL
KONČAR – IET, HVL , CROATIA – 10000 ZAGREB, Fallerovo šetalište 22, Phone + 385 1 36 67 302, fax. +385 1 36 67 306
fiet10-33/6 d:\vnl\izolatori\provodni\abb_gsb420_18.3.2015\gsb420_1250_0.6-p-2kv_010215.doc
TEST REPORT
1. BUSHING MARKINGS
Rated insulation level: 420/695/1550/1050 kV
Rated current: 1250 A
Mass: 595 kg
Identification of the test object according to drawing 1ZSC004877A0001 (Annex 1) submitted
by manufacturer.
2. TEST RESULTS
2.1. Routine tests before and after thermal stability test
Test reports are given in Annex 2.
2.2. Thermal stability test
Measuring equipment:
Voltage divider, Haefely, SN: 570187
Peak voltmeter, Trüb.Tauber, SN: 3442997
Compressed gas standard capacitor, Končar, type EC 500-50, SN: Mu-1835, CN=48,8 pF
Capacitance and dissipation factor measuring bridge, Tettex, type 2805, SN: 133788
Digital thermometer, Keithley, type 2700, SN: 4006104 (ambient and oil temperatures)
Wireless temperature measurement system, Emerson, (heater temperatures)
model 1420A1A3A2N1/848TXNAS001WA3WK1B6HA1F5Q4
SN: 0663642/02369588
Digital wattmeter, GW Instek, type GPM – 8212, SN: CF 200190
Test conditions:
Tests were performed in accordance with IEC 60137:2008 clause 8.5.
Test arrangement is shown in Figure 1.
Figure 1 – Test arrangement
The test was carried out in the presence of:

Bjorn Bergqvist, ABB AB
fiet10-34/4
TEST REPORT
The oil end of the bushing was immersed in metal tank (diameter 1200 mm, height 2700 mm)
filled with transformer oil. Oil temperature was maintained at the 90 °C ± 2 °C. This
temperature was measured 3 cm below the surface, and 30 cm from the bushing.
Conductor losses were simulated by heater inserted along the bushing central tube. The
length of the heater was approximately equal to the length of the central tube. The power of
the heater was adjusted to 210 W. The heater was grid-supplied until the thermal equilibrium
between the oil and the bushing was reached. After the voltage application the heater was
supplied by a petrol driven generator. Four thermocouples were placed along the heater, 1130
mm, 1700 mm, 2930 mm and 3620 mm from the lower side end.
The voltage 336 kV, was applied on the bushing when thermal equilibrium between the oil and
the bushing was reached. The bushing capacitance and dielectric dissipation factor were
measured. The ambient air (Ta) oil (To) temperatures were recorded at each measurement.
Test results in accordance with IEC

time duration U To Ta C
tanδ (%)
hh:mm hh:mm (kV) (°C) (°C) (pF)
11:30 0:00:00 336 91,0 19,0 650,2 0,2339
11:50 0:20:00 336 91,1 19,1 650,2 0,2346
12:10 0:40:00 336 91,1 19,3 650,3 0,2342
12:30 1:00:00 336 91,1 19,4 650,4 0,2341
12:50 1:20:00 336 91,2 19,6 650,4 0,2336
13:10 1:40:00 336 91,3 19,7 650,5 0,2336
13:30 2:00:00 336 91,2 19,7 650,5 0,2336
13:50 2:20:00 336 91,1 19,8 650,6 0,2336
14:10 2:40:00 336 91,1 19,8 650,6 0,2336
14:30 3:00:00 336 91,2 19,9 650,7 0,2336
14:50 3:20:00 336 91,3 19,9 650,7 0,2332
15:10 3:40:00 336 91,2 19,9 650,7 0,2334
15:30 4:00:00 336 91,1 19,9 650,7 0,2330
15:50 4:20:00 336 91,2 19,8 650,8 0,2330
16:10 4:40:00 336 91,2 19,8 650,8 0,2330
16:30 5:00:00 336 91,2 19,8 650,8 0,2329
The bushing reached thermal stability and withstands dielectric routine tests without significant
change from previous results.
The bushing PASSED the thermal stability test in accordance with IEC 60137:2008.
fiet10-34/4
TEST REPORT
ANNEX 1. Drawing of the test object
fiet10-34/4
TEST REPORT
ANNEX 2.
Routine test report before thermal stability test (page 1/2)
fiet10-34/4
TEST REPORT
Routine test report before thermal stability test (page 2/2)
fiet10-34/4
TEST REPORT
Routine test report after thermal stability test (page 1/2)
fiet10-34/4
TEST REPORT
Routine test report after thermal stability test (page 2/2)
fiet10-34/4
TEST REPORT
Test performed: ............................. Temperature rise tests
Test object:.................................... Bushing
Type: ............................................. GSB420/1250/0.6-P-2kV
Serial No.: ..................................... 1ZSCTU8000135/04
Drawing: ........................................ 1ZSC005378A001
Manufacturer: ................................ ABB Components

Lyviksvägen 10
771 80 Ludvika, Dalarnas län, Sweden
Client: ............................................ ABB Components

Lyviksvägen 10
771 80 Ludvika, Dalarnas län, Sweden
Place of the test:............................ KONČAR-Electrical Engineering Institute

High Voltage Laboratory
Fallerovo šetalište 22,
HR-10002 Zagreb, Croatia
Normative documents:................... IEC 60137:2008, client’s request
Date of test: ................................... 2016-02-29 to 2016-03-03
Results: ......................................... PASSED
Tested by: Head of laboratory:
Danijel Brezak, B.Sc.E.E. Dalibor Filipović-Grčić, Ph.D.
Zagreb, 2016-03-30
The test results relate only to the sample tested.

This document shall not be reproduced except in full without the written approval KONČAR – IET, HVL
KONČAR – IET, HVL , CROATIA – 10000 ZAGREB, Fallerovo šetalište 22, Phone + 385 1 36 67 302, fax. +385 1 36 67 306
fiet10-33/7 d:\vnl\izolatori\provodni\abb_gsb420_29.2.-3.3.2016\gsb420_010916.doc
TEST REPORT
1. BUSHING MARKINGS
Rated voltage: 420 kV
Phase to earth voltage 243 kV
Rated current: 1250 A
Dry lightning impulse: 1550 kV
Dry switching impulse: 1175 kV
Wet switching impulse: 1050 kV
Wet power frequency: 460 kV
Routine test 1 min, dry: 750 kV
2. TESTS PERFORMED
1.... Temperature rise test 0 A
2.... Temperature rise test 1250 A, 50 Hz
3.... Temperature rise test 1350 A, 50 Hz
3. TEST SETUP AND CONDITIONS

Measuring equipment
Data acquisition system, Keithley, type:2700 , SN:4006104
20 channels multiplexer module, Keithley, type 7700, SN: 1423801; 1423802
Thermocouples cuprum – constantan
Current transformer, Končar, type: GODEC, SN:001
Digital multimeter, Tektronix, type: DMM 4050, SN:1212202
Test setup
Bushing was mounted vertically on a test tank which was filled with transformer oil. In order to
maintain a desired oil temperature test tank was equipped with a heater and circulating pump.
Oil temperature was maintained at 60 ± 2 K above ambient temperature. Oil level was
maintained with a conserver tank placed at the appropriate height. Oil was maintained at the
level which did not exceed 1/3 of the bushings external dimensions.
Current loop was assembled with a water cooled conductors and current was applied by
means of test transformers.
Connection between the bushing and the water cooled conductors in air was assembled with a
bus-bars of 1200 mm2. Connection in oil was assembled with 2 copper cords of 300 mm2 and
oil-air bushing DIN type (Ir=2000 A).
Temperature of oil was measured with three thermocouples placed inside the test tank
approximately 3 cm from the top of the tank, and at a distance of 30 cm from the bushing.
Ambient temperatures were measured with three thermocouples placed in oil containers
(0,5 l) at mid-height of the bushing and at a distance of 1 m from the bushing.
Temperature decrease from the bushings termination was measured with thermocouples
placed 1 m from the connection in oil part and 0,5 m on air side to prove that the external
connections do not contribute to the cooling of the bushing under test (≤5 K/m).
Detailed thermocouple layout is given in Annex 2.
fiet10-34/4
TEST REPORT
4. TEST RESULTS
4.1. Temperature rise test 0 A
Thermocouple Temperature Temperature rise Temperature change

No. [°C] [K] during last 2 hours [K]
1 78,51 58,49 0,02
2 77,00 56,99 0,03
3 74,51 54,50 0,03
4 69,30 49,28 0,03
5 62,81 42,80 0,03
6 50,42 30,41 0,06
7 41,43 21,42 0,09
8 35,49 15,48 0,09
9 31,81 11,80 0,10
10 28,71 8,70 0,12
11 26,35 6,34 0,08
12 24,47 4,45 0,05
13 23,69 3,67 0,05
14 22,88 2,87 0,03
15 22,35 2,34 0,03
16 21,96 1,95 0,02
17 21,54 1,53 0,00
18 78,78 58,77 -0,03
19 78,99 58,98 -0,03
20 79,09 59,08 -0,04
21 79,18 59,17 -0,03
22 79,10 59,09 -0,03
23 79,17 59,16 -0,01
24 76,09 56,08 -0,03
25 20,92 0,91 -0,02
26 20,96 0,95 -0,02
27 21,02 1,01 -0,02
28 21,31 1,29 -0,02
30 79,57 59,56 -0,07
31 79,34 59,33 0,09
32 79,59 59,57 -0,09
33 20,00 -0,02 0,01
34 19,96 -0,05 -0,01
35 20,08 0,07 0,00
fiet10-34/4
TEST REPORT
4.2. Temperature rise test 1250 A, 50 Hz

1 82,35 61,54 -0,07
2 83,16 62,35 -0,04
3 82,34 61,53 -0,03
4 79,12 58,31 0,03
5 73,96 53,15 0,08
6 62,32 41,51 0,14
7 54,45 33,64 0,14
8 48,77 27,96 0,17
9 45,81 25,00 0,15
10 42,75 21,94 0,15
11 39,86 19,05 0,13
12 36,23 15,42 0,14
13 36,26 15,45 0,08
14 35,20 14,39 0,05
15 33,84 13,03 0,04
16 33,70 12,89 -0,02
17 31,30 10,49 -0,04
18 82,81 62,00 -0,09
19 82,68 61,87 -0,10
20 83,16 62,35 -0,14
21 83,80 62,99 -0,17
22 87,37 66,56 -0,29
23 87,36 66,55 -0,44
24 82,93 62,12 -0,16
25 29,79 8,98 -0,11
26 29,55 8,74 -0,11
27 30,05 9,24 -0,11
28 32,07 11,26 -0,12
30 80,94 60,13 -0,06
31 80,74 59,93 -0,21
32 81,08 60,27 -0,11
33 20,81 0,00 0,07
34 20,75 -0,06 0,05
35 20,87 0,06 0,07
Temperature gradient from the bushings termination in air -4,04 K/m

Temperature gradient from the bushings termination in oil -7,12 and -7,11 K/m
fiet10-34/4
TEST REPORT
4.3. Temperature rise test 1350 A, 50 Hz

1 82,76 61,21 0,04
2 83,96 62,41 0,10
3 83,49 61,93 0,16
4 80,50 58,94 0,22
5 75,49 53,93 0,29
6 63,90 42,34 0,31
7 56,30 34,75 0,36
8 50,65 29,09 0,35
9 47,82 26,26 0,37
10 44,76 23,20 0,37
11 41,89 20,33 0,41
12 37,89 16,34 0,37
13 38,08 16,52 0,32
14 37,04 15,49 0,37
15 35,63 14,08 0,36
16 35,68 14,13 0,36
17 33,16 11,60 0,36
18 83,22 61,67 0,04
19 83,05 61,49 0,05
20 83,57 62,02 0,02
21 84,30 62,75 0,01
22 88,52 66,96 -0,06
23 88,56 67,00 -0,08
24 84,09 62,54 0,08
25 32,01 10,45 0,31
26 31,75 10,19 0,27
27 32,33 10,78 0,29
28 34,69 13,13 0,20
30 81,14 59,58 -0,05
31 80,89 59,33 0,02
32 81,13 59,57 0,00
33 21,55 -0,01 0,11
34 21,52 -0,04 0,11
35 21,60 0,05 0,13
Temperature gradient from the bushings termination in air -4,70 K/m

Temperature gradient from the bushings termination in oil -8,44 and -8,51 K/m
5. CONCLUSION
According to the results, the bushing fulfills the requirements of IEC 60137:2008, section 8.7.
fiet10-34/4
TEST REPORT
ANNEX 1. Drawing of the test object
fiet10-34/4
TEST REPORT
ANNEX 2. Layout of thermocouples
1 On conductor tube
2 On conductor tube
3 On conductor tube
4 On conductor tube
5 On conductor tube
7 On conductor tube
8 On conductor tube
9 On conductor tube
10 On conductor tube
14 On conductor tube – above the screwed bottom contact
19 Aluminum ring of the bottom contact
20 Bigger diameter of the bottom contact
21 Flag of the bottom contact
22 Reference 0,5 m, oil terminal conductor 1
23 Reference 0,5 m, oil terminal conductor 2
24 Reference 1 m, oil terminal conductor 2
25 Air outer terminal – bigger diameter
26 Aluminum clamp
27 Top of the air outer terminal
28 Reference 0,5 m, air terminal conductor
30 Reference in oil
31 Reference in oil
32 Reference in oil
33 Reference in air
34 Reference in air
35 Reference in air
fiet10-34/4
TEST REPORT
ANNEX 4. Photo of the bushing under tests
fiet10-34/4
NATIONAL TECHNICAL UNIVERSITY OF ATHENS
SCHOOL OF CIVIL ENGINEERING
LABORATORY FOR EARTHQUAKE ENGINEERING
DIRECTOR: PROFESSOR CONSTANTINE SPYRAKOS
TEST REPORT NTUA.LEE 01-1/2016
FINAL REPORT
EARTHQUAKE TEST
ABB TRANSFORMER BUSHING TYPE GSB 420/1250/0.6 ACCORDING TO IEC 61463 AG5 LEVEL
Pages: Text 27; Total 95
Athens, Greece, 11 March 2016
POLYTECHNIC CAMPUS, ZOGRAFOS 157 80 ATHENS-GREECE Tel: Personal: 0030 210 772 1187
Web site: http://www.lee.civil.ntua.gr/ Tel: Secretary: 0030 210 772 1180
Fax: 0030 210 772 1182
NTUA EARTHQUAKE TEST Page 1
LEE ABB TRANSFORMER BUSHING TYPE GSB 420/1250/0.6 ACCORDING TO
IEC 61463 AG5 LEVEL
INDEX
1. SUMMARY.................................................................................................................................................... 2
2. INTRODUCTION ............................................................................................................................................ 4
3. SEVERITY OF THE TEST ................................................................................................................................. 4
3.1. Static Bending Test.................................................................................................................................. 4
3.2. Snap-Back Test ........................................................................................................................................ 5
3.3. Sine logarithmic sweep ........................................................................................................................... 5
3.4. Time history tests in accordance to IEC61463:1996+A1:2000 for AG5 Level 0.50g ................................ 6
3.4.1. Preconditioning Triaxial Test in accordance to IEC61463:1996+A1:2000 for AG5 Level 0.50g (input
level 0.75g) ........................................................................................................................................ 6
3.4.2. Conditioning Tri-axial Test in accordance to IEC61463:1996+A1:2000 for AG5 Level 0.50g (input
level 0.75g) ........................................................................................................................................ 6
3.5. Sine logarithmic sweep ........................................................................................................................... 6
4. DETAILS OF MOUNTING ............................................................................................................................... 7
5. NUMBER AND RELATIVE POSITION OF TESTING AXES ................................................................................. 7
6. TRANSFORMER BUSHING TYPE GSB 420/1250/0.6 IDENTIFICATION FILE ................................................... 8
7. INFORMATION FOR SEISMIC QUALIFICATION ............................................................................................. 8
7.1. Quality Plan ............................................................................................................................................. 9
8. TEST FACILITY ............................................................................................................................................. 10
8.1. Location ................................................................................................................................................ 10
8.2. Test equipment description and calibration ......................................................................................... 10
9. TEST METHOD ............................................................................................................................................ 12
10. REFERENCES............................................................................................................................................... 12
11. TEST DATA INCLUDING FUNCTIONAL DATA............................................................................................... 12
12. RESULTS AND CONCLUSIONS ..................................................................................................................... 13
LIST OF APPENDICES
APPENDIX A: Dimension drawing of Transformer Bushing type GSB 420/1250/0.6
APPENDIX B: Static Bending Tests
APPENDIX C: Measured Time Histories (Test 1-8)
APPENDIX D: Relative Displacement Time Histories (integration from accelerometers.-Test 5)
APPENDIX E: Routine test of bushing before and after shaking test (provided by ABB)
Date: The Director of the Laboratory

11 March 2016 Prof. C. Spyrakos
IEC 61463 AG5 LEVEL
1. SUMMARY
A Transformer bushing type GSB 420/1250/0.6 with composite insulator constructed and
manufactured by ABB. The test object was mounted using a stiff test frame at 20 degrees to
vertical direction for seismic tests.
Initially, static bending tests were performed in order to calibrate half bridge strain gauges (S1/S2)
measuring moment at the base of composite insulator flange. The static bending tests in each
direction were followed by snap-back test. Both static and snap-back tests were performed with
the bushing in vertical direction using a stiff test frame. Then, the test object mounted at 20
degrees to vertical direction and tested under sine logarithmic sweep excitation along each one of
the main X, Y and Z directions in order its natural frequencies and their damping to be determined.
Conditioning tri-axial earthquake tests along X, Y and Z directions were executed according to IEC
61463:1996+A1:2000 [1] for ground acceleration level 0.50g (AG5). The base motion was increased
with a factor of 1.5 considering of super elevation factor K=1.5 (input level 0.75g). An artificial time
history, pre-approved according to C1.4.4 of IEC60068-2-57 [2] was chosen for seismic verification
test. The tests were run under acceleration control. In order to adjust to the available displacement
capacity of the shaking table the lowest frequency content is approximately 1.0Hz. The testing
procedure was completed by repetition of resonance searches along each one of the main X, Y and
Z directions.
Bending moment about local directions at base of composite insulator (S1/S2), stresses on cast
aluminium flange (S3, S4), displacement and acceleration at top terminal (air side connection - A1,
D1X/D1Y) and acceleration at bottom terminal (oil side connection - A2) are summarised in Table 1
for conditioning tri-axial earthquake test according to to IEC 61463:1996+A1:2000 [1] for AG5
(0.50g) increased by a factor of 1.5 (input level 0.75g). Additional, in Table 1, the dynamic
characteristics of the fundamental modes of specimen prior and after seismic tests are given.
The Transformer bushing type GSB 420/1250/0.6 with serial number 1ZSCTU80000136/01 passed
the seismic test according to IEC 61463:1996+A1:2000 [1] without any visible damage.

IEC 61463 AG5 LEVEL
Table 1. Summary Results of Shake Table Test of Transformer Bushing GSB

420/1250/0.6. Time History Test IEC 61463 AG5 Level increased by a factor
of 1.5 ( ZPA= 0.75g).
Description / Quantity Location Measured Allowable Ratio

(f) (F) (F/f)
Maximum Horizontal X 26.25

Acceleration (m/s2) A2 Y 29.25 - -
Oil Side Tip Z 21.63
Maximum Horizontal X 58.02
Acceleration (m/s2) A1 Y 62.86 - -
at Terminal Z 28.21
Ditto, Relative
X 53.81
Displacement (mm) - -
A1 Y 37.14
(Integration of Accel.)
Ditto, Relative Transverse
D1 X 41.25
Displacement (mm) - -
Y 39.31
(Displ. Transducer.)
Maximum
S1 30.58 1.58
Bending Moment (kNm) 48.5
S2 32.78 1.47
Composite Insulator
Maximum Stress (MPa) S3 63.82 2.82
180
Aluminum Flange S4 57.6 3.12
Sweep Longitudinal X
Lowest Resonance Frequency 6.84(Hz)/6.81(Hz)
(Hz) and Damping (%) A1(X)
1.95 (%)/1.99(%)
Before test/After Test
Sweep Lateral Y
Lowest Resonance Frequency 6.88(Hz)/6.84(Hz)
A1(Y)
(Hz) and Damping (%) 1.82(%)/2.13(%)
Before Test/After Test
Notes. Local: X’ Longitudinal direction. Y’-Lateral direction. Z’ 20 degrees to Vertical direction.
S1 and S2 bending about local Y’ and X’ axis respectively.
Allowable Bending in Polymer insulator is 1.5 times the Maximum Mechanical Load (MML)
of 32.3kNm=48.5kNm.
Stress in aluminum flange assessed from measured strain using Elasticity Modulus of 75 GPa.
Allowable stress is 100% of Yield strength (180 Mpa)

IEC 61463 AG5 LEVEL
2. INTRODUCTION
The present test has been performed after an agreement between the ABB Power Grids
Components (Sweden) and the Laboratory for Earthquake Engineering (LEE) at National Technical
University of Athens (NTUA), Greece.
In LEE a 6 DOF Shaking Table is functioning with full electronic control and data acquisition system
of 48 channels. The description of the testing facility is given in Chapter 8, page 10 of the present
report.
The earthquake tests concern the following specimen:
A Transformer Bushing type GSB 420/1250/0.6 with composite insulator was manufactured by ABB
Power Grids Components (Sweden). The unit had approximately a service mass of 595Kg and total
length of 5560 mm. The bushing was tested without any additional mass at both of its terminals.
The bushing was mounted using a stiff test frame (steel turret), at an angle of 20 degrees to vertical
direction (Figure 1). The stiff frame was fixed directly on the shaking table (Figure 2). A whole view
of the specimen on the shaking table is shown in Figure 3. The orientation of local and main axis is
presented in Figure 1. In Appendix A, the ABB dimension drawing of the bushing is presented.
The test was performed on Friday 11th and Saturday 12th of March 2016. Participants in the tests
are as following:
Witnessing on behalf of ABB:

Andreas Backström
Witnessing on behalf of Power Grid Corporation of India Ltd:
Singh Prashant
The test was performed and evaluated by the Dr. Civil Engineer, H.P. Mouzakis, Assistant Professor
of School of Civil Engineering. Test data were analysed by the Dr. Civil Engineer L. Karapitta. S.
Vranakis is the supervisor of Quality Management. The Electronic Engineer A. Asimakopoulos, the
Mechanical Engineer G. Mikelis and the technicians M. Koliarakis and P. Mouzakis helped
throughout the test for its successful performance.
3. SEVERITY OF THE TEST
3.1. Static Bending Test

Strain gauges S1 and S2 that were placed at base of composite insulator for measurement bending
about local Y’ and X’ axis were calibrated by a static force of 9.8 kN applied and released at air side
terminal of bushing.
Static bending tests were performed in both horizontal local axes separately. Each test was
repeated three times. The force was imposed at a distance of 3.72m from bottom of insulator.
During these tests the bushing was mounted in vertical direction using a special steel turret as
shown in Figure 4. The experimental set–up for static bending test is shown in Figures 4 and 5.

IEC 61463 AG5 LEVEL
3.2. Snap-Back Test

The static bending test in each direction was followed by a snap - back test. A static force of
magnitude 9.8kN was applied at air side terminal of bushing. The force was imposed in two cycles
at level 50% (4.9kN) and 100% (9.8kN). Then the load suddenly released and consequently free
vibration of bushing was recorded. The level of moment at base of bushing due to applied force at
tip was similar to the one expected during seismic test. During the test three displacement
transducers attached to bushing (from tip equally every 1/3rd of bushing flange length-D1, D2, D3)
recorded the free oscillation of bushing. Additional the bending moment at base of insulator and
the acceleration at air side terminal (A1) were recorded. The instrumentation set-up is shown in
Figure 5.
Fundamental modal frequency was assessed based on strain and acceleration time histories (IEC
61463:1996+A1:2000- Annex B [1]). Damping ratio was calculated using the logarithmic decrement
method by the following expression:
1 1  A0 
ζ ln  
Ν 2π  AN 
where N is the number of cycles, seven cycles were taken into account; A0 and AN are the
amplitudes of acceleration of fourth and seventh cycle respectively. In Tables 2 and 3 the
fundamental natural frequencies and the damping of the specimen are shown. In Figures 6 to 9 the
obtained results (imposed force and recorded strain, acceleration and displacement time histories)
are presented. Minor remaining displacement after release of the force, is showing in figures 6b-6d
and 8b-8d.
Table 2. Measured natural frequencies and damping

Snap-Back Test in Local Y’ (S1) direction
Direction Frequency Damping
(Hz) (%)
A1/S1
Local Y’
6.8 1.37

Snap-Back Test in Local X’(S2) direction
Direction Frequency Damping
(Hz) (%)
A1/ S2
Local X’
6.84 1.24
In Figure 10, the mode shape based on peak amplitude recorded during snap-back test in X and Y
direction is presented.
3.3. Sine logarithmic sweep

A sine logarithmic sweep signal has been applied. The frequency range was 0.50-35.0Hz at a rate of
one octave per minute. These tests were executed along each one of the main axes X, Y and Z
separately, with amplitude of vibration of 0.05g. Since sine sweep rate is one octave per minute
and start frequency is 0.50 Hz the exciting frequency versus time is given by the following
expression:

IEC 61463 AG5 LEVEL
TIME (sec)
f(Hz)  0.5  2 60
These tests were performed in order the natural frequencies and the damping of the bushing to be
determined. In Table 4 the fundamental natural frequency and its damping along each axis are
shown using records at point A1XYZ (air side terminal). In Z direction none frequency was found.

using A1XYZ (air side terminal)
Direction Frequency (Hz) Damping (%)
X 6.84 1.95
Y 6.88 1.82
3.4. Time history tests in accordance to IEC61463:1996+A1:2000 for AG5 Level 0.50g
A time history test in accordance to RRS for AG5 Level 0.50g of IEC61463:1996+A1:2000 [1] was
performed. The test level is 1.50 the ground level taking into account a super elevation factor of
1.50. In Figure 11, the Required Response Spectrum (RRS) IEC 61463:Level AG5 (0.5g) increased by
a factor of 1.5 to level 0.75g for damping 2% is depicted.
Three different acceleration time histories in X, Y and Z main axes, pre-approved according to C1
4.4 of IEC60068-2-57 [2] were used. The total duration of time histories is 30 sec of which the
strong part is 20sec. The time histories were provided by ABB Corporate Research. The time history
tests were run in acceleration control. In order to adjust to the available displacement capacity of
the shaking table the lowest frequency content is approximately 1.0Hz. In Figure 12, the
acceleration time histories in X, Y and Z axis used for seismic verification test are presented.
3.4.1. Preconditioning Triaxial Test in accordance to IEC61463:1996+A1:2000 for AG5 Level 0.50g
(input level 0.75g)
A triaxial earthquake test along X, Y and Z axes at levels of 50% of the level of conditioning test
(input 0.75g) was performed. This test was executed in order to tune the shaking table.
3.4.2. Conditioning Tri-axial Test in accordance to IEC61463:1996+A1:2000 for AG5 Level 0.50g
(input level 0.75g)
A tri-axial earthquake test in X, Y and Z global axes using pre-approval earthquake was performed.
In Figures13a-13c the comparison between acceleration Test Response Spectrum (TRS) and
Required Response Spectrum (RRS) defined by IEC 61463:1996+A1:2000, for AG5 Level (0.5g) [1]
(1.5 times RRS 0.5g) for damping 2% are presented for X, Y and Z global axes. The TRS for damping
2% envelops the RRS in frequency range 1.0-35 Hz.
3.5. Sine logarithmic sweep

After time history tests of AG5 Level, a sine logarithmic sweep signal has been applied, in order to
check for any variation of resonance characteristics of specimen. The frequency range was 0.50-
35.0Hz at a rate of one octave per minute. These tests were executed along each one of the main
axes X, Y and Z separately, with amplitude of vibration of 0.05g. The exciting frequency versus time
is given by the following expression:

IEC 61463 AG5 LEVEL
TIME (sec)
f(Hz)  0.5  2 60
In Table 5 the fundamental natural frequencies and their damping of the specimen are shown. In Z
direction none frequency was found.

using A1XYZ (air side terminal)
Direction Frequency (Hz) Damping (%)
X 6.81 1.99
Y 6.84 2.13
The transfer functions before and after seismic verification tests in main X and Y direction at point
A1XY (air side terminal) and A2XY (oil side terminal) are shown in Figures 14 and 15 respectively.
Small change after tests compared to before can indicate that structural integrity has not been
deteriorated.
4. DETAILS OF MOUNTING
The stiff steel frame of the bushing was attached through adapter plate (Figure 2) according to ABB
Instructions [3]. The plate was fixed rigidly on the shaking table using M30 bolts. The specimen was
placed on the shaking table by the personnel of the Laboratory. A view of the whole mounting of
the specimen on the shaking table is shown in Figure 3.
5. NUMBER AND RELATIVE POSITION OF TESTING AXES

In Figure 16 the measuring points of acceleration are presented. The instruments used are
accelerometers made by KYOWA/JAPAN. In Table 6 data of the tri-axial accelerometer A1XYZ (main
axis) at air side terminal, A2XYZ (main axis) at bottom oil side terminal and A3XYZ (main axis) at top
of support frame are given.
Table 6. Data of the used accelerometers

Measurement Direction Calibration Type Serial No
Position value
(m/sec2)
X 907.870
A1 Y 902.855 KYOWA GA 7250009
Z 889.746
X 919.749
A2 Y 869.238 KYOWA GA 7250010
Z 891.364
X 881.745
A3 Y 880.162 KYOWA GH 2480007
Z 888.134
Half bridge strain gauges S1A/B and S2A/B for measurement bending moment at base of composite
insulator for measurement bending about local Y’ and X’ direction respectively are shown in Figure

IEC 61463 AG5 LEVEL
16. The strain gauges (type KFG-10-120-C1-23L1M2R) had been mounted and calibrated during
static bending tests, prior to shaking table tests by the personnel of Laboratory for Earthquake
Engineering NTUA. The force during static bending tests was measured by DBBSE–10T load cell
made by Applied Measurements/UK. In Figures 17 and 18, best fit curves between applied and
measured moment for the previously mentioned moment strain gauges are presented. In Table 7,
the calibration factor of half bridge strain gauges S1/S2 is shown.
In Figure 16, the position of single strain gauges S3, S4 on steel flange. The calibration factors of
single strain gauges S3 and S4 are given in Table 8.
Displacement transducer at measurement point D1 along Y direction is presented in Figure 16. In

Table 9 its calibration factor is shown.
Table 7. Calibration factors of half bridge strain gauges

Location Calibration factor
Moment (kNm/Volt)
S1A/B -21536.598
S2A/B 27412.33
Table 8. Calibration factors of single strain gauges

Location Calibration factor
(μstrain)
S3 0.971
S4 0.971
Table 9. Calibration factor of Displacement Transducer

Location Serial Number Calibration Value
(mm/Volt)
D1X (D1)* A2100365 137.00
D1Y (D2)* A21003594A 139.00
D3* A21003555 137.50
*
Snap-back test
Figure 19 presents the accelerometers mounted at measurement points A2 and A3. Half bridge
strain gauges S1A/B and S2A/B for measurement bending moment are shown in Figure 20 and 21
respectively. Single strain gauges S3 and S4 are shown in Figure 22. The instrumentation is outlined
in [3].
6. TRANSFORMER BUSHING TYPE GSB 420/1250/0.6 IDENTIFICATION FILE

The Transformer Bushing type GSB 420/1250/0.6 with serial number 1ZSCTU80000136/01 was
manufactured by ABB Power Grids Components (Sweden).
7. INFORMATION FOR SEISMIC QUALIFICATION

The test was performed at the Laboratory for Earthquake Engineering, Athens Greece. The fixing of
the specimen on the shaking table and the instrumentation set-up was performed from 7th of
March 2016 to 10th of March 2016. Static bending tests were performed during 11th of March 2016
The time sequence of the resonance seismic tests is shown in Table 10.

IEC 61463 AG5 LEVEL
7.1. Quality Plan

This Chapter contains the relevant Parts of the Quality Plan for this project, which are not covered
elsewhere. The Quality Plan was compiled in English and, as a controlled document is available at
the Laboratory for inspection. The EN ISO 9001:2008 certification is granted to the LEE from TUV
SAAR CERT Certification body of TUV Saarland e. V. to perform Dynamic Seismic Tests (Certificate
DE 14/818841863)
PART 1: TECHNICAL DESCRIPTION
PART 2: SPECIFICATIONS, STANDARDS, AND TECHNICAL DOCUMENTS

1. IEC 61463:1996+A1:2000 Bushings – Seismic qualification
2. IEC60068-2-57 Environmental testing – Part 2-57: Tests-Test Ff: Vibration-Time History
and sine-beat method (2013)
Table 10. Time sequence of the tests

Test
Test Description Date Time
No
1 Sine Logarithmic Sweep, Y-direction 0.50-35.0Hz, amplitude 0.05g 12/03/2016 1:20
2 Sine Logarithmic Sweep, X-direction 0.50-35.0Hz, amplitude 0.05g 12/03/2016 1:27
3 Sine Logarithmic Sweep, Z-direction 0.50-35.0Hz, amplitude 0.05g 12/03/2016 1:36
Preconditioning tri-axial test AG5 Level according to IEC 61463 - 12/03/2016
4 2:05
50%
5 Conditioning AG5 Level according to IEC 61463 12/03/2016 2:33
6 Sine Logarithmic Sweep, Y-direction 0.50-35.0Hz, amplitude 0.05g 12/03/2016 2:46
7 Sine Logarithmic Sweep, X-direction 0.50-35.0Hz, amplitude 0.05g 12/03/2016 2:52
8 Sine Logarithmic Sweep, Z-direction 0.50-35.0Hz, amplitude 0.05g 12/03/2016 2:59
PART 3: WORK INSTRUCTIONS AND PROCEDURES

1. Strain Gauges (Selection – Mounting)
2. Reports for the results of the tests
3. Calibration of accelerometers
4. Calibration of Strain Gauges
5. Crane (operation – maintenance)
PART 4: SPECIAL OPERATIONS

1. Calibration instruments
2. Photograph – Video
PART 5: CERTIFICATE – LICENCES

1. Strain Gauges
PART 6: SPECIAL EQUIPMENT

1. Polymeter, Voltmeter
2. Instrument for accelerometers’ calibration (Endevco 28959 DV)
3. Load cell (Type Tiedemann)
4. Torque wrench
5. Hydraulic hand oil pump

IEC 61463 AG5 LEVEL
6. Hydraulic cylinder, type Enerpac
8. TEST FACILITY
8.1. Location
The address is:
Laboratory for Earthquake Engineering,
National Technical University of Athens,
Polytechnic Campus,
Zografos 15700. Athens, Greece.
Tel.: 00301-7721180 Fax 00301-7721182
The access to the test facility is easy for long and large vehicles, since the facility is adjacent to a
high way, and there is a large parking in front of it.
8.2. Test equipment description and calibration

Platform-Mechanical Parts.
Dimensions: 4m x 4m x 6m
Weight :100 kN Material : Steel
Number of independent degrees of freedom: six (6)
Max weight of Specimen 100 kN, if centre of mass is at 2m above the simulator's platform. Larger
specimen weights might be accommodated according to the calibration curves.
Max Horizontal Force (direction X,Y): 320 (kN) max Vertical Force (direction Z): 640 (kN) max
Displacement of the platform each axis: ±10 (cm)
Max rotation about each axis: 7 x 10-2 (rad)
Max acceleration to each horizontal Direction: (X,Y): 2.0 g max acceleration, to vertical direction
(Z): 4.0 g
Max velocity to each axis: 100 cm/sec
Operating frequencies for each degree of freedom: 0,1- 50 Hz
Electric Power installed:1200 kVA
Electronic Hardware
Analog Unit with waveform generators and combination units. Independent performance for each
one degree of freedom. Digital Control Unit, with a PC and its peripherals. Data Acquisition System,
48 Channels with Analog/Digital and Digital/Analog converters of high Sweeping frequency for the
attendance of dynamic phenomena from several receivers (strain-gauges, accelerometers,
displacement transducers, etc.) storage of records in disks.
Table Motion Control Software

The main functions provided by the software are the following:
1. Waveform creations; 2. real-time test control: 3; control enhancement iteration; 4, table motion
analysis; 5. library handling; and 6. graphic display.
Waveform creation
Several types of waveforms can be created and stored in a special profile library. These profiles can
then be allocated as desired to the various motion control axes on the table for a test. The
following type of waveforms can be created: sinusoidal, sine sweep, random, random based on a
response spectrum definition, and tabulated entry of field recorded earthquakes. The response
spectra software utilises a special technique, which allows long random time histories to be created

IEC 61463 AG5 LEVEL
and iterates on the random waveform more exactly to the response spectra definition. It is
generally believed that this results in a higher-quality test.
Test Control
The software supports flexible selection and scaling of profiles for usage in single or multiple
degree-of-freedom seismic testing. For example, six profiles could be selected and assigned to each
axis for a full six degree-of-freedom test. The actual real-time control software synchronises the
starting and stopping of the test, and control, the D/A and A/D hardware. Several steps are taken
to safely initiate and terminate the test process.
Control Enhancement Iteration
There are available special software procedures for compensating the drive way waveforms to
obtain greater response accuracy and fidelity. The technique involves determining a transfer
function for the system and then modifying the drive signal to account for the effect of the transfer
function. The functions provided are: transfer function determination, auto and cross-spectral
density function determination, coherence function determination, and compensated drive
determination. The transfer function models are stored in a special library and can be applied to
different tests as required.
Table Motion Analysis.
Several table motion parameters are usually recorded for each test. These parameters can be
displayed immediately and special calculations are performed to verify proper table performance.
These can be compared to similar calculations performed on the desired table motion waveforms.
Functions included: response spectra, acceleration, Fourier amplitude and total earthquake energy
calculations.
Library Handling Utilities
Several libraries discussed above, are used to organise information related to the seismic testing
process. Special software functions are available to maintain this information and they include
listing, deletion, and copying commands. The copy command allows test data to be transferred to
archival tape or disk, and can access properly formatted profiles created independent of the
seismic software.
Graphic Display
Throughout the seismic testing process, provision is made to allow easy graphical display of time
history and special information of flexible formats.
Data Analysis Software
When large-channel data acquisition is resident on the seismic computer system, a companion data
analysis package is available to streamline the examination and reduction of the specimen data.
The functions to be developed have not been finalised, but a preliminary list is presented. The
software functions fall into three categories: a. configuration; b. the series analysis; c. spectrum
analysis.
a. Configuration.
The software provides the ability to configure the data acquisition channels with special names to
identify the actual transducers located at the specimen. In this way, the data for single-output
transducers such at LVDT's accelerometers and multiple-output transducers such as rosette gauges
can be analysed by using logical and meaningful names. This feature reduces the possibility of error
when manipulating large amounts of data.
b. Time Series Analysis.
Several functions are available to operate upon data in the time domain. Some of the functions
result in new time histories and others determine key characteristics. They are listed below:
-decimation
-arithmetic manipulation

IEC 61463 AG5 LEVEL
-digital filtering
-differentiation
-integration
-mean level
-extreme value
-rms acceleration
-total earthquake energy
-strain gauge reduction.
c. Spectrum Analysis.
Several functions are available which operate upon data in the time domain and result in various
types of frequency spectrums. They are listed below:
-forward and inverse Fourier transformation
-response spectrum
-auto-spectral density
-cross-spectral density
-ordinary coherence
-transfer function
9. TEST METHOD
The whole test has been based on the following guidelines standards and recommendations:
IEC 61463:1996+A1:2000 Bushings – Seismic qualification
IEC60068-2-57 Environmental testing – Part 2-57: Tests-Test Ff: Vibration-Time History and sine-
beat method (2013)
10. REFERENCES
[1]. IEC 61463:1996+A1:2000 Bushings – Seismic qualification
[2]. IEC60068-2-57 Environmental testing – Part 2-57: Tests-Test Ff: Vibration-Time History and
sine-beat method (2013)
[3]. Instructions for Shake Table Test of Transformer Bushing Type GSB 420/1250/0.6 according
to IEC 61463:1996+A1:2000 Level AG 0.5g, ABB Sweden, 2016
11. TEST DATA INCLUDING FUNCTIONAL DATA

The raw data are available at data storage library of LEE (C:/Seismic/Data/_abbsw3711032016).
Access to data requires the agreement of both LEE and ABB.
In Appendix B, the calibration curves for measuring bending moment at the base (S1A/B and S2A/B)
of composite insulator flange are given. In Appendix C, all the recorded signals are presented for
seismic tests 1-8. More specifically the following time histories are shown:
1. Achieved table acceleration and displacement along global X, Y and Z axes.

2. Acceleration along X, Y and Z axes at the measurement point A1.
5. Half bridge strain gauges for measuring bending moment at the base of composite
insulator section at the measurement points S1 and S2.
6. Strains on cast aluminium flange at the measurement points S3 and S4.
7. Absolute displacement at measurement points D1X and D1Y.

IEC 61463 AG5 LEVEL
In Appendix D, the relative displacement D1X /D1Y integrated by accelerometer A1X /A1Y are
presented for Test 5. The peak values of all the above-mentioned measured parameters are
presented in Table 11 for Tests 4 and 5.
In Appendix E, the routing test of bushing is given, showing that the bushing withstood a repeat of
the routine test after time history test. The results are provided by ABB.
12. RESULTS AND CONCLUSIONS

The Transformer Bushing type GSB 420/1250/0.6 with serial number 1ZSCTU80000136/01 passed
the seismic test according to IEC 61463:1996+A1:2000 [1] without any visible damage.
Athens, 11 March 2016
The Technical Director
Harris P. Mouzakis
Assistant Professor, Dr. Eng.
Approved
Constantine Spyrakos
The Director of Laboratory, Professor, Dr. Eng.

IEC 61463 AG5 LEVEL
Table 11. Peak values of measured parameters

Parameter Test 4 Test 5
Max 6.95 16.03
A-T-X Acceleration (m/sec²)
Min -7.52 -23.10
Max 6.63 16.96
A-T-Y Acceleration (m/sec²)
Min -5.54 -14.13
Max 5.57 13.29
A-T-Z Acceleration (m/sec²)
Min 5.77 -17.02
Max 36.36 76.89
D-T-X Displacement (mm)
Min -35.83 -74.60
Max 24.67 52.15
D-T-Y Displacement (mm)
Min -27.89 -57.86
Max 34.35 72.22
D-T-Z Displacement (mm)
Min -35.59 -74.64
Max 35.70 58.02
A1X Acceleration (m/sec²)
Min -37.99 -57.62
Max 43.47 60.46
A1Y Acceleration (m/sec²)
Min -42.57 -62.86
Max 13.45 22.04
A1Z Acceleration (m/sec²)
Min -16.09 -28.21
Max 10.71 22.15
Min -11.64 -26.25
Max 13.77 21.92
Min -14.26 -29.25
Max 6.99 12.70
Min -8.69 -21.63
Max 6.94 16.37
Min -7.98 -24.51
Max 7.94 18.30
Min -7.22 -17.50
Max 5.74 13.46
Min -6.03 -17.09
Max 46.25 105.68
D1X Absolute Displacement (mm)
Min -51.72 -93.67
Max 37.32 67.00
D1Y Absolute Displacement (mm)
Min -47.75 -92.75
S1 Moment about local Y’ direction Max 19.98 30.58
(kNm) Min -19.01 -27.77
S2 Moment about local X’ direction Max 18.57 32.78
(kNm) Min -20.34 -29.78
Max 504E-6 795E-6
S3 Strain (strain)
Min -540E-6 -851E-6
Max 453E-6 678E-6
S4 Strain (strain)
Min -503E-6 -768E-6

IEC 61463 AG5 LEVEL
Z'
20
X'
Y'
X
Y
Figure 1. Test set-up of transformer bushing type GSB 420/1250/0.6; orientation of local and main axis.
Figure 2. Test turret for seismic test.

IEC 61463 AG5 LEVEL
Figure 3. A view of the whole mounting of transformer bushing type GSB 420/1250/0.6.
Figure 4. A view of the whole mounting of transformer bushing type GSB 420/1250/0.6 for static test;
steel turret; load cell, actuator.

IEC 61463 AG5 LEVEL
A1(X,Y,Z)
F
D1
D2
D3
S2
S1
X
Y
Figure 5. Static tests: Instrumentation set-up.

IEC 61463 AG5 LEVEL
a) b)
c) d)
Figure 6. Y’ direction-Snap-back test -half bridge strain gauge S1; a): imposed force; b): response
displacement at point D1, c): response displacement at point D2; d): response displacement at
point D3.
a)
b)
Figure 7. Y’ direction-Snap-back test -half bridge strain gauge S1; a): recorded strain- spectrum; b):
response acceleration -spectrum.

IEC 61463 AG5 LEVEL
b) b)
d) d)
Figure 8. X’ direction-Snap-back test -half bridge strain gauge S2; a): imposed force; b): response
displacement at point D1, c): response displacement at point D2; d): response displacement at
point D3.
a)
b)
Figure 9. X’ direction-Snap-back test -half bridge strain gauge S2; a): recorded strain- spectrum; b):
response acceleration -spectrum.

IEC 61463 AG5 LEVEL
A1(X,Y,Z)
F
1.00 1.00
D1
0.58 0.56
D2
0.22 0.22
D3
S2
S1
Snap-back -S1 Snap-back -S2
X
Y
Figure 10. Mode shapes estimated from Snap-back test along Local Y’ direction –S1 and Local X’ direction –
S2.
Figure 11. Required Response Spectrum (RRS) IEC 61463:Level AG5 (0.5g) increased by a factor of 1.5 to
level 0.75g, damping 2%.

IEC 61463 AG5 LEVEL
a)
b)
c)
Figure 12. Time histories pre-approval in IEC 61463 level AG5 (0.5g) increased by a factor of 1.50: a): X
direction; b): Y direction; c): Z direction.

IEC 61463 AG5 LEVEL
a)
b)
c)
Figure 13. Test 5- Tri-axial XYZ –AG5 increased by a factor of 1.5 to level 0.75g: Achieved Test Response
Spectrum (TRS) along main a): X; b): Y and c): Z direction. Comparison to RRS IEC 61463,
damping 2%.

IEC 61463 AG5 LEVEL
a)
b)
Figure 14. Transfer functions before and after seismic verification tests at measuring point A1 (air side
terminal) a): X direction and b): Y direction.

IEC 61463 AG5 LEVEL
a)
b)
Figure 15. Transfer functions before and after seismic verification tests at measuring point A2 (oil side
terminal) a): X direction and b): Y direction.

IEC 61463 AG5 LEVEL
D1(Y) A1(X,Y,Z)
Z'
X'
Y'
A3(X,Y,Z)
S1
S2
S3/S4
A2(X,Y,Z)
X
Y
Figure 16. Instrumentation set-up.
Figure 17. Static bending test along Y’ direction: Best fit curve; Measured versus imposed moment for
strain gauge S1.

IEC 61463 AG5 LEVEL
Figure 18. Static bending test along X’ direction: Best fit curves; Measured versus imposed moment for
strain gauge S2.
a) b)
Figure 19. View of the accelerometers mounted at points a): A2XYZ (oil side terminal); b): A3XYZ (top of
test frame).

IEC 61463 AG5 LEVEL
Figure 20. View of half bridge strain gauges for measuring bending moment at point S1.
Figure 21. View of half bridge strain gauges for measuring bending moment at points S2.
Figure 22. View of single strain gauges for measuring strain at points S3 and S4 on cast aluminium flange.

APPENDIX A
Dimension drawing of Transformer Bushing Type
GSB 420/1250/0.6 - Test rig
Test rig-seismic test
Test rig-snap-back test
A-2
APPENDIX B
Calibration curves S1/S2

NTUA EARTHQUAKE TEST
IEC 61463 AG5 LEVEL
S1: Y(kNm) = -21536.5977 * X (Volts)

Number of data points used = 30207
Average X = -0.00104044
Average Y = 22.2784
Residual sum of squares = 7767.24
Coef of determination, R-squared = 0.99958
Residual mean square, sigma-hat-sq'd = 0.257142
B-2
IEC 61463 AG5 LEVEL
S2: Y(kNm) = 27412.33188 * X (Volts)

Number of data points used = 30207
Average X = 0.000744734
Average Y = 20.2952
Residual sum of squares = 4369.61
Coef of determination, R-squared = 0.999717
Residual mean square, sigma-hat-sq'd = 0.14466
B-3
APPENDIX C
Measured Time Histories (Test 1-8)

IEC 61463 AG5 LEVEL
Test 1
C-2
IEC 61463 AG5 LEVEL
Achieved Table-X-Acceleration and Table –X- displacement time histories
C-3
IEC 61463 AG5 LEVEL
Acceleration time histories at measurement point A1XYZ
C-4
IEC 61463 AG5 LEVEL
C-5
IEC 61463 AG5 LEVEL
C-6
IEC 61463 AG5 LEVEL
Moment S1 time history
Strain S3 time history
Absolute displacement D1X time history
C-7
IEC 61463 AG5 LEVEL
Test 2
C-8
IEC 61463 AG5 LEVEL
Achieved Table-Y-Acceleration and Table –Y- displacement time histories
C-9
IEC 61463 AG5 LEVEL
C-10
IEC 61463 AG5 LEVEL
C-11
IEC 61463 AG5 LEVEL
C-12
IEC 61463 AG5 LEVEL
Absolute displacement D1Y time history
C-13
IEC 61463 AG5 LEVEL
Test 3
C-14
IEC 61463 AG5 LEVEL
Achieved Table-Z-Acceleration and Table –Z- displacement time histories
C-15
IEC 61463 AG5 LEVEL
C-16
IEC 61463 AG5 LEVEL
C-17
IEC 61463 AG5 LEVEL
C-18
IEC 61463 AG5 LEVEL
Test 4
C-19
IEC 61463 AG5 LEVEL
Achieved Table Acceleration time histories along X, Y and Z main axis
C-20
IEC 61463 AG5 LEVEL
Achieved Table Displacement time histories along X, Y and Z main axis
C-21
IEC 61463 AG5 LEVEL
C-22
IEC 61463 AG5 LEVEL
C-23
IEC 61463 AG5 LEVEL
C-24
IEC 61463 AG5 LEVEL
Moment S1 and S2 time histories.
C-25
IEC 61463 AG5 LEVEL
Strain S3 and S4 time histories.
C-26
IEC 61463 AG5 LEVEL
Absolute displacement time histories at measurement points D1X and D1Y.
C-27
IEC 61463 AG5 LEVEL
Relative displacement time histories at measurement points D1X and D1Y.
C-28
IEC 61463 AG5 LEVEL
Test 5
C-29
IEC 61463 AG5 LEVEL
Achieved Table Acceleration time histories along X, Y and Z main axis
C-30
IEC 61463 AG5 LEVEL
Achieved Table Displacement time histories along X, Y and Z main axis
C-31
IEC 61463 AG5 LEVEL
C-32
IEC 61463 AG5 LEVEL
C-33
IEC 61463 AG5 LEVEL
C-34
IEC 61463 AG5 LEVEL
Moment S1 and S2 time histories.
C-35
IEC 61463 AG5 LEVEL
Strain S3 and S4 time histories.
C-36
IEC 61463 AG5 LEVEL
Absolute displacement time histories at measurement points D1X and D1Y.
C-37
IEC 61463 AG5 LEVEL
Relative displacement time histories at measurement points D1X and D1Y.
C-38
IEC 61463 AG5 LEVEL
Test 6
C-39
IEC 61463 AG5 LEVEL
Achieved Table-X-Acceleration and Table –X- displacement time histories
C-40
IEC 61463 AG5 LEVEL
C-41
IEC 61463 AG5 LEVEL
C-42
IEC 61463 AG5 LEVEL
C-43
IEC 61463 AG5 LEVEL
Absolute displacement D1X time history
C-44
IEC 61463 AG5 LEVEL
Test 7
C-45
IEC 61463 AG5 LEVEL
Achieved Table-Y-Acceleration and Table –Y- displacement time histories
C-46
IEC 61463 AG5 LEVEL
C-47
IEC 61463 AG5 LEVEL
C-48
IEC 61463 AG5 LEVEL
C-49
IEC 61463 AG5 LEVEL
Absolute displacement D1Y time history
C-50
IEC 61463 AG5 LEVEL
Test 8
C-51
IEC 61463 AG5 LEVEL
Achieved Table-Z-Acceleration and Table –Z- displacement time histories
C-52
IEC 61463 AG5 LEVEL
C-53
IEC 61463 AG5 LEVEL
C-54
IEC 61463 AG5 LEVEL
C-55
APPENDIX D
Relative Displacement Time Histories
(Integration from accelerometers-Test 5)

IEC 61463 AG5 LEVEL
Test 5: Relative Displacement Time Histories -integration from accelerometers A1X and A1Y.
D-2
APPENDIX E
Routine test of bushing before and after shaking test
(Results provided by ABB)
TEST REPORT No.:
10373/B/16
Test Report No.: 10373/B/16
TEST REPORT No.: 10373/B/16
TEST OBJECT: Transformer bushing
TYPE SPECIFICATION: GSB 420/1250/0.6
DRAWING NO.: 1ZSC005378A0001
MANUFACTURER: ABB AB Sweden
DATE OF DELIVERY: 2016-02-17
TEST STANDARDS: IEC 60137 Ed.6: 2008
TESTS WITNESSED BY: Bjorn Bergqvist (ABB AB, Sweden)

Madelene Sandberg (ABB AB, Sweden)
Dinesh Kumar Karma (Powergrid, India)
Test report is confidential and must not be passed over or transferred to any third party without written
approval of the customer. Test results relate only to the tests given in presented report and do not substitute
any other documents. The report shall not be reproduced except in full without written approval of the testing
laboratory.
Copies: 1+1 Pages: 16 + annex Date: 2016-04-11

TABLE OF CONTENTS
1 TESTS PERFORMED .................................................................................................................... 4
2 TEST RESULTS ............................................................................................................................. 5
2.1 Measurement of dielectric dissipation factor (tan δ) and capacitance C2 ............................... 5
2.2 Measurement of dielectric dissipation factor (tan δ) and capacitance C1 at ambient
temperature ......................................................................................................................................... 6
2.3 Dry power-frequency voltage withstand test ........................................................................... 7
2.4 Measurement of partial discharge quantity.............................................................................. 8
2.5 Dry lightning impulse voltage withstand test (BIL) ................................................................ 9
2.6 Cantilever load withstand test.................................................................................................. 9
3 TEST PROCEDURES .................................................................................................................. 10
3.1 Measurement of dielectric dissipation factor (tan δ) and capacitance C2 .............................. 10
temperature ....................................................................................................................................... 10
3.3 Dry power-frequency voltage withstand test ......................................................................... 10
3.4 Measurement of partial discharge quantity............................................................................ 11
3.5 Dry lightning impulse voltage withstand test (BIL) .............................................................. 11
3.6 Cantilever load withstand test................................................................................................ 12
4 UNCERTAINTY OF MEASUREMENTS .................................................................................. 12
5 PRODUCT DRAWING ................................................................................................................ 13
6 TEST OBJECT AND TEST SETUP PHOTOS ........................................................................... 14
7 ANNEX – LIGHTING IMPULSE TEST RECORDS ................................................................. 16
3/16
1 TESTS PERFORMED
SCHEDULE OF TESTS
Cantilever load withstand test and routine tests were done on GSB 420/1250/0.6 transformer bushing
sample according to IEC 60137, in the following order:
Test
Test title Test result
No.:
Measurement of dielectric dissipation factor (tan δ) and capacitance C2 at
1 Passed
ambient temperature
2 Passed
ambient temperature
3 Dry power-frequency voltage withstand test at 695 kV, 72 sec Passed
4 Measurement of partial discharge quantity Passed
Dry lightning impulse voltage withstand test (BIL) – five full impulses of
5 Passed
negative polarity at 1550 kV.
6 Cantilever load withstand test at 6,6 kN, 60 sec Passed
Dry lightning impulse voltage withstand test (BIL) – five full impulses of
7 Passed
negative polarity at 1550 kV.
10 Passed
ambient temperature
11 Passed
ambient temperature
General comment to test results:

Transformer bushing GSB 420/1250/0.6, drawing No.: 1ZSC005378A0001 passed all tests given
in this test report successfully. Tests were carried out according to IEC 60137.
Main dimensions comply with a drawing.
4/16
2 TEST RESULTS
2.1 Measurement of dielectric dissipation factor (tan δ) and capacitance C2

Measurements of tan δ and capacitance C2 were done before and after cantilever load withstand test.
A test setup is shown in Figure 2.
Atmospheric conditions:
Date 2016-02-27 2016-02-28
atmospheric pressure (kPa) 98,2 98,2
air temperature (°C) 17,6 17,2
relative humidity (%) 30,1 32,2
Test results are given in a table below:

Test voltage Before cantilever test After cantilever test
Result
(kV) C2 (pF) tan δ (%) C2 (pF) tan δ (%)
1 536 0,28 536 0,28 passed
withstand voltage test withstand voltage test
2 passed
(72 sec) (72 sec)
1 536 0,28 536 0,28 passed
Test results
Measured values of tan δ of the transformer bushing GSB 420/1250/0.6, sample
No.: 1ZSCTU8000135/01 are below maximum permissible values given in in IEC 60137, clause
9.5.2 and clause 4.10.
Conclusion
Transformer bushing GSB 420/1250/0.6, drawing No. 1ZSC005378A0001, passed the
measurement of dielectric dissipation factor (tan δ) and capacitance C2 at ambient temperature
according to IEC 60137, clause 9.5.
5/16
2.2 Measurement of dielectric dissipation factor (tan δ) and capacitance C1 at

ambient temperature
Measurements of tan δ and capacitance were done before and after cantilever load withstand test.
Date 2016-02-27 2016-02-28
Test results are given in a Table below:

Test Before cantilever test After cantilever test
Test voltage
voltage Result
level
- 10 629 0,40 629 0,40 passed
1,05 x Um / √3 255 629 0,40 629 0,44 passed
1,1 x Um / √3 267 629 0,40 629 0,44 passed
1,5 x Um / √3 364 629 0,40 629 0,44 passed
Um 420 629 0,40 629 0,44 passed
1,5 x Um / √3 364 629 0,40 629 0,44 passed
1,1 x Um / √3 267 629 0,40 629 0,44 passed
1,05 x Um / √3 255 629 0,40 629 0,44 passed
- 10 629 0,40 629 0,41 passed
Test results
Measured values of tan δ of the transformer bushing GSB 420/1250/0.6, sample No.:
1ZSCTU8000135/01 are below maximum permissible values given in IEC 60137, Table 8.
Conclusion
according to IEC 60137, clause 9.1.3.
6/16
2.3 Dry power-frequency voltage withstand test

Dry power-frequency voltage withstand tests were done before and after cantilever load withstand
test. The test voltage was not corrected to the reference atmospheric conditions.
Date 2016-02-27 2016-02-28
Tests done before and after the cantilever test:

Test voltage (kV) Test duration (sec) Result
695 (before cantilever test) no flashover
72
750 (after cantilever test) no puncture
Test results
No flashover, no puncture occurred on the tested transformer bushing GSB 420/1250/0.6, sample
No.: 1ZSCTU8000135/01/, during the dry power-frequency voltage withstand test.
Conclusion
dry power-frequency voltage withstand test according to IEC 60137, clause 9.3.
7/16
2.4 Measurement of partial discharge quantity

Measurements of partial discharge quantity were done before and after cantilever load withstand test.
Date 2016-02-27 2016-02-28
Test results are given in a Table below.

Test Before After
Test voltage cantilever test cantilever test Accept.
voltage Result
level criteria
(kV) Q (pC) Q (pC)
- 0 <5 <5 < 5 pC passed
- 10 <5 <5 < 5 pC passed
1,05 x Um / √3 255 <5 <5 < 5 pC passed
1,1 x Um / √3 267 <5 <5 < 5 pC passed
1,5 x Um / √3 364 <5 <5 < 10 pC passed
Um 420 <5 <5 < 10 pC passed
2 x Um / √3 485 - - - -
Um 420 <5 <5 < 10 pC passed
1,5 x Um / √3 364 <5 <5 < 10 pC passed
1,1 x Um / √3 267 <5 <5 < 5 pC passed
1,05 x Um / √3 255 <5 <5 < 5 pC passed
- 10 <5 <5 < 5 pC passed
- 0 <5 <5 < 5 pC passed
Test results
Measured values of partial discharge quantities of the transformer bushing GSB 420/1250/0.6,
sample No.: 1ZSCTU8000135/01, are below 5 pC.
Conclusion
Transformer bushing GSB 420/1250/0.6, drawing No. 1ZSC005378A0001, passed the partial
discharge quantity measurement according to IEC 60137, clause 9.4.
8/16
2.5 Dry lightning impulse voltage withstand test (BIL)

All lighting impulse records are given in Annex.
Test voltages were not corrected for atmospheric conditions.
Date 2016-02-27 2016-02-28

Before cantilever test After cantilever test
Utest (kV) - 1550 - 1550
No. of impulses 5 5
No. of flashovers 0 0
Test results
No flashover in air, no puncture occurred on the transformer bushing GSB 420/1250/0.6, sample No.:
1ZSCTU8000135/01 during the dry lightning impulse voltage withstand test.
Conclusion
Transformer bushing GSB 420/1250/0.6, drawing No. 1ZSC005378A0001, passed the dry
lightning impulse voltage withstand test according to IEC 60137, clause 9.2.
2.6 Cantilever load withstand test

Test pressure of oil: 1,8 bar ± 0,1 bar

Sample No.: Mechanical load (kN) Test duration (sec) Result
no damage
1ZSCTU8000135/01 6,6 60
no leakage
Test results
There was no evidence of damage after cantilever load withstand test. The bushing passed all routine
tests and there was no significant change in results before and after the cantilever load withstand test
Conclusion
Transformer bushing GSB 420/1250/0.6, drawing No. 1ZSC005378A0001, passed the cantilever
load withstand test according to IEC 60137, clause 8.9.
9/16
3 TEST PROCEDURES

The test was carried out according to IEC 60137, clause 9.5 before and after cantilever load
withstand test.
The test arrangement is shown in Figure 3.
Capacitance C2 was measured from a bushing flange at a voltage level specified by the customer.
The power frequency withstand voltage test was done at a test voltage of 2 kV. Test duration was 72
sec.
Testing and measuring equipment:
- voltage source VEB Dresden 3 kVA, 50 kV, type WPF 3/50, serial No. 854409
- voltage measuring transformer UZGT 30; 35 kV / 100 V; serial No. 02021
- capacitive standard Haefely Trench, 100 pF, type 3370NK100/100, serial No. 060520/2
- Schering bridge Tettex, type 2801, serial No. 123989
- multimeter Kyoritsu, serial No. 8077645
- measuring system for atmospheric conditions COMET, serial No. 10910247
- digital stop-watch Olympia, PM-172
Acceptance criteria
Tolerance for acceptable changes in tan δ and C2 are given in IEC 60137, clause 9.5.2.

ambient temperature
withstand test.
The test was done at voltage levels given in IEC 60137, Table 8. Capacitance C1 was measured at a
voltage tap with a bushing flange grounded.
- IR - inductive regulator ČKD Praha 6/ 0 - 3 kV, 50 kVA
- T - test transformer TuR Dresden 5.7/1200 kV, 1500 kVA
- capacitive divider TuR Dresden 1 200 kV, 150 pF, type WMC 160/1200, serial No. 884470
- universal voltmeter Haefely Trench, type DMI 551, serial No. 150505
- capacitive standard Tettex, 71,75 pF, type 3370/70/700, serial No. 62H439
- digital timer Olympia, PM-172
Acceptance criteria
The maximum permissible values of tan δ and for the increase of tan δ are given in IEC 60137,
clause 9.1.3, Table 8.

withstand test.
The test voltage corresponding to the rated dry power-frequency withstand voltage was applied to the
test object. The test duration was 72 sec.
10/16

- inductive regulator ČKD Praha 6/ 0 - 3 kV, 50 kVA
- test transformer TuR Dresden 5.7/1200 kV, 1500 kVA,
Acceptance criteria
The bushing is considered to have passed the test if no flashover or puncture occurs as per
IEC 60137, clause 9.3.3.

withstand test.
The partial discharge measurements were done after the dry power-frequency withstand voltage test
at voltage levels given in IEC 60137, Table 9.
Testing and measuring equipment
- capacitive standard Haefely, 1000 pF, 800 kV, type KK800-1, serial No. 11100108.10.1
- partial discharge bridge detector Tettex, type 9124, serial No. 134994
- PD calibrator Power Diagnostix, type CAL1A, serial No. 3167
Acceptance criteria
The maximum acceptable values of partial discharge quantity are given in IEC 60137, Table 9.

withstand test.
Five full lightning impulses 1,2/50 µs of negative polarity were applied according to IEC 60137,
clause 9.2.2.
Magnitude of the test voltage was according to IEC 60137, Table 4.
- impulse generator TuR Dresden 3000 kV, 100 kJ
- capacitive divider TuR Dresden, type KOIS-3-500, serial No. 32373
- measuring system Haefely Trench, type DiAS 733, serial No. 173990
- yard stick 5 m, Assist, serial No. 393/10
Acceptance criteria:
Acceptance criteria are given in IEC 60137, clause 8.3.3.
11/16
3.6 Cantilever load withstand test

The test was carried out according to IEC 60137, clause 8.9.
The test arrangement is shown in Figure 5Figure 3.
The bushing was installed vertically in test frame. Hollow stem inside of bushing was completely
filed with oil up to top terminal gasket. Oil pressure inside of hollow stem was 1,8±0,1 bar. The load
was applied at the terminal, perpendicular to the axis of bushing for 60 s.
- Pressure transmitter DS201, serial No. 1783774
- Load measuring system ALYA BF-01 + Load cell Tedea, serial No.: 50068771
Acceptance criteria
The bushing is considered to have passed the test if there is no evidence of damage and if it has
withstood a repetition of all routine tests without significant change from previous results as per IEC
60137, clause 8.9.3.
4 UNCERTAINTY OF MEASUREMENTS
UNCERTAINTY
QUANTITY
(k=2)
Um 1,6 %
Lightning impulse voltage T1 5,1 %
T2 4,0 %
Power-frequency voltage 1,7 %
Partial discharge 12,0 %
Air pressure 0,04 kPa
Temperature 0,7 °C
Relative humidity 5,3 %
Time 0,7 %
Length (1 – 5000 mm) 630 µm
Capacitance 0,07 %
Tan δ 1,0 %
Mechanical load 1,1 %
Oil pressure 1,5 %
The reported expanded uncertainty of measurement is stated as the standard uncertainty of
measurement multiplied by the coverage factor k = 2, which for a Normal (Gaussian) distribution
corresponds to a coverage probability of approximately 95 %.
12/16
5 PRODUCT DRAWING
Figure 1
Transformer bushing GSB 420/1250/0.6, drawing No.: 1ZSC005378A0001
13/16
6 TEST OBJECT AND TEST SETUP PHOTOS
Figure 2
Transformer bushing GSB 420/1250/0.6, test setup for
capacitance C2 and tan δ measurements
Figure 3
dry power-frequency voltage withstand test, partial discharge, capacitance C1
and tan δ measurements
14/16
Figure 4
dry lightning impulse voltage withstand test (BIL)
Figure 5
cantilever load withstand test
- end of the test report -
15/16
7 ANNEX – LIGHTING IMPULSE TEST RECORDS
16/16
Lighting impulse test records (before cantilever test)
GSB 420/1250/0.6 1ZSCTU8000135/01

No. 1 2/27/2016 12:48:09 P No. 2 2/27/2016 12:48:55 P
CH1 : (KOIS-3-500) Divider:3.620 kV/V Level:100% Sampling:120.000 Ms/s Range:640.0 Vpp Trigger:Level 10% CH1 : (KOIS-3-500) Divider:3.620 kV/V Level:100% Sampling:120.000 Ms/s Range:640.0 Vpp Trigger:Level 10%
1 1
2 2
3 200.0 kV 3 200.0 kV
10 us 20 us 30 us 40 us 50 us 60 us 10 us 20 us 30 us 40 us 50 us 60 us
-200.0 kV -200.0 kV
-400.0 kV -400.0 kV
-600.0 kV -600.0 kV
-800.0 kV -800.0 kV
-1.0 MV -1.0 MV
-1.2 MV -1.2 MV
-1.4 MV -1.4 MV
-1.6 MV -1.6 MV
-1.8 MV -1.8 MV
No. 1 LI full Upk: -1.567 MV T1: 1.173 us T2: 49.517 us No. 2 LI full Upk: -1.567 MV T1: 1.174 us T2: 49.588 us
No. 3 2/27/2016 12:49:41 P No. 4 2/27/2016 12:50:35 P

1 1
2 2
3 200.0 kV 3 200.0 kV
-200.0 kV -200.0 kV
-400.0 kV -400.0 kV
-600.0 kV -600.0 kV
-800.0 kV -800.0 kV
-1.0 MV -1.0 MV
-1.2 MV -1.2 MV
-1.4 MV -1.4 MV
-1.6 MV -1.6 MV
-1.8 MV -1.8 MV
No. 5 2/27/2016 12:51:21 P

CH1 : (KOIS-3-500) Divider:3.620 kV/V Level:100% Sampling:120.000 Ms/s Range:640.0 Vpp Trigger:Level 10%
1
2
3 200.0 kV
10 us 20 us 30 us 40 us 50 us 60 us
-200.0 kV
-400.0 kV
-600.0 kV
-800.0 kV
-1.0 MV
-1.2 MV
-1.4 MV
-1.6 MV
-1.8 MV
No. 5 LI full Upk: -1.559 MV T1: 1.173 us T2: 49.905 us

Lighting impulse test records (after cantilever test)
GSB 420/1250/0.6 1ZSCTU8000135/01

No. 1 2/28/2016 11:45:30 A No. 2 2/28/2016 11:46:20 A
1 1
2 2
3 200.0 kV 3 200.0 kV
-200.0 kV -200.0 kV
-400.0 kV -400.0 kV
-600.0 kV -600.0 kV
-800.0 kV -800.0 kV
-1.0 MV -1.0 MV
-1.2 MV -1.2 MV
-1.4 MV -1.4 MV
-1.6 MV -1.6 MV
-1.8 MV -1.8 MV
No. 3 2/28/2016 11:47:06 A No. 4 2/28/2016 11:47:50 A

1 1
2 2
3 200.0 kV 3 200.0 kV
-200.0 kV -200.0 kV
-400.0 kV -400.0 kV
-600.0 kV -600.0 kV
-800.0 kV -800.0 kV
-1.0 MV -1.0 MV
-1.2 MV -1.2 MV
-1.4 MV -1.4 MV
-1.6 MV -1.6 MV
-1.8 MV -1.8 MV
No. 5 2/28/2016 11:48:34 A

1
2
3 200.0 kV
10 us 20 us 30 us 40 us 50 us 60 us
-200.0 kV
-400.0 kV
-600.0 kV
-800.0 kV
-1.0 MV
-1.2 MV
-1.4 MV
-1.6 MV
-1.8 MV
No. 5 LI full Upk: -1.551 MV T1: 1.190 us T2: 49.974 us

TEST REPORT No.:
10373/A/16
Test Report No.: 10373/A/16
TEST REPORT No.: 10373/A/16

TEST OBJECT: Transformer bushing
TYPE SPECIFICATION: GSB 420/1250/0.6
DRAWING NO.: 1ZSC005378A0001
MANUFACTURER: ABB AB Sweden
DATE OF DELIVERY: 2016-02-17
TEST STANDARDS: IEC 60137: Ed.6 2008, IEEE Std C57.19.00:2004,

IEEE Std C57.19.01:2005,
IEC 60060-1Ed.3: 2010, IEEE Std 4:2013
TESTS WITNESSED BY: Bjorn Bergqvist (ABB AB, Sweden)
Madelene Sandberg (ABB AB, Sweden)
Dinesh Kumar Karma (Powergrid, India)
Test report is confidential and must not be passed over or transferred to any third party without written
approval of the customer. Test results relate only to the tests given in presented report and do not substitute
any other documents. The report shall not be reproduced except in full without written approval of the testing
laboratory.
Copies: 1+1 Pages: 27 + annex Date: 2016-04-11

TABLE OF CONTENTS
1 TESTS PERFORMED .................................................................................................................... 4
2 TEST RESULTS ............................................................................................................................. 5
2.1 Measurement of dielectric dissipation factor (tan δ) and capacitance C2 ............................... 5
2.2 Dry power-frequency voltage withstand test ........................................................................... 6
temperature ......................................................................................................................................... 7
2.4 Measurement of partial discharge quantity.............................................................................. 8
2.5 Long-duration power-frequency voltage withstand test (ACLD) and Rated frequency dry
withstand test with partial discharge measurements ........................................................................... 9
2.6 Electromagnetic compatibility test (EMC) ............................................................................ 10
2.8 Dry switching impulse voltage withstand test (SIL) ............................................................. 12
2.9 Wet switching impulse voltage withstand test (SIL) ............................................................. 12
3 TEST PROCEDURES .................................................................................................................. 14
3.1 Measurement of dielectric dissipation factor (tan δ) and capacitance C2 .............................. 14
3.2 Dry power-frequency voltage withstand test ......................................................................... 14
temperature ....................................................................................................................................... 14
3.4 Measurement of partial discharge quantity............................................................................ 15
3.5 Long-duration power-frequency voltage withstand test (ACLD) and Rated frequency dry
withstand test with partial discharge measurements ......................................................................... 15
3.6 Electromagnetic compatibility test (EMC) ............................................................................ 16
3.8 Dry switching impulse voltage withstand test (SIL) ............................................................. 17
3.9 Wet switching impulse voltage withstand test (SIL) ............................................................. 17
4 UNCERTAINTY OF MEASUREMENTS .................................................................................. 18
5 PRODUCT DRAWING ................................................................................................................ 19
6 GRAPHS AND RECORDS .......................................................................................................... 20
7 TEST OBJECT AND TEST SETUP PHOTOS ........................................................................... 24
8 ANNEX – LIGHTING IMPULSE TEST RECORDS ................................................................. 27
3/27
1 TESTS PERFORMED
SCHEDULE OF TESTS
Type and routine tests were done on GSB 420/1250/0.6 transformer bushing sample according to IEC
60137, IEEE Std C57.19.00, IEEE Std C57.19.01 and IEC 60060-1 in the following order:
Test Test
Test title
No.: result
1 Passed
ambient temperature
3 Passed
ambient temperature
Long-duration power-frequency voltage withstand test (ACLD) and Rated
5 Passed
frequency dry withstand test with partial discharge measurements
6 Electromagnetic compatibility test (EMC) Passed
7 Dry lightning impulse voltage withstand test (BIL) – fifteen full impulses at
1550 kV (positive) & fifteen full impulses at 1705 kV (negative). Five negative Passed
chopped impulses at 1876 kV & three positive chopped impulses at 1876 kV.
Dry switching impulse voltage withstand test (SIL) at voltage levels of 1175 kV
8 Passed
(positive) & 1293 kV (negative).
Wet switching impulse voltage withstand test (SIL) acc. to IEC 60137 at voltage
9 Passed
levels of 1050 kV (positive) & 1050 kV (negative).
Wet switching impulse voltage withstand test (SIL) acc. to IEEE Std C57.19.00
10 Passed
at voltage levels of 1050 kV (positive) & 1050 kV (negative).
13 Passed
ambient temperature
14 Passed
ambient temperature
General comment to test results:

Transformer bushing GSB 420/1250/0.6, drawing No.: 1ZSC005378A0001passed all tests given
in this test report successfully. Tests were carried out according to IEC 60137, IEEE Std
C57.19.00, IEEE Std C57.19.01 and IEC 60060-1.
Main dimensions comply with a drawing.
4/27
2 TEST RESULTS

Measurements of tan δ and capacitance C2 were done before and after dielectric type testing.
Date 2016-02-19 2016-02-27

Test voltage Before type testing After type testing
Result
1 527 0,31 536 0,28 passed
withstand voltage test withstand voltage test
2 passed
(72 sec) (72 sec)
1 527 0,31 536 0,28 passed
Test results
1ZSCTU8000135/01 are below maximum permissible values given in in IEC 60137, clause 9.5.2 and
clause 4.10 and IEEE Std C57.19.01, Table 6.
Conclusion
according to IEC 60137, clause 9.5 and IEEE Std C57.19.00, clause 7.4.1.
5/27

Dry power-frequency voltage withstand tests were done before and after dielectric type testing. The
test voltage was not corrected to the reference atmospheric conditions.
Date 2016-02-26 2016-02-27
Test results summarizing the dry power-frequency voltage withstand tests done before and after the
dielectric type testing are given in a Table below.
Tests done before and after the dielectric type testing

Test voltage (kV) Test duration (sec) Result
no flashover
695 72
no puncture
Test results
No flashover, no puncture occurred on the tested transformer bushing GSB 420/1250/0.6, sample
No.: 1ZSCTU8000135/01, during the dry power-frequency voltage withstand test.
Conclusion
power-frequency voltage withstand test according to IEC 60137, clause 9.3.3 and IEEE Std
C57.19.00, clause 7.4.3.
6/27

ambient temperature
Measurements of tan δ and capacitance were done before and after dielectric type testing.
Date 2016-02-26 2016-02-27

Test Before dielectric tests After dielectric tests
Test voltage
voltage Result
level
- 10 629 0,40 629 0,40 passed
1,05 x Um / √3 255 629 0,40 629 0,40 passed
1,1 x Um / √3 267 629 0,40 629 0,40 passed
1,5 x Um / √3 364 629 0,40 629 0,40 passed
Um 420 629 0,40 629 0,40 passed
1,5 x Um / √3 364 629 0,40 629 0,40 passed
1,1 x Um / √3 267 629 0,40 629 0,40 passed
1,05 x Um / √3 255 629 0,40 629 0,40 passed
- 10 629 0,40 629 0,40 passed
Test results
1ZSCTU8000135/01 are below maximum permissible values given in IEC 60137, Table 8 and IEEE
Std C57.19.01, Table 6.
Conclusion
according to IEC 60137, clause 9.1.3 and IEEE Std C57.19.00, clause 7.4.1.
7/27

Measurements of partial discharge quantity were done before and after dielectric type testing.
Date 2016-02-26 2016-02-27
Test results are given in a Table below.

Test Before After
Test voltage dielectric tests dielectric tests Accept.
voltage Result
level criteria
(kV) Q (pC) Q (pC)
- 0 <5 <5 < 5 pC passed
- 10 <5 <5 < 5 pC passed
1,05 x Um / √3 255 <5 <5 < 5 pC passed
1,1 x Um / √3 267 <5 <5 < 5 pC passed
1,5 x Um / √3 364 <5 <5 < 10 pC passed
Um 420 <5 <5 < 10 pC passed
2 x Um / √3 485 - - - -
Um 420 <5 <5 < 10 pC passed
1,5 x Um / √3 364 <5 <5 < 10 pC passed
1,1 x Um / √3 267 <5 <5 < 5 pC passed
1,05 x Um / √3 255 <5 <5 < 5 pC passed
- 10 <5 <5 < 5 pC passed
- 0 <5 <5 < 5 pC passed
Test results
Measured values of partial discharge quantities of the transformer bushing GSB 420/1250/0.6,
sample No.: 1ZSCTU8000135/01, are below 5 pC.
Conclusion
Transformer bushing GSB 420/1250/0.6, drawing No. 1ZSC005378A0001, passed the partial
discharge quantity measurement according to IEC 60137, clause 9.4.3 and IEEE Std C57.19.00,
clause 7.4.
8/27
2.5 Long-duration power-frequency voltage withstand test (ACLD) and Rated

frequency dry withstand test with partial discharge measurements
Atmospheric conditions (2016-02-26):
atmospheric pressure: 98,3 kPa
air temperature: 17,7 °C
relative humidity: 28,6 %

Test Test
Test voltage Accept.
voltage duration Q (pC) Result
level criteria
(kV) (min)
- 0 - <5 < 5 pC passed
1,1 x Um / √3 267 5 <5 < 5 pC passed
1,5 x Um / √3 364 5 <5 < 10 pC passed
Um 420 60 s <5 < 10 pC passed
time
0 5 10 15 20 25 30
(min)
Q (pC) <5 <5 <5 <5 <5 <5 <5
1,5 x Um / √3 364 < 10 pC passed
time
35 40 45 50 55 60
(min)
Q (pC) <5 <5 <5 <5 <5 <5
1,1 x Um / √3 267 5 <5 < 5 pC passed
- 0 - <5 < 5 pC passed
Test results
No flashover, no puncture occurred on the transformer bushing GSB 420/1250/0.6, sample No.:
1ZSCTU8000135/01.
Measured values of partial discharge quantities are within acceptable limits as per IEC 60137, Table
9 & IEEE Std C57.19.01, Table 5.
Conclusion
Transformer bushing GSB 420/1250/0.6, drawing No. 1ZSC005378A0001, passed the long-
duration power-frequency voltage withstand test according to IEC 60137, clause 8.2.3 & the
rated frequency dry withstand test with partial discharge measurements according to IEEE Std
C57.19.01, clause 7.2.1.5.
9/27
2.6 Electromagnetic compatibility test (EMC)


R.I.V.
U (kV) U - decrease U - increase U – decrease
dB/µV µV dB/µV µV dB/µV µV
267 31 35 40 100 31 35
240 31 35 39 89 31 35
213 31 35 31 35 31 35
186 31 35 31 35 31 35
159 31 35 31 35 31 35
132 31 35 34 50 31 35
105 31 35 31 35 31 35
78 31 35 31 35 31 35
0 30 32 30 32 30 32
Specified value: 2500 μV (68 dB/μV) at 267 kV at 1,0 MHz
Test results
Measured values of radio interference voltages on the transformer bushing GSB 420/1250/0.6,
sample No.: 1ZSCTU8000135/01 are below maximum permissible value of 2500 µV.
Conclusion
electromagnetic compatibility test according to IEC 60137, clause 8.6.1.3.

As an example, the wave shape of the test lighting impulse 1,2/50 µs is given in Figure 2, chopped
impulse is in Figure 3. All lighting impulse records are given in Annex.
10/27

Full lightning impulse – Positive (Utest = 1550 kV)
Test No. Upeak (kV) Result Test No. Upeak (kV) Result
1) 1559 OK 8) 1554 OK
2) 1559 OK 9) 1554 OK
3) 1560 OK 10) 1555 OK
4) 1560 OK 11) 1554 OK
5) 1561 OK 12) 1556 OK
6) 1561 OK 13) 1555 OK
7) 1559 OK 14) 1555 OK
15) 1555 OK
Full lightning impulse – Negative (Utest = 1705 kV)
Test No. Upeak (kV) Result
1) -1723 OK
Chopped lightning impulse – Negative (Utest = 1876 kV)
1) -1882 OK 4) -1883 OK
2) -1886 OK 5) -1878 OK
3) -1874 OK
Full lightning impulse – Negative (Utest = 1705 kV)
2) -1724 OK 9) -1709 OK
3) -1716 OK 10) -1707 OK
4) -1708 OK 11) -1709 OK
5) -1718 OK 12) -1706 OK
6) -1718 OK 13) -1708 OK
7) -1718 OK 14) -1709 OK
8) -1717 OK 15) -1709 OK
Chopped lightning impulse – Positive (Utest = 1876 kV)
1) 1877 OK 3) 1877 OK
2) 1883 OK
Test results
No flashover in air, no puncture occurred on the transformer bushing GSB 420/1250/0.6, sample No.:
1ZSCTU8000135/01 during the dry lightning impulse voltage withstand test.
Conclusion
lightning impulse voltage withstand test according to IEC 60137, clause 8.3.3 and IEEE Std
C57.19.00, clause 7.2.1.2 and clause 7.2.1.3.
11/27
2.8 Dry switching impulse voltage withstand test (SIL)

A test setup is shown in Figure 10. The wave shape of the test switching impulse 250/2500 µs is
given in Figure 4.

Polarity + -
Utest (kV) 1175 1293
No. of impulses 15 15
Test results
No more than two flashovers in air at positive polarity, no flashover in air at negative polarity, no oil-
end flashover, no puncture occurred on the transformer bushing GSB 420/1250/0.6, sample No.:
1ZSCTU8000135/01 during the dry switching impulse voltage withstand test.
Conclusion
switching impulse voltage withstand test according to IEC 60137, clause 8.4.3.
2.9 Wet switching impulse voltage withstand test (SIL)

2.9.1 According to IEC 60137
The wave shape of the test switching impulse 250/2500 µs s is given in Figure 5.

Rain intensity v.c. 1,0 (top) / 1,4 / 1,4 (bottom)
(mm/min) h.c. 1,0 (top) / 1,0 / 1,0 (bottom)
conductivity (µS/cm) 100
Polarity + -
Utest (kV) 1050 1050
12/27
Test results
No more than two flashovers in air, no oil-end flashover, no puncture occurred on the transformer
bushing GSB 420/1250/0.6, sample No.: 1ZSCTU8000135/01 during the wet switching impulse
voltage withstand test.
Conclusion
Transformer bushing GSB 420/1250/0.6, drawing No. 1ZSC005378A0001, passed the wet
switching impulse voltage withstand test according to IEC 60137, clause 8.4.3.
2.9.2 According to IEEE Std C57.19.00

The wave shape of the test switching impulse 250/2500 µs s is given in Figure 5.

Rain intensity
v.c. 5,0 (top) / 5,0 / 5,0 (bottom)
(mm/min)
conductivity (µS/cm) 52
Polarity + -
Utest (kV) 1050 1050
Test results
No more than two flashovers in air, no oil-end flashover, no puncture occurred on the transformer
bushing GSB 420/1250/0.6, sample No.: 1ZSCTU8000135/01 during the wet switching impulse
voltage withstand test.
Conclusion
Transformer bushing GSB 420/1250/0.6, drawing No. 1ZSC005378A0001, passed the wet
switching impulse voltage withstand test according to IEEE Std C57.19.00, clause 7.2.1.4
13/27
3 TEST PROCEDURES

The test was carried out according to IEC 60137, clause 9.5 and according to IEEE Std C57.19.00,
clause 7.4.1 before and after type testing.
Capacitance C2 was measured from a bushing flange at a voltage level specified by the customer.
The power frequency withstand voltage test was done at a test voltage of 2 kV. Test duration was 72
sec.
- voltage source VEB Dresden 3 kVA, 50 kV, type WPF 3/50, serial No. 854409
- voltage measuring transformer UZGT 30; 35 kV / 100 V; serial No. 02021
- capacitive standard Haefely Trench, 100 pF, type 3370NK100/100, serial No. 060520/2
- multimeter Kyoritsu, serial No. 8077645
Acceptance criteria
Tolerance for acceptable changes in tan δ and C2 are given in IEC 60137, clause 9.5.2 and
IEEE Std C57.19.01 , Table 6.

The test was carried out according to IEC 60137, clause 9.3 and according to
IEEE Std C57.19.00, clause 7.4.3 before and after type testing.
The test voltage corresponding to the rated dry power-frequency withstand voltage was applied to the
test object. The test duration was 72 sec.
Acceptance criteria
IEC 60137, clause 9.3.3 and IEEE Std C57.19.00, clause 7.4.3.

ambient temperature
The test was done at voltage levels given in IEC 60137, Table 8 and IEEE Std C57.19.00,
clause 7.4.1.
Capacitance C1 was measured at a voltage tap with a bushing flange grounded.
14/27

- IR - inductive regulator ČKD Praha 6/ 0 - 3 kV, 50 kVA
- T - test transformer TuR Dresden 5.7/1200 kV, 1500 kVA
- capacitive standard Tettex, 71,75 pF, type 3370/70/700, serial No. 62H439
Acceptance criteria
The maximum permissible values of tan δ and for the increase of tan δ are given in IEC 60137,
clause 9.1.3, Table 8 and IEEE Std C57.19.01, Table 6.

The partial discharge measurements were done after the dry power-frequency withstand voltage test
at voltage levels given in IEC 60137, Table 9 and IEEE Std C57.19.01, Table 5.
- PD calibrator Power Diagnostix, type CAL1A, serial No. 3167
Acceptance criteria
The maximum acceptable values of partial discharge quantity are given in IEC 60137, Table 9 and
IEEE Std C57.19.01, Table 5.
3.5 Long-duration power-frequency voltage withstand test (ACLD) and

Rated frequency dry withstand test with partial discharge measurements
The test was carried out according to IEC 60137, clause 8.2 and IEEE Std C57.19.00,
clause 7.2.1.5.
The test was done at voltage levels given in IEC 60137, clause 8.2.2 and IEEE Std C57.19.01,
Table 5.
15/27
Acceptance criteria
IEC 60137, clause 8.2.3. The maximum acceptable values of partial discharge quantity are given in
IEC 60137, Table 9 and IEEE Std C57.19.01, Table 5.
3.6 Electromagnetic compatibility test (EMC)

The test was done at voltage levels given in IEC 60137, clause 8.6.1.2.
Radio interference voltage, expressed in decibels relative to 1 µV across 300 Ω, was measured at the
frequency of 1,0 MHz. The test circuit was calibrated according to 4.5.12, TR CISPR 18-2. Measured
correction factor was 24 dB/1 µV.
Testing and measuring devices:
- inductive regulator ČKD Praha, type 6/0-3 kV, 50 kVA, serial No. 1300316
- test transformer TuR Dresden 5.7/1200 kV, 1500 kVA
- RIV - Meter Power Diagnostix, serial No. 35
Acceptance criteria
The bushing shall be considered to have passed the test if the radio interference level at
1,1 x·Um / √3 does not exceed 2 500 µV, i.e. 68 dB/1 µV.

The test was carried out according to IEC 60137, clause 8.3 and IEEE Std C57.19.00, clause 7.2.1.2
and clause 7.2.1.3.
Positive and negative standard lightning impulses 1,2/50 µs and chopped impulses of both polarities
with a time of chopping between 3 µs to 6 µs were applied as per IEC 60137, clause 8.3.2 and IEEE
Std C57.19.00, clause 7.2.1.2 and clause 7.2.1.3.
Magnitude of the test voltage was according to IEC 60137, Table 4.
Acceptance criteria:
Acceptance criteria are given in IEC 60137, clause 8.3.3 and IEEE Std C57.19.00, clause 7.2.1.2 and
clause 7.2.1.3.
16/27
3.8 Dry switching impulse voltage withstand test (SIL)

Fifteen positive and fifteen negative switching impulses were applied as per IEC 60137,
clause 8.4.2 and customer requirements.
Acceptance criteria
3.9 Wet switching impulse voltage withstand test (SIL)

3.9.1 According to IEC 60137
Fifteen positive and fifteen negative switching impulses were applied as per IEC 60137,
clause 8.4.2 and customer requirements.
Acceptance criteria
3.9.2 According to IEEE Std C57.19.00

The test was carried out according to IEEE Std C57.19.00, clause 7.2.1.4.
Fifteen positive and fifteen negative switching impulses were applied
as per IEEE Std C57.19.00, clause 7.2.1.4 and customer requirements.
Acceptance criteria
Acceptance criteria are given in IEEE Std C57.19.00, clause 7.2.1.4.
- conductivity meter WTW, Cond 3110, serial No. 11060082
- plastic measuring cylinder 50 ml, i.n. 1/153/14 & 2/153/14
17/27
4 UNCERTAINTY OF MEASUREMENTS
UNCERTAINTY
QUANTITY
(k=2)
Um 1,6 %
Lightning impulse voltage T1 5,1 %
T2 4,0 %
Um 2,5 %
Switching impulse voltage Tp 4,2 %
T2 4,0 %
Power-frequency voltage 1,7 %
Partial discharge 12,0 %
Radio interference voltage 1,0 dB
Air pressure 0,04 kPa
Temperature 0,7 °C
Relative humidity 5,3 %
Time 0,7 %
Length (1 – 5000 mm) 630 µm
Conductivity (0,1 µS/cm – 1000 mS/cm) 1,0 %
Measuring cylinder 5-50ml 10 %
Capacitance 0,07 %
Tan δ 1,0 %
The reported expanded uncertainty of measurement is stated as the standard uncertainty of
measurement multiplied by the coverage factor k = 2, which for a Normal (Gaussian) distribution
corresponds to a coverage probability of approximately 95 %.
18/27
5 PRODUCT DRAWING
Figure 1
Transformer bushing GSB 420/1250/0.6, drawing No.: 1ZSC005378A0001
19/27
6 GRAPHS AND RECORDS
Figure 2
The wave shape of the test full lighting impulse 1,2/50 µs
20/27
Figure 3
The wave shape of the test chopped lighting impulse 1,2/50 µs
21/27
Figure 4
The wave shape of the dry test switching impulse 250/2500 µs
22/27
Figure 5
The wave shape of the wet test switching impulse 250/2500 µs
23/27
7 TEST OBJECT AND TEST SETUP PHOTOS
Figure 6
capacitance C2 and tan δ measurements
Figure 7
dry power-frequency voltage withstand test, partial discharge, capacitance C1
and tan δ measurements
24/27
Figure 8
electromagnetic compatibility test
Figure 9
dry lightning impulse voltage withstand test (BIL)
25/27
Figure 10
dry switching impulse voltage withstand test (SIL)
Figure 11
wet switching impulse voltage withstand test (SIL)
- end of the test report –
26/27
8 ANNEX – LIGHTING IMPULSE TEST RECORDS
27/27
Lighting impulse test records
GSB 420/1250/0.6 1ZSCTU8000135/01

No. 1 2/26/2016 11:45:44 A No. 2 2/26/2016 11:47:16 A
1 1
2 2
1.8 MV 1.8 MV
3 3
1.6 MV 1.6 MV
1.4 MV 1.4 MV
1.2 MV 1.2 MV
1.0 MV 1.0 MV
800.0 kV 800.0 kV
600.0 kV 600.0 kV
400.0 kV 400.0 kV
200.0 kV 200.0 kV
-200.0 kV -200.0 kV
No. 1 LI full Upk: 1.559 MV T1: 1.290 us T2: 50.938 us No. 2 LI full Upk: 1.559 MV T1: 1.295 us T2: 50.982 us
No. 3 2/26/2016 11:48:01 A No. 4 2/26/2016 11:48:46 A
1 1
2 2
1.8 MV 1.8 MV
3 3
1.6 MV 1.6 MV
1.4 MV 1.4 MV
1.2 MV 1.2 MV
1.0 MV 1.0 MV
800.0 kV 800.0 kV
600.0 kV 600.0 kV
400.0 kV 400.0 kV
200.0 kV 200.0 kV
-200.0 kV -200.0 kV
No. 5 2/26/2016 11:49:31 A No. 6 2/26/2016 11:50:17 A
1 1
2 2
1.8 MV 1.8 MV
3 3
1.6 MV 1.6 MV
1.4 MV 1.4 MV
1.2 MV 1.2 MV
1.0 MV 1.0 MV
800.0 kV 800.0 kV
600.0 kV 600.0 kV
400.0 kV 400.0 kV
200.0 kV 200.0 kV
-200.0 kV -200.0 kV
No. 7 2/26/2016 11:51:11 A No. 8 2/26/2016 11:51:56 A
1 1
2 2
1.8 MV 1.8 MV
3 3
1.6 MV 1.6 MV
1.4 MV 1.4 MV
1.2 MV 1.2 MV
1.0 MV 1.0 MV
800.0 kV 800.0 kV
600.0 kV 600.0 kV
400.0 kV 400.0 kV
200.0 kV 200.0 kV
-200.0 kV -200.0 kV
GSB 420/1250/0.6 1ZSCTU8000135/01

No. 9 2/26/2016 11:52:42 A No. 10 2/26/2016 11:53:27 A
1 1
2 2
1.8 MV 1.8 MV
3 3
1.6 MV 1.6 MV
1.4 MV 1.4 MV
1.2 MV 1.2 MV
1.0 MV 1.0 MV
800.0 kV 800.0 kV
600.0 kV 600.0 kV
400.0 kV 400.0 kV
200.0 kV 200.0 kV
-200.0 kV -200.0 kV
No. 11 2/26/2016 11:54:12 A No. 12 2/26/2016 11:54:57 A
1 1
2 2
1.8 MV 1.8 MV
3 3
1.6 MV 1.6 MV
1.4 MV 1.4 MV
1.2 MV 1.2 MV
1.0 MV 1.0 MV
800.0 kV 800.0 kV
600.0 kV 600.0 kV
400.0 kV 400.0 kV
200.0 kV 200.0 kV
-200.0 kV -200.0 kV
No. 13 2/26/2016 11:55:42 A No. 14 2/26/2016 11:56:28 A
1 1
2 2
1.8 MV 1.8 MV
3 3
1.6 MV 1.6 MV
1.4 MV 1.4 MV
1.2 MV 1.2 MV
1.0 MV 1.0 MV
800.0 kV 800.0 kV
600.0 kV 600.0 kV
400.0 kV 400.0 kV
200.0 kV 200.0 kV
-200.0 kV -200.0 kV
No. 15 2/26/2016 11:57:13 A No. 1 2/26/2016 12:00:23 P

1 1
2 2
1.8 MV 200.0 kV
3 3
10 us 20 us 30 us 40 us 50 us 60 us
1.6 MV
1.4 MV -200.0 kV
1.2 MV -400.0 kV
1.0 MV -600.0 kV
800.0 kV -800.0 kV
600.0 kV -1.0 MV
400.0 kV -1.2 MV
200.0 kV -1.4 MV
-1.6 MV
10 us 20 us 30 us 40 us 50 us 60 us
-200.0 kV -1.8 MV
No. 15 LI full Upk: 1.555 MV T1: 1.298 us T2: 51.271 us No. 1 LI full Upk: -1.723 MV T1: 1.238 us T2: 50.438 us
GSB 420/1250/0.6 1ZSCTU8000135/01

No. 1 2/26/2016 12:05:51 P No. 2 2/26/2016 12:06:56 P
1 600.0 kV 1 600.0 kV
2 2
3 400.0 kV
3 400.0 kV
200.0 kV 200.0 kV
2 us 4 us 6 us 8 us 10 us 2 us 4 us 6 us 8 us 10 us
-200.0 kV -200.0 kV
-400.0 kV -400.0 kV
-600.0 kV -600.0 kV
-800.0 kV -800.0 kV
-1.0 MV -1.0 MV
-1.2 MV -1.2 MV
-1.4 MV -1.4 MV
-1.6 MV -1.6 MV
-1.8 MV -1.8 MV
-2.0 MV -2.0 MV
-2.2 MV -2.2 MV
No. 1 LI tailchopped Upk max: -1.882 MV Upk min: 479.417 kV T1: 1.204 us T2: -- Tc: 4.282 us No. 2 LI tailchopped Upk max: -1.886 MV Upk min: 502.073 kV T1: 1.202 us T2: -- Tc: 4.178 us
No. 3 2/26/2016 12:09:01 P No. 4 2/26/2016 12:09:56 P

1 600.0 kV 1 600.0 kV
2 2
3 400.0 kV
3 400.0 kV
200.0 kV 200.0 kV
-200.0 kV -200.0 kV
-400.0 kV -400.0 kV
-600.0 kV -600.0 kV
-800.0 kV -800.0 kV
-1.0 MV -1.0 MV
-1.2 MV -1.2 MV
-1.4 MV -1.4 MV
-1.6 MV -1.6 MV
-1.8 MV -1.8 MV
-2.0 MV -2.0 MV
-2.2 MV -2.2 MV
No. 3 LI tailchopped Upk max: -1.874 MV Upk min: 461.287 kV T1: 1.211 us T2: -- Tc: 4.344 us No. 4 LI tailchopped Upk max: -1.883 MV Upk min: 482.495 kV T1: 1.211 us T2: -- Tc: 4.158 us
No. 5 2/26/2016 12:10:50 P No. 2 2/26/2016 12:12:57 P

1 600.0 kV 1
2 2
3 3 200.0 kV
400.0 kV
10 us 20 us 30 us 40 us 50 us 60 us
200.0 kV
2 us 4 us 6 us 8 us 10 us
-200.0 kV
-200.0 kV
-400.0 kV
-400.0 kV
-600.0 kV
-600.0 kV
-800.0 kV -800.0 kV
-1.0 MV
-1.0 MV
-1.2 MV
-1.2 MV
-1.4 MV
-1.4 MV
-1.6 MV
-1.8 MV -1.6 MV
-2.0 MV
-1.8 MV
-2.2 MV
No. 5 LI tailchopped Upk max: -1.878 MV Upk min: 459.148 kV T1: 1.208 us T2: -- Tc: 4.206 us No. 2 LI full Upk: -1.724 MV T1: 1.242 us T2: 50.707 us
No. 3 2/26/2016 12:13:49 P No. 4 2/26/2016 12:14:37 P

1 1
2 2
3 200.0 kV 3 200.0 kV
-200.0 kV -200.0 kV
-400.0 kV -400.0 kV
-600.0 kV -600.0 kV
-800.0 kV -800.0 kV
-1.0 MV -1.0 MV
-1.2 MV -1.2 MV
-1.4 MV -1.4 MV
-1.6 MV -1.6 MV
-1.8 MV -1.8 MV
GSB 420/1250/0.6 1ZSCTU8000135/01

No. 5 2/26/2016 12:15:39 P No. 6 2/26/2016 12:16:32 P
1 1
2 2
3 200.0 kV 3 200.0 kV
-200.0 kV -200.0 kV
-400.0 kV -400.0 kV
-600.0 kV -600.0 kV
-800.0 kV -800.0 kV
-1.0 MV -1.0 MV
-1.2 MV -1.2 MV
-1.4 MV -1.4 MV
-1.6 MV -1.6 MV
-1.8 MV -1.8 MV
No. 7 2/26/2016 12:17:28 P No. 8 2/26/2016 12:18:21 P

1 1
2 2
3 200.0 kV 3 200.0 kV
-200.0 kV -200.0 kV
-400.0 kV -400.0 kV
-600.0 kV -600.0 kV
-800.0 kV -800.0 kV
-1.0 MV -1.0 MV
-1.2 MV -1.2 MV
-1.4 MV -1.4 MV
-1.6 MV -1.6 MV
-1.8 MV -1.8 MV
No. 9 2/26/2016 12:19:09 P No. 10 2/26/2016 12:19:57 P

1 1
2 2
3 200.0 kV 3 200.0 kV
-200.0 kV -200.0 kV
-400.0 kV -400.0 kV
-600.0 kV -600.0 kV
-800.0 kV -800.0 kV
-1.0 MV -1.0 MV
-1.2 MV -1.2 MV
-1.4 MV -1.4 MV
-1.6 MV -1.6 MV
-1.8 MV -1.8 MV
No. 11 2/26/2016 12:21:00 P No. 12 2/26/2016 12:21:55 P

1 1
2 2
3 200.0 kV 3 200.0 kV
-200.0 kV -200.0 kV
-400.0 kV -400.0 kV
-600.0 kV -600.0 kV
-800.0 kV -800.0 kV
-1.0 MV -1.0 MV
-1.2 MV -1.2 MV
-1.4 MV -1.4 MV
-1.6 MV -1.6 MV
-1.8 MV -1.8 MV
GSB 420/1250/0.6 1ZSCTU8000135/01

No. 13 2/26/2016 12:22:43 P No. 14 2/26/2016 12:23:32 P
1 1
2 2
3 200.0 kV 3 200.0 kV
-200.0 kV -200.0 kV
-400.0 kV -400.0 kV
-600.0 kV -600.0 kV
-800.0 kV -800.0 kV
-1.0 MV -1.0 MV
-1.2 MV -1.2 MV
-1.4 MV -1.4 MV
-1.6 MV -1.6 MV
-1.8 MV -1.8 MV
No. 15 2/26/2016 12:24:20 P No. 1 2/26/2016 12:31:15 P

CH1 : (KOIS-3-500) Divider:3.620 kV/V Level:100% Sampling:120.000 Ms/s Range:640.0 Vpp Trigger:Level 10% 2.2 MV
1 1
2 2
3 200.0 kV 3 2.0 MV
10 us 20 us 30 us 40 us 50 us 60 us
1.8 MV
1.6 MV
-200.0 kV
1.4 MV
-400.0 kV
1.2 MV
-600.0 kV 1.0 MV
-800.0 kV 800.0 kV
600.0 kV
-1.0 MV
400.0 kV
-1.2 MV
200.0 kV
-1.4 MV
2 us 4 us 6 us 8 us 10 us
-1.6 MV -200.0 kV
-400.0 kV
-1.8 MV
-600.0 kV
No. 15 LI full Upk: -1.709 MV T1: 1.241 us T2: 50.845 us No. 1 LI tailchopped Upk max: 1.877 MV Upk min: -418.191 kV T1: 1.220 us T2: -- Tc: 3.681 us
No. 2 2/26/2016 12:32:16 P No. 3 2/26/2016 12:33:12 P

2.2 MV 2.2 MV
1 1
2 2
3 2.0 MV 3 2.0 MV
1.8 MV 1.8 MV
1.6 MV 1.6 MV
1.4 MV 1.4 MV
1.2 MV 1.2 MV
1.0 MV 1.0 MV
800.0 kV 800.0 kV
600.0 kV 600.0 kV
400.0 kV 400.0 kV
200.0 kV 200.0 kV
-200.0 kV -200.0 kV
-400.0 kV -400.0 kV
-600.0 kV
CH1 : (KOIS-3-500) Divider:3.620 kV/V Level:100% Sampling:120.000 Ms/s Range:800.0 Vpp Trigger:Level 10% -600.0 kV
No. 2 LI tailchopped Upk max: 1.883 MV Upk min: -456.500 kV T1: 1.222 us T2: -- Tc: 3.610 us No. 3 LI tailchopped Upk max: 1.877 MV Upk min: -415.043 kV T1: 1.215 us T2: -- Tc: 3.554 us
SAMPLE ROUTINE TEST CERTIFICATES
ABB Power Grids Sweden AB, Bushings TEST CERTIFICATE
LIGHTNING IMPULSE TEST REPORT
TEST OBJECT
Serial No: Catalogue No: Test Object:
1ZSCT18003970/01 1ZSC901420-RAB GSB420/1250/0.6-P-2kV
0,0 0,0
-0,1M
-0,2M
-0,2M
-0,4M
-0,3M
-0,6M
-0,4M
Voltage (kV)
Voltage (kV)
-0,5M -0,8M
-0,6M -1,0M
-0,7M
Osc.: 1 -1,2M Osc.: 2
-0,8M Upk: -985 kV Upk: -1615 kV
T1: 1,27 µs -1,4M T1: 1,26 µs
-0,9M
T2: 51,03 µs T2: 51,53 µs
-1,0M ß': -,25 % -1,6M ß': -1,07 %
-10 0 10 20 30 40 50 60 70 80 90 100 -10 0 10 20 30 40 50 60 70 80 90 100
Time (µs) Time (µs)
0,0 0,0
-0,2M -0,2M
-0,4M -0,4M
-0,6M -0,6M
Voltage (kV)
Voltage (kV)
-0,8M -0,8M
-1,0M -1,0M
-1,2M Osc.: 3 -1,2M Osc.: 4

Upk: -1626 kV Upk: -1627 kV
-1,4M T1: 1,26 µs -1,4M T1: 1,27 µs
T2: 51,59 µs T2: 51,61 µs
-1,6M
ß': -1,15 % -1,6M
ß': -1,22 %
-10 0 10 20 30 40 50 60 70 80 90 100 -10 0 10 20 30 40 50 60 70 80 90 100
0,0 0,0
-0,2M -0,2M
-0,4M -0,4M
-0,6M -0,6M
Voltage (kV)
Voltage (kV)
-0,8M -0,8M
-1,0M -1,0M
-1,2M Osc.: 5 -1,2M Osc.: 6

Upk: -1627 kV Upk: -1628 kV
-1,4M
T1: 1,26 µs -1,4M
T1: 1,29 µs
T2: 51,63 µs T2: 51,66 µs
-1,6M
ß': -1,12 % -1,6M
ß': -1,16 %
-10 0 10 20 30 40 50 60 70 80 90 100 -10 0 10 20 30 40 50 60 70 80 90 100
THE BUSHING PASSED THE TEST

Tested and checked by
Name Stamp Dept Date
PP/CO/BP 2021-06-21
ABB Power Grids Sweden AB, Bushings TEST CERTIFICATE
ROUTINE TEST REPORT FOR RESIN IMPREGNATED PAPER BUSHING
TEST OBJECT
Test Object ABB Reference
GSB420/1250/0.6-P-2kV T53003055/10
Serial No Catalogue No
1ZSCT18003970/01 1ZSC901420-RAB
Customer Customer ref
GE T&D INDIA LIMITED 5348-4201262205
Test reference Test Standard
2704 508 IEC 60137/IEEE C57.19.00
TEST CONDITIONS
Ambient temp in air : 20 °C Frequency : 50 Hz
in oil : 20 °C Test tank diameter : 1060 mm
POWER FREQUENCY TEST WITH SIMULTANEOUS PARTIAL DISCHARGE, CAPACITANCE
AND DISSIPATION FACTOR (tan) MEASUREMENTS.
MAIN INSULATION (C1 = Capacitance conductor to tap)
U C1 tan Partial discharge Remarks
[kV] [pF] [%] [pC]
10,0 634 0,34 <5 BEFORE LI
255,0 634 0,34 <5
420,0 634 0,35 <5
10,0 634 0,34 <5 AFTER LI
255,0 634 0,34 <5
365,0 634 0,34 <5
420,0 634 0,34 <5
750,0 634 0,35 <5 72 SEC
420,0 634 0,34 <5
365,0 634 0,34 <5
255,0 634 0,34 <5
10,0 634 0,34 <5
TEST TAP INSULATION (C2 = Capacitance test tap to earth)
U C2 tan Remarks
[kV] [pF] [%]
1,0 531 0,35
2,0 72 SEC
1,0 531 0,35
The tightness at the flange has been verified with a Helium leak test at 150 kPa overpressure for 15 min.
VISUAL INSPECTIONS AFTER TEST APPROVED
Tested and checked by
Name Stamp Dept Date
PP/CO/BP 2021-06-21

Type and Routine Test Report

Uploaded by

Copyright:

Available Formats

You might also like

Type and Routine Test Report

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Type and Routine Test Report

Uploaded by

Copyright:

Available Formats

TEST REPORT

High Voltage Laboratory No.:…010215 Page: 1/8

Test performed: ............................. Thermal stability test

Test object:.................................... Transformer bushing

Type: ............................................. GSB420/1250/0.6-P-2kV

Serial No.: ..................................... 1ZSCT18001218/01

Manufacturer: ................................ ABB Power Technologies AB, Components

Client: ............................................ ABB Power Technologies AB, Components

Place of the test:............................ KONČAR-Electrical Engineering Institute

Normative documents:................... IEC 60137:2008

Date of test: ................................... 2015 – 03 – 18

Results: ......................................... PASSED

Tested by: Approved by:

Danijel Brezak, B.Sc. E.E. Dalibor Filipović-Grčić, Ph.D.

The test results relate only to the sample tested.

Figure 1 – Test arrangement

The test was carried out in the presence of:

Test results in accordance with IEC

Test object:.................................... Bushing

Type: ............................................. GSB420/1250/0.6-P-2kV

Serial No.: ..................................... 1ZSCTU8000135/04

Drawing: ........................................ 1ZSC005378A001

Manufacturer: ................................ ABB Components

Client: ............................................ ABB Components

Place of the test:............................ KONČAR-Electrical Engineering Institute

Normative documents:................... IEC 60137:2008, client’s request

Date of test: ................................... 2016-02-29 to 2016-03-03

Results: ......................................... PASSED

Tested by: Head of laboratory:

Danijel Brezak, B.Sc.E.E. Dalibor Filipović-Grčić, Ph.D.

The test results relate only to the sample tested.

3. TEST SETUP AND CONDITIONS

Detailed thermocouple layout is given in Annex 2.

Thermocouple Temperature Temperature rise Temperature change

4.2. Temperature rise test 1250 A, 50 Hz

Thermocouple Temperature Temperature rise Temperature change

Temperature gradient from the bushings termination in air -4,04 K/m

4.3. Temperature rise test 1350 A, 50 Hz

Thermocouple Temperature Temperature rise Temperature change

Temperature gradient from the bushings termination in air -4,70 K/m

TEST REPORT NTUA.LEE 01-1/2016

Pages: Text 27; Total 95

Athens, Greece, 11 March 2016

3. SEVERITY OF THE TEST ................................................................................................................................. 4

3.1. Static Bending Test.................................................................................................................................. 4

3.2. Snap-Back Test ........................................................................................................................................ 5

3.3. Sine logarithmic sweep ........................................................................................................................... 5

3.5. Sine logarithmic sweep ........................................................................................................................... 6

4. DETAILS OF MOUNTING ............................................................................................................................... 7

5. NUMBER AND RELATIVE POSITION OF TESTING AXES ................................................................................. 7

6. TRANSFORMER BUSHING TYPE GSB 420/1250/0.6 IDENTIFICATION FILE ................................................... 8

7. INFORMATION FOR SEISMIC QUALIFICATION ............................................................................................. 8

7.1. Quality Plan ............................................................................................................................................. 9

8. TEST FACILITY ............................................................................................................................................. 10

8.1. Location ................................................................................................................................................ 10

8.2. Test equipment description and calibration ......................................................................................... 10

9. TEST METHOD ............................................................................................................................................ 12

11. TEST DATA INCLUDING FUNCTIONAL DATA............................................................................................... 12

12. RESULTS AND CONCLUSIONS ..................................................................................................................... 13
