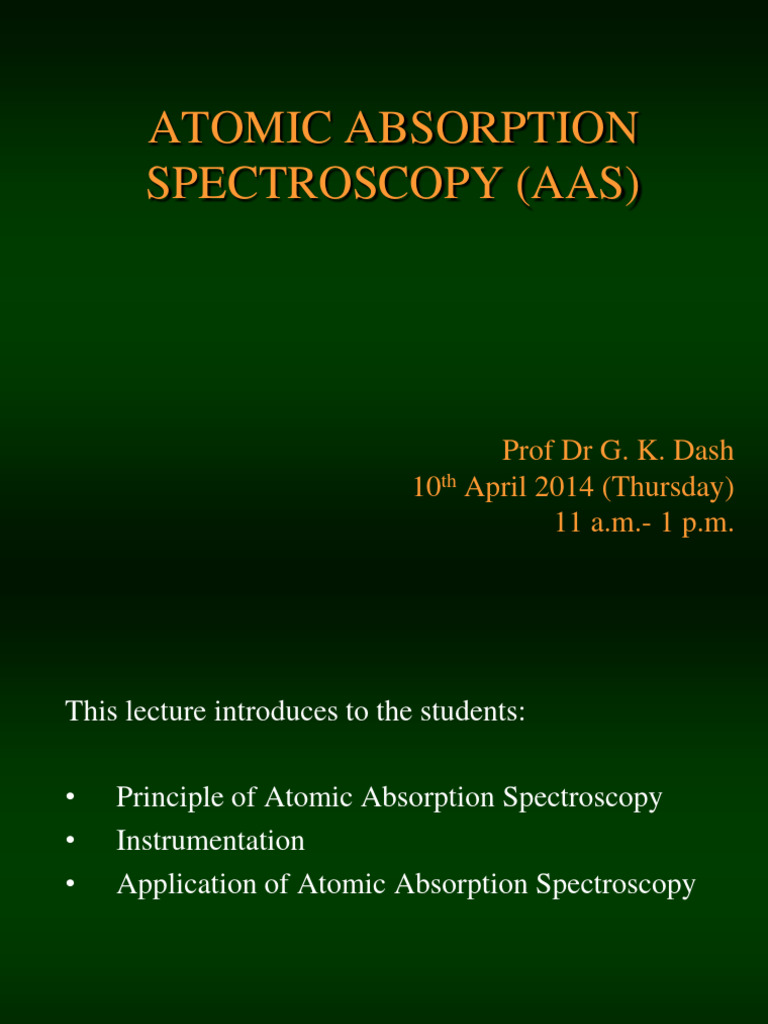

SPECTROSCOPY (AAS)
Prof Dr G. K. Dash
10th April 2014 (Thursday)
11 a.m.- 1 p.m.
This lecture introduces to the students:
5. The
3. A beam of UV light monochromator
will be focused on the isolates the line of
sample interest
1. We set the
instrument at certain
wavelength suitable 2. The element
for a certain element in the sample
6. The detector
will be atomized
measures the change
by heat
in intensity
7. A computer data
system converts the
change in intensity into an
absorbance
AAS instrument
Components of Atomic Absorption Spectrophotometer
1. Hollow Cathode Lamp (HCL):
• Cathode is covered with the element of interest.
• When current is applied, metal atoms emerge and colloid with
filler gas (neon or argon).
• Due to collision, metal atoms are excited and emit characteristic
radiation.
• This radiation is absorbed by neutral atoms of the same element
in ground state, which occur in the flame, when the sample
solution is sprayed.
Components of Atomic Absorption Spectrophotometer
3. Chopper:
Allows alternatively radiation from flame
alone or from HCL and flame. This helps in
producing pulsating current (signal) which is
used to measure the intensity of radiation
absorbed by the element, with out interference
by radiation from the flame itself.
4. Monochromator:
Selects spectral line for absorption.
Components of Atomic Absorption Spectrophotometer
5. Detectors:
Detect the components based on their
physicochemical properties.
– Photomultiplier tube
Analysis
Calibration curve method:
• Various concentrations of
standard solutions are
prepared and absorbance
values noted.
• A calibration curve of
absorbance vs. concentration
is prepared.
• From the absorbance value of
the sample, the concentration
can be determined by
interpolation method.
Beer’s Law
Many compounds absorb radiation. The diagram below shows a beam
of monochromatic radiation of radiant power P0 directed at a sample
solution.
Absorption takes place and the beam of radiation leaving the sample
has radiant power P.
Transmittance, T = P / P0
% Transmittance, %T = 100 T
Absorbance,
A = log10 P0 / P
A = log10 1 / T
• The relationship between absorbance and transmittance is
illustrated in the following diagram:
• The equation representing the Beer’s law:
A=εbc
• Where
– A is absorbance (no units, A = log10 P0 / P ).
– btheiscuvette
the path length of the sample that is, the path length of
in which the sample is contained (1 cm).
Disadvantages:
