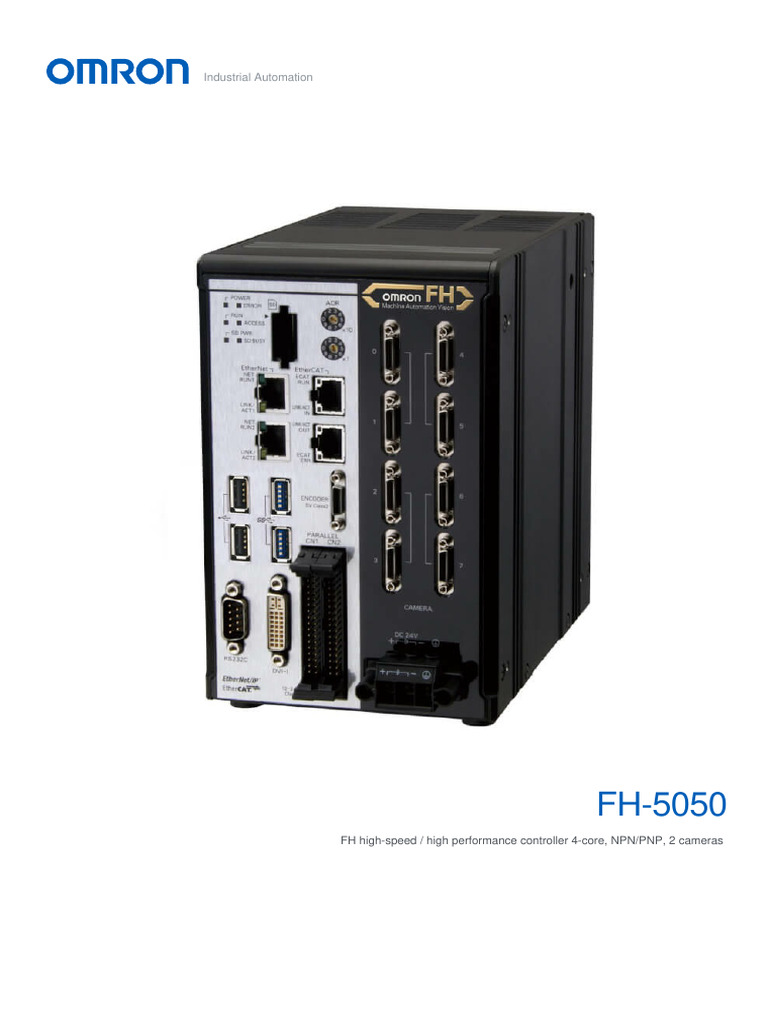

FH-5050
FH high-speed / high performance controller 4-core, NPN/PNP, 2 cameras
Specifications

Performance High

Processor family Intel® Core™ i7

Operating system WES 7 (64 bits)

Memory 8 GB RAM (non ECC)

AI Scratch detection filter c

AI FineMatching c

Number of cameras 2

Integrated monitor x

EtherCAT Slave, EtherNet/IP, Ethernet TCP/IP, PROFINET

Communication port(s)
Slave, Serial RS-232C, USB

Output type PNP/NPN

2D Robot guidance, 3D Bin picking, AI fine matching, AI

scratch detection, Bead inspection, Code reading, Code
Application
verification, Color inspection, Counting, Defect inspection,
Measurement inspection, OCR / OCV, Presence / Absence

Fits to

FH-SMDA-GS050B
FH 3D camera, FOV
400x300x200 mm, WD 500
mm, 24 V

Accessories

TERMS OF WEBSITE USE

This PDF document was created from the European OMRON Industrial
Automation website on 21 May, 2024. Click here for terms of use. INDUSTRIAL AUTOMATION | INDUSTRIAL.OMRON.EU
FH-MT12 Vision system FH touch panel monitor 12-inch

FH-SC FH camera, standard resolution, colour

FH-SC02 FH camera, high resolution 2M pixel, color

FH-SC04 FH camera, high resolution 4M pixel, color

FH-SC05R FH camera, high resolution 5 m pixel, color, rolling shutter

FH-SC21R FH Camera, high speed, 20.4 MPixel, c-Mount, rolling shutter, color

FH-SCX FH Camera, high speed, 0.4 MPixel, c-Mount, global shutter, color

FH-SCX01 FH Camera, high speed, 1.6 MPixel, C-Mount, global shutter, colour

FH-SCX03 FH Camera, high speed, 3.2 MPixel, C-Mount, global shutter, colour

FH-SCX05 FH Camera, high speed, 5 MPixel, c-Mount, global shutter, color

FH-SCX12 FH Camera, high speed, 12 MPixel, C-Mount, global shutter, color

FH-SM FH camera, standard resolution, monochrome

FH-SM02 FH camera, high resolution 2M pixel, monochrome

FH-5050 | OMRON EUROPE 3

FH-SM04 FH camera, high resolution 4M pixel, monochrome

FH-SM05R FH camera, high resolution 5 m pixel, monochrome, rolling shutter

FH Camera, high speed, 20.4 MPixel, c-Mount, rolling shutter,

FH-SM21R
monochrome

FH Camera, high speed, 0.4 MPixel, c-Mount, global shutter,

FH-SMX
monochrome

FH Camera, high speed, 1.6 MPixel, C-Mount, global shutter,

FH-SMX01
monochrome

FH Camera, high speed, 3.2 MPixel, C-Mount, global shutter,

FH-SMX03
monochrome

FH Camera, high speed, 5 MPixel, c-Mount, global shutter,

FH-SMX05
monochrome

FH polarised camera, high speed, 5 MPixel, C-Mount, global shutter,

FH-SMX05-PL
monochrome

FH Camera, high speed, 12 MPixel, C-Mount, global shutter,

FH-SMX12
monochrome

FH polarised camera, high speed, 12 MPixel, C-Mount, global

FH-SMX12-PL
shutter, monochrome

FH-UMAI1 AI filter installer for FH controller. USB license key dongle

Vision system accessory FH conversion cable monitor DVI-RGB 10

FH-VMDA 10M
m

FH-VMDA 2M Vision system accessory FH conversion cable monitor DVI-RGB 2 m

FH-VMDA 5M Vision system accessory FH conversion cable monitor DVI-RGB 5 m

FH-5050 | OMRON EUROPE 4

FH-VUAB 2M Vision system accessory FH USB cable touch panel 2 m

FH-VUAB 5M Vision system accessory FH USB cable touch panel 5 m

FZ-MEM16G Accessory FH, USB memory 16G

FZ-VS3 10M Accessory vision, FH and FZ, standard camera cable, 10m

FZ-VS3 2M Accessory vision, FH and FZ, standard camera cable, 2m

FZ-VS3 3M Accessory vision, FH and FZ, standard camera cable, 3m

FZ-VS3 5M Accessory vision, FH and FZ, standard camera cable, 5m

FZ-VS4 15M Accessory vision, FH and FZ, camera cable, long distance, 15m

FZ-VSB3 10M Accessory vision, FH and FZ, camera cable, bend resistant, 10 m

FZ-VSB3 5M Accessory vision, FH and FZ, camera cable, bend resistant, 5 m

FZ-VSJ FZ Camera cable extension hub (max 3 cables 45m)

GX-JC03 3-port EtherCAT Junction module, 24 VDC power supply

GX-JC06 6-port EtherCAT Junction module, 24 VDC power supply

HMC-SD293 SD memory card, 2 GB

FH-5050 | OMRON EUROPE 5

 HMC-SD493 SD memory card, 4 GB

W4S1-05D 5-port enhanced Ethernet switch

XW2Z-050EE Parallel I/O cable for terminal block XW2R-_34G-T, 0.5 m

XW2Z-100EE Parallel I/O cable for terminal block XW2R-_34G-T, 1 m

XW2Z-200EE Parallel I/O cable for terminal block XW2R-_34G-T, 2 m

XW2Z-S013-2 Parallel I/O cable, 2m, for FH series only

XW2Z-S013-5 Parallel I/O cable, 5m, for FH series only
