Relay logic

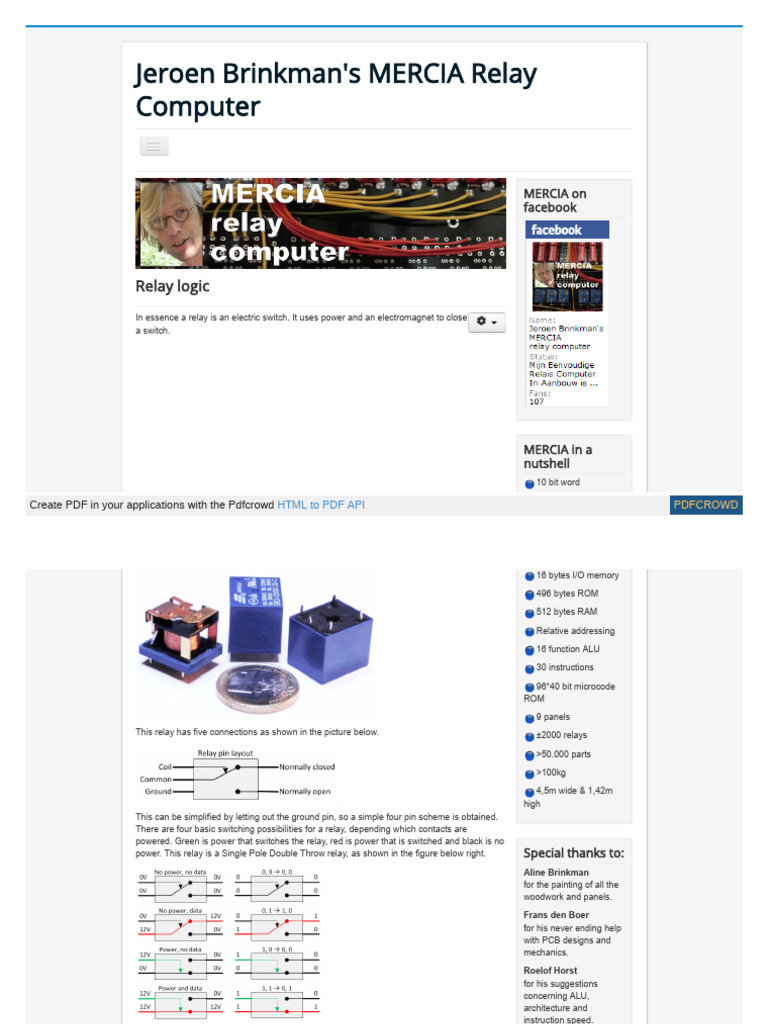

In essence a relay is an electric switch. It uses power and an electromagnet to close
a switch.
8
MERCIA in a
nutshell
10 bit word
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD
16 bytes I/O memory
496 bytes ROM
512 bytes RAM
Relative addressing
16 function ALU
30 instructions
96*40 bit microcode

ROM
9 panels
This relay has five connections as shown in the picture below. ±2000 relays
>50.000 parts
>100kg
4,5m wide & 1,42m

high
This can be simplified by letting out the ground pin, so a simple four pin scheme is obtained.
There are four basic switching possibilities for a relay, depending which contacts are
powered. Green is power that switches the relay, red is power that is switched and black is no
power. This relay is a Single Pole Double Throw relay, as shown in the figure below right. Special thanks to:
Aline Brinkman
for the painting of all the
woodwork and panels.
Frans den Boer

for his never ending help
with PCB designs and
mechanics.
Roelof Horst
for his suggestions
concerning ALU,
architecture and
instruction speed.
Rory Mangles
for his RAM design.
Contact me at
Jeroen(at)relaiscomputer.
nl
Source: Wikipedia
Since computers use binary data, signals are very simple: 0 (no voltage) or 1 (voltage). In
MERCIA’s case 12V relays are used because this voltage is not too low to have large
amperage's and not too high to have problems with dissipating the the power for the used
LED’s.
A combination of several relays can realize almost every function that can be found in a relay
computer. However, in a number of cases it is more efficient to use one or more diodes. Since
(flyback) diodes are also necessary to protect the LED’s that connected parallel to the relay
and diodes play an important role in the memory implementation, I choose to incorporate
diodes into the designs.
There are a number of functions that are used on one or more places in a relay computer. I’ve
called these functions ‘elements’. In the following paragraphs I’ll describe these elements.
Relay logic
The relay logic of a bare relay is given in the truth table below.
In Out In Out
Coil CO NC NO Coil NC NO CO
0 0 0 0 0 0 x 0
0 1 1 0 0 1 x 1
1 0 0 0 1 x 0 0
1 1 0 1 1 x 1 1
The relay can be used in two way’s, depending if the CO or NC/NO are used as input (figure
left).
For the connections between the relay pins an uniform color code will be used (above figure
right) in all my relay circuit diagrams. This makes it possible to determine the function of a line
by its color.
Basic binary logic
Three basic logical functions are known: AND, OR and XOR. If there is an N in the function name,
the output will be inverted (NOT). That means 1 becomes 0 and 0 becomes 1. This is shown in the
table below.
In Out
a b AND NAND OR NOR XOR XNOR
0 0 0 1 0 1 0 1
0 1 0 1 1 0 1 0
1 0 0 1 1 0 1 0
1 1 1 0 1 0 0 1
AND and NAND gates
The output of an AND gate will only give 1 when both inputs are 1. For a two input port, only
one relay is needed. For every extra input one extra relay is needed. Another relay is used to
invert the signal.
OR and NOR gates
Just connecting the lines together, can create an OR gate. However if an input becomes 1, all
the other inputs – even if they are 0 - will also become 1. This can create unwanted feedback
to relay’s earlier in the switching chain. This problem is eliminated by adding diodes, as
shown with the red lines in the picture below. Then the signal cannot be fed back to the other
inputs. For a NOR port, an inverting relay is added.
For the purists among us, the OR an NOR gates can also be realized with the use of relays
only as shown in the following circuit diagram.
XOR and XNOR gates
The most elegant way to create a two input XOR gate, is the use of two relays with crossed
connections as shown below. Only when one of the inputs is 1, the output will be 1. An
inverter will make the XOR a XNOR gate.
A XNOR can also be created using only two relays, as shown in the circuit diagram below.
An entirely different approach is needed for a XOR gate with more than two inputs, as shown
in the next circuit diagram.
The first two relays to the left form a triple AND-gate. The diodes will feed one or more 1-es to
the output. The third relay forces the output to 0 when the AND-gate is true. The last relay (to
the right) is used to invert the signal.
Another solution for the XNOR gate uses two more diodes but only three relays.
One bit only
In some cases it is required to have only one of four signals different. This is given in the truth
table below. Besides the already presented AND/NAND and OR/NOR there are two specials:
Special 1 and Special 2.
Only one 1 Only one 0

In 1 In 2 NOR Sp1 AND OR Sp2 NAND
0 0 1 0 0 0 1 1
1 0 0 1 0 1 0 1
0 1 0 0 0 1 1 1
1 1 0 0 1 1 1 0
These functions can all be implemented with the use of only one relay, except the OR (no
relays) and the NAND (two relays). The circuit diagrams for the first 5 functions are given
below.
Universal Logic Unit
This logic table can be implemented using three relays as shown in the following (left) relay
circuit diagram.
The required function is coded with the lines L1 to L3. For instance when an AND is needed
L3 must be set to 1 and when a XNOR is needed L1 and L3 must be set to 1. The right
diagram shows how this principle can be used to make an universal logic port. The lines top
left are used to select the required function.
An implementation of a Universal Logic Unit is shown below. Here switches are used to select
the required port. An extra option is added with the fourth switch, that enables a set-reset flip-
flop
Comperator
The purpose of a comperator is to switch a relay when a number of lines has a predefined
value. In the circuit diagtram below, three XNOR gates connected by an OR-gate are shown.
When the switches are set as shown in the schematic, the output relay will only switch off,
when all the three input lines are 1. This resembles an NAND-gate. When the NC of the
output relay instead of the NO contact is used, the comperator behaves as an AND-gate. If
the three switches are all toggled, then the output relay will switch on when one of the input
relays contains a 1. This resembles an OR-gate. If for instance only S2 is toggled, only the
input 101 will result in the output 0.
If required, the switches can also be replaced with relays or signals, and than the comperator
can be configured by signals.
Switch
The purpose of a switch is to connect or disconnect lines. The truth table is very simple and
resembles that of an AND-gate. The switch works both ways, so the output can also be the
input.
Enable In Out
0 0 0
0 1 0
1 0 0
1 1 1
Ampli er
Relays are often put behind each other. This can be called a relay switching chain. It is
important to know the switching chain. Below a switching chain, with a switching depth of two
and a switching width of three.
The switching depth is defined as the number of relays that are placed behind each other.
This is an important factor to determine the clock-speed of the relay computer. The larger the
switching depth, the lower the allowed clock speed. The switching width is defined as the
number of relays that are switched by a certain relay. The switching width of relay 1 is three.
This is important for the maximum allowed currant that may be switched by a relay. It is
essential that the switching width stays well below the allowed switching amperage. This will
significantly increase the lifetime of the relays. In the circuit diagram below left, an amplifier is
drawn. Note that the amplifier will only work in one direction.
An amplifier can be used to reset the switching width to 0, however it will increase the
switching depth with one.
The schematic on the right shows an amplifier that will not increase the switching depth. It
can be used to bring up the voltage to 12V again.
Switch and ampli er combined
In a number of occasions it can be very useful to combine the on-off switch and the amplifier. This
can easily been done by adding just one relay, as shown below.
Also this circuit will only work in one direction.
Decoder
The purpose of this decoder is to convert a binary word of n bits to the 2n separate signal
lines. Herefore 2n – 1 relays are needed. The decoder will only have output, when the enable
signal is set to 1. This is drawn in the next circuit diagram.
A decoder is an important part of memory addressing.
Encoder
The encoder does the opposite of the decoder. It converts a number of disjunct lines (XOR
function, only one of the lines contains a 1) to a binary word. A special form of the encoder is
the universal encoder. In that case the coding is done with the use of DIP-switches. An
universal encoder can also be used as ROM (Read Only Memory).
Convertor: enoder and decoder combined
A combination of a decoder followed by an encoder can be used to do bit transformations

from input to output. This is for example used to convert a 4 bit integer (4 bit in) to a 7-
segment display code (7 lines out). The principle is shown below, with a (useless) example
were the output is identical to the input.
Sending disjunct signals
The following circuit can be used to steer two disjunct (only one signal at the time is active)
signals over a two core cable. The used trick is to switch polarity of the two lines and use
diodes to detect polarity. The first signal switches polarity and uses a delay relay to send the
signal after the polarity has been changed. The second signal leaves the polarity intact and
only sends the signal.
For three or more signals, a convertor or the combination of an encoder followed by

a decoder is used. For 3 signals a 3-core cable is needed. A 4-core cable can transport 7
disjunct signals. This is shown in the schematic below.
Multiplexer
The purpose of a multiplexer is to select one out of a number of inputs. A multiplexer is in

principle a combination of a decoder and a switch. There are two implementations possible:
one that uses a decoder for every input and one that uses a decoder and a switch for every
input. Both circuit diagrams are given. The given situation: number of inputs and number of
bits determine which of both possibilities consumes the least number of relays. When the first
input (Data 1) is not connected and both decode bits are set to 0, there will be no connection
between in- and output. In the following circuit diagram, ‘Data in 1’ is (default) connected to
the output when both decode bits are set to 0.
Latch
A latch is a circuit that will hold (remember) the logical 1’s of the input until it is cleared. The
circuit diagram for a three bit latch is shown below.
The truth table of a latch is given in the next table.
Register Input Register

before Clear In after
0 0 0 0
0 0 1 1
0 1 0 0
0 1 1 0
1 0 0 1
1 0 1 1
1 1 0 0
1 1 1 0
Register
When a latch and switches are combined, a register emerges. Registers do play an important role in
computers. They store bytes in a more accessible way than memory does. In the three bit circuit
diagram below, the latch is combined with two switches. This is often done to be able to connect the
register to a data- as well address-bus.
In a number of occasions, for copying values, in a relay computer two registers are connected
together. It is important to understand that registers cannot be copied, in that sense that there
is a source and a destination, and the destination register will get the source values
regardless of what the current values are. Both registers will connect and take each other’s
values through an OR-function.
This is given in the following truth table. Left of ‘Enable’, the values of a bit in the registers
before connecting them, right the values after connecting them.
Reg 1 Reg 2 Enable Reg 1' Reg 2'

0 0 Ò 0 0
0 1 Ò 1 1
1 0 Ò 1 1
1 1 Ò 1 1
R/W Register
g
The OR-problem with registers can also be solved by the construction of a Read/Write
register. Diodes enforce that the bits are read or written. During the read the enable and read
relays are set to 1. During the write, the enable and reset relays are set to 1. In order to
prevent that bits got lost when the read signal drops from 1 to 0, capacitors are used wich will
hold the enable and read relays a bit longer than the reset relay.
Radio button
A so called radio button is a set of buttons, only one of which can be selected at any time.
This can be implemented using n*2 relays and n*(n-1) diodes. Beneath an example for three
radio buttons is given. In essence it uses a latch with corresponding clear relay for every
button. When a button is pressed, a signal is given to the corresponding latch to activate and
to all other clear relays to clear the other latches.
Pulse generators
A relay in combination with a capacitor can also be used to generate pulses. The circuit
diagram to the left shows a single pulse generator. A trigger signal causes a pulse to be
given, the duration depends on the capacity of the capacitor. F=A*V/s or the required capacity
in Farad is determined by the relay its current in Amperes multiplied by the Voltage of the
relay divided by the required pulse length in seconds.
The circuit diagram to the right shows the generation of a (asymmetric) pulse train. Here the
frequency is determined by capacitor capacity. Bear in mind that the capacitor must activate
both relays, so the current is twice the current of a single relay. When a symmetric pulse train
is needed, a T flip-flop must be connected to pulse output.
Delay line
Delayed switching is very useful when registers are used. A register is often put at the end of
a relay switching chain. Unless the last relay switched, the value of the chain is undefined.
This is shown in the next two examples. The top circuit will put a 1 in the register, while the
bottom circuit will not.
In order to avoid these kind of problems, the register must only be enabled when all the
switching has been done. For a switching chain with length n and a relay switching time of t,
this is after a delay of n*t. Therefore a delay-line with a delay-time of n*t.
This can be solved by n relays put in a switching chain (top circuit diagram). A more elegant
solution can be found in the circuit diagram at the bottom. There a capacitor is used to realize
the required delay. As usual, the mass connection of the capacitor is not drawn (but is
needed). The capacity of this capacitor must be chosen precisely, so that the required delay
is achieved.
It is important to realize that after each usage of this delay-line, the capacitor must be given
some time to recharge. An delayed off can be realized with the following circuit.
Both circuits, delayed on and delayed off, can also be combined by placing the delayed off
circuit behind the delayed on circuit.
SR ip- op
The Set/Reset flip-flop or SR flip-flop is the base for a register. It can be constructed using
four relays. ‘Clock’ will enable both the set and reset lines. ‘Set’ will set the flip-flop to 1,
‘Reset’ to 0. The two relays to the left are used to enable the lines. The Bit store relay below
right, is the relay that stores the bit by the use of a feedback line from ‘Q’ to the coil. The
Inverter relay provides the power to the Bit store relay. When activated, it cuts the power.
D ip- op
The Data flip-flop or D flip-flop is an extension of the SR flip-flop. When the ‘Clock’ signal is
given, the value of the ‘Data’ line is stored. ‘Set’ will set the flip-flop to 1, ‘Reset’ to 0. ‘Clock’
will give the flip-flop the value the ‘Data’ has. The function of the two relays on the right is the
same as the SR flip-flop. The Enable relay enables ‘Data’. The Delay relay is important when
the ‘Clock’ goes to 0. First, power is provided to the bit store relay, then ‘Data’ line is cut off
from the bit store relay. This sequence is enabled by the delay relay.
T ip- op
The Toggle flip-flop or T flip-flop will divide an input pulse train by two. E.g. every even pulse
will bring the output to 1, every odd pulse will return the output to 0. The relay circuit diagram
for this flip-flop is given below. The wire coding is given in the table to the right. An
explanation of the wire coding conventions can be found in the last paragraph. To make the
construction more visible, several colors for the connection wires where used.
The ‘inverse Q’ is not clean, during the switching there is a short moment that both the ‘Q’
and the ‘inverse Q’ will be 1.
The way this circuit diagram works is quite complicated. In order to clarify the working, the
switching sequence is shown below.
Adder
An adder ads two binary numbers. The addition of two binary values is defined by the
following truth table. The output of an adder, called the result, can be obtained by the logical
function a XOR b.
Half adder (incrementer)
In Out
a b result carry
0 0 0 0
0 1 1 0
1 0 1 0
1 1 0 1
The carry is the value that has to be taken to the next bit to the left, which is the more
significant bit. So every bit has an incoming carry from the right (less significant bit) and an
outgoing carry to the left (more significant bit). The carry can be obtained by the logical
function a AND b. An adder that is calculating the sum from only two inputs, is called a half
adder. Half adders are also known as incrementers, since they can add 1 to a binary
number. The circuit diagram is given below left.
It is possible to combine the first XOR port and the AND port in one relay, saving a relay. This
circuit diagram is shown above right.
When the carry bit of the less significant bit is taken into account, there are three inputs: a, b
and the carry. An adder that can handle these three inputs is called a full adder. The following
truth table is applicable to a full adder.
Full adder
In Out
Carry a b c Carry
0 0 0 0 0
0 0 1 1 0
0 1 0 1 0
0 1 1 0 1
1 0 0 1 0
1 0 1 0 1
1 1 0 0 1
1 1 1 1 1
A full adder can be realized by the combination of two half adders. One that adds a and b and
one that adds this result with the carry. The circuit diagram - a full adder with only four SPDT
relays - is given below.
The term ripple carry is used when the value of the carry out is calculated by use of a relay
that is switched on by the carry in. In that case the carry ripples through the entire word and
causes a significant delay. With Mercia’s ten bit word, this means that in a worst case 10
relays must be consecutive switched on, before the carry of the most significant bit (MSB or
bit 9) is calculated correctly.
It is evident that a ripple free adder is needed in order to eliminate the carry delay. Therefore
an ALU is used instead of an adder. This ALU is described here: Relay ALU. When the shift
right relay is left out, this ALU can also be used as a six relay ripple free adder.
BCD adder
A relay based BCD adder is an adder who ads two binary coded decimal (BCD) numbers.
The principle is given in the schematic below. It is an regular adder followed by the logic to
correct the binary sum as well as the the carry. A four bit binary number counts up to 15, a
four bit BCD number to 9. The correction logic generates a carry and corrects the value down
to a value below 10. The binary adder has been described in the previous paragraph.
The maximum number that must be corrected is 9 + 9 + 1 (carry) is 19. The way the value
and carry should be corrected is given in the table below.
This can be archived by the following logic:
Cout := (bit3 AND NOT(bit2 OR bit1)) OR Cin

bit3 := (bit3 AND (bit2 OR bit1)) OR (Cin AND bit1)
bit2 := (bit 1 AND bit 2) OR (bit 2 AND NOT bit3) OR (Cin AND NOT bit1)
bit1 := (bit 1 AND NOT Cout) OR (Cout AND NOT bit1)
bit0 := bit0
This logic is implemented in the following circuit diagram.
For every BCD byte one adder and one logic block is needed. The total number of
relays counts up to (4 * 6) + 7 = 31 or almost 8 relays per bit.
Relay wire coding
In order to convert the circuit diagrams to working PCB's, relay wire coding can be very
helpful. It is used to implement relay circuit diagrams and check the implemented wiring.
The pins of a relay can be coded as follows:
A – Activate relay
F – Feed
C – commonly Closed
O – commonly Open
G – Ground
Consider the following circuit diagram that is called ‘fake function’
The connections can be coded in the following two ways:
Fake circuit:
1A – 1C
1O – 2C – 2A or 1O – 2C, 2C – 2A or 1O – 2A, 2A – 2C
1F – plus
2O > out
or
Fake circuit:
Red: 1A – 1C
Yellow: 1O – 2C – 2A or 1O – 2C, 2C – 2A or 1O – 2A, 2A – 2C
Green: 1F – plus
Blue: 2O > out
Use the following conventions:

The coding starts with the function name of the circuit diagram.
Every relay has a number.
Every line starts with the color name or the line is printed in the applicable color.
Every line is a continuous connection, e.g. all the pins mentioned on the line are
connected to each other.
A connection is indicated by “-“
A diode is indicated by “>”, marking the direction the diode is conducting.
Relay pins in upper case and other signals in lower case.
Black: G1 – G2 – minus, is considered trivial and therefore left out.
May 2018, Naarden The Netherlands, Jeroen Brinkman
© 2020 Jeroen Brinkman's MERCIA Relay Computer Back to Top

WWW Relaiscomputer NL Index PHP Elements

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

WWW Relaiscomputer NL Index PHP Elements

Uploaded by

Copyright:

Available Formats

Jeroen Brinkman's MERCIA Relay

496 bytes ROM

512 bytes RAM

96*40 bit microcode

4,5m wide & 1,42m

Frans den Boer

Basic binary logic

AND and NAND gates

OR and NOR gates

One bit only

Only one 1 Only one 0

Switch and ampli er combined

A combination of a decoder followed by an encoder can be used to do bit transformations

For three or more signals, a convertor or the combination of an encoder followed by

The purpose of a multiplexer is to select one out of a number of inputs. A multiplexer is in

The truth table of a latch is given in the next table.

Register Input Register

Reg 1 Reg 2 Enable Reg 1' Reg 2'

Half adder (incrementer)

Cout := (bit3 AND NOT(bit2 OR bit1)) OR Cin

This logic is implemented in the following circuit diagram.

Relay wire coding

The pins of a relay can be coded as follows:

Consider the following circuit diagram that is called ‘fake function’

Use the following conventions:

May 2018, Naarden The Netherlands, Jeroen Brinkman

You might also like
