3 Accommodation 3.1 General: LNNY150M-FS-O1F 1729 07/04/18

Hyundai Heavy Industries Co., Ltd.
3-1

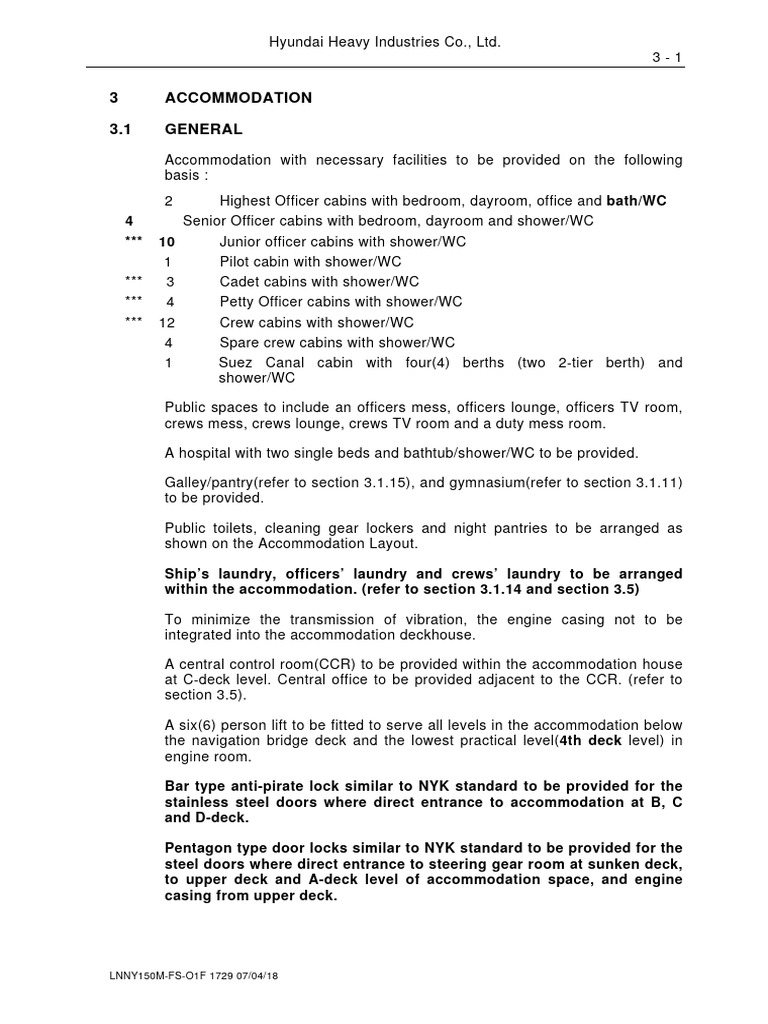

3 ACCOMMODATION
3.1 GENERAL
Accommodation with necessary facilities to be provided on the following

basis :
2 Highest Officer cabins with bedroom, dayroom, office and bath/WC
4 Senior Officer cabins with bedroom, dayroom and shower/WC
*** 10 Junior officer cabins with shower/WC
1 Pilot cabin with shower/WC
*** 3 Cadet cabins with shower/WC
*** 4 Petty Officer cabins with shower/WC
*** 12 Crew cabins with shower/WC
4 Spare crew cabins with shower/WC
1 Suez Canal cabin with four(4) berths (two 2-tier berth) and
shower/WC
Public spaces to include an officers mess, officers lounge, officers TV room,

crews mess, crews lounge, crews TV room and a duty mess room.
A hospital with two single beds and bathtub/shower/WC to be provided.
Galley/pantry(refer to section 3.1.15), and gymnasium(refer to section 3.1.11)

to be provided.
Public toilets, cleaning gear lockers and night pantries to be arranged as

shown on the Accommodation Layout.
Ship’s laundry, officers’ laundry and crews’ laundry to be arranged

within the accommodation. (refer to section 3.1.14 and section 3.5)
To minimize the transmission of vibration, the engine casing not to be

integrated into the accommodation deckhouse.
A central control room(CCR) to be provided within the accommodation house

at C-deck level. Central office to be provided adjacent to the CCR. (refer to
section 3.5).
A six(6) person lift to be fitted to serve all levels in the accommodation below
the navigation bridge deck and the lowest practical level(4th deck level) in
engine room.
Bar type anti-pirate lock similar to NYK standard to be provided for the
stainless steel doors where direct entrance to accommodation at B, C
and D-deck.
Pentagon type door locks similar to NYK standard to be provided for the
steel doors where direct entrance to steering gear room at sunken deck,
to upper deck and A-deck level of accommodation space, and engine
casing from upper deck.
LNNY150M-FS-O1F 1729 07/04/18

3-2
Bolt type anti-pirate lock to be provided for CO2 room, paint store, deck
store and other stores near engine casing, and Bosun store room
forward.
The inclined ladder from D-deck to the navigation bridge deck to be of

hinged type with manual winch.
3.1.1 LAY-OUT
The living quarters such as living space, public space, office space,
navigation & control space, corridor space, sanitary space, catering space,
provisions space and sundry space to be arranged in the aft deckhouse.
Designation Allocation
Living space Cabin and annexed similar space
Public space Officers' mess room, officers' lounge,

officers' TV room, crew's mess room, crew's
lounge, crew’s TV room, gymnasium, duty
mess room, and hospital
Office space Central control room (CCR)

Engine control room
Central office
Navigation and Wheelhouse & chart space
control space Battery room
Emergency generator room
Elect. equipment room
Fire control station
Corridor space Passage way, stairway
Sanitary space Private toilet

Hospital bathroom
Public toilet
Laundry and drying room
Catering space Galley, pantry
Provisions space Dry provisions store

Refrigerating chamber
Bonded store
Sundry space Changing room

Air conditioning unit room
Other miscellaneous stores and lockers
Miscellaneous space Swimming pool

Cable trunk
Pipe trunk
LNNY150M-FS-O1F 1729 07/04/18

3-3
3.1.2 CLEAR HEIGHT
The clear height in the living quarters to be about 2200 mm, but sanitary
space and catering space may be about 2100 mm from the top of floor
covering to the bottom of overhead deck or ceiling. However, the protruding
part such as ceiling lamp, ventilating louver and unavoidable corner bracket,
etc. to be excluded from the measurement.
LNNY150M-FS-O1F 1729 07/04/18

3-4
3.1.3 COMPLEMENT AND GRADE
Cabins to be provided on the following basis: -
Grade Living space Remarks

(complement)
Management Captain Dayroom, bed room, office

officer class (2) Chief engineer and private toilet (bath/WC)
*** Senior officer Chief officer Dayroom, bed room and

class (4) 1st officer private toilet(shower/WC)
1st engineer
Gas engineer
*** Junior officer 2nd officer Single room and private

class (11) 3rd officer toilet(shower/WC)
4th officer
2nd engineer
3rd engineer
4th engineer
Electrician
Officer’s spare(3)
Pilot
*** Petty officer Chief steward Single room and private

class (4) Chief cook toilet(shower/WC)
Bosun
Fitter
*** Crew class Able sea man (4) Single room and private
(16) Sea man (ordinary) (2) toilet(shower/WC)
Oiler (4)
Cook ,mess man (2)
Crew’s spare (4)
*** Others (3 + 4) Cadet (3) Single room and private

toilet(shower/WC)
Suez worker One common room

with two 2-tier berths and
private toilet(shower/WC)
Total :40 + 4 persons/41 cabins
LNNY150M-FS-O1F 1729 07/04/18

3-5
3.1.4 INSULATION
The insulation material and construction to be in accordance with the relevant

Rule and Regulation.
Approximate bulk density of insulation material to be as follows :
Mineral wool abt. 80 kg/m3 for heat and sound insulation

abt. 110 kg/m3 for fire insulation
*** In case of E/R, glass wool abt. 24 kg/m3 for thermal & sound insulation,
abt. 110 kg/m3 for hull tank insulation, abt. 110 kg/m3 for fire insulation.
Mineral wool to be secured with pin and washer.
OVERHEAD AND SIDE HEAT INSULATION
The portion of compartment in accommodation space facing weather exposed

part to be insulated in accordance with the following table.
As for the space partially exposed, the insulation to be extended to 300 mm

inside beyond the boundary as far as practical.
Following abbreviation to be used.
MW : Mineral Wool with glass cloth and aluminium foil

GS : Galvanized Steel sheet (0.5 mm thick)
LNNY150M-FS-O1F 1729 07/04/18

3-6
Overhead in the Side in the

Compartment compartment compartment
Deck Beam & Wall Stiffener

girder
★ Living, public and office spaces 100 MW 25 MW 100 MW 25 MW

Wheelhouse & chart space
Switchboard room
Catering space
Corridor space
Public toilet
Changing room
Laundry
★ Dry provisions store 100 MW 25 MW 100 MW 25 MW

Bonded store + GS + GS
★ Air conditioning unit room 100 MW 25 MW 100 MW 25 MW

Battery room
Other miscellaneous stores and
lockers
★ Refrigerating chamber 100 MW 25 MW 100 MW 25 MW
Note : Beam and girder above 300 mm in depth to be insulated by 300 mm

and remaining parts to be left bare.
Silicate board (50 mm thick) will be provided in the living space, public space
or dry provision store, if the space is directly contacted with heated fuel oil
tanks in engine room.
SOUND INSULATION
Sound insulation (50mm thick mineral wool) to be provided in air conditioning

unit room facing to living and public space directly.
FIRE INSULATION
Fire insulation to be provided according to the Rule and Regulation.
Fire insulation in engine room to be covered with glass cloth with aluminium
foil as oil vapour barrier.
LNNY150M-FS-O1F 1729 07/04/18

3-7
3.1.5 PARTITION, CEILING, LINING
Material and installation to be in compliance with the Rule and Regulation.
Bottom of joiner bulkhead to be set in welded steel profile on deck.
Watertight coaming to be made by the bottom profile behind lining in way of

wet space and exterior steel boundary bulkhead.
Wall panel to be jointed and installed in accordance with the maker's

standard.
Other detail of securing and construction of the bottom profile, top profile,
skirting, etc. to be in accordance with the Builder's normal practice, unless
otherwise required by the Rule and Regulation.
The Builder to provide color samples for the Buyer's selection of panel
finishing.
PARTITION BULKHEAD
The material and thickness of partition to be as follows :
Corridor bulkhead (B-class) 50 mm thick rock wool with 0.6 mm

galvanized steel sheets and finished with
decorative PVC film on both sides
Division bulkhead (#) Do.
Following space to be enclosed with steel wall :
Navigation and control space

Engine control room
Switchboard room
Air conditioning unit room
Catering space
Provisions space
Stairway
Miscellaneous stores and lockers having an area of more than 4 m2
(#) Note : Partition bulkhead between cabins, cabin and public space to be of
high noise reduction type (45dB) where no steel wall is applied.
LNNY150M-FS-O1F 1729 07/04/18

3-8
LINING AND CEILING
The ceiling and lining to be applied as follows:
Compartment Ceiling Lining
Living space 25 mm thick rock 25 mm thick rock wool

Public space wool with 0.6 mm with 0.6 mm galvanized
Office space thick baked steel sheets on both
Wheelhouse & chart space enamelled steel sheet sides and decorative PVC
Corridor space film on visible side
Switchboard room
Change room
Public toilet
Night pantry
Galley, pantry 25 mm thick rock 25 mm thick rock wool

Laundry & drying room wool with 0.6 mm with 0.6 mm thick SUS
thick SUS sheet (hair sheet (hair line finished)
line finished) on visible side and 0.6
mm thick galvanized steel
sheet on behind side
Private toilet and bathroom 15 mm thick rock 15 mm thick rock wool

(unit type) wool with 0.6 mm with 0.6 mm thick
thick galvanized steel galvanized steel sheet
sheet and decorative and decorative PVC film
PVC film on visible on visible side
side
Dry provisions store Paint finish in case of Paint finish in case of

Bonded store steel fabrication steel fabrication
Fire control station
CO2 room
Battery room
Sundry stores and lockers
having an area of more than
4 m2
LNNY150M-FS-O1F 1729 07/04/18

3-9
3.1.6 DOOR AND FITTINGS
The door to be insulated where fire insulation applied in the wall to which the
door is fitted.
The door catcher or door hook to be provided to all doors other than those
with self-closing device.
Rain shade to be provided to the door facing to the weather without having
overhanging deck above.
Sill height to be in accordance with the relevant Rule and Regulation and to
be provided with stainless steel top.
Step of checkered steel plate about 6mm thickness to be provided to the

entrance from the weather side on upper deck.
Top of weather door to be about 1900 mm high above the surface of the deck
covering.
Joiner door to have clear head height of 2000 mm from top of deck covering
to top of door opening except the refrigerating chamber, catering space and
sanitary space.
The clear width of the door to have minimum 700 mm opening except for the
lavatory door which to be 600 mm.
Door self-closing device to be applied as follows:
Wheelhouse entrance from corridor

Stairway, catering space
Entrance door from outside except steel single plate door
Public space, public toilet
Engine room entrance door from accommodation space
CCR, elec. equipment room
*** Garbage room & charge room
Pontoon type steel door in accommodation to be finished with PVC film for
door leaf and baked enamel paint finish for door frame.
Electro-magnetic door holders released from accommodation fire alarm

system to be provided for main stairway doors.
LNNY150M-FS-O1F 1729 07/04/18

3 - 10
WEATHER HINGED DOOR (I)

Material Steel plate
Construction Pressed type with round corner, steel clips
and dogs
Application Entrance to corridor on upper deck, A-deck
and sundry space faced to weather side
WEATHER HINGED DOOR (II)

Material Stainless steel
Construction Pontoon with 250 mm diameter fixed glass
Application Entrance to corridor on B-deck and above.
WEATHER SLIDING DOOR

Material Stainless steel
Construction Pontoon with square fixed glass
Application Wheelhouse
"A" CLASS DOOR

Material Steel plate with PVC film
Construction Pontoon
Application Stair case, galley, pantry, CCR,
wheelhouse and other space according to
Rule requirement
"B" CLASS DOOR

Application Cabin and other space facing to corridor
space
"C" CLASS DOOR

Application Cabin door led to dayroom, bedroom, office
and private toilet
Hospital bathroom
LNNY150M-FS-O1F 1729 07/04/18

3 - 11
3.1.7 WINDOW AND SIDE SCUTTLE
Spray fresh water pipe connected to domestic fresh water line to be led over
the wheelhouse front window for washing.
Hot water also to be led over the wheelhouse front window.
Steel platform of about 600 mm wide to be arranged in way of front window of

wheelhouse to facilitate cleaning of the window as shown on the
Accommodation Layout Plan.
Baked polyester coated steel window boxes to be provided for all windows
and side scuttles except for the wheelhouse window.
Laminated hard plastic finished window boxes to be provided for the

wheelhouse window.
Windows and side scuttles in the deckhouse front and in a range of 3 m of

such deckhouse front to be of A-60 class approved type.
Windows in the deckhouse front and in a range of 5 m of such deckhouse

front to be of fixed type.
The quantity of windows and side scuttles for cabins and rooms to be
provided according to following standard.
Location Q’ty
Captain class dayroom 2 to 4

(as practical)
Senior officer’s dayroom, Central control room 2 to 4

(as practical)
Captain class bedroom, senior officer bedroom, junior 2 or 1

officer cabin, cadet cabin, petty officer cabin, crew (as practical)
cabin, spare cabin, hospital, suez crew cabin, captain
class office
Mess room, lounge 2 to 5

(as practical)
LNNY150M-FS-O1F 1729 07/04/18

3 - 12
WINDOW
All rectangular windows of steel frame to be provided for A deck and above,
wheelhouse and engine control room.
Sun screens of roller type to be provided for all windows in wheel
house.
★ Eleven(11) window wipers of straight type to be provided for the
wheelhouse front windows. (EDGE parking type of window wiper to be
applied for the enter window)
Each one open type window to be provided in wheelhouse wing
side(both side) for overlooking the ship side, if not any problem
according to Rule/Regulation.
Clear size Location Q’ty Remark
abt. 2000 x1300 mm Wheelhouse front 7 ★ Fixed type

(center) Electric
heated
abt. 1500 x 1300 mm Wheelhouse front Suitable windows to be
(W x H) (side) provided for
all windows.
abt. 1200 x 1000 mm Wheelhouse side and Suitable Except open
(W x H) and aft type window.
1500 x 1000 mm
(W x H) according to
room arrangement
500 x 800 mm Living space, public Refer to Inside

(W x H) space and office previous page openable, side
space on A deck and hinged type
and/or fixed
800 x 800 mm Lounges type
(W x H) Mess rooms
*** 450 x 600 mm Galley 2

(W x H) (Hinged type)
1300 x 1100 mm Engine control room, Total 4 Fixed type,

(W x H) main switchboard pair glass
rooms
1500 x 900 mm CCR 6 Fixed type

(W x H)
SIDE SCUTTLE
All side scuttles to be of steel frame (350 mm diameter) and to be provided

on the upper deck.
The side scuttle on the upper deck level to be fitted with top hinged deadlight
of steel or equivalent.
LNNY150M-FS-O1F 1729 07/04/18

3 - 13
3.1.8 DECK COVERING
All weather deck surface to have no deck covering.
The deck covering for the accommodation on the upper deck level, basically
no levelling work to be made for providing horizontal plane to the cambered
deck part, except for office or public space which require horizontal plane
floor.
PVC skirting to be provided for to boundary wall except sanitary and catering
space.
The deck covering to be provided as follows:
Material Application
Wall-to-wall carpet (80% wool) on Highest officer class cabin

6 mm thick deck composition of Lounges
latex type
2 mm thick vinyl sheet on 6 mm Other cabins

thick deck composition of latex Public space
type Office space
Corridor space
CCR
ECR
Switchboard room
Night pantry
4 mm thick non-slip type rubber tile Wheelhouse & chart space

including studs on 6 mm thick deck
composition of latex type
Non-skid type rubber matting Engine control room

(around switch board)
(around switch board)
Non-slip tile with adhesive Private toilet and bathroom (unit type)
Cement and non-slip tile Galley, pantry, laundry, drying room and
public toilet
Paint only Except as specified above
The cement bed or equivalent to be laid under tiles so that the total thickness
of cement and tile to be average 40 mm and necessary slope to scupper to
be provided.
Stainless steel gutterway and cover(perforated) to be provided for galley.
LNNY150M-FS-O1F 1729 07/04/18

3 - 14
3.1.9 STAIRWAY, STEP, RAILING, ETC.
INTERIOR STAIRWAY
The steel interior stairway in accommodation to be fitted as following :
Clear breadth About 800 mm

Inclination 40 o - 50o to horizontal
Side frame Steel, painted
Tread with back plate Steel, covered with 2 mm thick vinyl sheet
(tread only)
Step guard (non-slip) Stainless steel with PVC inlay
Hand rail Stainless steel pipe
Hand rail stanchion Stainless steel pipe
Under part of the interior stairway to be finished with 25 mm thick ceiling

panel.
RAIL AND STANCHION
The storm rail in living quarters to be of stainless steel pipe(hairline finished)

and arranged as indicated on the detailed joinery plan at about 1000 mm high
above the deck according to the Builder's practice.
LNNY150M-FS-O1F 1729 07/04/18

3 - 15
3.1.10 ELEVATOR
One(1) set of electric driven crew elevator of 6 person/500 kg capacity to be

provided.
The speed of elevator to be about 60m/min.
The elevator to be built in closed steel trunk and run from below Navigation
bridge deck to the lowest practical level(4th deck) in engine room and to
have stops at every deck.
Machinery space to be provided in engine room.
The operation of the elevator to be of selective-collective control system with

push button provided inside cage and on each station and indication of
position and direction of elevator at each station.
The cage door to be automatically operated double leaf sliding type and
outside doors to be of manual swing type.
Provision to be made for the lift to be operated on emergency power.
Alarm, lighting and escape possibility to be provided.
The elevator to be suitable for shipboard use and to comply as far as

reasonable with Classification of Society recommendation.
On top of elevator trunk 600mm x 600mm hatch openable from both sides to
be provided for emergency escape.
LNNY150M-FS-O1F 1729 07/04/18

3 - 16
3.1.11 FURNITURE AND FITTINGS OF LIVING, PUBLIC, OFFICE,

NAVIGATION AND CONTROL SPACE
GENERAL
The furniture and fittings to have rigid construction in harmony with

decorative treatment of the space and to be in accordance with the Builder's
practice.
Main furniture and fittings to be as described in detail and the size and
number of furniture may be changed slightly by the cabin arrangement.
In general, the furniture to be constructed of the plywood/chipboard and

covered with melamine film finish in visible part only. Where the solid wood
for leg or frame is adopted, the beech wood and maple to be applied.
Top of the reception table, mess table and desk to be finished with the
melamine plastic laminate.
The steel furniture to be of commercial stock with durable construction.
The size of steel furniture may be changed slightly to meet those of

commercial stock, irrespective of the description in the Specification.
The shape of furniture to be of standard type and the fixing arrangement of

furniture to the wall, deck and/or ceiling to be in accordance with the Builder's
practice.
The leg of table to be fitted to suit the function as per Builder's practice.
The color scheme book to be submitted to the Buyer for approval.
Open type book case for A4 size document to be min. 19m long in
wheelhouse, 5m long for each ECR/CCR/Ship's Office and 1m in
Hospital.
(total storage length is measured as one tier of bookshelf)
Letter case of A4 size to be provided at the outside entrance of each
cabin(except suez crew cabin) and A3 size for inside of W/H,CCR,ECR
and central office.
Door curtain and bed curtain : refer to page 3-26.
LNNY150M-FS-O1F 1729 07/04/18

3 - 17
HARDWARE
The hardware to be of aluminum or chromium coated brass in general.
Lock and key to be fitted according to the general practice.
All door handles to be of lever type.
Hat and coat hook to be fitted where necessary.
Pad lock to be fitted to steel door exposed to weather.
Master Key system to be according to NYK standard.

(Buyer to inform the NYK standard key system at detailed design stage)
All keys in 3 sets to be provided with brass name tag.
Lock for door of public toilet and of hospital bathroom to be fitted with
occupation indicator.
Door hook or holder to be provided for door which to be kept open where
necessary.
Fastening device to be provided for loose chairs.
LNNY150M-FS-O1F 1729 07/04/18

3 - 18
FURNITURE APPLICATION FOR LIVING SPACE
Item/Ranking 1 st
Highest officer class room (incl. office)
Bed Overall size & 1-2030 x 1430 x 470 mm
number
Drawer 2 - drawers
Desk Size & number 1 - 1550 x 750 x 760 mm
Drawer Both sides
Table Size & number 2-1000 x 600 x 450mm (reception)
2-450 x 450x 450 mm (side)
Wardrobe Size & number 1-1200 x 600 x 1970 mm
Mirror 1 - long
Chest of drawer Size & number 1 - 800 x 600 x 760 mm
w/mirror
Side board Size & number 1-2400 x 600 x 900 mm
Type Combined with book case, wine cabinet
and VTR rack
Sofa with arm Upholstery Fabric
rest both sides Stuffing Seat Polyurethane sponge
Back Polyurethane sponge
Size & number 2 - 3 seat type
Chair Type & number 1 - Revolving arm chair
2 - Easy chair
1 - Arm chair , 1 - Stool
Upholstery Fabric
Stuffing Seat Polyurethane sponge
Filing cabinet 4 - (2-drawer)
Hat and coat hook 6
Mattress Upholstery Cotton cloth
Stuffing Polyurethane sponge with coil spring
Thickness 150 mm
Pillow Upholstery Cotton cloth
Stuffing Synthetic material
Miscellaneous 1 - Elect.refrigerator
(abt. 100 L, Domestic type)
1 - Safe (Captain only)
1 - PC table(1100 x 600 x 760 mm)
1 - Mirror (600 x 1300mm)
LNNY150M-FS-O1F 1729 07/04/18

3 - 19
Item/Ranking 2nd
Senior officer class room
Bed Overall size & 1 - 2030 x 1430 x 470 mm
number
Drawer 2 - drawers
Desk Size & number 1 - 1550 x 800 x 760 mm
Drawer Both sides
Table Size & number 1 - 1000 x 600 x 450mm (reception)
2 - 450 x 450x 450 mm (side)
Wardrobe Size & number 1 - 1200 x 600 x 1970 mm
Mirror 1 - long
Chest of drawer Size & number 1 - 800 x 600 x 760 mm

w/mirror
Book case Size & number 1 - 1200 x 600 x 760 mm
Type Cabinet of floor type
Sofa with arm Upholstery Fabric
rest both sides Stuffing Seat Polyurethane sponge
Size & number 1 - 3 seat type
Chair Type & number 1 - Revolving arm chair
2 - Arm chair
1 - Stool
Upholstery Fabric
Filing cabinet 1 - (2-drawer)
Hat and coat hook 5
Mattress Upholstery Cotton cloth
Stuffing Polyurethane sponge with coil spring
Thickness 150 mm
Pillow Upholstery Cotton cloth
Stuffing Synthetic material
Miscellaneous 1 - Key box
(Chief officer only)
1 - Electric refrigerator
(abt. 100 L, domestic type)
LNNY150M-FS-O1F 1729 07/04/18

3 - 20
Item and Ranking 3rd 4th

Junior officer class, Petty officer class room
Cadet room Crew class room
Bed Overall size & 1-2030x1030x470 mm Do.
number
Drawer 2 - Drawers Do.
Desk Size & number 1 - 1000x600x760 mm Do.
Drawer One side Do.
Table Size & number 1 - 600x400x450 mm -
(reception)
Wardrobe Size & number 1 - 800x600x1970 mm 1-600x600x1970 mm
Mirror 1 - small Do.
Chest of Size & number 1 - 600x600x760 mm -
drawer
Book rack Size & number 1 - 600x300x330mm Do.
Sofa Size & number 1 - 3 seat type -
Upholstery Fabric -
Stuffing Seat Polyurethane sponge -
Back Polyurethane sponge -
Settee Size & number - 1 - 3 seat type
Upholstery - Vinyl leather
Stuffing Seat - Polyurethane sponge
Back - Polyurethane sponge
Chair Type & number 1 - Arm chair -
- 1 - Common chair
Upholstery Fabric Vinyl leather
Stuffing Seat Polyurethane sponge Do.
Back Polyurethane sponge Do.
Hat and coat hook 2 2
Mattress Upholstery Cotton cloth Do.
Stuffing Polyurethane sponge Do.
with coil spring
Thickness 150 mm Do.
Pillow Upholstery Cotton cloth Do.
Stuffing Synthetic material Do.
Miscellaneous 1 - Elect. refrigerator, (abt. 50 L, domestic type)
LNNY150M-FS-O1F 1729 07/04/18

3 - 21
Item/Name of room Suez crew room

Bed Over all size 2030 x 930 x 2 tier 2
Drawer 2 - drawers
Writing table Size 1200 x 600 x 760 mm 1
Wardrobe Size 300 x 500 x 1790 mm 4
Book rack Size 600 x 350 x 330 mm 1
Upholstery Vinyl leather
Settee Stuffing Polyurethane sponge 1
Size 3 - seat type
Chair Upholstery Vinyl leather 1 - Arm
Stuffing Polyurethane sponge
Miscellaneous 4 - Hat and coat hook
Item/Name of room Hospital Dispensary
Bed 2 - 2030 x 800 mm (Steel) -
Common chair 1 1
Miscellaneous 2 - Bed side locker 1 - Medicine locker

(half height) 1 - Dispensing table
2 - Steel wardrobe (450x500) 1 - Elect. refrigerator
4 - Hat and coat hook] abt. 100 L.
domestic type
Bookcase :
refer to page 3-16
LNNY150M-FS-O1F 1729 07/04/18

3 - 22
FURNITURE APPLICATION FOR PUBLIC AND OFFICE SPACE
Item and Name of room Officers’ lounge Officers’ mess room

Size & Mess - 2 - 2000x800x760 mm
2 - 1400x800x760 mm
Table number Reception 1 - 1000x600x450 mm -
Corner 1- 750x750x450 mm -
Card 1- 900x900x760 mm -
Material Top plate Wood Do.
Pedestal Steel fixed Do.
Size & number 1 - 5 seat type -
Sofa Upholstery Vinyl leather -
Type & number 2 - Easy chair -
Chair 4 - Common chair 20-Arm chair
Upholstery Vinyl leather Do.
Miscellaneous 1 - Side board 1 - Cupboard
(2400x600x900mm) (1200x600x900mm)
combined with game 1 - Notice board
locker, book case
and audio/video
locker
1 - Notice board
Officers’ TV room and crew’s TV room(each)
4 - Sofa (total 12-seat type)

1 - TV locker
2 - Reception table (1000 x 600 x 450 mm)
3 - Corner table (750 x 750 x 450 mm)
LNNY150M-FS-O1F 1729 07/04/18

3 - 23
Item and Name of room Crews lounge Crew’s mess room

Size & Mess - 2 - 2000x800x760 mm
2 - 1400x800x760 mm
Table number Reception 1 - 1000x600x450 mm -
Corner 1- 750x750x450 mm -
Card 1- 900x900x760 mm -
Material Top plate Wood Do.
Pedestal Steel fixed Do.
Size & number 1 - 5 seat type -
Sofa Upholstery Vinyl leather -
Type & number 2 - Easy chair -
Chair 4 - Common chair 20-Common chair
Upholstery Vinyl leather Do.
Miscellaneous 1 - Side board 1 - Cupboard
(2400x600x900mm) (1200x600x900mm)
combined with game 1 - Notice board
locker, book case
and audio/video
locker
1 - Notice board
Duty mess room
1 - Table (1800 x 700 x 760 mm)

6 - Common chair
1 - Refrigerator (abt. 200 L), domestic type
1 - Elect. water boiler (abt. 9 L)
1 - Elect coffee machine (abt.1.8 L)
1 - Elect hot plate
1 - Elect toaster of four(4) slices type
1 - Dresser with one(1) sink, stainless steel top
1 - Towel rail
1 - Sofa(3-seat)
6 - Hat and coat hook
LNNY150M-FS-O1F 1729 07/04/18

3 - 24
Item and Name of room Engine control room Central office

Desk Size & number 1 -1000x600x760 mm 3 - 2000x600x760 mm
Chair Type & number 2 - Revolving arm chair 11 - Arm chair
Upholstery Vinyl leather Fabric.
Back Polyurethane sponge Do
Book case Size & number Refer to page 3-16 Refer to page 3-16
Filing cabinet 4-(3-drawer) 4-(3-drawer)
Miscellaneous 1 - Meeting table 3 - PC table
6 - Common chair 1 - Conference table
1 - White board 1 - White board
1 - Notice board 1 - Notice board
3 - Hat & coat hook 6 - Hat & coat hook
Gymnasium
1 - Ping-pong table (2743 x 1523 mm)

1 - Rowing machine
1 - Cycling machine
1 - Lifting machine
1 - Sports locker
1 - Bench (1500 mm long)
8 - Hat and coat hook
CCR
1 - Desk(1550 x 750 x 760 mm)

1 - Conference table with ten(10) Arm chair
5 - Revolving arm chair
4 - Filing cabinet (3-drawer)
1 - White board
1 - Notice board
Bookcase : refer to page 3-16
Electric system : refer to section 7.3.2.
Description level of furniture is different from other office space. So.

Detail to be discussed at detail design stage (for instance, desks for PC,
coat & hat hook etc.)
LNNY150M-FS-O1F 1729 07/04/18

3 - 25
FURNITURE APPLICATION AND LIST FOR NAVIGATION AND CONTROL

SPACE
Item and Name of room Wheelhouse & chart space
Table Size & number 1 - Chart table with chart locker

1 - Reception table (1000 x 600 x 450 mm)
1 - Folding table
1 - Radio table (1550 x 750 x 760 mm)
Chair Type & number 1 - Pilot chair with arm
1 - Revolving arm chair
1 - Stool
Sofa Size & number 1 - 3 seat type
Upholstery Fabric
Book case Size & number Refer to page 3-16
Filling cabinet 2 - (2-drawer)
Miscellaneous 1 -
Flag locker
2 -
Binocular box
1 -
Notice board
1 -
White board
1 -
Flag pigeon box
3 -
Hat and coat hook
1 -
Elect. refrigerator (abt. 50 L),
domestic type
1 - Dresser with one(1) sink,
stainless steel top
3 - Elect. heater each about 2 KW capacity
Note : Drawers for chart table could be pull out from both sides and slit
to be provided on the fore/aft edge of table top, as far as possible
according to wheelhouse arrangement and rule requirements.
Buyer's reference drawing for this type of chart table to be given
to Builder at detailed design stage.
★ One(1) electric heater about 0.4 kW capacity to be provided in

entrance lobby to accommodation corridor.
LNNY150M-FS-O1F 1729 07/04/18

3 - 26
CURTAIN
The curtain to be of fabrics or printed cloth and to be provided as follows:
Window curtain with Window or side scuttle of deckhouse

Roller blind except in wheelhouse, CCR, galley,
engine control room and switchboard room.
Black partition curtain Between the wheelhouse and chart space
Vinyl curtain All shower space
Bed curtain Twin bed, two tier bed and all cabins except
1st and 2nd ranking room.
Door curtain All cabins(except suez crew cabin), mess

room, lounge and TV room.
LNNY150M-FS-O1F 1729 07/04/18

3 - 27
3.1.12 FURNISHINGS AND FITTINGS OF SANITARY SPACE
Private toilet and bathroom to be of unit type.
All exposed metal fixtures, taps, valves, accessories and trim to be of

aluminum or chromium coated brass.
Rubber washers to be fitted between all china plumbing fixtures and metal
supports.
One lamp to be provided for toilet cabinet or mirror for illumination of the
toilet space.
WASH BASIN
Material White vitreous china
With Hot and cold water mixing single lever faucet, S-trap, pop-up
plug
WATER CLOSET
Type Vacuum type
Material White vitreous china
With Hard plastic seat and lid
SHOWER
Shower to be composed of telephone type shower head with hot/cold water

thermostatic mixing valve.
TOILET CABINET
Material Moulded plastic

With Shelf inside
Mirror On the hinged door
TOILET RACK
Type Wall mount

Material Plastics and aluminum or chromium coated brass
With Glass plate
BATHTUB
Type European style

Material Fiber glass reinforced plastics
With Hot and cold water faucet with thermostatic mixing valve and
telephone type hand shower
MIRROR
Type Frameless mirror
LNNY150M-FS-O1F 1729 07/04/18

3 - 28
FURNISHINGS OF TOILET
Item/Space Private toilet Hospital Public toilet Changing

bathroom room (each)
Bathtub - 1 - -
Shower 1 - - -
(Hand
shower)
Wash basin 1 1 1 1
Toilet rack - 1 1 1
Mirror - 1 1 1
(in toilet
cabinet)
Water closet 1 1 1 -
Toilet cabinet 1 - - -
Paper holder 1 1 1 -
Soap dish 2 2 1 1
Towel rail 1 1 1 1
Hand grip 2 2 1 -
Steel locker - - - 15
Wooden bench - - - 1
One (1) public toilet to be provided near the engine control room.
★ One(1) electric heater about 1 kW capacity to be provided in deck change

room.
LNNY150M-FS-O1F 1729 07/04/18

3 - 29
3.1.13 SWIMMING POOL
Swimming pool
Swimming pool to be fitted with SUS 316 ladder. SUS 316 hand grip rail to be
fitted around the pool, where applicable.
Pool to have sea water filling hose connection from the fire main line and also
to have branch line for connection to aux. central cooling sea water line.
Direct overboard discharge to be fitted and connected to the scupper.

Wooden grating to be provided around swimming pool.
Awning
Corrugated awning of fiberglass reinforced plastic, green or light green color,

to be provided beside the swimming pool.
Awning stanchion to be galvanized steel tube and wooden chocks for holding
down to be provided under awning.
Steel retaining washer with neoprene to be fitted on top of awning for

securing the necessary bolts
LNNY150M-FS-O1F 1729 07/04/18

3 - 30
3.1.14 FURNISHINGS OF LAUNDRY
SHIP'S LAUNDRY
Item Quantity Remark

Washing machine 2 About 15 kg capacity (marine type)
Drying tumbler 2 About 7.5 kg capacity
Washing tub 1 Stainless steel
Iron board 1 Wood with canvas cloth
Elect. hand iron 2
Iron machine 1 About 1400 mm breadth
Shelf 2 Stainless steel, wall mounted type
Hanging rope and one(1) electric heater of about 2 KW capacity to be

provided in drying room.
*** Coaming to be installed washing machine.
OFFICERS' LAUNDRY AND CREW'S LAUNDRY
Item Quantity Remark

Officer’s(*) Crew’s
Washing machine 3(#) 4(#) About 5 kg capacity (domestic type)
Drying tumbler 3(#) 4(#) About 5 kg capacity
Washing tub 1 1 Stainless steel
Iron board 1 1 Wood with canvas cloth
Elect. hand iron 2 2
Shelf 1 1 Stainless steel, wall mounted type
Note(#) : Each drying tumbler is located on each washing machine as

combined type due to the space limited.
Note(#) : For Officer's laundry, the other facility (such as electric facility
and water supply system, etc.) is same as crew’s laundry for
future installation of additional washing machine and drying
tumbler.
Hanging rope and one(1) electric heater of about 2 KW capacity to be

provided in drying room.
*** Steel coaming to be installed around washing machine.
LNNY150M-FS-O1F 1729 07/04/18

3 - 31
3.1.15 FURNISHINGS OF CATERING SPACE
In general, the metal part directly in contact with prepared food to be of

stainless steel and remainder of steel painted.
Shelf and rack of stainless steel to be provided suitably.
GALLEY
1 - Elect. cooking range with 6-hot plate and 1-oven
1 - Elect. soup boiler (abt. 40 L) , tilting type
1 - Elect. baking oven (two-compartment)
1 - Elect. microwave oven
1 - Elect. meat slicer
1 - Elect. potato peeler
1 - Elect. universal mixing machine with mixing bowl of about 20 liters, meat
grinder and vegetable slicer
2 - Elect. dish washer
*** Dish washer to be located below the counters
1 - Elect. ice cube making machine
1 - Elect. waste disposer (under-counter type)
1 - Elect. refrigerator (abt. 500 L)
1 - Can opener, manual type
1 - Elect. deep fat fryer
2 - Dresser with two sinks, stainless steel top
1 - SUS working table with necessary drawers under
1 - SUS chopping table
1 - Hand wash basin (white vitreous china) with towel rail & soap dish, etc.
1 - Waste bin
*** 1 - Knife rack (can be locked with key)
Note : The capacity of above equipment to be based on the number of ship's

personnel.
Shelves, racks, hooks, lockers, etc. as necessary to suit the room.
LNNY150M-FS-O1F 1729 07/04/18

3 - 32
PANTRY
Each pantry equipment in for officers' and crew's to be provided as follows :

1 - Elect hot plate
1 - Elect microwave oven (domestic type)
1 - Dresser with one(1) sink, stainless steel top
1 - Towel rail
Night pantry
1 - Elect hot plate
1 - Cupboard with 1-sink
DRINKING WATER FOUNTAIN
The drinking water fountain containing refrigeration unit for water cooling, to
be provided as follows.
Location Number of unit
Officers’ mess room 1
Crew’s mess room 1
Wheelhouse 1
Near the Engine control room 1
Total 4
*** Coaming to be installed around drinking water fountion.
LNNY150M-FS-O1F 1729 07/04/18

3 - 33
3.2 DOMESTIC SYSTEMS
Hot and cold fresh water to be supplied to all wash basins, showers, sinks,
wash throughs and washing machines – see Section 6.6.1.
A vacuum sewage collection system, supplied with fresh water, to include a

holding tank of at least 10 days capacity. The biological sewage treatment
plant of capacity sufficient for 60 persons.
A sludge and waste incinerator system to be installed as described in section

6.10.
LNNY150M-FS-O1F 1729 07/04/18

3 - 34
3.3 HEATING VENTILATION AND AIR CONDITIONING SYSTEM
3.3.1 GENERAL
The living quarters to be ventilated and air conditioned as follows:

A) The following spaces to be air conditioned.
Living space
Public space
Office space
Electric equipment room
B) Catering space, gymnasium, wheelhouse & chart space, change room,
bonded store and dry provisions store to be conditioned by spot cooling
and heating without consideration of temperature and relative humidity.
Air in main air conditioned space, except hospital, to be exhausted into the
passage through the door louvre and into the appropriate private sanitary
space, if applicable, through the door gap. The recirculation air to be taken
from the passage and led to the air handling unit.
Air from hospital/dispensary, sanitary spaces, galley, pantries and stores not
to be recirculated.
Air conditioning systems to be provided for main switchboard room, engine
workshop, engine control room, central control room and electric equipment
room and cargo switchboard rooms as follows :
A) The electric equipment room, CCR, cargo switchboard rooms and

central office to be supplied by 2 x 100% auxiliary air conditioning units.
The design of the system to take into account the heat emission and
cooling requirements of the electrical equipment fitted in these spaces.
B) Engine control room and main switchboard rooms to be supplied by 2 x

100% independent air conditioning units. This unit to be capable of
maintaining 27oC at 50% relative humidity when outside air is 35 oC at
80% R.H. and the engine room itself at 45 oC.
Heating to be provided to maintain 22 oC in these spaces when outside
air temperature of -15oC.
C) Workshop in engine room to be air conditioned by an packaged air

conditioning unit(abt 54,000 kcal/h capacity).
Electric heating is also to be provided for the following rooms for spot
heating:
- Each drying rooms for laundries : 2kW x 1 set (refer to section 3.1.14)
- Emergency generator room : 7 kW x 1 set
- Steering gear room : 7kW x 2 sets (#)
- Bosun store : 7 kW x 2 sets (#)
- Thruster room : 7 kW (#)
(#) Note : the electric heaters to be installed near the machine.
LNNY150M-FS-O1F 1729 07/04/18

3 - 35
3.3.1.1 VENTILATION AND AIR CHANGE RATE
The air conditioning and mechanical ventilation system to be designed to

have the following minimum rate of air change (times/hour) based on the
volume of each compartment.
Minimum rate of air changes per hour specified in the following table may be
changed according to the results of detail heat load calculation and the
requirements of the applicable regulations.
Air Mechanical
Compartment Conditioning
A.C.R. Sys. Supply Exhaust
Living space 6 Main - -
Public space 8 Do. - -
Hospital 8 Do. - -
Captain class office 8 Do. - -
Wheelhouse 12 Do. - -
Gymnasium 8(spot) Do. - -
Changing room 5(spot) Do. - 10
Galley 6(spot) # Do. 20 40
Pantry 6(spot) # Do. - 15
Dry provisions store, bonded 6(spot) Do. - -
store
Night pantry 6(spot) Do. - 6
Fire control station 6(spot) Do - -
Cargo switchabord rooms, 10 Aux. - -
elect. equip. room, CCR,
Central office
Private toilet - - - 10
Public toilet - - - 15
Laundry - - - 15
Drying room - - - 15
Cleaning gear locker & linen - - - 5
locker
Garbage store - - - 10
Battery room - - - 30
Note : 1. (#) One(1) package type unit cooler with electric heating to be
provided for galley and pantry.
The refrigerant for cooler to be provided from main air con.
system.
2. The ‘spot’ spaces to be air-conditioned by spot cooling and heating

without consideration of temperature and relative humidity
Other spaces not specified above to be naturally ventilated with suitable
ventilator.
LNNY150M-FS-O1F 1729 07/04/18

3 - 36
3.3.1.2 AIR CONDITIONING SYSTEM

The air conditioning system to be of high pressure type and single duct
system with central heating and cooling unit.
The plant to be designed to cool or heat the supply air and to maintain the
following condition when the doors, windows and side scuttles are closed.
Rate of fresh air to supply air may be changed if so required to meet the fresh
air rate requirement of the Regulatory Body of ship's registry.
(1) Main air conditioning system

Living space, public space to be air conditioned.
Catering space, gymnasium, wheelhouse & chart space, change room,
bonded store and dry provisions store to be conditioned by spot cooling and
heating without consideration of temperature and relative humidity
Outside air Inside air Rate of
Season Dry bulb Relative Dry bulb Relative fresh air
temp. humidity temp. humidity intake
In summer 35oC 80% 27 oC 50% About 50%
In winter -15oC - 22oC 40% About 50%
(steam)
Cooling fresh water temp. : 36 oC
(2) Auxiliary air condition system

The electric equipment room, CCR, cargo switchboard rooms and central
office to be supplied by 2 x 100% auxiliary air conditioning units.
Outside air Inside air Rate of
Season Dry bulb Relative Dry bulb Relative fresh air
temp. humidity temp. humidity intake
In summer 35oC 80% 27 oC 50% 10%
o o
In winter -15 C - 22 C 40% 10%
(steam)
Cooling fresh water temp. : 36 oC
3.3.1.3 TEST AND TRIAL
The central unit to be tested at the maker's shop in accordance with the
maker's usual practice.
After the completion of air conditioning system, following tests to be

performed in accordance with Builder's practice.
1. Air volume test

2. Cooling or heating test
The air conditioning test to be carried out as applicable in connection with

testing season. When the heating or cooling is not applicable, only the
running test to be performed.
LNNY150M-FS-O1F 1729 07/04/18

3 - 37
3.3.2 MAIN AND AUXILIARY AIR CONDITIONING PLANT
The main and auxiliary air conditioning systems, each system to be consisted
of two 100%, centrally located cross-connected units each incorporating one
100% refrigeration compressor and one 100% air handling unit.
In extreme conditions of 45oC at 80% relative humidity the two(2) units of

each system to be capable of operating together to produce the required
internal conditions
The material and design to be as per the maker's standard unless otherwise
specified.
3.3.2.1 AIR HANDLING UNIT
The unit to consist of the following: -
One(1) Fresh air-recirculation air mixing damper (manual)
One(1) Removable air filter
One(1) Steam heating coil
One(1) Direct expansion coil
One(1) Humidifier
One(1) Ventilating fan of two(2) speed electric motor driven centrifugal type
3.3.2.2 REFRIGERATING CONDENSING UNIT
One(1) R-404A Compressor driven by an electric motor directly or via vee

belt
One(1) Condenser of horizontal straight shell and tube type

Shell and tube plate : steel
Tube : Copper
One(1) Gas dryer
3.3.2.3 PIPING SYSTEM
Cooling water to be supplied by central cooling water pump in the engine

room.
LNNY150M-FS-O1F 1729 07/04/18

3 - 38
3.3.2.4 DUCTING SYSTEM
Fresh air for air handling units to be drawn through the air supply head and to
be led to air handling units.
Recirculation air for the central unit to be drawn through the grille provided on
the wall or ceiling of the corridor space and to be led to the central unit.
Air conditioning supply ducts to be pre-insulated spiral duct made of

galvanized steel sheet.
Controllable diffuser to be fitted at outlet of the air conditioning supply duct in

air conditioned space and punkah louver in other space.
Trunk and duct exposed to weather deck to be 6 mm thickness and to be

weathertight.
3.3.2.5 TEMPERATURE CONTROL SYSTEM
In summer :
(1) The refrigerant gas for air cooling to be controlled to maintain a

reasonable constant temperature of discharge side by means of
unloading mechanism of the refrigerating compressor.
(2) When the ambient temperature becomes lower than condition (1) the
compressor to be stopped automatically and restarted automatically
when the temperature is higher than condition (1), by the electro-
magnetic valve and thermostat, having thermobulb located in return air
duct.
In winter :
Regulating steam valve on the steam air-heating coil to be controlled by the

thermobulb located in the duct of fresh air inlet and heater outlet.
Automatic humidity control to be provided.
In intermediate season :
Air to be supplied without cooling or heating from air conditioning plant.
LNNY150M-FS-O1F 1729 07/04/18

3 - 39
3.3.3 MECHANICAL VENTILATION
3.3.3.1 FAN
The electric motor driven centrifugal or axial type ventilation fan to be

provided as follow:
System No. of fan *** Remark

Galley exhaust system 1
Galley supply system 1
*** Sanitary space, laundries, drying room 1
*** Miscellaneous locker exhaust 1
Garbage store exhaust system 1
*** Battery room exhaust system (Nav. battery) 1
*** Battery room exhaust system (E/R battery) 1
Air-con room exhaust system 1
*** Duty mess exhaust system 1 For temporary use
*** Crews lounge exhaust system 1 For temporary use
*** Offrs lounge exhaust system 1 For temporary use
*** Hospital / Dispecsary exhaust system 1 For temporary use
*** Central office exhaust system 1 For temporary use
★ Duct heater with fan (cargo cont. room) 1
★ Duct heater with fan (captain room) 1
3.3.3.2 VENT. DUCT SYSTEM

Mechanical ventilation space which is not specified above to be incorporated
into the system which is preferable on duct arrangement.
Mechanical ventilation duct in living quarter to be single spiral or rectangular
duct made of galvanized steel sheet having same thickness as the air
conditioning supply duct, but not to be insulated.
Ventilation trunk or duct at outside of living quarter, if fitted, to be of
rectangular type and to be painted steel sheet (2.3 mm thick).
Supply and suction side of the mechanical ventilation duct to have duct
opening with screen.
Ventilating hood of stainless steel with washable stainless steel grease filter
to be provided over the cooking range in galley.
Outlet terminal of exhaust fan from the sanitary space and galley to be
arranged away from air intake as far as practicable.
LNNY150M-FS-O1F 1729 07/04/18

3 - 40
NATURAL VENTILATION
Spaces which are not air conditioned or mechanically ventilated, to be

provided with natural ventilators such as mushroom ventilator, wall ventilator
or door louver, where necessary.
Ventilating louver with shutter may be provided on the door leading to the
passage from the living space, public space (except hospital) and office
space.
Coaming height of ventilator to be as rule requirement for the upper deck, A

deck and to be as the Builder's practice for the other decks.
Stainless steel wire mesh screen to be provided at weather opening of the

supply and exhaust ventilation duct.
LNNY150M-FS-O1F 1729 07/04/18

3 - 41
3.3.4 VENTILATION SYSTEM EXCEPT ACCOMMODATION
3.3.4.1 GENERAL
This section describes the details of ventilation system mainly for the steering
gear room, stores and other areas except for the cargo tanks, living quarters
and machinery space which are described separately in the Hull Piping
Section, Accommodation Section and Machinery Section, respectively.
Gooseneck, mushroom or wall louver type ventilators to be provided as

ventilation heads on the weather deck.
The ventilators to be of fabricated mild steel plate with sufficient cross

sectional area and to be weathertight. The coaming height to be decided in
accordance with the requirement of Rules and Regulations concerned.
The size and type of ventilators to be determined according to the Builder's

standard and the requirements of Rules and Regulation concerned.
If the height of coaming exceed 900 mm, bracket may be fitted on the
coaming of mushroom vent.
Name and direction of open/close shall be marked on the top of

Mushroom type ventilators
Edge of ventilator shall be painted with different color according to the

NYK standard. (About 150mm width)
3.3.4.2 VENTILATION DUCT
The trunk and duct to be of rectangular type. The thickness of duct to be of

2.3 mm.
2.3mm plate to be painted steel plate. Burnt part to be touch-up by zinc rich
paint.
The duct to be well arranged to minimize the pressure drop.
3.3.4.3 MECHANICAL VENTILATION
The mechanical ventilation system to be designed and installed in

accordance with the requirement of the Classification Society and Regulatory
Bodies concerned.
Each space to be provided with either supply or exhaust fan(s) with/without

duct system depending upon the characteristics of the compartment.
The number of fans and group or independent duct system, etc. to be

decided considering the arrangement in each compartment and size of
ventilators.
The capacity of ventilating fans to be based on the following air change rate
for empty space listed below neglecting deduction made by equipment and
other furnishings.
LNNY150M-FS-O1F 1729 07/04/18

3 - 42
Compartment Air change rate (times/hr)

Supply Exhaust
Steering gear room combined with aft 10 -
hydraulic power unit space and rope store
Bosun’s store combined with forward hyd. 8 -
power unit space,
Cargo compressor room - 30
El. motor room for cargo compressor 30 -
Emergency generator room - 5
Pipe duct in double bottom - 5
Paint store - 10
Side passage way - 5
Bow thruster & emergency fire pump room 5 -
CO2 room - 5
3.3.4.4 NATURAL VENTILATION
Other space than mechanically ventilated space included in section 3.3.5.3 to

be naturally ventilated with suitable ventilators.
The location of ventilators to be carefully decided to ensure satisfactory

ventilation.
3.3.4.5 VENTILATION FAN
Marine use axial flow type fans of which the impeller and electric motors are
incorporated in the fan casing, to be provided.
The impeller of fan to be dynamically balanced.
The fans to be mounted on the coaming with mushroom ventilator.
All external ventilators to be correctly and clearly identified with a name plate
showing the service area.
The capacity and static pressure of fan(s) to be sufficient to cover the

specified air change rate of respective compartment.
LNNY150M-FS-O1F 1729 07/04/18

3 - 43
3.4 STORES
3.4.1 REFRIGERATED PROVISIONS CHAMBER

The refrigerating chamber to be divided into the following compartment :
Compartment Approx. Volume(#) Temp.
Meat room 30 m3 - 20 oC
Fish room 20 m3 - 20 oC
Vegetable room 40 m3 3 oC
Dairy room 20 m3 3 oC
Lobby 30 m3 Uncooled
Total: abt. 140 m3
# Volume to be inside gross volume.
A refrigerating plant to be designed to maintain the above temperature at

cooling water temperature of 36oC and at the outside temperature of 35oC.
The dial thermometer for each chamber to be provided.

A remote temperature displayed on CRT unit of IAS to be provided for
each chamber
High room temperature alarms in the IAS and personnel trap alarms near
chief steward room and wheelhouse to be provided.
One refrigerating unit to have capacity enough to maintain the specified
temperature within 18 hours running per day after cooling down while the
other unit to serve as stand-by.
3.4.1.1 REFRIGERATING SYSTEM
The cooling system to be of R-404A direct expansion and air circulating

system with automatic control device and to be able to keep the temperature
of the refrigerating chamber as specified in this Specification.
*** The valve panel to be located at lobby.
The electrical defrost system with timer to be provided for the meat and fish
room.
Hot gas defrost system to be also provided
The material and design to be as per the maker's standard unless otherwise
specified.
Cooling down test for refrigerated provision chamber to be carried out after
the completion in accordance with Builder's practice.
LNNY150M-FS-O1F 1729 07/04/18

3 - 44
UNIT AIR COOLER

No. One(1) in each compartment
Typee Wall or ceiling suspension type consisting of
a copper cooling coil with aluminum fins and
one(1) electric motor actuated propeller fan,
galvanized steel or aluminum drip pan and
casing
COMPRESSOR
No. Two(2)
Type Multi-cylinder single acting type driven by an
electric motor via vee belt or directly
CONDENSER
No. Two(2)
Type Horizontal straight shell and tube type
Shell and tube plate : steel
Tube : Copper
MISCELLANEOUS
One(1) gas dryer
Automatic temperature control device
One(1) ozon generator in vegetable room .
PIPING SYSTEM
Cooling water to be supplied by central cooling water pump in the engine

room.
3.4.1.2 INSULATION AND LINING
Location Construction
Overhead and side wall 0.7 mm galvanized steel sheet + 125 mm

foamed polyurethane + 0.7 mm SUS sheet
Divisional wall between 0.7 mm SUS sheet + 100 mm foamed

compartments polyurethane + 0.7 mm SUS sheet
Floor 1.0 mm galvanized steel sheet + 100 mm

foamed polyurethane + 12 mm plywood +
1.0 mm SUS sheet + PVC grating
LNNY150M-FS-O1F 1729 07/04/18

3 - 45
3.4.1.3 DOORS
Type Air tight hinged pontoon
Material Stainless steel sheet with PVC jamb filled with

foamed polyurethane
Clear breadth 700 mm
Clear height About 1,700 mm
Accessory Rubber packing

1 - Door fastener with handle which can be
unlocked from inside of the chamber by
pushing a push rod
1 - Hand grip inside of the chamber
1 - Hook and eye for keeping door at open
position
Door frame Stainless steel filled with foamed polyurethane
Lobby door to be of steel pontoon type with lock and handle.
Electric heating cable to be provided for door frame of meat and fish room.
Locked in alarm to be provided.
3.4.1.4 MISCELLANEOUS
Stainless steel meat rail and hook to be fitted in the meat room.
Stainless steel (SUS 304) 2-tier shelf to be provided in each chamber except
lobby.
The grating of PVC to be fitted on the floor under shelf.
One(1) chopping block with working table to be provided in lobby.
One(1) cold fresh water faucet to be provided In lobby.
*** One(1) meat hook to be provided in lobby.
Scupper with water seal to be provided in each room.
LNNY150M-FS-O1F 1729 07/04/18

3 - 46
3.4.2 DRY PROVISIONS STORE AND BONDED STORE
Two(2) tier fixed type shelf of galvanized steel to be provided.
The grating of soft wood to be fitted on the floor under shelf.
3.4.3 SUNDRY SPACE
The stowage space in following table to be arranged as shown on the

Accommodation Layout Plan.
The shelves to be of galvanized steel.
The grating of soft wood to be fitted on the floor under shelf.
Each space to be furnished as follows :
Compartment Shelf (tier) Remarks
Cleaning gear locker 2-tier 1 - Washing tub (stainless steel)
Linen locker Do. -
Garbage locker - 5 - Stainless steel garbage bin

(100 l, each)
1 - Garbage compactor
(about 3 ton compressing force)
Other locker in Do. -

accommodation
★ B-deck locker near the accommodation entrance port & stb’d.

★ - Hanging rope, coat hook and one(1) electric heater of about 1 kW capacity
to be provided respectively.
LNNY150M-FS-O1F 1729 07/04/18

3 - 47
3.5 ACCOMMODATION ARRANGEMENT
1) UPPER – DECK
LNNY150M-FS-O1F 1729 07/04/18

3 - 48
2) A - DECK
LNNY150M-FS-O1F 1729 07/04/18

3 - 49
3) B - DECK
LNNY150M-FS-O1F 1729 07/04/18

3 - 50
4) C - DECK
LNNY150M-FS-O1F 1729 07/04/18

3 - 51
5) D - DECK
LNNY150M-FS-O1F 1729 07/04/18

3 - 52
6) NAV. BRIDGE- DECK
LNNY150M-FS-O1F 1729 07/04/18

3 Accommodation 3.1 General: LNNY150M-FS-O1F 1729 07/04/18

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

3 Accommodation 3.1 General: LNNY150M-FS-O1F 1729 07/04/18

Uploaded by

Copyright:

Available Formats

Hyundai Heavy Industries Co., Ltd.

Accommodation with necessary facilities to be provided on the following

Public spaces to include an officers mess, officers lounge, officers TV room,

A hospital with two single beds and bathtub/shower/WC to be provided.

Galley/pantry(refer to section 3.1.15), and gymnasium(refer to section 3.1.11)

Public toilets, cleaning gear lockers and night pantries to be arranged as

Ship’s laundry, officers’ laundry and crews’ laundry to be arranged

To minimize the transmission of vibration, the engine casing not to be

A central control room(CCR) to be provided within the accommodation house

LNNY150M-FS-O1F 1729 07/04/18

The inclined ladder from D-deck to the navigation bridge deck to be of

Living space Cabin and annexed similar space

Public space Officers' mess room, officers' lounge,

Office space Central control room (CCR)

Corridor space Passage way, stairway

Sanitary space Private toilet

Catering space Galley, pantry

Provisions space Dry provisions store

Sundry space Changing room

Miscellaneous space Swimming pool

LNNY150M-FS-O1F 1729 07/04/18

3.1.2 CLEAR HEIGHT

LNNY150M-FS-O1F 1729 07/04/18

3.1.3 COMPLEMENT AND GRADE

Cabins to be provided on the following basis: -

Grade Living space Remarks

Management Captain Dayroom, bed room, office

*** Senior officer Chief officer Dayroom, bed room and

*** Junior officer 2nd officer Single room and private

*** Petty officer Chief steward Single room and private

*** Others (3 + 4) Cadet (3) Single room and private

Suez worker One common room

Total :40 + 4 persons/41 cabins

LNNY150M-FS-O1F 1729 07/04/18

The insulation material and construction to be in accordance with the relevant

Approximate bulk density of insulation material to be as follows :

Mineral wool abt. 80 kg/m3 for heat and sound insulation

Mineral wool to be secured with pin and washer.

OVERHEAD AND SIDE HEAT INSULATION

The portion of compartment in accommodation space facing weather exposed

As for the space partially exposed, the insulation to be extended to 300 mm

Following abbreviation to be used.

MW : Mineral Wool with glass cloth and aluminium foil

LNNY150M-FS-O1F 1729 07/04/18

Overhead in the Side in the

Deck Beam & Wall Stiffener

★ Living, public and office spaces 100 MW 25 MW 100 MW 25 MW

★ Dry provisions store 100 MW 25 MW 100 MW 25 MW

★ Air conditioning unit room 100 MW 25 MW 100 MW 25 MW

★ Refrigerating chamber 100 MW 25 MW 100 MW 25 MW

Note : Beam and girder above 300 mm in depth to be insulated by 300 mm

Sound insulation (50mm thick mineral wool) to be provided in air conditioning

Fire insulation to be provided according to the Rule and Regulation.

LNNY150M-FS-O1F 1729 07/04/18

3.1.5 PARTITION, CEILING, LINING

Material and installation to be in compliance with the Rule and Regulation.

Bottom of joiner bulkhead to be set in welded steel profile on deck.

Watertight coaming to be made by the bottom profile behind lining in way of

Wall panel to be jointed and installed in accordance with the maker's

The material and thickness of partition to be as follows :

Corridor bulkhead (B-class) 50 mm thick rock wool with 0.6 mm

Division bulkhead (#) Do.

Following space to be enclosed with steel wall :

Wheelhouse entrance from corridor
