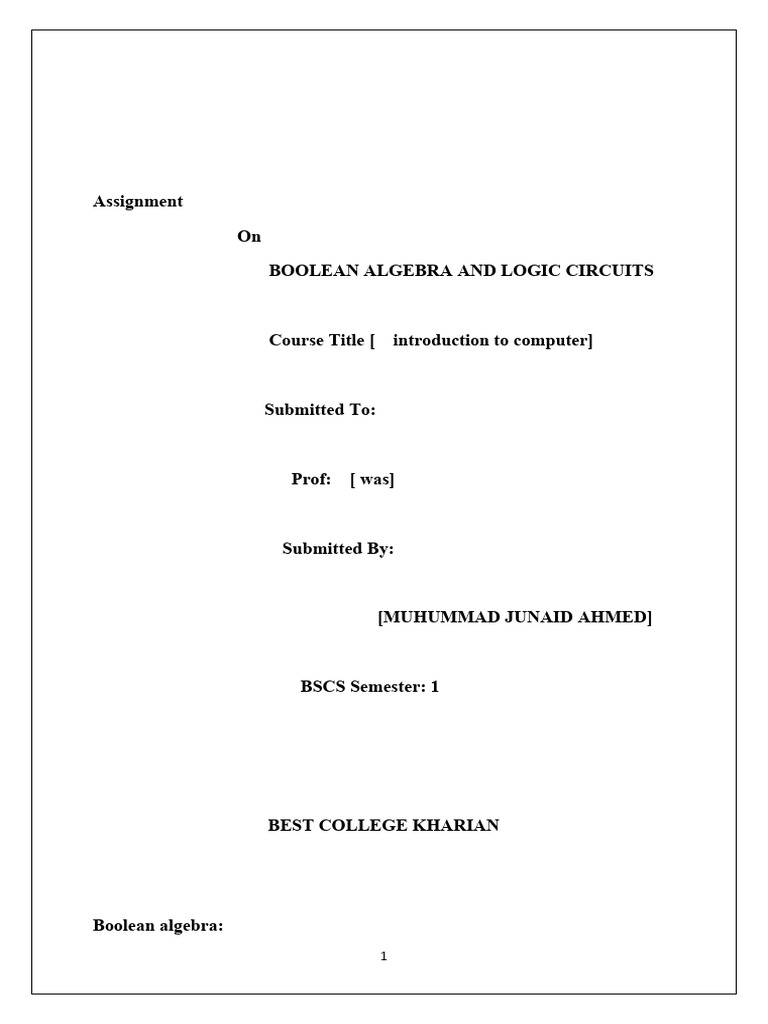

Assignment

On

BOOLEAN ALGEBRA AND LOGIC CIRCUITS

Course Title [ introduction to computer]

Submitted To:

Prof: [ was]

Submitted By:

[MUHUMMAD JUNAID AHMED]

BSCS Semester: 1

BEST COLLEGE KHARIAN

Boolean algebra:
1
An algebra that deals with binary number system .George Boole (1815-1864) an English
mathematician developed it for:

 Simplify representation
 Manipulation of propositional logic

In 1938 Claude E. Shannon proposed using Boolean algebra in design of relay switching
circuits

 Provides economical and straightforward approach

 Used extensively in designing electronic circuits used in computer

Fundamental concepts of Boolean algebra

 Use of binary Digit

 Logical Addition
 Logical Multiplication
 Complementation

Use of Binary Digit:

Boolean equations can have either of two possible values 0 and 1

Logical Addition:
Symbol ‘+’, also known as ‘OR’ operator used for logical addition

Logical multiplication:
Symbol ‘.’, also known as ‘AND’ operator, used for logical multiplication

Complementation:
Symbol ‘-’ also known as ‘NOT’ operator used for complementation

Operator Precedence

 Each operator has a precedence level

 Higher the operator’s precedence level, earlier it is evaluated
 Expression is scanned from left to right
 First, expressions enclosed with in parentheses are evaluated
 Then, all complement (Not) operation are performed
 Then, all ‘.’ (AND) operations are performed
 Finally, all ‘+’(OR) operation are performed

2
Boolean algebra laws:

 Commutative law
 Associative Law
 Distributive law
 Annulment Law
 Identity Law
 Idempotent Law
 Complement law

 Commutative Law:
It states that the interchanging of the order of operands in a Boolean equation does not
change result

FOR EXAMPLE:
OR operator A+B= B+A

AND operator A*B=B*A

 Associative Law:
It states that the AND operation are done on two or more than two variables

FOR EXAMPLE:
A*(B*C) = (A*B)*C

 Distributive law:
It states that the multiplication of two variables and adding result with a variable will
result in the same values as multiplication of addition of the variables

FOR EXAMPLE:

A+BC= (A+B) (A+C)

 Annulment law:
A.0=0

A+1=1

 Identity Law:

3
A.1=A

A+0=A

 Idempotent law:
A+A=A

A.A=A

 Boolean Function:
A Boolean function is an expression formed with:

Binary variables

Operators (OR, AND, and Not)

Parentheses and equal sign

The value of a Boolean function can be either 0 or 1

A Boolean function may be represented as:

An algebraic expression, or

A truth table

X Y Z W

0 0 0 0
0 0 1 1
0 1 0 0
0 1 1 0
1 0 0 1
1 0 1 1
1 1 0 1
1 1 1 1

 The number of rows in the table is equal to 2n where n is the number of literals
in the function
 The combination of 0s and 1s for rows of this tables are obtained from the
binary
