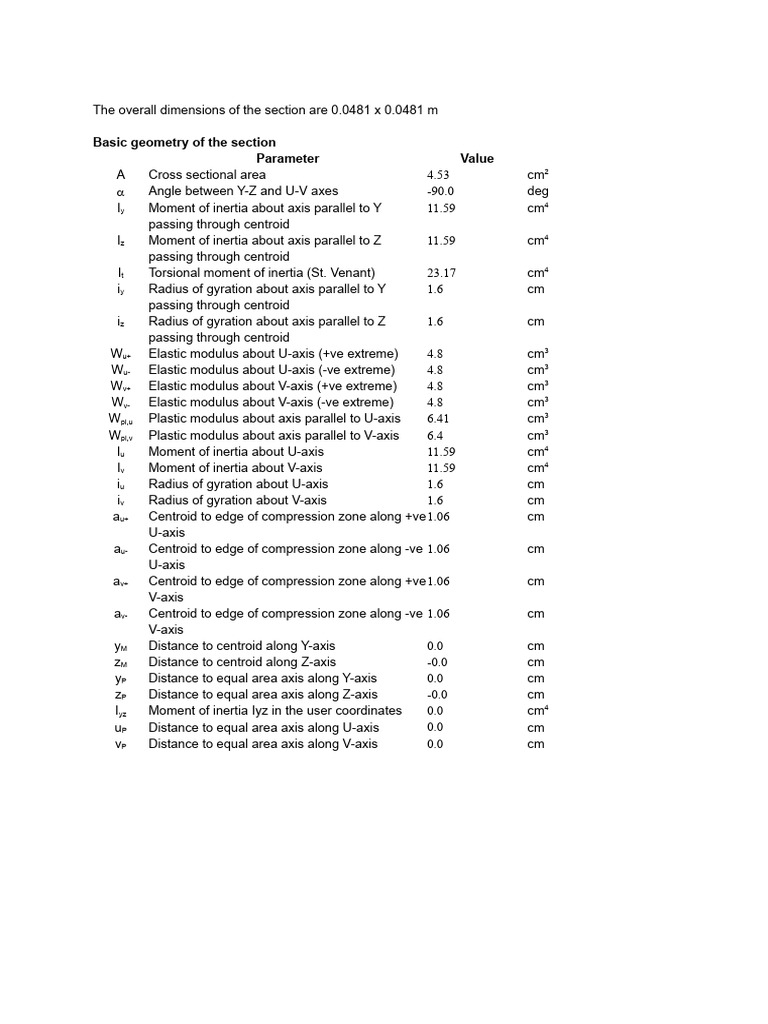

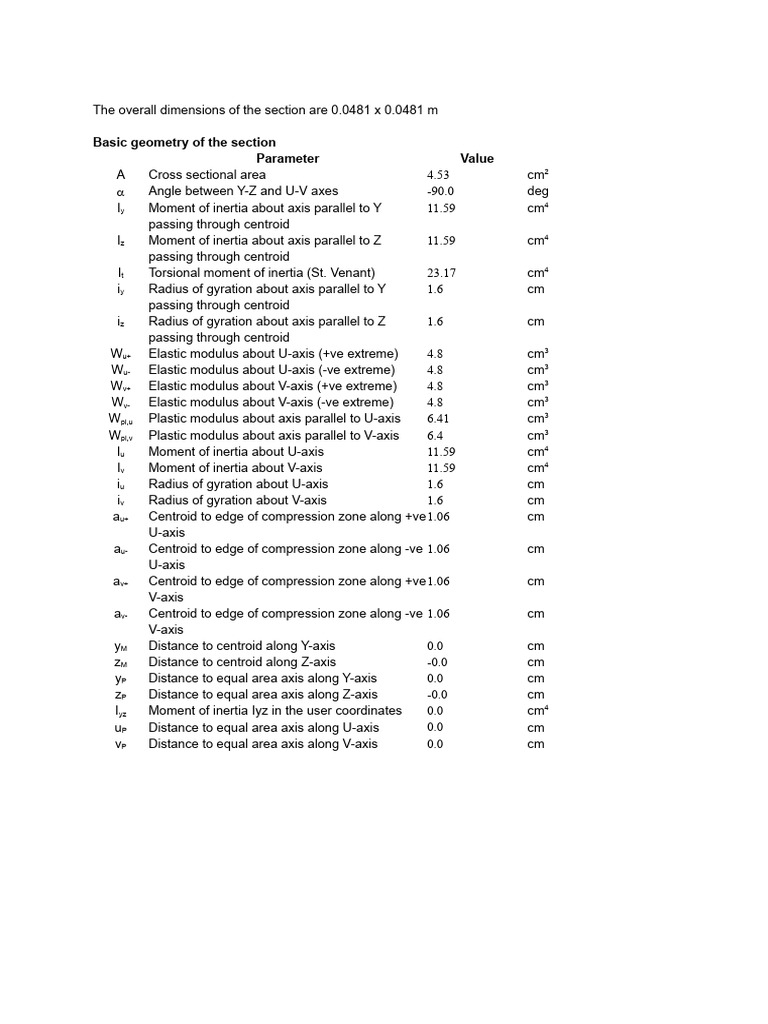

The overall dimensions of the section are 0.0481 x 0.

0481 m

Basic geometry of the section

Parameter Value
A Cross sectional area 4.53 cm2
 Angle between Y-Z and U-V axes -90.0 deg
Iy Moment of inertia about axis parallel to Y 11.59 cm4
passing through centroid
Iz Moment of inertia about axis parallel to Z 11.59 cm4
passing through centroid
It Torsional moment of inertia (St. Venant) 23.17 cm4
iy Radius of gyration about axis parallel to Y 1.6 cm
passing through centroid
iz Radius of gyration about axis parallel to Z 1.6 cm
passing through centroid
Wu+ Elastic modulus about U-axis (+ve extreme) 4.8 cm3
Wu- Elastic modulus about U-axis (-ve extreme) 4.8 cm3
Wv+ Elastic modulus about V-axis (+ve extreme) 4.8 cm3
Wv- Elastic modulus about V-axis (-ve extreme) 4.8 cm3
Wpl,u Plastic modulus about axis parallel to U-axis 6.41 cm3
Wpl,v Plastic modulus about axis parallel to V-axis 6.4 cm3
Iu Moment of inertia about U-axis 11.59 cm4
Iv Moment of inertia about V-axis 11.59 cm4
iu Radius of gyration about U-axis 1.6 cm
iv Radius of gyration about V-axis 1.6 cm
au+ Centroid to edge of compression zone along +ve 1.06 cm
U-axis
au- Centroid to edge of compression zone along -ve 1.06 cm
U-axis
av+ Centroid to edge of compression zone along +ve 1.06 cm
V-axis
av- Centroid to edge of compression zone along -ve 1.06 cm
V-axis
yM Distance to centroid along Y-axis 0.0 cm
zM Distance to centroid along Z-axis -0.0 cm
yP Distance to equal area axis along Y-axis 0.0 cm
zP Distance to equal area axis along Z-axis -0.0 cm
Iyz Moment of inertia Iyz in the user coordinates 0.0 cm4
uP Distance to equal area axis along U-axis 0.0 cm
vP Distance to equal area axis along V-axis 0.0 cm
