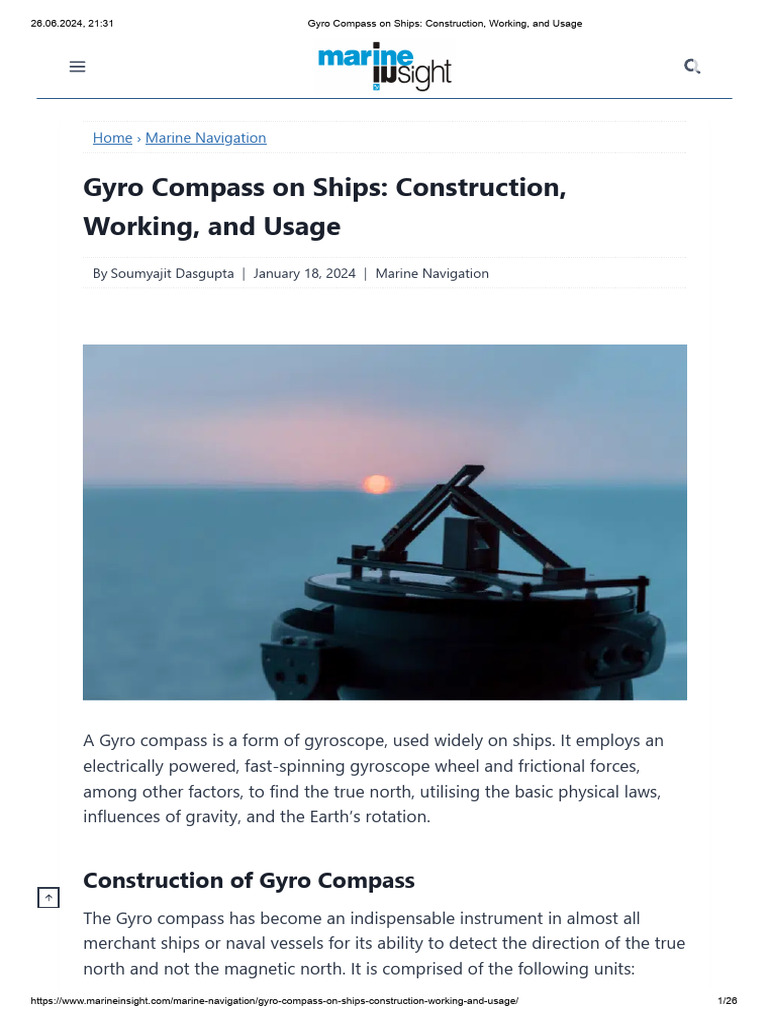

Gyro Compass on Ships: Construction,

Working, and Usage
By Soumyajit Dasgupta | January 18, 2024 | Marine Navigation
A Gyro compass is a form of gyroscope, used widely on ships. It employs an

electrically powered, fast-spinning gyroscope wheel and frictional forces,
among other factors, to find the true north, utilising the basic physical laws,
influences of gravity, and the Earth’s rotation.
Construction of Gyro Compass

The Gyro compass has become an indispensable instrument in almost all
merchant ships or naval vessels for its ability to detect the direction of the true
north and not the magnetic north. It is comprised of the following units:
https://www.marineinsight.com/marine-navigation/gyro-compass-on-ships-construction-working-and-usage/ 1/26
26.06.2024, 21:31 Gyro Compass on Ships: Construction, Working, and Usage
Master Compass: Discovers and maintains the true north reading with
the help of a gyroscope.
Repeater Compasses: Receive and indicate the true direction transmitted

electrically from the Master Compass.
Course Recorder: Makes a continuous record of the manoeuvring on a

moving strip of paper.
Award Win
Software
Yacht & Multi-A
Solution.
Voly Group
Control Panel: Governs the electrical operation of the system and

ascertains the running condition by means of a suitable meter.
Voltage Regulator: Maintains constant supply of the ship to the motor-

generator.
Alarm Unit: Indicates failure of the ship’s supply.
Amplifier Panel: Controls the follow-up system.

Motor Generator: Converts the ship’s DC supply to AC and energizes the
Compass equipment.
Gyro compasses are linked to the repeater compasses via one transmission
system. The fast-spinning rotor attached weighs from 1.25 pounds to 55
pounds.
Learn more
It is driven by thousands of revolutions per minute by another electric motor.

However, the most essential part of a Gyro compass system is the spinning
wheel, known as the Gyroscope.
Working of Gyro Compass

External magnetic fields which deflect normal compasses cannot affect Gyro
compasses. When a ship alters its course the independently driven framework
called ‘Phantom’ moves with it, but the rotor system continues to point
northward.
This lack of alignment enables it to send a signal to the driving motor, which
moves the phantom step in with the rotor system again in a path where the
phantom may have crossed only a fraction of a degree or several degrees of
the compass circle.
As soon as they are aligned, electrical impulses are sent by the phantom to
the repeater compasses for each degree it traverses.
The Gyroscope in the Gyrocompass is mounted in such a way so that it can

move freely about three mutually perpendicular axes and is controlled to
enable its axis of spin to settle parallel with the true meridian, influenced by
the Earth’s rotation and gravity.
Learn more
The Gyrocompass system applications are based upon two fundamental

characteristics, which are:
Gyroscopic Inertia: The tendency of any revolving body to uphold its

plane of rotation.
Precession: A property that causes the gyroscope to move, when a

couple is applied. Instead of moving in the direction of the couple, it
moves at right angles to the axis of the applied couple and the spinning
wheel.
These two properties and the utilization of the Earth’s two natural forces,
rotation and gravity, enact the Gyrocompass to seek true north.
Once settled on the true meridian the rotor indefinitely will remain there as
long as the electrical supply of the ship remains constant and unaltered and
unaffected by external forces.
Award Winning Yacht Software
Usage and Errors

Gyro compasses are pre-eminently used in most ships in order to detect true
north, steer, and find positions and record courses.
But due to the ship’s course, speed and latitude, there could appear some
steaming errors. It has been found that on Northerly courses the Gyro
compass north is slightly deflected to the West of the true meridian whereas
on Southerly courses it is deflected to the East.
Modern ships use a GPS system or other navigational aids to feed data to the
Gyrocompass for correcting the error. An orthogonal triad of fibre optic
design and also ring laser gyroscopes which apply the principles of optical
path difference to determine the rate of rotation, instead of depending upon
mechanical parts, may help eliminate the flaws and detect true north.
