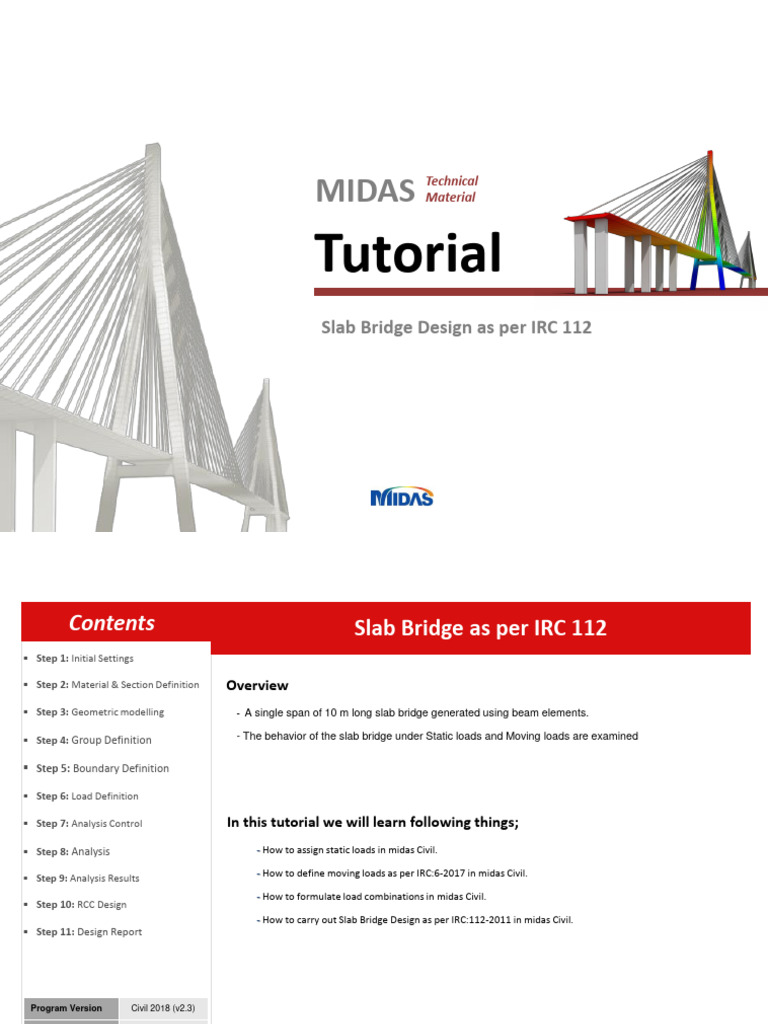

Technical

MIDAS Material

Tutorial
Slab Bridge Design as per IRC 112
00
Contents Slab Bridge as per IRC 112
 Step 1: Initial Settings

 Step 2: Material & Section Definition Overview

 Step 3: Geometric modelling - A single span of 10 m long slab bridge generated using beam elements.

 Step 4: Group Definition - The behavior of the slab bridge under Static loads and Moving loads are examined

 Step 5: Boundary Definition

 Step 6: Load Definition

 Step 7: Analysis Control In this tutorial we will learn following things;

 Step 8: Analysis - How to assign static loads in midas Civil.

 Step 9: Analysis Results - How to define moving loads as per IRC:6-2017 in midas Civil.

- How to formulate load combinations in midas Civil.

 Step 10: RCC Design
- How to carry out Slab Bridge Design as per IRC:112-2011 in midas Civil.
 Step 11: Design Report

Program Version Civil 2018 (v2.3)

Revision Date July, 2018

Step

00 Overview

Specifications of the Bridge:

 Bridge Type: Slab Bridge

 Span Length: 10 m
 Width: 8.4 m
 Moving Loads : IRC 6:2017

Slab Bridge 3
Step

00 General Arrangement Details of the Bridge

Slab section in MIDAS Civil

Cross section of Slab section

Slab Bridge 4
Step

00 General Arrangement Details of the Bridge

Longitudinal section Elevation

Slab Bridge 5
Step

01 1-1 Initial Settings

1 3

Procedure
Invoke midas Civil
1 Open New File
2 Select the Unit System [kN, m]
3 Save as “Slab Bridge”

Slab Bridge 6
Step

02 2-1 Material & Section Definition – Material Definition

Procedure 1 4
2
1 Go to “Properties”
2 Click on “Material Properties”
3 Click on “Add” to define materials
4 Define Material data:
Name > M30
Type of design> Concrete
Concrete Standard > IS(RC)
DB: M30
5 Click “Apply”
3

Name: dummy
Type of design> Concrete
Concrete Standard > None
Modulus of Elasticity:
2.7386e+007 kN/m2
Poisson’s Ratio: 0.2 5
6
Thermal Coeff: 1.0e-005 1/[C]
Weight Density: 0 kN/m3
6 Click “OK”

Slab Bridge 7
Step

02 2-2 Material & Section Definition – Mid & End Section Definition

Procedure 1 3
2
1 Go to “Properties”
4,10
2 Click “Section Properties”
3 Select “DB/User”
4 Enter: Name: Mid
Section ID: 1
Section Type: Solid Rectangle
Select “User” 5,11

5 Dimensions: H= 0.7 m, B= 1.38 m

7
6 Click “Change Offset”
7 Select offset “Centre-Top”
8
8 Click “OK”
9 Click “Apply”
10 Enter: Name: End
Section ID: 2 6

Section Type: Solid Rectangle 12 9

Select “User”
11 Dimensions: H= 0.225 m, B= 0.75 m
12 Click “OK”

Slab Bridge 8
Step

02 2-3 Material & Section Definition – Transverse Section Definition

Procedure 1 3
2
4
1 Go to “Properties”
2 Click “Section Properties”
3 Select “Value”
4 Enter:
Section ID: 3 5

Name: Dummy Transverse

Section Type: Solid Rectangle
7
Size: H= 0.225 m, B= 1.00m

5 Click : Calc. section properties

Change the Ixx : 1e-012 m4 8
6 Click “Change Offset”
7 Select offset “Centre-Top”
8 Click “OK”
6
9 Click “OK”
9

Slab Bridge 9
Step

03 3-1 Geometric Modelling – Create Nodes

Procedure 1
1 Click on “Node/Element” of Main 2

Menu
2 Click on “Create Nodes”
3 Coordinates (x,y,z) > 0, 0, 0 m
4 Click “Apply” and “Close”

4
.

1) To input the node co-ordinates

in table, go to Tree Menu> Tables>
Structure Tables> Node

2) To create User defined coordinate

system go to Structure > UCS

Slab Bridge 10
Step

03 3-2 Geometric Modelling – Extrude Elements

Procedure 1
2 3
1 Click on “Node/Elements”
2 Click on “Extrude”
3 Enter:
4
Element Type “Beam”
Material “M30”
Section “Mid”
Generation type “Translate”
Translation “Unequal Distance”
Select Axis “X”
Distances > 0.4,0.6,8@1,0.6,0.4
4 Click on Select ALL
5 Click on “Apply”

Slab Bridge 11
Step

03 3-3 Geometric Modelling – Translate Elements

1
Procedure 2
1 Click on “Node/Element”
2 Click on “Translate” under Element
3
3 Select all nodes and elements by 4
dragging “Select Single”
4 Enter:
Mode “Copy”

Translation: “Unequal
Distance”
Axis: “Y”
Distances: 2@1.38,1.065m
5 Click “Apply”
Similarly input the distances: 2@-

1.38,-1.065m
Select the same elements again and
click on “Apply”

Slab Bridge 12
Step

03 3-4 Geometric Modelling – Translate Nodes

1
Procedure 2
1 Click on “Node/Element”
2 Click on “Translate” under Node
4 3
3 Click on “Select Single” and select

the elements shown in the

figure
Enter:
4 Mode “Copy”
Translation: “Unequal
Distance”
Axis: “Y”
Distances: -0.375m
Click “Apply”
5

-0.375 m

Slab Bridge 13
Step

03 3-5 Geometric Modelling – Extrude Elements

1
Procedure 2
1 Click on “Node/Element”
2 Click on “Extrude” under Element
3
3 Click on “Select Single” and select
4
nodes shown in the figure 0.375 m
4 Enter:
1.065 m
Extrude Type “Node -> Line

Element” 1.380 m
Element Type: Beam
Material: Dummy
1.380 m
Section: Dummy Transverse
Translation: “Unequal
1.380 m
Distance”

Axis: “Y”
1.380 m
Distances:
0.375,1.065,4@1.38,1.065, 1.065 m
0.375m
0.375 m
5 Click “Apply”

Slab Bridge 14
Step

03 3-6 Geometric Modelling – Changing the section property

Procedure
1 Go to “Tree Menu > Works”
Select End section from the list
Select the end elements showing in
1
the window and using drag
and drop change the section
properties.

Click, Drag and

Drop

Slab Bridge 15
Step

03 3-7 Geometric Modelling – Translate Nodes-1

2
Procedure 3
1 Click on the Top button to switch to

top view
4
5
2 Click on “Node/Element”
1

3 Click on “Translate Node”

4 Click on Select Single button

Select nodes as shown ( node

number 66,67,68 76,77,78

5 Go to “Tree Menu”

Mode “Copy”

Translation “Unequal Distance”

Axis: “y”

66 67 68 76 77 78
Distance: “0.26”

Check on: Copy node attributes and

Intersect frame elements

Click “Apply”

Slab Bridge 16
Step

03 3-8 Geometric Modelling – Translate Nodes-2

Procedure
1 Click on Select Single button

Select nodes as shown ( node

1
2
number 27,28,29 37,38,39

2 Go to “Tree Menu”
27 28 29 37 38 39
Mode “Copy”

Translation “Unequal Distance”

Axis: “y”

Distance: “-0.26”

Check on: Copy node attributes and

Intersect frame elements

Click “Apply”

Slab Bridge 17
Step

03 3-9 Geometric Modelling – Translate Nodes-4

Procedure
1 Click on Select Single button

Select nodes as shown ( node

1
2
number 119,122,2,12,125,128

2 Go to “Tree Menu”

Mode “Copy” 125 128

Translation “Unequal Distance”

Axis: “z”

Distance: “-1.38,-0.3” 2 12

Check on: Copy node attributes and

Intersect frame elements

Click “Apply” 119 122

Slab Bridge 18
Step

04 4-1 Group Definition – Create and Assign Structure Group

Procedure
1 In the “Tree Menu” select “Group”
2 Right Click on Structure Group and 3
1
Click “New”
Name it as “cross beams” 2

3 Open “Tree menu 2” at right side of

window 5

4 Double click on “Dummy material” 4

option

5 Assigning Structure Group

Drag & drop the Structure group
“cross beams” over the Model
View window

Note: Structure groups can be defined in Define Structure Group first. Next, the desired nodes and elements can be
selected in the Group tab of the Tree Menu and assigned to the groups by Drag & Drop.

Slab Bridge 19
Step

05 5-1 Boundary Definition – Defining & Assigning Rigid Links

Procedure 2
1 3
Change the view to isometric view as 1
shown.
2 Click “Boundary”
7
3 Click “Rigid Link…”
4 Click on “Rigid Body”
5 Check “Copy Rigid Link”
Select Axis “Y”
6
Enter Distances: “2@2.5”
6 Click in “Master Node Number” and
enter node “140”
7 Select Node “105” using “Select
Single”
8 Click “ Apply” 140

Repeat steps 1 to 8 for master node 4

142 to join node 108 in step 7
5 7 105

Slab Bridge 20
Step

05 5-2 Boundary Definition – Defining & Assigning Elastic Links

2
Procedure 3
1 Click on the arrow as shown to 1

switch to the isometric view

2 Click “Boundary”
3 Click “Elastic Link…”
4 Select “General” Enter:
“SDx”> 10e+8 kN/m
“SDy”> 10 kN/m
105
“SDz”> 10 kN/m
4
“SRx”> 10 KN.m/Rad
“SRy”> 10 KN.m/Rad
“SRz”> 10 KN.m/Rad
5 Check “Copy Elastic Link”
Select Axis “Y” 112
Enter Distances: “2@2.5”
6 Click in input box “2 Nodes”
6
Click Highlighted Node “105” and
then Click Highlighted Node “112” 5

7 Click “ Close”

7
Repeat steps another end, at node
number 133,139 Note: The elastic links stiffness in different directions are provided to simulate the bearings .

Slab Bridge 21
Step

05 5-3 Boundary Definition – Defining & Assigning Supports

1
Procedure 2
1 Click “Boundary”
2 Click “Define Supports”
3 Check on “D-ALL” and “R-ALL” to
4
simulate fixed condition.
4 Select encircled nodes with Node
numbers “136to141”
5 Click “Apply”

Slab Bridge 22
Step

06 6-1 Load Definition – Defining Static Load Cases

Procedure 1
1 Go to “Load” tab 2

2 Click “Static Load Cases”

3 Enter:
Name : “SW” 3
Type: Dead Load
Click “Add”

Name : “SIDL CB”

Type: Dead Load of Component
and Attachments
Click “Add”

Name : “SIDL WCL” Name: “Temp Rise”

Type: Dead Load of Wearing Type: “Temperature (T)”
Surfaces and Utilities Click “Add”
. Click “Add”

Name : “Temp Fall” 4

Type: “Temperature (T)”

Click “Add”

4 Click on > Close

Slab Bridge 23
Step

06 6-2 Load Definition – Assigning Self Weight

1
Procedure 2

1 Go to “Load” > Static Loads

2 Click “Self Weight”
3 Select Load Case Name “SW”
4 Enter Self Weight Factor Z: -1
5 Click “Add”
3

Slab Bridge 24
Step

06 6-3 Load Definition – Assigning SIDL CB (Nodal Loads)

2
Procedure
3
1 Select “Top View”
2 Go to “Load” > Static Loads
6
3 Go to “Nodal Loads”
4 Select Load Case Name “SIDL CB”
5 Enter FZ: -7.5 KN
1
6 Select nodes as shown, by using 4
“Select single”
7 Click “Apply”

Slab Bridge 25
Step

06 6-4 Load Definition – Assigning SIDL WC (Beam Loads)

1
Procedure
2
1 Go to “Load” > Static Loads
2 Select “Element”
3 Select Load Case Name “SIDL WCL”
4 Enter w: -3.036 kN/m
Select mid girder elements as shown, 3
by using “Select single”
5 Click “Apply”

Slab Bridge 26
Step

06 6-5 Load Definition – Temperature Rise (Element Temp)

Procedure 1
3
1 Go to “Load” 2
2 Select “Temp./Prestress”
3 Select “Element Temp”
4 Enter:
Select load Case: “Temp Rise”
Initial: “0” 4
Final Temperature: “15” 5

5 Select longitudinal elements by

Selecting ”M30” in the “Tree Menu”
6 Click “Apply”

NOTE: If temperature units are in degree

Fahrenheit, one can change it to degree
Celsius from Tools  Unit System

Slab Bridge 27
Step

06 6-6 Load Definition – Temperature Fall (Element Temp)

Procedure 1
3
1 Go to “Load” 2
2 Select “Temp./Prestress”
3 Select “Element Temp”
4 Enter:
Select load Case: “Temp Fall”
Initial: “0” 4
Final Temperature: “-15” 5

5 Select longitudinal elements by

Selecting ”M30” in the “Tree Menu”
6 Click “Apply”

Slab Bridge 28
Step

06 6-7 Load Definition – Definition of Traffic Line Lanes - 1

1
Procedure
1 Change unit system [kN , m] 2
5 4 6
2 Go to “Load” tab
3
3 Click “Moving Load”
4
Moving Load Code > India
5 Click “Traffic Line Lanes” 6
6 Click “Add”
Enter Lane Name “Lane 1 Class A1”
View the figure provided
Enter Eccentricity “-2.675”m
Enter Wheel Spacing “1.8”m
Enter Span Length “9.2”
Select Vehicular Load Distribution as
“Cross Beam”
Select Cross Beams group from the
list
Select Moving direction as “Both”
Select Selection by “2 Points”
Click in the “Box”
Click on extreme left node of Node: 11
superstructure i.e. node no. 1
Click on extreme right node of
superstructure i.e. node no. 11 Node: 1
7 Click “Apply”

Slab Bridge 29
Step

06 6-8 Load Definition – Definition of Traffic Line Lanes - 2

Procedure
Similarly,
1 Enter Lane Name “Lane 2 Class A2” 1
View the figure provided
Enter Eccentricity “0.825”m
Enter Wheel Spacing “1.8”m
Enter Span Length “9.2”
Select Vehicular Load Distribution as
“Cross Beam”
Select Cross Beams group from the
list
Select Moving direction as “Both”
Select the tabular data clicking on No
cell and click on delete.
Select Selection by “2 Points”
Click in the “Box”
Click on extreme left node of
superstructure i.e. node no. 1
Click on extreme right node of
superstructure i.e. node no. 11
2 Click “Apply”
Node: 11

Node: 1

Slab Bridge 30
Step

06 6-9 Load Definition – Definition of Traffic Line Lanes - 3

Procedure
Similarly,
1
1 Enter Lane Name “Lane 3 Class 70R”
View the figure provided
Enter Eccentricity “-1.31”m
Enter Wheel Spacing “1.93”m
Enter Span Length “9.2”
Select Vehicular Load Distribution as
“Cross Beam”
Select Cross Beam group from the list
Select Moving direction as “Both”
Select the tabular data clicking on No
cell and click on delete.
Select Selection by “2 Points”
Click in the “Box”
Click on extreme left node of
superstructure i.e. node no. 1
Click on extreme right node of
superstructure i.e. node no. 11
2 Click “Apply”

Node: 11

Node: 1

Slab Bridge 31
Step

06 6-10 Load Definition – Definition of Vehicle

Procedure 1

1 3
Go to “Load” of Main Menu
2
2 Click “Moving Load”

3 Click “Vehicles”

4 Click “Add Standard” 4

5
5 Select Standard Name “IRC:6-2000

Standard Load” 6, 8

6 Select Vehicular Load Type “Class A” 10

7 Click “Apply”

8 Select Vehicular Load Type “Class

70R”

9 Click “OK”

10 Click “Close”

9 7

Slab Bridge 32
Step

06 6-11 Load Definition – Definition of Moving Load Cases - 1

Procedure 1

1 Go to “Load” tab 3

2 Click “Moving Load” 2

3 Click “Moving Load Cases”

4 Click “Add ”
5 Enter Load Case Name “1 Lane 4 5

Class 70R”
6
6 Uncheck “Auto Live Load
Combination”
7 Under Sub-Load Cases Click “Add”
8 8
Enter Scale Factor “1”
Enter Minimum Loaded Lanes as 1
Enter Maximum Loaded Lanes as 1
Select Vehicle as “Class 70R”
Under List of Lanes Select “Lane 3
Class 70R”
Click on “->” 7

Click “OK” 9

9 Click “OK”
Note: To take into account of the wheel spacing and minimum clearance for different vehicles, the Auto Live Load Combination
option can be unchecked and manually different moving load combinations can be created for the vehicles as per IRC 6:2017.

Slab Bridge 33
Step

06 6-12 Load Definition – Definition of Moving Load Cases - 2

Procedure
Similarly,
1 Click “Add ”
2 Enter Load Case Name “2 Lanes
Class A”
3 Uncheck “Auto Live Load 1 2

Combination”
3
4 Under Sub-Load Cases Click “Add”
7
5 Enter Scale Factor “1”
Enter Minimum Loaded Lanes as 1
5
Enter Maximum Loaded Lanes as 2
Select Vehicle as “Class A”
Under List of Lanes Select “Lane 1
Class A1” and “Lane 2 Class A2”
Click on “->”
Click “OK”
6 Click “OK” 4

7 Click “Close” 6

Note: To take into account of the wheel spacing and minimum clearance for different vehicles, the Auto Live Load Combination
option can be unchecked and manually different moving load combinations can be created for the vehicles as per IRC 6:2017.

Slab Bridge 34
Step

07 7-1 Analysis Control – Moving Load Analysis Control Data

Procedure 1

2
1 Go to “Analysis” tab
2 Click “Moving Load”
3 Enter Number/Line Element: 3
4 Select Analysis Results Frame
“Normal + Concurrent Force”
3
Check “Combined Stress”
5 Select Bridge Type for Impact
4
Calculation : RC
6 Click “OK”

Slab Bridge 35
Step

08 8-1 Analysis – Perform Analysis

Procedure

1 Go to “Analysis” tab 1
2
2 Click “Perform Analysis”

Slab Bridge 36
Step

09 9-1 Results – Load Combinations

Procedure 1
2
1 Go to “Results” tab
2 Click “Load Combination”
3 Click “Concrete Design” tab
4 Click “Auto Generation…”
3
5 Select Design Code “IRC: 6 LSD ”
6 Select “Thermal Act.”
7 Click “OK”

8 Click “Close”

7
4

Slab Bridge 37
Step

09 9-2 Results – Load Combinations

Procedure

These are the obtained load combinations.

Slab Bridge 38
Step

09 9-3 Results – Reactions

Procedure 1

2
3
1 Go to “Results” tab
2 Click “Reactions”
3 Click “Reaction Forces/Moments”
4 Select any “Load Cases/Combinations”
To view the results in Model View
Window, select “Components” 4

Select “Value” and “Legend”

5 Click “Apply”

Slab Bridge 39
Step

09 9-4 Results – Reactions Table

Procedure 1

1 To View in Tabular format, Click

“Results Tables”> “Reactions”
2 Select “Load Cases/Combination”
3 Click “OK”
4 Check the values in new window 2

“Result-[Reaction]”

Slab Bridge 40
Step

09 9-5 Results – Deformations

Procedure 1

2
1 Go to “Results” tab
2 Click “Deformations”
3

3 Click “Displacement Contour”

4 Select “Load Cases/Combinations”
Select “Components” 6
Click Type of Display “Contour” and 4

“Legend”
5 Click “Apply”
6 Select “Iso View”

See the Contour diagram in the

“Model View” window

Slab Bridge 41
Step

09 9-6 Results – Beam Forces ( BM and SF )

Procedure 1

1 Go to “Results” tab
2

2 Click “Forces” > “Beam Diagrams”

3 Select “Load Cases/Combinations”

Select “Components”
5
3
Click Type of Display “Contour” and
“Legend”
4 Click “Apply”
5 Select “Iso View” 6
6 See the Contour diagram in the

“Model View” window

Similarly, check the other components
such as shear forces, axial forces, etc.

Slab Bridge 42
Step

09 9-7 Results – Beam Forces Table

Procedure 1

1 Go to “Results Tables>Beams> Forces

& Stresses”
2 Select Load case/Combination
3 Click “OK” 2
5

4 In the Result-[Beam Force] table

Right Click and select from the
Context Menu “View by Max Value
Item”
3
6
5 Select Items to Display “Axial”

Select Load Cases to Display

Click “OK”
See in Concurrent forces in the table
5
“Result by Max Value-[Beam Force]”
.

Slab Bridge 43
Step

09 9-8 Results – Stresses

Procedure 1

1 Go to “Results” tab 3

2 Click “Stresses”
3 Click “Beam stress Diagram”
4 Select “Load Cases/Combinations”
4
Select “Components” 6
Combined > 1 (-y, +z)
Click Type of Display “Contour” and
“Legend”
5
Click “Apply”
6
Select “Iso View”
See the Contour diagram in the
“Model View” window

Slab Bridge 44
Step

09 9-9 Design Results – Elastic Link Forces (Bearing Forces)

Procedure 1
2
1 Go to “Results” tab
2 Click “Result Tables” 6

3 Click “Elastic Link”

4 Check “cLCB1 (CBC :max )”

5 Click “OK”

6 See the various forces in the bearings

in “Result-[Elastic Link]”
4

Note: Similarly, forces for all the cases

could be viewed, which could
be used for design of bearings.

Slab Bridge 45
Step

09 9-10 Results – Vehicle Position using Moving Vehicle Tracer

Procedure 1

1 Go to “Results” tab
2

2 Click “Moving Load Tracer”

3 Click “Beams Forces/Moments…”
3
4 Select Moving load case “ MVMax
4
2Lanes Class A” 5

Select Key Element “25”

Select Part “ i ”
Select Component “My”
5
Click “Apply”
6 6
See in “Model View” window the
Vehicle position

Slab Bridge 46
Step

09 9-11 Results – Vehicle Position using Moving Vehicle Tracer

Procedure 4
5

To Convert this Vehicle Load

Position into a Static Load Case:

1 Click “Write Min/Max Load to File”

2 Click “OK”
3 Copy all the data from the “Midas 2

/Text Editor ”
4 Go to “Tools” tab
5 Click “MCT Command Shell..” 3

6 Paste the data in the “MCT

Command Shell” Window

7
Click “Run” and “Close”
A new Static Load
“MVmax&70RMy279” will be created
6

7 8

Slab Bridge 47
Step

10 10-1 Analysis – Perform Analysis

Procedure

Due to converting the moving load 1

2
case to static load case the analysis
results will be deleted
1 Go to “Analysis” tab
2 Click “Perform Analysis”

Slab Bridge 48
Step

11 11-1 Design – Common Parameters

Procedure 1

2
1 Go to > “Design”
2 Click on “Common Parameters”
3
3 Click on “Definition of Frame”
4 Under Definition of Frame,
Select X Direction of Frame >
“Unbraced I Sway”
4
Select Y Direction of Frame >
“Unbraced I Sway”
Design Type > “3D”
Check on > “Auto Calculate Effective
Length Factors”

Click on “OK”

Slab Bridge 49
Step

11 11-2 Design – Design Code

Procedure 1

2
1 Go to > “Design”
2 Click on “RC Design” 3
3 Click on “Design Code…”
4 Under Concrete Design Code,
Select > Design Code > “IRC:112-2011”

Click on “OK”

Slab Bridge 50
Step

11 11-3 Design – Partial Safety factors for Material Properties

Procedure 1

2
1 Go to > “Design”
2 Click on “RC Design”
3 Click on “Partial Safety factors for 3

4 material properties”
Under Partial Safety factors for
material properties,
Click on > “Update By Code”
4

Click on “OK”

Slab Bridge 51
Step

11 11-4 Design – Modify Concrete Material

Procedure 1

2
1 Go to > “Design”
2 Click on “RC Design”
3 Click on “Modify concrete Material” 3
3
4 Under modify concrete materials,
Select > “M30” material
Select the Rebar selection
Code > “IS(RC)”
4
Grade of Main Rebar > “Fe500”
Grade of Sub- Rebar > “Fe500”

Click on “Modify”

Slab Bridge 52
Step

11 11-5 Design – Beam Section Data for Design

Procedure 1

2
1 Go to > “Design”
2 Click on “RC Design”
3 Click on “Beam Section data for
design...”
4 Under Beam section data for design,
Select section > Mid section
3
Input the data for stirrups
Size > “P8”
Number > “2” 4

Dt > “0.04” m
Dt > “0.04” m
Similarly, input the data for other
sections such as End Section, 5

Click on “Add/Replace”
Click on > “Cancel”

6 7

Note: To get the diameters as per design code, Go to Tools > Preferences > Design > Load
Code. Set the design codes as per type of design.

Slab Bridge 53
Step

11 11-6 Design – Beam Design

1
Design– Beam design 2

1 Go to > “Design”
2 Click on “RC Design”
3
Click on “Concrete Code design”
4
Select “Beam Design”

4
3

Slab Bridge 54
Step

11 11-7 Design – Beam Design Results -1

Design– Beam design

Go to > Concrete Code Design >

Beam Design
1 Select Sorted by > “Member”
2 Select any member 1

3 Click on > “Detail…”

Refer the design report in graphical 2

mode.

Slab Bridge 55
Step

11 11-8 Design – Beam Design Results -2

Design– Beam design

Go to > Concrete Code Design >

Beam Design
1 Select Sorted by > “Member”
2 Select any member 1

3 Click on > “Graphic…”

Refer the design report in graphical 2

mode.

Slab Bridge 56
Step

11 11-9 Design – Beam Design Results -3

Design– Beam design

Go to > Concrete Code Design >

Beam Design
1 Select Sorted by > “Member”
2 Select any member 1

3 Click on > “Summary…”

Refer the design report in graphical 2

mode.

Slab Bridge 57
 globalsupport.midasuser.com

Bridging Your Innovations to Realities
