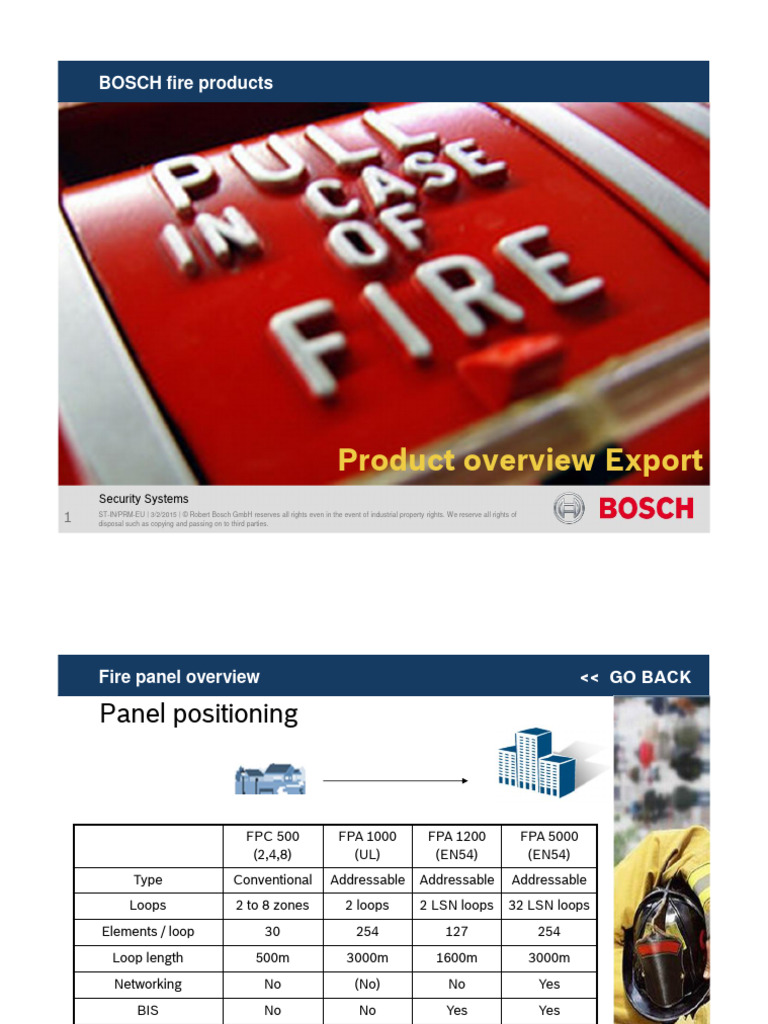

BOSCH fire products << GO BACK
Product overview Export

Security Systems
1 ST-IN/PRM-EU | 3/2/2015 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of
disposal such as copying and passing on to third parties.
Fire panel overview << GO BACK
Panel positioning
FPC 500 FPA 1000 FPA 1200 FPA 5000

(2,4,8) (UL) (EN54) (EN54)
Type Conventional Addressable Addressable Addressable
Loops 2 to 8 zones 2 loops 2 LSN loops 32 LSN loops
Elements / loop 30 254 127 254
Loop length 500m 3000m 1600m 3000m
Networking No (No) No Yes
BIS No No Yes Yes
Serial EVAC interface No No Yes Yes
Security Systems
Fire panel overview << GO BACK
Vertical positioning
FPA 5000 (mid / large) Shopping malls
Hotels, Hospitals
Prisons, Airports
Tower buildings
Metro stations
FPA 1200 (small / mid) Office buildings
FPA 1000 (small / mid) Small Hotels
Large stores
Production Sites
Schools
FPC Panels (small) Museums & art galleries
Stores & showrooms
Storage houses
Kinder gardens
Small schools
Security Systems
FPA modular panel EN54 << GO BACK
FPA5000 Modular Concept

Application
FPA 5000 modular
system design
Benefit
Tailor made
Easy maintenance
Easy Installation
+
Cost savings
Security Systems
The Housing Concept << GO BACK
 e.g. Modular Panel

• with Panel controller
• with 46 modules including two
hidden modules and
• 44 visible modules
• 2 small power supplies
• Up to 254 elements per loop
• 3,000m loop length
• 5,000 zones
...and it grows...
Security Systems
5 ST-IN/PRM-EU | 3/2/2015 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all
rights of disposal such as copying and passing on to third parties.
The Housing Concept << GO BACK
 Big System Solution
... and grows with your needs!

Security Systems
The MMI Concept << GO BACK
The Address Cards Concept
 Address grows with customers

requirements
 6 type of address cards available
 64, 128, 512, 1024 & 2048 points
address card
 OPC License Key
 Up to four cards can be insert into One
panel controller
 Maximum address for one controller is
4096 points
Security Systems
Module Concept FPA 5000 << GO BACK
The Module Concept

Security Systems
BCM 0000 B Battery controller module << GO BACK
General features
 Monitors power supply of the entire panel
 Monitors and regulates charging of up to

4 batteries
(12 V/40 Ah or 12 V/28 Ah)
temperature and time-controlled
 Max. 8 modules per panel

!
Technical data
Voltage outputs: 2 outputs (24V/2,8A Max each), battery buffering

Current consumption: 25mA at 24 V DC (standby)
40 mA at 24 V DC (battery fault)
Security Systems
LSN 1500 A LSNi module 1500 mA << GO BACK
General features
 Enables the connection of an LSN loop

with up to 254 elements
 Line length: up to 3000 m

Max. line current: 1500 mA
 Double size: Requires two slots!
 Max. 11 modules per panel

!
Security Systems
LSN 0300 A LSNi module 300 mA << GO BACK
General features
 Enables the connection of an LSN loop

with up to 254 elements
 Unshielded cable can be used
 Max. line current: 300 mA,

Max. additional supply: 500 mA
 Max. 32 modules per panel !

Technical data
Max. line length 1600 m (1094 yards)
Max. current consumption: 36 mA + 1.6 x element current consumption (standby)

39 mA + 1.6 x element current consumption (alarm)
Security Systems
System flexibility
Application
Simple touch screen operation
Wall mounting
Benefit
 Easy operation
 Same handling on panel and keypad
Flush mounting
 System feedback on tough screen
 Redundancy with keypad is (no
additional costs)
Security Systems
12 ST/PRM2-EU | 12/01/2007 | M.Wings ST/SDI Export | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights.
We reserve all rights of disposal such as copying and passing on to third parties.
Expand while you grow:

FPA 5000
Up to 46 modules
Up to 4,096 loop addresses
32 LSNi-loops
Up to 254 elements per loop
3,000m loop length
5,000 zones
Security Systems
Networkable panel FPA 5000

 Though screen operation
 Modular panel topology
 Up to 32 loops per panel
 32 nodes (panel or remote keypad) in the network
 2032 address per node
 32,512 addresses per network
 When in stand alone operation: 4096 addresses
 BIS interface trough on IP connection
 Serial interface to the BOSCH Plena Voice alarm
system
 Fiber optics connectivity (15km)
 Interface to BOSCH paging system
 Approvals: VdS and EN54
Security Systems
Networking with the FPA5000 << GO BACK
Network while you grow:
Loop structure
Up to 32 nodes in the network
1000m between each node
Network redundancy
2,032 addresses per node
32,512 address total in the network
Security Systems
Flexibility in the future << GO BACK
… and here is the response of the FPA 5000!
1
Panels to buy 1 1 1
Loops 1 1 +1 1+1 +1 1+1+1 +1
Security Systems
Operational reliability << GO BACK
Reliability through loop redundancy
Break between element 5 and 6
Security Systems
Integration into existing conventional systems << GO BACK
Integration into existing conventional systems
Conventional Addressable System

System
 Loss of elements at cable  Higher security in case of cable
interruption or device failure interruption
 Limited configuration  Allows sophisticated
possibilities configuration
 Difficult failure finding  Reduced cabling costs
 Exact Alarm identification
Security Systems
Integration into existing conventional systems << GO BACK
Integration into existing conventional systems
Existing New Addressable with

Conventional Addressable integrated conventional
Security Systems
Monitoring software << GO BACK
Monitoring solutions
Security Systems
Monitoring software
Large commercial BIS 2000 detection points

> 4 panels
Mid commercial –
FSM-2000 2000 detection points
< 4 panels
Security Systems
Fire Monitoring System (FMS)
 Internet explorer web based server client

 Multi layer Interactive floor plans with zoom and pan
 Pop-up screens and Alarm queue with follow-up protocols
 Max. 2000 detection points
 Max. 4 panels connected over serial connection
 Max two operators log-in at same time
 System reset and silence sounders
(No other control functions!)
Security Systems
22 Confidential
ST-IN/PRM-EU
We reserve
disposal such
| André
allas
rights
Heuer| ST-FIR/ENG1
| 3/2/2015 © Robert Bosch
of disposal
copying such as
and passing
| 6/19/2006 | © Robert
GmbH reserves
oncopying
Bosch
all rights GmbH
even reserves
in the
and passing on to third parties.
to third parties.
event ofallindustrial
rights even in the rights.
property event of industrial
We reserve property
all rights rights.
of
FMS hardware set-up
20mA
RS232
RS485
OVS
IOS 0020 A
V.24
Panel 1
Panel 2
Panel 3
Panel 4
10-15m 1.000m
Security Systems
23 Confidential
ST-IN/PRM-EU
We reserve
disposal such
| André
allas
rights
Heuer| ST-FIR/ENG1
| 3/2/2015 © Robert Bosch
of disposal
copying such as
and passing
| 6/19/2006 | © Robert
GmbH reserves
oncopying
Bosch
all rights GmbH
even reserves
in the
and passing on to third parties.
to third parties.
event ofallindustrial
rights even in the rights.
property event of industrial
We reserve property
all rights rights.
of
Fire Monitoring System << GO BACK
Application
Floor plan indicating the
alarm or system trouble
location
Maarten Wings
April 8th 2009
Security Systems
Application When have fire
Security Systems
Security Systems
FA & PA WORKING << GO BACK
Security Systems
Evacuation << GO BACK
Response to emergency announcements
after after after

Alarm
30 sec. 3 min. 11 min.
Siren
notification
(Type b)
Voice EVAC
(Type A)
Security Systems
Automatic Fire Alarm Working With PA system << GO BACK
Tower Building with Several

Fire Areas (Example)
• Fire in the 5th floor
• the fire detecting system (FDS) got the signal

and
transmit the information to PA system
• The PA system automatic starts an Evacuation
record message for the 5th and 6th floor
• If the fire increases
• The PA operator could decide to evacuate all floors
by manually activates the evacuation record
message via the button on the call station of PA
system PA System
Bosch PA
Call station FDS
Security Systems
FPA 5000 Modular Fire Panel << GO BACK
