1

SECTION

Blockwork

FOUNDATIONS AND BLOCKWORK BELOW GROUND LEVEL

13 MODULE 3
SHEET 24

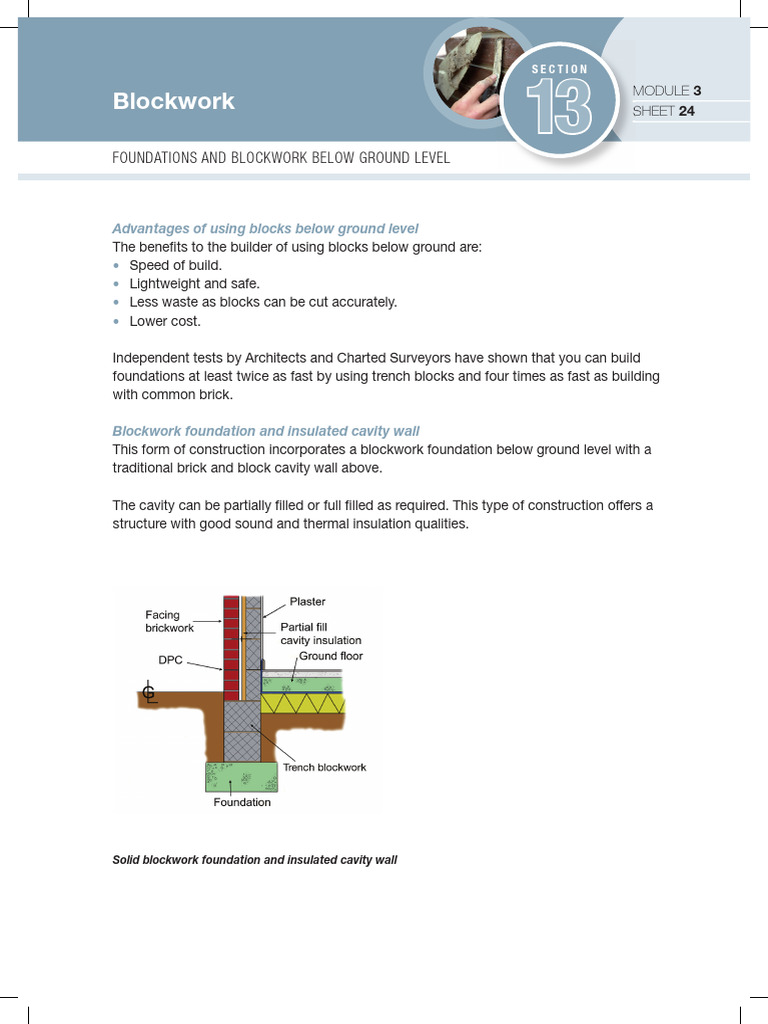

Advantages of using blocks below ground level

The benefits to the builder of using blocks below ground are:
• Speed of build.
• Lightweight and safe.
• Less waste as blocks can be cut accurately.
• Lower cost.

Independent tests by Architects and Charted Surveyors have shown that you can build
foundations at least twice as fast by using trench blocks and four times as fast as building
with common brick.

Blockwork foundation and insulated cavity wall

This form of construction incorporates a blockwork foundation below ground level with a
traditional brick and block cavity wall above.

The cavity can be partially filled or full filled as required. This type of construction offers a
structure with good sound and thermal insulation qualities.

Solid blockwork foundation and insulated cavity wall

 13
SECTION

MODULE 3
SHEET 25 Blockwork

FOUNDATIONS AND BLOCKWORK BELOW GROUND LEVEL

Block cavity wall foundation

This is an alternative solid block foundation construction. The blocks below ground level are
laid to form a cavity which is then filled up to ground level with a cement/aggregate mix.

The cavity can be partially filled or fully filled as required.

Hollow cavity wall with a blockwork foundation

 1
SECTION

Blockwork

BLOCKWORK CONSTRUCTION
13 MODULE 4
SHEET 26

Building with solid and hollow blocks

Blockwork has become a very popular quick method of building external and internal walls. The
combination of moisture-resistance, strength and thermal insulation qualities makes it possible
for blocks to be used for a wide range of external and internal wall solutions for all types of
buildings ranging from traditional domestic dwellings to commercial and industrial units.

Apart from the size of the blocks the building operations used to erect walls are the same
as for brickwork.

However, there are a number of constructional factors to consider when building with
blocks to achieve a satisfactory standard of finish and to maintain stability within the wall.
Some of these factors are:
• Never mix different types of blocks in the same run of walling, and do not use common
or facing bricks as closers as they will reduce the thermal and sound insulation qualities
of the blockwork.
• Always set out the first course dry so that the position of cut blocks can ascertained and
any adjustment to the width of joints can be made to achieve and maintain a bond within
the wall.
• Use only specified mortar mixes and ensure that bed and cross joints are solidly filled.
• Care should be taken to maintain gauge to correspond with brickwork gauge.
• Care should be taken when laying heavy blocks as they tend to settle, causing the wall
ties to slope down towards the inner leaf increasing the risk of water penetration.
• The process of building with blocks is much quicker than building with bricks. Since the
blockwork rises more quickly, the weight of the blocks causes the fresh soft mortar bed
to be squeezed out resulting in a wall that can be deformed and out of plumb.
• The blocks should be tapped down to compact the joint and ensure the wall is plumb.
Do not tap blocks sideways to bring them to plumb as this tends to open a gap on one
side of the bed joint causing the block to wobble.
 13
SECTION

MODULE 4
SHEET 27 Blockwork

BLOCKWORK CONSTRUCTION

Bonding
Blocks are available in many shapes and sizes and therefore there are many different
bonding arrangements possible.

When setting out a bonding arrangement for a particular wall, there are certain building
principles that should be followed:
• The blocks should be laid to a regular bond, usually half bond where possible.
• Under no circumstances should the blocks be laid to a bond of less than a quarter bond.
• Take care that broken bond is no less than quarter bond. If less and particularly if close
to a reveal, the vertical line of the potential weakness may result in shrinkage cracking.
• There will be occasions when the wall length does not work to full block sizes, but it is
essential to avoid close laps of joints. Always ensure that a lap of at least 100mm exists.
Joints that are closer than this can result in vertical cracking.
• Corners may be bonded by cutting standard blocks or by using quoin blocks.
• Wall junctions are normally bonded, or ties can be use with a straight joint. Butterfly ties
should be used where vertical differential movement may occur.
• If it is not convenient to build a junction wall at the same time as the main wall, some
provision must be made to allow the junction wall to be bonded to the main wall. Indents
may be left to allow bonding to occur at a later stage.
• Bonding should be set out so that lintels bear preferably on a whole block. If this is not
possible, a minimum two-thirds length block is acceptable but definatley not less.
• Lintels should normally bear by at least 150mm.
• Some types of hollow and cellular blocks may need to be filled under lintel ends to
provide sufficient bearing strength.
• Course heights must be checked regularly with a vertical gauge rod as work proceeds.
• Gauge should normally be equivalent to three courses of metric bricks.
• In windy weather, block walls should be restrained by temporary propping.
• In windy weather, the day work lift height may be reduced as an alternative to propping.
• Blocks should be kept dry before use.
 1
SECTION

Blockwork

BLOCKWORK CONSTRUCTION
13 MODULE 4
SHEET 28

Bonding in blockwork

Normal half bond

Cut blocks

Badly placed broken bond creating a vertical weakness in the wall

Lintel bearing on
a whole block

Lintel bearing on a whole block

 13
SECTION

MODULE 4
SHEET 29 Blockwork

BLOCKWORK CONSTRUCTION

Bonding quoins and junctions

Purpose-made quoin return block

Quoin bonding with cut block to form half bond

Alternative method of quoin bonding using coursing blocks

 1
SECTION

Blockwork

BLOCKWORK CONSTRUCTION
13 MODULE 4
SHEET 30

Bonding quoins and junctions

Bonded ‘T’ junction

Bonded ‘T’ junction using a straight joint and wall ties

 13
SECTION

MODULE 4
SHEET 31 Blockwork

BLOCKWORK CONSTRUCTION

Building walls in solid or hollow blocks

External walls
One of the primary functions of an external wall is to provide an efficient weathershield
to prevent the penetration of moisture which can have a detrimental effect on the internal
structure of the building. The high moisture resistance of some building blocks makes them
ideal for the construction of inner and outer leaves of external cavity walls as well as solid
external walls.

When used as an inner leaf they can be combined with bricks, stone or timber framing as
an outer leaf with the cavity partially or fully filled.

When used as an outer leaf they can be used as a single solid thick block or with an inner
leaf constructed also of blocks. In some cases the inner leaf may be constructed of timber
to form a timber frame.

Typical cavity wall construction using facing bricks and blocks

 1
SECTION

Blockwork

BLOCKWORK CONSTRUCTION
13 MODULE 4
SHEET 32

Closing cavities of external walling built with blocks

With all cavity walls it is essential that the cavity be closed at reveals to openings such as
door and window openings. This can be achieved by using cut blocks or by using special
reveal blocks manufactured for the purpose.

The diagrams below show the two methods.

Closing cavity using cut blocks Closing cavity using reveal blocks

For bonding purposes, three courses of brickwork are equal to one course of blockwork.

This makes bonding simple as long as both bricks and blocks are kept accurately gauged.
 13
SECTION

MODULE 4
SHEET 33 Blockwork

BLOCKWORK CONSTRUCTION

Junctions walls
The diagram shows a typical method of constructing junction walls.

Junction wall construction for cavity walls

Inserting wall ties into cavity walls constructed of brick and block
 1
SECTION

Blockwork

BLOCKWORK CONSTRUCTION
13 MODULE 4
SHEET 34

Bonding using cut blocks, special blocks or coursing bricks

To maintain bond within a wall it may be necessary to use either coursing bricks or blocks
of quarter, half or three-quarter size which have been cut from a whole block, or special
blocks manufactured to those sizes.

These blocks are integrated into the walling bond at junctions and over openings in the wall.
Ordinary facing or common bricks should never be used for this purpose.

Coursing bricks

Typical use of cut and course blocks to maintain bond

 13
SECTION

MODULE 4
SHEET 35 Blockwork

BLOCKWORK CONSTRUCTION

Internal block walling

One of the most common uses of building blocks is for the building of internal or partition
walls. Partition walls can either be of solid or cavity construction. When used as a partition
wall, the blocks can reduce sound transmission between rooms as well as providing
excellent thermal insulation between rooms. They also provide a secure fixing for shelves,
radiators and other fixings.

Cavity partition wall

Internal plaster Smooth

faced blocks

Internal wall of cavity construction

Solid internal partition wall

Plaster or smooth faced finish

Internal wall of solid construction
