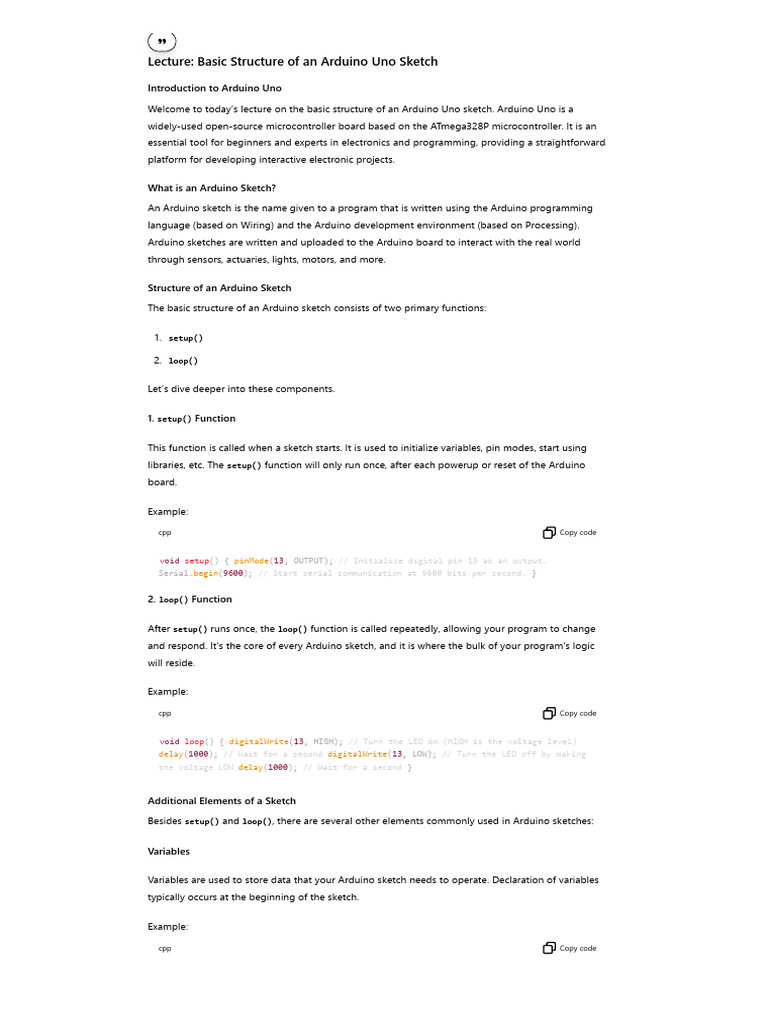

Lecture: Basic Structure of an Arduino Uno Sketch

Introduction to Arduino Uno

Welcome to today’s lecture on the basic structure of an Arduino Uno sketch. Arduino Uno is a
widely-used open-source microcontroller board based on the ATmega328P microcontroller. It is an
essential tool for beginners and experts in electronics and programming, providing a straightforward
platform for developing interactive electronic projects.

What is an Arduino Sketch?

An Arduino sketch is the name given to a program that is written using the Arduino programming
language (based on Wiring) and the Arduino development environment (based on Processing).
Arduino sketches are written and uploaded to the Arduino board to interact with the real world
through sensors, actuaries, lights, motors, and more.

Structure of an Arduino Sketch

The basic structure of an Arduino sketch consists of two primary functions:

1. setup()

2. loop()

Let's dive deeper into these components.

1. setup() Function

This function is called when a sketch starts. It is used to initialize variables, pin modes, start using
libraries, etc. The setup() function will only run once, after each powerup or reset of the Arduino
board.

Example:

cpp Copy code

void setup() { pinMode(13, OUTPUT); // Initialize digital pin 13 as an output.

Serial.begin(9600); // Start serial communication at 9600 bits per second. }

2. loop() Function

After setup() runs once, the loop() function is called repeatedly, allowing your program to change
and respond. It's the core of every Arduino sketch, and it is where the bulk of your program's logic
will reside.

Example:

cpp Copy code

void loop() { digitalWrite(13, HIGH); // Turn the LED on (HIGH is the voltage level)
delay(1000); // Wait for a second digitalWrite(13, LOW); // Turn the LED off by making
the voltage LOW delay(1000); // Wait for a second }

Additional Elements of a Sketch

Besides setup() and loop(), there are several other elements commonly used in Arduino sketches:

Variables

Variables are used to store data that your Arduino sketch needs to operate. Declaration of variables
typically occurs at the beginning of the sketch.

Example:

cpp Copy code

 int ledPin = 13; // Declare an integer variable named ledPin and assign it the value 13

Functions

You can define your own functions, which are blocks of code that perform a specific task. Functions
help in keeping your code organized and more readable.

Example:

cpp Copy code

void blink(int pin, int delayTime) { digitalWrite(pin, HIGH); delay(delayTime);

digitalWrite(pin, LOW); delay(delayTime); }

Libraries

Libraries provide extra functionality for use in your sketches. For example, to control a servo motor,
you might include the <Servo.h> library.

Example:

cpp Copy code

#include <Servo.h> // Include the Servo library Servo myServo; // Create a servo object
void setup() { myServo.attach(9); // Attach the servo to pin 9 } void loop() {
myServo.write(90); // Set servo to mid-position delay(1000); myServo.write(0); // Move
servo to position 0 delay(1000); }

Debugging and Serial Communication

Debugging is an essential aspect of programming. In Arduino, the Serial library allows

communication between the Arduino board and a computer through the USB cable. The most
common use of the Serial library is for displaying data and debugging code.

Example:

cpp Copy code

void setup() { Serial.begin(9600); // Start serial communication at 9600 Baud } void

loop() { Serial.println("Hello, Arduino!"); delay(1000); }

Conclusion

Understanding the basic structure of an Arduino sketch is crucial for anyone looking to venture into
the world of electronics and programming using Arduino. Today, we've covered the fundamental
aspects of an Arduino program, including setup, loop, variable declaration, custom functions,
libraries, and basic debugging. With these tools, you are well on your way to creating more complex
and varied projects.

make detailed lecture on :-Variables and Data Types of arduino uno

2/2

Lecture: Variables and Data Types in Arduino Uno

Introduction

Today, we're going to explore the variables and data types in the Arduino Uno environment.
Understanding how to use these effectively is fundamental to creating efficient and functional
Arduino programs. Variables are used to store data that your program can modify, and each variable
has a type that specifies what kind of data it can hold.

What is a Variable?
A variable in programming is a storage location paired with an associated symbolic name, which
contains some known or unknown quantity of information referred to as a value. The variable name
is the usual way to reference the stored value, in addition to referring to the variable itself,
depending on the context.

Data Types in Arduino

Arduino is based on C/C++, so it uses the same data types found in these languages, with some
additional features specific to the Arduino environment.

Fundamental Data Types

1. Integer Types:

int: Stores a 16-bit (2-byte) value ranging from -32,768 to 32,767.

unsigned int: A 16-bit (2-byte) non-negative number ranging from 0 to 65,535.

byte: An 8-bit unsigned number ranging from 0 to 255. It is used for data that has a size of

a byte.

long: A 32-bit (4-byte) integer. Ranges from -2,147,483,648 to 2,147,483,647.

unsigned long: A 32-bit (4-byte) non-negative integer. Ranges from 0 to 4,294,967,295.

2. Character Type:

char: An 8-bit number used to store characters. Ranges from -128 to 127.

3. Floating Point Types:

float: A 32-bit (4-byte) floating-point number used for decimal numbers. It has a precision

of about 6-7 decimal digits.

double: On most Arduino boards, it is synonymous with float. However, on Arduino Due, it

represents an 8-byte floating-point number.

Boolean Type

bool: Represents true or false values. Used for logical operations.

Special Arduino Data Types

word: A 16-bit unsigned integer. It is functionally equivalent to unsigned int.

String: Used to store a sequence of characters (text). This type has a rich set of functions for

string manipulation.

array: Used to store collections of data of a fixed size and datatype.

Declaring Variables

Variables need to be declared with a specific type before they can be used. The declaration involves
specifying the type of the variable, followed by a name you choose for the variable.

Example of Variable Declaration:

cpp Copy code

int ledPin = 13; // Declare an integer variable to hold the pin number. float
temperature = 25.7; // Declare a floating-point variable for temperature. char grade =
'A'; // Declare a character variable for storing a grade. bool isOn = true; // Declare a
boolean variable to store state.

Scope and Lifetime of Variables

Global Variables: Declared outside any function and are available throughout the life of the
program.
 Local Variables: Declared inside functions and are only available within that function.

Using Variables in Arduino

Variables are used to hold data that may change or to make the code more readable and
maintainable.

Example:

cpp Copy code

void setup() { pinMode(ledPin, OUTPUT); } void loop() { digitalWrite(ledPin, HIGH);

delay(1000); digitalWrite(ledPin, LOW); delay(1000); }

Common Operations on Variables

Arithmetic Operations: Addition (+), subtraction (-), multiplication (*), and division (/).

Logical Operations: AND (&&), OR (||), NOT (!).

Comparison Operations: Equals (==), not equals (!=), greater than (>), less than (<), etc.

Conclusion

In this lecture, we explored the various data types and variables in Arduino programming, including
how to declare them and use them within an Arduino sketch. Understanding these fundamentals is
crucial for programming effectively in Arduino, as it allows you to store and manipulate data within
your projects. Next, we will look into how these variables can be used in real Arduino projects to
interact with hardware.

make detailed lecture on :-Functions and Prototypes of arduino uno

Lecture: Functions and Function Prototypes in Arduino Uno

Introduction

In today's lecture, we'll delve into the concept of functions and function prototypes in the context of
Arduino programming. Understanding functions is crucial for writing clean, readable, and reusable
code, particularly in complex projects.

What are Functions?

A function is a block of code that performs a specific task. It typically takes some input called
parameters, performs an operation, and may return a result. Functions allow you to break down
complex problems into smaller, manageable tasks. They also help avoid redundancy and increase the
modularity of the code.

Structure of a Function

A function in Arduino has a signature that includes:

Return type: The type of data that the function will return. It can be any data type, including
void if no value is returned.

Function name: The identifier for the function. It should be descriptive.

Parameters: Optional variables passed into the function to be used within. Parameters are
enclosed in parentheses and separated by commas.

Syntax:

cpp Copy code

returnType functionName(parameter1Type parameter1Name, parameter2Type parameter2Name,

...) { // function body // return statement (if returnType is not void) }

Example of a Simple Function:

 cpp Copy code

int addTwoNumbers(int a, int b) { return a + b; }

Function Prototypes

A function prototype, also known as a function declaration, tells the compiler about a function's
return type, its name, and parameters (but no body). It's a declaration of the function at the
beginning of the file (or before it is used for the first time in the code), which is particularly useful in
managing and organizing large programs.

Purpose of Function Prototypes

Forward Declaration: Allows you to define functions in any order without having to worry about
their placement in the code.

Readability and Structure: It makes the program easier to read and maintain by providing a
clear overview of all functionalities at the beginning.

Example of a Function Prototype:

cpp Copy code

int addTwoNumbers(int, int); // Function prototype void setup() { // Setup code here }
void loop() { int result = addTwoNumbers(5, 10); Serial.println(result); } int
addTwoNumbers(int a, int b) { return a + b; }

Using Functions in Arduino Sketches

Functions in Arduino are used extensively to interact with hardware components, structure the
program, and handle repetitive tasks.

Example with Digital I/O:

cpp Copy code

void setup() { pinMode(LED_BUILTIN, OUTPUT); } void loop() { toggleLED(); delay(1000);

} void toggleLED() { static bool ledState = LOW; // static variable: retains its value
between calls ledState = !ledState; digitalWrite(LED_BUILTIN, ledState); }

In this example, toggleLED() is a function that toggles the state of the built-in LED on the Arduino
board.

Best Practices

Descriptive Names: Choose function names that clearly describe what the function does.

Function Size: Keep functions short and focused on a single task.

Parameter Passing: Use pointers or references for large data structures to avoid copying large
amounts of data.

Consistency: Maintain consistent coding style for function declarations and definitions.

Conclusion

Functions and function prototypes are fundamental concepts in Arduino programming that help in
organizing code, making it more readable, and reusable. They allow programmers to break down
complex tasks into simpler sub-tasks, making the program easier to manage and extend. By
mastering functions, you can significantly enhance your Arduino programming skills and manage
larger and more complex projects efficiently.

make detailed lecture on :- Control Structures (if, else, switch-case)

of arduino uno
Lecture: Control Structures in Arduino Uno Programming

Introduction

In this lecture, we will explore the control structures commonly used in Arduino programming,
focusing on conditional statements like if, else, and switch-case. These structures enable decision
making in code, allowing different actions to be taken based on variable conditions.

What are Control Structures?

Control structures direct the flow of execution of a program. They are foundational for creating
interactive and dynamic behavior in your Arduino projects. By using control structures, you can
execute certain parts of your code based on specific conditions or repeatedly based on loops (which
we will cover separately).

1. if Statement

The if statement is the most basic of all control structures and is used to execute a block of code
only if a specified condition is true.

Syntax:

cpp Copy code

if (condition) { // code to execute if condition is true }

Example:

cpp Copy code

int buttonPin = 3; int buttonState = digitalRead(buttonPin); if (buttonState == HIGH) {

// turn LED on: digitalWrite(LED_BUILTIN, HIGH); }

In this example, the LED is turned on only when the button connected to pin 3 is pressed.

2. else Statement

The else statement complements the if statement. It allows you to execute a block of code when
the if condition is false.

Syntax:

cpp Copy code

if (condition) { // code to execute if condition is true } else { // code to execute if

condition is false }

Example:

cpp Copy code

if (buttonState == HIGH) { digitalWrite(LED_BUILTIN, HIGH); } else {

digitalWrite(LED_BUILTIN, LOW); }

Here, the LED is turned off when the button is not pressed, ensuring the LED's state always reflects
the button's state.

3. else if Statement

To test multiple conditions sequentially, use the else if statement. It is useful when you have more
than two possible conditions.

Syntax:

cpp Copy code

if (condition1) { // code if condition1 is true } else if (condition2) { // code if

condition2 is true } else { // code if neither condition is true }
Example:

cpp Copy code

int score = 85; if (score > 90) { Serial.println("Excellent"); } else if (score > 75) {
Serial.println("Very Good"); } else { Serial.println("Good"); }

This example provides feedback based on a score, displaying different messages for different score
ranges.

4. switch-case Statement

The switch-case control structure is used when you need to perform different actions based on the
value of a variable. It's an efficient alternative to multiple if statements.

Syntax:

cpp Copy code

switch (variable) { case value1: // code for when variable equals value1 break; case
value2: // code for when variable equals value2 break; default: // code if variable does
not match any case break; }

Example:

cpp Copy code

char grade = 'B'; switch (grade) { case 'A': Serial.println("Excellent"); break; case
'B': Serial.println("Very Good"); break; case 'C': Serial.println("Good"); break; case
'D': Serial.println("Poor"); break; default: Serial.println("Fail"); break; }

This example evaluates a character variable and prints different texts based on its value.

Conclusion

Control structures are essential for making decisions in Arduino scripts, allowing the program to
react differently under varying conditions. By effectively using if, else, else if, and switch-case
statements, you can create flexible and responsive Arduino applications. Understanding and
implementing these structures will greatly enhance your ability to manage the flow of execution and
handle multiple conditions in your projects.

make detailed lecture using arduino uno :-Loops (for, while, do-
while)

Lecture: Loops in Arduino Uno Programming

Introduction

In this lecture, we will explore the concept of loops in Arduino programming. Loops allow you to
execute a block of code repeatedly, making them essential for tasks that require repetitive actions,
such as reading sensor data, controlling actuators, and more.

1. for Loop

The for loop is used to execute a block of code a specified number of times. It consists of three
parts: initialization, condition, and increment/decrement.

Syntax:

cpp Copy code

for (initialization; condition; increment/decrement) { // code to be executed }

Example:

cpp Copy code

 for (int i = 0; i < 5; i++) { Serial.print("Iteration: "); Serial.println(i); }

This for loop will iterate five times, printing the iteration number from 0 to 4.

2. while Loop

The while loop repeats a block of code as long as a specified condition is true. It is useful when the
number of iterations is not known before the loop starts.

Syntax:

cpp Copy code

while (condition) { // code to be executed }

Example:

cpp Copy code

int i = 0; while (i < 5) { Serial.print("Iteration: "); Serial.println(i); i++; }

This while loop will also iterate five times, printing the iteration number from 0 to 4.

3. do-while Loop

The do-while loop is similar to the while loop, but it guarantees that the code inside the loop will
execute at least once before checking the condition.

Syntax:

cpp Copy code

do { // code to be executed } while (condition);

Example:

cpp Copy code

int i = 0; do { Serial.print("Iteration: "); Serial.println(i); i++; } while (i < 5);

This do-while loop will also iterate five times, printing the iteration number from 0 to 4.

4. Loop Control Statements

break: Terminates the loop and transfers control to the statement immediately after the loop.

continue: Skips the current iteration of the loop and continues with the next iteration.

Example of break:

cpp Copy code

for (int i = 0; i < 10; i++) { if (i == 5) { break; // exit the loop when i equals 5 }
Serial.println(i); }

Example of continue:

cpp Copy code

for (int i = 0; i < 10; i++) { if (i == 5) { continue; // skip iteration when i equals
5 } Serial.println(i); }

Conclusion

Loops are fundamental for repetitive tasks in Arduino programming. Understanding how to use for,
while, and do-while loops, along with loop control statements like break and continue, will help you

write efficient and flexible Arduino sketches. By mastering loops, you can create more complex and
interactive projects with ease.
 make detailed lecture using arduino uno :-Digital and Analog I/O
(Digital Input and Output)

Lecture: Digital Input and Output in Arduino Uno

Introduction

In this lecture, we will explore digital input and output operations in Arduino Uno. Understanding
how to use digital pins to read input from sensors and control output to actuators is fundamental for
building interactive projects.

Digital Input

Digital input involves reading the state of a digital pin, which can be either HIGH (5V) or LOW (0V).
Common uses of digital input include reading from buttons, switches, and digital sensors.

Example: Reading from a Button

cpp Copy code

int buttonPin = 2; // Define the digital pin for the button int buttonState; //
Variable to store the button state void setup() { pinMode(buttonPin, INPUT); // Set the
button pin as input Serial.begin(9600); // Start serial communication } void loop() {
buttonState = digitalRead(buttonPin); // Read the button state
Serial.println(buttonState); // Print the button state (HIGH or LOW) delay(100); //
Delay to avoid rapid reading }

Digital Output

Digital output involves setting the state of a digital pin to either HIGH or LOW. Common uses of
digital output include controlling LEDs, relays, and other digital devices.

Example: Controlling an LED

cpp Copy code

int ledPin = 13; // Define the digital pin for the LED void setup() { pinMode(ledPin,
OUTPUT); // Set the LED pin as output } void loop() { digitalWrite(ledPin, HIGH); //
Turn the LED on (HIGH voltage) delay(1000); // Wait for 1 second digitalWrite(ledPin,
LOW); // Turn the LED off (LOW voltage) delay(1000); // Wait for 1 second }

Using Pull-up and Pull-down Resistors

When using switches or buttons with Arduino, it's common to use pull-up or pull-down resistors to
ensure the pin reads a consistent value when the switch is open. Arduino has built-in pull-up
resistors that can be enabled with pinMode(pin, INPUT_PULLUP).

Example: Using Internal Pull-up Resistor

cpp Copy code

int buttonPin = 2; // Define the digital pin for the button void setup() {
pinMode(buttonPin, INPUT_PULLUP); // Enable internal pull-up resistor
Serial.begin(9600); // Start serial communication } void loop() { int buttonState =
digitalRead(buttonPin); // Read the button state Serial.println(buttonState); // Print
the button state (HIGH or LOW) delay(100); // Delay to avoid rapid reading }

Conclusion

Digital input and output are essential concepts in Arduino programming, allowing you to interact
with a wide range of sensors and actuators. By mastering these operations, you can create projects
that respond to external stimuli and perform various tasks based on predefined conditions.
 make detailed lecture using arduino uno :-Analog Input (Reading
Sensors)

Lecture: Analog Input in Arduino Uno

Introduction

In this lecture, we will explore analog input operations in Arduino Uno. Analog input allows you to
read data from sensors that provide a continuous range of values, such as light sensors, temperature
sensors, and potentiometers.

Analog-to-Digital Converter (ADC)

Arduino Uno has a built-in Analog-to-Digital Converter (ADC) that converts the analog voltage into a
digital value. The ADC on the Uno has 10-bit resolution, meaning it can represent analog values from
0 to 1023 (2^10 - 1).

Analog Input Pins

Arduino Uno has six analog input pins labeled A0 to A5, which can be used to read analog signals.
These pins can also be used as digital pins (A0 as digital pin 14 through A5 as digital pin 19).

Reading Analog Input

To read analog input, you use the analogRead() function, which returns a value between 0 and 1023
representing the voltage on the analog pin (0V to 5V).

Example: Reading from a Potentiometer

cpp Copy code

int potPin = A0; // Define the analog pin for the potentiometer int potValue; //
Variable to store the potentiometer value void setup() { Serial.begin(9600); // Start
serial communication } void loop() { potValue = analogRead(potPin); // Read the
potentiometer value Serial.println(potValue); // Print the potentiometer value
delay(100); // Delay to avoid rapid reading }

Mapping Analog Values

Often, the analog sensor's range does not match the desired range for your application. You can use
the map() function to scale the sensor's output to the desired range.

Example: Mapping Potentiometer Values to LED Brightness

cpp Copy code

int potPin = A0; // Define the analog pin for the potentiometer int ledPin = 9; //
Define the digital pin for the LED int brightness; // Variable to store the LED
brightness void setup() { pinMode(ledPin, OUTPUT); // Set the LED pin as output
Serial.begin(9600); // Start serial communication } void loop() { int potValue =
analogRead(potPin); // Read the potentiometer value brightness = map(potValue, 0, 1023,
0, 255); // Map the potentiometer value to LED brightness analogWrite(ledPin,
brightness); // Set the LED brightness Serial.println(brightness); // Print the
brightness value delay(100); // Delay to avoid rapid reading }

Conclusion

Analog input in Arduino Uno allows you to read data from sensors that provide a continuous range
of values. By understanding how to use the analogRead() function and how to map analog values to
the desired range, you can effectively read data from sensors and control outputs based on sensor
inputs in your Arduino projects.

make detailed lecture using arduino uno :-Analog Output (PWM)

Lecture: Analog Output (PWM) in Arduino Uno

Introduction

In this lecture, we will explore analog output using Pulse Width Modulation (PWM) in Arduino Uno.
PWM is a technique used to simulate analog output by rapidly switching a digital signal on and off
at varying intervals to create an average voltage level.

Pulse Width Modulation (PWM)

PWM is achieved by rapidly turning a digital signal on and off. The ratio of time the signal is on
(high) to the total time of one cycle is called the duty cycle. By varying the duty cycle, you can
control the average voltage output.

PWM Pins on Arduino Uno

Arduino Uno has 6 PWM pins, labeled as 3, 5, 6, 9, 10, and 11. These pins can be used with the
analogWrite() function to generate a PWM signal.

Using analogWrite()

The analogWrite() function is used to generate a PWM signal on a PWM-capable pin. It takes two
arguments: the pin number and the duty cycle value (ranging from 0 to 255).

Example: Controlling LED Brightness

cpp Copy code

int ledPin = 9; // Define the PWM pin for the LED int brightness = 0; // Initial
brightness value void setup() { pinMode(ledPin, OUTPUT); // Set the LED pin as output }
void loop() { analogWrite(ledPin, brightness); // Set the LED brightness brightness =
(brightness + 5) % 256; // Increase brightness (0 to 255) in steps of 5 delay(50); //
Delay for smoother transition }

Using PWM for Motor Speed Control

PWM is commonly used to control the speed of DC motors. By varying the duty cycle, you can
control the average voltage applied to the motor and thus its speed.

Example: Controlling Motor Speed

cpp Copy code

int motorPin = 9; // Define the PWM pin for the motor int motorSpeed = 0; // Initial
motor speed void setup() { pinMode(motorPin, OUTPUT); // Set the motor pin as output }
void loop() { analogWrite(motorPin, motorSpeed); // Set the motor speed motorSpeed =
(motorSpeed + 5) % 256; // Increase speed (0 to 255) in steps of 5 delay(50); // Delay
for smoother speed change }

Using PWM for RGB LED Color Mixing

PWM can be used to control the intensity of each color (red, green, blue) in an RGB LED to create
different colors.

Example: Controlling RGB LED Color

cpp Copy code

int redPin = 9; // Define the PWM pin for the red LED int greenPin = 10; // Define the
PWM pin for the green LED int bluePin = 11; // Define the PWM pin for the blue LED void
setup() { pinMode(redPin, OUTPUT); // Set the red LED pin as output pinMode(greenPin,
OUTPUT); // Set the green LED pin as output pinMode(bluePin, OUTPUT); // Set the blue
LED pin as output } void loop() { analogWrite(redPin, 255); // Set red to maximum
intensity (255) analogWrite(greenPin, 0); // Set green to minimum intensity (0)
analogWrite(bluePin, 128); // Set blue to mid intensity (128) }

Conclusion
PWM in Arduino Uno allows you to simulate analog output for controlling LED brightness, motor
speed, and RGB LED color mixing. By understanding PWM and using the analogWrite() function, you
can create dynamic and adjustable outputs in your Arduino projects.

make detailed lecture using arduino uno :-Interfacing LEDs

Lecture: Interfacing LEDs with Arduino Uno

Introduction

In this lecture, we will explore how to interface Light Emitting Diodes (LEDs) with Arduino Uno. LEDs
are commonly used in electronics projects to indicate the status of a circuit, provide visual feedback,
or create lighting effects.

Basics of LEDs

Anode and Cathode: LEDs have two legs, with the longer leg being the anode (positive) and the
shorter leg being the cathode (negative).

Forward Voltage: LEDs require a specific voltage, known as the forward voltage, to turn on. For
most standard LEDs, this voltage is around 2V to 3.3V.

Current Limiting Resistor: To prevent excessive current flow and protect the LED, a current-
limiting resistor is used in series with the LED.

Interfacing a Single LED

To interface a single LED with Arduino Uno, connect the longer leg (anode) of the LED to a digital pin
on the Arduino through a current-limiting resistor. Connect the shorter leg (cathode) of the LED to
ground (GND).

Example Circuit:

Example Code:

cpp Copy code

int ledPin = 13; // Define the digital pin for the LED void setup() { pinMode(ledPin,
OUTPUT); // Set the LED pin as output } void loop() { digitalWrite(ledPin, HIGH); //
Turn the LED on delay(1000); // Wait for 1 second digitalWrite(ledPin, LOW); // Turn the
LED off delay(1000); // Wait for 1 second }

Interfacing Multiple LEDs

To interface multiple LEDs with Arduino Uno, you can use the same principle as above, connecting
each LED to a separate digital pin. Ensure each LED has its current-limiting resistor.

Example Circuit (Two LEDs):

Example Code:

cpp Copy code

int ledPin1 = 13; // Define the digital pin for the first LED int ledPin2 = 12; //
Define the digital pin for the second LED void setup() { pinMode(ledPin1, OUTPUT); //
Set the first LED pin as output pinMode(ledPin2, OUTPUT); // Set the second LED pin as
output } void loop() { digitalWrite(ledPin1, HIGH); // Turn the first LED on
digitalWrite(ledPin2, HIGH); // Turn the second LED on delay(1000); // Wait for 1 second
digitalWrite(ledPin1, LOW); // Turn the first LED off digitalWrite(ledPin2, LOW); //
Turn the second LED off delay(1000); // Wait for 1 second }

Conclusion

Interfacing LEDs with Arduino Uno is a simple yet fundamental aspect of electronics and
microcontroller programming. By understanding the basics of LEDs and using appropriate resistors,
you can easily control LEDs to create visual effects or indicate the status of your Arduino projects.

make detailed lecture using arduino uno :-Interfacing Buttons and

Switches

Lecture: Interfacing Buttons and Switches with Arduino Uno

Introduction

In this lecture, we will explore how to interface buttons and switches with Arduino Uno. Buttons and
switches are commonly used in electronics projects to provide user input or control the behavior of a
circuit.

Basics of Buttons and Switches

Normally Open (NO) and Normally Closed (NC): Buttons and switches can be either normally
open (NO), where the circuit is open when not pressed, or normally closed (NC), where the
circuit is closed when not pressed.

Pull-up and Pull-down Resistors: To ensure a stable reading, buttons and switches are often
used with pull-up or pull-down resistors. Pull-up resistors connect the input pin to the high
voltage (5V) when the button is not pressed, while pull-down resistors connect the input pin to
ground (GND) when the button is not pressed.

Interfacing a Button

To interface a button with Arduino Uno, connect one leg of the button to a digital pin on the
Arduino and the other leg to either 5V (for a pull-up configuration) or GND (for a pull-down
configuration) through a current-limiting resistor. Use the internal pull-up resistor of the Arduino if
available.

Example Circuit (Pull-up Configuration):

Example Code:

cpp Copy code

int buttonPin = 2; // Define the digital pin for the button bool buttonState; //
Variable to store the button state void setup() { pinMode(buttonPin, INPUT_PULLUP); //
Enable internal pull-up resistor Serial.begin(9600); // Start serial communication }
void loop() { buttonState = digitalRead(buttonPin); // Read the button state
Serial.println(buttonState); // Print the button state (HIGH or LOW) delay(100); //
Delay to avoid rapid reading }

Interfacing a Switch

To interface a switch with Arduino Uno, connect one leg of the switch to a digital pin on the Arduino
and the other leg to either 5V or GND through a current-limiting resistor, similar to interfacing a
button.

Example Circuit (Switch with Pull-down Configuration):

Example Code:

cpp Copy code

int switchPin = 3; // Define the digital pin for the switch void setup() {
pinMode(switchPin, INPUT_PULLUP); // Enable internal pull-up resistor } void loop() {
int switchState = digitalRead(switchPin); // Read the switch state if (switchState ==
LOW) { // Check if the switch is pressed // Perform some action } }

Conclusion

Interfacing buttons and switches with Arduino Uno allows you to incorporate user input into your
projects. By understanding how to use pull-up or pull-down resistors and read the state of buttons
and switches, you can create interactive and responsive Arduino applications.

make detailed lecture using arduino uno :-Interfacing with LCD

Displays

Lecture: Interfacing LCD Displays with Arduino Uno

Introduction
In this lecture, we will explore how to interface Liquid Crystal Displays (LCDs) with Arduino Uno. LCDs
are commonly used to display text and numbers in electronic projects, providing a visual interface
for user interaction or data presentation.

Types of LCDs

Character LCDs: These displays can show a limited number of characters (usually 16x2 or 20x4)
and are commonly used for basic text display.

Graphic LCDs: These displays can show graphics and are more complex to interface compared
to character LCDs.

Interfacing a Character LCD (16x2)

To interface a character LCD with Arduino Uno, you will need to connect the following pins:

VSS and VDD: Connect to GND and 5V for power supply, respectively.

VO (Contrast): Connect to a potentiometer to adjust the contrast of the display.

RS (Register Select): Connect to a digital pin (e.g., 7) to select between data and command
modes.

RW (Read/Write): Connect to GND to set the LCD in write mode.

E (Enable): Connect to a digital pin (e.g., 8) to enable data read/write.

D4-D7: Connect to digital pins (e.g., 9-12) for data transmission.

Example Circuit:

Example Code:

cpp Copy code

#include <LiquidCrystal.h> // Initialize the library with the numbers of the interface
pins LiquidCrystal lcd(7, 8, 9, 10, 11, 12); void setup() { // Set up the LCD's number
of columns and rows lcd.begin(16, 2); } void loop() { // Print a message to the LCD
lcd.setCursor(0, 0); lcd.print("Hello, Arduino!"); delay(1000); lcd.clear();
delay(1000); }

Additional Functions for LCDs

lcd.setCursor(col, row): Set the cursor position on the LCD.

lcd.print(data): Print data to the LCD.

lcd.clear(): Clear the LCD screen.

lcd.scrollDisplayLeft(): Scroll the display to the left.

lcd.scrollDisplayRight(): Scroll the display to the right.

Conclusion

Interfacing LCD displays with Arduino Uno allows you to create projects with visual feedback and
user interaction. By understanding the basic principles of connecting and controlling LCDs, you can
incorporate displays into your Arduino projects for a more engaging user experience.

make detailed lecture using arduino uno :-Reading Analog Sensors

(Temperature, Light)

Lecture: Reading Analog Sensors with Arduino Uno

Introduction

In this lecture, we will explore how to read analog sensors such as temperature and light sensors
with Arduino Uno. Analog sensors provide continuous data that can be converted to digital values
using the Arduino's Analog-to-Digital Converter (ADC).
Analog Sensors

Temperature Sensor (TMP36): The TMP36 is a low voltage, precision centigrade temperature
sensor that provides an analog voltage output proportional to temperature.

Light Dependent Resistor (LDR): An LDR's resistance changes based on the amount of light
falling on it, making it suitable for light sensing applications.

Interfacing a Temperature Sensor (TMP36)

To interface a TMP36 temperature sensor with Arduino Uno, connect its pins as follows:

VCC: Connected to 5V

OUT: Connected to analog pin A0

GND: Connected to GND

Example Circuit:

Example Code:

cpp Copy code

int sensorPin = A0; // Define the analog pin for the sensor float voltage,
temperatureC, temperatureF; void setup() { Serial.begin(9600); // Start serial
communication } void loop() { int sensorValue = analogRead(sensorPin); // Read the
sensor value voltage = sensorValue * (5.0 / 1023.0); // Convert the sensor value to
voltage temperatureC = (voltage - 0.5) * 100.0; // Convert voltage to temperature in
Celsius temperatureF = (temperatureC * 9.0 / 5.0) + 32.0; // Convert temperature to
Fahrenheit Serial.print("Temperature (C): "); Serial.print(temperatureC);
Serial.print("\tTemperature (F): "); Serial.println(temperatureF); delay(1000); // Delay
between readings }

Interfacing a Light Dependent Resistor (LDR)

To interface an LDR with Arduino Uno, connect it in a voltage divider configuration with a fixed
resistor. Connect one end of the LDR to 5V, the other end to GND through a resistor, and the
junction between the LDR and resistor to an analog pin (e.g., A0).

Example Circuit:

Example Code:

cpp Copy code

int sensorPin = A0; // Define the analog pin for the sensor int sensorValue,
lightLevel; void setup() { Serial.begin(9600); // Start serial communication } void
loop() { sensorValue = analogRead(sensorPin); // Read the sensor value lightLevel =
map(sensorValue, 0, 1023, 0, 100); // Map sensor value to percentage (0-100%)
Serial.print("Light Level: "); Serial.print(lightLevel); Serial.println("%");
delay(1000); // Delay between readings }

Conclusion

Reading analog sensors with Arduino Uno allows you to incorporate real-world data into your
projects. By understanding how to interface and read data from sensors like the TMP36 temperature
sensor and LDR, you can create projects that respond to environmental changes and provide useful
information to users.

make detailed lecture using arduino uno :-Using Potentiometers

Lecture: Using Potentiometers with Arduino Uno

Introduction

In this lecture, we will explore how to use potentiometers with Arduino Uno. Potentiometers, or
"pots," are variable resistors that can be used to control the voltage in a circuit. They are commonly
used in electronics projects to provide adjustable input.

Basics of Potentiometers

Three Pins: Potentiometers typically have three pins: the middle pin (wiper) and two outer pins
(endpoints). The wiper moves along a resistive strip, changing the resistance between the
middle pin and the endpoints.

Variable Resistance: By turning the knob of a potentiometer, you change the resistance between
the middle pin and one of the endpoints, allowing you to control the voltage across the
potentiometer.

Interfacing a Potentiometer

To interface a potentiometer with Arduino Uno, connect one of the outer pins to 5V, the other outer
pin to GND, and the middle pin to an analog pin (e.g., A0).

Example Circuit:

Example Code:

cpp Copy code

int potPin = A0; // Define the analog pin for the potentiometer int potValue; //
Variable to store the potentiometer value void setup() { Serial.begin(9600); // Start
serial communication } void loop() { potValue = analogRead(potPin); // Read the
potentiometer value Serial.print("Potentiometer Value: "); Serial.println(potValue);
delay(100); // Delay to avoid rapid reading }

Using Potentiometers for Analog Input

Potentiometers can be used to control various aspects of your project, such as LED brightness, motor
speed, or sound volume. By reading the analog value from the potentiometer, you can map it to a
specific range of values to control these parameters.

Example: Controlling LED Brightness

cpp Copy code

int potPin = A0; // Define the analog pin for the potentiometer int ledPin = 9; //
Define the digital pin for the LED void setup() { pinMode(ledPin, OUTPUT); // Set the
LED pin as output Serial.begin(9600); // Start serial communication } void loop() { int
potValue = analogRead(potPin); // Read the potentiometer value int brightness =
map(potValue, 0, 1023, 0, 255); // Map potentiometer value to LED brightness
analogWrite(ledPin, brightness); // Set the LED brightness Serial.print("Potentiometer
Value: "); Serial.println(potValue); delay(100); // Delay to avoid rapid reading }

Conclusion

Potentiometers are versatile components that can be used to provide adjustable input in your
Arduino projects. By understanding how to interface and read data from potentiometers, you can
create projects that respond dynamically to user input and provide a customizable user experience.

make detailed lecture using arduino uno :-Controlling Servos

Lecture: Controlling Servos with Arduino Uno

Introduction

In this lecture, we will explore how to control servo motors with Arduino Uno. Servo motors are
widely used in robotics and automation to control the position of objects or devices with high
precision.

Servo Motor Basics

Control Signal: Servo motors require a control signal, typically a pulse width modulation (PWM)
signal, to determine the position to which they should move.
 Angular Range: Servo motors have a limited angular range over which they can rotate, typically
around 0 to 180 degrees.

Pulse Width Modulation (PWM): Arduino Uno can generate PWM signals using the Servo
library to control the position of a servo motor.

Interfacing a Servo Motor

To interface a servo motor with Arduino Uno, connect the following:

Signal Pin: Connect to a PWM-capable digital pin (e.g., 9).

Power (VCC): Connect to 5V.

Ground (GND): Connect to GND.

Example Circuit:

Using the Servo Library

The Servo library simplifies servo motor control. You can use the attach() function to specify the
signal pin and the write() function to set the angle of the servo motor.

Example Code:

cpp Copy code

#include <Servo.h> Servo myservo; // Create a servo object void setup() {

myservo.attach(9); // Attach the servo to pin 9 } void loop() { myservo.write(0); // Set
the servo position to 0 degrees delay(1000); // Wait for 1 second myservo.write(90); //
Set the servo position to 90 degrees delay(1000); // Wait for 1 second
myservo.write(180); // Set the servo position to 180 degrees delay(1000); // Wait for 1
second }

Controlling Servo Speed

While servo motors are typically used for position control, some servos allow you to control the
speed of rotation by adjusting the rate at which you change the angle.

Example Code (Controlling Speed):

cpp Copy code

#include <Servo.h> Servo myservo; // Create a servo object int pos = 0; // Variable to
store the servo position void setup() { myservo.attach(9); // Attach the servo to pin 9
} void loop() { for (pos = 0; pos <= 180; pos += 1) { // Sweep from 0 to 180 degrees
myservo.write(pos); // Set the servo position delay(15); // Delay for smoother motion }
for (pos = 180; pos >= 0; pos -= 1) { // Sweep from 180 to 0 degrees myservo.write(pos);
// Set the servo position delay(15); // Delay for smoother motion } }

Conclusion

Controlling servo motors with Arduino Uno allows you to add precise motion control to your
projects. By understanding how to interface and control servo motors using the Servo library, you
can create projects that involve moving parts or objects with high accuracy and repeatability.

make detailed lecture using arduino uno :-Controlling DC Motors

Lecture: Controlling DC Motors with Arduino Uno

Introduction

In this lecture, we will explore how to control DC (Direct Current) motors with Arduino Uno. DC
motors are commonly used in robotics and automation for their simplicity and controllability.

Basics of DC Motors
 Direction and Speed Control: DC motors can be controlled in terms of both direction of
rotation and speed.

H-Bridge: To control the direction of a DC motor, an H-Bridge circuit is commonly used. An H-

Bridge allows the motor to be driven forward or backward by changing the polarity of the
applied voltage.

PWM for Speed Control: To control the speed of a DC motor, Pulse Width Modulation (PWM) is
often used. PWM varies the average voltage applied to the motor, thereby controlling its speed.

Interfacing a DC Motor

To interface a DC motor with Arduino Uno, you will need an H-Bridge motor driver IC such as the
L298N. Connect the motor driver IC to Arduino Uno and the DC motor as follows:

Enable Pins (ENA, ENB): Connect to PWM-capable digital pins on Arduino (e.g., 6 and 9).

Input Pins (IN1, IN2, IN3, IN4): Connect to digital pins on Arduino for controlling motor
direction (e.g., 7, 8, 10, 11).

Motor Power: Connect to an external power source (e.g., 9V battery) through the motor driver.

Example Circuit (Using L298N):

Using PWM for Speed Control

By varying the PWM duty cycle, you can control the speed of the DC motor. Higher duty cycles
correspond to higher speeds.

Example Code (Controlling Speed):

cpp Copy code

int enableA = 6; int in1 = 7; int in2 = 8; void setup() { pinMode(enableA, OUTPUT);
pinMode(in1, OUTPUT); pinMode(in2, OUTPUT); } void loop() { analogWrite(enableA, 200);
// Set speed to 200/255 (approx. 78%) digitalWrite(in1, HIGH); // Set direction forward
digitalWrite(in2, LOW); delay(2000); // Run motor for 2 seconds digitalWrite(in1, LOW);
// Stop motor digitalWrite(in2, LOW); delay(1000); // Pause for 1 second }

Controlling Direction

To change the direction of the motor, simply change the logic levels on the input pins connected to
the H-Bridge.

Example Code (Changing Direction):

cpp Copy code

int enableA = 6; int in1 = 7; int in2 = 8; void setup() { pinMode(enableA, OUTPUT);
pinMode(in1, OUTPUT); pinMode(in2, OUTPUT); } void loop() { analogWrite(enableA, 200);
// Set speed to 200/255 (approx. 78%) digitalWrite(in1, HIGH); // Set direction forward
digitalWrite(in2, LOW); delay(2000); // Run motor forward for 2 seconds
digitalWrite(in1, LOW); // Change direction to reverse digitalWrite(in2, HIGH);
delay(2000); // Run motor reverse for 2 seconds digitalWrite(in1, LOW); // Stop motor
digitalWrite(in2, LOW); delay(1000); // Pause for 1 second }

Conclusion

Controlling DC motors with Arduino Uno allows you to add motion to your projects. By using an H-
Bridge motor driver and PWM signals, you can control both the direction and speed of DC motors,
enabling a wide range of applications in robotics, automation, and more.

make detailed lecture using arduino uno :-Communication Protocols

(Serial Communication)

Lecture: Serial Communication with Arduino Uno

Introduction

In this lecture, we will explore serial communication with Arduino Uno. Serial communication is a
method of transmitting data between a microcontroller and other devices using a serial protocol.

Basics of Serial Communication

UART: Arduino Uno has a Universal Asynchronous Receiver-Transmitter (UART) serial

communication interface, which allows it to communicate with other devices using serial data
transmission.

TX/RX Pins: Arduino Uno has two pins dedicated to serial communication: TX (transmit) and RX
(receive).

Baud Rate: Baud rate is the rate at which data is transmitted in bits per second (bps). Both the
Arduino and the device it communicates with must use the same baud rate for successful
communication.

Interfacing Serial Communication

To interface serial communication with Arduino Uno, connect the TX pin of the Arduino to the RX pin
of the other device, and vice versa. Make sure to connect the ground (GND) pins of both devices
together.

Example Circuit:

No circuit is needed for serial communication, only the wiring between the Arduino and the other
device.

Using Serial Communication

Arduino Uno can send and receive data through its serial interface using the Serial object. Use
Serial.begin() to initialize the serial communication at a specific baud rate and Serial.print() or

Serial.println() to send data.

Example Code (Sending Data):

cpp Copy code

void setup() { Serial.begin(9600); // Initialize serial communication at 9600 bps }

void loop() { Serial.print("Hello, world!"); // Send "Hello, world!" over serial
delay(1000); // Delay for 1 second }

Example Code (Receiving Data):

cpp Copy code

void setup() { Serial.begin(9600); // Initialize serial communication at 9600 bps }

void loop() { if (Serial.available() > 0) { // Check if data is available to read char
receivedChar = Serial.read(); // Read the incoming byte Serial.print("Received: ");
Serial.println(receivedChar); // Print the received byte } }

Communication Protocols

Serial communication is just one type of communication protocol. Other protocols, such as I2C and
SPI, allow for more complex communication between devices. However, serial communication is
simple and effective for many applications.

Conclusion

Serial communication is a fundamental concept in microcontroller programming. By understanding

how to use the serial interface on Arduino Uno, you can easily communicate with other devices and
create interactive projects that respond to external input.

make detailed lecture using arduino uno :-I2C Communication

Lecture: I2C Communication with Arduino Uno

Introduction

In this lecture, we will explore I2C (Inter-Integrated Circuit) communication with Arduino Uno. I2C is a
popular serial communication protocol that allows multiple devices to communicate with each other
using just two wires.

Basics of I2C Communication

Two-Wire Communication: I2C uses two wires for communication: SDA (Serial Data Line) and
SCL (Serial Clock Line).

Master-Slave Configuration: In I2C communication, one device acts as the master, which
initiates communication and controls the clock signal, while one or more devices act as slaves.

Addressing: Each device connected to the I2C bus has a unique address that the master uses to
communicate with it.

Interfacing I2C Devices with Arduino Uno

To interface I2C devices with Arduino Uno, you need to connect the following pins:

SDA: Connect to A4 (analog pin 4) on Arduino Uno.

SCL: Connect to A5 (analog pin 5) on Arduino Uno.

VCC and GND: Connect the power and ground of the I2C device to the corresponding pins on
Arduino Uno.

Using the Wire Library for I2C Communication

Arduino Uno uses the Wire library to communicate over the I2C bus. The Wire library provides
functions to send and receive data using I2C.

Example Code (I2C Master):

cpp Copy code

#include <Wire.h> void setup() { Wire.begin(); // Initialize I2C communication

Serial.begin(9600); // Start serial communication } void loop() {
Wire.beginTransmission(8); // Begin transmission to device with address 8
Wire.write('A'); // Send a byte Wire.endTransmission(); // End transmission delay(500);
// Delay for 0.5 seconds }

Example Code (I2C Slave):

cpp Copy code

#include <Wire.h> void setup() { Wire.begin(8); // Initialize I2C communication with

address 8 Wire.onReceive(receiveEvent); // Set up receive event Serial.begin(9600); //
Start serial communication } void loop() { delay(100); } void receiveEvent(int bytes) {
while (Wire.available()) { char c = Wire.read(); // Read the incoming byte
Serial.print("Received: "); Serial.println(c); // Print the received byte } }

Using I2C Devices

There are many I2C devices available, such as sensors, displays, and EEPROMs, that can be easily
interfaced with Arduino Uno using the Wire library. Each device will have its own address and
communication protocol.

Conclusion

I2C communication is a versatile and widely used protocol for connecting multiple devices to a
microcontroller. By understanding how to use the Wire library with Arduino Uno, you can interface
with a wide range of I2C devices and create complex and interconnected projects.

make detailed lecture using arduino uno :-SPI Communication

Lecture: SPI Communication with Arduino Uno

Introduction

In this lecture, we will explore SPI (Serial Peripheral Interface) communication with Arduino Uno. SPI
is a synchronous serial communication protocol commonly used to communicate between
microcontrollers and peripheral devices such as sensors, displays, and memory chips.

Basics of SPI Communication

Four-Wire Communication: SPI uses four wires for communication:

SCK (Serial Clock): Clock signal generated by the master device.

MOSI (Master Out Slave In): Data line from master to slave.

MISO (Master In Slave Out): Data line from slave to master.

SS (Slave Select): Line used by the master to select the slave device with which it wants to
communicate.

Master-Slave Configuration: In SPI communication, one device acts as the master, which
controls the clock signal and selects the slave device, while one or more devices act as slaves.

Interfacing SPI Devices with Arduino Uno

To interface SPI devices with Arduino Uno, you need to connect the following pins:

SCK: Connect to pin 13 (SCK) on Arduino Uno.

MOSI: Connect to pin 11 (MOSI) on Arduino Uno.

MISO: Connect to pin 12 (MISO) on Arduino Uno.

SS: Connect to any digital pin (e.g., pin 10) on Arduino Uno.

Using the SPI Library for SPI Communication

Arduino Uno uses the SPI library to communicate over the SPI bus. The SPI library provides functions
to initialize SPI communication, send data, and receive data.

Example Code (SPI Master):

cpp Copy code

#include <SPI.h> void setup() { SPI.begin(); // Initialize SPI communication

Serial.begin(9600); // Start serial communication } void loop() { digitalWrite(SS, LOW);
// Select the slave device SPI.transfer('A'); // Send a byte digitalWrite(SS, HIGH); //
Deselect the slave device delay(500); // Delay for 0.5 seconds }

Example Code (SPI Slave):

cpp Copy code

#include <SPI.h> char receivedData; void setup() { SPI.begin(); // Initialize SPI

communication pinMode(SS, INPUT); // Set SS pin as input SPI.attachInterrupt(); //
Enable SPI interrupt Serial.begin(9600); // Start serial communication } void loop() {
// Do nothing in the loop } ISR(SPI_STC_vect) { receivedData = SPI.transfer(0); //
Receive incoming byte Serial.print("Received: "); Serial.println(receivedData); // Print
the received byte }

Using SPI Devices

There are many SPI devices available, such as sensors, displays, and memory chips, that can be easily
interfaced with Arduino Uno using the SPI library. Each device will have its own protocol and
communication requirements.

Conclusion

SPI communication is a fast and efficient protocol for communicating between microcontrollers and
peripheral devices. By understanding how to use the SPI library with Arduino Uno, you can interface
with a wide range of SPI devices and create complex and high-speed communication systems.
 make detailed lecture using arduino uno :-Interfacing with Sensors
using I2C

Lecture: Interfacing Sensors with Arduino Uno using I2C

Introduction

In this lecture, we will explore how to interface sensors with Arduino Uno using the I2C (Inter-
Integrated Circuit) protocol. I2C is a popular protocol for connecting multiple sensors and devices to
a microcontroller using only two wires.

Basics of I2C Sensor Interfacing

I2C Addressing: Each sensor connected to the I2C bus has a unique address that the master
(Arduino Uno) uses to communicate with it.

Reading Sensor Data: Sensors connected via I2C typically provide data in a specific format, such
as temperature readings, distance measurements, or other sensor-specific data.

Wire Library: Arduino Uno uses the Wire library to communicate over the I2C bus.

Interfacing I2C Sensors with Arduino Uno

To interface an I2C sensor with Arduino Uno, you need to connect the sensor's SDA and SCL pins to
the corresponding pins on the Arduino Uno (A4 and A5, respectively). Additionally, connect the
sensor's power (VCC) and ground (GND) pins to the appropriate pins on the Arduino Uno.

Using the Wire Library for I2C Communication

The Wire library simplifies I2C communication with Arduino Uno. You can use the Wire.begin()
function to initialize the I2C bus and the Wire.requestFrom() function to request data from the
sensor.

Example Code (Reading Data from an I2C Sensor):

cpp Copy code

#include <Wire.h> #define SENSOR_ADDRESS 0x68 // I2C address of the sensor void setup()
{ Wire.begin(); // Initialize I2C communication Serial.begin(9600); // Start serial
communication } void loop() { Wire.beginTransmission(SENSOR_ADDRESS); // Begin
transmission to the sensor Wire.write(0x00); // Request data from register 0x00
Wire.endTransmission(); // End transmission delay(100); // Delay to allow sensor to
process request Wire.requestFrom(SENSOR_ADDRESS, 2); // Request 2 bytes of data from
sensor while (Wire.available()) { byte msb = Wire.read(); // Read the most significant
byte byte lsb = Wire.read(); // Read the least significant byte int sensorData = (msb <<
8) | lsb; // Combine the bytes to get sensor data Serial.print("Sensor Data: ");
Serial.println(sensorData); // Print the sensor data } delay(1000); // Delay before next
reading }

Conclusion

Interfacing sensors with Arduino Uno using the I2C protocol allows you to easily integrate a wide
range of sensors into your projects. By understanding the basics of I2C communication and using the
Wire library, you can read data from sensors and create complex and versatile projects that respond
to the environment.

make detailed lecture using arduino uno :-Interfacing with Sensors

using SPI

Lecture: Interfacing Sensors with Arduino Uno using SPI

Introduction
In this lecture, we will explore how to interface sensors with Arduino Uno using the SPI (Serial
Peripheral Interface) protocol. SPI is a synchronous serial communication protocol commonly used
for high-speed communication between microcontrollers and peripheral devices such as sensors,
displays, and memory chips.

Basics of SPI Sensor Interfacing

Four-Wire Communication: SPI uses four wires for communication: SCK (Serial Clock), MOSI
(Master Out Slave In), MISO (Master In Slave Out), and SS (Slave Select).

Master-Slave Configuration: In SPI communication, one device acts as the master, which
controls the clock signal and selects the slave device, while one or more devices act as slaves.

Data Exchange: Data is exchanged between the master and slave devices in full-duplex mode,
meaning data can be sent and received simultaneously.

Interfacing SPI Sensors with Arduino Uno

To interface an SPI sensor with Arduino Uno, you need to connect the sensor's SCK, MOSI, MISO, and
SS pins to the corresponding pins on the Arduino Uno. Additionally, connect the sensor's power
(VCC) and ground (GND) pins to the appropriate pins on the Arduino Uno.

Using the SPI Library for SPI Communication

The SPI library simplifies SPI communication with Arduino Uno. You can use the
SPI.beginTransaction() and SPI.endTransaction() functions to begin and end an SPI transaction,

and the SPI.transfer() function to send and receive data.

Example Code (Reading Data from an SPI Sensor):

cpp Copy code

#include <SPI.h> #define CS_PIN 10 // Chip select pin for the sensor void setup() {
SPI.begin(); // Initialize SPI communication pinMode(CS_PIN, OUTPUT); // Set CS_PIN as
output digitalWrite(CS_PIN, HIGH); // Set CS_PIN high (deselect the sensor)
Serial.begin(9600); // Start serial communication } void loop() { digitalWrite(CS_PIN,
LOW); // Select the sensor SPI.transfer(0x00); // Send a command byte (if needed) byte
sensorData = SPI.transfer(0x00); // Receive data from the sensor digitalWrite(CS_PIN,
HIGH); // Deselect the sensor Serial.print("Sensor Data: "); Serial.println(sensorData);
// Print the sensor data delay(1000); // Delay before next reading }

Conclusion

Interfacing sensors with Arduino Uno using the SPI protocol allows you to integrate a wide range of
sensors into your projects. By understanding the basics of SPI communication and using the SPI
library, you can read data from sensors and create complex and high-speed communication systems.

make detailed lecture using arduino uno :-Using the delay() Function

Lecture: Using the delay() Function in Arduino Uno

Introduction

In this lecture, we will explore how to use the delay() function in Arduino Uno. The delay() function
is used to pause the execution of a program for a specified amount of time, allowing you to control
the timing of your Arduino projects.

Basics of the delay() Function

Syntax: The delay() function takes a single argument, which is the number of milliseconds to
pause the program.

Effect: While the delay() function is running, the Arduino Uno will not execute any other code.
This means that any actions or tasks that should occur during the delay will be paused.

Resolution: The delay() function has a resolution of approximately 1 millisecond. However, the
actual delay may vary slightly due to the execution time of other instructions in the loop.
Using the delay() Function

You can use the delay() function in various ways in your Arduino projects, such as creating delays
between actions, controlling the timing of sensor readings, or creating blinking patterns for LEDs.

Example: Blinking an LED with a Delay

cpp Copy code

int ledPin = 13; // Define the LED pin void setup() { pinMode(ledPin, OUTPUT); // Set
the LED pin as an output } void loop() { digitalWrite(ledPin, HIGH); // Turn on the LED
delay(1000); // Delay for 1 second digitalWrite(ledPin, LOW); // Turn off the LED
delay(1000); // Delay for 1 second }

Avoiding Blocking Delays

While the delay() function is simple to use, it can cause your Arduino program to become
unresponsive if used excessively or for long periods. This is because delay() blocks the execution of
other code. To avoid this, consider using non-blocking techniques, such as using millis() for timing.

Conclusion

The delay() function is a useful tool for controlling timing in Arduino projects. By understanding
how to use delay(), you can create projects with precise timing and control the behavior of your
Arduino Uno. However, it's important to use delay() judiciously to avoid blocking the execution of
other code and ensure the responsiveness of your projects.

make detailed lecture using arduino uno :-Using the millis() Function

Lecture: Using the millis() Function in Arduino Uno

Introduction

In this lecture, we will explore how to use the millis() function in Arduino Uno. Unlike the delay()
function, which pauses the program's execution, millis() allows you to create non-blocking delays
and time-sensitive actions in your Arduino projects.

Basics of the millis() Function

Functionality: The millis() function returns the number of milliseconds since the Arduino
board began running the current program. It is based on the internal clock of the Arduino and is
not affected by delay() or other time-consuming operations.

Usage: By comparing the value returned by millis() to a target time, you can determine if a
certain amount of time has elapsed and trigger actions accordingly.

Overflow: millis() rolls over to 0 after approximately 50 days of continuous operation.

However, this is rarely an issue in most Arduino projects.

Using millis() for Timing

You can use millis() to create non-blocking delays and perform actions at specific intervals in your
Arduino projects. Here's a basic example of blinking an LED without using delay():

Example: Blinking an LED without delay()

cpp Copy code

const int ledPin = 13; // LED connected to digital pin 13 unsigned long previousMillis
= 0; // Stores the last time LED was updated const long interval = 1000; // Interval at
which to blink (milliseconds) void setup() { pinMode(ledPin, OUTPUT); // Set the LED pin
as an output } void loop() { unsigned long currentMillis = millis(); // Get the current
time if (currentMillis - previousMillis >= interval) { // If enough time has passed,
toggle the LED and reset the timer previousMillis = currentMillis; digitalWrite(ledPin,
!digitalRead(ledPin)); } }
Benefits of Using millis()

Non-blocking: Unlike delay(), which pauses the program, millis() allows your program to
continue running, making it ideal for time-sensitive actions.

Multiple Timings: You can manage multiple timing events in your program by using multiple
millis() variables and comparing them to different intervals.

Considerations when Using millis()

Overflow: Remember that millis() will eventually roll over to 0 after a long period, so avoid
relying on precise timings over extended periods.

Timing Accuracy: While millis() is accurate enough for most applications, it may drift slightly
over time. If precise timing is critical, consider using an external real-time clock (RTC) module.

Conclusion

The millis() function is a powerful tool for creating non-blocking delays and time-sensitive actions
in Arduino projects. By understanding how to use millis(), you can create more responsive and
complex projects that require precise timing without using blocking delay() functions.

make detailed lecture using arduino uno :-Creating Timers

Lecture: Creating Timers in Arduino Uno

Introduction

In this lecture, we will explore how to create timers in Arduino Uno using the millis() function.
Timers are useful for executing actions at specific intervals or after a certain amount of time has
elapsed, without blocking the program's execution.

Using millis() for Timers

millis() Function: millis() returns the number of milliseconds since the Arduino board started

running the current program.

Timer Logic: By comparing the current millis() value to a target time, you can create timers
that trigger actions at specific intervals.

Creating a Simple Timer

Here's an example of a simple timer that turns an LED on for 1 second and then off for 1 second:

cpp Copy code

const int ledPin = 13; // LED connected to digital pin 13 unsigned long previousMillis
= 0; // Stores the last time LED was updated const long interval = 1000; // Interval at
which to blink (milliseconds) bool ledState = false; // Current state of the LED void
setup() { pinMode(ledPin, OUTPUT); // Set the LED pin as an output } void loop() {
unsigned long currentMillis = millis(); // Get the current time if (currentMillis -
previousMillis >= interval) { // If enough time has passed, toggle the LED and reset the
timer previousMillis = currentMillis; ledState = !ledState; digitalWrite(ledPin,
ledState); } }

Creating Multiple Timers

You can create multiple timers by using additional variables to track the timing for each event. Here's
an example of blinking two LEDs at different intervals:

cpp Copy code

const int ledPin1 = 13; // First LED connected to digital pin 13 const int ledPin2 =
12; // Second LED connected to digital pin 12 unsigned long previousMillis1 = 0; //
Stores the last time first LED was updated unsigned long previousMillis2 = 0; // Stores
the last time second LED was updated const long interval1 = 1000; // Interval for first
LED (milliseconds) const long interval2 = 500; // Interval for second LED (milliseconds)
 bool ledState1 = false; // Current state of the first LED bool ledState2 = false; //
Current state of the second LED void setup() { pinMode(ledPin1, OUTPUT); // Set the
first LED pin as an output pinMode(ledPin2, OUTPUT); // Set the second LED pin as an
output } void loop() { unsigned long currentMillis = millis(); // Get the current time
if (currentMillis - previousMillis1 >= interval1) { previousMillis1 = currentMillis;
ledState1 = !ledState1; digitalWrite(ledPin1, ledState1); } if (currentMillis -
previousMillis2 >= interval2) { previousMillis2 = currentMillis; ledState2 = !ledState2;
digitalWrite(ledPin2, ledState2); } }

Conclusion

Creating timers in Arduino Uno using the millis() function allows you to execute actions at specific
intervals without blocking the program's execution. By understanding how to use millis() for
timing, you can create more dynamic and responsive Arduino projects.

make detailed lecture using arduino uno :-Non-blocking Code

Lecture: Writing Non-blocking Code in Arduino Uno

Introduction

In this lecture, we will explore the concept of non-blocking code in Arduino Uno and how to write
code that allows your program to perform multiple tasks simultaneously without getting blocked.

Blocking vs. Non-blocking Code

Blocking Code: Blocking code is code that stops the program's execution until a certain
condition is met. For example, the delay() function is blocking because it pauses the program.

Non-blocking Code: Non-blocking code is code that allows the program to continue running
while waiting for a condition to be met. This is achieved by using techniques that do not pause
the program's execution.

Using millis() for Non-blocking Delays

The millis() function returns the number of milliseconds since the Arduino board started
running the current program.

By using millis(), you can create non-blocking delays by comparing the current time to a
target time.

Example: Non-blocking LED Blinking

cpp Copy code

const int ledPin = 13; // LED connected to digital pin 13 unsigned long previousMillis
= 0; // Stores the last time LED was updated const long interval = 1000; // Interval at
which to blink (milliseconds) bool ledState = false; // Current state of the LED void
setup() { pinMode(ledPin, OUTPUT); // Set the LED pin as an output } void loop() {
unsigned long currentMillis = millis(); // Get the current time if (currentMillis -
previousMillis >= interval) { // If enough time has passed, toggle the LED and reset the
timer previousMillis = currentMillis; ledState = !ledState; digitalWrite(ledPin,
ledState); } // Other non-blocking tasks can be performed here }

Benefits of Non-blocking Code

Responsive: Non-blocking code allows your program to respond to external events quickly.

Efficient: By avoiding delays, your program can perform multiple tasks simultaneously.

Flexible: Non-blocking code allows you to easily add new features without disrupting existing
functionality.

Considerations when Writing Non-blocking Code

Timing: Use millis() carefully to ensure accurate timing, especially in long-running programs.

State Management: Keep track of the state of your program's various tasks to ensure they
operate correctly.
Conclusion

Writing non-blocking code in Arduino Uno allows you to create more responsive and efficient
programs. By using techniques such as millis() for timing, you can perform multiple tasks
simultaneously and create more complex Arduino projects.

make detailed lecture using arduino uno :-Implementing Delays

without delay()

Lecture: Implementing Delays without Using the delay() Function in Arduino

Uno

Introduction

In this lecture, we will explore alternative methods for implementing delays in Arduino Uno without
using the delay() function. Using non-blocking techniques allows your Arduino to perform other
tasks while waiting for a delay to expire.

Challenges with the delay() Function

The delay() function pauses the execution of your program, which can be problematic if you need
your Arduino to perform other tasks during that time. Using non-blocking delays allows your
Arduino to remain responsive to other inputs and events.

Using millis() for Non-blocking Delays

The millis() function returns the number of milliseconds since the Arduino board began running
the current program. By using millis(), you can create non-blocking delays by comparing the
current time to a target time.

Example: Non-blocking Blinking LED

cpp Copy code

const int ledPin = 13; // LED connected to digital pin 13 unsigned long previousMillis
= 0; // Stores the last time LED was updated const long interval = 1000; // Interval at
which to blink (milliseconds) bool ledState = false; // Current state of the LED void
setup() { pinMode(ledPin, OUTPUT); // Set the LED pin as an output } void loop() {
unsigned long currentMillis = millis(); // Get the current time if (currentMillis -
previousMillis >= interval) { // If enough time has passed, toggle the LED and reset the
timer previousMillis = currentMillis; ledState = !ledState; digitalWrite(ledPin,
ledState); } // Other non-blocking tasks can be performed here }

Benefits of Non-blocking Delays

Responsive: Non-blocking delays allow your Arduino to respond to events quickly.

Efficient: Your Arduino can perform other tasks while waiting for a delay to expire.

Flexible: Non-blocking delays can easily be integrated into more complex programs.

Considerations

Timing Accuracy: Using millis() for timing requires careful management to ensure accurate
timing over long periods.

State Management: Keep track of the state of your program's various tasks to ensure they
operate correctly.

Conclusion

Implementing delays without using the delay() function in Arduino Uno allows you to create more
responsive and efficient programs. By using techniques such as millis() for timing, you can perform
multiple tasks simultaneously and create more complex Arduino projects.
make detailed lecture using arduino uno :-Working with Libraries
(Understanding Libraries)
Lecture: Working with Libraries in Arduino Uno - Understanding Libraries

Introduction

In this lecture, we will explore how to work with libraries in Arduino Uno. Libraries are collections of
pre-written code that provide additional functionality to your Arduino projects. Understanding how
to use libraries can greatly expand the capabilities of your projects.

What are Libraries?

Functionality: Libraries contain functions and classes that you can use in your Arduino sketches
to perform specific tasks.

Types: There are two types of libraries in Arduino: built-in libraries that come with the Arduino
IDE and external libraries that you can download and install.

Purpose: Libraries are designed to simplify coding by providing pre-written code for common
tasks, such as interfacing with sensors, displays, and communication modules.

Using Built-in Libraries

Including Libraries: To use a built-in library, you need to include its header file at the beginning
of your sketch. For example, to use the Wire library for I2C communication:

cpp Copy code

#include <Wire.h>

Initialization: Some libraries require initialization in the setup() function. For example, to
initialize the Wire library for I2C communication:

cpp Copy code

void setup() { Wire.begin(); }

Using External Libraries

Downloading Libraries: External libraries can be downloaded from the Arduino Library Manager
or from online sources. They are typically provided as a zip file containing the library files.

Installation: To install an external library, unzip the library file and place it in the libraries folder
of your Arduino sketchbook directory.

Including External Libraries: Include external libraries in your sketch using the #include
directive, similar to built-in libraries.

Example: Using the LiquidCrystal Library

The LiquidCrystal library allows you to easily control LCD displays. Here's a basic example of using
the LiquidCrystal library to display text on an LCD:

cpp Copy code

#include <LiquidCrystal.h> LiquidCrystal lcd(12, 11, 5, 4, 3, 2); // Create an LCD

object void setup() { lcd.begin(16, 2); // Initialize the LCD with 16 columns and 2 rows
lcd.print("Hello, World!"); // Print a message to the LCD } void loop() { // Your code
here }

Conclusion

Understanding how to work with libraries in Arduino Uno is essential for expanding the capabilities
of your projects. By using built-in and external libraries, you can easily add complex functionality to
your sketches without writing all the code from scratch.

make detailed lecture using arduino uno :-How to Install Libraries

Lecture: Installing Libraries in Arduino Uno

Introduction

In this lecture, we will explore how to install libraries in Arduino Uno. Libraries are collections of pre-
written code that provide additional functionality to your Arduino projects. Installing libraries allows
you to easily add new features and capabilities to your projects without writing all the code from
scratch.

Installing Libraries Using the Arduino Library Manager

The Arduino IDE includes a Library Manager that allows you to easily browse and install libraries
from the Arduino library repository.

1. Open the Library Manager: Go to the Arduino IDE, click on Sketch in the menu bar, navigate to
Include Library, and then select Manage Libraries....

2. Browse for Libraries: Use the Library Manager to search for libraries by name. You can also filter
libraries by their compatibility with your Arduino board.

3. Install a Library: Once you've found a library you want to install, click on the library name and
then click the Install button.

4. Verify Installation: After installation, the library should appear in the Sketch > Include Library
menu.

Installing Libraries Manually

If a library is not available in the Library Manager, you can install it manually by downloading the
library files and placing them in the libraries folder of your Arduino sketchbook directory.

1. Download the Library: Visit the library's GitHub repository or website and download the library
as a zip file.

2. Extract the Library: Extract the contents of the zip file to a folder on your computer.

3. Move the Library to the Arduino Libraries Folder: Copy the extracted library folder and paste it
into the libraries folder inside your Arduino sketchbook directory. The libraries folder is typically
located in the Arduino folder in your Documents directory.

4. Verify Installation: After copying the library folder, restart the Arduino IDE. The library should
now appear in the Sketch > Include Library menu.

Example: Installing the Adafruit NeoPixel Library

The Adafruit NeoPixel library allows you to control NeoPixel RGB LEDs. Here's how you would install
it using the Library Manager:

1. Open the Arduino IDE and go to Sketch > Include Library > Manage Libraries....

2. In the Library Manager, search for "Adafruit NeoPixel".

3. Click on the Adafruit NeoPixel library and click the Install button.

Conclusion

Installing libraries in Arduino Uno is a straightforward process that allows you to easily add new
functionality to your projects. By using the Library Manager or manually installing libraries, you can
enhance your Arduino projects with a wide range of features and capabilities.

make detailed lecture using arduino uno :-Using the Wire Library for
I2C
Lecture: Using the Wire Library for I2C Communication in Arduino Uno

Introduction

In this lecture, we will explore how to use the Wire library in Arduino Uno for I2C (Inter-Integrated
Circuit) communication. I2C is a popular communication protocol used to connect multiple devices,
such as sensors, displays, and microcontrollers, using only two wires.

What is the Wire Library?

The Wire library is a built-in Arduino library that provides functions for I2C communication.

It allows you to communicate with I2C devices by providing functions to initialize the I2C bus,
send and receive data, and manage the I2C protocol.

Using the Wire Library

1. Include the Wire Library: At the beginning of your sketch, include the Wire library using the
#include directive:

cpp Copy code

#include <Wire.h>

2. Initialize the I2C Bus: In the setup() function, initialize the I2C bus with the Wire.begin()
function. You can also specify the I2C clock frequency (in Hz) as an argument (e.g.,
Wire.begin(400000); for a 400kHz clock):

cpp Copy code

void setup() { Wire.begin(); }

3. Sending Data: To send data over the I2C bus, use the Wire.write() function. For example, to
send a single byte of data:

cpp Copy code

Wire.beginTransmission(deviceAddress); // Start transmission to device

Wire.write(data); // Send data Wire.endTransmission(); // End transmission

4. Receiving Data: To receive data from an I2C device, use the Wire.requestFrom() function.
Specify the device address and the number of bytes to read:

cpp Copy code

Wire.requestFrom(deviceAddress, numBytes); // Request data from device while

(Wire.available()) { byte receivedData = Wire.read(); // Read data byte }

Example: Reading from an I2C Temperature Sensor

Here's an example of how to read temperature data from an I2C temperature sensor (e.g., TMP102):

cpp Copy code

#include <Wire.h> #define TMP102_ADDRESS 0x48 // I2C address of TMP102 void setup() {
Wire.begin(); // Initialize I2C bus Serial.begin(9600); // Initialize serial
communication } void loop() { Wire.beginTransmission(TMP102_ADDRESS); // Start
transmission to TMP102 Wire.write(0x00); // Set pointer register to temperature register
Wire.endTransmission(); // End transmission delay(100); // Delay to allow sensor to
process request Wire.requestFrom(TMP102_ADDRESS, 2); // Request 2 bytes of data from
TMP102 if (Wire.available()) { int tempData = Wire.read() << 8 | Wire.read(); // Read
temperature data float temperature = tempData * 0.0625; // Calculate temperature in
 degrees Celsius Serial.print("Temperature: "); Serial.print(temperature);
Serial.println(" °C"); } delay(1000); // Delay before next reading }

Conclusion

The Wire library in Arduino Uno provides an easy-to-use interface for I2C communication. By
understanding how to use the Wire library, you can communicate with various I2C devices and add
advanced features to your Arduino projects.

make detailed lecture using arduino uno :-Using the SPI Library for SPI

Lecture: Using the SPI Library for SPI Communication in Arduino Uno

Introduction

In this lecture, we will explore how to use the SPI (Serial Peripheral Interface) library in Arduino Uno
for SPI communication. SPI is a synchronous serial communication protocol commonly used to
communicate between microcontrollers and peripheral devices such as sensors, displays, and
memory chips.

What is the SPI Library?

The SPI library is a built-in Arduino library that provides functions for SPI communication.

It allows you to communicate with SPI devices by providing functions to initialize the SPI bus,
send and receive data, and manage the SPI protocol.

Using the SPI Library

1. Include the SPI Library: At the beginning of your sketch, include the SPI library using the
#include directive:

cpp Copy code

#include <SPI.h>

2. Initialize SPI: In the setup() function, initialize the SPI bus using the SPI.begin() function. You
can also set the SPI data mode and clock frequency (optional):

cpp Copy code

void setup() { SPI.begin(); SPI.setDataMode(SPI_MODE0); // Set data mode (optional)

SPI.setClockDivider(SPI_CLOCK_DIV16); // Set clock frequency (optional) }

3. Sending Data: To send data over SPI, use the SPI.transfer() function. For example, to send a
byte of data:

cpp Copy code

byte dataToSend = 0x55; byte receivedData = SPI.transfer(dataToSend);

4. Receiving Data: To receive data over SPI, use the SPI.transfer() function. The function will
return the received data:

cpp Copy code

byte receivedData = SPI.transfer(0x00); // Send dummy data to receive data

5. End SPI Communication: To end SPI communication, use the SPI.end() function. This is optional
and typically done after you have finished communicating with an SPI device:
 cpp Copy code

SPI.end();

Example: Reading from an SPI Device

Here's an example of how to read data from an SPI device (e.g., an SPI accelerometer, ADXL345):

cpp Copy code

#include <SPI.h> #define CS_PIN 10 // Chip select pin for the accelerometer void
setup() { SPI.begin(); pinMode(CS_PIN, OUTPUT); // Set CS_PIN as output
digitalWrite(CS_PIN, HIGH); // Deselect the accelerometer Serial.begin(9600); //
Initialize serial communication } void loop() { digitalWrite(CS_PIN, LOW); // Select the
accelerometer byte dataToSend = 0x80 | 0x32; // Set read mode for register 0x32 byte
receivedData = SPI.transfer(dataToSend); // Send data and receive data
digitalWrite(CS_PIN, HIGH); // Deselect the accelerometer Serial.print("X-axis
acceleration: "); Serial.println(receivedData); // Print received data delay(1000); //
Delay before next reading }

Conclusion

The SPI library in Arduino Uno provides a simple interface for SPI communication, allowing you to
communicate with a wide range of SPI devices. By understanding how to use the SPI library, you can
easily integrate SPI devices into your Arduino projects and add advanced functionality.

make detailed lecture using arduino uno :-Using the Servo Library

Lecture: Using the Servo Library in Arduino Uno

Introduction

In this lecture, we will explore how to use the Servo library in Arduino Uno to control servo motors.
Servo motors are commonly used in robotics and other projects to control the position of objects,
such as robot arms or steering mechanisms.

What is the Servo Library?

The Servo library is a built-in Arduino library that provides functions for controlling servo
motors.

It allows you to control the position of a servo motor by specifying the desired angle.

Using the Servo Library

1. Include the Servo Library: At the beginning of your sketch, include the Servo library using the
#include directive:

cpp Copy code

#include <Servo.h>

2. Create a Servo Object: Create a Servo object to control a servo motor. You can create multiple
Servo objects if you have multiple servo motors:

cpp Copy code

Servo myservo; // Create a servo object

3. Attach the Servo Pin: In the setup() function, attach the servo pin to the Servo object using the
attach() function. Specify the pin number to which the servo is connected:
 cpp Copy code

void setup() { myservo.attach(9); // Attach the servo to pin 9 }

4. Control the Servo Position: To control the position of the servo, use the write() function.
Specify the desired angle (between 0 and 180 degrees):

cpp Copy code

void loop() { myservo.write(90); // Set servo to 90 degrees delay(1000); // Delay

for 1 second myservo.write(0); // Set servo to 0 degrees delay(1000); // Delay for
1 second }

Example: Controlling a Servo Motor

Here's an example of how to use the Servo library to control a servo motor connected to pin 9:

cpp Copy code

#include <Servo.h> Servo myservo; // Create a servo object void setup() {

myservo.attach(9); // Attach the servo to pin 9 } void loop() { myservo.write(90); //
Set servo to 90 degrees delay(1000); // Delay for 1 second myservo.write(0); // Set
servo to 0 degrees delay(1000); // Delay for 1 second }

Conclusion

The Servo library in Arduino Uno provides an easy way to control servo motors. By understanding
how to use the Servo library, you can add precise control of servo motors to your Arduino projects,
making them more dynamic and interactive.
