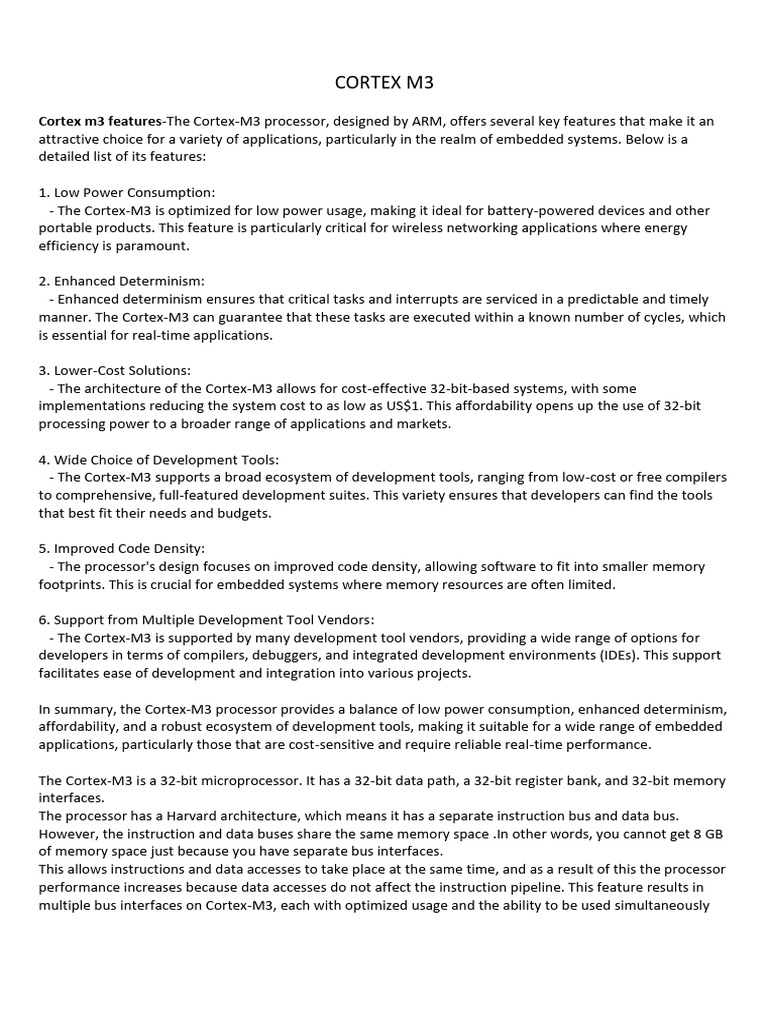

CORTEX M3

Cortex m3 features-The Cortex-M3 processor, designed by ARM, offers several key features that make it an
attractive choice for a variety of applications, particularly in the realm of embedded systems. Below is a
detailed list of its features:

1. Low Power Consumption:

- The Cortex-M3 is optimized for low power usage, making it ideal for battery-powered devices and other
portable products. This feature is particularly critical for wireless networking applications where energy
efficiency is paramount.

2. Enhanced Determinism:
- Enhanced determinism ensures that critical tasks and interrupts are serviced in a predictable and timely
manner. The Cortex-M3 can guarantee that these tasks are executed within a known number of cycles, which
is essential for real-time applications.

3. Lower-Cost Solutions:
- The architecture of the Cortex-M3 allows for cost-effective 32-bit-based systems, with some
implementations reducing the system cost to as low as US$1. This affordability opens up the use of 32-bit
processing power to a broader range of applications and markets.

4. Wide Choice of Development Tools:

- The Cortex-M3 supports a broad ecosystem of development tools, ranging from low-cost or free compilers
to comprehensive, full-featured development suites. This variety ensures that developers can find the tools
that best fit their needs and budgets.

5. Improved Code Density:

- The processor's design focuses on improved code density, allowing software to fit into smaller memory
footprints. This is crucial for embedded systems where memory resources are often limited.

6. Support from Multiple Development Tool Vendors:

- The Cortex-M3 is supported by many development tool vendors, providing a wide range of options for
developers in terms of compilers, debuggers, and integrated development environments (IDEs). This support
facilitates ease of development and integration into various projects.

In summary, the Cortex-M3 processor provides a balance of low power consumption, enhanced determinism,
affordability, and a robust ecosystem of development tools, making it suitable for a wide range of embedded
applications, particularly those that are cost-sensitive and require reliable real-time performance.

The Cortex-M3 is a 32-bit microprocessor. It has a 32-bit data path, a 32-bit register bank, and 32-bit memory
interfaces.
The processor has a Harvard architecture, which means it has a separate instruction bus and data bus.
However, the instruction and data buses share the same memory space .In other words, you cannot get 8 GB
of memory space just because you have separate bus interfaces.
This allows instructions and data accesses to take place at the same time, and as a result of this the processor
performance increases because data accesses do not affect the instruction pipeline. This feature results in
multiple bus interfaces on Cortex-M3, each with optimized usage and the ability to be used simultaneously
Instruction set- thumb 2 instruction set architecture
The Cortex-M3 processor uses the Thumb-2 Instruction Set Architecture (ISA), which offers significant
benefits in terms of ease of use, code size, and performance. Here is a detailed breakdown of the key features
and advantages of the Thumb-2 ISA as implemented in the Cortex-M3:

1. Highly Efficient and Powerful Instruction Set:

- The Thumb-2 ISA combines both 16-bit and 32-bit instructions, providing a balance of code density and
performance. This mixed-width instruction set allows for more compact code, which is essential for memory-
constrained embedded systems.

2. Superset of the Previous 16-bit Thumb Instruction Set:

- Thumb-2 extends the original 16-bit Thumb instruction set with additional 16-bit instructions and new 32-
bit instructions. This expansion allows for more complex operations to be performed within the Thumb state,
enhancing overall efficiency.

3. Reduced State Switching:

- By supporting more complex operations directly in the Thumb state, Thumb-2 reduces the need for
switching between ARM and Thumb states. This minimizes the overhead associated with state switching,
leading to higher efficiency.

4. Support for Thumb-2 and Traditional Thumb Instructions:

- The Cortex-M3 supports both Thumb-2 and traditional Thumb instructions. This makes the processor
capable of executing almost all 16-bit Thumb instructions, including those used in the ARM7 family,
facilitating easier application porting.

5. No Backward Compatibility with Traditional ARM Processors:

- While the Cortex-M3 is not backward compatible with traditional ARM processors that use the ARM
instruction set, its support for Thumb-2 provides a modernized and optimized instruction set for new
developments.

6. Mixed Instruction Lengths:

- In the Cortex-M3 processor, developers can mix 32-bit and 16-bit instructions without switching state. This
capability enhances both code density and performance without adding complexity to the development
process.

7. Hardware Divide Instruction:

- For the first time in an ARM processor, the Cortex-M3 includes a hardware divide instruction. This
significantly improves the efficiency of division operations compared to software-based implementations.

8. Enhanced Multiply Instructions:

- The Cortex-M3 includes several multiply instructions that improve performance for data-intensive
applications, further enhancing its computational capabilities.

9. Support for Unaligned Data Accesses:

- The Cortex-M3 supports unaligned data accesses, a feature previously available only in high-end
processors. This capability simplifies programming and can lead to more efficient memory usage.

In summary, the Thumb-2 ISA in the Cortex-M3 processor provides a powerful, efficient, and flexible
instruction set that enhances code density, performance, and ease of use. This makes it well-suited for a wide
range of embedded applications, particularly those requiring efficient and compact code execution.
Cortex m3 registers
Name Function
R0 General purpose register
R1 General purpose register
R2 General purpose register
R3 General purpose register
R4 General purpose register
R5 General purpose register
R6 General purpose register
R7 General purpose register
R8 General purpose register
R9 General purpose register
R10 General purpose register
R11 General purpose register
R12 General purpose register
R13(MSP/PSP) Main stack pointer/process
stack pointer
R14 Link register
R15 Program counter
Operation modes -The Cortex-M3 processor operates with two distinct modes and two privilege levels,
designed to manage program execution and ensure system security. Here is a detailed explanation of these
operation modes and privilege levels:

Operation Modes

1. Thread Mode:
- Purpose: The processor runs in Thread mode when executing normal application code.
- Details: This is the default mode of operation for the Cortex-M3 when it is not handling exceptions. The
processor remains in this mode during typical program execution, allowing it to run user-defined tasks and
functions.

2. Handler Mode:
- Purpose: The processor switches to Handler mode when executing an exception handler.
- Details: Handler mode is used when the processor is responding to interrupts or system exceptions. In this
mode, the processor executes the appropriate interrupt service routine (ISR) or system exception handler,
ensuring timely and prioritized handling of critical events.

Privilege Levels

1. Privileged Level:
- Purpose: Provides full access to system resources and control over the processor.
- Details: Code running at the privileged level can execute all instructions and access all memory locations,
including critical system control registers and configuration settings. This level is typically used by the
operating system kernel, system services, and critical application components that need unrestricted access
to hardware and system resources.

2. User Level:
- Purpose: Restricts access to critical system resources, providing a basic security model.
- Details: Code running at the user level has limited access to certain instructions and memory areas. This
restriction helps prevent user applications from inadvertently or maliciously modifying critical system settings
or data. User-level code typically runs application tasks that do not require direct access to hardware or
system control registers.

Summary

- Thread Mode: Used for normal program execution, operating in either privileged or user privilege levels.
- Handler Mode: Used for handling exceptions and interrupts, typically running at the privileged level.

- Privileged Level: Allows unrestricted access to all system resources, used by critical system components.
- User Level: Restricts access to certain resources, enhancing system security by isolating user applications
from critical system functions.

These modes and privilege levels work together to provide a flexible and secure execution environment for
embedded applications running on the Cortex-M3 processor. By separating normal program execution from
exception handling and providing distinct privilege levels, the Cortex-M3 ensures both efficient task
management and robust system security.
Operation Mode Transitions and privilege mode : The Cortex-M3 processor has a well-defined mechanism
for transitioning between operation modes and privilege levels, ensuring controlled access to system
resources and efficient handling of exceptions. Here is a detailed description of the operation mode
transitions and privilege levels:

Operation Mode Transitions and Privileged Mode

1. Reset State (1):

- When the processor exits reset, it starts in Thread mode with privileged access rights (often referred to as
Supervisor mode).
- Privileged State: At this point, the program has full access to all memory ranges (except those restricted by
the Memory Protection Unit (MPU) settings) and can use all supported instructions.

2. Main Program Execution:

- In the privileged state, the main program can execute with full system access. This includes reading from
and writing to any memory location, accessing peripherals, and executing any instruction.
- The program can perform system-level tasks and manage critical resources during this phase.

3. Switching to User Mode (2):

- Software running at the privileged level can switch the program to user access level (User mode) by
modifying the CONTROL register.
- User Mode: In this mode, the program has restricted access to certain memory areas and instructions. This
restriction helps prevent user applications from inadvertently or maliciously modifying critical system settings
or data.

4. Exception Handling (3):

- If an exception (such as an interrupt or system exception) occurs while the processor is in User Thread
mode, the processor will automatically switch to Handler mode and elevate to the privileged state (IRQ
mode) to handle the exception.
- Handler Mode: The processor executes the appropriate interrupt service routine (ISR) or system exception
handler with full system access. This ensures that critical tasks and responses are handled promptly and
securely.

5. Returning from Exception (4):

- After the exception handler completes its execution, the processor returns to the previous state.
- If the processor was in User Thread mode before the exception, it will return to User Thread mode after
exiting the exception handler.
- This transition ensures that the processor resumes normal program execution with the appropriate
privilege level, maintaining system security and integrity.

Summary

- Reset State: Processor starts in Thread mode with privileged access.

- Privileged Mode: Full system access for the main program.
- User Mode: Restricted access for user applications, set by modifying the CONTROL register.
- Exception Handling: Processor switches to Handler mode with privileged access during exceptions.
- Return from Exception: Processor returns to the previous state (User or Privileged Thread mode) after
handling the exception.

These transitions between modes and privilege levels in the Cortex-M3 processor provide a robust framework
for managing program execution and system security, ensuring that critical operations are handled with
appropriate access rights while protecting system integrity from user-level code.
Operation Mode Transitions: User Mode

1. User Mode Limitations:

- A user program running in Thread mode cannot switch itself back to the privileged state directly by writing
to the CONTROL register. This restriction ensures that untrusted or potentially harmful code cannot gain
elevated privileges.

2. Transition to Privileged State:

- To transition from user mode back to privileged mode, the program must trigger an exception. During the
exception handling, the processor switches to Handler mode with privileged access.
- The exception handler can then modify the CONTROL register to switch the processor back to privileged
access level when it returns to Thread mode.

3. System Reliability:
- This separation of privilege levels enhances system reliability by preventing unauthorized access to system
configuration registers and critical resources. Only trusted code (typically operating system or system-level
services) can change critical settings.

4. Memory Protection:
- If a Memory Protection Unit (MPU) is present, it can be used alongside privilege levels to safeguard critical
memory regions, such as operating system code and data. The MPU can enforce access restrictions,
preventing user mode code from accessing protected areas.

5. Operating System Behavior:

- The operating system typically runs in privileged Thread mode, allowing it full access to system resources.
It launches user applications in user Thread mode, where access to critical system resources is restricted.

6. CONTROL Register:
- The CONTROL register's bit 0 determines the privilege level in Thread mode:
- `0`: Privileged in Thread mode.
- `1`: User state in Thread mode.

7. Access Restrictions in User Mode:

- In user Thread mode, access to the System Control Space (SCS), which includes configuration registers and
debugging components, is blocked.
- Special instructions that access special registers, such as the MSR (Move to Special Register), cannot be
used except for accessing the Application Program Status Register (APSR).
- If a user-level program attempts to access restricted areas or special registers, a fault exception will occur,
ensuring that the system can handle such unauthorized access attempts securely.

These mechanisms ensure that the Cortex-M3 processor provides a secure and reliable environment for
executing both system-level and user-level code.
Built in nested vectored interrupt controller -The Cortex-M3 processor integrates a sophisticated interrupt
controller known as the Nested Vectored Interrupt Controller (NVIC). This controller is designed to efficiently
manage interrupts and exceptions, providing several key features that enhance the responsiveness and
flexibility of the processor. Here’s a detailed breakdown of the NVIC's capabilities:

Features of NVIC

1. Nested Interrupt Support:

- The NVIC supports nested interrupts, allowing higher-priority interrupts to preempt lower-priority ones.
This ensures that critical tasks are handled promptly, even when other interrupts are being serviced.

2. Vectored Interrupt Support:

- Each interrupt has a unique vector, which is a specific address in memory where the interrupt handler
code is located. This allows for quick and efficient dispatching of the appropriate interrupt service routine
(ISR) without the need for additional decoding logic.

3. Dynamic Priority Changes:

- The NVIC allows for dynamic changes in interrupt priorities. This flexibility enables the system to adjust the
importance of different tasks based on runtime conditions, optimizing the handling of interrupts as needed.

4. Reduction of Interrupt Latency:

- By being closely coupled with the processor core, the NVIC minimizes the time required to handle an
interrupt. This tight integration ensures that the interrupt latency is kept to a minimum, improving the overall
responsiveness of the system.

5. Interrupt Masking:
- The NVIC provides mechanisms to mask (disable) and unmask (enable) interrupts. This feature is useful for
controlling the execution of critical code sections that should not be interrupted.

Nested Interrupt Support

- Priority Levels:
- External interrupts and most system exceptions can be assigned different priority levels. The NVIC supports
a fine-grained priority scheme, allowing precise control over which interrupts can preempt others.

- Priority Comparison:
- When an interrupt occurs, the NVIC compares its priority with the currently running interrupt or task. If the
new interrupt has a higher priority, it will preempt the current task, ensuring that higher-priority tasks are
addressed first.

Summary of NVIC Capabilities

1. Efficient Interrupt Management:

- The NVIC efficiently handles multiple interrupts, supporting nested interrupts and ensuring that higher-
priority interrupts are serviced first.

2. Quick Interrupt Dispatching:

- Vectored interrupt support allows rapid dispatching of the correct ISR, reducing the overhead associated
with handling interrupts.

3. Flexibility in Priority Management:

- Dynamic priority changes and multiple priority levels provide flexibility in managing the importance of
various tasks and interrupts.

4. Improved System Responsiveness:

- Reduced interrupt latency and the ability to mask interrupts contribute to a responsive and controlled
execution environment.

The NVIC in the Cortex-M3 processor significantly enhances the processor's ability to manage interrupts
efficiently, providing robust support for real-time applications where timely and predictable interrupt
handling is crucial.

Nested interrupt support: The NVIC provides nested interrupt support. All the external interrupts and most
of the system exceptions can be programmed to different priority levels. When an interrupt occurs, the NVIC
compares the priority of this interrupt to the current running priority level. If the priority of the new interrupt
is higher than the current level, the interrupt handler of the new interrupt will override the current running
task.

Vectored interrupt support: The Cortex-M3 processor has vectored interrupt support. When an interrupt is
accepted, the starting address of the interrupt service routine (ISR) is located from a vector table in memory.
There is no need to use software to determine and branch to the starting address of the ISR. Thus it takes less
time to process the interrupt request.

Reduction of latency: The Cortex-M3 processor incorporates several advanced features specifically designed
to reduce interrupt latency, ensuring that critical tasks and events are handled promptly. Here’s a detailed
explanation of these features and how they contribute to lower interrupt latency:
1. Automatic Saving and Restoring of Registers:
- The Cortex-M3 processor automatically saves the essential register contents (R0-R3, R12, LR, PC, and xPSR)
upon entering an interrupt service routine (ISR). This hardware-based context saving significantly reduces the
time required to switch from normal code execution to an ISR.
- Similarly, when exiting an ISR, the processor automatically restores these registers. This automated
process minimizes the overhead typically associated with context switching, allowing for quicker transitions
between ISRs and normal execution.

2. Efficient ISR Execution:

- By automatically handling the saving and restoring of critical registers, the processor eliminates the need
for software to perform these operations, which would otherwise increase interrupt latency. This efficiency
ensures that the ISR can begin executing almost immediately after an interrupt is detected.

3. Late Arrival Interrupt Handling:

- The NVIC supports late arrival interrupt handling, which allows higher-priority interrupts that arrive during
the processing of a lower-priority interrupt to be serviced immediately. This feature prevents delays that
would occur if the processor had to complete the lower-priority ISR before handling the higher-priority
interrupt.
- The late arrival mechanism ensures that the most critical interrupts are always serviced as soon as
possible, further reducing the effective latency for high-priority interrupts.

4. Tail-Chaining:
- Tail-chaining is a feature of the NVIC that optimizes the handling of back-to-back interrupts. When an ISR is
completed and another interrupt is pending, the processor can immediately switch to the next ISR without
returning to the main program first. This seamless transition between ISRs reduces the overhead of multiple
interrupt handling and decreases the overall latency.
- By avoiding the return to the main program between consecutive interrupts, tail-chaining ensures that the
processor remains in the interrupt context, making the switch between ISRs faster and more efficient.
Special status register:
1) Program status register :
In the Cortex-M3 processor, the Program Status Register (PSR) is a critical component for managing
and understanding the processor's state. The PSR is divided into three distinct registers, each serving
specific functions. These are:

1. Application Program Status Register (APSR)

2. Interrupt Program Status Register (IPSR)
3. Execution Program Status Register (EPSR)

These three registers can be accessed individually or collectively. When accessed collectively, they are
referred to as the xPSR. Here is a detailed explanation of each:

1. Application Program Status Register (APSR)

- Purpose: Holds the flags that indicate the result of operations and the current state of the processor.
- Flags:
- N (Negative flag): Set when the result of an operation is negative.
- Z (Zero flag): Set when the result of an operation is zero.
- C (Carry flag): Set when an operation results in a carry out.
- V (Overflow flag): Set when an operation causes an overflow.
- Usage: The APSR is primarily used to monitor the results of arithmetic and logical operations,
allowing subsequent instructions to make decisions based on these results.

2. Interrupt Program Status Register (IPSR)

- Purpose: Indicates the currently executing interrupt.

- Content:
- ISR Number: Contains the number of the currently active interrupt service routine.
- Usage: The IPSR is used to determine which interrupt handler is currently being executed, aiding in
interrupt management and debugging.

3. Execution Program Status Register (EPSR)

- Purpose: Contains execution state information.

- Fields:
- T (Thumb State): Indicates whether the processor is in Thumb state (always set in Cortex-M3, as it
only supports Thumb instruction set).
- ICI/IT (Interrupt Continuable Instruction/If-Then state): Used to manage the execution of
conditional instructions and interruptible multi-cycle instructions.
- Usage: The EPSR provides information about the current execution state, including conditional
execution and Thumb state, which is crucial for correct instruction execution flow.

Accessing PSR

- Special Register Access Instructions:

- MRS (Move from Special Register): Used to read the value of a special register.
- MSR (Move to Special Register): Used to write a value to a special register.
- xPSR:
- When the APSR, IPSR, and EPSR are accessed collectively, they are referred to as the xPSR. This
combined access allows for efficient handling and manipulation of status information.
2) Interrupt mask register (PRIMASK,FAULTMASK,BASEPRI)-
PRIMASK-The PRIMASK register in the Cortex-M3 processor is a 1-bit special register used to control
the masking of exceptions. Here are the key details and functionality of the PRIMASK register:
1. Purpose:
- The PRIMASK register is designed to disable all interrupts and exceptions except for the Non-
Maskable Interrupt (NMI) and the Hard Fault exception. This is useful for protecting critical sections of
code from being interrupted by other exceptions or interrupts.
2. Structure:
- Bit 0: This single bit controls the masking of interrupts.
- 0: No interrupts are masked (default state).
- 1: All interrupts except NMI and Hard Fault are masked.
3. Functionality:
- Disabling Interrupts:
- When the PRIMASK bit is set to 1, all interrupts and exceptions are masked, preventing them from
being handled. This ensures that critical code can execute without interruption.
- Enabling Interrupts:
- When the PRIMASK bit is cleared to 0, all interrupts and exceptions can be handled normally,
based on their priority and the current state of the processor.
4. Usage in Critical Sections:
- The PRIMASK register is particularly useful in scenarios where it is essential to complete a critical
task without interruption. By setting the PRIMASK register, the processor ensures that no other
interrupt or exception (except NMI and Hard Fault) can preempt the current task.
5. Handling Faults:
- If a fault occurs while PRIMASK is set, the processor will still handle the Hard Fault exception. This
ensures that critical errors can be addressed even when most other interrupts are masked.

FAULTMASK- The FAULTMASK register in the Cortex-M3 processor is another special register designed
to control the masking of exceptions, similar to the PRIMASK register but with a more comprehensive
scope. Here are the key details and functionality of the FAULTMASK register:
1. Purpose:
- The FAULTMASK register is used to disable all interrupts and fault handling exceptions, allowing
only the Non-Maskable Interrupt (NMI) to be serviced. This is useful in scenarios where the system
needs to manage critical fault conditions without being interrupted by other faults or exceptions.
2. Structure:
- Bit 0: This single bit controls the masking of interrupts and fault exceptions.
- 0: No masking is set (default state).
- 1: All interrupts and fault exceptions are masked, except for the NMI.
3. Functionality:
- Disabling Fault Handling:
- When the FAULTMASK bit is set to 1, all interrupts and fault handling exceptions are masked,
preventing them from being handled. This ensures that the system can manage critical fault
conditions without further interruptions.
- Enabling Fault Handling:
- When the FAULTMASK bit is cleared to 0, all interrupts and fault exceptions can be handled
normally, based on their priority and the current state of the processor.
4. Usage in Fault Management:
- The FAULTMASK register is particularly useful for operating systems (OS) to manage fault
conditions effectively. For example, if a task crashes and multiple faults occur, the OS can set the
FAULTMASK to focus on handling the initial fault condition without being interrupted by other faults
caused by the crashed task.
- This gives the OS kernel the necessary time to clean up and address the fault condition in a
controlled manner.
BASPERI register- The BASEPRI register in the Cortex-M3 processor is used to set a priority threshold
for masking interrupts. Here's a detailed explanation of its functionality and usage:
1. Purpose:
- The BASEPRI register is designed to define a priority level threshold for masking interrupts. It allows
selective masking of interrupts based on their priority levels, enabling finer control over interrupt
handling.
2. Structure:
- Bit Width: The BASEPRI register can be up to 9 bits wide, depending on the implementation's
priority level bit width.
- Priority Value: The value set in the BASEPRI register defines the threshold priority level for masking
interrupts.
3. Functionality:
- Setting BASEPRI:
- When a non-zero value is written to BASEPRI, it masks all interrupts with the same or lower
priority (higher numerical value). This means that only interrupts with a higher priority (lower
numerical value) can still be processed.
- Clearing BASEPRI:
- Writing a value of 0 to BASEPRI disables the masking function, allowing all interrupts to be
processed according to their priority levels.
4. Usage:
- The BASEPRI register is useful in situations where critical sections of code need to be protected
from certain levels of interrupts while still allowing higher-priority interrupts to occur. This selective
masking helps ensure that critical tasks are not disrupted by less important interrupts.
5. Default Value:
- The default value of BASEPRI is 0, which means that the masking function is disabled, and all
interrupts are processed based on their priority levels.

The BASEPRI register provides a flexible way to manage interrupt priorities, ensuring that critical tasks
can execute without interruption from lower-priority interrupts while still allowing higher-priority
interrupts to be serviced.

3) Control register -The CONTROL register in the Cortex-M3 processor is a 2-bit register used to define
the processor's privilege level and stack pointer selection. It plays a crucial role in the operating
system's management of different tasks and their respective access rights. Here is a detailed overview
of its functionality and usage:
1. Purpose:
- The CONTROL register is used to set the privilege level of the processor and to select which stack
pointer to use.
2. Bit Fields:
- Bit 0 (Privilege Level):
- 0: Privileged in Thread mode (Supervisor Mode).
- 1: User state in Thread mode (User Mode).
- Bit 1 (Stack Pointer Selection):
- 0: Main Stack Pointer (MSP) is used.
- 1: Process Stack Pointer (PSP) is used.
3. Privilege Level Control:
- Thread Mode:
- In Thread mode, the processor can operate either in privileged mode or user mode, as defined by
bit 0 of the CONTROL register.
- Privileged Mode (CONTROL[0] = 0): The processor has full access to all system resources and can
write to special registers.
- User Mode (CONTROL[0] = 1): The processor has restricted access, primarily intended for user
 applications to prevent unauthorized access to critical system resources.
- Handler Mode:
- When the processor is in Handler mode (e.g., handling an interrupt or exception), it always
operates in privileged mode, regardless of the CONTROL register setting.
4. Stack Pointer Selection:
- The Cortex-M3 supports two stack pointers: the Main Stack Pointer (MSP) and the Process Stack
Pointer (PSP).
- MSP (CONTROL[1] = 0): Typically used for handling exceptions and the operating system kernel.
- PSP (CONTROL[1] = 1): Typically used for user applications.
5. Switching Between Modes:
- The CONTROL[0] bit can only be written when the processor is in privileged mode. This ensures
that user-mode applications cannot inadvertently change their privilege level.
- To switch from user mode back to privileged mode, an interrupt or exception must be triggered.
The exception handler, running in privileged mode, can then modify the CONTROL register.

Two stack model in cortex m3: The Cortex-M3 processor utilizes a two-stack model to manage stack
operations for different modes, providing flexibility and enhancing system security and efficiency. Here is a
detailed explanation of the two-stack model in the Cortex-M3:

Two-Stack Model in Cortex-M3

1. Main Stack Pointer (MSP):

- The MSP is the default stack pointer used after reset and power-up.
- It is typically used for handling exceptions and executing the main program in privileged mode.
- When the `CONTROL[1]` bit is 0, the MSP is used for both Thread mode and Handler mode.

2. Process Stack Pointer (PSP):

- The PSP is generally used for user applications, particularly in Thread mode.
- It allows the separation of the main program stack from the exception handling stack.
- When the `CONTROL[1]` bit is 1, the PSP is used in Thread mode, while the MSP is used in Handler mode.

CONTROL Register and Stack Pointer Selection

- CONTROL[1] Bit:
- 0: The MSP is used for both Thread mode and Handler mode.
- 1: The PSP is used for Thread mode, and the MSP is used for Handler mode.

Default Behavior

- After power-up, the `CONTROL[1]` bit is 0, meaning the MSP is used for both the main program (Thread
mode) and exception handlers (Handler mode). This default configuration ensures that both the main
program and exceptions share the same stack memory region.

Stack Management and Usage

1. Using MSP for Both Modes:

- When the MSP is used for both Thread mode and Handler mode, the system operates with a single stack
pointer for all operations. This is simpler but may not be ideal for all applications, especially those requiring
robust isolation between user tasks and exception handlers.
- Advantages:
- Simpler stack management.
- Default and straightforward for small systems.
 - Disadvantages:
- Potential stack overflow if the main program and exception handlers heavily use the stack.
- Less isolation between user tasks and system-level operations.

2. Using PSP for Thread Mode and MSP for Handler Mode:
- When the PSP is used for Thread mode, and the MSP is used for Handler mode, the system benefits from
having separate stack regions for user applications and exception handlers. This improves system robustness
and security.
- Advantages:
- Improved isolation between user tasks and exception handlers.
- Reduced risk of stack overflow affecting system stability.
- Disadvantages:
- Slightly more complex stack management.

Control[1]1: Thread Level Uses Process Stack and Handler Uses Main Stack: The CONTROL register's bit 1 in
the Cortex-M3 processor plays a crucial role in managing stack usage between Thread mode and Handler
mode, enabling enhanced memory protection and system stability. Here’s a detailed look at the functionality
and benefits of using the Process Stack Pointer (PSP) for Thread mode and the Main Stack Pointer (MSP) for
Handler mode:

CONTROL Register: Bit 1

1. Purpose:
- To determine which stack pointer to use in Thread mode, enabling separation of stack memory regions for
the main program and exception handlers.

2. Functionality:
- CONTROL[1] Bit:
- 0: The Main Stack Pointer (MSP) is used for both Thread mode and Handler mode.
- 1: The Process Stack Pointer (PSP) is used for Thread mode, while the MSP is used for Handler mode.

Default and Custom Configurations

- Default Configuration:
- After reset, the `CONTROL[1]` bit is 0, meaning the MSP is used for both Thread mode and Handler mode.

- Custom Configuration:
- By setting the `CONTROL[1]` bit to 1, the PSP is used in Thread mode, allowing the main program and the
exception handlers to use separate stack regions.

Benefits of Separate Stack Pointers

1. Separation of Stack Memory Regions:

- Main Program Stack (PSP): Used for user applications running in Thread mode.
- Exception Handler Stack (MSP): Used for handling exceptions and system-level operations running in
Handler mode.
- This separation prevents a stack overflow or error in a user application from affecting the stack used by the
operating system and exception handlers.

2. Enhanced System Stability:

- By isolating the user application stack from the system stack, the risk of corrupting critical system data and
control structures is minimized.

3. Improved Security:
- The separation of stacks helps in maintaining security boundaries, preventing user applications from
inadvertently or maliciously disrupting system operations.

The two-stack model, controlled by the `CONTROL[1]` bit, allows the Cortex-M3 processor to maintain robust
and secure operation by separating the stacks used by user applications and system-level operations. This
separation is critical for preventing stack overflows in user applications from affecting the system's stability
and security.

STACK: In the Cortex-M3 processor, stack operations are fundamental for handling function calls, local
variables, and context switching during interrupts and exceptions. Here's an overview of how stack
operations work and the specific implementation in the Cortex-M3:

General Stack Operations

1. Basic Concept:
- Stack operations involve writing (PUSH) or reading (POP) data from memory locations specified by the
stack pointer (SP).

2. PUSH Operation:
- Saves data from registers to the stack memory.
- The stack pointer is decremented to create space for the new data.

3. POP Operation:
- Restores data from the stack memory to registers.
- The stack pointer is incremented to remove the space used by the popped data.

4. Automatic Adjustment:
- The stack pointer automatically adjusts during PUSH and POP operations to ensure data integrity and
prevent overwriting of existing stack data.

Cortex-M3 Stack Implementation

1. Stack Pointer (SP):

- In Cortex-M3, register R13 is used as the stack pointer (SP).
- The SP can point to either the Main Stack Pointer (MSP) or the Process Stack Pointer (PSP) depending on
the current mode (Thread or Handler mode).

2. Word Alignment:
- Each register in the Cortex-M3 is 32 bits (4 bytes).
- During PUSH/POP operations, the SP is decremented/incremented by 4 bytes per register.
- When multiple registers are pushed or popped, the SP is adjusted by a multiple of 4.

3. Interrupt Handling:
- During an interrupt, the processor automatically pushes several core registers (R0-R3, R12, LR, PC, xPSR)
onto the stack.
- This automatic stacking ensures the context is saved, allowing the interrupt handler to execute safely.
- Upon returning from the interrupt handler, these registers are automatically popped from the stack,
restoring the previous context.
Example: PUSH and POP Operations

- Single Register PUSH/POP:

```asm
PUSH {R0} ; Save the content of R0 onto the stack
POP {R0} ; Restore the content of R0 from the stack
```
- The SP is decremented by 4 bytes for the PUSH and incremented by 4 bytes for the POP.

- Multiple Registers PUSH/POP:

```asm
PUSH {R0-R3} ; Save the content of R0, R1, R2, and R3 onto the stack
POP {R0-R3} ; Restore the content of R0, R1, R2, and R3 from the stack
```
- The SP is decremented by 16 bytes (4 registers * 4 bytes each) for the PUSH and incremented by 16 bytes
for the POP.

Automatic Stacking on Interrupt

- Interrupt Entry:
- The processor automatically pushes the following registers onto the stack: R0, R1, R2, R3, R12, LR (Link
Register), PC (Program Counter), and xPSR (Program Status Register).
- Example of automatic stacking:
```text
SP = SP - 32
STORE R0 to [SP]
STORE R1 to [SP + 4]
STORE R2 to [SP + 8]
STORE R3 to [SP + 12]
STORE R12 to [SP + 16]
STORE LR to [SP + 20]
STORE PC to [SP + 24]
STORE xPSR to [SP + 28]
```

- Interrupt Exit:
- These registers are popped from the stack in reverse order to restore the previous state.
- Example of automatic popping:
```text
LOAD xPSR from [SP + 28]
LOAD PC from [SP + 24]
LOAD LR from [SP + 20]
LOAD R12 from [SP + 16]
LOAD R3 from [SP + 12]
LOAD R2 from [SP + 8]
LOAD R1 from [SP + 4]
LOAD R0 from [SP]
SP = SP + 32
```
Pipeline in cortex m3: The Cortex-M3 processor features a 3-stage pipeline, which is a crucial aspect of its
architecture, enabling efficient instruction processing and improved performance. Here’s an in-depth look at
the three stages and their functions:
1. Instruction Fetch (IF) Stage:
- In this stage, the processor fetches instructions from memory. The Cortex-M3 can fetch up to two 16-bit
instructions (or one 32-bit instruction) in a single cycle.
- This is facilitated by the efficient bus interface, which attempts to prefetch subsequent instructions to
keep the pipeline filled and reduce idle times.
- If the buffer is full, the bus interface may become idle until there is space to fetch more instructions.

2. Instruction Decode (ID) Stage:

- In this stage, the fetched instruction is decoded to understand what actions need to be performed.
- The instruction decoder interprets the opcode and prepares the necessary operands for execution.
- Decoding involves identifying the type of instruction (e.g., data processing, load/store, branch) and the
resources it will use (e.g., registers, immediate values).

3. Instruction Execution (EX) Stage:

- In the execution stage, the decoded instruction is executed. This could involve arithmetic operations,
memory access (load/store), or branching to a different part of the program.
- Some instructions might require multiple cycles to complete, causing the pipeline to stall until the
execution is finished.
- Branch instructions require special handling. When a branch instruction is executed, the pipeline is
flushed, and the processor fetches instructions from the branch destination to refill the pipeline.

Pipeline Operation and Efficiency

- Prefetching:
- The Cortex-M3 can fetch two 16-bit instructions or one 32-bit instruction at once, which helps keep the
pipeline stages filled and improves execution efficiency.

- Pipeline Stalls:
- Certain instructions, especially those that require multiple cycles, can cause the pipeline to stall,
temporarily halting the fetch and decode stages until the execution stage is ready to proceed.

- Branch Handling:
- When a branch instruction is executed, the pipeline is flushed to clear the instructions that were
prefetched and decoded but are no longer relevant.
- The processor then fetches instructions from the branch destination address to refill the pipeline.
- The Cortex-M3 supports conditional execution, which can sometimes eliminate the need for short-distance
branches by using conditional instructions, thus avoiding pipeline flushes and improving efficiency.

Program Counter (PC) and Pipeline

- Program Counter (PC) Offset:

- Due to the pipeline nature, when the program counter (PC) is read during instruction execution, the value
read is the address of the current instruction plus 4 bytes.
- This consistent offset ensures compatibility and consistency between 16-bit Thumb and 32-bit Thumb-2
instructions.

The 3-stage pipeline in the Cortex-M3 processor is designed to balance simplicity and efficiency, enabling it to
handle instructions swiftly while maintaining a consistent and predictable execution flow.
NVIC- The Nested Vectored Interrupt Controller (NVIC) is an integral component of the Cortex-M3 processor,
designed to handle interrupts efficiently and enable sophisticated interrupt management features.

Key Features of NVIC

1. Built-in Interrupt Controller:

- The NVIC is embedded within the Cortex-M3 architecture, providing streamlined and efficient interrupt
handling closely coupled to the CPU core.

2. Customizable Number of Interrupts:

- The number of supported interrupts is determined by the chip manufacturers, allowing flexibility in
designing Cortex-M3 based systems to meet various application requirements.

3. System Control Registers:

- The NVIC includes several system control registers that manage interrupt settings and priorities, enhancing
control over interrupt behavior.

4. Nested Interrupt Handling:

- The NVIC supports nested interrupts, allowing higher-priority interrupts to be serviced even when a lower-
priority interrupt is being handled. This feature ensures that critical tasks can interrupt less critical ones,
improving system responsiveness and efficiency.

5. Vectored Interrupt Handling:

- When an interrupt occurs, the NVIC directly vectors to the corresponding interrupt handler routine. This
eliminates the need for a common interrupt handler to determine the source of the interrupt, reducing
latency and improving performance.

Benefits of NVIC Features

1. Efficient Interrupt Handling:

- The tight integration of NVIC with the CPU core minimizes the latency between the occurrence of an
interrupt and the start of the corresponding interrupt service routine (ISR).

2. Priority-Based Preemption:
- Interrupts can be assigned different priority levels. Higher-priority interrupts can preempt lower-priority
ones, allowing critical tasks to be handled promptly.

3. Simplified Interrupt Management:

- The vectored interrupt feature simplifies the software design by providing direct entry points for each
interrupt, making it easier to manage and maintain the interrupt service routines.

4. Reduced Latency:
- By directly vectoring to the appropriate ISR, the NVIC reduces the time required to identify and handle an
interrupt, which is critical for real-time applications.

NVIC Configuration and Usage

1. Enabling Interrupts:
- Interrupts are enabled by setting the appropriate bits in the NVIC's enable registers.

2. Setting Interrupt Priority:

- Each interrupt can be assigned a priority level using the priority registers.
3. Nested Interrupt Handling Example:
- When an interrupt occurs, the NVIC checks its priority level against the current priority level. If the new
interrupt has a higher priority, it preempts the current handler.
- Upon completion of the higher-priority ISR, the processor resumes the interrupted lower-priority ISR.

4. Vector Table:
- The vector table contains the addresses of all the interrupt service routines. The NVIC uses this table to
jump directly to the appropriate ISR when an interrupt occurs.

Summary

- NVIC Integration: Embedded within the Cortex-M3 for efficient and responsive interrupt handling.
- Customizable Interrupts: Number of interrupts determined by the chip manufacturer.
- System Control: Contains registers for managing interrupt settings and priorities.
- Nested Interrupts: Supports prioritization and preemption of interrupts.
- Vectored Handling: Directly vectors to the appropriate ISR, reducing latency.
- Usage: Configurable through enabling interrupts, setting priorities, and handling ISRs.

The NVIC in the Cortex-M3 processor provides a robust and flexible mechanism for managing interrupts,
essential for real-time and high-performance applications. Its support for nested and vectored interrupts
ensures efficient and responsive interrupt handling, crucial for maintaining system stability and performance.

System Tick (SYSTICK) Timer in Cortex-M3: The System Tick (SYSTICK) Timer is a fundamental component of
the Cortex-M3 processor, providing a basic countdown timer functionality that generates interrupts at regular
intervals. Here's an overview of its features and importance:
Key Features of SYSTICK Timer

1. Countdown Timer Functionality:

- The SYSTICK Timer counts down from a programmable value to zero at a regular frequency.
- Once the countdown reaches zero, it generates a SYSTICK interrupt.

2. Regular Time Intervals:

- The SYSTICK Timer can be configured to generate interrupts at predefined regular time intervals, providing
a reliable timing mechanism for various system tasks and operations.

3. Interrupt Generation in Sleep Mode:

- One of the key features of the SYSTICK Timer is its ability to generate interrupts even when the processor
is in sleep mode.
- This functionality is essential for power-efficient operation and allows the processor to perform periodic
tasks while conserving energy.

4. Simplified OS Porting:
- The SYSTICK Timer simplifies the process of porting operating systems (OS) between different Cortex-M3
devices.
- OSs often rely on a system timer for task scheduling and timekeeping. Since the SYSTICK Timer is
implemented as part of the NVIC and provides consistent functionality across Cortex-M3 devices, there's no
need to modify the OS's system timer code when porting to a new device.

Integration with NVIC

1. Part of NVIC:
- The SYSTICK Timer is implemented as part of the Nested Vectored Interrupt Controller (NVIC) in the
Cortex-M3 architecture.
- This integration ensures efficient interrupt handling and seamless operation alongside other interrupts
managed by the NVIC.

2. Interrupt Handling:
- When the SYSTICK Timer reaches zero, it generates a SYSTICK interrupt.
- The NVIC handles this interrupt and can invoke the corresponding interrupt service routine (ISR) to
execute user-defined tasks or perform system operations.

Benefits and Applications

1. Task Scheduling:
- The SYSTICK Timer is commonly used in real-time operating systems (RTOS) for task scheduling and
timekeeping purposes.
- It allows the OS kernel to perform periodic tasks, such as context switching, at regular intervals.

2. Peripheral Timing:
- The SYSTICK Timer can also be utilized for timing peripheral operations, such as generating PWM signals,
triggering ADC conversions, or controlling communication protocols.

3. Power Management:
- Its ability to operate in sleep mode makes it valuable for power-sensitive applications, allowing the
processor to enter low-power states while still maintaining timing accuracy for essential tasks.

Summary

The System Tick (SYSTICK) Timer in the Cortex-M3 processor is a versatile and essential component for timing
operations and task scheduling in embedded systems. Its integration with the NVIC, ability to operate in sleep
mode, and consistent functionality across Cortex-M3 devices make it a valuable resource for developers,
simplifying OS porting and enabling power-efficient system design.

BUSES:
I-CODE BUS: The I-Code bus is a critical component in the Cortex-M3 processor architecture, responsible for
fetching instructions from memory. Here's an overview of its key characteristics and functionality:

Overview

- Bus Protocol: The I-Code bus follows the Advanced High-Performance Bus Lite (AHB-Lite) protocol, a
simplified version of the Advanced High-Performance Bus (AHB) protocol commonly used in ARM-based
systems.

- Bus Width: The I-Code bus is a 32-bit bus, allowing it to transfer data in 32-bit chunks.

- Memory Region: The I-Code bus is dedicated to fetching instructions from the memory region spanning
addresses from 0x00000000 to 0x1FFFFFFF. This region typically includes the program memory where
application code is stored.

Instruction Fetch Operation

- Word Size Fetches: Instruction fetches from the memory region are performed in word size, where each
word consists of 32 bits (4 bytes).

- Thumb Instructions: Even though the Cortex-M3 primarily executes Thumb instructions, both 16-bit and 32-
bit instructions, the I-Code bus fetches instructions in word size. This means that even 16-bit Thumb
instructions are fetched as full 32-bit words.

- Parallel Fetch: During execution, the CPU core has the capability to fetch up to two Thumb instructions
simultaneously. This parallel fetching improves instruction throughput and execution efficiency.

Benefits

1. Efficiency: Fetching instructions in word size and in parallel improves the overall efficiency of instruction
fetching, reducing the latency between instruction fetches and execution.

2. Compatibility: The I-Code bus architecture ensures compatibility with both 16-bit and 32-bit Thumb
instructions, simplifying the design and operation of the processor.

D-CODE BUS: The D-Code bus is another essential component in the Cortex-M3 processor architecture,
dedicated to handling data access operations from memory. Here's an overview of its features and
functionalities:

Overview

- Bus Protocol: Similar to the I-Code bus, the D-Code bus also follows the Advanced High-Performance Bus
Lite (AHB-Lite) protocol. This protocol ensures efficient and reliable communication between the processor
core and memory peripherals.

- Bus Width: The D-Code bus is a 32-bit bus, allowing it to transfer data in 32-bit chunks. This width ensures
high-speed data transfers and compatibility with the processor's internal data processing capabilities.

- Memory Region: The D-Code bus is responsible for accessing memory regions spanning addresses from
0x00000000 to 0x1FFFFFFF. This region typically includes various types of memory, such as RAM, Flash
memory, and memory-mapped peripherals.

Data Access Operation

- Aligned Transfers: The Cortex-M3 processor core supports unaligned data transfers, allowing it to access
data structures that are not aligned to word boundaries. However, the D-Code bus ensures that all transfers
are aligned, regardless of the alignment of the accessed data.

- Bus Interface Conversion: The bus interface on the processor core automatically converts unaligned
transfers into aligned transfers before they are sent over the D-Code bus. This conversion process occurs
transparently to the software, simplifying memory access operations.

Device Compatibility

- AHB-Lite Support: Devices, such as memory modules and peripherals, that are connected to the D-Code bus
need only support AHB-Lite aligned transfers. They do not need to handle unaligned transfers directly, as the
Cortex-M3 processor core handles this conversion internally.

- Simplified Integration: The requirement for AHB-Lite aligned transfers simplifies the design and integration
of memory peripherals with the Cortex-M3 processor. It ensures compatibility and interoperability across
different devices and memory modules.

Benefits

1. Efficient Data Access: The D-Code bus facilitates efficient and high-speed data access operations, enhancing
the overall performance of the Cortex-M3 processor in data-intensive applications.

2. Transparent Alignment Handling: The automatic conversion of unaligned transfers into aligned transfers by
the processor core's bus interface ensures seamless operation and compatibility with memory peripherals.

3. Device Interoperability: The use of AHB-Lite aligned transfers simplifies the integration of memory modules
and peripherals, promoting interoperability and easing the development process for embedded systems.

SYSTEM BUS: The System Bus is a pivotal component within the Cortex-M3 processor architecture, serving as
a conduit for both instruction fetch and data access operations across specific memory regions. Below are the
key attributes and functionalities of the System Bus:

Overview

- Bus Protocol: The System Bus conforms to the Advanced High-Performance Bus Lite (AHB-Lite) protocol,
ensuring efficient and standardized communication between the processor core and memory peripherals.

- Bus Width: Similar to the I-Code and D-Code buses, the System Bus operates as a 32-bit bus, facilitating the
transfer of data in 32-bit chunks. This width optimizes data throughput and compatibility with the processor's
internal architecture.

- Memory Regions: The System Bus is responsible for accessing memory regions spanning addresses from
0x20000000 to 0xDFFFFFFF and 0xE0100000 to 0xFFFFFFFF. These regions encompass various types of
memory, including RAM, Flash memory, and memory-mapped peripherals.

Data Alignment

- Aligned Transfers: All transfers conducted via the System Bus adhere to alignment requirements. This means
that data accesses are aligned to word boundaries, enhancing efficiency and compatibility with memory
peripherals.

- Aligned Instruction Fetch: Instruction fetches, as well as data accesses, are subject to alignment constraints
on the System Bus. This ensures uniformity and consistency in memory access operations across different
regions of the memory map.

Device Compatibility

- Aligned Transfers Requirement: Similar to the D-Code bus, devices connected to the System Bus need only
support AHB-Lite aligned transfers. They are not required to handle unaligned transfers directly, as the
Cortex-M3 processor core handles alignment internally.

- Simplified Integration: The reliance on AHB-Lite aligned transfers simplifies the integration of memory
peripherals and other devices with the Cortex-M3 processor. It streamlines the development process and
fosters interoperability within embedded systems.
Benefits

1. Efficient Memory Access: The System Bus facilitates swift and efficient access to memory regions,
enhancing the overall performance of the Cortex-M3 processor in executing instructions and processing data.

2. Alignment Consistency: By enforcing alignment requirements across all transfers, the System Bus ensures
consistency and predictability in memory access operations, reducing the likelihood of data misalignment
issues.

3. Interoperability and Compatibility: The use of AHB-Lite aligned transfers promotes interoperability and
compatibility between the Cortex-M3 processor and connected memory peripherals. It simplifies system
integration and fosters seamless communication within embedded systems.

Summary

The System Bus is a critical component within the Cortex-M3 processor architecture, responsible for
facilitating instruction fetch and data access operations across specific memory regions. Its adherence to the
AHB-Lite protocol, enforcement of alignment requirements, and support for efficient memory access
contribute to the overall efficiency and reliability of the Cortex-M3 processor in embedded applications.

EXTERNAL PRIVATE PERIPHERAL BUS: The External Private Peripheral Bus (External PPB) is a specialized bus
within the Cortex-M3 architecture designed for accessing private peripheral devices. Here are the key
characteristics and functionalities of the External PPB:

Overview

- Bus Protocol: The External PPB follows the Advanced Peripheral Bus (APB) protocol, a simplified bus
protocol suitable for peripheral communication.

- Bus Width: Similar to other buses in the Cortex-M3, the External PPB operates as a 32-bit bus, allowing for
efficient data transfers in 32-bit chunks.

- Memory Regions: The External PPB is designated for accessing memory regions from 0xE0040000 to
0xE00FFFFF. However, due to the presence of certain peripherals like the Trace Port Interface Unit (TPIU),
Embedded Trace Macrocell (ETM), and ROM table, the usable memory region for attaching additional
peripherals is limited to 0xE0042000 to 0xE00FF000.

Data Alignment

- Word-Aligned Transfers: All transfers on the External PPB are word-aligned, ensuring that data accesses are
aligned to word boundaries. This alignment simplifies memory access operations and enhances compatibility
with peripheral devices.

Peripheral Access

- Private Peripheral Access: The External PPB is dedicated to accessing private peripheral devices, providing a
dedicated communication channel for interacting with peripheral modules integrated into the Cortex-M3
system.

- Limited Memory Space: While the External PPB offers a dedicated space for attaching additional peripherals,
the available memory region is constrained by the presence of certain pre-existing peripherals. Developers
must take into account this limitation when designing systems with additional peripherals.
Benefits

1. Dedicated Peripheral Access: The External PPB provides a dedicated communication pathway for accessing
private peripheral devices, facilitating efficient interaction with peripheral modules integrated into the
Cortex-M3 system.

2. Simplified Integration: By adhering to the APB protocol and word-aligned transfers, the External PPB
streamlines the integration of additional peripherals into the Cortex-M3 system, enhancing the overall
efficiency of embedded system development.

DEBUG ACCESS PORT BUS: The Debug Access Port Bus (DAP) is a specialized interface within the Cortex-M3
architecture dedicated to facilitating communication with debug interface blocks. Here are the key
characteristics and usage guidelines for the DAP:

Overview

- Bus Protocol: The DAP bus interface is based on an enhanced version of the Advanced Peripheral Bus (APB)
specification. This enhanced version is tailored specifically for debug access purposes.

- Bus Width: Similar to other buses in the Cortex-M3, the DAP bus operates as a 32-bit bus, allowing for
efficient data transfers in 32-bit chunks.

- Debug Interface Blocks: The primary purpose of the DAP bus is to connect and communicate with debug
interface blocks such as the Serial Wire JTAG Debug Port (SWJ-DP) or Serial Wire Debug Port (SWDP).

Usage Guidelines

- Dedicated Debug Access: The DAP bus is exclusively intended for debug access purposes. It should not be
used for any other peripheral or memory access operations.

- Debug Interface Blocks: Developers should utilize the DAP bus to connect and communicate with debug
interface blocks integrated into the Cortex-M3 system. These debug interface blocks enable various
debugging and testing functionalities during development and debugging phases.

- Avoid Other Purposes: It's crucial to refrain from using the DAP bus for purposes other than debug access.
Attempting to use the DAP bus for unrelated operations may lead to conflicts, errors, or unintended behavior
in the system.

Benefits

1. Debugging Capabilities: The DAP bus provides essential infrastructure for debugging and testing embedded
applications running on Cortex-M3-based systems. It enables developers to access and interact with debug
interface blocks for efficient debugging and troubleshooting.

2. Standardized Interface: By adhering to the enhanced APB specification, the DAP bus ensures a standardized
interface for connecting and communicating with debug interface blocks. This standardization promotes
interoperability and compatibility across different debug tools and hardware platforms.
SERIAL WIRE DEBUG PORT AND SERIAL WIRE JTAG DEBUG PORT:
The Serial Wire Debug Port (SW-DP) and Serial Wire JTAG Debug Port (SWJ-DP) are essential components in
the Cortex-M3 architecture, enabling external debuggers to interact with the processor core for debugging
and testing purposes. Here's an overview of their roles and functionalities:

Overview

- Debug Interface Ports: SW-DP and SWJ-DP serve as interfaces between the Cortex-M3 processor core and
external debugging hardware, facilitating debugging operations.

- AHB Access Port (AHB-AP): SW-DP/SWJ-DP work in conjunction with the AHB Access Port (AHB-AP) to
enable external debuggers to generate AHB transfers for controlling debug activities.

- Serial Wire and JTAG Protocols: SWJ-DP supports both the Serial Wire Protocol and the Joint Test Action
Group (JTAG) Protocol, providing flexibility in debugging interfaces. SW-DP, on the other hand, supports only
the Serial Wire Protocol.

Debug Control

- No JTAG Scan Chain: Unlike traditional JTAG-based architectures, the Cortex-M3 processor core does not
feature a JTAG scan chain. Instead, most debugging functions are controlled by the Nested Vectored Interrupt
Controller (NVIC) registers through AHB accesses.

- AHB Access: The AHB Access Port provides access to the entire Cortex-M3 memory space via a small set of
registers. External debuggers access these registers through the SW-DP/SWJ-DP interface to perform
debugging functions.

- Debug Access Port (DAP): The SW-DP/SWJ-DP control the AHB Access Port via a generic debug interface
known as the Debug Access Port (DAP). This interface facilitates communication between the external
debugging hardware and the AHB-AP.

Debugging Functions

- Access to Cortex-M3 Memory: External debugging hardware can access the entire Cortex-M3 memory space
via the AHB Access Port. This access allows for reading and writing memory contents, setting breakpoints, and
examining processor state during debugging sessions.

- Control and Configuration: Debugging hardware can also control and configure various aspects of the
Cortex-M3 core, such as enabling and disabling interrupts, modifying register values, and controlling
execution flow.

Summary

The Serial Wire Debug Port (SW-DP) and Serial Wire JTAG Debug Port (SWJ-DP) play critical roles in enabling
external debuggers to interact with the Cortex-M3 processor core for debugging purposes. By providing
access to the AHB Access Port (AHB-AP) and facilitating communication via the Debug Access Port (DAP), SW-
DP/SWJ-DP enable external debugging hardware to perform a wide range of debugging functions, including
memory access, breakpoint setting, and processor control. Their support for both Serial Wire and JTAG
protocols ensures compatibility with a variety of debugging tools and platforms, making them integral
components in the Cortex-M3 debugging ecosystem.
EMBEDDED TRACE MACRO CELL AND INSTRUMENTATION TRACE MACCRO CELL:
The Embedded Trace Macrocell (ETM) and Instrumentation Trace Macrocell (ITM) are essential components
in Cortex-M3 processors, providing advanced debugging and tracing capabilities. Here's an overview of their
functions and capabilities:

Embedded Trace Macrocell (ETM)

- Optional Component: The ETM is an optional component for instruction trace, meaning that not all Cortex-
M3 products may have real-time instruction trace capability.

- Instruction Trace: The primary function of the ETM is to capture trace information related to instruction
execution. It monitors the instruction flow within the processor core and generates trace data for analysis.

- Trace Output: Trace information captured by the ETM is output to the trace port via the Trace Port Interface
Unit (TPIU). This data can then be collected and analyzed by external debugging tools or hardware.

- Memory-Mapped Registers: The control registers of the ETM are memory-mapped, allowing them to be
accessed and configured by the debugger via the Debug Access Port (DAP). This enables control and
monitoring of the ETM functionality during debugging sessions.

Instrumentation Trace Macrocell (ITM)

- Versatile Usage: The ITM can be utilized in various ways to facilitate debugging and tracing activities.
Software can directly write information to the ITM module for output to the TPIU, or it can use the Data
Watchpoint and Trace (DWT) module's matching events to generate trace data packets via the ITM.

- Data Trace: The ITM is particularly useful for generating data trace packets, allowing software to output
custom trace information or debug messages to the TPIU. This facilitates real-time monitoring and analysis of
application behavior during execution.

- Integration with DWT: By leveraging the DWT module's matching events, the ITM can automatically
generate trace data packets based on predefined conditions or events in the program, providing valuable
insights into program execution flow and behavior.

Benefits

1. Advanced Debugging Capabilities: The ETM and ITM provide advanced debugging and tracing capabilities,
allowing developers to monitor instruction execution and collect custom trace data for analysis.

2. Real-Time Analysis: By capturing trace information in real-time and outputting it to the trace port, the ETM
and ITM enable real-time analysis of program behavior and performance during execution.

3. Flexible Usage: The versatility of the ITM allows developers to customize trace output and integrate it
seamlessly into their debugging workflow, enhancing visibility into program execution and facilitating
troubleshooting.

Summary
The Embedded Trace Macrocell (ETM) and Instrumentation Trace Macrocell (ITM) are essential components
in Cortex-M3 processors, providing advanced debugging and tracing capabilities. While the ETM focuses on
capturing instruction trace information, the ITM offers versatility in generating custom trace data and debug
messages. By leveraging these components, developers can gain valuable insights into program execution and
behavior, facilitating efficient debugging and optimization of embedded applications.
DATA WATCH POINT AND TRACE point-wise description of the Data Watchpoint and Trace (DWT) module in
Cortex-M3 processors:

1. Data Watchpoint Setup: The DWT module allows developers to set up data watchpoints, enabling
monitoring of specific data addresses or values during program execution.

2. Match Hit Event Generation: When a monitored data address or value matches predefined criteria, such as
a particular address or value, the DWT generates a match hit event.

3. Watchpoint Event Activation: The match hit event can be utilized to activate various debugging or tracing
features. This includes activating the debugger to pause program execution, generating data trace
information for analysis, or triggering specific actions based on the matched criteria.

4. Debugger Activation: One use of the match hit event is to activate the debugger, allowing developers to
halt program execution at the point where the watchpoint condition is met. This enables real-time debugging
and investigation of program behavior.

5. Data Trace Generation: Another action triggered by the match hit event is the generation of data trace
information. This allows developers to capture and analyze data-related events in real-time, aiding in the
identification of bugs or anomalies in the program.

6. ETM Activation: The match hit event can also be used to activate the Embedded Trace Macrocell (ETM),
which provides advanced instruction tracing capabilities. By activating the ETM, developers can capture
detailed trace information related to instruction execution, further enhancing debugging and analysis
capabilities.

In essence, the DWT module in Cortex-M3 processors enhances debugging capabilities by allowing developers
to monitor specific data-related events during program execution and trigger various actions based on
predefined criteria. This enables efficient debugging, troubleshooting, and optimization of embedded
applications.

TRACE PORT INTERFACE: here's a point-wise description of the Trace Port Interface Unit (TPIU) in Cortex-M3
processors:

1. External Trace Hardware Interface: The TPIU serves as the interface between the Cortex-M3 processor and
external trace hardware, such as trace port analyzers.

2. Data Formatting: Trace information generated internally by the Cortex-M3 processor is formatted as
Advanced Trace Bus (ATB) packets.

3. Reformatting for External Devices: The TPIU reformat the data to allow it to be captured by external trace
hardware. This involves converting the ATB packets into a format suitable for transmission to external
devices.

In summary, the TPIU plays a crucial role in facilitating the transfer of trace information from the Cortex-M3
processor to external trace hardware, ensuring compatibility and interoperability between the processor and
trace analysis tools.
FLASH PATCH AND BREAK POINT :Here's a concise breakdown of the Flash Patch and Breakpoint (FPB)
functionality in Cortex-M3 processors:

1. Purpose: The FPB is designed to offer Flash Patch and Breakpoint functionalities, enhancing debugging and
testing capabilities in Cortex-M3-based systems.

2. Flash Patching: With Flash Patching, if the CPU accesses an instruction address that matches a predefined
pattern, the FPB can remap that address to a different location. This allows for dynamic modification of
program execution flow without altering the original code.

3. Breakpoint Triggering: Alternatively, the FPB can use the matched address to trigger a breakpoint event.
This enables developers to pause program execution at specific points of interest for debugging purposes.

4. Testing and Diagnosis: The Flash Patch feature is particularly useful for testing scenarios where additional
diagnostic or analysis code needs to be injected into the program flow. By utilizing FPB to remap addresses,
developers can seamlessly integrate testing routines without modifying the original codebase.

In summary, the Flash Patch and Breakpoint functionality provided by FPB in Cortex-M3 processors offers
developers a powerful toolset for dynamic code modification and debugging, ultimately enhancing the
efficiency and effectiveness of testing and diagnosis processes.
