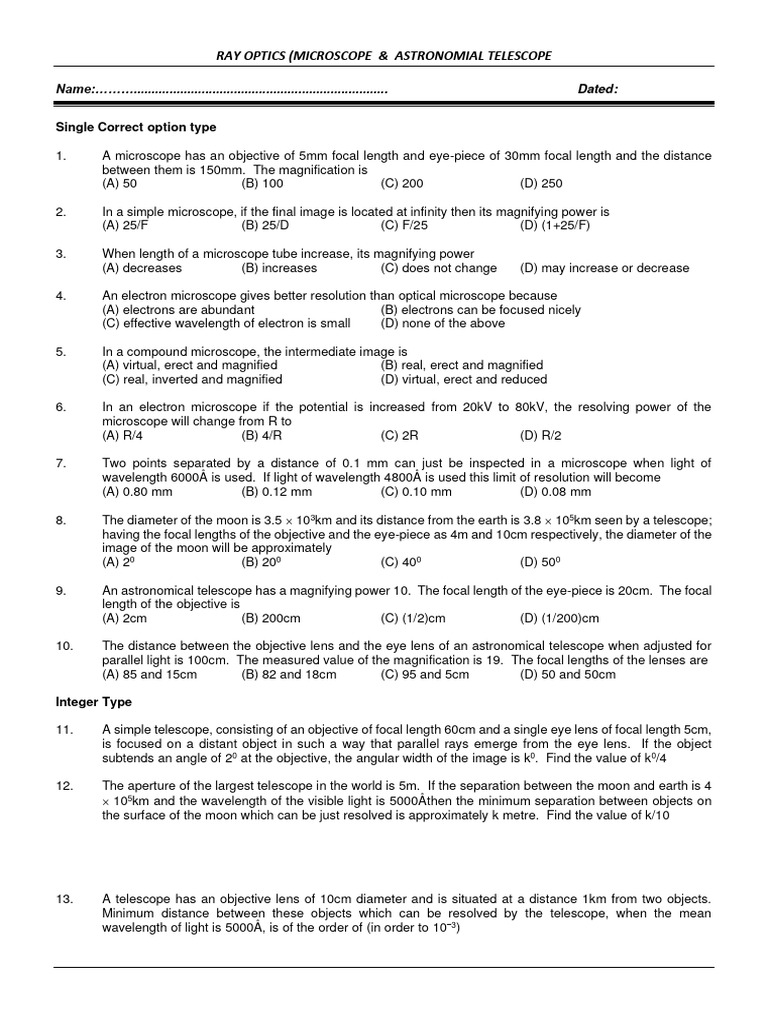

RAY OPTICS (MICROSCOPE & ASTRONOMIAL TELESCOPE

Name:………....................................................................... Dated:

Single Correct option type

1. A microscope has an objective of 5mm focal length and eye-piece of 30mm focal length and the distance
between them is 150mm. The magnification is
(A) 50 (B) 100 (C) 200 (D) 250

2. In a simple microscope, if the final image is located at infinity then its magnifying power is
(A) 25/F (B) 25/D (C) F/25 (D) (1+25/F)

3. When length of a microscope tube increase, its magnifying power

(A) decreases (B) increases (C) does not change (D) may increase or decrease

4. An electron microscope gives better resolution than optical microscope because

(A) electrons are abundant (B) electrons can be focused nicely
(C) effective wavelength of electron is small (D) none of the above

5. In a compound microscope, the intermediate image is

(A) virtual, erect and magnified (B) real, erect and magnified
(C) real, inverted and magnified (D) virtual, erect and reduced

6. In an electron microscope if the potential is increased from 20kV to 80kV, the resolving power of the
microscope will change from R to
(A) R/4 (B) 4/R (C) 2R (D) R/2

7. Two points separated by a distance of 0.1 mm can just be inspected in a microscope when light of
wavelength 6000Å is used. If light of wavelength 4800Å is used this limit of resolution will become
(A) 0.80 mm (B) 0.12 mm (C) 0.10 mm (D) 0.08 mm

8. The diameter of the moon is 3.5  103km and its distance from the earth is 3.8  105km seen by a telescope;
having the focal lengths of the objective and the eye-piece as 4m and 10cm respectively, the diameter of the
image of the moon will be approximately
(A) 20 (B) 200 (C) 400 (D) 500

9. An astronomical telescope has a magnifying power 10. The focal length of the eye-piece is 20cm. The focal
length of the objective is
(A) 2cm (B) 200cm (C) (1/2)cm (D) (1/200)cm

10. The distance between the objective lens and the eye lens of an astronomical telescope when adjusted for
parallel light is 100cm. The measured value of the magnification is 19. The focal lengths of the lenses are
(A) 85 and 15cm (B) 82 and 18cm (C) 95 and 5cm (D) 50 and 50cm

Integer Type

11. A simple telescope, consisting of an objective of focal length 60cm and a single eye lens of focal length 5cm,
is focused on a distant object in such a way that parallel rays emerge from the eye lens. If the object
subtends an angle of 20 at the objective, the angular width of the image is k0. Find the value of k 0/4

12. The aperture of the largest telescope in the world is 5m. If the separation between the moon and earth is 4
 105km and the wavelength of the visible light is 5000Åthen the minimum separation between objects on
the surface of the moon which can be just resolved is approximately k metre. Find the value of k/10

13. A telescope has an objective lens of 10cm diameter and is situated at a distance 1km from two objects.
Minimum distance between these objects which can be resolved by the telescope, when the mean
wavelength of light is 5000Å, is of the order of (in order to 10−3)
 RAY OPTICS (MICROSCOPE & ASTRONOMIAL TELESCOPE
14. The focal lengths of the objective and eye-piece of a microscope are 0.6cm and 5cm respectively and the
distance between them is 12cm. Find the distance of the object from the objective when the final image
seen by the eye is 25cm from the eye-piece. (in order to 10−3 m, nearest integer)

15. The objective of a small telescope has focal length 120cm and diameter 5cm. The focal length of the eye-
piece is 2cm. The magnifying power is p and length of tube for distance objects and relaxed eye is L. Find
the value of (LP/10). (nearest integer)
Multiple
16. Large aperture objective is used in telescopes as it helps in
(A) increasing the resolving power (B) reducing spherical aberration
(C) increasing field of view (D) increasing intensity by gathering more light

17. A Galilean telescope has an objective of f = 40cm, and in normal adjustment its angular magnification is 5.
The separation of the lenses is then
(A) 32cm and the final image is erect
(B) 35cm and the final image is erect
(C) 32cm and the eye-piece has a focal length of 8cm
(D) 45cm and the eye-piece is a diverging lens

18. An astronomical telescope has an angular magnification of magnitude 5 for distant objects. The separation
between the objective and the eye-piece is 36cm and the final image is formed at infinity. The focal length
f0 of the objective and the length f0 of the eye-piece are
(A) f0 = 45cm and f0 = − 9cm (B) f0 = 50cm and f0 = 10cm
(C) f0 = 7.2cm and f0 = 5cm (D) f0 = 30cm and f0 = 6cm

19. The diameter of the moon is 3.5  103km and its distance from the earth is 3.8  108km and its distance from
the earth is 3.8  105km. It is seen through a telescope having focal lengths of objective and eye-piece as
4m and 10cm respectively. Then
(A) magnifying power of telescope is 40 (B) length of telescope tube 4.1m
(C) angular size of image of moon is nearly 210 (D) magnifying power of telescope is 30

20. In a compound microscope the objective and the eye-piece have focal lengths of 0.95cm and 5cm
respectively, and are kept at a distance of 20cm. The last image is formed at a distance of 25cm from the
eye-piece. Then
(A) the position of object is 94/6cm (B) the total magnification is 94
(C).the position of object is 95/94cm (D) the total magnification is 94/36

Paragraph
A thin convex lens L1 of focal length f 1 and another thin convex lens L2
of focal length f2 are kept co-axially at such a distance apart that rays
incident parallel to the optic axis on lens L 1 emerge parallel to the optic
axis from lens L2. Such an arrangement is called a beam expander and
it is commonly used to increase the width of a beam. It is found that L1
forms a ‘beam expander’ with L 2 when they are at a distance 50cm
apart. It is also possible to form a ‘beam expander’ with lenses one of
which is convex and the other concave. Let us have an arrangement of
lens L1 with another lens L3 (concave) of focal length 10cm. L1 and L3
are kept co-axially at a suitable distance ‘d’ apart such that rays incident
parallel to optic axis on L 1 emerge parallel to the axis from L 3. This
arrangement is shown in figure (A) with L 1 and L3 forming a beam
expender, let us locate an object AB at distance x from L1, as shown in
fig (B). It is found that for x = 20cm, the image of object AB formed by
les L1 is virtual whereas for x = 20cm, it is real. Let us now place AB
such that x = 30cm. Let I1 be the image of object AB formed by lens L1
and I be the final image.

21. Focal length of lens L1 is

(A) 40 cm (B) 30 cm (C) 20 cm (D) 10 cm

22. Separation ‘d’ between L1 and L3 so that they form a ‘beam expander’ is
(A) 10 cm (B) 20 cm (C) 30 cm (D) 40 cm
 RAY OPTICS (MICROSCOPE & ASTRONOMIAL TELESCOPE

23. Focal length of lens L2 is

(A) 40 cm (B) 30 cm (C) 20 cm (D) 10cm

24. I1, the image of object AB formed by lens L1, will act as a virtual object for lens L 3 which forms an image I.
Relative to I1, I is
(A) virtual, inverted and reduced four times in size(B) virtual, erect and two times in size
(C) real, inverted and four times in seize (D) virtual, erect and reduced two times in size

25. The final image I, relative to object AB is

(A) erect and twice in size (B) erect and half in size
(C) inverted and twice in size (D) inverted and half in size

***

F5 RAY OPTICS (MICROSCOPE & ASTRONOMIAL TELESCOPE KEY

1. D 7. B 14. 5 21. C
8. B 15. 7 22. A
2. A 9. B 16. A, C, D 23. B
3. A 10. C 17. A, C 24. A
4. C 11. 6 18. A, D 25. B
5. C 12. 5 19. A, B, C
6. A 13. 5 20. B, C
