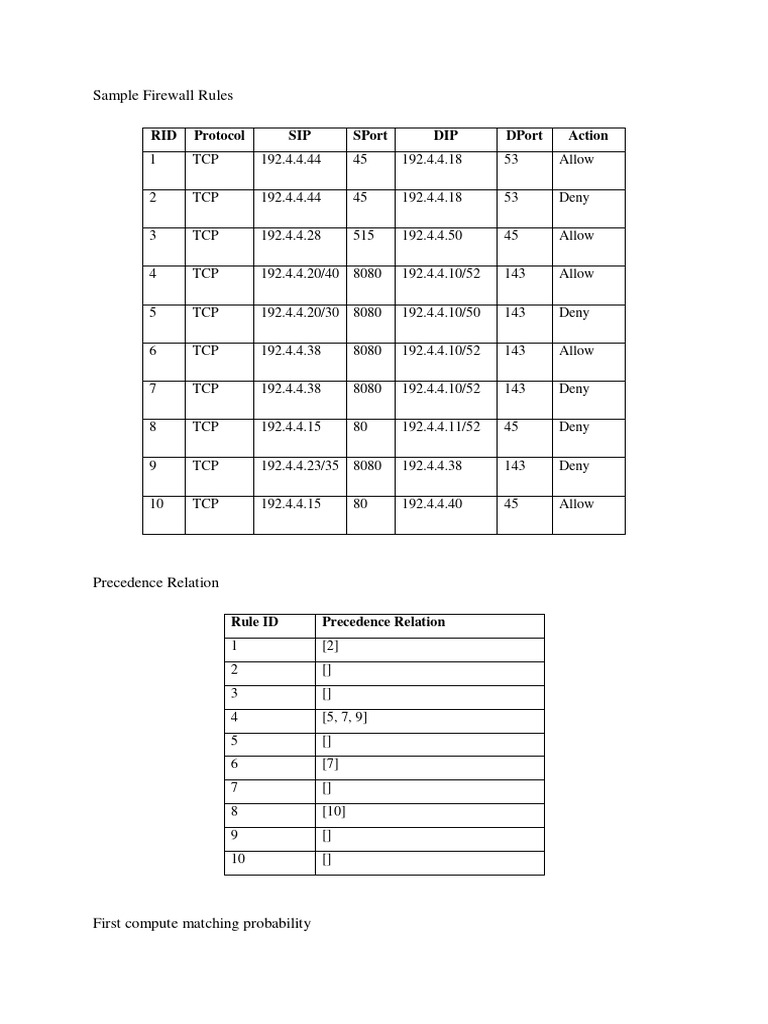

Sample Firewall Rules

RID Protocol SIP SPort DIP DPort Action

1 TCP 192.4.4.44 45 192.4.4.18 53 Allow

2 TCP 192.4.4.44 45 192.4.4.18 53 Deny

3 TCP 192.4.4.28 515 192.4.4.50 45 Allow

4 TCP 192.4.4.20/40 8080 192.4.4.10/52 143 Allow

5 TCP 192.4.4.20/30 8080 192.4.4.10/50 143 Deny

6 TCP 192.4.4.38 8080 192.4.4.10/52 143 Allow

7 TCP 192.4.4.38 8080 192.4.4.10/52 143 Deny

8 TCP 192.4.4.15 80 192.4.4.11/52 45 Deny

9 TCP 192.4.4.23/35 8080 192.4.4.38 143 Deny

10 TCP 192.4.4.15 80 192.4.4.40 45 Allow

Precedence Relation

Rule ID Precedence Relation

1 [2]
2 []
3 []
4 [5, 7, 9]
5 []
6 [7]
7 []
8 [10]
9 []
10 []

First compute matching probability

 ∑𝑁
𝑗=𝑖+1 𝜂𝑖𝑗
𝑃 (𝑟𝑖 ) = 𝑝𝑖 =
𝑁

𝑓
∑𝑀
𝑓=1 𝛿𝑖𝑗
𝜂𝑖𝑗 =
𝑀

P(r1) =( 𝜂𝑖𝑗 (r1,r2)+ 𝜂𝑖𝑗 (r1,r3)+ 𝜂𝑖𝑗 (r1,r4)+ 𝜂𝑖𝑗 (𝑟1, 𝑟5) +…+𝜂𝑖𝑗 (𝑟1, 𝑟10))/10

𝜂𝑖𝑗 (r1,r2) is matching fields count

R1 TCP 192.4.4.44 45 192.4.4.18 53

R2 TCP 192.4.4.44 45 192.4.4.18 53

𝜂𝑖𝑗 (r1,r2) = 5/5 = 1

𝜂𝑖𝑗 (r1,r3)

R1 TCP 192.4.4.44 45 192.4.4.18 53

R3 TCP 192.4.4.28 515 192.4.4.50 45

𝜂𝑖𝑗 (r1,r3) = 1/5 = 0.2

𝜂𝑖𝑗 (r1,r4)

R1 TCP 192.4.4.44 45 192.4.4.18 53

R4 TCP 192.4.4.20/40 8080 192.4.4.10/52 143

𝜂𝑖𝑗 (r1,r4) = 2/5 = 0.4

𝜂𝑖𝑗 (r1,r5) : 2/5 = 0.4

𝜂𝑖𝑗 (r1,r6) : 2/5 = 0.4

𝜂𝑖𝑗 (r1,r7) : 2/5 = 0.4

𝜂𝑖𝑗 (r1,r8): 2/5 = 0.4

𝜂𝑖𝑗 (r1,r9) : 1/5 = 0.2

𝜂𝑖𝑗 (r1,r10) : 1/5 = 0.2

P(r1) = sum all 𝜂𝑖𝑗 / 9

P(r1) =( 1.0 + 0.2 +0.4 +0.4 +0.4 +0.4 +0.4 +0.2 +0.2)/9 = 3.6/ 9 = 0.4

Likewise compute for all rules

Rule ID Matching Probability

1 0.4
2 0.325
3 0.486
4 0.8
5 0.52
6 0.653
7 0.53
8 0.7
9 0.2
10 0.0

Find precedence connection between rules

∑𝑁
𝑗=1 𝜌𝑖𝑗
𝑃𝑚(𝑖 ) =
𝑁

1, 𝑖𝑓 𝑟𝑖 𝑖𝑠 𝑝𝑟𝑒𝑐𝑒𝑑𝑒 𝑟𝑗
𝜌𝑖𝑗 = {
0, 𝑂𝑡ℎ𝑒𝑟𝑤𝑖𝑠𝑒

Precedence matrix

Rules 1 2 3 4 5 6 7 8 9 10 Sum 𝑃𝑚(𝑖 )

1 0 1 0 0 0 0 0 0 0 0 1 0.1

2 0 0 0 0 0 0 0 0 0 0 0 0

3 0 0 0 0 0 0 0 0 0 0 0 0
4 0 0 0 0 1 0 1 0 1 0 3 0.3

5 0 0 0 0 0 0 0 0 0 0 0 0

6 0 0 0 0 0 0 1 0 0 0 1 0.1

7 0 0 0 0 0 0 0 0 0 0 0 0

8 0 0 0 0 0 0 0 0 0 1 1 0.1

9 0 0 0 0 0 0 0 0 0 0 0 0

10 0 0 0 0 0 0 0 0 0 0 0 0

Compute weight-1 = Pr(i) + Pm(i) = 0.4+0.1 = 0.5

If Pm(i) > 0 𝑤𝑒𝑖𝑔ℎ𝑡_2 = 𝑝𝑖 + 𝑃𝑚(𝑖)

Else

Weight-2= 0

Compute weight-2 =0.5

For Rule-2

Weight-1 = 0.325

Weight-2 = 0

Rules weight

Rule ID Weight-1 Weight-2

1 0.5 0.5
2 0.325 0.0
3 0.4857 0.0
4 1.1 1.1
5 0.52 0.0
6 0.75 0.75
 7 0.5333 0.0
8 0.7999 0.7999
9 0.2 0.0
10 0.0 0.0

Sort weight by descending order to get the rule order

Weight-1 r4 r8 r6 r7 r5 r1 r3 r2 r9 r10

Weight-2 r4 r8 r6 r1 r2 r3 r5 r7 r9 r10

𝜓 = ∑ 𝑅𝐼𝑖 𝜔𝑖
𝑖=1

For weight-1 === 4*1.1 + 8 * 0.799 +6*0.75+7*0.533 …. +9*0.2 + 10 *0 = 26.04

For weight-2 ==== 4*1.1 + 8 * 0.799 + 6*0.75+1*0.5…. +9*0.0 + 10 *0 = 15.8

Minimum weight will be taken and the optimal order is

Weight-2 r4 r8 r6 r1 r2 r3 r5 r7 r9 r10

These sorted rule indexes are given to the input as the PSO for rule optimization.
