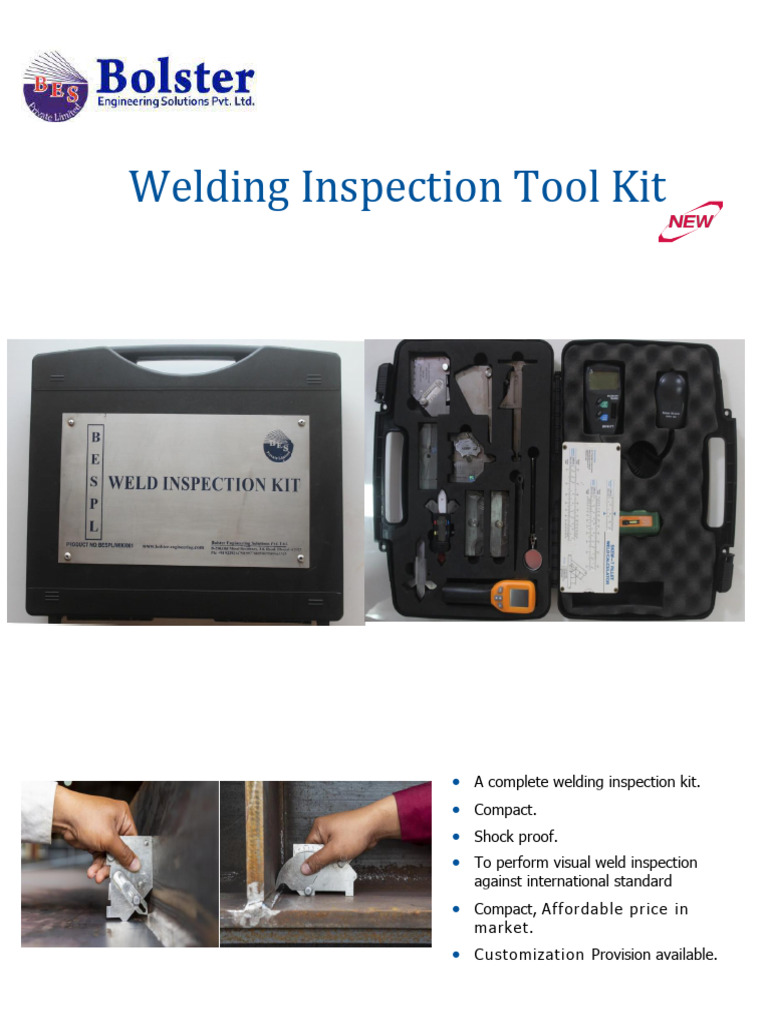

Welding Inspection Tool Kit

• A complete welding inspection kit.

• Compact.
• Shock proof.
• To perform visual weld inspection
against international standard
• Compact, Aff ordab le p rice in
mark et.
• Cu st omizat ion Provision available.
About us:-
We Bolster Engineering Solutions Pvt Ltd introducing a specifically designed welding Inspection Kit targeting the
requirements of a stringent welding quality requirements specified in ISO 15085, ISO 3834 ,ISO 5817, AWS D1.1,
ASME etc.

Why Bolster Engineering Solutions Pvt Ltd ?

 We provide this gauges under one focal point with in affordable price.

 2.0 We understand your requirements and customize as per your need.

 3.0 Our ASNT Level 3/International welding engineer ( IWE) will provide you customized training session to
familiarize the gauges to your needs.

 4.0 Upon requirements we provide NDT level 2 training program to certify your engineers against ASNT
SNT TC1A requirements.

What we provide in this Kit

Item Qty

1. Bridge Cam Guage 01 nos

2. WAC Weld Guage 01 nos

3. Skew Fillet Guage 01 nos

4. High Low Guage 01 nos

5. Taper Guage 01 nos

6. Telescopic Mirror 01 nos

7. Standard Fillet Guage (Inch) 01 nos

8. Standard Fillet Guage (mm) 01 nos

9. Vernier Weld Guage(Digital) 01 nos

10. Key Fillet Guage 01 nos

11. Infrared Thermometer 01 os

12. Skew Guage weld calculator 01 os

13. AWS Auto Fillet Guage 01 nos

 1. Bridge Cam Guage

It allows measuring of :
- Height of flat weld.
- Height of fillet weld bead
- Thickness of fillet weld
- Bevel angle of weldment
- Undercut depth of weld seam
- Vertical misalignment

2. WAC Weld Guage

• Checking Angle of Vertical Member

3. Skew Fillet Guage
• Checking Weld Acute Side
• Checking Weld Obtuse Side
• • CALCULATOR • •
A handy compilation of mathematical relationships between
leg length, throats, skew angles and inspection dimensions.
A must for designers and inspectors.

Use for:
4. High Low Guage

Use for :
• Measure internal misalignment .
• Measure fit -up gap
• Measure bevel on end preparation
• Measure the crown height of welds
• Measure fillet weld size
• Measure scribe line, socket welds.

5. Taper Guage

The range of measured holes 0-15 mm Accuracy - ± 0,1mm

6. Telescopic mirror

An inspection mirror Is used to help the user

see into difficult or dangerous areas.
7. Standard Fillet Guage (inch)
A set of templates for the legs of the angular
control of welded joints as well as for measuring
convexity and concavity of the seam.
Measuring range - 3.2 - 25.4 mm
Accuracy: ± 0,1 mm / ± 0,005 "
Number of templates - 7 units
Material - stainless steel

8.Standard Fillet Guage (mm)

Designed to measure the convexity of the weld angle
edge preparation connected parts corner and butt welds,
bevel edges in the preparation of the welded joints of
parts, measuring the height of fillet weld leg.

Range - 0- 20 mm
Resolution – 0, 01 mm
Angles – 60/ 70/ 80/ 90 C

9. Vernier Weld Guage (Digital)

Designed to measure the convexity of the weld
angle edge preparation connected parts corner
and butt welds, bevel edges in the preparation of
the welded joints of parts, measuring the height
of fillet weld leg

range - 0-20 mm resolution- 0,01 mm

power – battery SR 44 (1,55 V)
dimension size - 100х64х14 mm
With LCD display, will hold either the zero setting
angles - 60 / 70 / 80 / 90 C
or measured value at any position for differential
measurements.
10.Key Fillet Guage
Features:
Pocket size - Measures 8 size fillets
Checks leg length, throat size, plus allowable
convexity
All increments permanently engraved
Each welder can carry a set for pre-inspection
Handy key chain holds set together

Material: stainless steel

Thickness of the fillet weld: 4mm,5mm,6mm,
7mm,8mm,9mm,10mm,12mm
Fillet Weld Size: 4mm,6mm,7.5mm,10mm,
12mm,14mm,16mm,18mm
Accuracy: ±0.5mm
Weight: 20G

11.Infrared Thermometer Measurement Range: -50-380 Degree Celcius.

Temperature Range up to 380 C
Emissivity: 0.95 (fixed), Display Resolution:
0.1°C, Distance To Spot Size: Ratio:- 12:1
Auto power off & Data hold Laser on/off
selectable Backlight on/off selectable

12.Skew Guage Weld Calculator

A handy compilation of mathematical
relationships between leg length, throats, skew
angles and inspection dimensions. A must for
designers and inspectors. The perfect
companion to the Skew fillet weld gauge.
 13.AWS Auto Fillet Gauge

Rapidly measures weld features like tolerance

of convexity, tolerance of reinforcement,
concavity and underfill, to determine size of
fillet weld.
Scales are graduated in metric units.

MAX-MIN - 0-3 mm
MAX CONCAVITY – 0-20 mm
MAX CONVEXITY – 0-20 mm
LEG LENGTH - 0-20 mm
