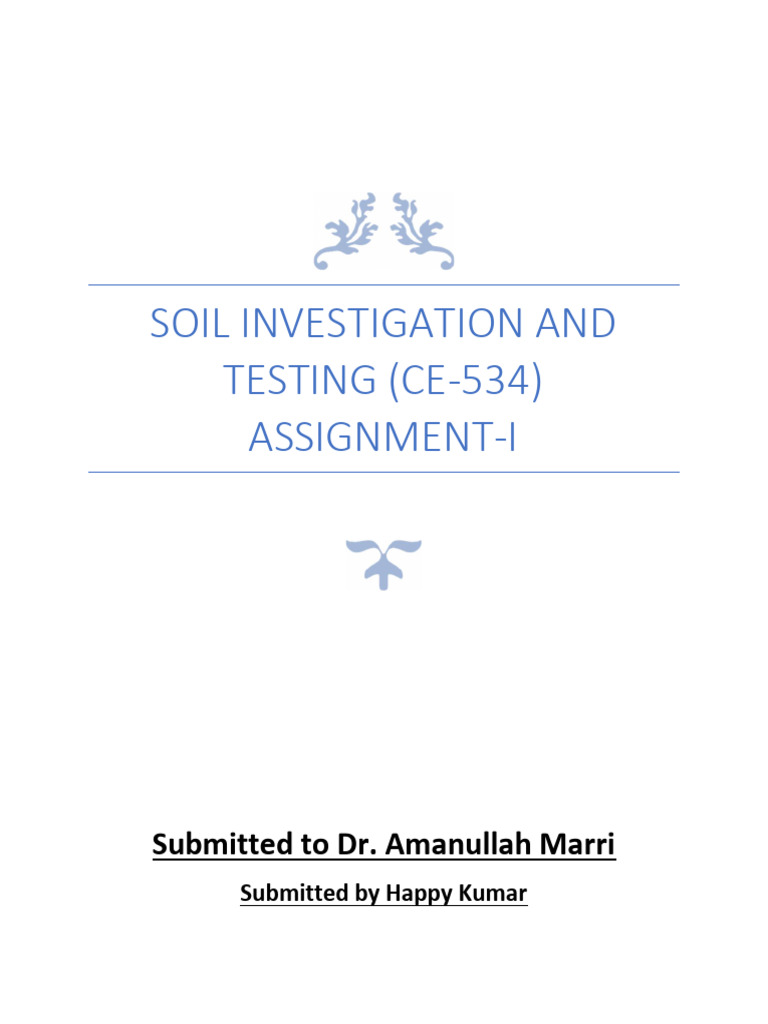

SOIL INVESTIGATION AND

TESTING (CE-534)
ASSIGNMENT-I

Submitted to Dr. Amanullah Marri

Submitted by Happy Kumar
Qno1a) Prepare a flow chart for subsurface exploration.

ELECTRICAL
RESISTIVITY
GEOPHYSICAL
INDIRECT METHOD
SEISMIC
METHOD REFRACTION

SOUNDING METHODS
SPT

WASH BORING CPT

SEMI DIRECT
DETAIL INVESTIGATION METHOD

ROTARY DRILLING

AUGER BORING

DIRECT
METHOD ACCESSIBLE
EXPLORATION

Qno1b) Describe the fundamental characteristics of a good subsoil investigation report.

A good subsoil investigation report, essential in geotechnical engineering for understanding ground
conditions, should include several key characteristics to be effective and useful:

 Comprehensive Site Information:

- Details of the project location and site description including accessibility, historical use, and nearby
structures.

- Maps and photographs to illustrate site topography and notable geographical features.

 Clear Objectives of the Investigation:

- Statement of the purpose and scope of the investigation linked to the specific needs of the proposed
construction or project.

- Types of exploration used (e.g., boreholes, test pits, geophysical surveys).

- Depths, locations, and findings from these explorations.

- Soil and rock profiles detailing layer thickness, material type, and key properties.
 Laboratory Test Results

- Summary and detailed results of soil and rock tests, such as grain size analysis, Atterberg limits,
compaction tests, permeability, and strength tests (e.g., triaxial, unconfined compression).

- Description of testing methods and standards adhered to during testing.

 Analysis and Interpretations:

- Analysis of data regarding soil bearing capacity, settlement characteristics, slope stability, and
potential for soil liquefaction.

- Hydrological analysis if relevant, including water table levels and flow characteristics.

 Recommendations:

- Practical recommendations for foundation design, including suitable types of foundations and
necessary ground improvements.

- Guidelines for excavation, dewatering, and construction procedures to mitigate identified risks.

 Appendices and Supplementary Information:

- Raw data from field and laboratory tests.

- Calibration certificates for equipment used.

- Logs of boreholes or test pits with detailed descriptions of each layer encountered.

 Legal and Regulatory Compliance:

- Adherence to local, national, and international standards and regulations pertinent to geotechnical
investigations.

- Statements on environmental considerations and any necessary permits or legal requirements.

By incorporating these elements, a subsoil investigation report ensures that it provides a thorough and
useful foundation for making informed decisions about construction and engineering projects.

Qno1C) What key information about the properties of soil is generally required during field and
laboratory investigations?

During field and laboratory investigations in geotechnical engineering, several key properties of soil are
crucially analyzed to determine the soil's behavior under various conditions and to guide the design of
engineering structures. Here's a summary of the essential soil properties typically required:

Field Investigations:
 Soil Type and Classification:

- Identification of soil types (clay, silt, sand, gravel) based on grain size distribution.
 - Classification based on systems like Unified Soil Classification System (USCS) or American Association
of State Highway and Transportation Officials (AASHTO).

 Moisture Content:

- Measurement of water content in the soil to understand its current state and compaction
characteristics.

 Density and Compaction:

- In-situ density determined through methods like sand cone, nuclear gauge, or balloon densitometer.

- Degree of compaction which is critical for project specifications.

 Depth and Thickness of Soil Layers:

- Stratification details to understand variation with depth, which affects foundation design

 Groundwater Conditions:

- Water table depth and fluctuation data.

- Permeability and flow characteristics related to hydrogeological conditions.

Laboratory Investigations:
 Grain Size Distribution:

- Sieve analysis for coarse-grained soils and hydrometer analysis for fine-grained soils to determine
particle size distribution.

 Atterberg Limits:

- Liquid limit, plastic limit, and plasticity index to classify fine-grained soils and predict their behavior
under moisture changes.

 Strength Properties:

- Shear strength parameters (cohesion and angle of internal friction) from tests like direct shear test,
triaxial compression test, and unconfined compression test.

- California Bearing Ratio (CBR) for assessing soil's suitability for road subgrades.

 Consolidation Characteristics:

- Compressibility, coefficient of consolidation, and pre-consolidation pressure, which influence

settlement predictions.

 Permeability:

- Hydraulic conductivity measured through tests like the constant head and falling head permeability
tests.
 Chemical Properties:

- pH, organic content, sulfate and chloride concentrations which may affect the durability of
construction materials and soil stability.

 Compaction Test Results:

- Standard Proctor or Modified Proctor tests to determine optimum moisture content and maximum
dry density for soil compaction requirements.

These properties are fundamental for designing foundations, evaluating the stability of slopes, planning
earthworks, and managing groundwater and environmental issues in geotechnical engineering projects.
Understanding these properties allows engineers to predict and mitigate potential issues associated
with soil behavior under structural loads and environmental influences.

Qno2a) Briefly describe different methods of boring suitable for hard soils and soft rocks

In geotechnical engineering, different boring methods are selected based on the soil and rock
characteristics to efficiently and effectively obtain subsurface samples and information. For hard soils
and soft rocks, the methods typically employed ensure that the integrity of the samples is maintained
and that the boring can penetrate these tougher materials. Here’s a brief description of several common
boring methods suitable for hard soils and soft rocks:

1. Rotary Drilling

-Description: This method involves the use of a rotating drill bit attached to a drill rod, powered by a
motor. It is effective for drilling through hard soils and soft to medium rocks.

Types:

Rotary Core Drilling :Utilizes a hollow core drill bit to extract cylinder-shaped samples of rock or soil.
The core samples are useful for detailed analysis of the stratigraphy and geological structures.

Rotary Wash Drilling:Employs a mud or water flush to clear the drill cuttings from the hole,
maintaining clear visibility and integrity of the borehole.

2. Auger Drilling

-Description: Auger drilling uses a helical screw blade to bore into the ground. It is rotated into the
ground, and soil is lifted up the blade to the surface.

Types:

Continuous Flight Auger (CFA):Suitable for harder soils, this method drills continuously and is quick and
efficient. It can also be used with a hollow stem auger to allow for sampling through the auger itself.

Bucket Auger:Especially effective in cohesive and hard soils, a bucket auger can drill large diameter
boreholes and is often used in soft rock formations.
3. Percussion Drilling

Description: This method involves repeatedly lifting and dropping a heavy cutting or hammering tool in
the borehole. It is effective for breaking up hard subsurface materials and can penetrate mixed layers of
soil and rock.

Utility Percussion drilling is suited for very hard soils and soft to hard rock. It can reach greater depths
compared to rotary and auger drilling but tends to be slower and less clean in terms of sample integrity.

4. Diamond Core Drilling

Description: A specialized form of rotary core drilling that uses a diamond-tipped drill bit. Diamonds,
being the hardest naturally occurring material, make the drill bit capable of cutting through hard rock.

Utility: This method is ideal for creating precise and clean cores, allowing for detailed analysis of geology
and material properties. It is particularly effective in very hard rock but is also suitable for hard soils.

c) Prepare a typical borelog for a borehole driven up to 25ft with a 10 ft clay layer underlain by 5ft
sand layer which subsequently lying on a hard stratum.

Depth (ft) Soil Description

0 - 10 Clayey Soil
10 - 15 Sand
15-25 Hard Stratum (Rock / Dense Soil)

Qno2B

Fill in Table 1 with brief answers. Also determine the thickness of the sampling tube with 75 mm
external diameter and area ratio required is 20%. In what type of clay would such a high area ratio be
required?
3 a) Draw a neat and clean sketch for SPT test setup and label each component.

b) Determine the total amount of work done for an SPT test conducted on a site. The SPT resistance
value was obtained to be 20+RN/10 and the seating value was noted to be 5.
3c) Ground plus three stories residential buildings (ground plus two) are planned to be constructed on
an area of 21,000+20 sq. ft flat land. The client needs to have soil testing for the said area. The
structure is RCC lightweight structure. It is required that a quotation may be provided keeping into
consideration the above information provided. The quotation must cover the charges for field testing,
laboratory testing and soil investigation report.

Quotation for Soil Testing Services:

Client: Dr. Amanullah Marri

Project Location: Ned University Karachi
Project Description: Construction of Ground Plus Three Stories Residential Building

Scope of Work:

1. Field Testing:

 Soil Boring and Sampling at Multiple Locations

 Standard Penetration Test (SPT) at Each Borehole

 Collection of Disturbed and Undisturbed Soil Samples

2. Laboratory Testing:

 Grain Size Analysis

 Atterberg Limits (Liquid Limit, Plastic Limit, Plasticity Index)

 Moisture Content Determination

 Compaction Test (Standard Proctor Test)

 California Bearing Ratio (CBR) Test

 Shear Strength Testing (Direct Shear Test)

 Permeability Test (Falling Head / Constant Head)

 Concrete Compressive Strength Test (if required for lightweight concrete)

3. Soil Investigation Report:

 Detailed Description of Soil Strata and Properties

 Interpretation of Soil Test Results

 Recommendations for Foundation Design and Construction

 Mitigation Measures for Soil-related Risks

 Compliance with Local Building Codes and Regulations

Quotation Breakdown:

1. Field Testing Charges: PKR 120,000

 2. Laboratory Testing Charges: PKR 170,000

3. Soil Investigation Report: PKR 10,000

Total Quoted Price: PKR 200,000

Qno 4A) A site selected for an airfield was later on found to appear cracks in the runway and building
constructed particular the issue of cracks become significant after rain and heavy vehicular
movements. Diagnose the possible geotechnical issues associated with it

Each of these methods has its advantages and is chosen based on specific project requirements, such as
depth of borehole, type of soil and rock, desired speed of advancement, and the quality of samples
required. Proper selection ensures efficient and effective sampling and testing, critical for successful
geotechnical investigations.

The appearance of cracks in the runway and buildings, particularly after rain and heavy vehicular
movements, suggests several potential geotechnical issues:

1. Poor Soil Compaction: Inadequate compaction of the soil beneath the runway and buildings can
lead to settlement under heavy loads, causing cracks to form.

2. Expansive Soils: Some types of soils, such as expansive clays, can swell significantly when wet
and shrink when dry. This cycle of expansion and contraction can exert pressure on the
structures above, leading to cracking.

3. Inadequate Drainage: Poor drainage can result in water accumulation beneath the runway and
buildings. This can soften the soil, reduce its load-bearing capacity, and contribute to settlement
and cracking.

4. Subsurface Water Movement: If there are underground water sources or poor water
management practices nearby, it can cause fluctuations in the water table, leading to soil
instability and settlement.

5. Lack of Proper Foundation Design: Insufficient consideration of soil conditions during the design
phase can result in foundations that are not adequately suited to support the loads imposed by
the airfield infrastructure, leading to settlement and cracking.

6. Subsidence: Natural or man-made factors such as mining activities or underground cavities can
cause subsidence, leading to differential settlement and structural damage.

7. Poor Construction Practices: Inadequate construction techniques, such as improper

reinforcement or poor quality concrete, can result in weakened structures prone to cracking
under stress.

8. Seismic Activity: If the site is located in a seismically active area, ground shaking during
earthquakes can cause soil liquefaction or induce settlement, resulting in cracking of the runway
and buildings.
Qno 4B A site for a gas field is existing in a low laying area, the groundwater table is near surface, the
salinity content is very high in the soil and water samples tested in the laboratory. The soil profile
consisted of low plastic silt and clayey up to a depth of 30 ft. machine foundations and other related
installations are to be made on the site. Give your recommendations for the selection of the suitable
type of foundations and any precautionary measures that must be taken.

Given the specific conditions of the site for the gas field, including the low-lying area, high groundwater
table, and high salinity content in the soil and water samples, along with the soil profile consisting of low
plastic silt and clayey material up to a depth of 30 ft, here are some recommendations for selecting
suitable types of foundations and precautionary measures:

1. Deep Foundation: Given the soft and potentially unstable nature of the soil profile, deep
foundations would likely be necessary to provide adequate support for the structures. Options
such as driven piles or drilled shafts could be considered, depending on the specific
requirements of the project.

2. Pile Foundations: Driven piles or drilled shafts can penetrate through the soft surface soils and
reach competent bearing strata below. This would help transfer the loads of the structures to
more stable layers, reducing the risk of settlement or instability.

3. Pile Caps or Grade Beams: To distribute the loads from the structures to the piles effectively,
pile caps or grade beams could be constructed. These provide a stable platform for the
structures above and help mitigate differential settlement.

4. Corrosion Protection: Given the high salinity content in the soil and water, special attention
should be paid to corrosion protection for the foundation elements. This might involve using
corrosion-resistant materials for the piles and appropriate coatings or wraps to protect against
corrosive conditions.

5. Ground Improvement Techniques: Depending on the specific soil conditions and project
requirements, ground improvement techniques such as soil stabilization or preloading might be
beneficial to improve the bearing capacity and reduce settlement potential.

6. Water Management: Given the high groundwater table, effective water management measures
should be implemented to control groundwater levels during construction and throughout the
operational phase. This could include dewatering systems, drainage channels, or waterproofing
measures for underground structures.

7. Seismic Considerations: If the site is located in a seismically active area, seismic considerations
should also be taken into account during the design of the foundations to ensure adequate
resistance to earthquake-induced forces.

8. Monitoring and Maintenance: Regular monitoring of the foundation performance, particularly

in relation to settlement, should be implemented to detect any issues early on. Additionally,
ongoing maintenance to address any corrosion or deterioration of foundation elements is
essential for the long-term stability and integrity of the structures.
QNo 4 C) A site is selected for the construction of a highway. The local material is consisted of ML-CL
type of soil. Good quality borrowed material is far from the site. Give your recommendations as a
geotechnical engineer to handle with the issue.

As a geotechnical engineer facing the challenge of constructing a highway on a site with ML-CL type soil
and limited access to good quality borrowed material, here are some recommendations:

1. Site Investigation and Soil Testing: Conduct a thorough site investigation to understand the
properties and behavior of the ML-CL soil. This should include tests such as standard
penetration tests (SPT), cone penetration tests (CPT), and laboratory tests to determine the
soil's strength, compressibility, and permeability.

2. Soil Stabilization: Explore soil stabilization techniques to improve the engineering properties of
the ML-CL soil. This can include methods such as chemical stabilization (using lime, cement, or
other additives), mechanical stabilization (mixing with aggregates or geotextiles), or thermal
stabilization (using heat to alter soil properties).

3. Optimization of Road Design: Work with the highway design team to optimize the road
alignment and design parameters based on the site's soil conditions. This may involve
minimizing embankment heights, optimizing pavement thickness, and incorporating appropriate
drainage features to mitigate potential soil-related issues.

4. Use of Geosynthetics: Consider the use of geosynthetic materials such as geogrids, geotextiles,
and geocells to reinforce the soil and improve its stability. These materials can enhance the
load-bearing capacity of the soil, reduce settlement, and increase the overall performance of the
highway.

5. Local Material Management: If good quality borrowed material is limited, prioritize the efficient
use of local materials for construction. This may involve careful excavation, processing, and
stockpiling of suitable on-site materials for use in embankments, subgrade, and other highway
layers.

6. Construction Quality Control: Implement rigorous quality control measures during construction
to ensure that the recommended stabilization techniques are properly executed and that the
constructed highway meets design specifications. This may include field testing, monitoring, and
inspection of soil stabilization processes.

7. Environmental Considerations: Consider the environmental impacts of soil stabilization

techniques and construction activities, particularly in sensitive areas. Ensure compliance with
regulatory requirements and adopt environmentally sustainable practices wherever possible.

By following these recommendations and adopting appropriate soil stabilization techniques, you can
effectively address the challenges associated with constructing a highway on a site with ML-CL soil,
while minimizing the need for external materials and maximizing the use of local resources.
5 a) What is geophysical exploration and what is the significance of geophysical exploration.

Geophysical exploration is a branch of geophysics that involves using various physical methods to
investigate the subsurface characteristics of the Earth. It utilizes principles from physics, mathematics,
and geology to study the distribution of physical properties within the Earth's interior, such as density,
magnetism, electrical conductivity, seismic velocity, and gravitational field. These methods allow
geophysicists to infer information about the composition, structure, and geological features of the
subsurface without direct physical access.

The significance of geophysical exploration lies in its ability to provide valuable information for various
scientific, engineering, and resource exploration applications:

1. Natural Resource Exploration: Geophysical methods are commonly used in the exploration and
assessment of natural resources such as oil, gas, minerals, groundwater, and geothermal energy.
By mapping subsurface structures and identifying anomalies associated with potential resource
deposits, geophysical exploration helps guide the location and planning of resource extraction
activities.

2. Environmental and Engineering Investigations: Geophysical surveys play a crucial role in

environmental studies and engineering projects by assessing subsurface conditions for
infrastructure development, land-use planning, and environmental remediation. These methods
are used to detect subsurface contaminants, characterize soil and rock properties, assess
groundwater resources, and evaluate geohazards such as landslides and sinkholes.

3. Archaeological and Cultural Heritage Studies: Geophysical techniques are employed in

archaeological research to non-invasively map buried archaeological features and structures,
such as ancient settlements, burial sites, and artifacts. This helps archaeologists plan excavation
strategies and preserve cultural heritage sites.

4. Geological Mapping and Tectonic Studies: Geophysical exploration contributes to understanding

the Earth's geological processes, including plate tectonics, crustal deformation, and volcanic
activity. By imaging subsurface structures and delineating geological boundaries, geophysicists
gain insights into the Earth's evolution and geological hazards.

5. Seismic Hazard Assessment: Geophysical methods, particularly seismic surveys, are essential for
assessing seismic hazards and understanding earthquake processes. By mapping fault lines,
delineating seismic zones, and characterizing subsurface properties, geophysicists help assess
earthquake risks and inform earthquake-resistant building codes and land-use planning.

6. Hydrocarbon Exploration and Reservoir Characterization: In the oil and gas industry, geophysical
exploration techniques such as seismic reflection and electromagnetic surveys are used to
locate potential hydrocarbon reservoirs, map their geometry, and characterize reservoir
properties. This information is crucial for optimizing drilling operations and maximizing
hydrocarbon recovery.
b) Which equipment are generally used for geophysical exploration for a multi-story building project
and for oil exploration.

For a multi-story building project and oil exploration, different geophysical methods and equipment are
typically employed due to the distinct objectives and subsurface conditions involved in each application:

1. Geophysical Exploration for a Multi-Story Building Project:

a. Ground Penetrating Radar (GPR): GPR uses high-frequency electromagnetic waves to image
subsurface features, such as utilities, voids, and geological layers. It is commonly used for assessing
shallow soil conditions, detecting buried objects, and identifying potential hazards during site
investigations for building projects.

b. Electrical Resistivity Tomography (ERT): ERT measures the electrical resistivity of subsurface
materials to delineate variations in soil and rock properties. It is effective for mapping geological
structures, detecting groundwater, and assessing foundation conditions for multi-story buildings.

c. Seismic Refraction Survey: Seismic refraction involves generating seismic waves at the surface and
analyzing their travel times to infer subsurface velocities and depth-to-bedrock. It is useful for
determining the depth and thickness of competent bedrock layers, which is crucial for foundation design
in tall buildings.

d. Cone Penetration Testing (CPT): CPT involves pushing a cone-shaped probe into the ground and
measuring resistance to penetration. It provides real-time data on soil properties, including strength,
density, and stratigraphy, aiding in foundation design and geotechnical characterization for multi-story
structures.

2. Geophysical Exploration for Oil Exploration:

a. Seismic Reflection Survey: Seismic reflection is the primary method used in oil exploration to create
detailed images of subsurface geological structures and potential hydrocarbon reservoirs. It involves
generating seismic waves and recording their reflections from various subsurface interfaces, helping
identify geological traps and reservoir geometry.

b. Electromagnetic (EM) Surveys: EM methods, such as electromagnetic induction and magnetotellurics,

are employed to detect subsurface resistivity contrasts associated with hydrocarbon accumulations.
These surveys can provide information on the presence of hydrocarbons, fluid saturations, and reservoir
thickness.

c. Gravity and Magnetic Surveys: Gravity and magnetic methods are used to map variations in
subsurface density and magnetic properties, respectively. Gravity surveys can help identify sedimentary
basins and structural features, while magnetic surveys can delineate basement structures and identify
potential hydrocarbon traps.

d. Well Logging: Well logging involves measuring physical properties of rocks and fluids in boreholes
drilled into the Earth's crust. Logging tools can provide information on lithology, porosity, permeability,
and hydrocarbon content, aiding in reservoir characterization and well placement decisions.
e. Seismic Reservoir Monitoring: After oil extraction begins, seismic surveys may be conducted
periodically to monitor reservoir behavior, fluid movement, and production performance. Time-lapse
seismic techniques help optimize reservoir management and maximize hydrocarbon recovery.

c) Estimate the depth of exploration for an embankment as shown in the figure.

Qno 6a Prepare a flowchart for the phases and sizes of a civil engineering project. Also provide the
geotechnical involvement and benefit in each phase of the project. What key information is to be
gathered in each phase of the project.

Preliminary Phase

Design Phase

Construction Phase:

Post-Construction Phase:
1. Preliminary Phase:

 Size: Conceptual or Feasibility Studies

 Geotechnical Involvement: Preliminary site investigation to assess general soil conditions

and geologic hazards.

 Benefits: Early identification of potential geotechnical challenges.

 Key Information:

General soil composition.

Identification of potential geological hazards (e.g., landslides, seismicity).

Preliminary assessment of groundwater conditions.

2. Design Phase:

 Size: Preliminary and Detailed Design

 Geotechnical Involvement:

Detailed site investigation including soil testing and laboratory analysis.

Geotechnical engineering analysis for foundation design, slope stability, and earthworks.

 Benefits:

Optimal foundation design based on site-specific soil properties.

Mitigation of geotechnical risks through proper slope stabilization measures.

 Key Information:

Soil properties (e.g., strength, permeability).

Groundwater table depth and fluctuations.

Seismic parameters.

Slope stability analysis results.

3. Construction Phase:

 Size: Construction Execution

 Geotechnical Involvement:

Construction monitoring for compliance with geotechnical specifications.

Quality control of earthwork activities.

Inspection of foundation elements during installation.

  Benefits:

Assurance of proper implementation of geotechnical design recommendations.

Early detection and mitigation of construction-related geotechnical issues.

 Key Information:

Soil compaction test results.

Foundation installation records.

Monitoring data for retaining structures and slopes.

4. Post-Construction Phase:

 Size: As-Built Documentation and Monitoring

 Geotechnical Involvement:

Post-construction site inspection for performance evaluation.

Long-term monitoring of geotechnical structures (e.g., retaining walls, embankments).

 Benefits:

Assessment of the effectiveness of geotechnical design and construction practices.

Identification of any post-construction settlement or stability issues.

 Key Information:

Settlement monitoring data.

Performance assessment of geotechnical structures.

Any observed changes in soil conditions over time.

Qno6B) Site is consisted of a coastal belt existing in seismically active zone. The SPT blow counts are
averaged around 10. The soil exhumed is mainly consisted of loose silty sand. The groundwater table
is elevated. Frame your findings and recommendations for the site survey conducted. The
recommendations for foundation type, bearing capacity, limiting settlement etc. for a ground plus
two story would be based upon the site survey, pictures, information gathered at the site and
laboratory testing of the samples collected from the site.

Based on the site survey conducted at the coastal belt in a seismically active zone, with an average SPT
(Standard Penetration Test) blow count of around 10 and the predominant soil being loose silty sand
with an elevated groundwater table, the following findings and recommendations can be framed:
Findings:

1. Soil Composition and Groundwater Table:

 The soil is described as loose silty sand, indicating relatively poor cohesion and potential
for settlement.

 The elevated groundwater table suggests the presence of saturated or partially

saturated soil conditions, which can affect soil stability and bearing capacity.

2. SPT Blow Counts:

 The average SPT blow count of 10 indicates moderately dense to dense soil, which
offers some resistance to loads but may still experience significant settlement.

3. Seismic Activity:

 Being in a seismically active zone, the site's geotechnical design should consider seismic
forces and potential liquefaction risks. Loose sandy soils are particularly susceptible to
liquefaction during seismic events.

4. Site Survey and Laboratory Testing:

 Conducting thorough site surveys, including geophysical surveys and laboratory testing
of soil samples, is essential to understand site-specific conditions and properties
accurately.

 Laboratory tests should include standard tests like Atterberg limits, grain size analysis,
and consolidation tests to determine soil characteristics such as moisture content,
plasticity, permeability, and compressibility.

Recommendations:

a. Foundation Type:

 Considering the loose silty sand and potential for settlement, a deep foundation system
such as driven piles or drilled shafts would be more suitable to transfer loads to deeper,
more competent soil or rock layers.

 Pile foundations would provide better resistance against settlement and lateral loads,
particularly in seismic zones.

b. Bearing Capacity:

 Given the moderately dense to dense soil indicated by the SPT blow counts, the bearing
capacity of the soil is likely sufficient for the proposed structure.

 However, dynamic analysis considering seismic forces should be conducted to ensure

the foundation's adequacy under both static and dynamic loading conditions.
c. Limiting Settlement:

 To mitigate potential settlement issues, measures such as preloading and surcharging

the soil or using ground improvement techniques like vibro-compaction or deep soil
mixing may be employed.

 Settlement monitoring during and after construction is crucial to ensure that

settlements remain within acceptable limits, especially for a multi-story structure.

d. Liquefaction Mitigation:

 To address liquefaction risks, ground improvement techniques like densification or the

installation of ground reinforcement elements such as stone columns or geosynthetic
materials may be necessary.

 Additionally, proper drainage systems should be designed to manage groundwater

levels and prevent buildup of pore pressures during seismic events.

e. Structural Design Considerations:

 The structural design should incorporate seismic-resistant features, such as flexible and
ductile framing systems, appropriate lateral bracing, and detailing to accommodate
potential soil movements.

 Collaboration between geotechnical and structural engineers is essential to ensure the

compatibility of foundation and superstructure designs.
