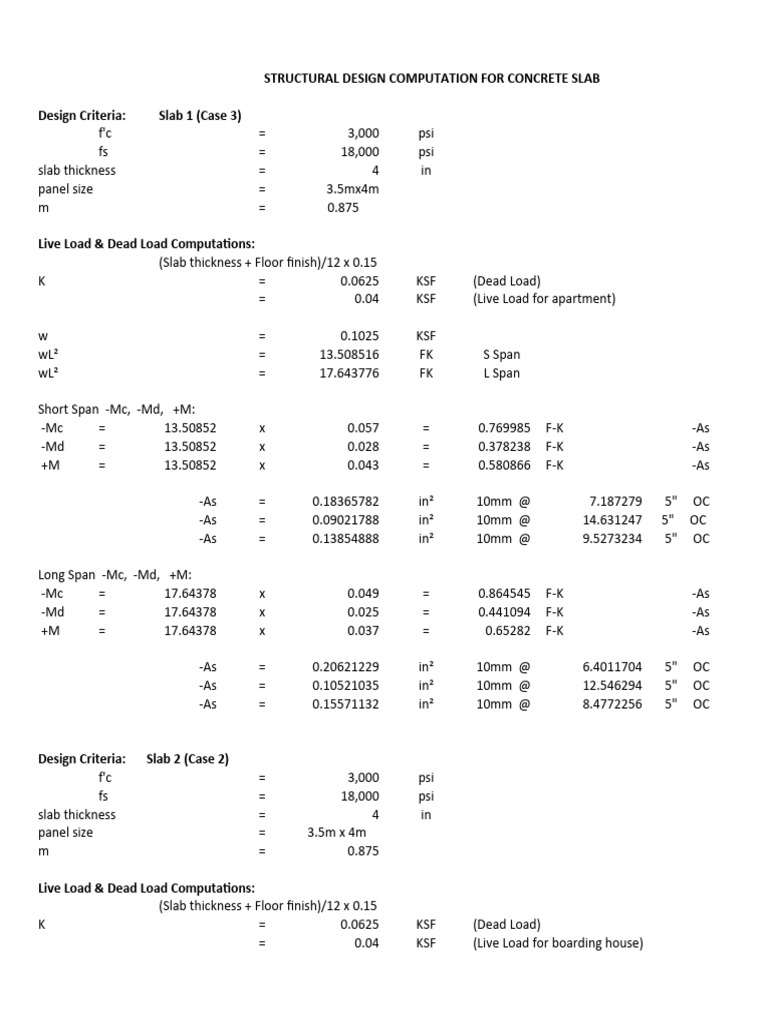

STRUCTURAL DESIGN COMPUTATION FOR CONCRETE SLAB

Design Criteria: Slab 1 (Case 3)

f'c = 3,000 psi
fs = 18,000 psi
slab thickness = 4 in
panel size = 3.5mx4m
m = 0.875

Live Load & Dead Load Computations:

(Slab thickness + Floor finish)/12 x 0.15
K = 0.0625 KSF (Dead Load)
= 0.04 KSF (Live Load for apartment)

w = 0.1025 KSF
wL² = 13.508516 FK S Span
wL² = 17.643776 FK L Span

Short Span -Mc, -Md, +M:

-Mc = 13.50852 x 0.057 = 0.769985 F-K -As
-Md = 13.50852 x 0.028 = 0.378238 F-K -As
+M = 13.50852 x 0.043 = 0.580866 F-K -As

-As = 0.18365782 in² 10mm @ 7.187279 5" OC

-As = 0.09021788 in² 10mm @ 14.631247 5" OC
-As = 0.13854888 in² 10mm @ 9.5273234 5" OC

Long Span -Mc, -Md, +M:

-Mc = 17.64378 x 0.049 = 0.864545 F-K -As
-Md = 17.64378 x 0.025 = 0.441094 F-K -As
+M = 17.64378 x 0.037 = 0.65282 F-K -As

-As = 0.20621229 in² 10mm @ 6.4011704 5" OC

-As = 0.10521035 in² 10mm @ 12.546294 5" OC
-As = 0.15571132 in² 10mm @ 8.4772256 5" OC

Design Criteria: Slab 2 (Case 2)

f'c = 3,000 psi
fs = 18,000 psi
slab thickness = 4 in
panel size = 3.5m x 4m
m = 0.875

Live Load & Dead Load Computations:

(Slab thickness + Floor finish)/12 x 0.15
K = 0.0625 KSF (Dead Load)
= 0.04 KSF (Live Load for boarding house)
w = 0.1025 KSF
wL² = 13.508516 FK S Span
wL² = 17.643776 FK L Span

Short Span -Mc, -Md, +M:

-Mc = 13.50852 x 0.048 = 0.648409 F-K -As
-Md = 13.50852 x 0.024 = 0.324204 F-K -As
+M = 13.50852 x 0.036 = 0.486307 F-K -As

-As = 0.1547515 in² 10mm @ 5.9 5" OC

-As = 0.07737575 in² 10mm @ 17.059609 5" OC
-As = 0.11606362 in² 10mm @ 11.373073 5" OC

Long Span -Mc, -Md, +M:

-Mc = 17.64378 x 0.041 = 0.723395 F-K -As
-Md = 17.64378 x 0.021 = 0.370519 F-K -As
+M = 17.64378 x 0.031 = 0.546957 F-K -As

-As = 0.17264793 in² 10mm @ 5.9 5" OC

-As = 0.08842943 in² 10mm @ 14.927158 5" OC
-As = 0.13053868 in² 10mm @ 10.111946 5" OC

Design Criteria: Slab 3 (Case 2)

f'c = 3,000 psi
fs = 18,000 psi
slab thickness = 4 in
panel size = 2.5m x 4m
m = 1

Live Load & Dead Load Computations:

(Slab thickness + Floor finish)/12 x 0.15
K = 0.0625 KSF (Dead Load)
= 0.04 KSF (Live Load for boarding house)

w = 0.1025 KSF
wL² = 13.508516 FK S Span
wL² = 13.508516 FK L Span

Short Span -Mc, -Md, +M:

-Mc = 13.50852 x 0.041 = 0.553849 F-K -As
-Md = 13.50852 x 0.021 = 0.283679 F-K -As
+M = 13.50852 x 0.031 = 0.418764 F-K -As

-As = 0.13218357 in² 10mm @ 4.9 4.5" OC

-As = 0.06770378 in² 10mm @ 19.496696 5" OC
 -As = 0.09994367 in² 10mm @ 13.207439 5" OC

Long Span -Mc, -Md, +M:

-Mc = 13.50852 x 0.041 = 0.553849 F-K -As
-Md = 13.50852 x 0.021 = 0.283679 F-K -As
+M = 13.50852 x 0.031 = 0.418764 F-K -As

-As = 0.13218357 in² 10mm @ 4.9 4.5" OC

-As = 0.06770378 in² 10mm @ 19.496696 5" OC
-As = 0.09994367 in² 10mm @ 13.207439 5" OC

STRUCTURAL DESIGN COMPUTATION FOR CONCRETE FLOOR BEAMS

Beam B-1
Beam Span: = 11.9

Moment - = 8586.87 FT-P (See Bent 1 Computation)

(Moment -)x.3 = 2576.061 FT-P Earthquake Load
Load + EL 11162.931 FT-P

Total - Moment = 11.162931 FT-K

f'c = 3,000 psi

fy = 33,000 psi
p min = 200/fy = 200/33000
= 0.006
As = 0.93 in² 3 - 16mm rebars
b = 8 in
d = 11 in
t = 14 in
p = As/bd = 0.01056818 > p min OK
β = 0.85
p max = .75x (.85f'cβ/fy) x (87000/(87000+fy))

= 0.03571449 >p OK

C=T
.85f'cab = Asfy
a = Asfy/ .85f'cb = 1.50441176
a/2 = 0.75220588

Mu = ØT(d-a/2) = .9x.93x33000x(11 -.752)

= 283054.321 in-P
 = 23.5878601 FT-K >Moment OK

Moment + 15,265.55 Ft-P

(Moment +)x.3 = 4,579.67 Ft-P Earthquake Load
Total + Moment = 19.85 F-K

f'c = 3,000 psi

fy = 33,000 psi
p min = 200/fy = 200/33000
= 0.006
As = 0.93 in² 3 - 16mm rebars
b = 8 in
d = 11 in
t = 14
p = As/bd = 0.01056818 > p min OK
β = 0.85
p max = .75x (.85f'cβ/fy) x (87000/(87000+fy))

= 0.03571449 >p OK

C=T
.85f'cab = Asfy
a = Asfy/ .85f'cb = 1.50441176
a/2 = 0.75220588

Mu = ØT(d-a/2) = .9x.93x33000x(11-.752)
= 283054.321 in-P
= 23.5878601 FT-K >Moment OK

Beam B-2
Beam Span: = 11.90

Moment - = 12,653.55 FT-P (See Bent 2 Computation)

(Moment -)x.3 = 3,796.06 FT-P Earthquake Load
Load + EL 16,449.61 FT-P

Total - Moment = 16.449615 FT-K

f'c = 3,000 psi

fy = 33,000 psi
p min = 200/fy = 200/33000
= 0.006
As = 0.93 in² 3 - 16mm rebars
b = 8 in
d = 11 in
t = 14 in
p = As/bd = 0.01056818 > p min OK
β = 0.85
p max = .75x (.85f'cβ/fy) x (87000/(87000+fy))

= 0.03571449 >p OK

C=T
.85f'cab = Asfy
a = Asfy/ .85f'cb = 1.50441176
a/2 = 0.75220588

Mu = ØT(d-a/2) = .9x.93x33000x(11 -.752)

= 283054.321 in-P
= 23.5878601 FT-K >Moment OK

Moment + 22,495.20 Ft-P

(Moment +)x.3 = 6,748.56 Ft-P Earthquake Load
Total + Moment = 29.24 Ft-K

f'c = 3,000 psi

fy = 33,000 psi
p min = 200/fy = 200/33000
= 0.006
As = 1.19 in² 2 - 20mm, 1 - 16mm rebars
b = 8 in
d = 11 in
t = 14
p = As/bd = 0.01352273 > p min OK
β = 0.85
p max = .75x (.85f'cβ/fy) x (87000/(87000+fy))

= 0.03571449 >p OK

C=T
.85f'cab = Asfy
a = Asfy/ .85f'cb = 1.925
a/2 = 0.9625

Mu = ØT(d-a/2) = .9x1.19x33000x(11-.962)
= 354755.363 in-P
= 29.5629469 FT-K >Moment OK

Beam B-3
Beam Span: = 11.90

Moment - = 12,315.50 FT-P (See Bent 3 Computation)

(Moment -)x.3 = 3,694.65 FT-P Earthquake Load
Load + EL 16,010.15 FT-P
Total - Moment = 16.01015 FT-K

f'c = 3,000 psi

fy = 33,000 psi
p min = 200/fy = 200/33000
= 0.006
As = 0.93 in² 3 - 16mm rebars
b = 8 in
d = 11 in
t = 14 in
p = As/bd = 0.01056818 > p min OK
β = 0.85
p max = .75x (.85f'cβ/fy) x (87000/(87000+fy))

= 0.03571449 >p OK

C=T
.85f'cab = Asfy
a = Asfy/ .85f'cb = 1.50441176
a/2 = 0.75220588

Mu = ØT(d-a/2) = .9x.93x33000x(11 -.752)

= 283054.321 in-P
= 23.5878601 FT-K >Moment OK

Moment + 21,894.23 Ft-P

(Moment +)x.3 = 6,568.27 Ft-P Earthquake Load
Total + Moment = 28.46 Ft-K

f'c = 3,000 psi

fy = 33,000 psi
p min = 200/fy = 200/33000
= 0.006
As = 1.19 in² 2 - 20mm, 1 - 16mm rebars
b = 8 in
d = 11 in
t = 14
p = As/bd = 0.01352273 > p min OK
β = 0.85
p max = .75x (.85f'cβ/fy) x (87000/(87000+fy))

= 0.03571449 >p OK

C=T
.85f'cab = Asfy
a = Asfy/ .85f'cb = 1.925
a/2 = 0.9625
Mu = ØT(d-a/2) = .9x1.19x33000x(11-.962)
= 354755.363 in-P
= 29.5629469 FT-K >Moment OK

Beam B-4
Beam Span: = 11.90

Moment - = 8,248.82 FT-P (See Bent 4 Computation)

(Moment -)x.3 = 2,474.65 FT-P Earthquake Load
Load + EL 10,723.47 FT-P

Total - Moment = 10.723466 FT-K

f'c = 3,000 psi

fy = 33,000 psi
p min = 200/fy = 200/33000
= 0.006
As = 0.93 in² 3 - 16mm rebars
b = 8 in
d = 11 in
t = 14 in
p = As/bd = 0.01056818 > p min OK
β = 0.85
p max = .75x (.85f'cβ/fy) x (87000/(87000+fy))

= 0.03571449 >p OK

C=T
.85f'cab = Asfy
a = Asfy/ .85f'cb = 1.50441176
a/2 = 0.75220588

Mu = ØT(d-a/2) = .9x.93x33000x(11 -.752)

= 283054.321 in-P
= 23.5878601 FT-K >Moment OK

Moment + 14,664.57 Ft-P

(Moment +)x.3 = 4,399.37 Ft-P Earthquake Load
Total + Moment = 19.06 Ft-K

f'c = 3,000 psi

fy = 33,000 psi
p min = 200/fy = 200/33000
= 0.006
As = 0.93 in² 3 - 16mm rebars
b = 8 in
d = 11 in
t = 14
p = As/bd = 0.01056818 > p min OK
β = 0.85
p max = .75x (.85f'cβ/fy) x (87000/(87000+fy))

= 0.03571449 >p OK

C=T
.85f'cab = Asfy
a = Asfy/ .85f'cb = 1.50441176
a/2 = 0.75220588

Mu = ØT(d-a/2) = .9x.93x33000x(11-.752)
= 283054.321 in-P
= 23.5878601 FT-K >Moment OK

Beam B-5
Beam Span: = 11.90

Moment - = 7,605.88 FT-P (See Bent 5 Computation)

(Moment -)x.3 = 2,281.76 FT-P Earthquake Load
Load + EL 9,887.64 FT-P

Total - Moment = 9.887644 FT-K

f'c = 3,000 psi

fy = 33,000 psi
p min = 200/fy = 200/33000
= 0.006
As = 0.93 in² 3 - 16mm rebars
b = 8 in
d = 11 in
t = 14 in
p = As/bd = 0.01056818 > p min OK
β = 0.85
p max = .75x (.85f'cβ/fy) x (87000/(87000+fy))

= 0.03571449 >p OK

C=T
.85f'cab = Asfy
a = Asfy/ .85f'cb = 1.50441176
a/2 = 0.75220588

Mu = ØT(d-a/2) = .9x.93x33000x(11 -.752)

= 283054.321 in-P
= 23.5878601 FT-K >Moment OK
Moment + 13,521.57 Ft-P
(Moment +)x.3 = 4,056.47 Ft-P Earthquake Load
Total + Moment = 17.58 Ft-K

f'c = 3,000 psi

fy = 33,000 psi
p min = 200/fy = 200/33000
= 0.006
As = 0.93 in² 3 - 16mm rebars
b = 8 in
d = 9 in
t = 12
p = As/bd = 0.01291667 > p min OK
β = 0.85
p max = .75x (.85f'cβ/fy) x (87000/(87000+fy))

= 0.03571449 >p OK

C=T
.85f'cab = Asfy
a = Asfy/ .85f'cb = 1.50441176
a/2 = 0.75220588

Mu = ØT(d-a/2) = .9x.93x33000x(9-.752)
= 227812.321 in-P
= 18.9843601 FT-K >Moment OK

Beam B-6
Beam Span: = 11.90

Moment - = 11,430.12 FT-P (See Bent 6 Computation)

(Moment -)x.3 = 3,429.04 FT-P Earthquake Load
Load + EL 14,859.16 FT-P

Total - Moment = 14.859156 FT-K

f'c = 3,000 psi

fy = 33,000 psi
p min = 200/fy = 200/33000
= 0.006
As = 0.93 in² 3 - 16mm rebars
b = 8 in
d = 11 in
t = 14 in
p = As/bd = 0.01056818 > p min OK
β = 0.85
p max = .75x (.85f'cβ/fy) x (87000/(87000+fy))

= 0.03571449 >p OK

C=T
.85f'cab = Asfy
a = Asfy/ .85f'cb = 1.50441176
a/2 = 0.75220588

Mu = ØT(d-a/2) = .9x.93x33000x(11 -.752)

= 283054.321 in-P
= 23.5878601 FT-K >Moment OK

Moment + 20,320.21 Ft-P

(Moment +)x.3 = 6,096.06 Ft-P Earthquake Load
Total + Moment = 26.42 Ft-K

f'c = 3,000 psi

fy = 33,000 psi
p min = 200/fy = 200/33000
= 0.006
As = 1.19 in² 2 - 20mm, 1 - 16mm rebars
b = 8 in
d = 11 in
t = 14
p = As/bd = 0.01352273 > p min OK
β = 0.85
p max = .75x (.85f'cβ/fy) x (87000/(87000+fy))

= 0.03571449 >p OK

C=T
.85f'cab = Asfy
a = Asfy/ .85f'cb = 1.925
a/2 = 0.9625

Mu = ØT(d-a/2) = .9x1.19x33000x(11-.962)
= 354755.363 in-P
= 29.5629469 FT-K >Moment OK

Beam B-7
Beam Span: = 11.90

Moment - = 12,616.81 FT-P (See Bent 7 Computation)

(Moment -)x.3 = 3,785.04 FT-P Earthquake Load
Load + EL 16,401.85 FT-P
Total - Moment = 16.401853 FT-K

f'c = 3,000 psi

fy = 33,000 psi
p min = 200/fy = 200/33000
= 0.006
As = 0.93 in² 3 - 16mm rebars
b = 8 in
d = 11 in
t = 14 in
p = As/bd = 0.01056818 > p min OK
β = 0.85
p max = .75x (.85f'cβ/fy) x (87000/(87000+fy))

= 0.03571449 >p OK

C=T
.85f'cab = Asfy
a = Asfy/ .85f'cb = 1.50441176
a/2 = 0.75220588

Mu = ØT(d-a/2) = .9x.93x33000x(11 -.752)

= 283054.321 in-P
= 23.5878601 FT-K >Moment OK

Moment + 22,429.89 Ft-P

(Moment +)x.3 = 6,728.97 Ft-P Earthquake Load
Total + Moment = 29.16 Ft-K

f'c = 3,000 psi

fy = 33,000 psi
p min = 200/fy = 200/33000
= 0.006
As = 1.19 in² 2 - 20mm, 1 - 16mm rebars
b = 8 in
d = 11 in
t = 14
p = As/bd = 0.01352273 > p min OK
β = 0.85
p max = .75x (.85f'cβ/fy) x (87000/(87000+fy))

= 0.03571449 >p OK

C=T
.85f'cab = Asfy
a = Asfy/ .85f'cb = 1.925
a/2 = 0.9625
Mu = ØT(d-a/2) = .9x1.19x33000x(11-.962)
= 354755.363 in-P
= 29.5629469 FT-K >Moment OK

Beam B-8
Beam Span: = 11.9

Moment - = 8792.58 FT-P (See Bent 8 Computation)

(Moment -)x.3 = 2637.774 FT-P Earthquake Load
Load + EL 11430.354 FT-P

Total - Moment = 11.430354 FT-K

f'c = 3,000 psi

fy = 33,000 psi
p min = 200/fy = 200/33000
= 0.006
As = 0.93 in² 3 - 16mm rebars
b = 8 in
d = 11 in
t = 14 in
p = As/bd = 0.01056818 > p min OK
β = 0.85
p max = .75x (.85f'cβ/fy) x (87000/(87000+fy))

= 0.03571449 >p OK

C=T
.85f'cab = Asfy
a = Asfy/ .85f'cb = 1.50441176
a/2 = 0.75220588

Mu = ØT(d-a/2) = .9x.93x33000x(11 -.752)

= 283054.321 in-P
= 23.5878601 FT-K >Moment OK

Moment + 15,631.26 Ft-P

(Moment +)x.3 = 4,689.38 Ft-P Earthquake Load
Total + Moment = 20.32 Ft-K

f'c = 3,000 psi

fy = 33,000 psi
p min = 200/fy = 200/33000
= 0.006
As = 0.93 in² 3 - 16mm rebars
b = 8 in
d = 11 in
t = 14
p = As/bd = 0.01056818 > p min OK
β = 0.85
p max = .75x (.85f'cβ/fy) x (87000/(87000+fy))

= 0.03571449 >p OK

C=T
.85f'cab = Asfy
a = Asfy/ .85f'cb = 1.50441176
a/2 = 0.75220588

Mu = ØT(d-a/2) = .9x.93x33000x(11-.752)
= 283054.321 in-P
= 23.5878601 FT-K >Moment OK
 STRUCTURAL DESIGN

Name of Project: Propose 3-Storey Building (Progressive)

Location : Datu Tangkilan, Sindangan, Zamboanga del Norte
Owner : Mrs. Cudillo

Design Assumption:

Concrete:
Beams/columns/Slabs Min. Conc. Strength @28 days, f'c = 3000 psi
Footings Min. Conc. Strength @28 days, f'c = 3000 psi

Steel:
Beams/Columns/Slabs Min. Yield Strength, fy = 33,000 psi
Footings Min. Yield Strength, fy = 33,000 psi
Ties/Stirrups Min. Yield Strength, fy = 33,000 psi

Steel Members:
Angular Steel ASTM A-36, Fy = 248 Mpa

Soil Bearing:
Assumed Soil Bearing Capacity 2500 psi
( No footing Shall rest on fill)

Designed by:

Enrg'r.
Civil Engineer
Approved by:

Mrs. Cudillo
Owner
 S Span L Span
3.5 4

4 1

= 0.183658 in² 4.1925 value of 1.29 x t

= 0.090218 in² where t thickness of slab - .75
= 0.138549 in²

0.11 10 mm rebars

= 0.206212 in² 4.1925 value of 1.29 x t

= 0.10521 in² where t thickness of slab - .75
= 0.155711 in²

0.11 10 mm rebars

S Span L Span
3.5 4

4 1
= 0.154751 in² 4.19 value of 1.29 x t
= 0.077376 in² where t thickness of slab - .75
= 0.116064 in²

0.11 10 mm rebars

= 0.172648 in² 4.19 value of 1.29 x t

= 0.088429 in² where t thickness of slab - .75
= 0.130539 in²

0.11 10 mm rebars

S Span L Span
3.5 3.5

4 1

= 0.132184 in² 4.19 value of 1.29 x t

= 0.067704 in² where t thickness of slab - .75
= 0.099944 in²

0.11 10 mm rebars
= 0.132184 in² 4.19 value of 1.29x t
= 0.067704 in² where t thickness of slab - .75
= 0.099944 in²

0.11 10 mm rebars

8 14
b t
20mm 40mm
 8 14
b t
20mm 40mm

8 14
b t
20mm 40mm
 8 14
b t
20mm 40mm
 8 14
b t
20mm 40mm

8 14
b t
20mm 40mm
 8 14
b t
20mm 40mm

8 14
 b t
20mm 40mm

8 14
b t
20mm 40mm
 8 12
b t
20mm 40mm

8 14
b t
20mm 40mm
 8 14
b t
20mm 40mm
 8 14
b t
20mm 40mm

8 14
b t
20mm 40mm
 8 14
b t
20mm 40mm

8 14
b t
20mm 40mm
 STRUCTURAL DESIGN COMPUTATION FOR CONCRETE COLUMNS

COLUMN 1 Ground Floor

COMPUTATION OF WEIGHT OF COLUMN (14" X 14")
Total Weight: ( 14 x 14 ) / 144 x 150 x 35.75

Column Load from Bent 2 and 7

TOTAL COLUMN LOADS =

increase due to EL

Design of C1 grd Floor

Pu = 141,246.00 P
Long Direction:
Mcol (From Bent - 2) = 3.03 FK
Short Direction:
Mcol (From Bent - 7) = 2.83 FK

Design of Column 1 Grd Flr Subject to Axial Load only:

f'c = 3000 psi
fy = 33000 psi
K = 0.5
H = height of column = 11.5 ft
Pu = 141,246.00 P

Po Pu/0.7 = 201,780.00
pq ass (range) .01 to .08 only

Ag actual 14 14 = 196 in²

As actual = 2.48 in²

pq actual As actual/Ag actual = 0.01265 >.01<.08 OK

e 0.1x width of column = 1.4 > 1 OK

r .3x width of column = 4.2
KL/r KxHx12/r = 16.4286
KL/r allow = 22 > KL/r OK

checking:

Pa .7xAg actualx(.85xf'cx(1-pq act)+fyxpq act)

= 402,721.20 > Pu OK
Design of C1 Grd Flr subject to Axial and Mx:
f'c = 3000 psi
fy = 33000 psi
Pu = 141,246.00 P
Mu = 36,381.24 in-P
e Mu/Pu = 0.26 in

Ag = 196 in²
As = 1.86 in²

Cb 87000x(b-2.5)/(87000+fy) = 8.3375
a .85xCb = 7.086875
C1 .85xf'c x a x b = 253001.4375
b = 14 in

C2 As/2xfy = 30690
T1 C2 = 30690
Pbx C1 = 253001.4375

eb (C1(b-2.5-a/2)+C2(b-5))/Pbx-(b/2-2.5) 4.548 >e Comp. Control

Po .7x(.85xf'cx(Ag-As)+Asxfy) 389505.9
Pb .7xPbx = 177101.006
Mb Pbxeb = 805507.697
Pumax PoxMb/(Mb+Poxe-Pbxe) 364,733.30 > Pu OK

Design Of C1 Grd Flr subject to Axial and My:

f'c = 3000 psi
fy = 33000 psi
Pu = 141,246.00 P
Mu = 33,996.48 in-P
e Mu/Pu = 0.24 in

Ag = 196 in²
As = 1.86 in²

Cb = 8.3375
a = 7.086875
C1 = 253001.4375
C2 = 30690
T1 C2 = 30690
Pby C1 = 253001.4375
eb = 4.55 >e Comp. Control
Po = 389505.9
Pb = 177101.006
Mb = 805507.697
Pumax PoxMb/(Mb+Poxe-Pbxe) 366,260.21 > Pu OK
1/Pu = 1/Pux + 1/Puy - 1/Pa
1/Pu = 1/364733+ 1/366260 - 1/402721 0.0000030

Pu = 334,568.87 Pounds

COLUMN 1 2nd Floor

COMPUTATION OF WEIGHT OF COLUMN (14" X 14")
Total Weight: ( 14 x 14 ) / 144 x 150 x 21

Column Load from Bent 2 and 7

TOTAL COLUMN LOADS =

increase due to EL

Design of C1 2nd Floor

Pu = 90,764.44 P
Long Direction:
Mcol (From Bent - 2) = 3.03 FK
Short Direction:
Mcol (From Bent - 7) = 2.83 FK

Design of Column 1 2nd Flr Subject to Axial Load only:

f'c = 3000 psi
fy = 33000 psi
K = 0.5
H = height of column = 11.5 ft
Pu = 90,764.44 P

Po Pu/0.7 = 129,663.49
pq ass (range) .01 to .08 only

Ag actual 14 14 = 196 in²

As actual = 2.48 in²

pq actual As actual/Ag actual = 0.01265 >.01<.08 OK

e 0.1x width of column = 1.4 > 1 OK

r .3x width of column = 4.2
KL/r KxHx12/r = 16.4286
KL/r allow = 22 > KL/r OK

checking:

Pa .7xAg actualx(.85xf'cx(1-pq act)+fyxpq act) = 402,721.20 > Pu OK

Design of C1 2nd Flr subject to Axial and Mx:
f'c = 3000 psi
fy = 33000 psi
Pu = 90,764.44 P
Mu = 36,381.24 in-P
e Mu/Pu = 0.40 in

Ag = 196 in²
As = 1.86 in²

Cb 87000x(b-2.5)/(87000+fy) = 8.3375
a .85xCb = 7.086875
C1 .85xf'c x a x b = 253001.4375
b = 14 in

C2 As/2xfy = 30690
T1 C2 = 30690
Pbx C1 = 253001.4375

eb (C1(b-2.5-a/2)+C2(b-5))/Pbx-(b/2-2.5) 4.548 >e Comp. Control

Po .7x(.85xf'cx(Ag-As)+Asxfy) 389505.9
Pb .7xPbx = 177101.006
Mb Pbxeb = 805507.697
Pumax PoxMb/(Mb+Poxe-Pbxe) 352,272.30 > Pu OK

Design Of C1 2nd Flr subject to Axial and My:

f'c = 3000 psi
fy = 33000 psi
Pu = 90,764.44 P
Mu Mu/Pu = 33,996.48 in-P
e = 0.37 in

Ag = 196 in²
As = 1.86 in²

Cb = 8.3375
a = 7.086875
C1 = 253001.4375
C2 = 30690
T1 C2 = 30690
Pby C1 = 253001.4375
eb = 4.55 >e Comp. Control
Po = 389505.9
Pb = 177101.006
Mb = 805507.697
Pumax PoxMb/(Mb+Poxe-Pbxe) 354,493.54 > Pu OK
1/Pu = 1/Pux + 1/Puy - 1/Pa
1/Pu = 1/352272+ 1/354493 - 1/402721 0.0000032

Pu = 314,808.77 Pounds

COLUMN 1 3rd Floor

COMPUTATION OF WEIGHT OF COLUMN (12" X 12")
Total Weight: ( 12 x 12 ) / 144 x 150 x 10.5

Column Load from Bent 2 and 7

TOTAL COLUMN LOADS =

increase due to EL

Design of C1 3rd Floor

Pu = 40,828.87 P
Long Direction:
Mcol (From Bent - 2) = 5.57 FK
Short Direction:
Mcol (From Bent - 7) = 5.17 FK

Design of Column 1 3rd Flr Subject to Axial Load only:

f'c = 3000 psi
fy = 33000 psi
K = 0.5
H = height of column = 10.5 ft
Pu = 40,828.87 P

Po Pu/0.7 = 58,326.95
pq ass (range) .01 to .08 only

Ag actual 12 12 = 144 in²

As actual = 2.48 in²

pq actual As actual/Ag actual = 0.01722 >.01<.08 OK

e 0.1x width of column = 1.2 > 1 OK

r .3x width of column = 3.6
KL/r KxHx12/r = 17.5000
KL/r allow = 22 > KL/r OK

checking:

Pa .7xAg actualx(.85xf'cx(1-pq act)+fyxpq act) = 309,901.20 > Pu OK

Design of C1 3rd Flr subject to Axial and Mx:
f'c = 3000 psi
fy = 33000 psi
Pu = 40,828.87 P
Mu Mu/Pu = 66,786.36 in-P
e = 1.64 in

Ag = 144 in²
As = 2.48 in²

Cb 87000x(b-2.5)/(87000+fy) = 6.8875
a .85xCb = 5.854375
C1 .85xf'c x a x b = 179143.875
b = 12 in

C2 As/2xfy = 40920
T1 C2 = 40920
Pbx C1 = 179143.875

eb (C1(b-2.5-a/2)+C2(b-5))/Pbx-(b/2-2.5) 4.672 >e Comp. Control

Po .7x(.85xf'cx(Ag-As)+Asxfy) 309901.2
Pb .7xPbx = 125400.713
Mb Pbxeb = 585840.877
Pumax PoxMb/(Mb+Poxe-Pbxe) 204,534.26 > Pu OK

Design Of C1 3rd Flr subject to Axial and My:

f'c = 3000 psi
fy = 33000 psi
Pu = 40,828.87 P
Mu Mu/Pu = 62,016.72 in-P
e = 1.52 in

Ag = 144 in²
As = 2.48 in²

Cb = 6.8875
a = 5.854375
C1 = 179143.875
C2 = 40920
T1 C2 = 40920
Pby C1 = 179143.875
eb = 4.67 >e Comp. Control
Po = 309901.2
Pb = 125400.713
Mb = 585840.877
Pumax PoxMb/(Mb+Poxe-Pbxe) 209,624.29 > Pu OK
1/Pu = 1/Pux + 1/Puy - 1/Pa
1/Pu = 1/204534+ 1/209624 - 1/309901 0.0000064

Pu = 155,454.24 Pounds

Design of C2 grd Floor

COMPUTATION OF WEIGHT OF COLUMN (14" X 14")
Total Weight: ( 14 x 14 ) / 144 x 150 x 35.75

Column Load from Bent 1 and 7

TOTAL COLUMN LOADS =

increase due to EL

Pu = 90,133.64 P
Long Direction:
Mcol (From Bent - 1) = 1.80 FK
Short Direction:
Mcol (From Bent - 7) = 6.31 FK

Design of Column 2 Grd Flr Subject to Axial Load only:

f'c = 3000 psi
fy = 33000 psi
K = 0.5
H = height of column = 11.5 ft
Pu = 90,133.64 P

Po Pu/0.7 = 128,762.34
pq ass (range) .01 to .08 only

Ag actual 14 14 = 196 in²

As actual = 2.48 in²

pq actual As actual/Ag actual = 0.01265 >.01<.08 OK

e 0.1x width of column = 1.4 > 1 OK

r .3x width of column = 4.2
KL/r KxHx12/r = 16.4286
KL/r allow = 22 > KL/r OK

checking:

Pa .7xAg actualx(.85xf'cx(1-pq act)+fyxpq act) = 402,721.20 > Pu OK

Design of C2 Grd Flr subject to Axial and Mx:

f'c = 3000 psi
fy = 33000 psi
Pu = 90,133.64 P
Mu Mu/Pu = 21,631.44 in-P
e = 0.24 in

Ag = 196 in²
As = 1.86 in²

Cb 87000x(b-2.5)/(87000+fy) = 8.3375
a .85xCb = 7.086875
C1 .85xf'c x a x b = 253001.4375
b = 14 in

C2 As/2xfy = 30690
T1 C2 = 30690
Pbx C1 = 253001.4375

eb (C1(b-2.5-a/2)+C2(b-5))/Pbx-(b/2-2.5) 4.548 >e Comp. Control

Po .7x(.85xf'cx(Ag-As)+Asxfy) 389505.9
Pb .7xPbx = 177101.006
Mb Pbxeb = 805507.697
Pumax PoxMb/(Mb+Poxe-Pbxe) 366,323.51 > Pu OK

Design Of C2 Grd Flr subject to Axial and My:

f'c = 3000 psi
fy = 33000 psi
Pu = 90,133.64 P
Mu Mu/Pu = 75,700.92 in-P
e = 0.84 in

Ag = 196 in²
As = 1.86 in²

Cb = 8.3375
a = 7.086875
C1 = 253001.4375
C2 = 30690
T1 C2 = 30690
Pby C1 = 253001.4375
eb = 4.55 >e Comp. Control
Po = 389505.9
Pb = 177101.006
Mb = 805507.697
Pumax PoxMb/(Mb+Poxe-Pbxe) 318,883.68 > Pu OK

1/Pu = 1/Pux + 1/Puy - 1/Pa

1/Pu = 1/366323+ 1/318883 - 1/402721 0.0000034

Pu = 295,625.35 Pounds

COLUMN 2 2nd Floor

COMPUTATION OF WEIGHT OF COLUMN (14" X 14")
Total Weight: ( 14 x 14 ) / 144 x 150 x 21

Column Load from Bent 1 and 7

TOTAL COLUMN LOADS =

increase due to EL

Design of C2 2nd Floor

Pu = 57,238.35 P
Long Direction:
Mcol (From Bent - 2) = 1.80 FK
Short Direction:
Mcol (From Bent - 7) = 6.31 FK

Design of Column 2 2nd Flr Subject to Axial Load only:

f'c = 3000 psi
fy = 33000 psi
K = 0.5
H = height of column = 11.5 ft
Pu = 57,238.35 P

Po Pu/0.7 = 81,769.07
pq ass (range) .01 to .08 only

Ag actual 14 14 = 196 in²

As actual = 2.48 in²

pq actual As actual/Ag actual = 0.01265 >.01<.08 OK

e 0.1x width of column = 1.4 > 1 OK

r .3x width of column = 4.2
KL/r KxHx12/r = 16.4286
KL/r allow = 22 > KL/r OK

checking:

Pa .7xAg actualx(.85xf'cx(1-pq act)+fyxpq act) = 402,721.20 > Pu OK

Design of C2 2nd Flr subject to Axial and Mx:

f'c = 3000 psi
fy = 33000 psi
Pu = 57,238.35 P
Mu Mu/Pu = 21,631.44 in-P
e = 0.38 in

Ag = 196 in²
As = 1.86 in²

Cb 87000x(b-2.5)/(87000+fy) = 8.3375
a .85xCb = 7.086875
C1 .85xf'c x a x b = 253001.4375
b = 14 in

C2 As/2xfy = 30690
T1 C2 = 30690
Pbx C1 = 253001.4375

eb (C1(b-2.5-a/2)+C2(b-5))/Pbx-(b/2-2.5) 4.548 >e Comp. Control

Po .7x(.85xf'cx(Ag-As)+Asxfy) 389505.9
Pb .7xPbx = 177101.006
Mb Pbxeb = 805507.697
Pumax PoxMb/(Mb+Poxe-Pbxe) 354,207.80 > Pu OK

Design Of C2 2nd Flr subject to Axial and My:

f'c = 3000 psi
fy = 33000 psi
Pu = 57,238.35 P
Mu Mu/Pu = 75,700.92 in-P
e = 1.32 in

Ag = 196 in²
As = 1.86 in²

Cb = 8.3375
a = 7.086875
C1 = 253001.4375
C2 = 30690
T1 C2 = 30690
Pby C1 = 253001.4375
eb = 4.55 >e Comp. Control
Po = 389505.9
Pb = 177101.006
Mb = 805507.697
Pumax PoxMb/(Mb+Poxe-Pbxe) 288,791.21 > Pu OK

1/Pu = 1/Pux + 1/Puy - 1/Pa

1/Pu = 1/354207+ 1/288791 - 1/402721 0.0000038

Pu = 262,963.90 Pounds

COLUMN 2 3rd Floor

COMPUTATION OF WEIGHT OF COLUMN (12" X 12")
Total Weight: ( 12 x 12 ) / 144 x 150 x 10.5

Column Load (from Bent 1 and 7)

TOTAL COLUMN LOADS =

increase due to EL

Design of C2 3rd Floor

Pu = 24,889.05 P
Long Direction:
Mcol (From Bent - 2) = 3.11 FK
Short Direction:
Mcol (From Bent - 7) = 10.65 FK

Design of Column 2 3rd Flr Subject to Axial Load only:

f'c = 3000 psi
fy = 33000 psi
K = 0.5
H = height of column = 10.5 ft
Pu = 24,889.05 P

Po Pu/0.7 = 35,555.78
pq ass (range) .01 to .08 only

Ag actual 12 12 = 144 in²

As actual = 2.48 in²

pq actual As actual/Ag actual = 0.01722 >.01<.08 OK

e 0.1x width of column = 1.2 > 1 OK

r .3x width of column = 3.6
KL/r KxHx12/r = 17.5000
KL/r allow = 22 > KL/r OK

checking:

Pa .7xAg actualx(.85xf'cx(1-pq act)+fyxpq act) = 309,901.20 > Pu OK

Design of C2 3rd Flr subject to Axial and Mx:

f'c = 3000 psi
fy = 33000 psi
Pu = 24,889.05 P
Mu Mu/Pu = 37,286.76 in-P
e = 1.50 in

Ag = 144 in²
As = 2.48 in²

Cb 87000x(b-2.5)/(87000+fy) = 6.8875
a .85xCb = 5.854375
C1 .85xf'c x a x b = 179143.875
b = 12 in

C2 As/2xfy = 40920
T1 C2 = 40920
Pbx C1 = 179143.875

eb (C1(b-2.5-a/2)+C2(b-5))/Pbx-(b/2-2.5) 4.672 >e Comp. Control

Po .7x(.85xf'cx(Ag-As)+Asxfy) 309901.2
Pb .7xPbx = 125400.713
Mb Pbxeb = 585840.877
Pumax PoxMb/(Mb+Poxe-Pbxe) 210,558.33 > Pu OK

Design Of C2 3rd Flr subject to Axial and My:

f'c 3,000.00 psi

fy 33,000.00 psi
Pu 24,889.05 P
Mu Mu/Pu 127,849.20 in - P
e 5.14 in

Ag act 144 in²

As total 2.48 in² 8 - 16mm

Cb 87000x(b-2.5)/(87000+fy) 6.89
a .85xCb 5.85
C1 .85xf'c x a x b 179143.875
C2 As/2xfy 40,920.00
T1 C2 40,920.00

Pby C1 179143.875
eb (C1(b-2.5-a/2)+C2(b-5))/Pbx-(b/2-2.5) 4.6717507835 <e Tension Control

C2 40,920.00
T1 40,920.00
ax 5.27534829

P 161,425.66
Pu max 112,997.96 Pounds

1/Pu = 1/Pux + 1/Puy - 1/Pa

1/Pu = 1/210558+ 1/112997 - 1/309901 0.0000104

Pu = 96,411.93 Pounds

COLUMN 3 Ground Floor

COMPUTATION OF WEIGHT OF COLUMN (14" X 14")
Total Weight: ( 14 x 14 ) / 144 x 150 x 35.75

Column Load from Bent 1 and 8

TOTAL COLUMN LOADS =

increase due to EL

Design of C3 grd Floor =

Pu 60,103.41 P
Long Direction: =
Mcol (From Bent - 1) 4.29 FK
Short Direction: =
Mcol (From Bent - 8) 4.40 FK

Design of Column 3 Grd Flr Subject to Axial Load only: =

f'c = 3000 psi
fy = 33000 psi
K = 0.5
H = height of column = 11.5 ft
Pu 60,103.41 P
Pu/0.7 =
Po .01 to .08 only 85,862.01
pq ass (range)
14 14 =
Ag actual 196 in²
=
As actual As actual/Ag actual = 2.48 in²
pq actual 0.01265 >.01<.08 OK
0.1x width of column =
e .3x width of column = 1.4 >1 OK
r KxHx12/r = 4.2
KL/r = 16.4286
KL/r allow 22 > KL/r OK

checking:
=
Pa .7xAg actualx(.85xf'cx(1-pq act)+fyxpq act) 402,721.20 > Pu OK

Design of C3 Grd Flr subject to Axial and Mx: =

f'c = 3000 psi
fy = 33000 psi
Pu = 60,103.41 P
Mu Mu/Pu = 51,521.28 in-P
e = 0.86 in

Ag = 196 in²
As = 1.86 in²

Cb 87000x(b-2.5)/(87000+fy) = 8.3375
a .85xCb = 7.086875
C1 .85xf'c x a x b = 253001.4375
b = 14 in

C2 As/2xfy = 30690
T1 C2 = 30690
Pbx C1 = 253001.4375

eb (C1(b-2.5-a/2)+C2(b-5))/Pbx-(b/2-2.5) 4.548 >e Comp. Control

Po .7x(.85xf'cx(Ag-As)+Asxfy) = 389505.9
Pb .7xPbx = 177101.006
Mb Pbxeb = 805507.697
Pumax PoxMb/(Mb+Poxe-Pbxe) 317,694.68 > Pu OK

Design Of C3 Grd Flr subject to Axial and My: =

f'c = 3000 psi
fy = 33000 psi
Pu = 60,103.41 P
Mu = 52,755.48 in-P
e Mu/Pu = 0.88 in

Ag = 196 in²
As = 1.86 in²

Cb = 8.3375
a = 7.086875
C1 = 253001.4375
C2 C2 = 30690
T1 C1 = 30690
Pby = 253001.4375
eb = 4.55 >e Comp. Control
Po = 389505.9
Pb = 177101.006
Mb PoxMb/(Mb+Poxe-Pbxe) 805507.697
Pumax 316,297.75 > Pu OK

1/Pu = 1/Pux + 1/Puy - 1/Pa

1/Pu = 1/317694+ 1/316297 - 1/402721 0.0000038

Pu = 261,359.55 Pounds

COLUMN 3 2nd Floor

COMPUTATION OF WEIGHT OF COLUMN (14" X 14")
Total Weight: ( 14 x 14 ) / 144 x 150 x 21

Column Load from Bent 1 and 8

TOTAL COLUMN LOADS =

increase due to EL

Design of C3 2nd Floor

Pu = 37,766.99 P
Long Direction:
Mcol (From Bent - 1) = 4.29 FK
Short Direction:
Mcol (From Bent - 8) = 4.40 FK

Design of Column 3 2nd Flr Subject to Axial Load only:

f'c = 3000 psi
fy = 33000 psi
K = 0.5
H = height of column = 10.5 ft
Pu 37,766.99 P
Po Pu/0.7 53,952.84
pq ass (range) .01 to .08 only
=
Ag actual 14 14 196 in²
As actual As actual/Ag actual = 2.48 in²
pq actual 0.01265 >.01<.08 OK
e 0.1x width of column = 1.4 > 1 OK
r .3x width of column = 4.2
KL/r KxHx12/r = 15.0000
KL/r allow 22 > KL/r OK
checking:
=
Pa .7xAg actualx(.85xf'cx(1-pq act)+fyxpq act) 402,721.20 > Pu OK

Design of C3 2nd Flr subject to Axial and Mx: =

f'c = 3000 psi
fy = 33000 psi
Pu = 37,766.99 P
Mu = 51,521.28 in-P
e Mu/Pu 1.36 in

Ag = 196 in²
As = 1.86 in²

Cb 87000x(b-2.5)/(87000+fy) = 8.3375
a .85xCb = 7.086875
C1 .85xf'c x a x b = 253001.4375
b 14 in

C2 As/2xfy = 30690
T1 C2 = 30690
Pbx C1 253001.4375

eb (C1(b-2.5-a/2)+C2(b-5))/Pbx-(b/2-2.5) 4.548 >e Comp. Control

Po .7x(.85xf'cx(Ag-As)+Asxfy) 389505.9
Pb .7xPbx = 177101.006
Mb Pbxeb = 805507.697
Pumax PoxMb/(Mb+Poxe-Pbxe) 286,459.59 > Pu OK

Design Of C3 2nd Flr subject to Axial and My:

f'c = 3000 psi
fy = 33000 psi
Pu = 37,766.99 P
Mu Mu/Pu = 52,755.48 in-P
e = 1.40 in

Ag = 196 in²
As = 1.86 in²

Cb = 8.3375
a = 7.086875
C1 = 253001.4375
C2 C2 = 30690
T1 C1 = 30690
Pby = 253001.4375
eb = 4.55 >e Comp. Control
Po = 389505.9
Pb = 177101.006
Mb PoxMb/(Mb+Poxe-Pbxe) = 805507.697
Pumax = 284,655.58 > Pu OK

1/Pu = 1/Pux + 1/Puy - 1/Pa

1/Pu = 1/286459+ 1/284655 - 1/402721 0.0000045

Pu = 221,199.60 Pounds

COLUMN 3 3rd Floor

COMPUTATION OF WEIGHT OF COLUMN (12" X 12")
Total Weight: ( 12 x 12 ) / 144 x 150 x 10.5

Column Load from Bent 1 and 8

TOTAL COLUMN LOADS =

increase due to EL

Design of C3 3rd Floor

Pu = 15,976.60 P
Long Direction:
Mcol (From Bent - 1) = 6.62 FK
Short Direction:
Mcol (From Bent - 8) = 6.83 FK

Design of Column 3 3rd Flr Subject to Axial Load only:

f'c = 3000 psi
fy = 33000 psi
K = 0.5
H = height of column = 10.5 ft
Pu 15,976.60 P

Po Pu/0.7 22,823.71
pq ass (range) .01 to .08 only

Ag actual 12 12 = 144 in²

As actual = 2.48 in²
pq actual As actual/Ag actual = 0.01722 >.01<.08 OK

e 0.1x width of column = 1.2 > 1 OK

r .3x width of column = 3.6
KL/r KxHx12/r = 17.500
KL/r allow 22 > KL/r OK

checking:
Pa .7xAg actualx(.85xf'cx(1-pq act)+fyxpq act) = 309,901.20 > Pu OK

Design of C3 3rd Flr subject to Axial and Mx:

f'c 3,000.00 psi

fy 33,000.00 psi
Pu 15,976.60 P
Mu 79,489.92 in-P
e Mu/Pu 4.98 in

Ag act 144 in²

As total 2.48 in² 8 - 16mm

Cb 87000x(b-2.5)/(87000+fy) 6.89
a .85xCb 5.85
C1 .85xf'c x a x b 179143.875
C2 As/2xfy 40,920.00
T1 C2 40,920.00
Pbx C1 179143.875

eb (C1(b-2.5-a/2)+C2(b-5))/Pbx-(b/2-2.5) 4.6717507835 <e Tension Control

C2 40,920.00
T1 40,920.00

ax 5.4711044329

P 167,415.80
Pu max 117,191.06 Pounds

Design Of C3 3rd Flr subject to Axial and My:

f'c 3,000.00 psi

fy 33,000.00 psi
Pu 15,976.60 P
Mu Mu/Pu 81,958.32 in-P
e 5.13 in

Ag act 144 in²

As total 2.48 in² 8 - 16mm

Cb 87000x(b-2.5)/(87000+fy) 6.89
a .85xCb 5.85
C1 .85xf'c x a x b 179143.875
C2 As/2xfy 40,920.00
T1 C2 40,920.00
Pby C1 179143.875
eb (C1(b-2.5-a/2)+C2(b-5))/Pby-(b/2-2.5) 4.6717507835 <e Tension Control

C2 40,920.00
T1 40,920.00

ax 5.2835633951

P 161,677.04
Pu max 113,173.93 Pounds

1/Pu = 1/Pux + 1/Puy - 1/Pa

1/Pu = 1/117191+ 1/113173 - 1/309901 = 0.0000141

Pu = 70,710.37 Pounds
LUMNS

14 14
7298.958 P 35.75 H of Column from grd to roof
say 7.3 K
98430.77 P

108.6508 K
increase due to EL 141.246 K

8 - 16mm
 6 - 16mm

Comp. Control

6 - 16mm

Comp. Control
 14 14
4287.5 P 21 H of Column from grd to roof
say 4.3 K
63798.8 P

69.8188 K
increase due to EL 90.76444 K

8 - 16mm
 6 - 16mm

Comp. Control

6 - 16mm

Comp. Control
 12 12
1575 P 10.5 H of Column from grd to roof
say 1.6 K
29166.82 P

31.40682 K
increase due to EL 40.82887 K

8 - 16mm
 8 - 16mm

Comp. Control

8 - 16mm

Comp. Control
 14 14
7298.958 P 35.75 H of Column from grd to roof
say 7.3 K
59113.57 P

69.33357 K
increase due to EL 90.13364 K

8 - 16mm
 6 - 16mm

Comp. Control

6 - 16mm

Comp. Control
 14 14
4287.5 P 21 H of Column from grd to roof
say 4.3 K
38009.5 P

44.0295 K
increase due to EL 57.23835 K

8 - 16mm
 6 - 16mm

Comp. Control

6 - 16mm

Comp. Control
 12 12
1575 P 10.5 H of Column from grd to roof
say 1.6 K
16905.42 P

19.14542 K
increase due to EL 24.88905 K

8 - 16mm
 8- 16mm

Comp. Control

8 - 16mm

Tension Control

x
30,600.00 8.64 264.285 9.5
- 26.41 -1.72647 18.72 77.87
 14 14
7298.958 P 35.75 H of Column from grd to roof
say 7.3 K
36013.39 P

46.23339 K
increase due to EL 60.10341 K

8 - 16mm
 6 - 16mm

Comp. Control

6 - 16mm
Comp. Control

14 14
4287.5 P 21 H of Column from grd to roof
say 4.3 K
23031.53 P

29.05153 K
increase due to EL 37.76699 K

8 - 16mm
 6 - 16mm

Comp. Control

6 - 16mm

Comp. Control
 12 12
1575 P 10.5 H of Column from grd to roof
say 1.6 K
10049.69 P

12.28969 K
increase due to EL 15.9766 K

8- 16mm
8 - 16mm

Tension Control

x
30,600.00 8.48 259.3472 9.5
- 31.35 -2.049205 18.72 79.09

8 - 16mm
Tension Control

x
30,600.00 8.63 264.0749 9.5
- 26.63 -1.740203 18.72 77.91
 y w
290.70 15.30 7 286.44
8.824227
 y w
290.70 15.30 7 286.44
8.893004
 y w
290.70 15.30 7 286.44
8.826924
Design of Footing 1

Total Load P = 141,246.001 P

Ultimate Load Pu = 141,246.001 P
f'c = 3,000.000 psi
fy = 33,000.000 psi
Allow Soil Pressure = 2,500.000 psf
Size of Column 14 14 = 196.000 in²

App. Wt of Footing = .07Pu = 9,887.220 P

Total Load = P + App. Wt Of Footing = 151,133.221 P

Area of Footing Required Total Load/ Allow. Soil Press. = 60.453 ft²
L = 7.775 ft
L actual say = 8.000 ft
Net Ultimate Soil Pressure = Pu ultimate/Area of footing = 2,206.969 psf

m L/2- (b/2/12) = 3.417 ft

Bending:

Mu Net Ultimate Soil Pressure x m x L x (m/2 x 12) = 1,236,638.165 in-p

pmin 200 / fy = 0.006
w ρmin x fy/f'c = 0.067
Ru w(1-.59xw) x 0.9 x f'c = 172.920

d sqrt(Mu/Ru/L/b) = 8.105 in

Try d = 9.000 in
Total Depth d+3 = 12.000 in

Actual wt of footing Area of footing x total depth/12 x 150 = 9,600.000 P

Total Load Total Load P + Wt of footing actual = 150,846.001 P

Area Total Load / Allow Soil Pressure = 60.338 <

Punching Shear:

w (b+d)/12 = 1.917
V Net Ultimate Soil Pressure x (L²-w²)) = 133,138.456 P

vp V/.85/((b+d)xdx4) = 189.171 psi

Allowable vp 4*sqrt f'c = 219.089 >

Beam Shear:
V Net Ultimate Soil Pressure x L x (L/2-b/2/12-d/12) = 47,082.000 P
vs V/.85/L/12/d = 64.109 psi

Allowable va 2*sqrtf'c = 109.545 >

As ρmin x L x 12 x d = 5.236 in²

Try As actual = 5.280 in²

Actual ρ As actual/L/12/d = 0.006 =

Therefore use:
12 - 20mm rebars BW
8' x 8' x 12"

Design of Footing 2

Total Load P = 90,133.641 P

Ultimate Load Pu = 90,133.641 P
f'c = 3,000.000 psi
fy = 33,000.000 psi
Allow Soil Pressure = 2,500.000 psf
Size of Column 14 14 = 196.000 in²

App. Wt of Footing = .07Pu = 6,309.355 P

Total Load = P + App. Wt Of Footing = 96,442.996 P

Area of Footing Required Total Load/ Allow. Soil Press. = 38.577 ft²
L = 6.211 ft
L actual say = 6.500 ft
Net Ultimate Soil Pressure = Pu ultimate/Area of footing = 2,133.341 psf

m L/2- (b/2/12) = 2.667 ft

Bending:

Mu Net Ultimate Soil Pressure x m x L x (m/2 x 12) = 591,646.464 in-p

pmin 200 / fy = 0.006
w ρmin x fy/f'c = 0.067
Ru w(1-.59xw) x 0.9 x f'c = 172.920

d sqrt(Mu/Ru/L/b) = 6.273 in
Try d = 9.000 in
Total Depth d+3 = 12.000 in

Actual wt of footing Area of footing x total depth/12 x 150 = 6,337.500 P

Total Load Total Load P + Wt of footing actual = 96,471.141 P

Area Total Load / Allow Soil Pressure = 38.588 <

Punching Shear:

w (b+d)/12 = 1.917
V Net Ultimate Soil Pressure x (L²-w²)) = 82,296.577 P

vp V/.85/((b+d)xdx4) = 116.932 psi

Allowable vp 4*sqrt f'c = 219.089 >

Beam Shear:

V Net Ultimate Soil Pressure x L x (L/2-b/2/12-d/12) = 26,577.869 P

vs V/.85/L/12/d = 44.541 psi

Allowable va 2*sqrtf'c = 109.545 >

As ρmin x L x 12 x d = 4.255 in²

Try As actual = 4.400 in²

Actual ρ As actual/L/12/d = 0.006 =

Therefore use:
10 - 20mm rebars BW
6.5' x 6.5' x 12"

Design of Footing 3

Total Load P = 60,103.407 P

Ultimate Load Pu = 60,103.407 P
f'c = 3,000.000 psi
fy = 33,000.000 psi
Allow Soil Pressure = 2,500.000 psf
Size of Column 14 14 = 196.000 in²
App. Wt of Footing = .07Pu = 4,207.238 P
Total Load = P + App. Wt Of Footing = 64,310.645 P

Area of Footing Required Total Load/ Allow. Soil Press. = 25.724 ft²
L = 5.072 ft
L actual say = 6.000 ft
Net Ultimate Soil Pressure = Pu ultimate/Area of footing = 1,669.539 psf

m L/2- (b/2/12) = 2.417 ft

Bending:

Mu Net Ultimate Soil Pressure x m x L x (m/2 x 12) = 351,020.592 in-p

pmin 200 / fy = 0.006
w ρmin x fy/f'c = 0.067
Ru w(1-.59xw) x 0.9 x f'c = 172.920

d sqrt(Mu/Ru/L/b) = 5.347 in

Try d = 9.000 in
Total Depth d+3 = 12.000 in

Actual wt of footing Area of footing x total depth/12 x 150 = 5,400.000 P

Total Load Total Load P + Wt of footing actual = 65,503.407 P

Area Total Load / Allow Soil Pressure = 26.201 <

Punching Shear:

w (b+d)/12 = 1.917
V Net Ultimate Soil Pressure x (L²-w²)) = 53,970.170 P

vp V/.85/((b+d)xdx4) = 76.684 psi

Allowable vp 4*sqrt f'c = 219.089 >

Beam Shear:

V Net Ultimate Soil Pressure x L x (L/2-b/2/12-d/12) = 16,695.391 P

vs V/.85/L/12/d = 30.311 psi

Allowable va 2*sqrtf'c = 109.545 >

As ρmin x L x 12 x d = 3.927 in²

Try As actual = 3.960 in²

Actual ρ As actual/L/12/d = 0.006 =

Therefore use:
9 - 20mm rebars BW
6' x 6' x 12"
 64 OK

189.171 OK
 64.109 OK

12 - 20mm, BW

0.006 OK
 42.25 OK

116.932 OK

44.541 OK

10 - 20mm BW

0.006 OK
 36 OK

76.684 OK

30.311 OK

9 - 20mm BW
0.006 OK
 STRUCTURAL DESIGN COMPUTATION FOR CONCRETE SLAB

Design Criteria:
f'c = 3,000 psi
fs = 18,000 psi
slab thickness = 4 in
panel size = 2.5mx4m (interior panel)
m = 0.625

Live Load & Dead Load Computations:

(Slab thickness + Floor finish)/12 x 0.15
K = 0.0625 KSF (Dead Load)
= 0.04 KSF (Live Load for apartment)

w = 0.1025 KSF
wL² = 6.8921 FK S Span
wL² = 17.64378 FK L Span

Short Span -Mc, -Md, +M:

-Mc = 6.8921 x 0.063 = 0.434202 F-K
-Md = 6.8921 x 0 = 0 F-K
+M = 6.8921 x 0.047 = 0.323929 F-K

-As = 0.103566 in² 10mm @ 12.74544

-As = 0 in² 10mm @ #DIV/0!
-As = 0.077264 in² 10mm @ 17.08432

Long Span -Mc, -Md, +M:

-Mc = 17.64378 x 0.033 = 0.582245 F-K
-Md = 17.64378 x 0 = 0 F-K
+M = 17.64378 x 0.025 = 0.441094 F-K

-As = 0.138878 in² 10mm @ 9.504768

-As = 0 in² 10mm @ #DIV/0!
-As = 0.10521 in² 10mm @ 12.54629

Design Criteria:
f'c = 3,000 psi
fs = 18,000 psi
slab thickness = 4 in
panel size = 2.5m x 4m (1 ED)
m = 0.625

Live Load & Dead Load Computations:

(Slab thickness + Floor finish)/12 x 0.15
K = 0.0625 KSF (Dead Load)
= 0.04 KSF (Live Load for boarding house)
w = 0.1025 KSF
wL² = 6.8921 FK S Span
wL² = 17.64378 FK L Span

Short Span -Mc, -Md, +M:

-Mc = 6.8921 x 0.069 = 0.475555 F-K
-Md = 6.8921 x 0.035 = 0.241224 F-K
+M = 6.8921 x 0.052 = 0.358389 F-K

-As = 0.113498 in² 10mm @ 5.9

-As = 0.057571 in² 10mm @ 22.92811
-As = 0.085534 in² 10mm @ 15.43238

Long Span -Mc, -Md, +M:

-Mc = 17.64378 x 0.041 = 0.723395 F-K
-Md = 17.64378 x 0.021 = 0.370519 F-K
+M = 17.64378 x 0.031 = 0.546957 F-K

-As = 0.172648 in² 10mm @ 5.9

-As = 0.088429 in² 10mm @ 14.92716
-As = 0.130539 in² 10mm @ 10.11195

Design Criteria:
f'c = 3,000 psi
fs = 18,000 psi
slab thickness = 4 in
panel size = 2.5m x 4m (2 ED)
m = 0.625

Live Load & Dead Load Computations:

(Slab thickness + Floor finish)/12 x 0.15
K = 0.0625 KSF (Dead Load)
= 0.04 KSF (Live Load for boarding house)

w = 0.1025 KSF
wL² = 6.8921 FK S Span
wL² = 17.64378 FK L Span

Short Span -Mc, -Md, +M:

-Mc = 6.8921 x 0.078 = 0.537584 F-K
-Md = 6.8921 x 0.039 = 0.268792 F-K
+M = 6.8921 x 0.059 = 0.406634 F-K
 -As = 0.128302 in² 10mm @ 4.9
-As = 0.064151 in² 10mm @ 20.57651
-As = 0.097049 in² 10mm @ 13.60142

Long Span -Mc, -Md, +M:

-Mc = 17.64378 x 0.049 = 0.864545 F-K
-Md = 17.64378 x 0.025 = 0.441094 F-K
+M = 17.64378 x 0.037 = 0.65282 F-K

-As = 0.206335 in² 10mm @ 4.9

-As = 0.105273 in² 10mm @ 12.53881
-As = 0.155804 in² 10mm @ 8.472171

STRUCTURAL DESIGN COMPUTATION FOR CONCRETE FLOOR BEAMS

Beam B-4
Beam Span: = 12.12
m = 0.625
1.304688 (3-m²)/2

Dead Load = (Slab thickness + Floor finish)/ 12 x 150 x length of beam/3x1.3 x 2

445.7682 P/F
Live Load = 40 PSF x length of beam/3x1.3 x 2
285.2917 P/F
Chb Wall = 45 PSF x wall height 8.3
373.5 P/F
Beam = LxWx150
116.6667 P/F
w = 1221.227
w x .3 = 366.368 P/F Earthquake Load
-Load = .75(Load + EL) = 1.190696 K/F
-Moment = wxL²/10
17.49066 FK

f'c = 3,000 psi

fc = 1350 psi
fs = 18,000 psi
n = 9
As = 1.24 in 4 - 16mm rebars
b = 8 in
d = 11 in
t = 14 in
p = As/bd = 0.014091
k = ( sq root(2xpn) + (pn)²) - pn = 0.392527
j = 1-k/3 = 0.869158

fc actual = 2Mc/kjbd = 1271.083 psi < 1350 OK

fs actual = Ms/Asjd = 17704.12 psi < 18,000 OK

+Moment = wxL²/10
17.49066 FK

f'c = 3,000 psi

fc = 1350 psi
fs = 18,000 psi
n = 9
As = 1.24 in 4 - 16mm rebars
b = 8 in
d = 11 in
t = 14 in
p = As/bd = 0.014091
k = ( sq root(2xpn + (pn)²) - pn = 0.392527
j = 1-k/3 = 0.869158

fc actual = 2Mc/kjbd = 1271.083 psi < 1350 OK

fs actual = Ms/Asjd = 17704.12 psi < 18,000 OK

Beam B-1
Beam Span: = 15.4
m = 0.625
1.304688
Dead Load = (Slab thickness + Floor finish)/ 12 x 150 x length of beam/3

150 P/F
Live Load = 40 PSF x length of beam /3
96 P/F
Chb Wall = 45 PSF x wall height 6
270 P/F
Beam = LxWx150
133.3333 P/F
w = 649.3333
w x .3 = 194.8 P/F Earthquake Load
-Load = .75(Load + EL) = 0.6331 K/F
-Moment = wxL²/10
15.0146 FK
= PL/8
= .6656 x 12.12 / 2 x 15.4 / 8
7.385428 FK
= 22.40003 FK
f'c = 3,000 psi
fc = 1350 psi
fs = 18,000 psi
n = 9
As = 1.37 in 3 - 16mm rebars 1 - 20mm rebars
b = 8 in
d = 13 in
t = 16 in
p = As/bd = 0.013173
k = ( sq root(2xpn + (pn)²) - pn = 0.382612
j = 1-k/3 = 0.872463

fc actual = 2Mc/kjbd = 1191.18 psi < 1350 OK

fs actual = Ms/Asjd = 17298.92 psi < 18,000 OK

+Moment = wxL²/10
15.0146 FK
= PL/8
= .6656 x 12.12 / 2 x 15.4 / 8
7.385428 FK
= 22.40003 FK

f'c = 3,000 psi

fc = 1350 psi
fs = 18,000 psi
n = 9
As = 1.37 in 3 - 16mm rebars 1 - 20mm rebars
b = 8 in
d = 13 in
t = 16 in
p = As/bd = 0.013173
k = ( sq root(2xpn + (pn)²) - pn = 0.382612
j = 1-k/3 = 0.872463

fc actual = 2Mc/kjbd = 1191.18 psi < 1350 OK

fs actual = Ms/Asjd = 17298.92 psi < 18,000 OK

Beam B-2

Beam Span: = 15.4

m = LxWx150
133.3333
Dead Load = (Slab thickness + Floor finish)/ 12 x 150 x length of beam/3

150 P/F
Live Load = 40 PSF x length of beam /3
 96 P/F
Chb Wall = 45 PSF x wall height 8
360 P/F
Beam = LxWx150
150 P/F
w = 756
w x .3 = 226.8 P/F Earthquake Load
-Load = .75(Load + EL) = 0.7371 K/F
-Moment = wxL²/10
17.48106 FK
= PL/8
= .7371 x 12.12 / 2 x 15.4 / 8
8.59864 FK
= 26.0797 FK

= (5/12x150x2.46 + 40x2.46) x 15.4² / 10

5979.989
= 1793.997 Earthquake Load
= 7.773986 FK
= 33.85369 FK

f'c = 3,000 psi

fc = 1350 psi
fs = 18,000 psi
n = 9
As = 1.76 in 4 - 20mm rebars
b = 8 in
d = 15 in
t = 18 in
p = As/bd = 0.014667
k = ( sq root(2xpn) + (pn)²) - pn = 0.398494
j = 1-k/3 = 0.867169

fc actual = 2Mc/kjbd = 1306.229 psi < 1350 OK

fs actual = Ms/Asjd = 17745.15 psi < 18,000 OK

+Moment = 33.85369 FK
f'c = 3,000 psi
fc = 1350 psi
fs = 18,000 psi
n = 9
As = 1.76 in 4 - 20mm rebars
b = 8 in
d = 15 in
t = 18 in
p = As/bd = 0.014667
k = ( sq root(2xpn) + (pn)²) - pn = 0.398494
j = 1-k/3 = 0.867169

fc actual = 2Mc/kjbd = 1306.229 psi < 1350 OK

fs actual = Ms/Asjd = 17745.15 psi < 18,000 OK

Beam B-3
Beam Span: = 12.12
Dead Load = (Slab thickness + Floor finish)/ 12 x 150 x length of beam /3 x 1.3

195 P/F
Live Load = 40 PSF x length of beam /3
96 P/F
Chb Wall = 45 PSF x wall height 8.3
373.5 P/F
Beam = LxWx150
116.6667 P/F
w = 781.1667
w x .3 = 234.35 P/F Earthquake Load
-Load = .75(Load + EL) = 0.761638 K/F
-Moment = wxL²/9
12.43114 FK

f'c = 3,000 psi

fc = 1350 psi
fs = 18,000 psi
n = 9
As = 0.93 in 3 -16mm rebars
b = 8 in
d = 11 in
t = 14 in
p = As/bd = 0.010568
k = ( sq root(2xpn) + (pn)²) - pn = 0.351287
j = 1-k/3 = 0.882904

fc actual = 2Mc/kjbd = 993.7355 psi < 1350 OK

fs actual = Ms/Asjd = 16515.93 psi < 18,000 OK

+Moment = wxL²/9
12.43114 FK

f'c = 3,000 psi

fc = 1350 psi
fs = 18,000 psi
n = 9
As = 0.93 in 3 -16mm rebars
b = 8 in
d = 11 in
t = 14 in
p = As/bd = 0.010568
k = ( sq root(2xpn) + (pn) ²) - pn = 0.351287
j = 1-k/3 = 0.882904

fc actual = 2Mc/kjbd = 993.7355 psi < 1350 OK

fs actual = Ms/Asjd = 16515.93 psi < 18,000 OK

STRUCTURAL DESIGN COMPUTATION FOR CONCRETE COLUMNS

COLUMN 1 Ground Floor

DESIGN COMPUTATION OF COLUMN

COMPUTATIONS OF LOADS @ ROOF LEVEL

ROOF/TRUSS/CEILING: = 40X16.4x9.02
Roof Beam Along L = ((8" x 14")/144) x 150 x 16.4
Roof Beam Along S = ((8" x 14")/144) x 150 x 15.58
TOTAL LOAD ON COLUMN @ ROOF LEVEL =

COMPUTATION OF LOAD @ 2nd FLOOR LEVEL

SLAB: = 5/12x150x16.4x9.02
Walling = 45 PSF x 8.3 x 34.44
Live Load: = 40 PSF x 16.4 x 9.02
Beam Along L = ((8" x 18")/144) x 150 x 16.4
Beam Along S = ((8" x 14")/144) x 150 x 15.58
TOTAL LOAD ON COLUMN @ 2ND FLOOR LEVEL

COMPUTATION OF WEIGHT OF COLUMN (12" X 12")

Total Weight: ( 12 x 12 ) / 144 x 150 x 26.5'

TOTAL COLUMN LOADS =

increase due to EL

REQUIRED MINIMUM AREA OF STEEL As = .01 x Ag

USE 8 - 16MM Ø REBARS @ .31 in²

k beam 4 = I/L
k beam 1.5 = I/L
k beam 5 = I/L
k column = I/L

M column @ Long = Mb-2 x k column/(k 5 + k 5 + k c + kc)

e = M column @ Long / Total Column Load x 12
e/t = < 2/3 comp control
M column @ Short = Mb-4 x k column/(k4+k1.5 + kc + kc)
e = M column @2/ Total Column Load x 12
e/t = < 2/3 comp control
H/d = ≤ 10 short column
Fa = 0.34 x (1 + pgm) x f'c
FbA = 0.45 f'c
Fb2 = 0.45 f'c
IA = bt³/12 + (2n - 1) As (b/2 - 2)²
I2 = tb³/12 + (2n - 1) As (t/2 - 2)²
fa = Total Column Loads/Ag
fbA = 8.9x12x1000x12/2/2233.92
fb2 = 4.44x12x1000x12/2/2233.92

fa/Fa + fbA/FbA + fb2/Fb2 ≤ 1

USE COLUMN 12" X 12" 8 - 16mmØ rebars

COLUMN 1 2nd Floor

DESIGN COMPUTATION OF COLUMN

COMPUTATIONS OF LOADS @ ROOF LEVEL

ROOF/TRUSS/CEILING: = 40X16.4x9.02
Roof Beam Along L = ((10" x 14")/144) x 150 x 16.4
Roof Beam Along S = ((10" x 14")/144) x 150 x 15.58
TOTAL LOAD ON COLUMN @ ROOF LEVEL =

COMPUTATION OF WEIGHT OF COLUMN (12" X 12")

Total Weight: ( 12 x 12 ) / 144 x 150 x 10'

TOTAL COLUMN LOADS =

increase due to EL

REQUIRED MINIMUM AREA OF STEEL As = .01 x Ag

USE 4 - 20MM Ø REBARS @ .44 IN²

k beam 4 = I/L
k beam 1.5 = I/L
k beam 5 = I/L
k column = I/L

M column @ Long = Mb-2 x k column/(k 5 + k 5 + k c + kc)

e = M column @ Long / Total Column Load x 12
e/t = < 2/3 comp control
M column @ Short = Mb-4 x k column/(k4+k1.5 + kc + kc)
e = M column @2/ Total Column Load x 12
e/t = < 2/3 comp control
H/d = ≤ 10 short column
Fa = 0.34 x (1 + pgm) x f'c
FbA = 0.45 f'c
Fb2 = 0.45 f'c
IA = bt³/12 + (2n - 1) As (b/2 - 2)²
I2 = tb³/12 + (2n - 1) As (t/2 - 2)²
fa = Total Column Loads/Ag
fbA = 4.01x12x1000x12/2/2206.72
fb2 = 2.0x12x1000x12/2/2206.72

fa/Fa + fbA/FbA + fb2/Fb2 ≤ 1

USE COLUMN 12" X 12" 4 - 20mmØ rebars

COLUMN 2 Ground Floor

DESIGN COMPUTATION OF COLUMN

COMPUTATIONS OF LOADS @ ROOF LEVEL

ROOF/TRUSS/CEILING: = 40X16.4x6.56
Roof Beam Along L = ((8" x 14")/144) x 150 x 16.4
Roof Beam Along S = ((8" x 14")/144) x 150 x 6.56
TOTAL LOAD ON COLUMN @ ROOF LEVEL =

COMPUTATION OF LOAD @ 2nd FLOOR LEVEL

SLAB: = 5/12x150x16.4x6.56
Walling = 45 PSF x 8.3 x 29.52
Live Load: = 40 PSF x 16.4 x 6.56
Beam Along L = ((8" x 16")/144) x 150 x 16.4
Beam Along S = ((8" x 14")/144) x 150 x 6.56
TOTAL LOAD ON COLUMN @ 2ND FLOOR LEVEL

COMPUTATION OF WEIGHT OF COLUMN (12" X 12")

Total Weight: ( 12 x 12 ) / 144 x 150 x 26.5'

TOTAL COLUMN LOADS =

increase due to EL

REQUIRED MINIMUM AREA OF STEEL As = .01 x Ag

USE 8 - 16MM Ø REBARS @ .31 IN²
k beam 4 = I/L
k beam 5 = I/L
k column = I/L

M column @ Long = Mb-2 x k column/(k 5 + k 5 + k c + kc)

e = M column @ Long / Total Column Load x 12
e/t = < 2/3 comp control
M column @ Short = Mb-4 x k column/(k4+ kc + kc)
e = M column @2/ Total Column Load x 12
e/t = < 2/3 comp control
H/d = ≤ 10 short column
Fa = 0.34 x (1 + pgm) x f'c
FbA = 0.45 f'c
Fb2 = 0.45 f'c
IA = bt³/12 + (2n - 1) As (b/2 - 2)²
I2 = tb³/12 + (2n - 1) As (t/2 - 2)²
fa = Total Column Loads/Ag
fbA = 6.86x12x1000x12/2/2245.82
fb2 = 6.92x12x1000x12/2/2245.82

fa/Fa + fbA/FbA + fb2/Fb2 ≤ 1

USE COLUMN 12" X 12" 8 - 16mmØ rebars

COLUMN 2 2nd Floor

DESIGN COMPUTATION OF COLUMN

COMPUTATIONS OF LOADS @ ROOF LEVEL

ROOF/TRUSS/CEILING: = 40X16.4x6.56
Roof Beam Along L = ((8" x 14")/144) x 150 x 16.4
Roof Beam Along S = ((8" x 14")/144) x 150 x 6.56
TOTAL LOAD ON COLUMN @ ROOF LEVEL =

COMPUTATION OF WEIGHT OF COLUMN (12" X 12")

Total Weight: ( 12 x 12 ) / 144 x 150 x 10'

TOTAL COLUMN LOADS =

increase due to EL

REQUIRED MINIMUM AREA OF STEEL As = .01 x Ag

USE 4 - 20MM Ø REBARS @ .44 IN²
k beam 4 = I/L
k beam 5 = I/L
k column = I/L

M column @ Long = Mb-2 x k column/(k 5 + k 5 + k c + kc)

e = M column @ Long / Total Column Load x 12
e/t = < 2/3 comp control
M column @ Short = Mb-4 x k column/(k4+ kc + kc)
e = M column @2/ Total Column Load x 12
e/t = < 2/3 comp control
H/d = ≤ 10 short column
Fa = 0.34 x (1 + pgm) x f'c
FbA = 0.45 f'c
Fb2 = 0.45 f'c
IA = bt³/12 + (2n - 1) As (b/2 - 2)²
I2 = tb³/12 + (2n - 1) As (t/2 - 2)²
fa = Total Column Loads/Ag
fbA = 3.09x12x1000x12/2/2217.98
fb2 = .898x12x1000x12/2/2217.98

fa/Fa + fbA/FbA + fb2/Fb2 ≤ 1

USE COLUMN 12" X 12" 4 - 20mmØ rebars

STRUCTURAL DESIGN COMPUTATION FOR CONCRETE FOOTING

FOOTING 1
Computed Loads + Column Weight:
Footing Weight (10% P):
Ptotal:
Area of Footing Required: Ptotal/Soil bearing Capacity 66.5/2.2
Using 5.5 x 5.5 Footing:
Area of Footing: 5.5' x 5.5'
Net Earth Upward Pressure: 60.45/30.25
M = 1.998x10000x2.25x5.5x2.25/2x12

d = square root M/Rb

Try d = 12 in
Check for Shear:
V = 1.998 x1000x5.5 x 1.25
v = V/bd

Check for Punching Shear:

V = 1.998x1000x(5.5x5.5-2x2)
vp = V/bd
Check for actual wt. of footing:
W = 15/12x(5.5x5.5)x150
As = M/fsjd
Use 8 pcs 16mm DB @ .31 in² As = 2.48 in² BW

FOOTING 2
Computed Loads + Column Weight:
Footing Weight (10% P):
Ptotal:
Area of Footing Required: Ptotal/Soil bearing Capacity 54.04/2.2
Using 5 x 5 Footing:
Area of Footing: 5' x 5'
Net Earth Upward Pressure: 48.1/25
M = 1.924x10000x2x5x2/2x12

d = square root M/Rb

Try d = 12 in

Check for Shear:

V = 1.924 x1000x5 x 1
v = V/bd

Check for Punching Shear:

V = 1.924x1000x(5x5-2x2)
vp = V/bd

Check for actual wt. of footing:

W = 15/12x(5x5)x150

As = M/fsjd

Use 8 pcs 16mm DB @ .31 in² As = 2.48 in² BW

ETE SLAB

S Span L Span
2.5 4

4 1

-As = 0.103566 in² 4.1925 value of 1.29 x t

-As = 0 in² where t thickness of slab - .75
-As = 0.077264 in²

4" OC 0.11 10 mm rebars

5" OC

-As = 0.138878 in² 4.1925 value of 1.29 x t

-As = 0 in² where t thickness of slab - .75
-As = 0.10521 in²

4" OC 0.11 10 mm rebars

5" OC

S Span L Span
2.5 4

4 1
 -As = 0.113498 in² 4.19 value of 1.29 x t
-As = 0.057571 in² where t thickness of slab - .75
-As = 0.085534 in²

5" OC 0.11 10 mm rebars

6" OC
6" OC

-As = 0.172648 in² 4.19 value of 1.29 x t

-As = 0.088429 in² where t thickness of slab - .75
-As = 0.130539 in²

5" OC 0.11 10 mm rebars

6" OC
6" OC

S Span L Span
2.5 4

4 1

-As = 0.128302 in² 4.19 value of 1.29 x t

-As = 0.064151 in² where t thickness of slab - .75
-As = 0.097049 in²
 4.5" OC 0.11 10 mm rebars
6" OC
6" OC

-As = 0.206335 in² 4.19 value of 1.29x t

-As = 0.105273 in² where t thickness of slab - .75
-As = 0.155804 in²

4.5" OC 0.11 10 mm rebars

6" OC
6" OC

FLOOR BEAMS

2.5 4

slab finish wtla

eam/3x1.3 x 2 4 1 0

40 LL

8.3 H of Wall

8 14
b t
20cm 40cm

10 12.12
 10

4 1 0

40 LL

6 H of Wall

8 16
b t
25mm 45mm

10 15.4
10

4 1 0

40 LL
 8 H of Wall

8 18
b t
25mm 50mm

10 15.4
eam /3 x 1.3 4 1 0

40 LL

8.3 H of Wall

8 14
b t

9 12.12

9
E COLUMNS

5917.12 P 16.4 9.02

1913.333 P 8 14
1817.667 P 8 14
9648.12 P
say 10 K

9245.5 P 10 5
12863.34 P 8.3 H of Walling
5917.12 P 40 LL
2460 P 8 18
1817.667 P 8 14
32303.63 P
say 32.5 K

12 12
3975 P 26.5 H of Column from grd to roof
say 4 K

46.5 K
increase due to EL 60.45 K

1.44 in²
2.48 in²

11.61924 in³ 8 14 13.12

30.98464 in³ 8 14 4.92
19.7561 in³ 8 18 16.4
21.95122 in³ 12 12 6.56 13.12

8.908866 FK 9 n
1.768509 in 33 fy in ksi
< 2/3 comp control 0.147376 3 f'c in ksi
4.438302 FK
0.881053
< 2/3 comp control 0.073421
≤ 10 short column 6.56
1247.333 psi 0.017222 pg
1350 psi 12.94118 m
1350 psi
2233.92
2233.92
419.7917 psi
287.1358
143.048

0.655206 OK

5917.12 P 16.4 9.02

1913.333 P 8 14
1817.667 P 8 14
9648.12 P
say 10 K

12 12
1500 P 10 H of Column from 2nd to roof
say 1.5 K

11.5 K
increase due to EL 14.95 K

1.44 in²
1.76 in²

11.61924 in³ 8 14 13.12

30.98464 in³ 8 14 4.92
9.295393 in³ 8 14 16.4
28.8 in³ 12 12 5 10

4.00899 FK 9 n
3.217918 in 33 fy in ksi
< 2/3 comp control 0.26816 3 f'c in ksi
1.997236 FK
 1.603133
< 2/3 comp control 0.133594
≤ 10 short column 5
1181.333 psi 0.012222 pg
1350 psi 12.94118 m
1350 psi
2206.72
2206.72
103.8194 psi
130.8037
65.16504

0.233045 OK

4303.36 P 16.4 6.56

1913.333 P 8 14
765.3333 P 8 14
6982.027 P
say 7 K

6724 P 10 5
11025.72 P 8.3 H of Walling
4303.36 P 40 LL
2186.667 P 8 16
765.3333 P 8 14
25005.08 P
say 26 K

12 12
3975 P 26.5 H of Column from grd to roof
say 4 K

37 K
increase due to EL 48.1 K

1.44 in²
2.48 in²
 11.61924 in³ 8 14 13.12
13.87534 in³ 8 16 16.4
21.95122 in³ 12 12 6.56 13.12

6.862338 FK 9.2 n
1.712018 in 33 fy in ksi
< 2/3 comp control 0.142668 3 f'c in ksi
6.915159 FK
1.725196
< 2/3 comp control 0.143766
≤ 10 short column 6.56
1247.333 psi 0.017222 pg
1350 psi 12.94118 m
1350 psi
2245.824
2245.824
334.0278 psi
220.0032
221.6965

0.594978 OK

4303.36 P 16.4 6.56

1913.333 P 8 14
765.3333 P 8 14
6982.027 P
say 7 K

12 12
1500 P 10 H of Column from 2nd flr to roof
say 1.5 K

8.5 K
increase due to EL 11.05 K

1.44 in²
1.76 in²
 11.61924 in³ 8 14 13.12
9.295393 in³ 8 14 16.4
28.8 in³ 12 12 5 10

3.088052 FK 9.2 n
3.353541 in 33 fy in ksi
< 2/3 comp control 0.279462 3 f'c in ksi
0.898756 FK
0.976025
< 2/3 comp control 0.081335
≤ 10 short column 5
1181.333 psi 0.012222 pg
1350 psi 12.94118 m
1350 psi
2217.984
2217.984
76.73611 psi
100.2441
29.17535

0.160823 OK

E FOOTING

60.45 K 1 width of column in foot

6.045 K 232.2 R
66.495 K 18000 fs
30.225 FT² 2.2 soil bearing cap KSF
0.86 j
30.25 FT²
1.998347 KSF 5.5 5.5
333848.9 In-P
2.25
4.667366 in

13738.64 P
< 1.1sqrtf'c OK 17.34676 psi 60.24948

52456.61 P 1.25
< 2sqrtf'c OK 45.53525 psi 109.5445
< 6045 OK 5671.875 p
1.797205 in² 2

48.1 K
4.81 K
52.91 K
24.05 FT²

25 FT²
1.924 KSF
230880 In-P 1 width of column in foot
232.2 R
4.070862 in 18000 fs
2.2 soil bearing cap KSF
0.86 j

5 5
9620 P
< 1.1sqrtf'c OK 13.36111 psi 60.24948 2

40404 P 1
< 2sqrtf'c OK 35.07292 psi 109.5445

< 4810 OK 4687.5 P 2

1.242894 in²
nd flr to roof
