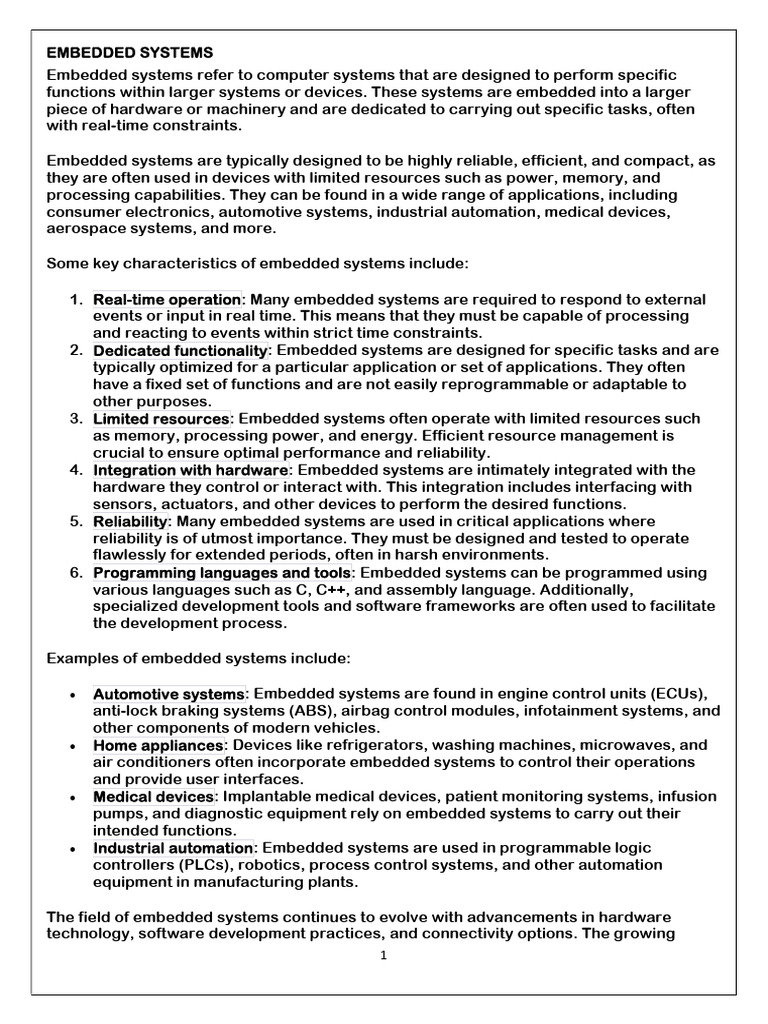

Embedded systems refer to computer systems that are designed to perform specific
functions within larger systems or devices. These systems are embedded into a larger
piece of hardware or machinery and are dedicated to carrying out specific tasks, often
with real-time constraints.
Embedded systems are typically designed to be highly reliable, efficient, and compact, as
they are often used in devices with limited resources such as power, memory, and
processing capabilities. They can be found in a wide range of applications, including
consumer electronics, automotive systems, industrial automation, medical devices,
aerospace systems, and more.
Automotive systems: Embedded systems are found in engine control units (ECUs),
anti-lock braking systems (ABS), airbag control modules, infotainment systems, and
other components of modern vehicles.
Home appliances: Devices like refrigerators, washing machines, microwaves, and
air conditioners often incorporate embedded systems to control their operations
and provide user interfaces.
Medical devices: Implantable medical devices, patient monitoring systems, infusion
pumps, and diagnostic equipment rely on embedded systems to carry out their
intended functions.
Industrial automation: Embedded systems are used in programmable logic
controllers (PLCs), robotics, process control systems, and other automation
equipment in manufacturing plants.
Embedded Computing
Embedded computing refers to the integration of computing capabilities into various
devices or systems, enabling them to perform specific tasks or functions. It involves the
use of embedded systems, which are computer systems designed to operate within the
constraints of the device or system they are embedded in.
2
the development of smarter and more capable embedded systems to meet the demands
of modern applications.
Introduction
Embedded systems play a crucial role in our daily lives, even though they often go
unnoticed. From smartphones and smart appliances to cars and industrial machinery,
embedded systems are at the heart of numerous devices and systems we rely on. These
specialized computer systems are designed to perform specific functions within larger
systems, operating in real time and often with limited resources.
Embedded systems are characterized by their dedicated functionality, compact size, and
integration with hardware. They are optimized for efficiency, reliability, and performance,
enabling devices and systems to carry out tasks with precision and responsiveness.
Embedded computing, which encompasses the hardware and software components of
embedded systems, enables the integration of computing capabilities into diverse
applications.
Whether you are interested in learning about the hardware components that power
embedded systems, the software development practices employed, or the diverse
applications and industries that rely on embedded computing, this exploration of
embedded systems will provide you with a solid foundation to comprehend and
appreciate this fascinating field.
Complex systems
Complex systems refer to systems that consist of a large number of interconnected
components or elements, where the interactions among these components give rise to
emergent behavior that cannot be easily understood or predicted by analyzing the
individual components in isolation. These systems often exhibit nonlinear dynamics,
feedback loops, and self-organization.
Complex systems can be found in various domains, including natural systems, social
systems, technological systems, and biological systems. Examples of complex systems
include ecosystems, the human brain, financial markets, transportation networks,
weather patterns, and social networks.
3
behaviors are often unpredictable and cannot be easily deduced by analyzing the
individual components in isolation.
2. Nonlinear Dynamics: Complex systems often involve nonlinear relationships, where
small changes in one component or parameter can lead to significant and nonlinear
effects on the overall system behavior. Nonlinear dynamics can give rise to
phenomena such as phase transitions, bifurcations, and chaos.
3. Feedback Loops: Feedback loops play a crucial role in complex systems, where the
output or behavior of the system feeds back and influences its own dynamics.
Positive feedback loops amplify changes and can lead to self-reinforcing or
exponential behavior, while negative feedback loops tend to stabilize and regulate
the system.
4. Adaptation and Self-Organization: Complex systems are often capable of
adaptation and self-organization. They can dynamically adjust their structure,
behavior, or interactions to optimize their performance or adapt to changing
conditions.
5. Robustness and Resilience: Complex systems often exhibit robustness and
resilience, meaning they can withstand disturbances or perturbations and maintain
their functionality or stability. They may have redundant components, distributed
control, or mechanisms to recover from disruptions.
6. Hierarchical Structure: Complex systems often have a hierarchical organization,
with subsystems or components at different levels of scale or abstraction. Each
level interacts with and influences the behavior of other levels, contributing to the
overall system dynamics.
The study of complex systems involves interdisciplinary approaches, drawing from fields
such as physics, biology, mathematics, computer science, sociology, and economics.
Various modeling and analysis techniques, including network theory, agent-based
modeling, simulation, and computational modeling, are employed to understand and
explore the behavior of complex systems.
Microprocessors
Microprocessors are integrated circuits that serve as the central processing unit (CPU) of
a computer or electronic device. They are responsible for executing instructions and
performing calculations, making them the "brain" of a computing system.
Microprocessors are found in a wide range of devices, including personal computers,
smartphones, tablets, embedded systems, and other electronic devices.
4
arithmetic and logic operations, memory access, control flow management, and
input/output operations.
3. Clock Speed and Performance: Microprocessors operate at a specific clock speed,
measured in gigahertz (GHz), which determines the number of instructions they can
execute per second. Higher clock speeds generally result in faster processing and
better performance, although other factors like architectural efficiency and
parallelism also play a role.
4. Cores and Parallelism: Many modern microprocessors feature multiple cores,
allowing for parallel execution of instructions. Multi-core processors can handle
multiple tasks simultaneously, improving overall performance and responsiveness.
5. Caches and Memory Management: Microprocessors utilize caches, which are
small, fast memory units, to store frequently accessed data and instructions,
reducing the need to access slower main memory. They also manage memory
addressing and data transfer between the processor and the memory subsystem.
6. Power Efficiency: Microprocessors strive for power efficiency, especially in mobile
devices and battery-powered systems. Techniques such as power gating, dynamic
voltage and frequency scaling, and advanced power management help optimize
energy consumption while maintaining performance.
7. Instruction Set Architecture (ISA): The ISA defines the machine language and the
set of instructions that a microprocessor can execute. Different ISAs have varying
instruction formats and support different features, influencing software
compatibility and development.
8. Microarchitecture: Microarchitecture refers to the internal design and organization
of a microprocessor, including the pipeline structure, execution units, branch
prediction, and instruction scheduling. Microarchitecture plays a critical role in
determining the efficiency and performance of a processor.
Overall, microprocessors play a vital role in shaping the capabilities and functionality of
computing systems, enabling the execution of software, data processing, and the
operation of a wide array of electronic devices we rely on in our daily lives.
Throughout the design process, collaboration and iteration among the hardware and
software teams are essential to ensure seamless integration and optimal performance of
the embedded system. Documentation and version control play a crucial role in
maintaining a clear record of the design decisions, specifications, and modifications
made during the process.
It's important to note that the design process may vary depending on the specific
application, industry, and complexity of the embedded system. However, the
aforementioned steps provide a general framework for designing embedded systems and
serve as a starting point for efficient and effective development.
6
Here are some key aspects of formalization in system design:
However, it's important to note that formalization techniques can be complex and require
expertise in formal methods. Their application may vary depending on the size,
complexity, and criticality of the system being designed. It's often beneficial to strike a
balance between formalization and other design approaches, considering the specific
needs and constraints of the project.
1. x86: The x86 architecture, developed by Intel, is widely used in personal computers
and servers. It has evolved over time, with various generations, including 16-bit
(8086, 80286), 32-bit (80386, 80486), and 64-bit (AMD64, Intel 64) versions. The x86
7
architecture supports a wide range of instructions and features, including complex
memory addressing modes, floating-point operations, SIMD (Single Instruction,
Multiple Data) instructions, and privileged instructions for operating system
interaction.
2. ARM: ARM (Advanced RISC Machines) architecture is a popular choice for low-
power and mobile devices, including smartphones, tablets, and embedded systems.
ARM processors are known for their energy efficiency and are used in a wide range
of applications. The ARM architecture offers several instruction sets, including
ARMv6, ARMv7, and ARMv8, with support for features like Thumb instructions (16-
bit compressed instructions), NEON SIMD instructions, and TrustZone security
technology.
3. MIPS: MIPS (Microprocessor without Interlocked Pipeline Stages) architecture is
commonly used in embedded systems, networking devices, and digital signal
processors (DSPs). It follows a Reduced Instruction Set Computer (RISC) approach,
aiming for simplicity and efficiency. MIPS CPUs offer a fixed-length instruction
format, a large number of general-purpose registers, and support for SIMD
instructions (MIPS-3D) and hardware virtualization (MIPS64).
4. PowerPC: PowerPC architecture, originally developed by IBM, is used in various
applications, including personal computers, gaming consoles, and embedded
systems. PowerPC CPUs are known for their high performance and scalability. They
offer features such as a superscalar architecture (multiple instructions executed in
parallel), out-of-order execution, SIMD instructions (AltiVec/VMX), and support for
virtualization (PowerVM).
5. RISC-V: RISC-V is an open-source instruction set architecture that gained
popularity in recent years. It is designed to be simple, modular, and extensible,
making it suitable for a wide range of applications. RISC-V supports both 32-bit and
64-bit versions, with a base instruction set and optional extensions for floating-point
operations (F), atomic operations (A), compressed instructions (C), and more. The
open nature of RISC-V allows for customization and innovation in processor design.
It's important to note that these are just a few examples of instruction set architectures,
and there are many others in use today. Each architecture has its own advantages, trade-
offs, and target applications, influencing the selection of CPUs for specific systems.
Additionally, some architectures, such as x86 and ARM, have multiple vendors producing
CPUs based on the same instruction set, leading to a diverse ecosystem of compatible
processors.
1. RISC Architecture: ARM processors follow the Reduced Instruction Set Computer
(RISC) architecture approach, aiming for simplicity, efficiency, and ease of
pipelining. They typically have a fixed-length instruction format, a large number of
general-purpose registers, and a load/store architecture where data is explicitly
moved between registers and memory.
2. ARM Cortex-A Series: The ARM Cortex-A series processors are designed for high-
performance applications, such as smartphones, tablets, and servers. They feature
out-of-order execution, multiple pipeline stages, branch prediction, and advanced
8
power management techniques. Cortex-A processors support 32-bit (ARMv7) and
64-bit (ARMv8) versions.
3. ARM Cortex-R Series: The ARM Cortex-R series processors are designed for real-
time applications, such as automotive systems, industrial control, and storage
devices. They provide deterministic and low-latency processing, with features like
high-speed interrupt handling, memory protection, and error correction
capabilities.
4. ARM Cortex-M Series: The ARM Cortex-M series processors are designed for low-
power and cost-sensitive embedded systems, such as microcontrollers (MCUs).
They offer efficient code execution, low interrupt latency, and a small footprint.
Cortex-M processors are typically used in applications like Internet of Things (IoT)
devices, wearables, and consumer electronics.
SHARC processors are widely used in applications that require high-performance signal
processing capabilities, such as audio processing equipment, professional audio
systems, automotive audio systems, telecommunication systems, and scientific
instrumentation.
Both ARM processors and SHARC processors serve specific niches in the processor
market, with ARM being versatile and power-efficient, and SHARC being focused on high-
performance digital signal processing. The choice of processor depends on the specific
requirements and constraints of the target application.
9
Programming I/O CPU performance and Power consumption
Programming I/O, CPU performance, and power consumption are interrelated aspects
when it comes to designing and optimizing embedded systems. Let's look at each of these
aspects individually:
10
processing tasks. This conserves power by reducing active power
consumption during idle periods.
Power-Aware Code Design: Designing code with power efficiency in mind
involves minimizing unnecessary computations, reducing memory access,
and utilizing efficient algorithms. This includes avoiding busy-waiting, using
efficient data structures, and optimizing I/O operations to reduce CPU cycles
and power consumption.
Power Management Units: Some CPUs provide power management units
(PMUs) that allow fine-grained control over power consumption. These units
enable dynamic power management, power gating of unused components,
and intelligent power allocation to optimize overall system power
consumption.
By considering the embedded computing platform and following good program design
practices, developers can create robust and efficient software for embedded systems,
meeting the desired functionality, performance, and reliability requirements.
Introduction
Introduction to Embedded Systems:
12
3. Limited Resources: Embedded systems often have limited resources in terms of
processing power, memory, and energy. Optimization techniques are employed to
make the most efficient use of these resources and meet the system's
requirements.
4. Integration: Embedded systems are typically integrated into larger products or
systems. They interact with other components, sensors, actuators, and
communication interfaces to perform their designated tasks.
5. Embedded Software: Embedded systems rely on software to control their
operation. The software is specifically designed for the target hardware and
optimized for efficiency and real-time performance.
6. Hardware-Software Co-design: The design of embedded systems involves a close
collaboration between hardware and software engineers. The hardware is
designed to meet the system's requirements, while the software is tailored to utilize
the hardware efficiently.
1. Address Bus: The address bus carries the memory address signals generated by
the CPU. It specifies the location in the memory or I/O space that the CPU wants to
read from or write to. The width of the address bus determines the maximum
addressable memory space.
2. Data Bus: The data bus is responsible for transferring data between the CPU and
memory or I/O devices. It carries the actual data being read from or written to
memory or peripheral devices. The width of the data bus determines the number of
bits that can be transferred in parallel.
3. Control Bus: The control bus carries control signals that coordinate the operations
of different components within the system. It includes signals such as read and
write control signals, memory enable signals, interrupt request signals, clock
signals, and various control signals specific to the system architecture.
1. System Bus: The system bus connects the CPU to main memory and is often
referred to as the front-side bus (FSB). It handles high-speed data transfers
between the CPU and memory.
2. Memory Bus: The memory bus is responsible for communication between the CPU
and the main memory. It controls memory read and write operations, handles
memory access requests, and manages data transfers.
3. I/O Bus: The I/O bus connects the CPU to peripheral devices, such as hard drives,
graphics cards, network interfaces, and USB devices. Common I/O bus
architectures include Peripheral Component Interconnect (PCI), Universal Serial
Bus (USB), and Serial Advanced Technology Attachment (SATA).
4. Internal Bus: The internal bus, also known as the backside bus, connects the CPU
to the cache memory. It enables high-speed data transfer between the CPU and
cache, optimizing performance by reducing memory access latency.
The performance of the CPU bus depends on several factors, including bus width, bus
speed, and protocol efficiency. A wider bus allows for more data to be transferred in
parallel, while a higher bus speed increases the rate at which data is transferred.
Together, these factors determine the bus bandwidth, which affects the overall system
performance.
To improve bus performance, techniques such as bus arbitration, pipelining, and bus
mastering are employed. Bus arbitration resolves conflicts when multiple devices attempt
to access the bus simultaneously. Pipelining breaks down data transfers into stages to
increase efficiency, and bus mastering allows specific devices (e.g., DMA controllers) to
take control of the bus for direct memory access without CPU intervention.
Overall, the CPU bus serves as a critical communication pathway within a computer
system, facilitating data transfer between the CPU and memory or peripheral devices. Its
performance and efficiency play a significant role in determining the system's overall
throughput and responsiveness.
14
Component interfacing
Component interfacing in embedded systems refers to the methods and protocols used to
establish communication and interaction between different hardware components or
modules within a system. It involves connecting and integrating various components such
as microcontrollers, sensors, actuators, memory devices, communication modules, and
displays. Effective component interfacing is crucial for proper data exchange, control,
and coordination between different parts of the system. Here are some common methods
and protocols used for component interfacing in embedded systems:
1. Serial Communication:
UART (Universal Asynchronous Receiver-Transmitter): UART is a widely
used asynchronous serial communication protocol. It provides a simple and
straightforward way to transmit and receive data serially between devices
using two communication lines (Tx and Rx).
SPI (Serial Peripheral Interface): SPI is a synchronous serial communication
protocol that allows full-duplex communication between a master device and
multiple slave devices. It uses separate lines for data (MISO and MOSI), clock,
and chip select signals.
I2C (Inter-Integrated Circuit): I2C is a multi-master, multi-slave, serial
communication protocol that uses two lines (SDA and SCL) for data transfer.
It allows for communication between various devices, such as sensors,
EEPROMs, and LCD displays.
2. Parallel Communication:
Parallel Port: Parallel ports use multiple data lines to transfer data in parallel
between devices. They are often used for connecting printers, external
storage devices, and parallel interface LCD displays.
3. Analog Interfaces:
ADC (Analog-to-Digital Converter): ADCs are used to convert analog signals
(such as voltage or current) from sensors or other analog sources into digital
data that can be processed by the microcontroller or digital system.
DAC (Digital-to-Analog Converter): DACs are used to convert digital data into
analog signals. They are commonly used for generating analog outputs, such
as audio signals or control signals for actuators.
4. Memory Interfacing:
Parallel Memory Interface: In embedded systems, parallel memory
interfaces, such as address, data, and control lines, are used to connect
microcontrollers or processors to external memory devices like RAM, ROM,
or Flash memory.
Serial Memory Interface: Serial memory interfaces, such as SPI or I2C, are
employed for interfacing with serial memory devices like EEPROM or serial
Flash memory. These interfaces require fewer pins and can be used when the
memory capacity is relatively small.
5. Networking and Communication:
Ethernet: Ethernet interfaces are used for network communication in
embedded systems. They enable connectivity, data exchange, and
communication with other devices on a local network or the internet.
Wireless Interfaces: Wireless communication protocols like Wi-Fi, Bluetooth,
Zigbee, or LoRaWAN are used for wireless connectivity and communication
between embedded systems and other devices or networks.
6. Display Interfaces:
15
Parallel Display Interfaces: Parallel interfaces like RGB, VGA, or HDMI are
used to connect displays for video output in embedded systems. These
interfaces provide high-quality video signals with high resolutions and color
depths.
Serial Display Interfaces: Serial display interfaces like SPI or I2C are used for
connecting smaller graphical displays or character LCDs, requiring fewer
pins and lower bandwidth.
These are just a few examples of component interfacing methods and protocols used in
embedded systems. The choice of interface depends on factors such as the specific
requirements of the application, the capabilities of the components involved, power
considerations, and available resources. It is essential to carefully select the appropriate
interfacing method and ensure proper signal compatibility, timing, and data integrity to
achieve reliable communication and efficient system operation.
1. Define System Requirements: Clearly define the requirements and objectives of the
embedded system. Determine the necessary functionalities, performance criteria,
power consumption limits, I/O interfaces, and any specific constraints or standards
to be followed.
2. Select the Microprocessor: Choose a microprocessor that meets the system
requirements. Consider factors such as processing power, clock speed, memory
requirements, I/O capabilities, power efficiency, and availability of development
tools and support. Evaluate different microprocessor architectures (such as ARM,
x86, or MIPS) and select the most suitable one for your application.
3. System Architecture Design: Design the overall system architecture, including the
microprocessor, memory components (ROM, RAM, flash), I/O interfaces (sensors,
actuators, communication modules), and any additional peripherals required.
Determine how these components will connect and interact with each other to
achieve the desired functionality.
4. Microprocessor and Memory Configuration: Configure the microprocessor by
selecting the appropriate clock speed, bus widths, and cache settings. Determine
the memory requirements and design the memory hierarchy, including the program
memory (flash or ROM) and data memory (RAM). Ensure that the memory resources
are sufficient for storing the program code and data.
5. I/O Interface Design: Design the interface circuits or select suitable communication
protocols for connecting the microprocessor to various I/O devices, such as
sensors, actuators, displays, and communication modules. Consider factors such
as voltage levels, signal conditioning, noise immunity, and compatibility with the
microprocessor's I/O standards.
6. Software Development: Develop the software code that runs on the microprocessor
to control the system behavior. This includes writing firmware or operating system
code, device drivers, application software, and any necessary algorithms or control
logic. Use appropriate software development tools, compilers, debuggers, and
integrated development environments (IDEs) for efficient coding and testing.
7. Hardware and PCB Design: Design the printed circuit board (PCB) layout,
considering factors such as signal integrity, power distribution, grounding, and
component placement. Follow best practices for high-speed digital design and
16
incorporate any necessary peripherals, connectors, and power management
circuitry. Verify the design through simulations and prototyping.
8. Testing and Validation: Perform thorough testing of the hardware and software
components to ensure their functionality, reliability, and performance. Use
techniques such as unit testing, integration testing, functional testing, and system-
level validation. Debug and fix any issues identified during the testing phase.
9. Manufacturing and Production: Prepare the design for manufacturing by generating
the necessary documentation, including PCB fabrication files, assembly
instructions, and bill of materials (BOM). Collaborate with manufacturers or
assembly houses for the production and assembly of the final product.
10. Deployment and Maintenance: Deploy the embedded system in its intended
environment and ensure proper installation and setup. Monitor the system's
performance, collect data, and perform regular maintenance to address any issues
or updates. Provide ongoing support and updates as needed.
Throughout the design process, consider factors such as cost optimization, power
efficiency, and scalability for future enhancements or upgrades. Collaborate with cross-
functional teams, including hardware engineers, software developers, and system
integrators, to ensure a well-rounded design that meets the requirements of the
embedded system.
development
Development in the context of embedded systems refers to the process of creating
software applications and firmware that run on microcontrollers or microprocessors to
control the behavior of the embedded system. Here are the key aspects of embedded
system development:
debugging
Debugging is the process of identifying and resolving errors or issues in software or
hardware systems. In the context of embedded systems, debugging involves finding and
fixing problems in the embedded software, firmware, or the interaction between software
and hardware components. Here are some common debugging techniques and tools used
in embedded system development:
19
such as efficiency, scalability, and data characteristics. Consider trade-offs
between time complexity, space complexity, and resource utilization.
4. Data Design: Design the data model and data organization within the software
system. Define the data structures, databases, and data formats required to store
and manipulate data effectively. Consider data access, retrieval, storage efficiency,
and data integrity requirements.
5. User Interface Design: Design the user interface (UI) elements and interactions that
users will interact with. Consider usability, user experience, and visual design
principles. Create prototypes or mockups to get feedback and iterate on the UI
design.
6. Module Design: Break down the system into smaller, manageable modules. Define
the responsibilities and interfaces of each module. Apply principles such as
abstraction, modularity, and encapsulation to ensure a clear separation of
concerns and maintainable code.
7. Flowchart or Pseudocode: Use flowcharts or pseudocode to represent the program
logic and control flow. Flowcharts provide a graphical representation of the
program's structure, while pseudocode is a high-level, human-readable description
of the algorithmic steps. These representations aid in understanding and refining
the program design.
8. Testing and Validation: Define a comprehensive testing strategy to validate the
program design and ensure it meets the requirements. Develop test cases that
cover various scenarios, including normal operation, boundary conditions, and
error handling. Execute the tests and analyze the results to verify the correctness,
reliability, and performance of the software.
9. Code Review and Documentation: Conduct code reviews to ensure that the code
aligns with the program design and best practices. Document the program design,
including architecture diagrams, data models, and algorithms. Create user
documentation or technical manuals that provide guidance on using and
maintaining the software.
10. Performance Analysis: Analyze the performance of the program design by
considering factors such as time complexity, space complexity, and resource
utilization. Identify potential bottlenecks, inefficiencies, or scalability issues.
Optimize the design, algorithms, or data structures as needed.
Program design and analysis involve a combination of technical skills, creativity, problem-
solving, and attention to detail. It is crucial to follow software engineering principles and
methodologies to ensure a well-designed, maintainable, and robust software system.
Iterative design and continuous feedback from stakeholders can help refine and improve
the program design throughout the development process.
Program design is an iterative process, and the design may evolve and be refined as new
insights or challenges arise during the development cycle. Collaboration between
stakeholders, including software architects, designers, developers, and domain experts,
is crucial to ensure a well-designed software solution that meets the needs of the users
and stakeholders.
Assembly
21
Assembly language is a low-level programming language that represents machine code
instructions in a more human-readable format. It is specific to the architecture of a
particular processor or microcontroller and provides a direct interface to the hardware.
Assembly language programming allows for precise control over the computer's
resources and is commonly used in embedded systems, device drivers, operating
systems, and other performance-critical applications.
While assembly language programming offers fine-grained control over the hardware and
can be highly optimized, it also requires a deep understanding of the underlying
architecture and can be more time-consuming and error-prone compared to higher-level
languages. Therefore, assembly language programming is often reserved for
22
performance-critical or resource-constrained applications where control and efficiency
are paramount.
Linking
Linking is the process of combining multiple object files and libraries to create an
executable program or a shared library. It is an important step in the software
development process that follows the compilation phase. The linker resolves references
between different object files and libraries, ensuring that all necessary code and data are
correctly connected and can be executed or accessed during program execution.
1. Object Files: During the compilation process, source code files are translated into
object files. An object file contains the compiled machine code for functions,
variables, and other program components defined within a single source code file.
Object files may also include references to external functions and variables that are
defined in other source code files or libraries.
2. Static Linking: Static linking is the process of merging multiple object files and
libraries into a single executable file. The linker resolves references between
different object files and combines them to create a standalone executable that
contains all the required code and data. During static linking, the actual code and
data from referenced libraries are copied into the final executable.
3. Dynamic Linking: Dynamic linking allows multiple programs to share the same code
and data from libraries. Instead of including the actual library code in the
executable, dynamic linking creates references to the external library functions and
data. The actual code and data are stored in shared libraries (also known as
dynamic-link libraries or DLLs). The dynamic linker loads the necessary libraries
during program execution and resolves the references at runtime.
4. Symbol Resolution: The linker resolves symbol references between object files and
libraries. A symbol represents a function, variable, or other program component
that is defined or used within the code. The linker matches symbol references with
symbol definitions, ensuring that all symbols are correctly connected. If a symbol
cannot be resolved, it results in a linking error.
5. Address Resolution: The linker assigns memory addresses to different sections of
the program, including code, data, and libraries. It ensures that there are no
conflicts between memory addresses of different components and calculates the
final addresses for each symbol. The resolved addresses are used by the program
during runtime for code execution and data access.
6. Library Management: Linking involves managing libraries, which are collections of
pre-compiled code and data that can be reused across multiple programs. Libraries
can be system libraries provided by the operating system or third-party libraries.
The linker searches for required libraries, links them with the program, and ensures
that the necessary functions and data are available.
7. Linker Scripts: Linker scripts provide instructions to the linker on how to combine
object files and libraries. They define the layout of the program's memory and
specify the order in which the object files and libraries are linked. Linker scripts
can be customized to control memory allocation, specify entry points, and define
initialization routines.
8. Link-Time Optimization: Some linkers support link-time optimization (LTO), which
performs optimizations across multiple object files during the linking process. LTO
enables advanced optimizations, such as inlining functions across compilation
23
units, constant propagation, and dead code elimination, resulting in improved
performance and reduced code size.
1. Lexical Analysis: Lexical analysis is the first stage of the compilation process. It
involves breaking the source code into tokens, such as keywords, identifiers,
operators, and literals. Lexical analyzers, also known as scanners, use regular
expressions and finite automata to recognize and tokenize the input program.
2. Syntax Analysis: Syntax analysis, also known as parsing, is the second stage of the
compilation process. It checks the syntactic structure of the program and ensures
it conforms to the grammar rules of the programming language. Syntax analyzers,
such as parsers, use techniques like recursive descent parsing or LALR(1) parsing
to build a parse tree or an abstract syntax tree (AST) representing the program's
structure.
3. Semantic Analysis: Semantic analysis is the stage where the compiler checks the
meaning and correctness of the program beyond its syntax. It performs tasks like
type checking, scope analysis, and identifier resolution. Semantic analyzers ensure
that the program adheres to the language's semantics and rules.
4. Intermediate Code Generation: After semantic analysis, the compiler generates an
intermediate representation of the program. Intermediate code is a platform-
independent representation that simplifies further compilation stages. Common
intermediate representations include three-address code, abstract syntax trees
(ASTs), or control flow graphs (CFGs).
5. Code Optimization: Code optimization is an important step to improve the efficiency
and performance of the generated code. It involves analyzing the intermediate
representation and applying various optimization techniques to reduce execution
time, minimize memory usage, and enhance code readability. Optimization
techniques can include constant folding, loop unrolling, dead code elimination, and
many more.
6. Code Generation: Code generation is the final stage of compilation, where the
intermediate representation is transformed into target machine code or executable
code specific to the target platform. This stage involves translating the intermediate
code into assembly language or machine code instructions that can be directly
executed by the target hardware. Code generators take into account the target
architecture, register allocation, memory management, and instruction selection.
7. Symbol Table Management: Throughout the compilation process, compilers
maintain symbol tables to manage information about identifiers, variables,
functions, and their associated attributes. Symbol tables store details like names,
types, scope information, memory addresses, and other properties to facilitate
semantic analysis, code generation, and linking.
24
8. Error Handling: Compilers also incorporate error handling mechanisms to detect
and report errors during the compilation process. Error handling involves
identifying syntax errors, type errors, or other issues that violate language rules or
constraints. Compilers typically provide meaningful error messages to assist
programmers in locating and fixing the errors.
These basic compilation techniques are fundamental building blocks for transforming
source code written in high-level programming languages into executable machine code.
The exact implementation and sophistication of these techniques can vary among
different compilers and programming languages, but the overall goal remains the same:
to produce efficient and correct executable code from the given source program.
It's important to note that the choice and effectiveness of optimization techniques may
vary depending on the programming language, platform, and specific requirements of the
program. It's recommended to profile the program, identify the bottlenecks, and prioritize
optimizations based on the specific performance requirements and constraints of the
application. Additionally, benchmarking and testing the optimized code under realistic
conditions is crucial to validate the effectiveness of the optimizations.
26
