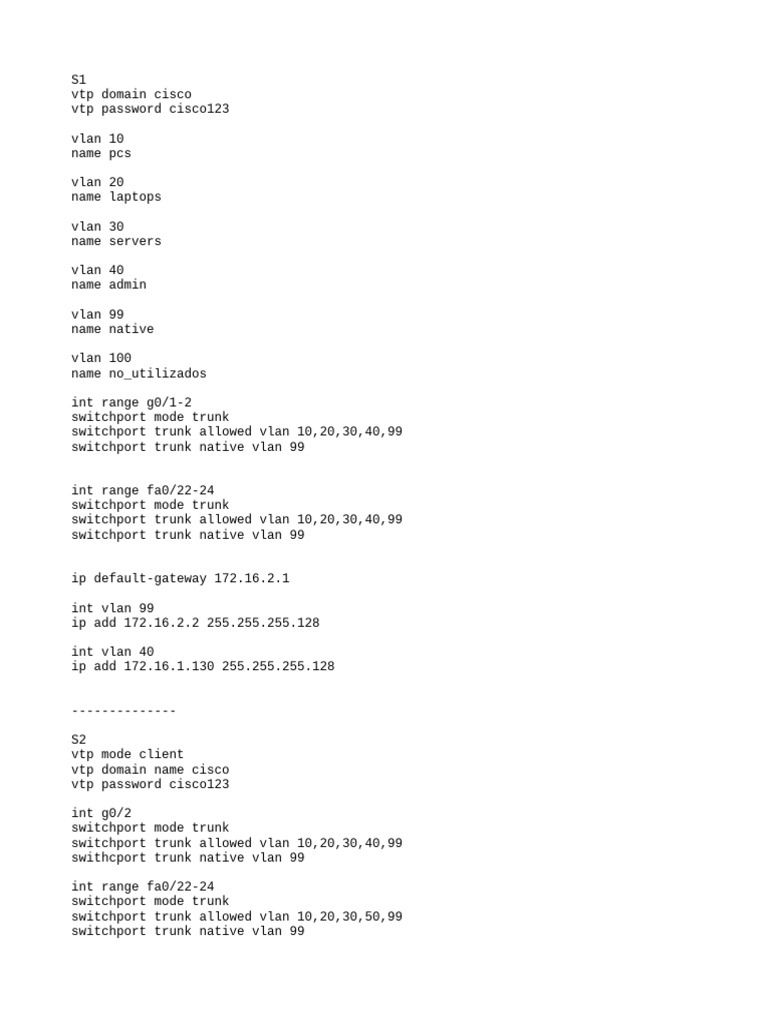

    S1

    vtp domain cisco


    vtp password cisco123

    vlan 10
    name pcs

    vlan 20
    name laptops

    vlan 30
    name servers

    vlan 40
    name admin

    vlan 99
    name native

    vlan 100
    name no_utilizados

    int range g0/1-2


    switchport mode trunk
    switchport trunk allowed vlan 10,20,30,40,99
    switchport trunk native vlan 99

    int range fa0/22-24


    switchport mode trunk
    switchport trunk allowed vlan 10,20,30,40,99
    switchport trunk native vlan 99

    ip default-gateway 172.16.2.1

    int vlan 99
    ip add 172.16.2.2 255.255.255.128

    int vlan 40
    ip add 172.16.1.130 255.255.255.128

    --------------

    S2
    vtp mode client
    vtp domain name cisco
    vtp password cisco123

    int g0/2
    switchport mode trunk
    switchport trunk allowed vlan 10,20,30,40,99
    swithcport trunk native vlan 99

    int range fa0/22-24


    switchport mode trunk
    switchport trunk allowed vlan 10,20,30,50,99
    switchport trunk native vlan 99
    int range fa0/1-2
    switchport mode access
    switchport access vlan 30

    ip default-gateway 172.16.2.1

    int vlan 99
    ip add 172.16.2.3 255.255.255.128

    int vlan 40
    ip add 172.16.1.131 255.255.255.128

    --------------

    S3
    vtp mode client
    vtp domain cisco
    vtp password cisco123

    int range g0/1-2


    switchport mode trunk
    switchport trunk allowed vlan 10,20,30,40,99
    swithcport trunk native vlan 99

    int range fa0/1-2


    switchport mode access
    switchport access vlan 10

    int range fa0/3-4


    switchport mode access
    switchport access vlan 20

    ip default-gateway 172.16.2.1

    int vlan 99
    ip add 172.16.2.4 255.255.255.128

    int vlan 40
    ip add 172.16.1.132 255.255.255.128

    --------------

    S4
    vtp mode client
    vtp domain cisco
    vtp password cisco123

    int g0/1
    switchport mode trunk
    switchport trunk allowed vlan 10,20,30,40,99
    switchport trunk native vlan 99

    int range fa0/1-2


    switchport mode access
    switchport access vlan 10
    int range fa0/3-4
    switchport mode access
    switchport access vlan 20

    ip default-gateway 172.16.2.1

    int vlan 99
    ip add 172.16.2.5 255.255.255.128

    int vlan 40
    ip add 172.16.1.133 255.255.255.128

    ---------------------------

    R1

    int g0/0
    no sh

    int g0/0.10
    encapsulation dot1q 10
    ip add 172.16.0.1 255.255.255.128

    int g0/0.20
    encapsulation dot1q 20
    ip add 172.16.0.129 255.255.255.128

    int g0/0.30
    encapsulation dot1q 30
    ip add 172.16.1.1 255.255.255.128

    int g0/0.40
    encapsulation dot1q 40
    ip add 172.16.1.129 255.255.255.128

    int g0/0.99
    encapsulation dot1q 99 native
    ip add 172.16.2.1 255.255.255.128

    ip dhcp pool vlan10


    network 172.16.0.0 255.255.255.128
    default-router 172.16.0.1
    dns-server 172.16.1.2
    exit

    ip dhcp pool vlan20


    network 172.16.0.128 255.255.255.128
    default-router 172.16.0.129
    dns-server 172.16.1.2
    exit

    */***//*/*/*/*/**/*//*/*/*

    +STP BPDU GUARD Y PORTFAST S3

    int range fa0/1-4


    spanning-tree portfast
    spanning-tree bpduguard enable
    end

    */***//*/*/*/*/**/*//*/*/*

    +STP BPDU GUARD Y PORTFAST S4

    int range fa0/1-4


    spanning-tree portfast
    spanning-tree bpduguard enable
    end

    +STP BPDU GUARD Y PORTFAST S2

    int range fa0/1-2


    spanning-tree portfast
    spanning-tree bpduguard enable
    end

    /*/*/*/*/*/*/*/*//*
    SEGURIDAD DE PUERTOS

    S3 VLAN 20,10 - PCS

    int fa0/1
    switchport port-security
    switchport port-security maximum 2
    switchport port-security violation restrict
    switchport port-security mac-address sticky

    int fa0/2
    switchport port-security
    switchport port-security maximum 1
    switchport port-security mac-address sticky
    switchport port-security mac-address 00E0.B09A.6C24
    switchport port-security violation restrict

    int fa0/3
    switchport port-security
    switchport port-security maximum 2
    switchport port-security violation restrict
    switchport port-security mac-address sticky

    int fa0/4
    switchport port-security
    switchport port-security maximum 1
    switchport port-security mac-address sticky
    switchport port-security mac-address 0090.214C.372D
    switchport port-security violation restrict

    S4 VLAN 10 - PCS

    int range fa0/1-2


    switchport port-security
    switchport port-security maximum 3
    switchport port-security violation restrict
    switchport port-security mac-address sticky
    S3 VLAN 10 - PCS

    int range fa0/1-2


    switchport port-security
    switchport port-security maximum 3
    switchport port-security violation restrict
    switchport port-security mac-address sticky

    S2 VLAN 30 - SERVERS

    int fa0/1
    switchport port-security
    switchport port-security maximum 1
    switchport port-security mac-address sticky
    switchport port-security mac-address 000D.BD04.D6B2
    switchport port-security violation restrict

    etherchannel S1

    int range fa0/23-24


    channel-group 1 mode active

    interface Port-channel 1
    switchport mode trunk
    switchport trunk allowed vlan 10,20,30,40,99
    switchport trunk native vlan 99

    etherchannel S2

    int range fa0/23-24


    channel-group 1 mode active

    interface Port-channel 1
    switchport mode trunk
    switchport trunk allowed vlan 10,20,30,40,99
    switchport trunk native vlan 99
