Trane Integration Guide - BACnet_ Communication Interface for ReliaTel_ Controllers (BCI-R)

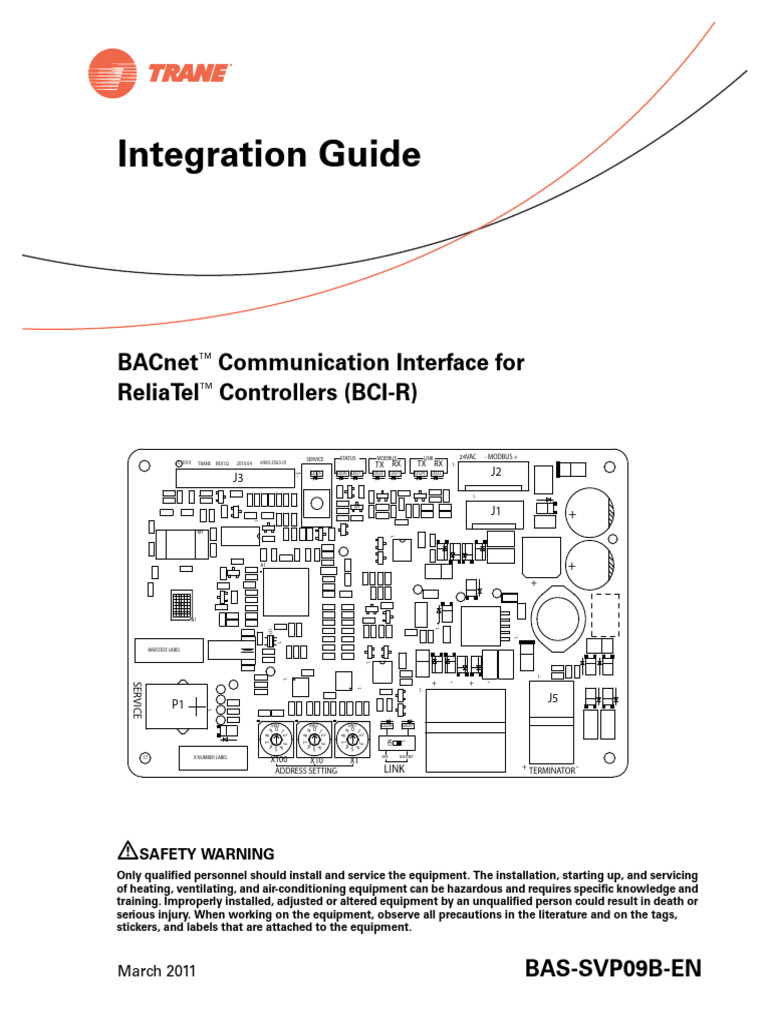

Integration Guide
BACnet™ Communication Interface for

ReliaTel™ Controllers (BCI-R)
SERVICE STATUS MODBUS LINK 24VAC - MODBUS +

C 2010 TRANE REV 02 2010.04 6400-2563-01 TX RX TX RX 1-
J3
LED5 LED6 LED7 LED3 LED1 LED4 LED2 J2
1-
1-
J1
Q9
+
1
-MT
1-
A1
+
+
U10
E
6 5 4 3 2 1
A1
1-
U1
1-
1-
BARCODE LABEL
1-
1-
- -
1-
+ +
SERVICE
1-
1-
J5
P1
1-
SW3 SW2 SW1 LED8 LED9

90 1 90 1 90 1
7 8
7 8
7 8
2 3
2 3
2 3
ON
456 456 456
17 X NUMBER LABEL IMC BACNET

X100 X10 X1
ADDRESS SETTING LINK +
TERMINATOR
-
SAFETY WARNING
Only qualified personnel should install and service the equipment. The installation, starting up, and servicing
of heating, ventilating, and air-conditioning equipment can be hazardous and requires specific knowledge and
training. Improperly installed, adjusted or altered equipment by an unqualified person could result in death or
serious injury. When working on the equipment, observe all precautions in the literature and on the tags,
stickers, and labels that are attached to the equipment.
March 2011 BAS-SVP09B-EN

Copyright
© 2011 Trane All rights reserved
This document and the information in it are the property of Trane and may not be used
or reproduced in whole or in part, without the written permission of Trane. Trane reserves
the right to revise this publication at any time and to make changes to its content without
obligation to notify any person of such revision or change.
Trademarks
Trane and its logo are trademarks of Trane in the United States and other countries. All
trademarks referenced in this document are the trademarks of their respective owners.
2 BAS-SVP09B-EN
Table of Contents
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
BACnet Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Required Software and Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
What to Do First . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Setting Addresses on the Rotary Switches . . . . . . . . . . . . . . . . . . . . . . . . . 5
Selecting Wireless Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Configuring the BCI-R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Using the BACnet Setup Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Using Tracer TU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Understanding the MAC Address and BACnet Device ID . . . . . . . . . . . . . . . . 9
What To Do After Adding Options or Equipment to the Unit . . . . . . . . . . . . 11
Clearing the Contoller and Restoring Factory Defaults to the BCI-R . . . . 11
Updating the Application Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Managing Device Units on the Controller Units Screen . . . . . . . . . . . . . . . . 12
BCI-R Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
BAS Unit Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Initiating System Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Output and Input Object Data Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Periodic Update of BAS Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
BAS Communication Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Input/Output Commands and Calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Filter Timer Reset Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Diagnostics Reset Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setpoint Calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Timestamp Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
LEDs and Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

BACnet Data Points and Configuration Property Definitions . . . . . . . . . . . . . . . 17
BACnet Protocol Implementation Conformance Statement (PICS) . . . . . . . 17
Standardized Device Profile (Annex L) . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Interoperability Building Blocks (Annex K) . . . . . . . . . . . . . . . . . . . . . . . . 17
Segmentation Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Object Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
BACnet Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Data Link Layer Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Device Address Binding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Networking Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Object Data Points and Diagnostic Data Points . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
BAS-SVP09B-EN 3
Overview
The BACnet Communication Interface for ReliaTel (BCI-R) supports Trane ReliaTel rooftop units that
function as part of a BACnet MS/TP communications network. It allows ReliaTel equipment to
communicate with a building automation system (BAS) by using the BACnet protocol over an
RS-485 MS/TP communications link.
This guide provides the following information:
• Configuring the BCI-R with the BACnet service tool and Tracer TU.
• Operating the BCI-R as part of a building automation system.
• Interpreting the BCI-R LEDs and switch settings.
• Object data points and diagnostic data points.
Note: Users of this guide should have basic knowledge of BACnet protocol. For more detailed
information about this protocol, visit the company web site listed under “Additional
Resources,” p. 37.
BACnet Protocol
The Building Automation and Control Network (BACnet and ANSI/ASHRAE Standard 135-2004)
protocol is a standard that allows building automation systems or components from different
manufacturers to share information and control functions. BACnet provides building owners the
capability to connect various types of building control systems or subsystems together for a variety
of reasons. In addition, multiple vendors can use this protocol to share information for monitoring
and supervisory control between systems and devices in a multi-vendor interconnected system.
The BACnet protocol identifies standard objects (data points) called BACnet objects. Each object
has a defined list of properties that provide information about that object. BACnet also defines a
number of standard application services that are used to access data and manipulate these objects
and provides a client/server communication between devices. For more information on BACnet
protocol, refer to “Additional Resources,” p. 37.
BACnet Testing Laboratory (BTL) Certification

The BCI-R supports the BACnet communication protocol and has been designed to meet the
requirements of the application-specific control profile. For more details, refer to the BTL web site
at www.bacnetassociation.org.
4 BAS-SVP09B-EN
Getting Started
This section describes the necessary software, tools, and initial tasks that are required for a
successful integration.
Required Software and Tools

The following are required:
• Tracer™ BACnet Setup Tool OR Tracer™ TU Service Tool, version 6.0 or higher
• A USB cable (for use with Tracer TU)
• A 1/8 inch (3 mm) flat-bladed screwdriver
What to Do First
It is best practice to perform the following tasks in the order in which they are listed:
• Set device addresses on the BCI-R rotary switches (see following section).
• Select either wired or wireless communication using the link select switch on the BCI-R (p. 6).
• Configure the BCI-R by using either the Tracer BACnet Setup Tool (BST) or Tracer TU (p. 7).
– The default baud rate is 76,800 bps.
– The default software device ID is the MAC address.
– The device units do not have defaults; the BST or Tracer TU will display the device units of
the controller to which it is connected.
Setting Addresses on the Rotary Switches

There are three rotary switches on the front of the BCI-R controller that are used to define a three-
digit address when the BCI-R is installed on a BACnet communications network. The three-digit
address setting is the BACnet MAC address. Figure 1 shows how to set addresses.
For more information about rotary switches, see “Understanding the MAC Address and BACnet
Device ID,” p. 9.
Note: All devices are MS/TP masters with valid MAC addresses of 001 to 127 for BACnet.
Figure 1. Setting addresses on the rotary switches
Use a 1/8 in (3mm)flat-bladed

Before
screwdriver to set rotary
switches.
901
After
23
78
456
ADDRESS
90 1 90 1 90 1
2 3
2 3
2 3
7 8
7 8
7 8
4 56 4 56 4 56
x100 x10 x1
Setting addresses to 127

(before and after) Important: Each device on the BACnet MSTP link must have a unique rotary
switch setting, otherwise, communication problems will occur.
BAS-SVP09B-EN 5
Getting Started
Selecting Wireless Communication

If using a wireless COMM interface (WCI), set the link select switch to IMC as shown in Figure 2.
For wiring instructions, refer to the “BACnet Communication Interface for ReliaTel Controllers”,
RF-SVN03-EN.
Figure 2. Wireless COMM Interface (WCI)
6 BAS-SVP09B-EN
Configuring the BCI-R
The BCI-R can be configured using either the Tracer™ BACnet Setup Tool or the Tracer™ TU service
tool.
Note: The BCI-R controller is fully configured from the factory for use with Tracer SC based
systems. Additional configuration, or the use of Tracer TU, is not necessary. Additionally,
the BCI-R self-configures itself to match the unit type upon initial power-up.
Using the BACnet Setup Tool

This section describes how to configure the BCI-R controller using the Tracer BACnet Setup Tool.
Online help is available by clicking the help icon located in upper right portion of the screen.
1. Open the Tracer BACnet Setup Tool.
The Controller Settings screen appears (Figure 3).
2. In the Protocol and Controller Units sections, change or keep the default settings for the baud
rate, software device ID, and the device units.
3. Click save.
Figure 3. BACnet Setup Tool Controller Settings screen (connected to a UC400 as an example)
Using Tracer TU
This section describes how to first connect to the Tracer TU software and then configure the
BCI-R controller. If Tracer TU is not installed, refer to the “Tracer TU Service Tool Getting Started
Guide” (TTU-SVN02). Tracer TU software, Version 6.0 or higher, is required.
BAS-SVP09B-EN 7
To connect to Tracer TU:

1. Connect the USB cable directly from the laptop to the BCI-R, or to an equipment control panel
USB port connected to the controller.
Important: If using a PC with multiple USB ports, connect by using the same process outlined
below for the same piece of equipment. This is normal operation. Observe existing
USB standards for cable length. (For more information go to informational Web
sites, such as http://www.USB.org.)
2. Click either the Tracer TU desktop icon or the Tracer TU program item in the Tracer TU group
on the Start menu.
The Tracer TU splash screen appears briefly followed by the Connect dialog box.
Figure 4. Connect dialog box
3. Select the Direct Connection (USB cable) radio button if it is not already selected.
4. Click the Connect button and the Unit Summary page will appear after successful connection.
To configure the BCI-R controller:
1. Select the Controller Settings Utility tab from the vertical tab set located on the right side of the
TU window.
Note: The content of this screen is based on the type of controller that is connected and the
system protocol used to communicate with the controller.
2. Enter a meaningful name for the controller.
3. Click the Controller Units expanding box label to display its contents.
4. Select the preferred units of measure for data communicated across the BACnet link.
5. Click the Protocol expanding box heading to display its contents.
6. Select the preferred Baud Rate in the drop-down list box.
7. If a software Device ID is required, check the Use Software Device ID box and enter a BACnet
Device ID.
8. Click Save.
8 BAS-SVP09B-EN
Understanding the MAC Address and BACnet Device ID

MAC Address
The MAC address is the rotary dial address. For Trane systems, this address must be between 1 and
127. Although “0,0,0,” is a valid BACnet address, Trane reserves this address for the Tracer SC
controller. All devices on the BACnet MS/TP link must be unique. For non-Trane SC systems, see
“Rotary Dial Address Settings for Non-Trane SC Systems,” p. 10.
BACnet Device ID
Tracer SC uses the rotary dial settings (MAC address) to create the BACnet device ID. The Tracer
SC adds an SC rotary dial address and a link number to artificially create a unique BACnet Device
ID for each node.
Figure 5 shows how Tracer TU displays the rotary dial settings and the resulting BACnet device ID:
• The rotary dials on the BCI-R are set to 30 (0,3,0), which is also the MAC address.
• The Tracer SC created a BACnet device ID of 101030.
• The Tracer SC address is “0,1,0”.
• The BCI-R is installed on link 1.
Figure 5. Example showing rotary dial settings and BACnet device ID
MAC address
BACnet device ID
BAS-SVP09B-EN 9
Rotary Dial Address Settings for Non-Trane SC Systems

For non-Trane SC systems, the Max Master value must be greater than the unique address settings
from the rotary dials. Although 999 is possible from the dials, the maximum allowed number by
BACnet is 127.
The Max Master is not adjustable in Trane SC systems. For example, if the MAC address is 101 and
the front-end system has a Max Master value of 100, the device will not be discovered.
Many systems have a minimum BACnet Device ID value. Ensure that the Device ID is greater than
this value.
10 BAS-SVP09B-EN
What To Do After Adding Options or Equipment to the Unit

Restoring the BCI-R controller to factory defaults is necessary if the unit setup has changed after
the initial self-configuration process. This process is called “clearing the controller”.
For example, an economizer is added to the machine after the initial installation. In order for the
BCI-R controller to recognize the economizer, it must be restored to factory defaults.
The BCI-R controller self-configures upon initial power-up to match the connected equipment type.
This configuration is then permanently stored in the memory of the controller. Through this
process, the controller generates the correct list of BACnet points.
Clearing the Contoller and Restoring Factory Defaults to the BCI-R

Clearing the controller is necessary to collect equipment information and reinstall the
configuration.
Using the BACnet Setup Tool to clear the controller and restore to factory
defaults
1. Navigate to the Controller Settings screen.
2. Click within the light gray area at the bottom left of the screen just above the "Connected"
indicator.
The Clear Controller button appears at the top right of the screen.
3. Click Clear Controller.
A message box appears stating that the configuration will be reset (deleted).
4. Click OK.
When the controller is cleared, the Select Device Units message box appears.
5. Click OK and then expand the Controller Units box on the Controller Settings screen.
6. Select the units (SI, IP, or Custom).
Defaults to Custom after clearing the controller. If you want to use Custom, ensure that all unit
options are set correctly.
7. Click Save.
Using Tracer TU to clear the controller and restore to factory defaults

1. Establish the connection between Tracer TU and the BCI-R controller.
2. Select the Controller Settings Utility tab from the vertical tab set located on the right side of the
TU window.
3. On the controller settings page, there is a gray bar at the bottom with the Save/Cancel buttons.
Move the cursor near the left edge of the gray bar, keeping the cursor inside the bar; click on
this area. A Clear Controller button will appear in the upper right portion of the screen display.
4. Click the Clear Controller button and a pop-up window will appear with a message that asks for
confirmation to reset the device. Click Yes.
5. A pop-up window will appear confirming that the controller has been reset and that the
controller will be restarted. Click OK. The BCI-R controller is restored to its factory default state
after it restarts.
6. Follow the steps in “Using Tracer TU,” p. 7 to reconfigure the BCI-R controller.
Updating the Application Code

The application code in the BCI-R controller can be upgraded in the field by using Tracer TU. Follow
the instructions in Tracer TU to upgrade the application code.
BAS-SVP09B-EN 11
Managing Device Units on the Controller Units Screen

The BCI-R device units can be viewed and managed on the Controller Units screen from either the
BACnet Setup Tool or Tracer TU.
When the BCI-R first powers up, or after the controller has been cleared, a list of points (the role
document) is created from the information supplied to the BCI-R from the ReliaTel RTRM module
through the Modbus link.
Note: The BCI-R creates the role document immediately (often within one second).
Immediately after the points are created, the device units are set and saved and appear on the
Controller Units screen. The values that correspond to the device units are set to default to SI
values. In some cases, the Custom radio button may be selected; however, the device units will still
default to SI.
If you are using Tracer TU to change the Device Units to IP by clearing the controller, it is best to
either unplug the Modbus cable to the BCI-R, or to power down the entire unit (the BCI-R). By doing
this, the BCI-R will not see Modbus traffic. This method will enable the Device Units radio button
selection, which allows you to make changes.
12 BAS-SVP09B-EN
BCI-R Operation
The control system on HVAC equipment has the ability to operate the unit as a stand-alone system
or as part of a building automation system (BAS). The BCI-R (either factory or field installed), by
default, is configured for stand-alone operation. This configuration enables the HVAC equipment
to operate prior to the commissioning of the unit into the BAS.
BAS Unit Control

The BCI-R operates by using setpoints and placing points in and out of service. This method
consists of BACnet objects that the BAS can access to control and monitor the status of equipment.
Initiating System Control

To initiate system control:
1. Make binary output 1 (BO 1), system control command, active.
Trane also recommends setting the relinquish default value to active when performing step 1.
Note: BO 1 must in service in order to control from a BAS.
Important: you must make BO 1 active in order to receive commands from the BAS system
control. If inactive, only montioring and status are allowed. BO 1 is often referred to
as the “master switch.” See Table 8, p. 29.
2. Place in service the output points that are required by your application.
Note: The output points to be placed in service are dependent on the job, the unit
configuration, and customer preference. The following list is an example of common
output points that might be placed in service for constant volume (CV) units.
• Multi-State Output 7, Occupancy Request
• Multi-State Output 8, Heat Cool Mode Request BAS
• Multi-State Output 2, Emergency Override Command
• Analog Output 2, Space Temperature Setpoint BAS
• Analog Output 29, Occupied Offset
• Analog Output 30, Standby Offset
• Analog Output 31, Unoccupied Cooling Setpoint
• Analog Output 32, Unoccupied Heating Setpoint
• Analog Output 9, Space Static Pressure Setpoint BAS
Output and Input Object Data Points

• Output objects; used by the BAS to provide command, setpoint, and sensor information to the
rooftop unit. By default, most output objects are placed out of service to allow standalone unit
operation before commissioning. See Table 3, p. 24, Table 6, p. 27, and Table 8, p. 29 for details.
• Input objects; provide ReliaTel status information to the BAS. See “Object Data Points and
Diagnostic Data Points,” p. 24, for a list of supported objects. By default, all input objects are
placed in service to allow monitoring of unit operation, even in standalone mode, before
commissioning. See Table 4, p. 25, Table 7, p. 27, Table 9, p. 29, and Table 10, p. 30 for more
details.
You can define the amount of control that the BAS system will apply to the unit. This is done by
configuring the state of the Out of Service property of the output objects. If the property is set to
True, the equipment will use a corresponding local value for control. If the property is set to False,
the local value is ignored and the BAS-supplied value is used for control. The BAS value is provided
to the rooftop unit by writing to the present value property of the corresponding output object. The
factory default value for the Out of Service property of these objects is True.
BAS-SVP09B-EN 13
BCI-R Operation
Periodic Update of BAS Values

The BCI-R device requires the BAS system to provide a periodic update to the sensor values. This
protects against a loss of communication between the BAS and the BCI-R. By BACnet definition,
the present value of the object will maintain the last value written to it, regardless of the amount
of time that has elapsed since the last write. If communication is lost for several minutes or longer,
the present value of BAS-supplied sensor objects may no longer represent the current state of
environmental conditions. This may result in decreased occupant comfort and damage to building
systems.
BAS Communication Failure

The BCI-R is designed to minimize communication failure mode. It does this by monitoring the
length of time that has elapsed since the last write to the present value of the sensor object. If the
length of time exceeds a predefined limit, the BCI-R will place the object into the fault state and
revert to a unit-supplied sensor value for control. At power up, the sensor objects are set to a fault
state and they will remain in this state until a write is detected.
The minimum periodic refresh rate for the objects is defined in Table 3, p. 24. The following list is
a set of sensor values that can be supplied by the BAS:
• Space Static Pressure BAS
• Space Air Temperature BAS
• Outdoor Air Temperature BAS
• Outdoor Air Humidity BAS
• Space CO2 Concentration BAS
• Space Humidity BAS
Input/Output Commands and Calculations

This section will provide the following information about certain inputs and outputs that perform
• Filter timer and diagnostic reset commands
• Setpoint calculations
Filter Timer Reset Command

The BCI-R uses the Filter Runtime Hours object (analog input 6) to generate a diagnostic when its
present value is greater than the Filter Runtime Hours Setpoint, (analog value 1) present value. The
procedure for resetting the timer is as follows:
The BAS will change the state of the Filter Timer Reset Command object (binary output 13) to
the active state. Upon the change to active state, the BCI-R will set the present value of the Filter
Runtime Hours object to zero and then set the Reset Command object back to the inactive state.
Diagnostics Reset Command

The ReliaTel control system monitors the operation of the HVAC equipment. If an abnormal
condition is detected, an event notification message is sent to the Tracer SC. The corresponding
binary input object will change state from inactive to active when the diagnostic is detected. The
object has been configured to send a BACnet event message to external BACnet devices as defined
by the protocol.
The BAS has the ability to reset internal diagnostics by controlling the state of the Diagnostic Reset
Command object (binary output 14) as follows:
• The BAS will change the state of the Diagnostic Reset to the active state.
• Upon the change to active state, the ReliaTel control system will reset all internal diagnostics
and set the state of all the diagnostic objects to inactive.
14 BAS-SVP09B-EN
BCI-R Operation
• Upon completion of this action, the BCI-R will set the present value of the Diagnostic Reset
Command object back to the inactive state.
Setpoint Calculations
The equipment has the ability to perform two basic control functions:
• Space air temperature control
• Discharge air temperature control
When the unit is configured for discharge air control, it controls the temperature of the air leaving
the unit to the discharge air temperature setpoint.
When the unit is configured for space air temperature control, it controls the air temperature of the
space that contains the space air temperature sensor. This value may be provided by wiring the
sensor to the unit or via a sensor value provided by the BAS.
Figure 6 illustrates how the various temperature setpoints are calculated for space temperature
control. When the unit is in an occupied mode the active space temperature setpoint is calculated
based on the space temperature setpoint and the two setpoint offset values. In unoccupied mode,
the unoccupied heating and cooling setpoints are used as the active setpoint.
Figure 6. Setpoint calculations
Timestamp Configuration
The BCI-R controller has a software-derived clock that maintains the time and date. The controller
records a timestamp when an event or a change-in-state is detected by a BACnet object. However,
in the event of a power loss, the device does not maintain this time and date information. At power
up, the device time and date will default to 12:00 p.m., Jan 1, 1970.
To minimize the possibility that the unit timestamp is not representing the actual time, the BAS
should be set up to periodically synchronize the device time clock with the BAS clock using the
BACnet Device Management-TimeSynchronization-A service (BIBB DM-TS-A).
BAS-SVP09B-EN 15
LEDs and Switches
Table 1. Interpreting the LEDs and switches
LED type LED activity Indicates...

The controller is in boot mode. The controller will be placed
into boot mode if the service pin is held in when power is
applied. In boot mode, the controller is non-operational and
Solid green
Service LED is waiting for a new main application to be downloaded.
While in boot mode, the system will not run any
applications.
Not illuminated Application code is running; operating normally
Solid green Normal operation
Blinking green The controller is updating the flash
Status LED Solid red The controller has malfunctioned
Blinking red Alarms or point faults are present
Not illuminated The controller is off
TX blinks green Data is being transferred, received, or transmitted
Blinks at the data transfer rate when the unit receives data
Link Tx/Rx RX blinks yellow from other devices on the link
• ON solid yellow; indicates there is reverse polarity
Not illuminated No activity is occurring
Blinking Data is being transferred, received, or transmitted
Modbus Tx/Rx
Not illuminated No activity is occurring
BACnet is illuminated The Link Switch has been set to wired communication
Link LEDs
IMC is illuminated The Link Switch has been set to wireless communication
Switch/Button type Purpose
Link Select Switch Use this switch to select wired communication (BACnet) or wireless communication (IMC)
Service Button Press this button and restart the controller to run the boot code
Rotary Switches Use these switches to set unique MS/TP MAC addresses
16 BAS-SVP09B-EN
BACnet Data Points and Configuration Property
Definitions
The BCI-R controller allows a ReliaTel control system to communicate with BACnet systems and
devices using BACnet MS/TP. This section includes information about:
• BACnet protocol implementation conformance statement (PICS)
• Object types: descriptions and configuration (refer to Table 2, p. 19)
• BACnet protocol: data link layers, device address binding, networking options, and character
sets
• Object data points and configurations
BACnet Protocol Implementation Conformance Statement (PICS)

Standardized Device Profile (Annex L)
Profile Description Supported Profile

BACnet Advanced Application Controller (B-AAC)
BACnet Application Specific Controller (B-ASC) 9

BACnet Building Controller (B-BC)
BACnet Operator Workstation (B-OWS)
BACnet Smart Actuator (B-SA)
BACnet Smart Sensor (B-SS)
Interoperability Building Blocks (Annex K)
Data Sharing Description Supported BIBB
Data Sharing-ReadProperty-A (DS-RP-A) 9

Data Sharing-ReadProperty-B (DS-RP-B) 9
Data Sharing-ReadPropertyMultiple-B (DS-RPM-B) 9
Data Sharing-WriteProperty-A (DS-WP-A) 9
Data Sharing-WriteProperty-B (DS-WP-B) 9
Data Sharing-WritePropertyMultiple-B (DS-WPM-B) 9
Alarm and Event Management Description Supported BIBB
Alarm and Event-ACKI-B (AE-ACK-B) 9

Alarm and Event-Alarm Summary-B (AE-ASUM-B) 9
Alarm and Event-Information-B (AE-INFO-B) 9
Alarm and Event-Notification Internal-B (AE-N-I-B)
9
Trending Description Supported BIBB
Trending-Automated Trend Retrieval-B (T-ATR-B) 9

Trending-viewing and Modifying Trends Internal-B (T-VMT-I-B)
9
BAS-SVP09B-EN 17
BACnet Data Points and Configuration Property Definitions
Device Management Description Supported BIBB
Device Management-Backup and Restore-B (DM-BR-B) 9

Device Management-Device Communication Control-B (DM-DCC-B) 9
Device Management-Dynamic Device Binding-A (DM-DDB-A) 9
Device Management-Dynamic Device Binding-B (DM-DDB-B) 9
Device Management-Dynamic Object Binding-B (DM-DOB-B) 9
Device Management-List Manipulation-B (DM-LM-B) 9
Device Management-Object Creation and Deletion-B (DM-OCD-B) 9
Device Management-Reinitialize Device-B (DM-RD-B) 9
Device Management-TimeSynchronization-B (DM-TS-B) 9
Segmentation Capability
Segmentation Description Supported Segment
Segmented Requests/ Window Size: 1 9

Segmented Responses/ Window Size: 1 9
18 BAS-SVP09B-EN
Object Types
Table 2. Descriptions and configurations
Ability
Object to Ability to
Type Required Properties Read Properties Written(a) Optional Properties Read Create Delete
Analog • Object_Identifier • Object_Name • Description Yes Yes, only
Input • Object_Name • Description • Reliability user created
• Object_Type • Out_Of_Service • Min_Pres_Value objects
• Present_Value • Present_Value • Max_Pres_Value
• Status_Flags • Reliability • Time_Delay
• Event_State • Min_Pres_Value • Notification _Class
• Out_Of_Service • Max_Pres_Value • High_Limit
• Units • Time_Delay • Low_Limit
• Notification_Class • Deadband
• High_Limit • Limit_Enable
• Low_Limit • Event_Enable
• Deadband • Acked_Transitions
• Limit_Enable • Notify_Type
• Event_Enable • Event_Time_Stamps
• Notify_Type
Output • Object_Name • Description • Reliability user created
• Object_Type • Out_Of_Service • Min_Pres-Value objects
• Present_Value • Present_Value • Max_Pres_Value
• Event_State • Min_Pres_Value • Notification _Class
• Out_Of_Service • Max_Pres_Value • High_Limit
• Units • Relinquish_Default • Low_Limit
• Priority_Array • Time_Delay • Deadband
• Relinquish_Default • Notification_Class • Limit_Enable
• High_Limit • Event_Enable
• Low_Limit • Acked_Transitions
• Deadband • Notify_Type
• Limit_Enable • Event_Time_Stamps
• Event_Enable
• Notify_Type
Value • Object_Name • Description • Reliability user created
• Object_Type • Out_Of_Service • Priority_Array objects
• Present_Value • Present_Value • Relinquish_Default
• Event_State • Relinquish_Default • Notification_Class
• Out_Of_Service • Time_Delay • High_Limit
• Units • Notification_Class • Low_Limit
• High_Limit • Deadband
• Low_Limit • Limit_Enable
• Deadband • Event_Enable
• Limit_Enable • Acked_Transitions
• Event_Enable • Notify_Type
• Notify_Type • Event_Time_Stamps
Binary • Object_Identifier • Object_Name • Description Yes Yes, only
Input • Object_Name • Description • Inactive_Text user created
• Object_Type • Out_Of_Service • Active_Text objects
• Present_Value • Inactive_Text • Change_Of_State_Time
• Status_Flags • Active_Text • Change_Of_State_Count
• Event_State • Present_Value • Time_Of_State_Count_Reset
• Out_Of_Service • Reliability • Elapsed_Active_Time
• Polarity • Change_Of_State_Count • Time_Of_Active_Time_Reset
• Elapsed_Active_Time • Time_Delay
• Time_Delay • Notification_Class
• Notification_Class • Alarm_Value
• Alarm_Value • Event_Enable
• Event_Enable • Acked_Transitions
• Polarity • Notify_Type
• Reliability
BAS-SVP09B-EN 19
Table 2. Descriptions and configurations (continued)

Ability
Output • Object_Name • Description • Inactive_Text user created
• Priority_Array • Elapsed_Active_Time • Minimum_On_Time
• Relinquish_Default • Minimum_On_Time • Minimum_Off_Time
• Minimum_Off_Time • Time_Delay
• Relinquish_Default • Notification_Class
• Time_Delay • Feedback_Value
• Notification_Class • Event_Enable
• Event_Enable • Acked_Transitions
• Polarity • Notify_Type
• Reliability
Value • Object_Name • Description • Inactive_Text user created
• Elapsed_Active_Time • Priority_Array
• Minimum_On_Time • Relinquish_Default
• Minimum_Off_Time • Minimum_On_Time
• Relinquish_Default • Minimum_Off_Time
• Time_Delay • Time_Delay
• Notification_Class • Notification_Class
• Alarm_Value • Alarm_Value
• Event_Enable • Event_Enable
• Notify_Type • Acked_Transitions
• Notify_Type
• Event_Time_Stamps
• Reliability
Device • Object_Identifier • Object_Name • Location None None
• Object_Name • Location • Description
• Object_Type • Description • Max_Segments_Accepted
• System_Status • APDU_Segment_Timeout • APDU_Segment_Timeout
• Vendor_Name • APDU_Timeout • Max_Master
• Vendor_Identifier • Number_Of_APDU_Retries • Max_Info_Frames
• Model_Name • Backup_Failure_Timeout • Local_Time
• Firmware_Revision • Max_Master • Local_Date
• Application_Software_Version • Max_Info_Frames • Configuration_Files
• Protocol_Version • Last_Restore_Time
• Protocol_Revision • Backup_Failure_Timeout
• Protocol_Services_Supported • Profile_Name
• Protocol_Object_Types_Supported
• Object_List
• Max_APDU_Length_Accepted
• Segmentation_Supported
• APDU_Timeout
• Number_Of_APDU_Retries
• Device_Address_Binding
• Database_Revision
Event • Object_Identifier • Object_Name • None Yes Yes, only
Enrollment • Object_Name • Notify_Type user created
Object • Object_Type • Object_Property_Reference objects
• Event_Type • Event_Enable
• Notify_Type • Notification_Class
• Event_Parameters
• Object_Property_Reference
• Event_State
• Event_Enable
• Acked_Transitions
• Notification_Class
• Event_Time_Stamps
20 BAS-SVP09B-EN
Table 2. Descriptions and configurations (continued)
Ability
Event Log • Object_Identifier • Object _Name • Description No No
Object • Object_Name • Enable • Total_Record_Count
(add. 135– • Object_Type • Stop_When_Full
2004b) • Present_Value • Number_Of_States
• Status_Flags
• Event_State
• Enable
• Stop_When_Full
• Buffer Size
Multistate • Object_Identifier • Object_Name • State_Text Yes Yes, only
Input • Object_Name • Description • Reliability user created
• Object_Type • State_Text • Time_Delay objects
• Present_Value • Out_Of_Service • Notification_Class
• Status_Flags • Present_Value • Alarm_Values
• Event_State • Reliability • Fault_Values
• Out_Of_Service • Time_Delay • Event_Enable
• Number_Of_States • Notification_Class • Acked_Transitions
• Alarm_Values • Notify_Type
• Fault_Values • Event_Time_Stamps
• Event_Enable
• Notify_Type
• Number_Of_States
• Relinquish_Default
Output • Object_Name • Description • Reliability user created
• Object_Type • State_Text • Relinquish_Default objects
• Present_Value • Out_Of_Service • Time_Delay
• Status_Flags • Present_Value • Notification_Class
• Event_State • Reliability • Feedback_Values
• Out_Of_Service • Time_Delay • Event_Enable
• Number_Of_States • Notification_Class • Acked_Transitions
• Priority_Array • Event_Enable • Notify_Type
• Relinquish Default • Notify_Type • Event_Time_Stamps
• Description
Value • Object_Name • Description • Reliability user created
• Object_Type • State_Text • Relinquish_Default objects
• Present_Value • Out_Of_Service • Time_Delay
• Status_Flags • Present_Value • Notification_Class
• Event_State • Reliability • Alarm_Values
• Out_Of_Service • Priority_Array • Fault_Values
• Number_Of_States • Relinquish_Default • Event_Enable
• Time_Delay • Acked_Transitions
• Notification_Class • Notify_Type
• Alarm_Values • Event_Time_Stamps
• Fault_Values
• Event_Enable
• Notify_Type
Notification • Object_Identifier • Object_Name • Notify_Type Yes Yes, only
Class • Object_Name • Priority user created
• Object_Type • Ack_Required objects
• Notification_Class • Recipient_List
• Priority
• Ack_Required
• Recipient_List
Trend • Object_Identifier • Object_Name • Start_Time Yes Yes, only
• Object_Name • Log_Enable • Stop_Time user created
• Object_Type • Start_Time • Log_DeviceObjectProperty objects
• Log_Enable • Stop_Time • Log_Interval
• Stop_When_Full • Log_DeviceObjectProperty • Stop_When_Full
• Buffer_Size • Log_Interval • Buffer_Size
• Log_Buffer • Stop_When_Full • Notification_Threshold
• Record_Count • Buffer_Size • Records_Since_Notification
• Total_Record_Count • Log_Buffer • Last_Notify_Record
• Event_State • Record_Count • Notification_Class
• Notification_Threshold • Event_Enable
• Notification_Class • Acked_Transitions
• Event_Enable • Event_Time_Stamps
• Notify_Type
(a)Properties written for Present_Value and Reliability only if Out_of_Service is TRUE.
BAS-SVP09B-EN 21
BACnet Protocol
Data Link Layer Options
Supported
Data Link Layer Description
Option
ANSI/ATA 878.1, 2.5 Mb ARCNET (Clause 8)
ANSI/ATA 878.1, RS-485 ARCNET (Clause 8), Baud Rate(s)
BACnet IP, (Annex J) 9

BACnet IP, (Annex J), Foreign Device
ISO 8802-3, Ethernet (Clause 7)(10Base2, 10Base5, 10BaseT, Fiber)
LonTalk, (Clause 11), Medium
MS/TP Master (Clause 9), Baud Rate(s): 9600, 19200, 38400, and 76800 @1.5% Nominal Baud Rate 9
MS/TP Slave (Clause 9), Baud Rate(s)
Other
Point-to-Point, EIA 232 (Clause 10), Baud Rate(s): 9600, 19200, 38400
Point-to-Point, Modem (Clause 10), Baud Rate(s): 9600, 19200, 38400
Device Address Binding
Device Address Binding Supported

Static Device Binding Supported No
Networking Options
Supported
Networking Descriptions Option
Annex H, BACnet Tunneling
BACnet/IP Broadcast Management Device (BBMD) 9

Does the BBMD Support Registrations by Foreign Devices? 9
Router 9
22 BAS-SVP09B-EN
Character Sets
Indicates support for multiple characters sets, but does not imply that all character sets are
supported simultaneously. Maximum supported string length is 64 bytes (any character set).
Character Set Descriptions Supported
ANSI X3.4 9
IBM/Microsoft DBCS
ISO 10646 (UCS-4)
ISO 10646 (UCS2) 9

ISO 8859-1 9
JIS C 6226
BAS-SVP09B-EN 23
Object Data Points and Diagnostic Data Points
For quick reference, the following tables are listed two different ways. Tables 3 through 9 are listed
by input/output type and sorted by object identifier. These tables provide the user with the units
type for each object type. Table 11, p. 32 and Table 13, p. 35 are sorted by object name and provide
a complete list of object names, types, values/ranges, and descriptions. Not all points are available
to the user. The available data points are defined during self-configuration and are dependent on
the type of equipment.
Table 3. Analog Output
Refresh
Units of Measure Rate
Object Identifier Object Name Description IP/SI Valid Range (Sec.)
BAS supplied economizer
Analog Output, 1 Economizer Minimum Position Setpoint BAS Percent (98) 0 to 100 NA
position minimum setpoint value
Base value to calculate setpoints Fahrenheit (64) 50.0 to 90.0

Analog Output, 2 Space Temperature Setpoint BAS NA
in occupied and standby modes. Celcius (62) 10.0 to 32.2
BAS supplied temperature

Fahrenheit (64) 50.0 to 90.0
Analog Output, 4 Morning Warmup Setpoint BAS setpoint used in morning NA
Celcius (62) 10.0 to 32.2
warmup mode.
Daytime Warmup Terminate Temperature BAS supplied daytime warmup Fahrenheit (64) 50.0 to 87.0
Analog Output, 5 NA
Setpoint BAS terminate temperature setpoint. Celcius (62) 10.0 to 30.6
BAS supplied discharge air

Analog Output, 6 Discharge Air Cooling Setpoint BAS temperature cooling setpoint NA
Celcius (62) 4.4 to 32.2
value.
BAS supplied discharge air

Analog Output, 7 Discharge Air Heating Setpoint BAS temperature heating setpoint NA
Celcius (62) 4.4 to 82.2
value.
BAS supplied duct static air 0.0 inH2O = 0 Pa (53)
Analog Output, 8 Duct Static Pressure Setpoint BAS 0.0 to 2.5 NA
pressure setpoint value. 2.5 inH2O = 622 Pa
BAS supplied space static air -0.2 inH2O = -50 Pa (53)

Analog Output, 9 Space Static Pressure Setpoint BAS 0.3 to -0.2 NA
pressure setpoint value. 0.3 inH2O = 74 Pa
BAS supplied space static air -0.67 inH2O = -167 Pa (53)

Analog Output, 10 Space Static Pressure BAS -0.67 to 0.67 900
pressure sensor value. 0.67 inH2O = 167 Pa
BAS supplied space air Fahrenheit (64) -39.5 to 200.0

Analog Output, 11 Space Temperature BAS 900
temperature sensor value. Celcius (62) -39.7 to 93.3
BAS supplied outdoor air Fahrenheit (64) -39.5 to 200.0

Analog Output, 14 Outdoor Air Temperature BAS 900
temperature sensor value. Celcius (62) -39.7 to 93.3
BAS supplied outdoor air

Analog Output, 15 Outdoor Air Humidity BAS Percent (98) 10.0 to 90.0 900
humidity sensor value.
BAS supplied minimum outdoor 0 CFM = 0 l/s (litres/second)

Analog Output, 16 Outdoor Air Minimum Flow Setpoint BAS 0 to 60,000 NA
airflow setpoint. 60000 CFM = 28317 l/s (87)
BAS supplied space CO2 sensor Part-per-million (96) 0.0 to 2000
Analog Output, 18 Space CO2 Concentration BAS 900
value. mg/kg
BAS supplied cooling demand

Analog Output, 19 Cool Capacity Enable Setpoint BAS Percent (98) 0 to 100 NA
limit capacity setpoint value.
BAS supplied heating demand
Analog Output, 20 Heat Capacity Enable Setpoint BAS Percent (98) 0 to 100 NA
limit capacity setpoint value.
BAS supplied space

Analog Output, 21 Space Dehumidification Setpoint BAS Percent (98) 40 to 65 NA
dehumidification setpoint value.
BAS supplied discharge air Fahrenheit (64) 65.0 to 80.0

Analog Output, 23 Discharge Air Reheat Setpoint BAS NA
reheat setpoint value. Celcius (62) 18.3 to 26.7
BAS supplied space humidity
Analog Output, 25 Space Humidity BAS Percent (98) 10 to 90 900
sensor value.
Offset used to calculate setpoints Fahrenheit (64) 1.0 to 5.0

Analog Output, 29 Occupied Offset NA
in occupied mode. Celcius (62) -17.2 to -15.0
Offset value used to calculate Fahrenheit (64) 1.0 to 5.0

Analog Output, 30 Standby Offset NA
setpoints in standby mode. Celcius -17.2 to -15.0
Cooling temperature setpoint

Analog Output, 31 Unoccupied Cooling Setpoint used for control in unoccupied NA
Celcius (62) 111.1 to 31.1
mode.
Heating temperature setpoint
Analog Output, 32 Unoccupied Heating Setpoint used for control in unoccupied NA
Celcius (62) 10.0 to 32.2
mode.
24 BAS-SVP09B-EN
Table 3. Analog Output (continued)

Refresh
Units of Measure Rate
Object Identifier Object Name Description IP/SI Valid Range (Sec.)
Sets the equipment exhaust or
Analog Output, 33 Exhaust or Return Fan Configuration NA 1.0 to 255 NA
return fan type.
BAS supplied power exhaust

Analog Output, 34 Power Exhaust Enable Setpoint BAS Percent (98) 0.0 to 100 NA
enabled setpoint value.
Table 4. Analog Input
Units of Measure
Object Identifier Object Name Description IP/SI
Analog Input, 1 Cooling Capacity Status Indicates the unit cooling capacity being utilized. Percent (98)
Indicates the unit primary heating capacity being

Analog Input, 2 Heat Primary Capacity Status Percent (98)
utilized.
Indicates the unit secondary heating capacity being

Analog Input, 3 Heat Secondary Capacity Status Percent (98)
utilized.
Indicates the unit reheat heating capacity being

Analog Input, 5 Reheat Capacity Status Percent (98)
utilized.
Indicates the number of hours air has flowed through

Analog Input, 6 Filter Runtime Hours Hours (71)
the filter.
Analog Input, 7 Supply Fan Speed Command Indicates the unit commanded supply fan speed. Percent (98)
Analog Input, 8 Exhaust Fan Speed Command Indicates the unit commanded exhaust fan speed. Percent (98)
Analog Input, 9 Exhaust Damper Position Status Indicates the unit exhaust damper position. Percent (98)
Analog Input, 11 Outdoor Air Damper Position Status Indicates the unit outdoor air damper position. Percent (98)
Fahrenheit (64)
Analog Input, 15 Space Temperature Active The space temperature currently used for unit control.
Celcius (62)
Analog Input, 16 Space Humidity Active The space humidity value from a unit-mounted control. Percent-relative-humidity (29)
The outdoor air temperature currently used for unit Fahrenheit (64)
Analog Input, 18 Outdoor Air Temperature Active
control. Celcius (62)
Analog Input, 20 Outdoor Air Humidity Active The outdoor air humidity value used for unit control. Percent-relative-humidity (29)
The discharge air temperature currently used for unit Fahrenheit (64)
Analog Input, 24 Discharge Air Temperature Active
The mixed air temperature value from a unit-mounted Fahrenheit (64)

Analog Input, 25 Mixed Air Temperature
sensor. Celcius (62)
The return air temperature value from a unit-mounted Fahrenheit (64)
Analog Input, 26 Return Air Temperature
sensor. Celcius (62)
Duct static air pressure value currently being used for 0.0 inH2O = 0 Pa (53)
Analog Input, 28 Duct Static Pressure Active
unit control. 7.9 inH2O = 1967 Pa
Space static air pressure value being used for unit -0.67 inH2O = -167 Pa (53)
Analog Input, 31 Space Static Air Pressure Active
control. 0.67 inH2O = 167 Pa
Part-per-million (96)
Analog Input, 32 Space CO2 Concentration Active Space CO2 concentration being used for unit control.
mg/kg
0 CFM = 0 l/s (litres/second)

Analog Input, 34 Outdoor Air Flow Active Outdoor airflow utilitzed by the unit.
65535 CFM = 30929 l/s (87)
Duct static pressure setpoint value being used for unit 0.0 inH2O = 0 Pa (53)
Analog Input, 48 Duct Static Pressure Setpoint Active
control. 5.1 inH2O = 1270 Pa
Space temperature setpoint value being used for unit Fahrenheit (64)
Analog Input, 50 Space Temperature Setpoint Active
Discharge air temperature setpoint value being used Fahrenheit (64)

Analog Input, 52 Discharge Air Temperature Setpoint Active
for unit control. Celcius (62)
Morning Warmup Temperature Setpoint The air temperature setpoint used during morning Fahrenheit (64)
Analog Input, 54
Active warmup mode. Celcius (62)
The minimum outdoor airflow setpoint being utilized by 0 CFM = 0 l/s (litres/second)
Analog Input, 57 Outdoor Air Minimum Flow Setpoint Active
the unit. 65000 CFM = 30676 l/s (87)
Humidity setpoint value that starts dehumidification
Analog Input, 58 Dehumidification High Limit Setpoint Percent (98)
control.
Indicates the active supply air reheat temperature Fahrenheit (64)

Analog Input, 61 Discharge Air Reheat Setpoint Active
setpoint. Celcius (62)
BAS-SVP09B-EN 25
Table 4. Analog Input (continued)
Units of Measure
Object Identifier Object Name Description IP/SI
Exhaust Enable Damper Position Setpoint Exhaust air damper minimum position to enable
Analog Input, 71 Percent (98)
Status exhaust sequence.
Cooling temperature setpoint from space sensor Fahrenheit (64)

Analog Input, 74 Space Temperature Cooling Setpoint Input
module. Celcius (62)
Heating temperature setpoint from space sensor Fahrenheit (64)

Analog Input, 75 Space Temperature Heating Setpoint Input
module. Celcius (62)
Fahrenheit (64)
Analog Input, 78 Space Temperature Setpoint Local The local space temperature setpoint.
Celcius (62)
Indicates the unit dehumidification capacity being

Analog Input, 79 Dehumidification Capacity Status Percent (98)
utilized.
Analog Input, 80 Cabinet Style Describes the cabinet style of the unit. NA
Analog Input, 81 Cool Type Describes the cooling type installed in the unit. NA
Analog Input, 82 Preheat Type Describes the heating type installed in the unit. NA
Analog Input, 83 Reheat Type Describes the reheat type installed in the unit. NA
Indicates the local economizer minimum position

Analog Input, 86 Economizer Minimum Position Setpoint Local Percent (98)
setpoint.
The space air temperature measured by a unit- Fahrenheit (64)

Analog Input, 87 Space Temperature Local
mounted sensor. Celcius (62)
Indicates the current heat/cool energy demand of the

Analog Input, 88 Unit Energy Demand Percent (98)
unit.
Analog Input, 89 Supply Fan Type Describes the supply fan type installed in the unit. NA
Describes the exhaust or return fan type installed in the

Analog Input, 90 Exhaust or Return Fan Type NA
unit.
Analog Input, 91 RTRM Major Version Major software version number of the RTRM module NA
Analog Input, 92 RTRM Minor Version Minor software version number of the RTRM module NA
Analog Input, 93 RTOM Major Version Major software version number of the RTOM module NA
Analog Input, 94 RTOM Minor Version Minor software version number of the RTOM module NA
Analog Input, 95 BCI-R Major Version Major software version number of the BCI-R module NA
Analog Input, 96 BCI-R Minor Version Minor software version number of the BCI-R module NA
Analog Input, 97 RTAM Major Version Major software version number of the RTAM module NA
Analog Input, 98 RTAM Minor Version Minor software version number of the RTAM module NA
Analog Input, 99 RTEM Major Version Major software version number of the RTEM module NA
Analog Input, 100 RTEM Minor Version Minor software version number of the RTEM module NA
Analog Input, 101 RTDM Major Version Major software version number of the RTDM module NA
Analog Input, 102 RTDM Minor Version Minor software version number of the RTDM module NA
Analog Input, 103 RTVM Major Version Major software version number of the RTVM module NA
Analog Input, 104 RTVM Minor Version Minor software version number of the RTVM module NA
Analog Input, 105 RTCM Major Version Major software version number of the RTCM module NA
Analog Input, 106 RTCM Minor Version Minor software version number of the RTCM module NA
Analog Input, 107 Space Static Pressure Setpoint Active Space pressure setpoint currently used for unit control Inches-of-water (58)
Table 5. Analog Value
Object Identifier Object Name Description Units Valid Range

The setpoint value used by the
Analog Value, 1 Filter Runtime Hours Setpoint Hours (71) 0 to 10,000
filter run hours calculation.
26 BAS-SVP09B-EN
Table 6. Multistate Output

Object States
BCI-R Object Identifier Object Name Description *not all states apply to all equipment
1 = Disabled
Command the state of the airside economizer
Multi-State Output, 1 Economizer Airside Enable BAS 2 = Enabled
system.
3 = Auto
1 = Normal
2 = Pressurize
Command the unit into an emergency mode of 3 = Depressurize
Multi-State Output, 2 Emergency Override Command
operation. 4 = Purge
5 = Shutdown
6 = Fire
1 = Occupied
2= Unoccupied
Multi-State Output, 7 Occupancy Request Command the unit into an occupancy mode.
3 = Occupied Bypass
4 = Occupied Standby
1 = Auto
2 = Heat
3 = Morning Warmup
4 = Cool
5 = Night Purge
6 = Precool
7 = Off
Command the unit to a specific application 8 = Test
Multi-State Output, 8 Heat Cool Mode Request BAS
mode. 9 = Emergency Heat
10 = Fan Only
11 = Free Cool
12 = Ice Making
13 = Max Heat
14 = Economy Mode
15 = Dehumidifying
16 = Calibrate
Table 7. Multistate Input
BCI-R Object Object States

Identifier Object Name Description *not all states apply to all equipment
1 = 1 Heat/1 Cool
2 = Heat Pump
3 = Blower Coil
4 = Unit Ventilator
5 = Fan Coil
General description of the equipment-type
Multi-State Input, 2 Trane Unit Type 6 = Rooftop
classification.
7 = Air Handler
8 = Vertical Self Contained
9 = Unitary
10 = VAV Box
11 = Fan Coil
1 = None
2 = 2 Position Ventilation
3 = Modulation Economizer
4 = 2 Position Ventilation/Waterside Economizer
General description of the equipment 5 = Waterside Economizer
Multi-State Input, 9 Economizer Type
economizer system. 6 = Airside/Waterside Economizer
7 = TRAQ Damper
8 = Airside Economizer and TRAQ Damper/Sensor
9 = Waterside Economizer and TRAQ Damper/Sensor
10 = Airside/Waterside Economizer and TRAQ Damper/Sensor
1= None
Multi-State Input, 17 Cooling Reset Type Status Indicates the type of cooling reset. 2= Outdoor Air
3= Zone
1 = Auto
2 = Heat
3 = Morning Warm-up
4 = Cool
5 = Night Purge
Heat Cool Mode Status: matches the 6 = Pre Cool
defined system display name and the 7 = Off
Heat Cool Mode Status/ display name used in TU. 8 = Test
Multi-State Input, 19
Application Mode Status Application Mode Status: the point name 9 = Emergency Heat
used in the device. 10 = Fan Only
11 = Free Cool
12 = Ice-Making
13 = Max Heat
14 = Economy Mode
15 = Dehumidifying
16 = Calibrate
BAS-SVP09B-EN 27
Table 7. Multistate Input (continued)

1 = Occupied
Indicates the current occupancy mode of 2 = Unoccupied
Multi-State Input, 20 Occupancy Status
the unit. 3 = Occupied Bypass
4 = Occupied Standby
1= None
2= Emergency Stop
Source of the stop command that turned off
Multi-State Input, 21 Unit Stop Source 3= External Auto/Stop
the equipment.
4= Local HI
5= Remote HI
1= RTM Zone Sensor

2= Night Setback Panel
Indicates the source of the space cooling 3= Human Interface
Multi-State Input, 22 Cooling Setpoint Source
setpoint. 4= GBAS 0-5V
5= BAS/Network
6= GBAS 0-10V
1= RTM Zone Sensor

2= Night Setback Panel
Indicates the source of the space heating 3= Human Interface
Multi-State Input, 23 Heating Setpoint Source
setpoint. 4= GBAS 0-5V
5= BAS/Network
6= GBAS 0-10V
1 = Idle
Timed override request or cancel from zone
Multi-State Input, 24 Timed Override Status 2 = On
sensor.
3 = Cancel
1 = Off
Indicates the commanded state of cooling
Multi-State Input, 25 Cool Output 1 2 = On
output 1.
3 = Not Present
1 = Off
Indicates the commanded state of cooling
Multi-State Input, 26 Cool Output 2 2 = On
output 2.
3 = Not Present
1 = Off
Indicates the commanded state of heating
Multi-State Input, 29 Heat Output 1 2 = On
output 1.
3 = Not Present
1 = Off
output 2.
3 = Not Present
1 = Off
output 3.
3 = Not Present
1 = Off
output 4.
3 = Not Present
1 = Clean
Multi-State Input, 35 Primary Filter Status Indicates the primary filter media state. 2 = Dirty
3 = Not Present
1= Off
Multi-State Input, 37 Supply Fan Proving Status Indicates the current state of the supply fan. 2= On
3= Not Present
1 = Off
Indicates the commanded state of the
Multi-State Input, 38 Exhaust Fan Status 2 = On
exhaust fan.
3 = Not Present
1= Off
Exhaust Fan Proving
Multi-State Input, 39 Indicates if the unit exhaust fan is off or on. 2= On
Status
3= Not Present
1 = Off
Multi-State Input, 41 Supply Fan Status Indicates the state of the supply fan. 2 = On
3 = Not Present
1 = At or Below Minimum Position

Indicates the operating state of the outdoor
Multi-State Input, 43 Outdoor Damper Status 2 = Above Minimum Position
damper.
3 = Not Present
28 BAS-SVP09B-EN
Table 7. Multistate Input (continued)

1 = Disabled
Indicates the operating state of the
Multi-State Input, 44 Economizer System Status 2 = Enabled
waterside economizer system.
3 = Not Present
1 = Inactive
2 = Fan On
3 = IGV Open
4 = IGV Close
5 = Min Vent
6 = Econ Open
7 = Cool 1
8 = Cool 2
Multi-State Input, 45 Service Test Status Indicates the current Service Test state
9 = Cool 3
10 = Dehumidification/Reheat
11 = Heat 1
12 = Heat 2
13 = Heat 3
14 = Heat 4
15 = Defrost
16 = Emergency Heat
Table 8. Binary Output

Relinquish
Object Identifier Object Name Description Default Object States
Command the unit to standalone- Inactive = Standalone Control
Binary Output, 1 System Control Command Inactive
or BAS-controlled operation. Active = BAS Control
Command the unit to prevent Inactive = Allow Heating
Binary Output, 5 Heat Lockout Command Inactive
heating operation. Active = Heating Locked Out
Command the unit to prevent Inactive = Allow Cooling

Binary Output, 6 Cool Lockout Command Inactive
cooling operation. Active = Cooling Locked Out
Economizer Minimum Position Enable Command the unit to the minimum Inactive = Disabled
Binary Output, 7 Inactive
Command position operation. Active = Enabled
Command the unit supply fan to Inactive = Auto

Binary Output, 8 Supply Fan Configuration Command Inactive
cycling or continuous operation. Active = On
Command the unit to reset the Inactive = Accumulating

Binary Output, 13 Filter Timer Reset Inactive
accumulated filter run hours. Active = Reset
Command the unit to reset and Inactive = Normal

Binary Output, 14 Reset Diagnostic Inactive
clear diagnostics. Active = Reset
Command the operating state of Inactive = Disabled
Binary Output, 15 Dehumidification Enable Command Active
the dehumidification system. Active = Auto
Command the unit to step through Inactive = Normal

Binary Output, 17 Service Test Command 1 (Auto)
service test Active = Service test
Command the unit supply air Inactive = Disabled
Binary Output, 18 Supply Air Tempering Enable Command Inactive
tempering operation. Active = Enabled
Command the unit compressor Inactive = Disabled

Binary Output, 19 Lead-Lag Enable Command Inactive
startup order Active = Enabled
Command the unit morning Inactive = Disabled

Binary Output, 20 Morning Warmup Enable Command Inactive
warmup operation Active = Enabled
Command the unit daytime Inactive = Disabled

Binary Output, 21 Daytime Warmup Enable Command Inactive
warmup operation Active = Enabled
Table 9. Binary Input

Object Identifier Object Name Description Object States
Indicates the control system currently in Inactive = Standalone control
Binary Input, 1 System Control Status
command of the unit. Active = BAS control
One or more compressors are locked out with Inactive = Normal
Binary Input, 2 Compressor Lockout Status
no diagnostic. Active = Locked Out
Indicates whether VAV boxes should be in Inactive = Auto

Binary Input, 9 VAV Box Command
control or wide open. Active = Open
Inactive = Inactive
Binary Input, 11 Service Test Mode Status Indicates if the unit is in service test mode.
Active = Active
Inactive = Cycling
Binary Input, 15 Supply Fan Configuration Status Indicates the supply fan configuration.
Active = Continuous
BAS-SVP09B-EN 29
Table 9. Binary Input (continued)

Object Identifier Object Name Description Object States
Indicates the status of the airside economizer Inactive = Disabled
Binary Input, 22 Economizer Airside Enable Status
system. Active = Enabled
Indicates the state of the alarm relay on the Inactive = De-energized

Binary Input, 165 Alarm Relay Output Status
unit. Active = Energized
Indicates the status of the supply air Inactive = Inactive

Binary Input, 292 Supply Air Tempering Status
tempering function. Active = Active
Table 10. Diagnostics, Binary Input
Object Identifier Object Name Description Notification Class

Binary Input, 29 Diagnostic: Zone Temperature Sensor Failure Diagnostic: Zone Temp Sensor Failure 002 – Service Required
Binary Input, 30 Diagnostic: Supply Air Temp Sensor Fail Diagnostic: Supply Air Temp Sensor Fail 002 – Service Required
Binary Input, 32 Diagnostic: Outdoor Air Temperature Sensor Fail Diagnostic: OA Temperature Sensor Fail 002 – Service Required
Binary Input, 34 Diagnostic: Local Cool Setpoint Fail Diagnostic: Local Cool Setpoint Fail 002 – Service Required
Binary Input, 35 Diagnostic: Local Zone Heat Setpoint Fail Diagnostic: Local Zone Heat Setpoint Fail 002 – Service Required
Binary Input, 36 Diagnostic: SA Pressure Sensor Fail Diagnostic: Supply Air Press Sensor Fail 002 – Service Required
Binary Input, 37 Diagnostic: Outdoor Humidity Sensor Failure Diagnostic: OA Humidity Sensor Failure 002 – Service Required
Binary Input, 38 Diagnostic: Local Emergency Stop Initiated Diagnostic: Local Emergency Stop Initiated 001 – Critical
Binary Input, 39 Diagnostic: Fan Failure Diagnostic: Fan Failure 001 – Critical
Binary Input, 40 Diagnostic: Exhaust Fan Proving Failure Diagnostic: Exhaust Fan Proving Failure 001 – Critical
Binary Input, 43 Diagnostic: Compressor 1 LPC Lockout Diagnostic: Compressor 1 LPC Lockout 001 – Critical
Binary Input, 45 Diagnostic: Coil Temp Sensor #1 Fail Diagnostic: Coil Temp Sensor 1 Fail 1 002 – Service Required
Binary Input, 46 Diagnostic: Coil Temp Sensor #2 Fail Diagnostic: Coil Temp Sensor 2 Fail 002 – Service Required
Binary Input, 47 Diagnostic: Compressor 1 HPC Lockout Diagnostic: Compressor 1 HPC Lockout 001 – Critical
Binary Input, 51 Diagnostic: Heat Failure Diagnostic: Heat Failure 003 – Advisory
Binary Input, 54 Diagnostic: SA Pressure Setpoint Failure Diagnostic: SA Pressure Setpoint Failure 002 – Service Required
Binary Input, 55 Diagnostic: Space Pressure Setpoint Fail Diagnostic: Space Pressure Setpoint Fail 002 – Service Required
Binary Input, 56 Diagnostic: Space Pressure Sensor Fail Diagnostic: Space Pressure Sensor Fail 002 – Service Required
Binary Input, 57 Diagnostic: Return Air Temp Sensor Fail Diagnostic: Return Air Temp Sensor Fail 002 – Service Required
Binary Input, 58 Diagnostic: Return Air Humidity Sensor Fail Diagnostic: Return Air Humidity Sensor Fail 002 – Service Required
Binary Input, 59 Diagnostic: Auto - SA High Press Limit Diagnostic: Auto - SA High Press Limit 002 – Service Required
Binary Input, 74 Diagnostic: SA Temp Cool Setpoint Fail Diagnostic: SA Temp Cool Setpoint Fail 002 – Service Required
Binary Input, 75 Diagnostic: SA Temp Heat Setpoint Fail Diagnostic: SA Temp Heat Setpoint Fail 002 – Service Required
Binary Input, 76 Diagnostic: Dirty Filter Diagnostic: Dirty Filter 003 – Advisory
Binary Input, 83 Diagnostic: CO2 Sensor Failure Diagnostic: CO2 Sensor Failure 002 – Service Required
Binary Input, 86 Diagnostic: Velocity Press Sensor Fail Diagnostic: Velocity Press Sensor Fail 002 – Service Required
Binary Input, 95 Diagnostic: Mixed Air Temp Sensor Failure Diagnostic: Mixed Air Temp Sensor Failure 002 – Service Required
Binary Input, 106 Diagnostic: Space Humidity Sensor Fail Diagnostic: Space Humidity Sensor Fail 002 – Service Required
Binary Input, 107 Diagnostic: Entering Evap Temp Sensor Fail Diagnostic: Entering Evap Temp Sensor Fail 002 – Service Required
Binary Input, 123 Diagnostic: SA Reheat Setpoint Failure Diagnostic: SA Reheat Setpoint Failure 002 – Service Required
Binary Input, 125 Diagnostic: Dehumid Setpoint Failure Diagnostic: Dehumid Setpoint Failure 002 – Service Required
Binary Input, 147 Diagnostic: Maintenance Required Diagnostic: Maintenance Required 002 – Service Required
Binary Input, 148 Diagnostic: Unit Communications Failure Diagnostic: Unit Communications Failure 002 – Service Required
Binary Input, 151 Diagnostic: External Auto-Stop Diagnostic: External Auto-Stop 004 – Information
Binary Input, 239 Diagnostic: Morning Warmup Setpoint Fail Diagnostic: Morning Warmup Setpoint Fail 002 – Service Required
Binary Input, 242 Diagnostic: Min OA Flow Setpoint Fail Diagnostic: Min OA Flow Setpoint Fail 002 – Service Required
Binary Input, 244 Diagnostic: Comp 1 Disable Input LPC Diagnostic: Comp 1 Disable Input LPC 004 – Information
30 BAS-SVP09B-EN
Table 10. Diagnostics, Binary Input (continued)

Binary Input, 246 Diagnostic: Smoke Detector Diagnostic: Smoke Detector 004 – Information
Binary Input, 247 Diagnostic: FroStat Trip Diagnostic: FroStat Trip 004 – Information
Binary Input, 248 Diagnostic: Demand Defrost Fault A Diagnostic: Demand Defrost Fault A 004 – Information
Binary Input, 249 Diagnostic: Demand Defrost Fault B Diagnostic: Demand Defrost Fault B 004 – Information
Binary Input, 250 Diagnostic: Demand Defrost Fault C Diagnostic: Demand Defrost Fault C 004 – Information
Binary Input, 251 Diagnostic: Demand Defrost Fault D Diagnostic: Demand Defrost Fault D 004 – Information
Binary Input, 252 Diagnostic: Default Defrost Flag Diagnostic: Default Defrost Flag 004 – Information
Binary Input, 253 Diagnostic: Vent Override - Exhaust Diagnostic: Vent Override - Exhaust 004 – Information
Binary Input, 254 Diagnostic: Vent Override - Purge Diagnostic: Vent Override - Purge 004 – Information
Binary Input, 255 Diagnostic: Vent Override - Pressurize Diagnostic: Vent Override - Pressurize 004 – Information
Binary Input, 256 Diagnostic: Freezestat Tripped Diagnostic: Freezestat Tripped 004 – Information
Binary Input, 257 Diagnostic: CO2 Setpoint Failure Diagnostic: CO2 Setpoint Failure 004 – Information
Binary Input, 258 Diagnostic: Heating High Temp Limit Open Diagnostic: Heating High Temp Limit Open 004 – Information
Binary Input, 259 Diagnostic: Flame Rollout Switch Open Diagnostic: Flame Rollout Switch Open 004 – Information
Binary Input, 260 Diagnostic: Inducer Proving Switch Fail Diagnostic: Inducer Proving Switch Fail 004 – Information
Binary Input, 261 Diagnostic: No Flame Sensed on heat call Diagnostic: No Flame Sensed on heat call 004 – Information
Binary Input, 262 Diagnostic: Flame Sensed with Gas Valve Off Diagnostic: Flame Sensed with Gas Valve Off 004 – Information
Binary Input, 263 Diagnostic: Gas Heat Module Failure Diagnostic: Gas Heat Module Failure 004 – Information
Binary Input, 264 Diagnostic: Economizer Actuator Fault Diagnostic: Economizer Actuator Fault 004 – Information
Binary Input, 265 Diagnostic: SA Reset Amount Failure Diagnostic: SA Reset Amount Failure 004 – Information
Binary Input, 266 Diagnostic: SA Reset Setpoint Failure Diagnostic: SA Reset Setpoint Failure 004 – Information
Binary Input, 267 Diagnostic: SA Pressure Dead Band Failure Diagnostic: SA Pressure Dead Band Failure 004 – Information
Binary Input, 268 Diagnostic: SA Pressure PWM Fault Diagnostic: SA Pressure PWM Fault 004 – Information
Binary Input, 269 Diagnostic: Comp 1 Disable Input HPC Diagnostic: Comp 1 Disable Input HPC 004 – Information
Binary Input, 271 Diagnostic: CO2 Low Limit Setpoint Fault Diagnostic: CO2 Low Limit Setpoint Fault 004 – Information
Binary Input, 272 Diagnostic: RTOM Comm Fail Diagnostic: RTOM Comm Fail 004 – Information
Binary Input, 273 Diagnostic: RTEM Comm Fail Diagnostic: RTEM Comm Fail 004 – Information
Binary Input, 274 Diagnostic: RTAM Comm Fail Diagnostic: RTAM Comm Fail 004 – Information
Binary Input, 275 Diagnostic: RTVM Comm Fail Diagnostic: RTVM Comm Fail 004 – Information
Binary Input, 276 Diagnostic: RTCM Comm Fail Diagnostic: RTCM Comm Fail 004 – Information
Binary Input, 277 Diagnostic: RTDM Comm Fail Diagnostic: RTDM Comm Fail 004 – Information
Binary Input, 278 Diagnostic: Space Press Deadband Fail Diagnostic: Space Press Deadband Fail 004 – Information
Binary Input, 279 Diagnostic: Mod Dehumid Config Error Diagnostic: Mod Dehumid Config Error 004 – Information
Binary Input, 280 Diagnostic: Demand Defrost Fault A Ckt 2 Diagnostic: Demand Defrost Fault A Ckt 2 004 – Information
Binary Input, 281 Diagnostic: Demand Defrost Fault B Ckt 2 Diagnostic: Demand Defrost Fault B Ckt 2 004 – Information
Binary Input, 282 Diagnostic: Demand Defrost Fault C Ckt 2 Diagnostic: Demand Defrost Fault C Ckt 2 004 – Information
Binary Input, 283 Diagnostic: Defrost Default Mode Ckt 2 Diagnostic: Defrost Default Mode Ckt 2 004 – Information
Binary Input, 288 Diagnostic: Exhaust Fan Setpoint Failure Diagnostic: Exhaust Fan Setpoint Failure 004 – Information
Binary Input, 289 Diagnostic: Discharge Air Heat Setpoint Failure Diagnostic: Discharge Air Heat Setpoint Failure 004 – Information
Binary Input, 290 Diagnostic: IGN1 Communications Timed out Diagnostic: IGN1 Communications Timed out 004 – Information
Binary Input, 293 Diagnostic: DCV Min Position Setpoint Fail Diagnostic: DCV Min Position Setpoint Fail 004 – Information
Binary Input, 294 Diagnostic: Design Min Position Setpoint Fail Diagnostic: Design Min Position Setpoint Fail 004 – Information
BAS-SVP09B-EN 31
Table 10. Diagnostics, Binary Input (continued)

Binary Input, 295 Diagnostic: Enthalpy Setpoint Fail Diagnostic: Enthalpy Setpoint Fail 004 – Information
Diagnostic: Design Min Position at Minimum Fan Diagnostic: Design Min Position at Minimum
Binary Input, 296 004 – Information
Speed Fail Fan Speed Fail
Diagnostic: DCV Min Position at Minimum Fan Diagnostic: DCV Min Position at Minimum Fan
Speed Speed
Diagnostic: Design Min Position at Midpoint Fan Diagnostic: Design Min Position at Midpoint
Speed Fail Fan Speed Fail
Table 11. All Object Types Sorted by Object Name (Refer to previous tables for detailed descriptions of objects)
Object Identifier Object Name Description

Binary Input, 165 Alarm Relay Output Status Indicates the state of the alarm relay on the unit.
Analog Input, 95 BCI-R Major Version Major software version number of the BCI-R module
Analog Input, 96 BCI-R Minor Version Minor software version number of the BCI-R module
Analog Input, 80 Cabinet Style Describes the cabinet style of the unit.
Binary Input, 2 Compressor Lockout Status One or more compressors are locked out with no diagnostic.
Analog Output, 19 Cool Capacity Enable Setpoint BAS BAS supplied cooling demand limit capacity setpoint value.
Binary Output, 6 Cool Lockout Command Command the unit to prevent cooling operation.
Multi-State Input, 25 Cool Output 1 Indicates the commanded state of cooling output 1.
Multi-State Input, 26 Cool Output 2 Indicates the commanded state of cooling output 2.
Analog Input, 81 Cool Type Describes the cooling type installed in the unit.
Analog Input, 1 Cooling Capacity Status Indicates the unit cooling capacity being utilized.
Multi-State Input, 22 Cooling Setpoint Source Indicates the source of the space cooling setpoint.
Binary Output, 21 Daytime Warmup Enable Command Command the unit daytime warmup operation
Analog Output, 5 Daytime Warmup Terminate Temperature Setpoint BAS BAS supplied daytime warmup terminate temperature setpoint.
Analog Input, 79 Dehumidification Capacity Status Indicates the unit dehumidification capacity being utilized.
Binary Output, 15 Dehumidification Enable Command Command the operating state of the dehumidification system.
Analog Input, 58 Dehumidification High Limit Setpoint Humidity setpoint value that starts dehumidification control.
Analog Output, 6 Discharge Air Cooling Setpoint BAS BAS supplied discharge air temperature cooling setpoint value.
Analog Output, 7 Discharge Air Heating Setpoint BAS BAS supplied discharge air temperature heating setpoint value.
Analog Input, 61 Discharge Air Reheat Setpoint Active Indicates the active supply air reheat temperature setpoint.
Analog Output, 23 Discharge Air Reheat Setpoint BAS BAS supplied discharge air reheat setpoint value.
Analog Input, 24 Discharge Air Temperature Active The discharge air temperature currently used for unit control.
Analog Input, 52 Discharge Air Temperature Setpoint Active Discharge air temperature setpoint value being used for unit control.
Analog Input, 28 Duct Static Pressure Active Duct static air pressure value currently being used for unit control.
Analog Input, 48 Duct Static Pressure Setpoint Active Duct static pressure setpoint value being used for unit control.
Analog Output, 8 Duct Static Pressure Setpoint BAS BAS supplied duct static air pressure setpoint value.
Multi-State Output, 1 Economizer Airside Enable BAS Command the state of the airside economizer system.
Binary Input, 22 Economizer Airside Enable Status Indicates the status of the airside economizer system.
Binary Output, 7 Economizer Minimum Position Enable Command Command the unit to the minimum position operation.
Analog Output, 1 Economizer Minimum Position Setpoint BAS BAS supplied economizer position minimum setpoint value
Analog Input, 86 Economizer Minimum Position Setpoint Local Indicates the local economizer minimum position setpoint.
Multi-State Input, 44 Economizer System Status Indicates the operating state of the waterside economizer system.
Multi-State Output, 2 Emergency Override Command Command the unit into an emergency mode of operation.
Analog Input, 9 Exhaust Damper Position Status Indicates the unit exhaust damper position.
Analog Input, 71 Exhaust Enable Damper Position Setpoint Status Exhaust air damper minimum position to enable exhaust sequence.
Multi-State Input, 39 Exhaust Fan Proving Status Indicates if the unit exhaust fan is off or on.
32 BAS-SVP09B-EN
Table 11. All Object Types Sorted by Object Name (Refer to previous tables for detailed descriptions of objects) (continued)

Analog Input, 8 Exhaust Fan Speed Command Indicates the unit commanded exhaust fan speed.
Multi-State Input, 38 Exhaust Fan Status Indicates the commanded state of the exhaust fan.
Analog Output, 33 Exhaust or Return Fan Configuration Sets the equipment exhaust or return fan type.
Analog Input, 90 Exhaust or Return Fan Type Describes the exhaust or return fan type installed in the unit.
Analog Input, 6 Filter Runtime Hours Indicates the number of hours air has flowed through the filter.
Analog Value, 1 Filter Runtime Hours Setpoint The setpoint value used by the filter run hours calculation.
Binary Output, 13 Filter Timer Reset Command the unit to reset the accumulated filter run hours.
Analog Output, 20 Heat Capacity Enable Setpoint BAS BAS supplied heating demand limit capacity setpoint value.
Multi-State Output, 8 Heat Cool Mode Request BAS Command the unit to a specific application mode.
Binary Output, 5 Heat Lockout Command Command the unit to prevent heating operation.
Multi-State Input, 29 Heat Output 1 Indicates the commanded state of heating output 1.
Analog Input, 2 Heat Primary Capacity Status Indicates the unit primary heating capacity being utilized.
Analog Input, 3 Heat Secondary Capacity Status Indicates the unit secondary heating capacity being utilized.
Multi-State Input, 23 Heating Setpoint Source Indicates the source of the space heating setpoint.
Binary Output, 19 Lead-Lag Enable Command Command the unit compressor startup order
Analog Input, 25 Mixed Air Temperature The mixed air temperature value from a unit-mounted sensor.
Binary Output, 20 Morning Warmup Enable Command Command the unit morning warmup operation
Analog Output, 4 Morning Warmup Setpoint BAS BAS supplied temperature setpoint used in morning warmup mode.
Analog Input, 54 Morning Warmup Temperature Setpoint Active The air temperature setpoint used during morning warmup mode.
Multi-State Output, 7 Occupancy Request Command the unit into an occupancy mode.
Multi-State Input, 20 Occupancy Status Indicates the current occupancy mode of the unit.
Analog Output, 29 Occupied Offset Offset used to calculate setpoints in occupied mode.
Analog Input, 11 Outdoor Air Damper Position Status Indicates the unit outdoor air damper position.
Analog Input, 34 Outdoor Air Flow Active Outdoor airflow utilitzed by the unit.
Analog Input, 20 Outdoor Air Humidity Active The outdoor air humidity value used for unit control.
Analog Output, 15 Outdoor Air Humidity BAS BAS supplied outdoor air humidity sensor value.
Analog Input, 57 Outdoor Air Minimum Flow Setpoint Active The minimum outdoor airflow setpoint being utilized by the unit.
Analog Output, 16 Outdoor Air Minimum Flow Setpoint BAS BAS supplied minimum outdoor airflow setpoint.
Analog Input, 18 Outdoor Air Temperature Active The outdoor air temperature currently used for unit control.
Analog Output, 14 Outdoor Air Temperature BAS BAS supplied outdoor air temperature sensor value.
Multi-State Input, 43 Outdoor Damper Status Indicates the operating state of the outdoor damper.
Analog Output, 34 Power Exhaust Enable Setpoint BAS BAS supplied power exhaust enabled setpoint value.
Analog Input, 82 Preheat Type Describes the heating type installed in the unit.
Multi-State Input, 35 Primary Filter Status Indicates the primary filter media state.
Analog Input, 5 Reheat Capacity Status Indicates the unit reheat heating capacity being utilized.
Analog Input, 83 Reheat Type Describes the reheat type installed in the unit.
Binary Output, 14 Reset Diagnostic Command the unit to reset and clear diagnostics.
Analog Input, 26 Return Air Temperature The return air temperature value from a unit-mounted sensor.
Analog Input, 97 RTAM Major Version Major software version number of the RTAM module
Analog Input, 98 RTAM Minor Version Minor software version number of the RTAM module
Analog Input, 105 RTCM Major Version Major software version number of the RTCM module
Analog Input, 106 RTCM Minor Version Minor software version number of the RTCM module
Analog Input, 101 RTDM Major Version Major software version number of the RTDM module
BAS-SVP09B-EN 33
Table 11. All Object Types Sorted by Object Name (Refer to previous tables for detailed descriptions of objects) (continued)

Analog Input, 102 RTDM Minor Version Minor software version number of the RTDM module
Analog Input, 99 RTEM Major Version Major software version number of the RTEM module
Analog Input, 100 RTEM Minor Version Minor software version number of the RTEM module
Analog Input, 93 RTOM Major Version Major software version number of the RTOM module
Analog Input, 94 RTOM Minor Version Minor software version number of the RTOM module
Analog Input, 91 RTRM Major Version Major software version number of the RTRM module
Analog Input, 92 RTRM Minor Version Minor software version number of the RTRM module
Analog Input, 103 RTVM Major Version Major software version number of the RTVM module
Analog Input, 104 RTVM Minor Version Minor software version number of the RTVM module
Binary Output, 17 Service Test Command Command the unit to step through service test
Binary Input, 11 Service Test Mode Status Indicates if the unit is in service test mode.
Multi-State Input, 45 Service Test Status Indicates the current Service Test state
Analog Input, 32 Space CO2 Concentration Active Space CO2 concentration being used for unit control.
Analog Output, 18 Space CO2 Concentration BAS BAS supplied space CO2 sensor value.
Analog Output, 21 Space Dehumidification Setpoint BAS BAS supplied space dehumidification setpoint value.
Analog Input, 16 Space Humidity Active The space humidity value from a unit-mounted control.
Analog Output, 25 Space Humidity BAS BAS supplied space humidity sensor value.
Analog Input, 31 Space Static Air Pressure Active Space static air pressure value being used for unit control.
Analog Output, 10 Space Static Pressure BAS BAS supplied space static air pressure sensor value.
Analog Input, 107 Space Static Pressure Setpoint Active Space pressure setpoint currently used for unit control
Analog Output, 9 Space Static Pressure Setpoint BAS BAS supplied space static air pressure setpoint value.
Analog Input, 15 Space Temperature Active The space temperature currently used for unit control.
Analog Output, 11 Space Temperature BAS BAS supplied space air temperature sensor value.
Analog Input, 74 Space Temperature Cooling Setpoint Input Cooling temperature setpoint from space sensor module.
Analog Input, 75 Space Temperature Heating Setpoint Input Heating temperature setpoint from space sensor module.
Analog Input, 87 Space Temperature Local The space air temperature measured by a unit-mounted sensor.
Analog Input, 50 Space Temperature Setpoint Active Space temperature setpoint value being used for unit control.
Analog Output, 2 Space Temperature Setpoint BAS Base value to calculate setpoints in occupied and standby modes.
Analog Input, 78 Space Temperature Setpoint Local The local space temperature setpoint.
Analog Output, 30 Standby Offset Offset value used to calculate setpoints in standby mode.
Binary Output, 18 Supply Air Tempering Enable Command Command the unit supply air tempering operation.
Binary Input, 292 Supply Air Tempering Status Indicates the status of the supply air tempering function.
Binary Output, 8 Supply Fan Configuration Command Command the unit supply fan to cycling or continuous operation.
Binary Input, 15 Supply Fan Configuration Status Indicates the supply fan configuration.
Multi-State Input, 37 Supply Fan Proving Status Indicates the current state of the supply fan.
Analog Input, 7 Supply Fan Speed Command Indicates the unit commanded supply fan speed.
Multi-State Input, 41 Supply Fan Status Indicates the state of the supply fan.
Analog Input, 89 Supply Fan Type Describes the supply fan type installed in the unit.
Binary Output, 1 System Control Command Command the unit to standalone- or BAS-controlled operation.
Binary Input, 1 System Control Status Indicates the control system currently in command of the unit.
Multi-State Input, 24 Timed Override Status Timed override request or cancel from zone sensor.
Analog Input, 88 Unit Energy Demand Indicates the current heat/cool energy demand of the unit.
Multi-State Input, 21 Unit Stop Source Source of the stop command that turned off the equipment.
Analog Output, 31 Unoccupied Cooling Setpoint Cooling temperature setpoint used for control in unoccupied mode.
Analog Output, 32 Unoccupied Heating Setpoint Heating temperature setpoint used for control in unoccupied mode.
Binary Input, 9 VAV Box Command Indicates whether VAV boxes should be in control or wide open.
34 BAS-SVP09B-EN
Table 12. Notification Classes

Notification Class Severity
Class 001 Critical
Class 002 Service Required
Class 003 Advisory
Class 004 Information
Table 13. Diagnostic Objects Sorted by Object Name
Object Identifier
Binary Input (BI) Object Name Description Notification Class
Binary Input, 59 Diagnostic: Auto - SA High Press Limit Diagnostic: Auto - SA High Press Limit 002 – Service Required
Binary Input, 271 Diagnostic: CO2 Low Limit Setpoint Fault Diagnostic: CO2 Low Limit Setpoint Fault 004 – Information
Binary Input, 83 Diagnostic: CO2 Sensor Failure Diagnostic: CO2 Sensor Failure 002 – Service Required
Binary Input, 257 Diagnostic: CO2 Setpoint Failure Diagnostic: CO2 Setpoint Failure 004 – Information
Binary Input, 45 Diagnostic: Coil Temp Sensor 1 Fail Diagnostic: Coil Temp Sensor 1 Fail 1 002 – Service Required
Binary Input, 46 Diagnostic: Coil Temp Sensor 2 Fail Diagnostic: Coil Temp Sensor 2 Fail 002 – Service Required
Diagnostic: DCV Min Position at Minimum Fan

Binary Input, 297 Diagnostic: DCV Min Position at Minimum Fan Speed 004 – Information
Speed
Binary Input, 293 Diagnostic: DCV Min Position Setpoint Fail Diagnostic: DCV Min Position Setpoint Fail 004 – Information
Binary Input, 252 Diagnostic: Default Defrost Flag Diagnostic: Default Defrost Flag 004 – Information
Binary Input, 125 Diagnostic: Dehumid Setpoint Failure Diagnostic: Dehumid Setpoint Failure 002 – Service Required
Binary Input, 248 Diagnostic: Demand Defrost Fault A Diagnostic: Demand Defrost Fault A 004 – Information
Binary Input, 249 Diagnostic: Demand Defrost Fault B Diagnostic: Demand Defrost Fault B 004 – Information
Binary Input, 281 Diagnostic: Demand Defrost Fault B Ckt 2 Diagnosti: Demand Defrost Fault B Ckt 2 004 – Information
Binary Input, 250 Diagnostic: Demand Defrost Fault C Diagnostic: Demand Defrost Fault C 004 – Information
Binary Input, 251 Diagnostic: Demand Defrost Fault D Diagnostic: Demand Defrost Fault D 004 – Information
Diagnostic: Design Min Position at Midpoint Fan Speed Diagnostic: Design Min Position at Midpoint Fan
Fail Speed Fail
Diagnostic: Design Min Position at Minimum Fan Speed Diagnostic: Design Min Position at Minimum Fan
Fail Speed Fail
Binary Input, 294 Diagnostic: Design Min Position Setpoint Fail Diagnostic: Design Min Position Setpoint Fail 004 – Information
Binary Input, 76 Diagnostic: Dirty Filter Diagnostic: Dirty Filter 003 – Advisory
Binary Input, 289 Diagnostic: Discharge Air Heat Setpoint Failure Diagnostic: Discharge Air Heat Setpoint Failure 004 – Information
Binary Input, 264 Diagnostic: Economizer Actuator Fault Diagnostic: Economizer Actuator Fault 004 – Information
BAS-SVP09B-EN 35
Table 13. Diagnostic Objects Sorted by Object Name (continued)
Object Identifier
Binary Input, 107 Diagnostic: Entering Evap Temp Sensor Fail Diagnostic: Entering Evap Temp Sensor Fail 002 – Service Required
Binary Input, 295 Diagnostic: Enthalpy Setpoint Fail Diagnostic: Enthalpy Setpoint Fail 004 – Information
Binary Input, 40 Diagnostic: Exhaust Fan Proving Failure Diagnostic: Exhaust Fan Proving Failure 001 – Critical
Binary Input, 288 Diagnostic: Exhaust Fan Setpoint Failure Diagnostic: Exhaust Fan Setpoint Failure 004 – Information
Binary Input, 151 Diagnostic: External Auto-Stop Diagnostic: External Auto-Stop 004 – Information
Binary Input, 39 Diagnostic: Fan Failure Diagnostic: Fan Failure 001 – Critical
Binary Input, 259 Diagnostic: Flame Rollout Switch Open Diagnostic: Flame Rollout Switch Open 004 – Information
Binary Input, 262 Diagnostic: Flame Sensed with Gas Valve Off Diagnostic: Flame Sensed with Gas Valve Off 004 – Information
Binary Input, 256 Diagnostic: Freezestat Tripped Diagnostic: Freezestat Tripped 004 – Information
Binary Input, 247 Diagnostic: FroStat Trip Diagnostic: FroStat Trip 004 – Information
Binary Input, 263 Diagnostic: Gas Heat Module Failure Diagnostic: Gas Heat Module Failure 004 – Information
Binary Input, 51 Diagnostic: Heat Failure Diagnostic: Heat Failure 003 – Advisory
Binary Input, 258 Diagnostic: Heating High Temp Limit Open Diagnostic: Heating High Temp Limit Open 004 – Information
Binary Input, 260 Diagnostic: Inducer Proving Switch Fail Diagnostic: Inducer Proving Switch Fail 004 – Information
Binary Input, 34 Diagnostic: Local Cool Setpoint Fail Diagnostic: Local Cool Setpoint Fail 002 – Service Required
Binary Input, 38 Diagnostic: Local Emergency Stop Initiated Diagnostic: Local Emergency Stop Initiated 001 – Critical
Binary Input, 35 Diagnostic: Local Zone Heat Setpoint Fail Diagnostic: Local Zone Heat Setpoint Fail 002 – Service Required
Binary Input, 147 Diagnostic: Maintenance Required Diagnostic: Maintenance Required 002 – Service Required
Binary Input, 242 Diagnostic: Min OA Flow Setpoint Fail Diagnostic: Min OA Flow Setpoint Fail 002 – Service Required
Binary Input, 95 Diagnostic: Mixed Air Temp Sensor Failure Diagnostic: Mixed Air Temp Sensor Failure 002 – Service Required
Binary Input, 279 Diagnostic: Mod Dehumid Config Error Diagnostic: Mod Dehumid Config Error 004 – Information
Binary Input, 239 Diagnostic: Morning Warmup Setpoint Fail Diagnostic: Morning Warmup Setpoint Fail 002 – Service Required
Binary Input, 261 Diagnostic: No Flame Sensed on heat call Diagnostic: No Flame Sensed on heat call 004 – Information
Binary Input, 37 Diagnostic: OA Humidity Sensor Failure Diagnostic: OA Humidity Sensor Failure 002 – Service Required
Binary Input, 32 Diagnostic: OA Temperature Sensor Fail Diagnostic: OA Temperature Sensor Fail 002 – Service Required
Binary Input, 58 Diagnostic: Return Air Humidity Sensor Fail Diagnostic: Return Air Humidity Sensor Fail 002 – Service Required
Binary Input, 57 Diagnostic: Return Air Temp Sensor Fail Diagnostic: Return Air Temp Sensor Fail 002 – Service Required
Binary Input, 274 Diagnostic: RTAM Comm Fail Diagnostic: RTAM Comm Fail 004 – Information
Binary Input, 276 Diagnostic: RTCM Comm Fail Diagnostic: RTCM Comm Fail 004 – Information
Binary Input, 277 Diagnostic: RTDM Comm Fail Diagnostic: RTDM Comm Fail 004 – Information
Binary Input, 273 Diagnostic: RTEM Comm Fail Diagnostic: RTEM Comm Fail 004 – Information
Binary Input, 29 Diagnostic: RTM Zone Temp Sensor Failure Diagnostic: Zone Temp Sensor Failure 002 – Service Required
Binary Input, 272 Diagnostic: RTOM Comm Fail Diagnostic: RTOM Comm Fail 004 – Information
Binary Input, 275 Diagnostic: RTVM Comm Fail Diagnostic: RTVM Comm Fail 004 – Information
Binary Input, 267 Diagnostic: SA Pressure Dead Band Failure Diagnostic: SA Pressure Dead Band Failure 004 – Information
Binary Input, 268 Diagnostic: SA Pressure PWM Fault Diagnostic: SA Pressure PWM Fault 004 – Information
Binary Input, 54 Diagnostic: SA Pressure Setpoint Failure Diagnostic: SA Pressure Setpoint Failure 002 – Service Required
Binary Input, 123 Diagnostic: SA Reheat Setpoint Failure Diagnostic: SA Reheat Setpoint Failure 002 – Service Required
Binary Input, 265 Diagnostic: SA Reset Amount Failure Diagnostic: SA Reset Amount Failure 004 – Information
Binary Input, 266 Diagnostic: SA Reset Setpoint Failure Diagnostic: SA Reset Setpoint Failure 004 – Information
Binary Input, 74 Diagnostic: SA Temp Cool Setpoint Fail Diagnostic: SA Temp Cool Setpoint Fail 002 – Service Required
Binary Input, 75 Diagnostic: SA Temp Heat Setpoint Fail Diagnostic: SA Temp Heat Setpoint Fail 002 – Service Required
Binary Input, 246 Diagnostic: Smoke Detector Diagnostic: Smoke Detector 004 – Information
Binary Input, 106 Diagnostic: Space Humidity Sensor Fail Diagnostic: Space Humidity Sensor Fail 002 – Service Required
36 BAS-SVP09B-EN
Additional Resources
Table 13. Diagnostic Objects Sorted by Object Name (continued)
Object Identifier
Binary Input, 278 Diagnostic: Space Press Deadband Fail Diagnostic: Space Press Deadband Fail 004 – Information
Binary Input, 56 Diagnostic: Space Pressure Sensor Fail Diagnostic: Space Pressure Sensor Fail 002 – Service Required
Binary Input, 55 Diagnostic: Space Pressure Setpoint Fail Diagnostic: Space Pressure Setpoint Fail 002 – Service Required
Binary Input, 36 Diagnostic: Supply Air Press Sensor Fail Diagnostic: Supply Air Press Sensor Fail 002 – Service Required
Binary Input, 30 Diagnostic: Supply Air Temp Sensor Fail Diagnostic: Supply Air Temp Sensor Fail 002 – Service Required
Binary Input, 148 Diagnostic: Unit Communications Failure Diagnostic: Unit Communications Failure 002 – Service Required
Binary Input, 86 Diagnostic: Velocity Press Sensor Fail Diagnostic: Velocity Press Sensor Fail 002 – Service Required
Binary Input, 253 Diagnostic: Vent Override - Exhaust Diagnostic: Vent Override - Exhaust 004 – Information
Binary Input, 255 Diagnostic: Vent Override - Pressurize Diagnostic: Vent Override - Pressurize 004 – Information
Binary Input, 254 Diagnostic: Vent Override - Purge Diagnostic: Vent Override - Purge 004 – Information
Additional Resources
Use the following documents and links as additional resources:
• Product support online:

• www.bacnet.org
• www.bacnetassociation.org
• www.ashrae.org
• Tracer TU Help online
• Tracer™ TU Service Tool Getting Started Guide (TTU-SVN02) (X39641083)
• Tracer TU Service Tool for Water-cooled CenTraVac Chillers with Tracer AdaptiView Control
Programming Guide (current version of CTV-SVP02)
Note: For further assistance, contact your local Trane sales office.
BAS-SVP09B-EN 37
Glossary
A D
ASHRAE device
See American Society of Heating, Refrigeration, and Air- A device is a standard BACnet object as defined by
conditioning Engineers ASHRAE Standard 135-2008. The Tracer UC800 unit
controller contains the BACnet object.
American Society of Heating, Refrigeration, and Air-
conditioning Engineers Device ID
An international organization of 50,000 persons with The Device ID uniquely identifies each BACnet device and
chapters throughout the world. The Society is organized can range from 0 to 4194302. There cannot be more than
for the sole purpose of advancing the arts and sciences of one device using the same Device ID. Each of the sample
heating, ventilation, air conditioning and refrigeration. It applications operate as a device and requires its own
benefits the public with its research, standards writing, device ID, which defaults to zero.
continuing education, and publications.
I
B
interoperability
BACnet The ability to integrate equipment from different vendors
See Building Automation Control network into a comprehensive automation and control system.
Additionally, digital communications between products
BACnet interoperability building blocks (BIBBSs)
designed independently, but designed to the same
A block of BACnet application services that tells vendors
communication standard.
what BACnet services must be implemented to provide
specific device functionality. The BIBBs are grouped M
together into BACnet device profiles.
MAC address
BACnet object
The media access control (MAC) address is the unique
An abstract representation of the physical point or points
serial number burned into Ethernet and Token Ring
where data is input from or output to an I/O device. Each
adapters that identifies that network card from all others.
object may have several BACnet properties that describe
the status of that object. P
baud rate
protocol
The number of signaling elements that occur each second
A set of rules (language) that governs the exchange of
during electronic data transmission. At slow speeds, baud
data over a digital communications system.
indicates the number of bits per second that are
transmitted. For example, 500 baud means that 500 bits S
are transmitted each second (abbreviated 500 bps). At
higher speeds, multiple bits may be encoded with each stand-alone operation
electrical change. Equipment is running in a stand-alone mode when all
control is provided by the electronic control system of the
BIBB
equipment. The system controls the building environment
See BACnet interoperability building blocks
to a local set of configuration and setpoint values. It
Building Automation Control network (BACnet and monitors the environmental conditions with sensors that
ANSI/ASHRAE Standard 135-2008) are physically wired to the control system of the unit.
An interoperable protocol developed specifically for the
building controls industry. The American National
Standards Institute named it as a standard, and Trane
advocates BACnet protocol for use in system-level control
devices.
38 BAS-SVP09B-EN
Glossary
BAS-SVP09B-EN 39
Trane optimizes the performance of homes and buildings around the world. A business of Ingersoll Rand, the
leader in creating and sustaining safe, comfortable and energy efficient environments, Trane offers a broad
portfolio of advanced controls and HVAC systems, comprehensive building services, and parts. For more
information, visit www.Trane.com.
Trane has a policy of continuous product and product data improvement and reserves the right to change design and specifications without notice.
© 2011 Trane All rights reserved
BAS-SVP09B-EN 01 Mar 2011
Supersedes BAS-SVP09A-EN (01 Dec 2010)

Trane Integration Guide - BACnet_ Communication Interface for ReliaTel_ Controllers (BCI-R)

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Trane Integration Guide - BACnet_ Communication Interface for ReliaTel_ Controllers (BCI-R)

Uploaded by

Copyright:

Available Formats

Integration Guide

BACnet™ Communication Interface for

SERVICE STATUS MODBUS LINK 24VAC - MODBUS +

SW3 SW2 SW1 LED8 LED9

456 456 456

17 X NUMBER LABEL IMC BACNET

March 2011 BAS-SVP09B-EN

Configuring the BCI-R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

LEDs and Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Object Data Points and Diagnostic Data Points . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

BACnet Testing Laboratory (BTL) Certification

Required Software and Tools

Setting Addresses on the Rotary Switches

Figure 1. Setting addresses on the rotary switches

Use a 1/8 in (3mm)flat-bladed

Setting addresses to 127

Selecting Wireless Communication

Figure 2. Wireless COMM Interface (WCI)

Using the BACnet Setup Tool

To connect to Tracer TU:

Figure 4. Connect dialog box

Understanding the MAC Address and BACnet Device ID

Figure 5. Example showing rotary dial settings and BACnet device ID

Rotary Dial Address Settings for Non-Trane SC Systems

What To Do After Adding Options or Equipment to the Unit

Clearing the Contoller and Restoring Factory Defaults to the BCI-R

Using Tracer TU to clear the controller and restore to factory defaults

Updating the Application Code

Managing Device Units on the Controller Units Screen

BAS Unit Control

Initiating System Control

Output and Input Object Data Points

Periodic Update of BAS Values

BAS Communication Failure

Input/Output Commands and Calculations

Filter Timer Reset Command

Diagnostics Reset Command

Figure 6. Setpoint calculations

Table 1. Interpreting the LEDs and switches

LED type LED activity Indicates...

BACnet Protocol Implementation Conformance Statement (PICS)

Profile Description Supported Profile

BACnet Application Specific Controller (B-ASC) 9

Interoperability Building Blocks (Annex K)

Data Sharing Description Supported BIBB

Data Sharing-ReadProperty-A (DS-RP-A) 9

Alarm and Event-ACKI-B (AE-ACK-B) 9

Trending Description Supported BIBB

Trending-Automated Trend Retrieval-B (T-ATR-B) 9

Device Management Description Supported BIBB

Device Management-Backup and Restore-B (DM-BR-B) 9

Segmentation Description Supported Segment

Segmented Requests/ Window Size: 1 9

Table 2. Descriptions and configurations (continued)

ANSI/ATA 878.1, RS-485 ARCNET (Clause 8), Baud Rate(s)

BACnet IP, (Annex J) 9

ISO 8802-3, Ethernet (Clause 7)(10Base2, 10Base5, 10BaseT, Fiber)

LonTalk, (Clause 11), Medium

Point-to-Point, Modem (Clause 10), Baud Rate(s): 9600, 19200, 38400

Device Address Binding

Device Address Binding Supported

BACnet/IP Broadcast Management Device (BBMD) 9

Character Set Descriptions Supported

ISO 10646 (UCS-4)
