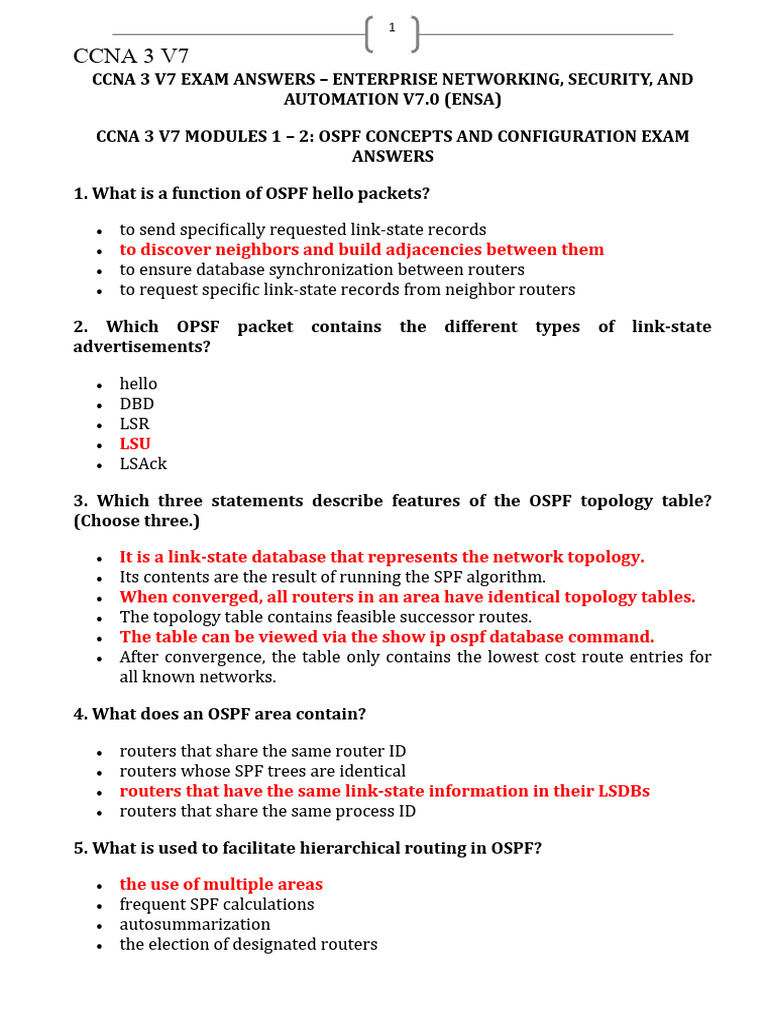

CCNA 3 V7
CCNA 3 V7 EXAM ANSWERS – ENTERPRISE NETWORKING, SECURITY, AND
AUTOMATION V7.0 (ENSA)
CCNA 3 V7 MODULES 1 – 2: OSPF CONCEPTS AND CONFIGURATION EXAM

ANSWERS
1. What is a function of OSPF hello packets?
 to send specifically requested link-state records

 to discover neighbors and build adjacencies between them
 to ensure database synchronization between routers
 to request specific link-state records from neighbor routers
2. Which OPSF packet contains the different types of link-state

advertisements?
 hello
 DBD
 LSR
 LSU
 LSAck
3. Which three statements describe features of the OSPF topology table?

(Choose three.)
 It is a link-state database that represents the network topology.

 Its contents are the result of running the SPF algorithm.
 When converged, all routers in an area have identical topology tables.
 The topology table contains feasible successor routes.
 The table can be viewed via the show ip ospf database command.
 After convergence, the table only contains the lowest cost route entries for
all known networks.
4. What does an OSPF area contain?
 routers that share the same router ID

 routers whose SPF trees are identical
 routers that have the same link-state information in their LSDBs
 routers that share the same process ID
5. What is used to facilitate hierarchical routing in OSPF?
 the use of multiple areas

 frequent SPF calculations
 autosummarization
 the election of designated routers
2
CCNA 3 V7
Explanation: OSPF supports the concept of areas to prevent larger routing tables,
excessive SPF calculations, and large LSDBs. Only routers within an area share
link-state information. This allows OSPF to scale in a hierarchical fashion with all
areas that connect to a backbone area.
6. Which OSPF data structure is identical on all OSPF routers that share the
same area?
 forwarding database
 link-state database
 adjacency database
 routing table
Explanation: Regardless of which OSPF area a router resides in, the adjacency
database, routing table, and forwarding database are unique for each router. The
link-state database lists information about all other routers within an area and is
identical across all OSPF routers participating in that area.
7. Which step does an OSPF-enabled router take immediately after

establishing an adjacency with another router?
 builds the topology table

 exchanges link-state advertisements
 chooses the best path
 executes the SPF algorithm
Explanation: The OSPF operation steps are as follows:
1. Establish neighbor adjacencies

2. Exchange link-state advertisements
3. Build the topology table
4. Execute the SPF algorithm
5. Choose the best route
8. A network engineer has manually configured the hello interval to 15

seconds on an interface of a router that is running OSPFv2. By default, how
will the dead interval on the interface be affected?
 The dead interval will not change from the default value.
 The dead interval will now be 30 seconds.
Explanation: Cisco IOS automatically modifies the dead interval to four times the
hello interval.
3
CCNA 3 V7
9. Refer to the exhibit. A network administrator has configured the OSPF
timers to the values that are shown in the graphic. What is the result of
having those manually configured timers?
 R1 automatically adjusts its own timers to match the R2 timers.

 The R1 dead timer expires between hello packets from R2.
 The hello timer on R2 expires every ten seconds.
 The neighbor adjacency has formed.
Explanation: The dead timer (20 seconds) on R1 expires before the next hello
packet from R2 (25 seconds).
10. To establish a neighbor adjacency two OSPF routers will exchange hello
packets. Which two values in the hello packets must match on both routers?
(Choose two.)
 dead interval
 router priority
 list of neighbors
 router ID
 hello interval
Explanation: The hello and dead interval timers contained in a hello packet must
be the same on neighboring routers in order to form an adjacency.
11. What is the default router priority value for all Cisco OSPF routers?
 0
 1
 10
 255
Explanation: The router priority value is used in a DR/BDR election. The default
priority for all OSPF routers is 1 but it can be manually altered to any value 0 to
255.
12. Which type of OSPFv2 packet contains an abbreviated list of the LSDB of a
sending router and is used by receiving routers to check against the local
LSDB?
4
CCNA 3 V7
 database description
 link-state update
 link-state request
 link-state acknowledgment
Explanation: The database description (DBD) packet contains an abbreviated list

of the LSDB sent by a neighboring router and is used by receiving routers to check
against the local LSDB.
13. In an OSPF network when are DR and BDR elections required?
 when the two adjacent neighbors are interconnected over a point-to-point

link
 when all the routers in an OSPF area cannot form adjacencies
 when the routers are interconnected over a common Ethernet network
 when the two adjacent neighbors are in two different networks
Explanation: When the routers are interconnected over a common Ethernet

network, then a designated router (DR) and a backup DR (BDR) must be elected.
14. When an OSPF network is converged and no network topology change

has been detected by a router, how often will LSU packets be sent to
neighboring routers?
 every 5 minutes
 every 10 minutes
Explanation: After all LSRs have been satisfied for a given router, the adjacent
routers are considered synchronized and in a full state. Updates (LSUs) are sent to
neighbors only under the following conditions:
 when a network topology change is detected (incremental updates)

15. What will an OSPF router prefer to use first as a router ID?
 a loopback interface that is configured with the highest IP address on the

router
 any IP address that is configured using the router-id command
 the highest active interface IP that is configured on the router
 the highest active interface that participates in the routing process because
of a specifically configured network statement
5
CCNA 3 V7
Explanation: The first preference for an OSPF router ID is an explicitly configured
32-bit address. This address is not included in the routing table and is not defined
by the network command. If a router ID that is configured through the router-id
command is not available, OSPF routers next use the highest IP address available
on a loopback interface, as loopbacks used as router IDs are also not routable
addresses. Lacking either of these alternatives, an OSPF router will use the highest
IP address from its active physical interfaces.
16. What are the two purposes of an OSPF router ID? (Choose two.)
 to uniquely identify the router within the OSPF domain

 to facilitate router participation in the election of the designated router
 to enable the SPF algorithm to determine the lowest cost path to remote
networks
 to facilitate the establishment of network convergence
 to facilitate the transition of the OSPF neighbor state to Full
Explanation: OSPF router ID does not contribute to SPF algorithm calculations,

nor does it facilitate the transition of the OSPF neighbor state to Full. Although the
router ID is contained within OSPF messages when router adjacencies are being
established, it has no bearing on the actual convergence process.
17. Refer to the exhibit. If no router ID was manually configured, what would
router Branch1 use as its OSPF router ID?
 10.0.0.1
 10.1.0.1
 192.168.1.100
 209.165.201.1
Explanation: In OSPFv2, a Cisco router uses a three-tier method to derive its

router ID. The first choice is the manually configured router ID with the router-id
6
CCNA 3 V7
command. If the router ID is not manually configured, the router will choose the
highest IPv4 address of the configured loopback interfaces. Finally if no loopback
interfaces are configured, the router chooses the highest active IPv4 address of its
physical interfaces.
18. A network technician issues the following commands when configuring a

router:
R1(config)# router ospf 11

R1(config-router)# network 10.10.10.0 0.0.0.255 area 0
What does the number 11 represent?
 the OSPF process ID on R1

 the cost of the link to R1
 the autonomous system number to which R1 belongs
 the administrative distance that is manually assigned to R1
 the area number where R1 is located
Explanation: There is no autonomous system number to configure on OSPF. The

area number is located at the end of the network statement. The cost of a link can
be modified in the interface configuration mode. The process ID is local to the
router.
19. An OSPF router has three directly connected networks; 172.16.0.0/16,

172.16.1.0/16, and 172.16.2.0/16. Which OSPF network command would
advertise only the 172.16.1.0 network to neighbors?
 router(config-router)# network 172.16.1.0 0.0.255.255 area 0

Explanation: To advertise only the 172.16.1.0/16 network the wildcard mask

used in the network command must match the first 16-bits exactly. To match bits
exactly, a wildcard mask uses a binary zero. This means that the first 16-bits of the
wildcard mask must be zero. The low order 16-bits can all be set to 1.
20. Refer to the exhibit. Which three statements describe the results of the
OSPF election process of the topology that is shown in the exhibit? (Choose
three.)
7
CCNA 3 V7
 R3 will be elected BDR.

 The R4 FastEthernet 0/0 priority is 128.
 The R4 router ID is 172.16.1.1.
 R1 will be elected BDR.
 The router ID on R2 is the loopback interface.
 R2 will be elected DR.
Explanation: R2 will be elected DR because it has the highest priority of 255, all of
the others have a priority of 1. R3 will be elected BDR because it has the
numerically highest router-ID of 192.168.1.4. The R4 router-ID is 172.16.1.1
because it is the IPv4 address attached to the loopback 0 interface.
21. Refer to the exhibit. If the switch reboots and all routers have to re-
establish OSPF adjacencies, which routers will become the new DR and BDR?
8
CCNA 3 V7
 Router R4 will become the DR and router R1 will become the BDR.
Explanation: OSPF elections of a DR are based on the following in order of

precedence:
 highest pritority from 1 -255 (0 = never a DR)

 highest router ID
 highest IP address of a loopback or active interface in the absence of a
manually configured router ID. Loopback IP addresses take higher
precedence than other interfaces.
In this case routers R4 and R1 have the highest router priority. Between the two,
R3 has the higher router ID. Therefore, R4 will become the DR and R1 will become
the BDR.
22. By default, what is the OSPF cost for any link with a bandwidth of 100
Mb/s or greater?
 100000000
 10000
 1
 100
9
CCNA 3 V7
Explanation: OSPF uses the formula: Cost = 100,000,000 / bandwidth. Because
OSPF will only use integers as cost, any bandwidth of 100 Mb/s or greater will all
equal a cost of 1.
23. Refer to the exhibit. What is the OSPF cost to reach the router A LAN
172.16.1.0/24 from B?
 782
 74
 128
 65
Explanation: The formula used to calculate the OSPF cost is as follows:
Cost = reference bandwidth / interface bandwidth
The default reference bandwidth is 10^8 (100,000,000); therefore, the formula is
Cost = 100,000,000 bps / interface bandwidth in bps
Thus the cost to reach the A LAN 172.16.1.0/24 from B is as follows:

Serial link (1544 Kbps) from B to A cost => 100,000,000 / 1,544,000 = 64
Gigabit Ethernet link on A cost => 100,000,000 / 1,000,000,000 = 1
Total cost to reach 172.16.1.0/24 = 64 + 1 = 65
24. Refer to the exhibit. On which router or routers would a default route be
statically configured in a corporate environment that uses single area OSPF
as the routing protocol?
10
CCNA 3 V7
 R0-A
 ISP, R0-A, R0-B, and R0-C
 ISP
 R0-B and R0-C
 ISP and R0-A
 R0-A, R0-B, and R0-C
Explanation: The default route is applied to the router that connects to the
Internet, or R0-A. R0-A then distributes that default route using the OSPF routing
protocol.
25. What command would be used to determine if a routing protocol-

initiated relationship had been made with an adjacent router?
 ping
 show ip ospf neighbor
 show ip interface brief
 show ip protocols
Explanation: While the show ip interface brief and ping commands can be used
to determine if Layer 1, 2, and 3 connectivity exists, neither command can be used
to determine if a particular OSPF or EIGRP-initiated relationship has been made.
The show ip protocols command is useful in determining the routing parameters
such as timers, router ID, and metric information associated with a specific routing
protocol. The show ip ospf neighbor command shows if two adjacent routers
have exchanged OSPF messages in order to form a neighbor relationship.
26. Refer to the exhibit. Which command did an administrator issue to

produce this output?
11
CCNA 3 V7
 R1# show ip ospf interface serial0/0/1

 R1# show ip route ospf
 R1# show ip ospf
 R1# show ip ospf neighbor
27. Which command is used to verify that OSPF is enabled and also provides
a list of the networks that are being advertised by the network?
 show ip interface brief

 show ip ospf interface
 show ip protocols
 show ip route ospf
Explanation: The command show ip ospf interface verifies the active OSPF
interfaces. The command show ip interface brief is used to check that the
interfaces are operational. The command show ip route ospf displays the entries
that are learned via OSPF in the routing table. The command show ip protocols
checks that OSPF is enabled and lists the networks that are advertised.
28. Refer to the exhibit. A network administrator has configured OSPFv2 on

the two Cisco routers but PC1 is unable to connect to PC2. What is the most
likely problem?
12
CCNA 3 V7
 Interface Fa0/0 has not been activated for OSPFv2 on router R2.
 Interface Fa0/0 is configured as a passive-interface on router R2.
 Interface S0/0 is configured as a passive-interface on router R2.
 Interface s0/0 has not been activated for OSPFv2 on router R2.
Explanation: If a LAN network is not advertised using OSPFv2, a remote network

will not be reachable. The output displays a successful neighbor adjacency
between router R1 and R2 on the interface S0/0 of both routers.
29. What is the recommended Cisco best practice for configuring an OSPF-
enabled router so that each router can be easily identified when
troubleshooting routing issues?
 Configure a value using the router-id command.

 Use the highest active interface IP address that is configured on the router.
 Use a loopback interface configured with the highest IP address on the
router.
 Use the highest IP address assigned to an active interface participating in the
routing process.
Explanation: A Cisco router is assigned a router ID to uniquely identify it. It can be

automatically assigned and take the value of the highest configured IP address on
any interface, the value of a specifically-configured loopback address, or the value
assigned (which is in the exact form of an IP address) using the router-id
command. Cisco recommends using the router-id command.
13
CCNA 3 V7
30. Which step in the link-state routing process is described by a router
running an algorithm to determine the best path to each destination?
 load balancing equal-cost paths

 declaring a neighbor to be inaccessible
 choosing the best route
 executing the SPF algorithm
31. An administrator is configuring single-area OSPF on a router. One of the

networks that must be advertised is 192.168.223.0 255.255.254.0. What
wildcard mask would the administrator use in the OSPF network statement?
 0.0.1.255
 0.0.7.255
 0.0.15.255
 0.0.31.255
32. What is the format of the router ID on an OSPF-enabled router?
 a unique router host name that is configured on the router

 a unique phrase with no more than 16 characters
 a 32-bit number formatted like an IPv4 address
 an 8-bit number with a decimal value between 0 and 255
 a character string with no space
Explanation: A router ID is a 32-bit number formatted like an IPv4 address and

assigned in order to uniquely identify a router among OSPF peers.
33. Question as presented:
DUAL is the algorithm used by EIGRP. In multiarea OSPF, OSPF is implemented

using multiple areas, and all of them must be connected to the backbone area.
34. After modifying the router ID on an OSPF router, what is the preferred
method to make the new router ID effective?
 HQ# copy running-config startup-config

 HQ# resume
 HQ# clear ip route *
 HQ# clear ip ospf process
Explanation: To modify a router-id on an OSPF-enabled router, it is necessary to

reset the OSPF routing process by entering either the clear ip ospf process
command or the reload command.
35. In an OSPFv2 configuration, what is the effect of entering the command

network 192.168.1.1 0.0.0.0 area 0?
14
CCNA 3 V7
 It allows all 192.168.1.0 networks to be advertised.
 It tells the router which interface to turn on for the OSPF routing
process.
 It changes the router ID of the router to 192.168.1.1.
 It enables OSPF on all interfaces on the router.
Explanation: Entering the command network 192.168.1.1 0.0.0.0 area 0 will

turn on only the interface with that IP address for OSPF routing. It does not change
the router ID. Instead, OSPF will use the network that is configured on that
interface.
36. What is the reason for a network engineer to alter the default reference
bandwidth parameter when configuring OSPF?
 to force that specific link to be used in the destination route

 to more accurately reflect the cost of links greater than 100 Mb/s
 to enable the link for OSPF routing
 to increase the speed of the link
Explanation: By default, Fast Ethernet, Gigabit, and 10 Gigabit Ethernet interfaces

all have a cost of 1. Altering the default reference bandwidth alters the cost
calculation, allowing each speed to be more accurately reflected in the cost.
37. Open the PT Activity. Perform the tasks in the activity instructions and
then answer the question.
Which task has to be performed on Router 1 for it to establish an OSPF

adjacency with Router 2?
 Issue the clear ip ospf process command.

 Change the subnet mask of interface FastEthernet 0/0 to
255.255.255.0.
 Remove the passive interface command from interface FastEthernet 0/0.
 Add the network 10.0.1.0 0.0.0.255 area 0 command to the OSPF process.
15
CCNA 3 V7
Download Packet Tracer Activity File
This content is locked! use one of the buttons below to unlock the content.
tweet
share
follow us
error
share
Explanation: Each interface on the link connecting the OSPF routers must be in
the same subnet for an adjacency to be established. The IP address subnet mask on
FastEthernet interface 0/0 must be changed to 255.255.255.0. The FastEthernet
interface 0/0 is not passive. The 10.0.1.0/24 network is only connected to Router2
so should not be advertised by Router1. The clear ip ospf process command will
start the OPSF process on Router1 but will not cause an adjacency to be
established if the subnet mask mismatch on the connecting interfaces still exists.
16
CCNA 3 V7
38. Match the description to the term. (Not all options are used.)
39. What is a benefit of multiarea OSPF routing?
 Topology changes in one area do not cause SPF recalculations in other

areas.
 Routers in all areas share the same link-state database and have a complete
picture of the entire network.
 A backbone area is not required.
 Automatic route summarization occurs by default between areas.
Explanation: With multiarea OSPF, only routers within an area share the same
link-state database. Changes to the network topology in one area do not impact
other areas, which reduces the number of SPF algorithm calculations and the of
link-state databases.
17
CCNA 3 V7
40. Match the OSPF state with the order in which it occurs. (Not all options
are used.)
41. What indicates to a link-state router that a neighbor is unreachable?
 if the router no longer receives hello packets

 if the router receives an update with a hop count of 16
 if the router receives an LSP with previously learned information
18
CCNA 3 V7
 if the router no longer receives routing updates
Explanation: OSPF routers send hello packets to monitor the state of a neighbor.
When a router stops receiving hello packets from a neighbor, that neighbor is
considered unreachable and the adjacency is broken.
42. Which three OSPF states are involved when two routers are forming an
adjacency? (Choose three.)
 Exchange
 Init
 ExStart
 Two-way
 Loading
 Down
Explanation: OSPF operation progresses through 7 states for establishing

neighboring router adjacency, exchanging routing information, calculating the best
routes, and reaching convergence. The Down, Init, and Two-way states are
involved in the phase of neighboring router adjacency establishment.
43. Refer to the exhibit. Suppose that routers B, C, and D have a default
priority, and router A has a priority 0. Which conclusion can be drawn from
the DR/BDR election process?
CCNA 3 V7 MODULES 1 – 2: OSPF CONCEPTS AND CONFIGURATION EXAM

19
CCNA 3 V7
 If the priority of router C is changed to 255, then it will become the DR.
 Router A will become the DR and router D will become the BDR.
 If the DR fails, the new DR will be router B.
 If a new router with a higher priority is added to this network, it will become
the DR.
Explanation: If the priority is set to 0, the router is not capable of becoming the
DR, so router A cannot be the DR. OSPF DR and BDR elections are not preemptive.
If a new router with a higher priority or higher router ID is added to the network
after the DR and BDR election, the newly added router does not take over the DR
or the BDR role.

 0.0.31.255
 0.0.0.63
 0.0.63.255
 0.0.0.127
45. Which command will a network engineer issue to verify the configured
hello and dead timer intervals on a point-to-point WAN link between two
routers that are running OSPFv2?
 show ipv6 ospf interface serial 0/0/0

 show ip ospf neighbor
 show ip ospf interface fastethernet 0/1
 show ip ospf interface serial 0/0/0
The show ip ospf interface serial 0/0/0 command will display the configured hello
and dead timer intervals on a point-to-point serial WAN link between two OSPFv2
routers. The show ipv6 ospf interface serial 0/0/0 command will display the
configured hello and dead timer intervals on a point-to-point serial link between
two OSPFv3 routers. The show ip ospf interface fastethernet 0/1 command will
display the configured hello and dead timer intervals on a multiaccess link
between two (or more) OSPFv2 routers. The show ip ospf neighbor command will
display the dead interval elapsed time since the last hello message was received,
but does not show the configured value of the timer.

 0.0.63.255
20
CCNA 3 V7
 0.0.0.63
 0.0.0.3
 0.0.0.7
47. Match each OSPF packet type to how it is used by a router. (Not all options
are used.)

building a link-state database based on received LSAs?
 building the topology table

21
CCNA 3 V7
 0.0.63.255
 0.0.3.255
 0.0.31.255
 0.0.0.255

 0.0.3.255
 0.0.0.7
 0.0.0.3
 0.0.63.255

flooding link-state and cost information about each directly connected link?

 selecting the router ID
 exchanging link-state advertisements
 injecting the default route

sending Hello packets out all of the OSPF-enabled interfaces?
 electing the designated router

 establishing neighbor adjacencies
 injecting the default route
 exchanging link-state advertisements
53. By default, what is the OSPF cost for any link with a bandwidth of 100
Mb/s or greater?
 100
 100000000
 1
 10000
Explain: OSPF uses the formula: Cost = 100,000,000 / bandwidth. Because OSPF
will only use integers as cost, any bandwidth of 100 Mb/s or greater will all equal a
cost of 1
22
CCNA 3 V7
inserting best paths into the routing table?
 -declaring a neighbor to be inaccessible

 -executing the SPF algorithm
 -load balancing equal-cost paths
 choosing the best route
55. What type of address is 64.101.198.197?
 public
 private
CCNA 3 v7 Modules 3 – 5: Network Security Exam Answers
1. The IT department is reporting that a company web server is receiving an

abnormally high number of web page requests from different locations
simultaneously. Which type of security attack is occurring?
 adware
 DDoS
 phishing
 social engineering
 spyware
2. What causes a buffer overflow?
 launching a security countermeasure to mitigate a Trojan horse

 downloading and installing too many software updates at one time
 attempting to write more data to a memory location than that location
can hold
 sending too much information to two or more interfaces of the same device,
thereby causing dropped packets
 sending repeated connections such as Telnet to a particular device, thus
denying other data sources
3. Which objective of secure communications is achieved by encrypting data?
 authentication
 availability
 confidentiality
 integrity
4. What type of malware has the primary objective of spreading across the
network?
 worm
23
CCNA 3 V7
 virus
 Trojan horse
 botnet
5. What commonly motivates cybercriminals to attack networks as compared

to hactivists or state-sponsored hackers?
 financial gain
 fame seeking
 status among peers
 political reasons
Explanation: Cybercriminals are commonly motivated by money. Hackers are

known to hack for status. Cyberterrorists are motivated to commit cybercrimes for
religious or political reasons.
6. Which type of hacker is motivated to protest against political and social

issues?
 hacktivist
 cybercriminal
 script kiddie
 vulnerability broker
Explanation: Hackers are categorized by motivating factors. Hacktivists are

motivated by protesting political and social issues.
7. What is a ping sweep?
 a query and response protocol that identifies information about a domain,

including the addresses that are assigned to that domain.
 a scanning technique that examines a range of TCP or UDP port numbers on
a host to detect listening services.
 a software application that enables the capture of all network packets that
are sent across a LAN.
 a network scanning technique that indicates the live hosts in a range of
IP addresses.
Explanation: A ping sweep is a tool that is used during a reconnaissance attack.

Other tools that might be used during this type of attack include a ping sweep, port
scan, or Internet information query. A reconnaissance attack is used to gather
information about a particular network, usually in preparation for another type of
network attack.
8. In what type of attack is a cybercriminal attempting to prevent legitimate

users from accessing network services?
24
CCNA 3 V7
 address spoofing
 MITM
 session hijacking
 DoS
Explanation: In a DoS or denial-of-service attack, the goal of the attacker is to

prevent legitimate users from accessing network services.
9. Which requirement of secure communications is ensured by the

implementation of MD5 or SHA hash generating algorithms?
 nonrepudiation
 authentication
 integrity
 confidentiality
Explanation: Integrity is ensured by implementing either MD5 or SHA hash

generating algorithms. Many modern networks ensure authentication with
protocols, such as HMAC. Data confidentiality is ensured through symmetric
encryption algorithms, including DES, 3DES, and AES. Data confidentiality can also
be ensured using asymmetric algorithms, including RSA and PKI.
10. If an asymmetric algorithm uses a public key to encrypt data, what is

used to decrypt it?
 a digital certificate
 a different public key
 a private key
 DH
Explanation: When an asymmetric algorithm is used, public and private keys are
used for the encryption. Either key can be used for encryption, but the
complementary matched key must be used for the decryption. For example if the
public key is used for encryption, then the private key must be used for the
decryption.
11. Refer to the exhibit. Which two ACLs would permit only the two LAN
networks attached to R1 to access the network that connects to R2 G0/1
interface? (Choose two.)
25
CCNA 3 V7
 access-list 1 permit 192.168.10.0 0.0.0.127

 access-list 2 permit host 192.168.10.9
access-list 2 permit host 192.168.10.69
access-list 5 permit 192.168.10.64 0.0.0.63
Explanation: The permit 192.168.10.0 0.0.0.127 command ignores bit positions

1 through 7, which means that addresses 192.168.10.0 through 192.168.10.127
are allowed through. The two ACEs of permit 192.168.10.0 0.0.0.63 and permit
192.168.10.64 0.0.0.63 allow the same address range through the router.
12. Which two packet filters could a network administrator use on an IPv4
extended ACL? (Choose two.)
 destination UDP port number

 computer type
 destination MAC address
 ICMP message type
 source TCP hello address
Explanation: Extended access lists commonly filter on source and destination

IPv4 addresses and TCP or UDP port numbers. Additional filtering can be provided
for protocol types.
13. What type of ACL offers greater flexibility and control over network
access?
 numbered standard
 named standard
 extended
26
CCNA 3 V7
 flexible
Explanation: The two types of ACLs are standard and extended. Both types can be
named or numbered, but extended ACLs offer greater flexibility.
14. What is the quickest way to remove a single ACE from a named ACL?
 Use the no keyword and the sequence number of the ACE to be

removed.
 Copy the ACL into a text editor, remove the ACE, then copy the ACL back into
the router.
 Create a new ACL with a different number and apply the new ACL to the
router interface.
 Use the no access-list command to remove the entire ACL, then recreate it
without the ACE.
Explanation: Named ACL ACEs can be removed using the no command followed
by the sequence number.
15. Refer to the exhibit. A network administrator is configuring a standard

IPv4 ACL. What is the effect after the command no access-list 10 is entered?
 ACL 10 is removed from both the running configuration and the interface
Fa0/1.
 ACL 10 is removed from the running configuration.
 ACL 10 is disabled on Fa0/1.
 ACL 10 will be disabled and removed after R1 restarts.
Explanation: The R1(config)# no access-list <access-list number> command

removes the ACL from the running-config immediately. However, to disable an ACL
on an interface, the command R1(config-if)# no ip access-group should be
entered.
27
CCNA 3 V7
16. Refer to the exhibit. A network administrator has configured ACL 9 as
shown. Users on the 172.31.1.0 /24 network cannot forward traffic through
router CiscoVille. What is the most likely cause of the traffic failure?
 The established keyword is not specified.

 The sequence of the ACEs is incorrect.
 The port number for the traffic has not been identified with the eq keyword.
 The permit statement specifies an incorrect wildcard mask.
Explanation: When verifying an ACL, the statements are always listed in a

sequential order. Even though there is an explicit permit for the traffic that is
sourced from network 172.31.1.0 /24, it is being denied due to the previously
implemented ACE of CiscoVille(config)# access-list 9 deny 172.31.0.0
0.0.255.255. The sequence of the ACEs must be modified to permit the specific
traffic that is sourced from network 172.31.1.0 /24 and then to deny 172.31.0.0
/16.
17. A network administrator needs to configure a standard ACL so that only

the workstation of the administrator with the IP address 192.168.15.23 can
access the virtual terminal of the main router. Which two configuration
commands can achieve the task? (Choose two.)
 Router1(config)# access-list 10 permit 192.168.15.23 0.0.0.0

 Router1(config)# access-list 10 permit host 192.168.15.23
Explanation: To permit or deny one specific IP address, either the wildcard mask
0.0.0.0 (used after the IP address) or the wildcard mask keyword host (used
before the IP address) can be used.
18. Refer to the exhibit. Which command would be used in a standard ACL to
allow only devices on the network attached to R2 G0/0 interface to access the
networks attached to R1?
28
CCNA 3 V7

Explanation: Standard access lists only filter on the source IP address. In the
design, the packets would be coming from the 192.168.10.96/27 network (the R2
G0/0 network). The correct ACL is access-list 1 permit 192.168.10.96 0.0.0.31.
19. A network administrator is writing a standard ACL that will deny any
traffic from the 172.16.0.0/16 network, but permit all other traffic. Which
two commands should be used? (Choose two.)
 Router(config)# access-list 95 deny 172.16.0.0 255.255.0.0

 Router(config)# access-list 95 permit any
 Router(config)# access-list 95 host 172.16.0.0
 Router(config)# access-list 95 deny 172.16.0.0 0.0.255.255
 Router(config)# access-list 95 172.16.0.0 255.255.255.255
 Router(config)# access-list 95 deny any
Explanation: To deny traffic from the 172.16.0.0/16 network, the access-list 95

deny 172.16.0.0 0.0.255.255 command is used. To permit all other traffic, the
access-list 95 permit any statement is added.
20. Refer to the exhibit. An ACL was configured on R1 with the intention of
denying traffic from subnet 172.16.4.0/24 into subnet 172.16.3.0/24. All
other traffic into subnet 172.16.3.0/24 should be permitted. This standard
ACL was then applied outbound on interface Fa0/0. Which conclusion can be
drawn from this configuration?
29
CCNA 3 V7
 The ACL should be applied outbound on all interfaces of R1.

 The ACL should be applied to the FastEthernet 0/0 interface of R1 inbound
to accomplish the requirements.
 All traffic will be blocked, not just traffic from the 172.16.4.0/24
subnet.
 Only traffic from the 172.16.4.0/24 subnet is blocked, and all other traffic is
allowed.
 An extended ACL must be used in this situation.
Explanation: Because of the implicit deny at the end of all ACLs, the access-list 1
permit any command must be included to ensure that only traffic from the
172.16.4.0/24 subnet is blocked and that all other traffic is allowed.
21. Refer to the exhibit. A network administrator needs to add an ACE to the
TRAFFIC-CONTROL ACL that will deny IP traffic from the subnet
172.23.16.0/20. Which ACE will meet this requirement?
 30 deny 172.23.16.0 0.0.15.255

 15 deny 172.23.16.0 0.0.15.255
 5 deny 172.23.16.0 0.0.15.255
 5 deny 172.23.16.0 0.0.255.255
Explanation: The only filtering criteria specified for a standard access list is the
source IPv4 address. The wild card mask is written to identify what parts of the
address to match, with a 0 bit, and what parts of the address should be ignored,
which a 1 bit. The router will parse the ACE entries from lowest sequence number
30
CCNA 3 V7
to highest. If an ACE must be added to an existing access list, the sequence number
should be specified so that the ACE is in the correct place during the ACL
evaluation process.
22. Refer to the exhibit. A network administrator configures an ACL on the

router. Which statement describes the result of the configuration?
 An SSH connection is allowed from a workstation with IP 172.16.45.16 to a

device with IP 192.168.25.18.
 An SSH connection is allowed from a workstation with IP 192.168.25.18
to a device with IP 172.16.45.16.
 A Telnet connection is allowed from a workstation with IP 192.168.25.18 to
a device with IP 172.16.45.16.
 A Telnet connection is allowed from a workstation with IP 172.16.45.16 to a
device with IP 192.168.25.18.
Explanation: In an extended ACL, the first address is the source IP address and the
second one is the destination IP address. TCP port number 22 is a well-known port
number reserved for SSH connections. Telnet connections use TCP port number
23.
23. Refer to the exhibit. What can be determined from this output?
 The ACL is missing the deny ip any any ACE.

 The ACL is only monitoring traffic destined for 10.23.77.101 from three
specific hosts.
 Because there are no matches for line 10, the ACL is not working.
 The router has not had any Telnet packets from 10.35.80.22 that are
destined for 10.23.77.101.
31
CCNA 3 V7
Explanation: ACL entry 10 in MyACL matches any Telnet packets between host
10.35.80.22 and 10.23.77.101. No matches have occurred on this ACE as evidenced
by the lack of a “(xxx matches)” ACE. The deny ip any any ACE is not required
because there is an implicit deny ACE added to every access control list. When no
matches exist for an ACL, it only means that no traffic has matched the conditions
that exist for that particular line. The ACL is monitoring traffic that matches three
specific hosts going to very specific destination devices. All other traffic is not
permitted by the implicit deny ip any any ACE.
24. Refer to the exhibit. A network administrator wants to permit only host
192.168.1.1 /24 to be able to access the server 192.168.2.1 /24. Which three
commands will achieve this using best ACL placement practices? (Choose
three.)
 R2(config)# interface fastethernet 0/1

 R2(config-if)# ip access-group 101 out
 R2(config)# access-list 101 permit ip 192.168.1.0 255.255.255.0 192.168.2.0
255.255.255.0
 R2(config-if)# ip access-group 101 in
 R2(config)# access-list 101 permit ip any any
 R2(config)# interface fastethernet 0/0
 R2(config)# access-list 101 permit ip host 192.168.1.1 host 192.168.2.1
Explanation: An extended ACL is placed as close to the source of the traffic as

possible. In this case.it is placed in an inbound direction on interface fa0/0 on R2
for traffic entering the router from host with the IP address192.168.1.1 bound for
the server with the IP address192.168.2.1.
25. Consider the following access list.
access-list 100 permit ip host 192.168.10.1 any

access-list 100 deny icmp 192.168.10.0 0.0.0.255 any echo
access-list 100 permit ip any any
32
CCNA 3 V7
Which two actions are taken if the access list is placed inbound on a router
Gigabit Ethernet port that has the IP address 192.168.10.254 assigned?
(Choose two.)
 Only Layer 3 connections are allowed to be made from the router to any
other network device.
 Devices on the 192.168.10.0/24 network are not allowed to reply to any ping
requests.
 Devices on the 192.168.10.0/24 network can sucessfully ping devices
on the 192.168.11.0 network.
 A Telnet or SSH session is allowed from any device on the 192.168.10.0
into the router with this access list assigned.
 Only the network device assigned the IP address 192.168.10.1 is allowed to
access the router.
Explanation: The first ACE allows the 192.168.10.1 device to do any TCP/IP-based
transactions with any other destination. The second ACE stops devices on the
192.168.10.0/24 network from issuing any pings to any other location. Everything
else is permitted by the third ACE. Therefore, a Telnet/SSH session or ping reply is
allowed from a device on the 192.168.10.0/24 network.
26. Refer to the exhibit. The named ACL “Managers” already exists on the
router. What will happen when the network administrator issues the
commands that are shown in the exhibit?
 The commands are added at the end of the existing Managers ACL.
 The commands overwrite the existing Managers ACL.
 The commands are added at the beginning of the existing Managers ACL.
 The network administrator receives an error that states that the ACL already
exists.
27. In which TCP attack is the cybercriminal attempting to overwhelm a

target host with half-open TCP connections?
 port scan attack

 SYN flood attack
 session hijacking attack
 reset attack
Explanation: In a TCP SYN flood attack, the attacker sends to the target host a
continuous flood of TCP SYN session requests with a spoofed source IP address.
33
CCNA 3 V7
The target host responds with a TCP-SYN-ACK to each of the SYN session requests
and waits for a TCP ACK that will never arrive. Eventually the target is
overwhelmed with half-open TCP connections.
28. Which protocol is attacked when a cybercriminal provides an invalid

gateway in order to create a man-in-the-middle attack?
 DHCP
 DNS
 ICMP
 HTTP or HTTPS
Explanation: A cybercriminal could set up a rogue DHCP server that provides one
or more of the following:
 Wrong default gateway that is used to create a man-in-the-middle attack and

allow the attacker to intercept data
 Wrong DNS server that results in the user being sent to a malicious website
 Invalid default gateway IP address that results in a denial of service attack on
the DHCP client
29. Refer to the exhibit. An administrator has configured a standard ACL on

R1 and applied it to interface serial 0/0/0 in the outbound direction. What
happens to traffic leaving interface serial 0/0/0 that does not match the
configured ACL statements?
 The traffic is dropped.

 The source IP address is checked and, if a match is not found, traffic is routed
out interface serial 0/0/1.
 The resulting action is determined by the destination IP address.
 The resulting action is determined by the destination IP address and port
number.
Explanation: Any traffic that does not match one of the statements in an ACL has
the implicit deny applied to it, which means the traffic is dropped.
30. Refer to the exhibit. The Gigabit interfaces on both routers have been
configured with subinterface numbers that match the VLAN numbers
34
CCNA 3 V7
connected to them. PCs on VLAN 10 should be able to print to the P1 printer
on VLAN 12. PCs on VLAN 20 should print to the printers on VLAN 22. What
interface and in what direction should you place a standard ACL that allows
printing to P1 from data VLAN 10, but stops the PCs on VLAN 20 from using
the P1 printer? (Choose two.)
 inbound
 R2 S0/0/1
 R1 Gi0/1.12
 outbound
 R1 S0/0/0
 R2 Gi0/1.20
Explanation: A standard access list is commonly placed as close to the destination

network as possible because access control expressions in a standard ACL do not
include information about the destination network.
The destination in this example is printer VLAN 12 which has router R1 Gigabit
subinterface 0/1/.12 as its gateway. A sample standard ACL that only allows
printing from data VLAN 10 (192.168.10.0/24), for example, and no other VLAN
would be as follows:
R1(config)# access-list 1 permit 192.168.10.0 0.0.0.255

R1(config)# access-list 1 deny any
R1(config)# interface gigabitethernet 0/1.12
R1(config-if)# ip access-group 1 out
31. Which statement describes a characteristic of standard IPv4 ACLs?
 They are configured in the interface configuration mode.

 They can be configured to filter traffic based on both source IP addresses and
source ports.
35
CCNA 3 V7
 They can be created with a number but not with a name.
 They filter traffic based on source IP addresses only.
Explanation: A standard IPv4 ACL can filter traffic based on source IP addresses
only. Unlike an extended ACL, it cannot filter traffic based on Layer 4 ports.
However, both standard and extended ACLs can be identified with either a number
or a name, and both are configured in global configuration mode.
32. What is considered a best practice when configuring ACLs on vty lines?
 Place identical restrictions on all vty lines.

 Remove the vty password since the ACL restricts access to trusted users.
 Apply the ip access-group command inbound.
 Use only extended access lists.
33.
Refer to the exhibit. An administrator first configured an extended ACL as
shown by the output of the show access-lists command. The administrator
then edited this access-list by issuing the commands below.
Router(config)# ip access-list extended 101

Router(config-ext-nacl)# no 20
Router(config-ext-nacl)# 5 permit tcp any any eq 22
Router(config-ext-nacl)# 20 deny udp any any
Which two conclusions can be drawn from this new configuration? (Choose
two.)
 TFTP packets will be permitted.

 Ping packets will be permitted.
 Telnet packets will be permitted.
 SSH packets will be permitted.
 All TCP and UDP packets will be denied.
Explanation: After the editing, the final configuration is as follows:

Router# show access-lists
Extended IP access list 101
5 permit tcp any any eq ssh
10 deny tcp any any
20 deny udp any any
30 permit icmp any any
So, only SSH packets and ICMP packets will be permitted.
36
CCNA 3 V7
34. Which set of access control entries would allow all users on the
192.168.10.0/24 network to access a web server that is located at
172.17.80.1, but would not allow them to use Telnet?
 access-list 103 deny tcp host 192.168.10.0 any eq 23

access-list 103 permit tcp host 192.168.10.1 eq 80
 access-list 103 permit tcp 192.168.10.0 0.0.0.255 any eq 80
access-list 103 deny tcp 192.168.10.0 0.0.0.255 any eq 23
 access-list 103 permit 192.168.10.0 0.0.0.255 host 172.17.80.1
access-list 103 deny tcp 192.168.10.0 0.0.0.255 any eq telnet
 access-list 103 permit tcp 192.168.10.0 0.0.0.255 host 172.17.80.1 eq
80
Explanation: For an extended ACL to meet these requirements the following need
to be included in the access control entries:
 identification number in the range 100-199 or 2000-2699

 permit or deny parameter
 protocol
 source address and wildcard
 destination address and wildcard
 port number or name
35. What is the term used to describe a mechanism that takes advantage of a
vulnerability?
 mitigation
 exploit
 vulnerability
 threat
36. Refer to the exhibit. The network administrator has an IP address of

192.168.11.10 and needs access to manage R1. What is the best ACL type and
placement to use in this situation?
37
CCNA 3 V7
 extended ACL outbound on R2 WAN interface towards the internet

 standard ACL inbound on R1 vty lines
 extended ACLs inbound on R1 G0/0 and G0/1
 extended ACL outbound on R2 S0/0/1
Explanation: Standard ACLs permit or deny packets based only on the source IPv4
address. Because all traffic types are permitted or denied, standard ACLs should be
located as close to the destination as possible.
Extended ACLs permit or deny packets based on the source IPv4 address and
destination IPv4 address, protocol type, source and destination TCP or UDP ports
and more. Because the filtering of extended ACLs is so specific, extended ACLs
should be located as close as possible to the source of the traffic to be filtered.
Undesirable traffic is denied close to the source network without crossing the
network infrastructure.
37. A technician is tasked with using ACLs to secure a router. When would the
technician use the any configuration option or command?
 to add a text entry for documentation purposes

 to generate and send an informational message whenever the ACE is
matched
 to identify any IP address
 to identify one specific IP address
38. Which statement accurately characterizes the evolution of threats to

network security?
 Internet architects planned for network security from the beginning.

38
CCNA 3 V7
 Early Internet users often engaged in activities that would harm other users.
 Internal threats can cause even greater damage than external threats.
 Threats have become less sophisticated while the technical knowledge
needed by an attacker has grown.
Explanation: Internal threats can be intentional or accidental and cause greater

damage than external threats because the internal user has direct access to the
internal corporate network and corporate data.
39. A user receives a phone call from a person who claims to represent IT
services and then asks that user for confirmation of username and password
for auditing purposes. Which security threat does this phone call represent?
 spam
 social engineering
 DDoS
 anonymous keylogging
Explanation: Social engineering attempts to gain the confidence of an employee

and convince that person to divulge confidential and sensitive information, such as
usernames and passwords. DDoS attacks, spam, and keylogging are all examples of
software based security threats, not social engineering.
40. In what way are zombies used in security attacks?
 They target specific individuals to gain corporate or personal information.

 They probe a group of machines for open ports to learn which services are
running.
 They are maliciously formed code segments used to replace legitimate
applications.
 They are infected machines that carry out a DDoS attack.
Explanation: Zombies are infected computers that make up a botnet. The zombies
are used to deploy a distributed denial of service (DDoS) attack.
41. Which attack involves threat actors positioning themselves between a

source and destination with the intent of transparently monitoring,
capturing, and controlling the communication?
 man-in-the-middle attack
 SYN flood attack
 DoS attack
 ICMP attack
39
CCNA 3 V7
Explanation: The man-in-the-middle attack is a common IP-related attack where
threat actors position themselves between a source and destination to
transparently monitor, capture, and control the communication.
42. Which two keywords can be used in an access control list to replace a
wildcard mask or address and wildcard mask pair? (Choose two.)
 host
 most
 gt
 some
 any
 all
Explanation: The host keyword is used when using a specific device IP address in
an ACL. For example, the deny host 192.168.5.5 command is the same is the deny
192.168.5.5 0.0.0.0 command. The any keyword is used to allow any mask
through that meets the criteria. For example, the permit any command is the same
as permit 0.0.0.0 255.255.255.255 command.
43. Which statement describes a difference between the operation of

inbound and outbound ACLs?
 Inbound ACLs are processed before the packets are routed while
outbound ACLs are processed after the routing is completed.
 In contrast to outbound ALCs, inbound ACLs can be used to filter packets
with multiple criteria.
 On a network interface, more than one inbound ACL can be configured but
only one outbound ACL can be configured.
 Inbound ACLs can be used in both routers and switches but outbound ACLs
can be used only on routers.
Explanation: With an inbound ACL, incoming packets are processed before they
are routed. With an outbound ACL, packets are first routed to the outbound
interface, then they are processed. Thus processing inbound is more efficient from
the router perspective. The structure, filtering methods, and limitations (on an
interface, only one inbound and one outbound ACL can be configured) are the
same for both types of ACLs.
44. What effect would the Router1(config-ext-nacl)# permit tcp 172.16.4.0

0.0.0.255 any eq www command have when implemented inbound on the
f0/0 interface?
 All TCP traffic is permitted, and all other traffic is denied.

 Traffic originating from 172.16.4.0/24 is permitted to all TCP port 80
destinations.
40
CCNA 3 V7
 All traffic from 172.16.4.0/24 is permitted anywhere on any port.
 The command is rejected by the router because it is incomplete.
45. Which ACE will permit a packet that originates from any network and is
destined for a web server at 192.168.1.1?
 access-list 101 permit tcp any host 192.168.1.1 eq 80

 access-list 101 permit tcp host 192.168.1.1 eq 80 any
 access-list 101 permit tcp host 192.168.1.1 any eq 80
 access-list 101 permit tcp any eq 80 host 192.168.1.1
46. Refer to the exhibit. A new network policy requires an ACL denying FTP
and Telnet access to a Corp file server from all interns. The address of the file
server is 172.16.1.15 and all interns are assigned addresses in the
172.18.200.0/24 network. After implementing the ACL, no one in the Corp
network can access any of the servers. What is the problem?
CCNA 3 v7 Modules 3 – 5: Network Security Exam Answers 46
 Inbound ACLs must be routed before they are processed.

 The ACL is implicitly denying access to all the servers.
 Named ACLs require the use of port numbers.
 The ACL is applied to the interface using the wrong direction.
Explanation: Both named and numbered ACLs have an implicit deny ACE at the
end of the list. This implicit deny blocks all traffic.
technician use the access-class 20 in configuration option or command?
 to secure administrative access to the router

 to remove an ACL from an interface
 to remove a configured ACL
 to apply a standard ACL to an interface
41
CCNA 3 V7
48. What is the term used to describe the same pre-shared key or secret key,
known by both the sender and receiver to encrypt and decrypt data?
 symmetric encryption algorithm

 data integrity
 exploit
 risk
49. Refer to the exhibit. Internet privileges for an employee have been
revoked because of abuse but the employee still needs access to company
resources. What is the best ACL type and placement to use in this situation?
 standard ACL inbound on R2 WAN interface connecting to the internet

 standard ACL outbound on R2 WAN interface towards the internet
 standard ACL inbound on R1 G0/0
 standard ACL outbound on R1 G0/0
Explanation: – Standard ACLs permit or deny packets based only on the source
IPv4 address. Because all traffic types are permitted or denied, standard ACLs
should be located as close to the destination as possible.
– Extended ACLs permit or deny packets based on the source IPv4 address and
42
CCNA 3 V7
50. Refer to the exhibit. The student on the H1 computer continues to launch
an extended ping with expanded packets at the student on the H2 computer.
The school network administrator wants to stop this behavior, but still allow
both students access to web-based computer assignments. What would be
the best plan for the network administrator?
 Apply an inbound standard ACL on R1 Gi0/0.

 Apply an inbound extended ACL on R2 Gi0/1.
 Apply an outbound extended ACL on R1 S0/0/1.
 Apply an inbound extended ACL on R1 Gi0/0.
 Apply an outbound standard ACL on R2 S0/0/1.
Explanation: This access list must be an extended ACL in order to filter on specific
source and destination host addresses. Commonly, the best place for an extended
ACL is closest to the source, which is H1. Traffic from H1 travels into the switch,
then out of the switch into the R1 Gi0/0 interface. This Gi0/0 interface would be
the best location for this type of extended ACL. The ACL would be applied on the
inbound interface since the packets from H1 would be coming into the R1 router.
technician use the ‘ip access-group 101 in’ configuration option or
command?
 to apply an extended ACL to an interface

 to secure management traffic into the router
 to display all restricted traffic
43
CCNA 3 V7
52. In which type of attack is falsified information used to redirect users to
malicious Internet sites?
 DNS amplification and reflection

 ARP cache poisoning
 DNS cache poisoning
 domain generation
53. What is a feature of an IPS?
 It can stop malicious packets.

 It is deployed in offline mode.
 It has no impact on latency.
 It is primarily focused on identifying possible incidents.
54. What is the term used to describe a potential danger to a company’s

assets, data, or network functionality?
 vulnerability
 threat
 asset
 exploit
55. Refer to the exhibit. Network 192.168.30.0/24 contains all of the

company servers. Policy dictates that traffic from the servers to both
networks 192.168.10.0 and 192.168.11.0 be limited to replies for original
requests. What is the best ACL type and placement to use in this situation?

44
CCNA 3 V7
 extended ACL inbound on R3 G0/0
 extended ACL inbound on R3 S0/0/1
56. What does the CLI prompt change to after entering the command ip
access-list standard aaa from global configuration mode?
 Router(config-line)#
 Router(config-std-nacl)#
 Router(config)#
 Router(config-router)#
 Router(config-if)#
57. Refer to the exhibit. Many employees are wasting company time
accessing social media on their work computers. The company wants to stop
this access. What is the best ACL type and placement to use in this situation?

 standard ACL outbound on R2 WAN interface towards the internet
 standard ACL outbound on R2 S0/0/0
technician use the 40 deny host 192.168.23.8 configuration option or
command?
 to remove all ACLs from the router

 to create an entry in a numbered ACL
 to apply an ACL to all router interfaces
59. What is the best description of Trojan horse malware?
 It is malware that can only be distributed over the Internet.

 It appears as useful software but hides malicious code.
45
CCNA 3 V7
 It is software that causes annoying but not fatal computer problems.
 It is the most easily detected form of malware.
60. What wild card mask will match networks 172.16.0.0 through
172.19.0.0?
 0.0.3.255
 0.252.255.255
 0.3.255.255
 0.0.255.255
60. What is the term used to describe gray hat hackers who publicly protest
organizations or governments by posting articles, videos, leaking sensitive
information, and performing network attacks?
 white hat hackers

 grey hat hackers
 hacktivists
 state-sponsored hacker
61. Refer to the exhibit. The company has provided IP phones to employees
on the 192.168.10.0/24 network and the voice traffic will need priority over
data traffic. What is the best ACL type and placement to use in this situation?

46
CCNA 3 V7
technician use the no ip access-list 101 configuration option or command?
 to apply an ACL to all router interfaces

 to remove all ACLs from the router
 to remove a configured ACL
63. What is the term used to describe unethical criminals who compromise
computer and network security for personal gain, or for malicious reasons?
 hacktivists
 vulnerability broker
 black hat hackers
 script kiddies
64. What is the term used to describe a guarantee that the message is not a
forgery and does actually come from whom it states?
 origin authentication
 mitigation
 exploit
 data non-repudiation
technician use the ip access-group 101 in configuration option or command?

 to apply an extended ACL to an interface
 to display all restricted traffic
 to secure management traffic into the router
technician use the remark configuration option or command?
47
CCNA 3 V7
 to generate and send an informational message whenever the ACE is
matched
 to add a text entry for documentation purposes
 to identify one specific IP address
 to restrict specific traffic access through an interface
CCNA 3 v7 Modules 6 – 8: WAN Concepts Exam Answers
1. Which two statements accurately describe an advantage or a disadvantage

when deploying NAT for IPv4 in a network? (Choose two.)
 NAT improves packet handling.

 NAT adds authentication capability to IPv4.
 NAT will impact negatively on switch performance.
 NAT causes routing tables to include more information.
 NAT provides a solution to slow down the IPv4 address depletion.
 NAT introduces problems for some applications that require end-to-
end connectivity.
2. A network administrator wants to examine the active NAT translations on

a border router. Which command would perform the task?
 Router# show ip nat translations

 Router# show ip nat statistics
 Router# clear ip nat translations
 Router# debug ip nat translations
3. What are two tasks to perform when configuring static NAT? (Choose two.)
 Configure a NAT pool.

 Create a mapping between the inside local and outside local addresses.
 Identify the participating interfaces as inside or outside interfaces.
 Define the inside global address on the server
 Define the outside global address.
4. What is a disadvantage of NAT?
 There is no end-to-end addressing.

 The router does not need to alter the checksum of the IPv4 packets.
 The internal hosts have to use a single public IPv4 address for external
communication.
 The costs of readdressing hosts can be significant for a publicly addressed
network.
5. Refer to the exhibit. From the perspective of R1, the NAT router, which
address is the inside global address?
48
CCNA 3 V7
 192.168.0.10
 192.168.0.1
 209.165.200.225
 209.165.200.254
Explanation: There are four types of addresses in NAT terminology.

Inside local address
Inside global address
Outside local address
Outside global address
The inside global address of PC1 is the address that the ISP sees as the source
address of packets, which in this example is the IP address on the serial interface of
R1, 209.165.200.224.
6. Refer to the exhibit. Given the commands as shown, how many hosts on the
internal LAN off R1 can have simultaneous NAT translations on R1?
 244
49
CCNA 3 V7
 10
 1
 255
Explanation: The NAT configuration on R1 is static NAT which translates a single

inside IP address, 192.168.0.10 into a single public IP address, 209.165.200.255. If
more hosts need translation, then a NAT pool of inside global address or
overloading should be configured.
7. Refer to the exhibit. A network administrator has just configured address

translation and is verifying the configuration. What three things can the
administrator verify? (Choose three.)
 A standard access list numbered 1 was used as part of the configuration

process.
 Three addresses from the NAT pool are being used by hosts.
 Address translation is working.
 One port on the router is not participating in the address translation.
 The name of the NAT pool is refCount.
 Two types of NAT are enabled.
Explanation: The show ip nat statistics, show ip nat translations, and debug ip
nat commands are useful in determining if NAT is working and and also useful in
troubleshooting problems that are associated with NAT. NAT is working, as shown
by the hits and misses count. Because there are four misses, a problem might be
evident. The standard access list numbered 1 is being used and the translation pool
is named NAT as evidenced by the last line of the output. Both static NAT and NAT
overload are used as seen in the Total translations line.
8. Refer to the exhibit. NAT is configured on RT1 and RT2. The PC is sending a
request to the web server. What IPv4 address is the source IP address in the
packet between RT2 and the web server?
50
CCNA 3 V7
 192.168.1.5
 203.0.113.10
 172.16.1.254
 172.16.1.10
 209.165.200.245
 192.0.2.2
Explanation: Because the packet is between RT2 and the web server, the source IP
address is the inside global address of PC, 209.165.200.245.
9. Refer to the exhibit. Based on the output that is shown, what type of NAT
has been implemented?
 dynamic NAT with a pool of two public IP addresses

 PAT using an external interface
 static NAT with a NAT pool
 static NAT with one entry
Explanation: The output shows that there are two inside global addresses that are
the same but that have different port numbers. The only time port numbers are
displayed is when PAT is being used. The same output would be indicative of PAT
that uses an address pool. PAT with an address pool is appropriate when more
than 4,000 simultaneous translations are needed by the company.
10. Refer to the exhibit. From the perspective of users behind the NAT router,
what type of NAT address is 209.165.201.1?
51
CCNA 3 V7
 inside global
 outside global
 outside local
 inside local
Explanation: From the perspective of users behind NAT, inside global addresses
are used by external users to reach internal hosts. Inside local addresses are the
addresses assigned to internal hosts. Outside global addresses are the addresses of
destinations on the external network. Outside local addresses are the actual
private addresses of destination hosts behind other NAT devices.
11. Refer to the exhibit. Static NAT is being configured to allow PC 1 access to
the web server on the internal network. What two addresses are needed in
place of A and B to complete the static NAT configuration? (Choose two.)
52
CCNA 3 V7
 A = 209.165.201.2
 A = 10.1.0.13
 B = 209.165.201.7
 B = 10.0.254.5
 B = 209.165.201.1
Explanation: Static NAT is a one-to-one mapping between an inside local address

and an inside global address. By using static NAT, external devices can initiate
connections to internal devices by using the inside global addresses. The NAT
devices will translate the inside global address to the inside local address of the
target host.
12. What is the purpose of the overload keyword in the ip nat inside source
list 1 pool NAT_POOL overload command?
 It allows many inside hosts to share one or a few inside global

addresses.
 It allows a list of internal hosts to communicate with a specific group of
external hosts.
 It allows external hosts to initiate sessions with internal hosts.
 It allows a pool of inside global addresses to be used by internal hosts.
Explanation: Dynamic NAT uses a pool of inside global addresses that are
assigned to outgoing sessions. If there are more internal hosts than public
addresses in the pool, then an administrator can enable port address translation
with the addition of the overload keyword. With port address translation, many
53
CCNA 3 V7
internal hosts can share a single inside global address because the NAT device will
track the individual sessions by Layer 4 port number.
13. Refer to the exhibit. Which source address is being used by router R1 for
packets being forwarded to the Internet?
 10.6.15.2
 209.165.202.141
 198.51.100.3
 209.165.200.225
Explanation: The source address for packets forwarded by the router to the
Internet will be the inside global address of 209.165.200.225. This is the address
that the internal addresses from the 10.6.15.0 network will be translated to by
NAT.
14. Refer to the exhibit. The NAT configuration applied to the router is as
follows:
ERtr(config)# access-list 1 permit 10.0.0.0 0.255.255.255

ERtr(config)# ip nat pool corp 209.165.201.6 209.165.201.30 netmask
255.255.255.224
ERtr(config)# ip nat inside source list 1 pool corp overload
ERtr(config)# ip nat inside source static 10.10.10.55 209.165.201.4
ERtr(config)# interface gigabitethernet 0/0
ERtr(config-if)# ip nat inside
ERtr(config-if)# interface serial 0/0/0
ERtr(config-if)# ip nat outside
Based on the configuration and the output shown, what can be determined
about the NAT status within the organization?
54
CCNA 3 V7
 Static NAT is working, but dynamic NAT is not.

 Dynamic NAT is working, but static NAT is not.
 Not enough information is given to determine if both static and
dynamic NAT are working.
 NAT is working.
Explanation: There is not enough information given because the router might not
be attached to the network yet, the interfaces might not have IP addresses
assigned yet, or the command could have been issued in the middle of the night.
The output does match the given configuration, so no typographical errors were
made when the NAT commands were entered.
15. Which situation describes data transmissions over a WAN connection?
 A network administrator in the office remotely accesses a web server that is

located in the data center at the edge of the campus.
 A manager sends an email to all employees in the department with offices
that are located in several buildings.
 An employee prints a file through a networked printer that is located in
another building.
 An employee shares a database file with a co-worker who is located in a
branch office on the other side of the city.
Explanation: When two offices across a city are communicating , it is most likely
that the data transmissions are over some type of WAN connection. Data
communications within a campus are typically over LAN connections.
16. Which two technologies are categorized as private WAN infrastructures?

(Choose two.)
 Frame Relay
 VPN
 MetroE
55
CCNA 3 V7
 DSL
 cable
Explanation: Private WAN technologies include leased lines, dialup, ISDN, Frame
Relay, ATM, Ethernet WAN (an example is MetroE), MPLS, and VSAT.
17. Which network scenario will require the use of a WAN?
 Employees need to connect to the corporate email server through a

VPN while traveling.
 Employees need to access web pages that are hosted on the corporate web
servers in the DMZ within their building.
 Employee workstations need to obtain dynamically assigned IP addresses.
 Employees in the branch office need to share files with the headquarters
office that is located in a separate building on the same campus network.
Explanation: When traveling employees need to connect to a corporate email

server through a WAN connection, the VPN will create a secure tunnel between an
employee laptop and the corporate network over the WAN connection. Obtaining
dynamic IP addresses through DHCP is a function of LAN communication. Sharing
files among separate buildings on a corporate campus is accomplished through the
LAN infrastructure. A DMZ is a protected network inside the corporate LAN
infrastructure.
18. What are two hashing algorithms used with IPsec AH to guarantee
authenticity? (Choose two.)
 SHA
 RSA
 DH
 MD5
 AES
Explanation: The IPsec framework uses various protocols and algorithms to

provide data confidentiality, data integrity, authentication, and secure key
exchange. Two popular algorithms used to ensure that data is not intercepted and
modified (data integrity and authenticity) are MD5 and SHA.
19. What two algorithms can be part of an IPsec policy to provide encryption
and hashing to protect interesting traffic? (Choose two.)
 SHA
 RSA
 AES
 DH
 PSK
56
CCNA 3 V7
exchange. Two algorithms that can be used within an IPsec policy to protect
interesting traffic are AES, which is an encryption protocol, and SHA, which is a
hashing algorithm.
20. Which VPN solution allows the use of a web browser to establish a secure,
remote-access VPN tunnel to the ASA?
 client-based SSL
 site-to-site using an ACL
 clientless SSL
 site-to-site using a preshared key
Explanation: When a web browser is used to securely access the corporate

network, the browser must use a secure version of HTTP to provide SSL
encryption. A VPN client is not required to be installed on the remote host, so a
clientless SSL connection is used.
21. Which IPsec security function provides assurance that the data received
via a VPN has not been modified in transit?
 integrity
 authentication
 confidentiality
 secure key exchange
Explanation: Integrity is a function of IPsec and ensures data arrives unchanged at

the destination through the use of a hash algorithm. Confidentiality is a function of
IPsec and utilizes encryption to protect data transfers with a key. Authentication is
a function of IPsec and provides specific access to users and devices with valid
authentication factors. Secure key exchange is a function of IPsec and allows two
peers to maintain their private key confidentiality while sharing their public key.
22. Which two types of VPNs are examples of enterprise-managed remote

access VPNs? (Choose two.)
 clientless SSL VPN

 client-based IPsec VPN
 IPsec VPN
 IPsec Virtual Tunnel Interface VPN
 GRE over IPsec VPN
Explanation: Enterprise managed VPNs can be deployed in two configurations:

57
CCNA 3 V7
 Remote Access VPN – This VPN is created dynamically when required to
establish a secure connection between a client and a VPN server. Remote
access VPNs include client-based IPsec VPNs and clientless SSL VPNs.
 Site-to-site VPN – This VPN is created when interconnecting devices are
preconfigured with information to establish a secure tunnel. VPN traffic is
encrypted only between the interconnecting devices, and internal hosts have
no knowledge that a VPN is used. Site-to-site VPNs include IPsec, GRE over
IPsec, Cisco Dynamic Multipoint (DMVPN), and IPsec Virtual Tunnel
Interface (VTI) VPNs.
23. Which is a requirement of a site-to-site VPN?
 It requires hosts to use VPN client software to encapsulate traffic.

 It requires the placement of a VPN server at the edge of the company
network.
 It requires a VPN gateway at each end of the tunnel to encrypt and
decrypt traffic.
 It requires a client/server architecture.
Explanation: Site-to-site VPNs are static and are used to connect entire networks.
Hosts have no knowledge of the VPN and send TCP/IP traffic to VPN gateways. The
VPN gateway is responsible for encapsulating the traffic and forwarding it through
the VPN tunnel to a peer gateway at the other end which decapsulates the traffic.
24. What is the function of the Diffie-Hellman algorithm within the IPsec
framework?
 guarantees message integrity

 allows peers to exchange shared keys
 provides authentication
 provides strong data encryption

exchange. DH (Diffie-Hellman) is an algorithm used for key exchange. DH is a
public key exchange method that allows two IPsec peers to establish a shared
secret key over an insecure channel.
25. What does NAT overloading use to track multiple internal hosts that use
one inside global address?
 port numbers
 IP addresses
 autonomous system numbers
 MAC addresses
58
CCNA 3 V7
Explanation: NAT overloading, also known as Port Address Translation (PAT),
uses port numbers to differentiate between multiple internal hosts.
Explanation: The inside local address is the private IP address of the source or the
PC in this instance. The inside global address is the translated address of the
source or the address as seen by the outside device. Since the PC is using the
outside address of the R1 router, the inside global address is 192.0.2.1. The outside
addressing is simply the address of the server or 203.0.113.5.
27. Refer to the exhibit. R1 is configured for static NAT. What IP address will
Internet hosts use to reach PC1?
 192.168.0.1
 192.168.0.10
59
CCNA 3 V7
 209.165.201.1
 209.165.200.225
Explanation: In static NAT a single inside local address, in this case 192.168.0.10,
will be mapped to a single inside global address, in this case 209.165.200.225.
Internet hosts will send packets to PC1 and use as a destination address the inside
global address 209.165.200.225.
28. Which type of VPN uses the public key infrastructure and digital
certificates?
 SSL VPN
 GRE over IPsec
 IPsec virtual tunnel interface
 dynamic multipoint VPN
29. Which two WAN infrastructure services are examples of private

connections? (Choose two.)
 cable
 DSL
 Frame Relay
 T1/E1
 wireless
Explanation: Private WANs can use T1/E1, T3/E3, PSTN, ISDN, Metro Ethernet,
MPLS, Frame Relay, ATM, or VSAT technology.
30. Which two statements about the relationship between LANs and WANs
are true? (Choose two.)
 Both LANs and WANs connect end devices.

 WANs are typically operated through multiple ISPs, but LANs are
typically operated by single organizations or individuals.
 WANs must be publicly-owned, but LANs can be owned by either public or
private entities.
 WANs connect LANs at slower speed bandwidth than LANs connect
their internal end devices.
 LANs connect multiple WANs together.
Explanation: Although LANs and WANs can employ the same network media and
intermediary devices, they serve very different areas and purposes. The
administrative and geographical scope of a WAN is larger than that of a LAN.
Bandwidth speeds are slower on WANs because of their increased complexity. The
Internet is a network of networks, which can function under either public or
private management.
60
CCNA 3 V7
31. Which statement describes an important characteristic of a site-to-site
VPN?
 It must be statically set up.

 It is ideally suited for use by mobile workers.
 It requires using a VPN client on the host PC.
 After the initial connection is established, it can dynamically change
connection information.
 It is commonly implemented over dialup and cable modem networks.
Explanation: A site-to-site VPN is created between the network devices of two

separate networks. The VPN is static and stays established. The internal hosts of
the two networks have no knowledge of the VPN.
32. How is “tunneling” accomplished in a VPN?
 New headers from one or more VPN protocols encapsulate the original
packets.
 All packets between two hosts are assigned to a single physical medium to
ensure that the packets are kept private.
 Packets are disguised to look like other types of traffic so that they will be
ignored by potential attackers.
 A dedicated circuit is established between the source and destination
devices for the duration of the connection.
Explanation: Packets in a VPN are encapsulated with the headers from one or
more VPN protocols before being sent across the third party network. This is
referred to as “tunneling”. These outer headers can be used to route the packets,
authenticate the source, and prevent unauthorized users from reading the contents
of the packets.
33. Which statement describes a VPN?
 VPNs use open source virtualization software to create the tunnel through
the Internet.
 VPNs use logical connections to create public networks through the Internet.
 VPNs use dedicated physical connections to transfer data between remote
users.
 VPNs use virtual connections to create a private network through a
public network.
Explanation: A VPN is a private network that is created over a public network.

Instead of using dedicated physical connections, a VPN uses virtual connections
routed through a public network between two network devices.
61
CCNA 3 V7
34. Open the PT Activity. Perform the tasks in the activity instructions and
then answer the question.
What problem is causing PC-A to be unable to communicate with the
Internet?
 The ip nat inside source command refers to the wrong interface.

 The NAT interfaces are not correctly assigned.
 The static route should not reference the interface, but the outside address
instead.
 The access list used in the NAT process is referencing the wrong subnet.
 This router should be configured to use static NAT instead of PAT.
Explanation: The output of show ip nat statistics shows that the inside interface
is FastEthernet0/0 but that no interface has been designated as the outside
interface. This can be fixed by adding the command ip nat outside to interface
Serial0/0/0.
 public
 private
36. Which type of VPN routes packets through virtual tunnel interfaces for
encryption and forwarding?
 MPLS VPN
62
CCNA 3 V7
 GRE over IPsec
37. Match the scenario to the WAN solution. (Not all options are used.)
Refer to the exhibit. The PC is sending a packet to the Server on the remote
network. Router R1 is performing NAT overload. From the perspective of the
PC, match the NAT address type with the correct IP address. (Not all options
63
CCNA 3 V7
are used.)
39. Refer to the exhibit. What has to be done in order to complete the static
NAT configuration on R1?
 Interface Fa0/0 should be configured with the command no ip nat inside.

64
CCNA 3 V7
 Interface S0/0/0 should be configured with the command ip nat
outside.
 R1 should be configured with the command ip nat inside source static
209.165.200.200 192.168.11.11.
 R1 should be configured with the command ip nat inside source static
209.165.200.1 192.168.11.11.
Explanation: In order for NAT translations to work properly, both an inside and
outside interface must be configured for NAT translation on the router.
40. In NAT terms, what address type refers to the globally routable IPv4
address of a destination host on the Internet?
 outside global
 inside global
 outside local
 inside local
Explanation: From the perspective of a NAT device, inside global addresses are
used by external users to reach internal hosts. Inside local addresses are the
addresses assigned to internal hosts. Outside global addresses are the addresses of
destinations on the external network. Outside local addresses are the actual
private addresses of destination hosts behind other NAT devices.
41. Refer to the exhibit. Which two statements are correct based on the
output as shown in the exhibit? (Choose two.)
 The output is the result of the show ip nat translations command.

 The host with the address 209.165.200.235 will respond to requests by
using a source address of 192.168.10.10.
 The output is the result of the show ip nat statistics command.
 Traffic with the destination address of a public web server will be sourced
from the IP of 192.168.1.10.
 The host with the address 209.165.200.235 will respond to requests by
using a source address of 209.165.200.235.
Explanation: The output displayed in the exhibit is the result of the show ip nat
translations command. Static NAT entries are always present in the NAT table,
while dynamic entries will eventually time out.
65
CCNA 3 V7
42. Which circumstance would result in an enterprise deciding to implement
a corporate WAN?
 when the enterprise decides to secure its corporate LAN

 when its employees become distributed across many branch locations
 when the number of employees exceeds the capacity of the LAN
 when the network will span multiple buildings
Explanation: WANs cover a greater geographic area than LANs do, so having
employees distributed across many locations would require the implementation of
WAN technologies to connect those locations. Customers will access corporate web
services via a public WAN that is implemented by a service provider, not by the
enterprise itself. When employee numbers grow, the LAN has to expand as well. A
WAN is not required unless the employees are in remote locations. LAN security is
not related to the decision to implement a WAN.
43. What is the function of the Hashed Message Authentication Code (HMAC)
algorithm in setting up an IPsec VPN?
 protects IPsec keys during session negotiation

 authenticates the IPsec peers
 creates a secure channel for key negotiation
 guarantees message integrity

exchange. The Hashed Message Authentication Code (HMAC) is a data integrity
algorithm that uses a hash value to guarantee the integrity of a message.
44. What algorithm is used with IPsec to provide data confidentiality?
 Diffie-Hellman
 SHA
 MD5
 RSA
 AES

exchange. Two popular algorithms that are used to ensure that data is not
intercepted and modified (data integrity) are MD5 and SHA. AES is an encryption
protocol and provides data confidentiality. DH (Diffie-Hellman) is an algorithm
that is used for key exchange. RSA is an algorithm that is used for authentication.
45. Which two technologies provide enterprise-managed VPN solutions?

(Choose two.)
66
CCNA 3 V7
 remote access VPN
 Frame Relay
 Layer 2 MPLS VPN
 site-to-site VPN
Explanation: VPNs can be managed and deployed as either of two types:
 Enterprise VPNs – Enterprise-managed VPNs are a common solution for

securing enterprise traffic across the internet. Site-to-site and remote access
VPNs are examples of enterprise managed VPNs.
 Service Provider VPNs – Service provider managed VPNs are created and
managed over the provider network. Layer 2 and Layer 3 MPLS are examples
of service provider managed VPNs. Other legacy WAN solutions include
Frame Relay and ATM VPNs.
Explanation: The inside local address is the private IP address of the source or the
PC in this instance. The inside global address is the translated address of the
source or the address as seen by the outside device. Since the PC is using the
outside address of the R1 router, the inside global address is 192.0.2.1. The outside
addressing is simply the address of the server or 203.0.113.5.
47. Refer to the exhibit. A network administrator is viewing the output from
the command show ip nat translations. Which statement correctly describes
the NAT translation that is occurring on router RT2?
67
CCNA 3 V7
 The traffic from a source IPv4 address of 192.168.254.253 is being

translated to 192.0.2.88 by means of static NAT.
 The traffic from a source IPv4 address of 192.0.2.88 is being translated by
router RT2 to reach a destination IPv4 address of 192.168.254.253.
 The traffic from a source IPv4 public address that originates traffic on the
internet would be able to reach private internal IPv4 addresses.
Explanation: Because no outside local or outside global address is referenced, the

traffic from a source IPv4 address of 192.168.254.253 is being translated to
192.0.2.88 by using static NAT. In the output from the command show ip nat
translations, the inside local IP address of 192.168.2.20 is being translated into an
outside IP address of 192.0.2.254 so that the traffic can cross the public network. A
public IPv4 device can connect to the private IPv4 device 192.168.254.253 by
targeting the destination IPv4 address of 192.0.2.88.
 private
 public
49. Which type of VPN connects using the Transport Layer Security (TLS)
feature?
 SSL VPN
 MPLS VPN
68
CCNA 3 V7
50. Which two end points can be on the other side of an ASA site-to-site VPN
configured using ASDM? (Choose two.)
 DSL switch
 ISR router
 another ASA
 multilayer switch
 Frame Relay switch
51. Which protocol creates a virtual point-to-point connection to tunnel

unencrypted traffic between Cisco routers from a variety of protocols?
 IKE
 IPsec
 OSPF
 GRE
52. What is a disadvantage when both sides of a communication use PAT?
 End-to-end IPv4 traceability is lost.

 The flexibility of connections to the Internet is reduced.
 The security of the communication is negatively impacted.
 Host IPv4 addressing is complicated.
53. What two addresses are specified in a static NAT configuration?
 the outside global and the outside local

 the inside local and the outside global
 the inside global and the outside local
 the inside local and the inside global
54. A company is considering updating the campus WAN connection. Which

two WAN options are examples of the private WAN architecture? (Choose
two.)
 municipal Wi-Fi
 digital subscriber line
 leased line
 Ethernet WAN
 cable
 Public
 Private
56. Which type of VPN has both Layer 2 and Layer 3 implementations?
69
CCNA 3 V7
 GRE over IPsec
 MPLS VPN
57. Refer to the exhibit. A network administrator has configured R2 for PAT.
Why is the configuration incorrect?
 NAT-POOL2 is bound to the wrong ACL

 The ACL does not define the list of addresses to be translated.
 The overload keyword should not have been applied.
 The static NAT entry is missing
Explain:
In the exhibit, NAT-POOL 2 is bound to ACL 100, but it should be bound to the
configured ACL 1. This will cause PAT to fail. 100, but it should be bound to the
configured ACL 1. This will cause PAT to fail.
70
CCNA 3 V7
58. Match each component of a WAN connection to its description. (Not all
options are used.)
59. Which type of VPN allows multicast and broadcast traffic over a secure
site-to-site VPN?

 SSL VPN
 GRE over IPsec
60. Match the steps with the actions that are involved when an internal host
with IP address 192.168.10.10 attempts to send a packet to and external
server at the IP address 209.165.200.254 across a router R1 that running
dynamic NAT. (Not all options are used.)
71
CCNA 3 V7
Place the options in the following order:
 step 5 => R1 replaces the address 192.168.10.10 with a translated inside

global address.
 step 2 => R1 checks the NAT configuration to determine if this packet should
be translated.
72
CCNA 3 V7
 step 4 => R1 selects an available global address from the dynamic address
pool.
 step 1 => The host sends packets that request a connection to the server at
the address 209.165.200.254
 step 3 => If there is no translation entry for this IP address, R1 determines
that the source address 192.168.10.10 must be translated
61. Which type of VPN involves passenger, carrier, and transport protocols?
 GRE over IPsec

 MPLS VPN
62. Match the steps with the actions that are involved when an internal host
with IP address 192.168.10.10 attempts to send a packet to an external
server at the IP address 209.165.200.254 across a router R1 that is running
dynamic NAT. (Not all options are used.)
63. Refer to the exhibit. A network administrator is viewing the output from
the command show ip nat translations . Which statement correctly describes
73
CCNA 3 V7
the NAT translation that is occurring on router RT2?
 The traffic from a source IPv4 public address that originates traffic on the
internet would be able to reach private internal IPv4 addresses.
 The traffic from a source IPv4 address of 192.168.254.253 is being
translated to 192.0.2.88 by means of static NAT.
Explain: Because no outside local or outside global address is referenced, the

traffic from a source IPv4 address of 192.168.254.253 is being translated to
192.0.2.88 by using static NAT. In the output from the command show ip nat
translations , the inside local IP address of 192.168.2.20 is being translated into an
outside IP address of 192.0.2.254 so that the traffic can cross the public network. A
public IPv4 device can connect to the private IPv4 device 192.168.254.253 by
targeting the destination IPv4 address of 192.0.2.88.
 Private
 Public
65. Which type of VPN supports multiple sites by applying configurations to

virtual interfaces instead of physical interfaces?

 MPLS VPN
74
CCNA 3 V7
 GRE over IPsec
66. Which type of VPN involves a nonsecure tunneling protocol being

encapsulated by IPsec?

 SSL VPN
 GRE over IPsec
CCNA 3 v7 Modules 9 – 12: Optimize, Monitor, and Troubleshoot Networks

Exam Answers
1. What is the term used to indicate a variation of delay?
 latency
 serialization delay
 speed mismatch
 jitter
2. A network engineer performs a ping test and receives a value that shows
the time it takes for a packet to travel from a source to a destination device
and return. Which term describes the value?
 jitter
 latency
 priority
 bandwidth
3. What role do network devices play in the IntServ QoS model?
 Network devices ensure that resources are available before traffic is

allowed to be sent by a host through the network.
 Network devices provide a best-effort approach to forwarding traffic.
 Network devices are configured to service multiple classes of traffic and
handle traffic as it may arrive.
 Network devices use QoS on a hop-by-hop basis to provide excellent
scalability.
4. Which device would be classified as a trusted endpoint?
 switch
 router
 firewall
 IP phone
75
CCNA 3 V7
5. What is the benefit of deploying Layer 3 QoS marking across an enterprise
network?
 Layer 3 marking can carry the QoS information end-to-end.

 Layer 3 marking can carry QoS information on switches that are not IP
aware.
 Layer 3 marking can be carried in the 802.1Q fields.
 Layer 3 marking can be used to carry non-IP traffic.
Explanation: Marking traffic at Layer 2 or Layer 3 is very important and will affect
how traffic is treated in a network using QoS.
 Layer 2 marking of frames can be performed for non-IP traffic.

 Layer 2 marking of frames is the only QoS option available for switches that
are not “IP aware.”
 Layer 3 marking will carry the QoS information end-to-end.
6. What is the function of a QoS trust boundary?
 A trust boundary identifies the location where traffic cannot be remarked.

 A trust boundary only allows traffic to enter if it has previously been marked.
 A trust boundary identifies which devices trust the marking on packets
that enter a network.
 A trust boundary only allows traffic from trusted endpoints to enter the
network.
Explanation: Network traffic is classified and marked as close to the source device
as possible. The trust boundary is the location where the QoS markings on a packet
are trusted as they enter an enterprise network.
7. What are two approaches to prevent packet loss due to congestion on an

interface? (Choose two.)
 Decrease buffer space.

 Disable queuing mechanisms.
 Drop lower-priority packets.
 Prevent bursts of traffic.
 Increase link capacity.
Explanation: There are three approaches to prevent sensitive traffic from being
dropped:
 Increase link capacity to ease or prevent congestion.

 Guarantee enough bandwidth and increase buffer space to accommodate
bursts of traffic from fragile flows.
76
CCNA 3 V7
 Prevent congestion by dropping lower-priority packets before congestion
occurs.
8. What configuration scenario would offer the most protection to SNMP get
and set messages?
 SNMPv2 for in-band management with read-write community strings

 SNMPv1 with out-of-band management in a private subnet
 SNMPv3 configured with the auth security level
 SNMP community strings
Explanation: SNMPv3 supports authentication and encryption with the auth and
priv security levels. SNMPv1 and SNMPv2 do not support authentication or
encryption. Using a default community string is not secure because the default
string of “public” is well known and would allow anyone with SNMP systems to
read device MIBs.
9. Refer to the exhibit. The network administrator enters these commands

into the R1 router:
R1# copy running-config tftp

Address or name of remote host [ ]?
When the router prompts for an address or remote host name, what IP
address should the administrator enter at the prompt?
 192.168.9.254
 192.168.10.2
 192.168.11.252
 192.168.11.254
 192.168.10.1
77
CCNA 3 V7
Explanation: The requested address is the address of the TFTP server. A TFTP
server is an application that can run on a multitude of network devices including a
router, server, or even a networked PC.
10. The command ntp server 10.1.1.1 is issued on a router. What impact does
this command have?
 determines which server to send system log files to

 synchronizes the system clock with the time source with IP address
10.1.1.1
 identifies the server on which to store backup configurations
 ensures that all logging will have a time stamp associated with it
Explanation: The ntp server ip-address global configuration command configures

the NTP server for IOS devices.
11. As the network administrator you have been asked to implement

EtherChannel on the corporate network. What does this configuration
consist of?
 providing redundant links that dynamically block or forward traffic

 grouping two devices to share a virtual IP address
 grouping multiple physical ports to increase bandwidth between two
switches
 providing redundant devices to allow traffic to flow in the event of device
failure
Explanation: EtherChannel is utilized on a network to increase speed capabilities

by grouping multiple physical ports into one or more logical EtherChannel links
between two switches. STP is used to provide redundant links that dynamically
block or forward traffic between switches. FHRPs are used to group physical
devices to provide traffic flow in the event of failure.
12. What is a definition of a two-tier LAN network design?
 access and core layers collapsed into one tier, and the distribution layer on a
separate tier
 distribution and core layers collapsed into one tier, and the access
layer on a separate tier
 access, distribution, and core layers collapsed into one tier, with a separate
backbone layer
 access and distribution layers collapsed into one tier, and the core layer on a
separate tier
Explanation: Maintaining three separate network tiers is not always required or

cost-efficient. All network designs require an access layer, but a two-tier design
78
CCNA 3 V7
can collapse the distribution and core layers into one layer to serve the needs of a
small location with few users.
13. What are two reasons to create a network baseline? (Choose two.)
 to select a routing protocol

 to determine what kind of equipment to implement
 to design a network according to a proper model
 to identify future abnormal network behavior
 to evaluate security vulnerabilities in the network
 to determine if the network can deliver the required policies
Explanation: A network baseline is created to provide a comparison point, at the

time that the network is performing optimally, to whatever changes are
implemented in the infrastructure. A baseline helps to keep track of the
performance, to track the traffic patterns, and to monitor network behavior.
14. A computer can access devices on the same network but cannot access
devices on other networks. What is the probable cause of this problem?
 The computer has an incorrect subnet mask.

 The computer has an invalid default gateway address.
 The cable is not connected properly to the NIC.
 The computer has an invalid IP address.
Explanation: The default gateway is the address of the device a host uses to access
the Internet or another network. If the default gateway is missing or incorrect, that
host will not be able to communicate outside the local network. Because the host
can access other hosts on the local network, the network cable and the other parts
of the IP configuration are working.
15. In which step of gathering symptoms does the network engineer

determine if the problem is at the core, distribution, or access layer of the
network?
 Gather information.
 Narrow the scope.
 Document the symptoms.
 Determine ownership.
 Determine the symptoms.
Explanation: In the “narrow the scope” step of gathering symptoms, a network

engineer will determine if the network problem is at the core, distribution, or
access layer of the network. Once this step is complete and the layer is identified,
the network engineer can determine which pieces of equipment are the most likely
cause.
79
CCNA 3 V7
16. A network administrator is deploying QoS with the ability to provide a
special queue for voice traffic so that voice traffic is forwarded before
network traffic in other queues. Which queuing method would be the best
choice?
 LLQ
 CBWFQ
 WFQ
 FIFO
Explanation: Low latency queuing (LLQ) allows delay-sensitive data, such as voice
traffic, to be defined in a strict priority queue (PQ) and to always be sent first
before any packets in any other queue are forwarded.
17. What are two characteristics of voice traffic? (Choose two.)
 Voice traffic latency should not exceed 150 ms.

 Voice traffic is unpredictable and inconsistent.
 Voice traffic requires at least 384 kbs of bandwidth.
 Voice traffic consumes lots of network resources.
 Dropped voice packets are not retransmitted.
Explanation: Voice traffic does not consume a lot of network resources, such as
bandwidth. However, it is very sensitive to delay and dropped packets cannot be
retransmitted. For good voice quality, the amount of latency should always be less
than 150 milliseconds.
18. Which type of network traffic cannot be managed using congestion

avoidance tools?
 TCP
 ICMP
 IP
 UDP
Explanation: Queuing and compression techniques can help to reduce and

prevent UDP packet loss, but there is no congestion avoidance for User Datagram
Protocol (UDP) based traffic.
19. When QoS is implemented in a converged network, which two factors can
be controlled to improve network performance for real-time traffic? (Choose
two.)
 delay
 packet addressing
 jitter
80
CCNA 3 V7
 packet routing
 link speed
Explanation: Delay is the latency between a sending and receiving device. Jitter is
the variation in the delay of the received packets. Both delay and jitter need to be
controlled in order to support real-time voice and video traffic.
20. An administrator wants to replace the configuration file on a Cisco router

by loading a new configuration file from a TFTP server. What two things does
the administrator need to know before performing this task? (Choose two.)
 name of the configuration file that is currently stored on the router

 configuration register value
 name of the configuration file that is stored on the TFTP server
 router IP address
 TFTP server IP address
Explanation: In order to identify the exact location of the desired configuration

file, the IP address of the TFTP server and the name of the configuration file are
essential information. Because the file is a new configuration, the name of the
current configuration file is not necessary.
21. Refer to the exhibit. Which of the three Cisco IOS images shown will load
into RAM?
 The router selects an image depending on the boot system command in

the configuration.
 The router selects an image depending on the value of the configuration
register.
 The router selects the third Cisco IOS image because it is the most recent IOS
image.
 The router selects the third Cisco IOS image because it contains the
advipservicesk9 image.
 The router selects the second Cisco IOS image because it is the smallest IOS
image.
81
CCNA 3 V7
Explanation: When performing an upgrade or testing different IOS versions, the
boot system command is used to select which image is used to boot the Cisco
device.
22. Refer to the exhibit. What two types of devices are connected to R1?
(Choose two.)
 switch
 hub
 router
 repeater
 Source Route Bridge
Explanation: The capabilities of the devices displayed by the output show them to
be a Cisco 2811 series router, Cisco 1941 series router, and a Cisco 2960 switch.
23. What are three functions provided by the syslog service? (Choose three.)
 to select the type of logging information that is captured

 to periodically poll agents for data
 to provide statistics on packets that are flowing through a Cisco device
 to provide traffic analysis
 to gather logging information for monitoring and troubleshooting
 to specify the destinations of captured messages
Explanation: There are three primary functions provided by the syslog service:
1. gathering logging information

2. selection of the type of information to be logged
3. selection of the destination of the logged information
24. What is the function of the MIB element as part of a network management
system?
 to collect data from SNMP agents

 to send and retrieve network management information
 to change configurations on SNMP agents
 to store data about a device
82
CCNA 3 V7
Explanation: The Management Information Base (MIB) resides on a networking
device and stores operational data about the device. The SNMP manager can
collect information from SNMP agents. The SNMP agent provides access to the
information.
25. What network design would contain the scope of disruptions on a

network should a failure occur?
 the reduction in the number of redundant devices and connections in the

network core
 the installation of only enterprise class equipment throughout the network
 the deployment of distribution layer switches in pairs and the division
of access layer switch connections between them
 the configuration of all access layer devices to share a single gateway
Explanation: One way to contain the impact of a failure on the network is to

implement redundancy. One way this is accomplished is by deploying redundant
distribution layer switches and dividing the access layer switch connections
between the redundant distribution layer switches. This creates what is called a
switch block. Failures in a switch block are contained to that block and do not
bring down the whole network.
26. Which action should be taken when planning for redundancy on a

hierarchical network design?
 add alternate physical paths for data to traverse the network

 continually purchase backup equipment for the network
 implement STP portfast between the switches on the network
 immediately replace a non-functioning module, service or device on a
network
Explanation: One method of implementing redundancy is path redundancy,

installing alternate physical paths for data to traverse the network. Redundant
links in a switched network supports high availability and can be used for load
balancing, reducing congestion on the network.
27. What are two benefits of extending access layer connectivity to users
through a wireless medium? (Choose two.)
 increased flexibility
 increased network management options
 decreased number of critical points of failure
 reduced costs
 increased bandwidth availability
83
CCNA 3 V7
Explanation: Wireless connectivity at the access layer provides increased
flexibility, reduced costs, and the ability to grow and adapt to changing business
requirements. Utilizing wireless routers and access points can provide an increase
in the number of central points of failure. Wireless routers and access points will
not provide an increase in bandwidth availability.
28. What is a basic function of the Cisco Borderless Architecture access layer?
 aggregates Layer 2 broadcast domains

 provides access to the user
 aggregates Layer 3 routing boundaries
 provides fault isolation
Explanation: A function of the Cisco Borderless Architecture access layer is

providing network access to the users. Layer 2 broadcast domain aggregation,
Layer 3 routing boundaries aggregation, and high availability are distribution layer
functions. The core layer provides fault isolation and high-speed backbone
connectivity.
29. Which characteristic would most influence a network design engineer to

select a multilayer switch over a Layer 2 switch?
 ability to have multiple forwarding paths through the switched network

based on VLAN number(s)
 ability to build a routing table
 ability to provide power to directly-attached devices and the switch itself
 ability to aggregate multiple ports for maximum data throughput
Explanation: Multilayer switches, also known as Layer 3 switches, can route and
build a routing table. This capability is required in a multi-VLAN network and
would influence the network designer to select a multilayer switch. The other
options are features also available on Layer 2 switches, so they would not influence
the decision to select a multilayer switch.
30. Refer to the exhibit. Why are routers R1 and R2 not able to establish an
OSPF adjacency?
84
CCNA 3 V7
 The serial interfaces are not in the same area.

 The process numbers are not the same in both routers.
 A backbone router cannot establish an adjacency with an ABR router.
 The router ID values are not the same in both routers.
Explanation: On router R1, the network 192.168.10.0/30 is defined in the wrong

area (area 1). It has to be defined in area 0 in order to establish adjacency with
router R2, which has the network 192.168.10.0/30 defined in area 0.
31. When is the most appropriate time to measure network operations to

establish a network performance baseline?
 whenever high network use is detected, so that how the network performs
under stress can be monitored
 during quiet vacation periods, so that the level of non-data traffic can be
determined
 at the same time each day across a set period of average working days,
so that typical traffic patterns can be established
 at random times during a 10 week period, so that abnormal traffic levels can
be detected
Explanation: The purpose of establishing a network performance baseline is to

provide a reference of normal or average network use to enable data traffic
anomalies to be detected and then investigated. Network operations that are not
average, or are not normal, cannot be used to establish a network performance
baseline.
32. Refer to the exhibit. A user has configured a NIC on the PC as shown but
finds that the PC is unable to access the Internet. What is the problem?
85
CCNA 3 V7
 The preferred DNS address is incorrect.

 The default gateway address is incorrect.
 The settings were not validated upon exit.
 There should not be an alternate DNS server.
Explanation: In order for a computer to communicate outside its network, it must

have a valid default gateway configured.This address cannot be the same as the IP
address of the computer.
33. Refer to the exhibit. A network engineer configured an ACL preventing

Telnet and HTTP access to the HQ web server from guest users in the Branch
LAN. The address of the web server is 192.168.1.10 and all guest users are
assigned addresses in the 192.168.10.0/24 network. After implementing the
ACL, no one can access any of the HQ servers. What is the problem?
86
CCNA 3 V7
 Inbound ACLs must be routed before they are processed.
 The ACL is implicitly denying access to all the servers.
 Named ACLs require the use of port numbers.
 The ACL is applied to the interface using the wrong direction.
Explanation: Both named and numbered ACLs have an implicit deny ACE at the
end of the list. This implicit deny blocks all traffic.
34. Refer to the exhibit. A network administrator has configured OSPFv2 on

the two Cisco routers as shown. PC1 is unable to connect to PC2. What should
the administrator do first when troubleshooting the OSPFv2
implementation?
 Disconnect the serial link between router R1 and R2.

 Turn off OSPFv2.
 Implement the network 192.168.255.0 0.0.0.3 area 0 command on router R1.
 Test Layer 3 connectivity between the directly connected routers.
Explanation: A prerequisite for OSPFv2 neighbor relationships to form between

two routers is Layer 3 connectivity. A successful ping confirms that a router
interface is active and may be able to form an OSPF neighbor adjacency.
35. What type of traffic is described as requiring latency to be no more than

150 milliseconds (ms)?
 voice
 video
 data
36. A network manager wants to add a time to log messages so that there is
record of when the message was generated. What command should the
administrator use on a Cisco router?
87
CCNA 3 V7
 show cdp interface
 ntp server 10.10.14.9
 service timestamps log datetime
 clock timezone PST -7
37. Match the functions to the corresponding layers. (Not all options are
used.)
88
CCNA 3 V7
38. Match the borderless switched network guideline description to the
principle. (Not all options are used.)
39. What are two characteristics of the best-effort QoS model? (Choose two.)
 It allows end hosts to signal their QoS needs to the network.

 It uses a connection-oriented approach with QoS.
 It provides preferential treatment for voice packets.
 It does not provide a delivery guarantee for packets.
 It treats all network packets in the same way.
Explanation: The best-effort QoS model provides no guarantees and it is

commonly used on the Internet. The best-effort QoS model treats all network
packets in the same way.
40. Why is QoS an important issue in a converged network that combines

voice, video, and data communications?
 Data communications are sensitive to jitter.

 Legacy equipment is unable to transmit voice and video without QoS.
Correct Response
 Voice and video communications are more sensitive to latency.
 Data communications must be given the first priority.
89
CCNA 3 V7
Explanation: Without any QoS mechanisms in place, time-sensitive packets, such
as voice and video, will be dropped with the same frequency as email and web
browsing traffic.
41. A network administrator configures a router with the command

sequence:
R1(config)# boot system tftp://c1900-universalk9-mz.SPA.152-4.M3.bin

R1(config)# boot system rom
What is the effect of the command sequence?
 On next reboot, the router will load the IOS image from ROM.
 The router will search and load a valid IOS image in the sequence of flash,
TFTP, and ROM.
 The router will copy the IOS image from the TFTP server and then reboot the
system.
 The router will load IOS from the TFTP server. If the image fails to load,
it will load the IOS image from ROM.
Explanation: The boot system command is a global configuration command that

allows the user to specify the source for the Cisco IOS Software image to load. In
this case, the router is configured to boot from the IOS image that is stored on the
TFTP server and will use the ROMmon imagethat is located in the ROM if it fails to
locate the TFTP server or fails to load a valid image from the TFTP server.
42. Which statement describes SNMP operation?
 An SNMP agent that resides on a managed device collects information about

the device and stores that information remotely in the MIB that is located on
the NMS.
 A set request is used by the NMS to change configuration variables in
the agent device.
 An NMS periodically polls the SNMP agents that are residing on managed
devices by using traps to query the devices for data.
 A get request is used by the SNMP agent to query the device for data.
Explanation: An SNMP agent that resides on a managed device collects and stores
information about the device and its operation. This information is stored by the
agent locally in the MIB. An NMS periodically polls the SNMP agents that are
residing on managed devices by using the get request to query the devices for data.
43. Refer to the exhibit. A network administrator issues the show lldp
neighbors command on a switch. What are two conclusions that can be
drawn? (Choose two.)
90
CCNA 3 V7
 Dev1 is connected to interface Fa0/5 of S1.

 Dev1 is a switch with mixed types of interfaces.
 Dev2 is a switch.
 Dev1 is connected to interface Fa0/4 of Dev2.
 S1 has only two interfaces.
Explanation: In the output from the show lldp command, under Capability, R
indicates a router and B indicates a bridge (switch). Nothing indicates that Dev1
and Dev2 are connected to one another.
44. What are the three layers of the switch hierarchical design model?
(Choose three.)
 distribution
 network access
 data link
 enterprise
 access
 core
Explanation: The access layer is the lowest layer and it provides network access
to users. The distribution layer has many functions, but it aggregates data from the
access layer, provides filtering, policy control, and sets Layer 3 routing boundaries.
The core layer provides high speed connectivity.
45. Refer to the exhibit. Which devices exist in the failure domain when
switch S3 loses power?
91
CCNA 3 V7
 S4 and PC_2
 PC_3 and PC_2
 PC_3 and AP_2
 S1 and S4
 AP_2 and AP_1
Explanation: A failure domain is the area of a network that is impacted when a

critical device such as switch S3 has a failure or experiences problems.
46. A network designer is considering whether to implement a switch block

on the company network. What is the primary advantage of deploying a
switch block?
 This is network application software that prevents the failure of a single

network device.
 The failure of a switch block will not impact all end users.
 This is a security feature that is available on all new Catalyst switches.
 A single core router provides all the routing between VLANs.
Explanation: The configuration of a switch block provides redundancy so that the

failure of a single network device generally has little or no effect on end users.
47. Which troubleshooting tool would a network administrator use to check

the Layer 2 header of frames that are leaving a particular host?
 knowledge base
 protocol analyzer
92
CCNA 3 V7
 CiscoView
 baselining tool
Explanation: A protocol analyzer such as Wireshark is capable of displaying the

headers of data at any OSI Layer.
48. Refer to the exhibit. R1 and R3 are connected to each other via the local
serial 0/0/0 interface. Why are they not forming an adjacency?
 They have different routing processes.

 They have different router IDs.
 They are in different subnets.
 The connecting interfaces are configured as passive.
Explanation: The routers need to be in the same subnet in order to form an

adjacency. The routing processes can be different on each router. The router IDs
must be different for routers that participate in the same routing domain. The
interfaces are not passive.
49. What type of traffic is described as not resilient to loss?
 data
 video
 voice
50. A network manager wants lists the contents of flash. What command
should the administrator use on a Cisco router?
 show file systems

 dir
 lldp enable
 service timestamps log datetime
93
CCNA 3 V7
51. Voice packets are being received in a continuous stream by an IP phone,
but because of network congestion the delay between each packet varies and
is causing broken conversations. What term describes the cause of this
condition?
 buffering
 latency
 queuing
 jitter
52. A user is unable to reach the website when typing http://www.cisco.com

in a web browser, but can reach the same site by typinghttp://72.163.4.161 .
What is the issue?
 DHCP
 DNS
 Default Gateway
 TCP/IP Protocol stack
53. What type of traffic is described as tending to be unpredictable,

inconsistent, and bursty?
 Audio
 Video
 Data
 Voice
54. A network manager wants to determine the size of the Cisco IOS image
file on the networking device. What command should the administrator use
on a Cisco router?
 show flash:0
 copy flash: tftp:
 config-register 0x2102
 confreg 0x2142
55. What is the principle that is applied when a network technician is

troubleshooting a network fault by using the divide-and-conquer method?
 Testing is performed at Layer 7 and at Layer 1, then at Layers 6 and 2, and so

on, working towards the middle of the stack until all layers are verified as
operational.
 Once it is verified that components in a particular layer are functioning
properly, it can then be assumed that components in the layers below it
are also functional.
94
CCNA 3 V7
 Testing is performed at all layers of the OSI model until a non-functioning
component is found.
 Once it is verified that a component in a particular layer is functioning
properly, testing can then be performed on any other layer.
Explanation: The nature of the OSI and TCP/IP layered models is that upper
layers are dependent on lower layers. So when troubleshooting, if a particular
layer is found to be working correctly then it can be assumed that all layers below
it are also functioning correctly.
56. Which queuing algorithm has only a single queue and treats all packets
equally?
 CBWFQ
 FIFO
 LLQ
 WFQ
57. What type of traffic is described as traffic that requires at least 30 Kbps of
bandwidth?
 voice
 data
 video
58. What type of traffic is described as being able to tolerate a certain

amount of latency, jitter, and loss without any noticeable effects?
 voice
 video
 data
59. A network manager wants to view the amount of available and free
memory, the type of file system, and its permissions. What command should
the administrator use on a Cisco router?
 ntp server 10.10.14.9

 lldp enable
 clock timezone PST -7
 show file systems
60. What type of traffic is described as requiring latency to be no more than

400 milliseconds (ms)?
 voice
 data
95
CCNA 3 V7
 video
61. What type of traffic is described as consisting of traffic that requires a

higher priority if interactive?
 data
 voice
 video
CCNA 3 V7 MODULES 13 – 14: EMERGING NETWORK TECHNOLOGIES EXAM

ANSWERS
1. A company uses a cloud-based payroll system. Which cloud computing

technology is this company using?
 browser as a service (BaaS)

 infrastructure as a service (IaaS)
 software as a service (SaaS)
 wireless as a service (WaaS)
96
CCNA 3 V7
2. For a data center, what is the difference in the server virtualization data
traffic compared with the traditional client-server model?
 Data traffic from clients will be routed to multiple virtual servers.

 There are significant data exchanges between virtual servers.
 There is more data traffic flowing from virtual servers to clients.
 More network control traffic is generated between virtual servers and
clients.
3. Which component in a traditional infrastructure device provides Layer 2

and Layer 3 functions to create data paths within a network?
 data plane
 control plane
 adjacency table
 forwarding information base
4. Which network traffic management technology is a basic element in SDN

implementations?
 OpenFlow
 OpenStack
 IEEE 802.1aq
 Interface to the Routing System
5. Which type of hypervisor would most likely be used in a data center?
 Type 2
 Type 1
 Nexus
 Hadoop
Explanation: The two type of hypervisors are Type 1 and Type 2. Type 1
hypervisors are usually used on enterprise servers. Enterprise servers rather than
virtualized PCs are more likely to be in a data center.
6. Which is a characteristic of a Type 1 hypervisor?
 installed directly on a server

 best suited for consumers and not for an enterprise environment
 does not require management console software
 installed on an existing operating system
Explanation: Type 1 hypervisors are installed directly on a server and are known
as “bare metal” solutions giving direct access to hardware resources. They also
require a management console and are best suited for enterprise environments.
97
CCNA 3 V7
7. Which two layers of the OSI model are associated with SDN network
control plane functions that make forwarding decisions? (Choose two.)
 Layer 1
 Layer 2
 Layer 3
 Layer 4
 Layer 5
Explanation: The SDN control plane uses the Layer 2 ARP table and the Layer 3
routing table to make decisions about forwarding traffic.
8. What pre-populates the FIB on Cisco devices that use CEF to process
packets?
 the routing table

 the adjacency table
 the ARP table
 the DSP
Explanation: CEF uses the FIB and adjacency table to make fast forwarding
decisions without control plane processing. The adjacency table is pre-populated
by the ARP table and the FIB is pre-populated by the routing table.
9. What is a function of the data plane of a network device?
 sending information to the CPU for processing

 building the routing table
 resolving MAC addresses
 forwarding traffic flows
Explanation: Networking devices operate in two planes; the data plane and the
control plane. The control plane maintains Layer 2 and Layer 3 forwarding
mechanisms using the CPU. The data plane forwards traffic flows.
10. Which statement describes the concept of cloud computing?
 separation of application from hardware

 separation of management plane from control plane
 separation of operating system from hardware
 separation of control plane from data plane
Explanation: Cloud computing is used to separate the application or service from

hardware. Virtualization separates the operating system from the hardware.
11. Which cloud model provides services for a specific organization or

entity?
98
CCNA 3 V7
 a public cloud
 a hybrid cloud
 a private cloud
 a community cloud
Explanation: Private clouds are used to provide services and applications to a

specific organization and may be set up within the private network of the
organization or managed by an outside organization.
12. What two benefits are gained when an organization adopts cloud
computing and virtualization? (Choose two.)
 provides a “pay-as-you-go” model, allowing organizations to treat

computing and storage expenses as a utility
 enables rapid responses to increasing data volume requirements
 distributed processing of large data sets in the size of terabytes
 elimination of vulnerabilities to cyber attacks
 increases the dependance on onsite IT resources
Explanation: Organizations can use virtualization to consolidate the number of

required servers by running many virtual servers on a single physical server.
Cloud computing allows organizations to scale their solutions as required and to
pay only for the resources they require.
13. Which type of Hypervisor is implemented when a user with a laptop

running the Mac OS installs a Windows virtual OS instance?
 type 2
 virtual machine
 type 1
 bare metal
Explanation: Type 2 hypervisors, also know as hosted hypervisors, are installed

on top of an existing operating system, such as Mac OS, Windows, or Linux.
14. A small company is considering moving many of its data center functions
to the cloud. What are three advantages of this plan? (Choose three.)
 The company only needs to pay for the amount of processing and
storage capacity that it uses.
 Cloud services are billed at a fixed fee no matter how much processing and
storage are used by the company.
 The company does not need to be concerned about how to handle
increasing data storage and processing demands with in-house data
center equipment.
99
CCNA 3 V7
 The company can increase processing and storage capacity as needed
and then decrease capacity when it is no longer needed.
 Single-tenant data centers can easily grow to accommodate increasing data
storage requirements.
 Cloud services enable the company to own and administer its own servers
and storage devices.
Explanation: Cloud computing offers many advantages to the company. Since the
cloud data storage and processing facilities are owned by third-parties, the
company does not need to be concerned about how it will handle increasing data
storage and processing demands with its own data center equipment. The
company can easily increase or decrease processing power and storage capacity
based on need. Also, cloud services are billed by usage, so the company does not
have the costs of supporting its own expensive data center that is not always used
to maximum capacity.
15. How does virtualization help with disaster recovery within a data center?
 support of live migration

 guarantee of power
 improvement of business practices
 supply of consistent air flow
Explanation: Live migration allows moving of one virtual server to another virtual
server that could be in a different location that is some distance from the original
data center.
16. What technology allows users to access data anywhere and at any time?
 Cloud computing
 virtualization
 micromarketing
 data analytics
Explanation: Cloud computing allows organizations to eliminate the need for on-
site IT equipment, maintenance, and management. Cloud computing allows
organizations to expand their services or capabilities while avoiding the increased
costs of energy and space.
17. Which action takes place in the assurance element of the IBN model?
 verification and corrective action

 configuring systems
 translation of policies
 integrity checks
100
CCNA 3 V7
Explanation: The assurance element of the IBN model is concerned with end-to-
end verification of network-wide behavior.
18. Refer to the exhibit. Which data format is used to represent the data for
network automation applications?
 XML
 YAML
 HTML
 JSON
Explanation: The common data formats that are used in many applications
including network automation and programmability are as follows:
 JavaScript Object Notation (JSON) – In JSON, the data known as an object is

one or more key/value pairs enclosed in braces { }. Keys must be strings
within double quotation marks ” “. Keys and values are separated by a colon.
 eXtensible Markup Language (XML) – In XML, the data is enclosed within a
related set of tags <tag>data</tag>.
 YAML Ain’t Markup Language (YAML) – In YAML, the data known as an
object is one or more key value pairs. Key value pairs are separated by a
colon without the use of quotation marks. YAML uses indentation to define
its structure, without the use of brackets or commas.
19. What is the function of the key contained in most RESTful APIs?
 It is the top-level object of the API query.

 It is used to authenticate the requesting source.
 It represents the main query components in the API request.
 It is used in the encryption of the message by an API request.
Explanation: Many RESTful APIs, including public APIs, require a key. The key is
used to identify the source of the request through authentication.
20. Which two configuration management tools are developed using Ruby?
(Choose two.)
101
CCNA 3 V7
 Puppet
 Ansible
 SaltStack
 Chef
 RESTCONF
Explanation: Chef and Puppet are configuration management tools developed

using Ruby. Ansible and SaltStack are configuration management tools developed
using Python. Ruby is typically considered a more difficult language to learn than
Python. RESTCONF is a network management protocol.
21. Which term is used to describe a set of instructions for execution by the
configuration management tool Puppet?
 Playbook
 Cookbook
 Manifest
 Pillar
Explanation: The configuration management tool Puppet uses the name Manifest
to describe the set of instructions to be executed.
22. Which term is used to describe a set of instructions for execution by the
configuration management tool SaltStack?
 Cookbook
 Manifest
 Pillar
 Playbook
Explanation: The configuration management tool SaltStack uses the name Pillar to
describe the set of instructions to be executed.
23. Which scenario describes the use of a public API?
 It requires a license.
 It can be used with no restrictions.
 It is used between a company and its business partners.
 It is used only within an organization.
Explanation: Public, or open, APIs have no restrictions and are available to the
public. Some API providers do require a user to obtain a free key or token prior to
using the API in order to control the volume of API requests received and
processed.
24. What is YAML?

102
CCNA 3 V7
 It is a scripting language.
 It is a data format and superset of JSON.
 It is a compiled programming language.
 It is a web application.
Explanation: Like JSON, YAML Ain’t Markup Language (YAML) is a data format
used by applications to store and transport data. YAML is considered a superset of
JSON.
25. Which RESTFul operation corresponds to the HTTP GET method?
 post
 patch
 update
 read
Explanation: RESTful operations correspond to the following HTTP methods

(shown to the left with the RESTful operation on the right):
 POST > Create

 GET > Read
 PUT/PATCH > Update
 DELETE > Delete
26. Which technology virtualizes the network control plane and moves it to a
centralized controller?
 SDN
 fog computing
 cloud computing
 IaaS
Explanation: Networking devices operate in two planes: the data plane and the
control plane. The control plane maintains Layer 2 and Layer 3 forwarding
mechanisms using the CPU. The data plane forwards traffic flows. SDN virtualizes
the control plane and moves it to a centralized network controller.
27. What are two functions of hypervisors? (Choose two.)
 to partition the hard drive to run virtual machines

 to manage virtual machines
 to protect the host from malware infection from the virtual machines
 to share the antivirus software across the virtual machines
 to allocate physical system resources to virtual machines
103
CCNA 3 V7
Explanation: The hypervisor does not protect the hosting OS from malware.
Neither does it allow sharing software across virtual machines. The hard drive of
the supporting computer does not need to be partitioned to run virtual machines.
The hypervisor creates and manages virtual machines on a host computer and
allocates physical system resources to them.
28. What is a difference between the functions of Cloud computing and

virtualization?
 Cloud computing requires hypervisor technology whereas virtualization is a

fault tolerance technology.
 Cloud computing separates the application from the hardware whereas
virtualization separates the OS from the underlying hardware.
 Cloud computing provides services on web-based access whereas
virtualization provides services on data access through virtualized Internet
connections.
 Cloud computing utilizes data center technology whereas virtualization is
not used in data centers.
Explanation: Cloud computing separates the application from the hardware.

Virtualization separates the OS from the underlying hardware. Virtualization is a
typical component within cloud computing. Virtualization is also widely used in
data centers. Although the implementation of virtualization facilitates an easy
server fault tolerance setup, it is not a fault tolerance technology by design. The
Internet connection from a data center or service provider needs redundant
physical WAN connections to ISPs.
29. How is the YAML data format structure different from JSON?
 It uses indentations.
 It uses end tags.
 It uses hierarchical levels of nesting.
 It uses brackets and commas.
Explanation: The structure in YAML is defined by indentations rather than

brackets and commas.
30. What is the most widely used API for web services?
 XML-RPC
 SOAP
 JSON-RPC
 REST
Explanation: REST accounts for more than 80% of all API types used for web
services, making it the most widely used web service API.
104
CCNA 3 V7
31. What is REST?
 It is a way to store and interchange data in a structured format.

 It is an architecture style for designing web service applications.
 It is a human readable data structure that is used by applications for storing,
transforming, and reading data.
 It is a protocol that allows administrators to manage nodes on an IP network.
Explanation: REST is not a protocol or service, but rather a style of software

architecture for designing web service applications.
32. What is a difference between the XML and HTML data formats?
 XML does not use predefined tags whereas HTML does use predefined
tags.
 XML encloses data within a pair of tags whereas HTML uses a pair of
quotation makes to enclose data.
 XML formats data in binary whereas HTML formats data in plain text.
 XML does not require indentation for each key/value pair but HTML does
require indentation.
Explanation: XML is a human readable data structure used to store, transfer, and
read data by applications. Like HTML, XML uses a related set of tags to enclose
data. However, unlike HTML, XML uses no predefined tags or document structure.
33. To avoid purchasing new hardware, a company wants to take advantage

of idle system resources and consolidate the number of servers while
allowing for multiple operating systems on a single hardware platform. What
service or technology would support this requirement?
 dedicated servers
 Cisco ACI
 virtualization
 software defined networking
34. Match the term to the RESTful API request

http://www.mapquestapi.com/directions/v2/route?
outFormat=json&key=KEY&from=San+Jose,Ca&to=Monterey,Ca component.
105
CCNA 3 V7
(Not all options are used.)
35. Which cloud computing opportunity would provide the use of network
hardware such as routers and switches for a particular company?
 software as a service (SaaS)

 wireless as a service (WaaS)
 infrastructure as a service (IaaS)
 browser as a service (BaaS)
Explanation: This item is based on information contained in the presentation.

Routers, switches, and firewalls are infrastructure devices that can be provided in
the cloud.
36. What component is considered the brains of the ACI architecture and
translates application policies?
 the Application Network Profile endpoints

 the Nexus 9000 switch
 the hypervisor
 the Application Policy Infrastructure Controller
Explanation: The ACI architecture consists of three core components: the

Application Network Profile, the Application Policy Infrastructure Controller,
106
CCNA 3 V7
which serves as the brains of the ACI architecture, and the Cisco Nexus 9000
switch.
37. Which statement describes the concept of cloud computing?
 separation of management plane from control plane

 separation of control plane from data plane
 separation of application from hardware
 separation of operating system from hardware
Explanation: Cloud computing is used to separate the application or service from

hardware. Virtualization separates the operating system from the hardware.
38. In which situation would a partner API be appropriate?
 an internet search engine allowing developers to integrate the search engine

into their own software applications
 company sales staff accessing internal sales data from their mobile devices
 someone creating an account on an external app or website by using his or
her social media credentials
 a vacation service site interacting with hotel databases to display
information from all the hotels on its web site
Explanation: Partner API programs incorporate collaboration with other business.

They facilitate communication and integration of software between a company and
its business partners.
39. Because of enormous growth in web traffic, a company has planned to

purchase additional servers to help handle the web traffic. What service or
technology would support this requirement?
 virtualization
 data center
 cloud services
40. ABCTech is investigating the use of automation for some of its products.
In order to control and test these products, the programmers require
Windows, Linux, and MAC OS on their computers. What service or technology
would support this requirement?
 virtualization
 Cisco ACI
107
CCNA 3 V7
41. What are three components used in the query portion of a typical RESTful
API request? (Choose three.)
 API server
 format
 parameters
 key
 protocol
 resources
42. A company has recently become multinational. Employees are working

remotely, in different time zones, and they need access to company services
from any place at any time. What service or technology would support this
requirement?
 cloud services
 Cisco ACI
 virtualization
CCNA 3 v7.0 Final Exam Answers Full – Enterprise Networking, Security, and
Automation
1. Which design feature will limit the size of a failure domain in an enterprise
network?
 the purchase of enterprise equipment that is designed for large traffic

volume
 the installation of redundant power supplies
108
CCNA 3 V7
 the use of a collapsed core design
 the use of the building switch block approach
2. Which two things should a network administrator modify on a router to

perform password recovery? (Choose two.)
 the system image file

 the NVRAM file system
 the configuration register value
 the startup configuration file
 system ROM
3. What type of network uses one common infrastructure to carry voice, data,
and video signals?
 borderless
 converged
 managed
 switched
4. What are three advantages of using private IP addresses and NAT? (Choose
three.)
 hides private LAN addressing from outside devices that are connected
to the Internet
 permits LAN expansion without additional public IP addresses
 reduces CPU usage on customer routers
 creates multiple public IP addresses
 improves the performance of the router that is connected to the Internet
 conserves registered public IP addresses
5. Which two scenarios are examples of remote access VPNs? (Choose two.)
 All users at a large branch office can access company resources through a
single VPN connection.
 A small branch office with three employees has a Cisco ASA that is used to
create a VPN connection to the HQ.
 A toy manufacturer has a permanent VPN connection to one of its parts
suppliers.
 A mobile sales agent is connecting to the company network via the
Internet connection at a hotel.
 An employee who is working from home uses VPN client software on a
laptop in order to connect to the company network.
6. What are three benefits of cloud computing? (Choose three.)

109
CCNA 3 V7
 It utilizes end-user clients to do a substantial amount of data preprocessing
and storage.
 It uses open-source software for distributed processing of large datasets.
 It streamlines the IT operations of an organization by subscribing only
to needed services.
 It enables access to organizational data anywhere and at any time.
 It turns raw data into meaningful information by discovering patterns and
relationships.
 It eliminates or reduces the need for onsite IT equipment, maintenance,
and management.
7. What is a characteristic of a single-area OSPF network?
 All routers share a common forwarding database.

 All routers have the same neighbor table.
 All routers are in the backbone area.
 All routers have the same routing table.
8. What is a WAN?
 a network infrastructure that spans a limited physical area such as a city

 a network infrastructure that provides access to other networks over a
large geographic area
 a network infrastructure that provides access in a small geographic area
 a network infrastructure designed to provide data storage, retrieval, and
replication
9. A network administrator has been tasked with creating a disaster recovery

plan. As part of this plan, the administrator is looking for a backup site for all
of the data on the company servers. What service or technology would
support this requirement?
 data center
 virtualization
10. Which type of OSPF packet is used by a router to discover neighbor

routers and establish neighbor adjacency?
 hello
 link-state request
11. Which two statements are characteristics of a virus? (Choose two.)

110
CCNA 3 V7
 A virus has an enabling vulnerability, a propagation mechanism, and a
payload.
 A virus can be dormant and then activate at a specific time or date.
 A virus provides the attacker with sensitive data, such as passwords.
 A virus replicates itself by independently exploiting vulnerabilities in
networks.
 A virus typically requires end-user activation.
12. Which public WAN access technology utilizes copper telephone lines to
provide access to subscribers that are multiplexed into a single T3 link
connection?
 ISDN
 DSL
 cable
 dialup
13. A customer needs a metropolitan area WAN connection that provides

high-speed, dedicated bandwidth between two sites. Which type of WAN
connection would best fulfill this need?
 packet-switched network
 Ethernet WAN
 circuit-switched network
 MPLS
14. A company has contracted with a network security firm to help identify
the vulnerabilities of the corporate network. The firm sends a team to
perform penetration tests to the company network. Why would the team use
debuggers?
 to detect installed tools within files and directories that provide threat actors
remote access and control over a computer or network
 to reverse engineer binary files when writing exploits and when
analyzing malware
 to obtain specially designed operating systems preloaded with tools
optimized for hacking
 to detect any evidence of a hack or malware in a computer or network
15. Consider the following output for an ACL that has been applied to a router
via the access-class in command. What can a network administrator
determine from the output that is shown?
R1#
Standard IP access list 2
10 permit 192.168.10.0, wildcard bits 0.0.0.255 (2 matches)
111
CCNA 3 V7
20 deny any (1 match)
 Two devices connected to the router have IP addresses of 192.168.10. x

.
 Two devices were able to use SSH or Telnet to gain access to the router.
 Traffic from one device was not allowed to come into one router port and be
routed outbound a different router port.
 Traffic from two devices was allowed to enter one router port and be routed
outbound to a different router port.
16. What command would be used as part of configuring NAT or PAT to clear
dynamic entries before the timeout has expired?
 clear ip dhcp
 clear ip nat translation
 clear access-list counters
 clear ip pat statistics
17. What are two characteristics of video traffic? (Choose two.)
 Video traffic consumes less network resources than voice traffic consumes.
 Video traffic latency should not exceed 400 ms.
 Video traffic is more resilient to loss than voice traffic is.
 Video traffic requires a minimum of 30 kbs of bandwidth.
 Video traffic is unpredictable and inconsistent.
18. Refer to the exhibit. A technician is configuring R2 for static NAT to allow
the client to access the web server. What is a possible reason that the client
PC cannot access the web server?
 The IP NAT statement is incorrect.

 Interface Fa0/1 should be identified as the outside NAT interface.
 Interface S0/0/0 should be identified as the outside NAT interface.
112
CCNA 3 V7
 The configuration is missing a valid access control list.
Explanation: Interface S0/0/0 should be identified as the outside NAT interface.

The command to do this would be R2(config-if)# ip nat outside.
19. In setting up a small office network, the network administrator decides to

assign private IP addresses dynamically to workstations and mobile devices.
Which feature must be enabled on the company router in order for office
devices to access the internet?
 UPnP
 MAC filtering
 NAT
 QoS
20. A data center has recently updated a physical server to host multiple
operating systems on a single CPU. The data center can now provide each
customer with a separate web server without having to allocate an actual
discrete server for each customer. What is the networking trend that is being
implemented by the data center in this situation?
 online collaboration
 BYOD
 virtualization
 maintaining communication integrity
21. Refer to the exhibit. Which address or addresses represent the inside
global address?
 192.168.0.100
 10.1.1.2
 any address in the 10.1.1.0 network
 209.165.20.25
22. Which two IPsec protocols are used to provide data integrity?
 MD5
 DH
 AES
113
CCNA 3 V7
 SHA
 RSA
23. If an outside host does not have the Cisco AnyConnect client preinstalled,
how would the host gain access to the client image?
 The Cisco AnyConnect client is installed by default on most major operating

systems.
 The host initiates a clientless VPN connection using a compliant web
browser to download the client.
 The host initiates a clientless connection to a TFTP server to download the
client.
 The host initiates a clientless connection to an FTP server to download the
client.
24. A company is considering updating the campus WAN connection. Which

two WAN options are examples of the private WAN architecture? (Choose
two.)
 leased line
 cable
 digital subscriber line
 Ethernet WAN
 municipal Wi-Fi
25. Which type of QoS marking is applied to Ethernet frames?
 IP precedence
 DSCP
 ToS
 CoS
26. Refer to the exhibit. Routers R1 and R2 are connected via a serial link.
One router is configured as the NTP master, and the other is an NTP client.
Which two pieces of information can be obtained from the partial output of
the show ntp associations detail command on R2? (Choose two.)
 Both routers are configured to use NTPv2.

 Router R1 is the master, and R2 is the client
 The IP address of R2 is 192 168.1.2.
 Router R2 is the master, and R1 is the client
 The IP address of R1 is 192.168.1.2
114
CCNA 3 V7
Explanation: With the show NTP associations command, the IP address of the NTP
master is given.
27. Refer to the exhibit. The network administrator that has the IP address of
10.0.70.23/25 needs to have access to the corporate FTP server
(10.0.54.5/28). The FTP server is also a web server that is accessible to all
internal employees on networks within the 10.x.x.x address. No other traffic
should be allowed to this server. Which extended ACL would be used to filter
this traffic, and how would this ACL be applied? (Choose two.)
R1(config)# interface s0/0/0

R1(config-if)# ip access-group 105 outR2(config)# interface gi0/0
R2(config-if)# ip access-group 105 in
access-list 105 permit tcp host 10.0.70.23 host 10.0.54.5 eq 20

access-list 105 permit tcp 10.0.0.0 0.255.255.255 host 10.0.54.5 eq www
access-list 105 deny ip any host 10.0.54.5
access-list 105 permit ip host 10.0.70.23 host 10.0.54.5

access-list 105 permit tcp any host 10.0.54.5 eq www
R1(config)# interface gi0/0

access-list 105 permit tcp host 10.0.54.5 any eq www

Explanation: The first two lines of the ACL allow host 10.0.70.23 FTP access to the
server that has the IP address of 10.0.54.5. The next line of the ACL allows HTTP
access to the server from any host that has an IP address that starts with the
number 10. The fourth line of the ACL denies any other type of traffic to the server
115
CCNA 3 V7
from any source IP address. The last line of the ACL permits anything else in case
there are other servers or devices added to the 10.0.54.0/28 network. Because
traffic is being filtered from all other locations and for the 10.0.70.23 host device,
the best place to put this ACL is closest to the server.
28. Refer to the exhibit. If the network administrator created a standard ACL
that allows only devices that connect to the R2 G0/0 network access to the
devices on the R1 G0/1 interface, how should the ACL be applied?
 inbound on the R2 G0/0 interface

 outbound on the R1 G0/1 interface
 inbound on the R1 G0/1 interface
 outbound on the R2 S0/0/1 interface
Explanation: Because standard access lists only filter on the source IP address,
they are commonly placed closest to the destination network. In this example, the
source packets will be coming from the R2 G0/0 network. The destination is the R1
G0/1 network. The proper ACL placement is outbound on the R1 G0/1 interface.
29. Which is a characteristic of a Type 2 hypervisor?
 does not require management console software

 has direct access to server hardware resources
 best suited for enterprise environments
 installs directly on hardware
30. What are the two types of VPN connections? (Choose two.)
 PPPoE
116
CCNA 3 V7
 Frame Relay
 site-to-site
 remote access
 leased line
31. Refer to the exhibit. What three conclusions can be drawn from the
displayed output? (Choose three.)
 The DR can be reached through the GigabitEthernet 0/0 interface.

 There have been 9 seconds since the last hello packet sent.
 This interface is using the default priority.
 The router ID values were not the criteria used to select the DR and the
BDR.
 The router ID on the DR router is 3.3.3.3
 The BDR has three neighbors.
32. Refer to the exhibit. A network administrator is configuring an ACL to

limit the connection to R1 vty lines to only the IT group workstations in the
network 192.168.22.0/28. The administrator verifies the successful Telnet
connections from a workstation with IP 192.168.22.5 to R1 before the ACL is
applied. However, after the ACL is applied to the interface Fa0/0, Telnet
117
CCNA 3 V7
connections are denied. What is the cause of the connection failure?
 The enable secret password is not configured on R1.

 The IT group network is included in the deny statement.
 The permit ACE specifies a wrong port number.
 The permit ACE should specify protocol ip instead of tcp.
 The login command has not been entered for vty lines.
Explanation: The source IP range in the deny ACE is 192.168.20.0 0.0.3.255, which
covers IP addresses from 192.168.20.0 to 192.168.23.255. The IT group network
192.168.22.0/28 is included in the 192.168.20/22 network. Therefore, the
connection is denied. To fix it, the order of the deny and permit ACE should be
switched.
33. What functionality does mGRE provide to the DMVPN technology?
 It allows the creation of dynamically allocated tunnels through a

permanent tunnel source at the hub and dynamically allocated tunnel
destinations at the spokes.
 It provides secure transport of private information over public networks,
such as the Internet.
 It is a Cisco software solution for building multiple VPNs in an easy, dynamic,
and scalable manner.
 It creates a distributed mapping database of public IP addresses for all VPN
tunnel spokes.
Explanation: DMVPN is built on three protocols, NHRP, IPsec, and mGRE. NHRP is
the distributed address mapping protocol for VPN tunnels. IPsec encrypts
communications on VPN tunnels. The mGRE protocol allows the dynamic creation
of multiple spoke tunnels from one permanent VPN hub.
118
CCNA 3 V7
34. What is used to pre-populate the adjacency table on Cisco devices that
use CEF to process packets?
 the FIB
 the routing table
 the ARP table
 the DSP
35. What command would be used as part of configuring NAT or PAT to

display information about NAT configuration parameters and the number of
addresses in the pool?
 show running-config
 show ip nat statistics
 show ip cache
 show version
36. What is a purpose of establishing a network baseline?
 It provides a statistical average for network performance.

 It creates a point of reference for future network evaluations.
 It manages the performance of network devices.
 It checks the security configuration of network devices.
Explanation: A baseline is used to establish normal network or system

performance. It can be used to compare with future network or system
performances in order to detect abnormal situations.
37. Match the type of WAN device or service to the description. (Not all
options are used.)
CPE —> devices and inside wiring that are located on the enterprise edge and
connect to a carrier link
DCE —> devices that provide an interface for customers to connect to within the
WAN cloud
DTE —> customer devices that pass the data from a customer network for
transmission over the WAN
119
CCNA 3 V7
local loop —> a physical connection from the customer to the service provider POP
38. Which statement describes a characteristic of standard IPv4 ACLs?
 They filter traffic based on source IP addresses only.

 They can be created with a number but not with a name.
120
CCNA 3 V7
 They are configured in the interface configuration mode.
 They can be configured to filter traffic based on both source IP addresses and
source ports.
39. Refer to the exhibit. R1 is configured for NAT as displayed. What is wrong
with the configuration?
 NAT-POOL2 is not bound to ACL 1.

 Interface Fa0/0 should be identified as an outside NAT interface.
 The NAT pool is incorrect.
 Access-list 1 is misconfigured.
Explanation: R1 has to have NAT-POOL2 bound to ACL 1. This is accomplished

with the command R1(config)#ip nat inside source list 1 pool NAT-POOL2. This
would enable the router to check for all interesting traffic and if it matches ACL 1 it
would be translated by use of the addresses in NAT-POOL2.
121
CCNA 3 V7
40. Refer to the exhibit. What method can be used to enable an OSPF router
to advertise a default route to neighboring OSPF routers?
 Use a static route pointing to the ISP and redistribute it.

 Use a static route pointing to the ISP and redistribute it.
 Use the redistribute static command on R0-A.
 Use the default-information originate command on ISP.
 Use the default-information originate command on R0-A.
applications such as John the Ripper,THC Hydra, RainbowCrack, and
Medusa?
 to capture and analyze packets within traditional Ethernet LANs or WLANs

 to probe and test the robustness of a firewall by using specially created
forged packets
 to make repeated guesses in order to crack a password
42. What are two syntax rules for writing a JSON array? (Choose two.)
 Each value in the array is separated by a comma.

 The array can include only one value type.
 A space must separate each value in the array.
 A semicolon separates the key and list of values.
 Values are enclosed in square brackets.
43. What is a characteristic of a Trojan horse as it relates to network

security?
122
CCNA 3 V7
 An electronic dictionary is used to obtain a password to be used to infiltrate
a key network device.
 Malware is contained in a seemingly legitimate executable program.
 Extreme quantities of data are sent to a particular network device interface.
 Too much information is destined for a particular memory block, causing
additional memory areas to be affecte
44. An attacker is redirecting traffic to a false default gateway in an attempt

to intercept the data traffic of a switched network. What type of attack could
achieve this?
 TCP SYN flood

 DNS tunneling
 DHCP spoofing
 ARP cache poisoning
45. A company is developing a security policy for secure communication. In

the exchange of critical messages between a headquarters office and a
branch office, a hash value should only be recalculated with a predetermined
code, thus ensuring the validity of data source. Which aspect of secure
communications is addressed?
 data integrity
 non-repudiation
 origin authentication
 data confidentiality
packet sniffers?
 to detect installed tools within files and directories that provide threat actors
remote access and control over a computer or network
 to detect any evidence of a hack or malware in a computer or network
 to probe and test the robustness of a firewall by using specially created
forged packets
 to capture and analyze packets within traditional Ethernet LANs or
WLANs

 0.0.15.255
 0.0.3.255
123
CCNA 3 V7
 0.0.7.255
 0.0.1.255
48. Match the HTTP method with the RESTful operation.
POST –>> Create

GET –>> Read
PUT/PATCH –>> Update/Replace?Modify
Delete –>> Delete
49. Refer to the exhibit. What is the OSPF cost to reach the West LAN
172.16.2.0/24 from East?
 65
50. What is one reason to use the ip ospf priority command when the OSPF
routing protocol is in use?
 to activate the OSPF neighboring process

 to influence the DR/BDR election process
 to provide a backdoor for connectivity during the convergence process
 to streamline and speed up the convergence process
51. An ACL is applied inbound on a router interface. The ACL consists of a

single entry:
access-list 210 permit tcp 172.18.20.0 0.0.0.31 172.18.20.32 0.0.0.31 eq ftp .
If a packet with a source address of 172.18.20.14, a destination address of

172.18.20.40, and a protocol of 21 is received on the interface, is the packet
permitted or denied?
 permitted
52. What is a characteristic of the two-tier spine-leaf topology of the Cisco

ACI fabric architecture?
 The spine and leaf switches are always linked through core switches.
 The spine switches attach to the leaf switches and attach to each other for
redundancy.
 The leaf switches always attach to the spines and they are interlinked
through a trunk line.
 The leaf switches always attach to the spines, but they never attach to
each other.
53. Which two scenarios would result in a duplex mismatch? (Choose two.)
124
CCNA 3 V7
 connecting a device with autonegotiation to another that is manually
set to full-duplex
 starting and stopping a router interface during a normal operation
 connecting a device with an interface running at 100 Mbps to another with
an interface running at 1000 Mbps
 configuring dynamic routing incorrectly
 manually setting the two connected devices to different duplex modes
54. A network technician is configuring SNMPv3 and has set a security level
of auth . What is the effect of this setting?
 authenticates a packet by a string match of the username or community

string
 authenticates a packet by using either the HMAC with MD5 method or
the SHA method
 authenticates a packet by using either the HMAC MD5 or 3.HMAC SHA
algorithms and encrypts the packet with either the DES, 3DES or AES
algorithms
 authenticates a packet by using the SHA algorithm only
55. What are two types of attacks used on DNS open resolvers? (Choose two.)
 amplification and reflection

 resource utilization
 fast flux
 ARP poisoning
 cushioning

single entry:
access-list 101 permit udp 192.168.100.0 0.0.2.255 64.100.40.0 0.0.0.15 eq telnet .

 denied
 permitted
57. Which type of resources are required for a Type 1 hypervisor?
 a dedicated VLAN
 a management console
 a host operating system
125
CCNA 3 V7
58. In JSON, what is held within square brackets [ ]?
 nested values
 key/value pairs
 an object
 an array
59. What are three components used in the query portion of a typical RESTful
API request? (Choose three.)
 resources
 protocol
 API server
 format
 key
 parameters
60. A user reports that when the corporate web page URL is entered on a web
browser, an error message indicates that the page cannot be displayed. The
help-desk technician asks the user to enter the IP address of the web server
to see if the page can be displayed. Which troubleshooting method is being
used by the technician?
 top-down
 bottom-up
 divide-and-conquer
 substitution
61. Which protocol provides authentication, integrity, and confidentiality

services and is a type of VPN?
 MD5
 AES
 IPsec
 ESP
62. Which statement describes a characteristic of Cisco Catalyst 2960

switches?
 They are best used as distribution layer switches.

 New Cisco Catalyst 2960-C switches support PoE pass-through.
 They are modular switches.
 They do not support an active switched virtual interface (SVI) with IOS
versions prior to 15.x.
126
CCNA 3 V7
63. Which component of the ACI architecture translates application policies
into network programming?
 the hypervisor
 the Application Policy Infrastructure Controller
 the Nexus 9000 switch
 the Application Network Profile endpoints
64. Which two pieces of information should be included in a logical topology

diagram of a network? (Choose two.)
 device type
 cable specification
 interface identifier
 OS/IOS version
 connection type
 cable type and identifier
65. Refer to the exhibit. A PC at address 10.1.1.45 is unable to access the

Internet. What is the most likely cause of the problem?
 The NAT pool has been exhausted.

 The wrong netmask was used on the NAT pool.
 Access-list 1 has not been configured properly.
 The inside and outside interfaces have been configured backwards.
Explanation: The output of show ip nat statistics shows that there are 2 total
addresses and that 2 addresses have been allocated (100%). This indicates that the
127
CCNA 3 V7
NAT pool is out of global addresses to give new clients. Based on the show ip nat
translations, PCs at 10.1.1.33 and 10.1.1.123 have used the two available addresses
to send ICMP messages to a host on the outside network.
66. What are two benefits of using SNMP traps? (Choose two.)
 They eliminate the need for some periodic polling requests.

 They reduce the load on network and agent resources.
 They limit access for management systems only.
 They can provide statistics on TCP/IP packets that flow through Cisco
devices.
 They can passively listen for exported NetFlow datagrams.
67. Which statement accurately describes a characteristic of IPsec?
 IPsec works at the application layer and protects all application data.
 IPsec is a framework of standards developed by Cisco that relies on OSI
algorithms.
 IPsec is a framework of proprietary standards that depend on Cisco specific
algorithms.
 IPsec works at the transport layer and protects data at the network layer.
 IPsec is a framework of open standards that relies on existing
algorithms.
68. In a large enterprise network, which two functions are performed by

routers at the distribution layer? (Choose two.)
 connect users to the network

 provide a high-speed network backbone
 connect remote networks
 provide Power over Ethernet to devices
 provide data traffic security
69. Which two statements describe the use of asymmetric algorithms?

(Choose two.)
 Public and private keys may be used interchangeably.

 If a public key is used to encrypt the data, a public key must be used to
decrypt the data.
 If a private key is used to encrypt the data, a public key must be used to
decrypt the data.
 If a public key is used to encrypt the data, a private key must be used to
decrypt the data.
 If a private key is used to encrypt the data, a private key must be used to
decrypt the data.
128
CCNA 3 V7
70. Refer to the exhibit. A network administrator has deployed QoS and has
configured the network to mark traffic on the VoIP phones as well as the
Layer 2 and Layer 3 switches. Where should initial marking occur to
establish the trust boundary?
 Trust Boundary 4
Explanation: Traffic should be classified and marked as close to its source as

possible. The trust boundary identifies at which device marked traffic should be
trusted. Traffic marked on VoIP phones would be considered trusted as it moves
into the enterprise network.
71. What are two benefits of extending access layer connectivity to users
through a wireless medium? (Choose two.)
 reduced costs
 decreased number of critical points of failure
 increased flexibility
 increased bandwidth availability
 increased network management options
72. What are two purposes of launching a reconnaissance attack on a

network? (Choose two.)
 to scan for accessibility

 to retrieve and modify data
129
CCNA 3 V7
 to gather information about the network and devices
 to prevent other users from accessing the system
 to escalate access privileges
73. A group of users on the same network are all complaining about their
computers running slowly. After investigating, the technician determines
that these computers are part of a zombie network. Which type of malware is
used to control these computers?
 botnet
 spyware
 virus
 rootkit

single entry:
access-list 101 permit tcp 10.1.1.0 0.0.0.255 host 192.31.7.45 eq dns .

 permitted
 denied
75. Refer to the exhibit. From which location did this router load the IOS?
 flash memory
130
CCNA 3 V7
 NVRAM?
 RAM
 ROM
 a TFTP server?
 XML
 YAML
 HTML
 JSON
Explanation: The common data formats that are used in many applications
including network automation and programmability are as follows:
 JavaScript Object Notation (JSON) – In JSON, the data known as an object is

one or more key/value pairs enclosed in braces { }. Keys must be strings
within double quotation marks ” “. Keys and values are separated by a colon.
 eXtensible Markup Language (XML) – In XML, the data is enclosed within a
related set of tags <tag>data</tag>.
 YAML Ain’t Markup Language (YAML) – In YAML, the data known as an
object is one or more key value pairs. Key value pairs are separated by a
colon without the use of quotation marks. YAML uses indentation to define
its structure, without the use of brackets or commas.
77. What QoS step must occur before packets can be marked?
 classifying
 shaping
 queuing
 policing
78. What is the main function of a hypervisor?
 It is used to create and manage multiple VM instances on a host

machine.
131
CCNA 3 V7
 It is a device that filters and checks security credentials.
 It is a device that synchronizes a group of sensors.
 It is software used to coordinate and prepare data for analysis.
 It is used by ISPs to monitor cloud computing resources.
79. A company needs to interconnect several branch offices across a

metropolitan area. The network engineer is seeking a solution that provides
high-speed converged traffic, including voice, video, and data on the same
network infrastructure. The company also wants easy integration to their
existing LAN infrastructure in their office locations. Which technology should
be recommended?
 Frame Relay
 Ethernet WAN
 VSAT
 ISDN
80. Refer to the exhibit. As traffic is forwarded out an egress interface with
QoS treatment, which congestion avoidance technique is used?
 traffic shaping
 weighted random early detection
 classification and marking
 traffic policing
Explanation: Traffic shaping buffers excess packets in a queue and then forwards
the traffic over increments of time, which creates a smoothed packet output rate.
Traffic policing drops traffic when the amount of traffic reaches a configured
maximum rate, which creates an output rate that appears as a saw-tooth with
crests and troughs.

single entry:
access-list 101 permit tcp 10.1.1.0 0.0.0.255 host 10.1.3.8 eq dns .

132
CCNA 3 V7
 denied
 permitted
82. Refer to the exhibit. What is the purpose of the command marked with an
arrow shown in the partial configuration output of a Cisco broadband
router?
 defines which addresses are allowed into the router

 defines which addresses can be translated
 defines which addresses are assigned to a NAT pool
 defines which addresses are allowed out of the router
83. If a router has two interfaces and is routing both IPv4 and IPv6 traffic,
how many ACLs could be created and applied to it?
 12
 4
 8
 16
 6
84. Refer to the exhibit. An administrator first configured an extended ACL as

shown by the output of the show access-lists command. The administrator
then edited this access-list by issuing the commands below.
133
CCNA 3 V7
Router(config)# ip access-list extended 101

Router(config-ext-nacl)# no 20
Router(config-ext-nacl)# 5 permit tcp any any eq 22
Router(config-ext-nacl)# 20 deny udp any any
Which two conclusions can be drawn from this new configuration? (Choose
two.)
 TFTP packets will be permitted.

 Ping packets will be permitted.
 Telnet packets will be permitted.
 SSH packets will be permitted.
 All TCP and UDP packets will be denied.
Explanation: After the editing, the final configuration is as follows:

Router# show access-lists
Extended IP access list 101
5 permit tcp any any eq ssh
10 deny tcp any any
20 deny udp any any
30 permit icmp any any
So, only SSH packets and ICMP packets will be permitted.
85. Which troubleshooting approach is more appropriate for a seasoned

network administrator rather than a less-experienced network
administrator?
 a less-structured approach based on an educated guess

 an approach comparing working and nonworking components to spot
significant differences
 a structured approach starting with the physical layer and moving up
through the layers of the OSI model until the cause of the problem is
identified
 an approach that starts with the end-user applications and moves down
through the layers of the OSI model until the cause of the problem has been
identified
86. Refer to the exhibit. Many employees are wasting company time
accessing social media on their work computers. The company wants to stop
this access. What is the best ACL type and placement to use in this situation?
134
CCNA 3 V7
– extended ACL outbound on R2 WAN interface towards the internet
– standard ACL outbound on R2 WAN interface towards the internet
– standard ACL outbound on R2 S0/0/0
– extended ACLs inbound on R1 G0/0 and G0/1 (Answer)
87. Refer to the exhibit. An administrator is trying to configure PAT on R1,

but PC-A is unable to access the Internet. The administrator tries to ping a
server on the Internet from PC-A and collects the debugs that are shown in
the exhibit. Based on this output, what is most likely the cause of the
problem?
 The inside and outside NAT interlaces have been configured backwards
 The inside global address is not on the same subnet as the ISP
 The address on Fa0/0 should be 64.100.0.1.
 The NAT source access list matches the wrong address range.
Explanation: The output of debug ip nat shows each packet that is translated by
the router. The “s” is the source IP address of the packet and the “d” is the
destination. The address after the arrow (“->”) shows the translated address. In
this case, the translated address is on the 209.165.201.0 subnet but the ISP facing
interface is in the 209.165.200.224/27 subnet. The ISP may drop the incoming
packets, or might be unable to route the return packets back to the host because
the address is in an unknown subnet.
88. Why is QoS an important issue in a converged network that combines

voice, video, and data communications?
 Data communications must be given the first priority.

 Voice and video communications are more sensitive to latency.
 Legacy equipment is unable to transmit voice and video without QoS.
 Data communications are sensitive to jitter.
89. Which statement describes a VPN?

135
CCNA 3 V7
 VPNs use logical connections to create public networks through the Internet.
 VPNs use open source virtualization software to create the tunnel through
the Internet.
 VPNs use dedicated physical connections to transfer data between remote
users.
 VPNs use virtual connections to create a private network through a
public network.
90. In which OSPF state is the DR/BDR election conducted?
 ExStart
 Init
 Two-Way
 Exchange
91. Two corporations have just completed a merger. The network engineer
has been asked to connect the two corporate networks without the expense
of leased lines. Which solution would be the most cost effective method of
providing a proper and secure connection between the two corporate
networks?
 Cisco Secure Mobility Clientless SSL VPN

 Frame Relay
 remote access VPN using IPsec
 Cisco AnyConnect Secure Mobility Client with SSL
 site-to-site VPN
92. What is the final operational state that will form between an OSPF DR and
a DROTHER once the routers reach convergence?
 loading
 established
 full
 two-way
93. Refer to the exhibit. If the switch reboots and all routers have to re-
establish OSPF adjacencies, which routers will become the new DR and BDR?
136
CCNA 3 V7
Explanation: OSPF elections of a DR are based on the following in order of

precedence:
 highest pritority from 1 -255 (0 = never a DR)

 highest router ID
 highest IP address of a loopback or active interface in the absence of a
manually configured router ID. Loopback IP addresses take higher
precedence than other interfaces.
In this case routers R4 and R1 have the highest router priority. Between the two,
R3 has the higher router ID. Therefore, R4 will become the DR and R1 will become
the BDR.
94. Which type of server would be used to keep a historical record of

messages from monitored network devices?
 DNS
 print
 DHCP
 syslog
 authentication
137
CCNA 3 V7
95. When QoS is implemented in a converged network, which two factors can
be controlled to improve network performance for real-time traffic? (Choose
two.)
 packet addressing
 delay
 jitter
 packet routing
 link speed

network?
97. What protocol sends periodic advertisements between connected Cisco

devices in order to learn device name, IOS version, and the number and type
of interfaces?
 CDP
 SNMP
 NTP
 LLDP

 0.0.0.127
 0.0.0.31
 0.0.3.255
 0.0.0.63
99. Refer to the exhibit. An administrator configures the following ACL in

order to prevent devices on the 192.168.1.0 subnet from accessing the server
at 10.1.1.5:
access-list 100 deny ip 192.168.1.0 0.0.0.255 host 10.1.1.5

138
CCNA 3 V7
Where should the administrator place this ACL for the most efficient use of
network resources?
 inbound on router A Fa0/0

 outbound on router B Fa0/0
 outbound on router A Fa0/1
 inbound on router B Fa0/1
100. Which type of OSPFv2 packet is used to forward OSPF link change
information?
 link-state acknowledgment
 hello
101. What protocol synchronizes with a private master clock or with a

publicly available server on the internet?
 MPLS
 CBWFQ
 TFTP
 NTP
102. Which type of VPN allows multicast and broadcast traffic over a secure
site-to-site VPN?

 SSL VPN
 GRE over IPsec
139
CCNA 3 V7
103. An OSPF router has three directly connected networks; 10.0.0.0/16,
10.1.0.0/16, and 10.2.0.0/16. Which OSPF network command would
advertise only the 10.1.0.0 network to neighbors?

104. Refer to the exhibit. Which sequence of commands should be used to

configure router A for OSPF?
router ospf 1
network 192.168.10.0 area 0
router ospf 1
network 192.168.10.0
router ospf 1
network 192.168.10.64 255.255.255.192
network 192.168.10.192 255.255.255.252
router ospf 1
network 192.168.10.64 0.0.0.63 area 0
network 192.168.10.192 0.0.0.3 area 0

 0.0.7.255
 0.0.1.255
 0.0.3.255
 0.0.15.255
106. How does virtualization help with disaster recovery within a data
center?
 improvement of business practices

 supply of consistent air flow
 support of live migration
 guarantee of power
Explanation: Live migration allows moving of one virtual server to another virtual
server that could be in a different location that is some distance from the original
data center.
140
CCNA 3 V7
107. Refer to the exhibit. If no router ID was manually configured, what
would router R1 use as its OSPF router ID?
 10.0.0.1
 10.1.0.1
 192.168.1.100
 209.165.201.1
108. Refer to the exhibit. Which devices exist in the failure domain when
switch S3 loses power?
 S4 and PC_2
 PC_3 and AP_2
 AP_2 and AP_1
 PC_3 and PC_2
 S1 and S4
A failure domain is the area of a network that is impacted when a critical device
such as switch S3 has a failure or experiences problems.
109. Which set of access control entries would allow all users on the
192.168.10.0/24 network to access a web server that is located at
172.17.80.1, but would not allow them to use Telnet?
access-list 103 deny tcp host 192.168.10.0 any eq 23

access-list 103 permit tcp host 192.168.10.1 eq 80
141
CCNA 3 V7
access-list 103 permit tcp 192.168.10.0 0.0.0.255 host 172.17.80.1 eq 80
access-list 103 permit tcp 192.168.10.0 0.0.0.255 any eq 80

access-list 103 permit 192.168.10.0 0.0.0.255 host 172.17.80.1

access-list 103 deny tcp 192.168.10.0 0.0.0.255 any eq telnet
For an extended ACL to meet these requirements the following need to be included
in the access control entries:
identification number in the range 100-199 or 2000-2699
permit or deny parameter
protocol
source address and wildcard
destination address and wildcard
port number or name
110. Refer to the exhibit. A network administrator needs to add an ACE to the
TRAFFIC-CONTROL ACL that will deny IP traffic from the subnet
172.23.16.0/20. Which ACE will meet this requirement?
 5 deny 172.23.16.0 0.0.15.255

 5 deny 172.23.16.0 0.0.255.255
 15 deny 172.23.16.0 0.0.15.255
 30 deny 172.23.16.0 0.0.15.255

building a link-state database based on received LSAs?

112. What protocol uses agents, that reside on managed devices, to collect
and store information about the device and its operation?
 SYSLOG
 TFTP
142
CCNA 3 V7
 CBWFQ
 SNMP

 0.0.0.63
 0.0.0.255
 0.0.0.31
 0.0.0.15
114. When will an OSPF-enabled router transition from the Down state to the
Init state?
 when an OSPF-enabled interface becomes active

 as soon as the router starts
 when the router receives a hello packet from a neighbor router
 as soon as the DR/BDR election process is complete
115. What type of traffic is described as having a high volume of data per
packet?
 data
 video
 voice
116. What protocol is a vendor-neutral Layer 2 protocol that advertises the

identity and capabilities of the host device to other connected network
devices?
 LLDP
 NTP
 TFTP
 SNMP

running an algorithm to determine the best path to each destination?

143
CCNA 3 V7
118. Refer to the exhibit. Which conclusion can be drawn from this OSPF
multiaccess network?
 If the DR stops producing Hello packets, a BDR will be elected, and then it
promotes itself to assume the role of DR.
 With an election of the DR, the number of adjacencies is reduced from 6
to 3.*
 When a DR is elected all other non-DR routers become DROTHER.
 All DROTHER routers will send LSAs to the DR and BDR to multicast
224.0.0.5.
On OSPF multiaccess networks, a DR is elected to be the collection and distribution

point for LSAs sent and received. A BDR is also elected in case the DR fails. All
other non-DR or BDR routers become DROTHER. Instead of flooding LSAs to all
routers in the network, DROTHERs only send their LSAs to the DR and BDR using
the multicast address 224.0.0.6. If there is no DR/BDR election, the number of
required adjacencies is n(n-1)/2 = > 4(4-1)/2 = 6. With the election, this number is
reduced to 3.
119. Refer to the exhibit. The network administrator has an IP address of

192.168.11.10 and needs access to manage R1. What is the best ACL type and
placement to use in this situation?
144
CCNA 3 V7

120. Which type of VPN connects using the Transport Layer Security (TLS)
feature?
 SSL VPN
 GRE over IPsec
121. Which group of APIs are used by an SDN controller to communicate with
various applications?
145
CCNA 3 V7
 eastbound APIs
 westbound APIs
 northbound APIs
 southbound APIs
122. A company has consolidated a number of servers and it is looking for a

program or firmware to create and control virtual machines which have
access to all the hardware of the consolidated servers. What service or
technology would support this requirement?
 Cisco ACI
 Type-1 hypervisor
 APIC-EM
123. What command would be used as part of configuring NAT or PAT to

identify inside local addresses that are to be translated?
 ip nat inside source list 24 interface serial 0/1/0 overload

 ip nat inside source list 14 pool POOL-STAT overload
 ip nat inside source list ACCTNG pool POOL-STAT
124. Anycompany has decided to reduce its environmental footprint by

reducing energy costs, moving to a smaller facility, and promoting
telecommuting, what service or technology would support requirement?
 -Cloud services
 Data center
 APIC-EM
 Cisco ACI
125. Refer to the exhibit. An administrator is trying to back up the current

running configuration of the router to a USB drive, and enters the command
copy usbflash0:/R1-config running-config on the router command line. After
removing the USB drive and connecting it to a PC, the administrator
discovers that the running configuration was not properly backed up to the
146
CCNA 3 V7
R1-config file. What is the problem?
 The file already exists on the USB drive and cannot be overwritten.
 The drive was not properly formatted with the FAT16 file system.
 There is no space left on the USB drive.
 The USB drive is not recognized by the router.
 The command that the administrator used was incorrect.
126. Which three types of VPNs are examples of enterprise-managed site-to-

site VPNs? (Choose three.)

 IPsec VPN
 Cisco Dynamic Multipoint VPN
 GRE over IPsec VPN
 clientless SSL VPN
 client-based IPsec VPN
127. Refer to the exhibit. Employees on 192.168.11.0/24 work on critically

sensitive information and are not allowed access off their network. What is
147
CCNA 3 V7
the best ACL type and placement to use in this situation?

 standard ACL inbound on R1 G0/1
 extended ACL inbound on R3 S0/0/1
128. In an OSPF network which two statements describe the link-state

database (LSDB)? (Choose two.)
 It can be viewed by using the show ip ospf database command.

 A neighbor table is created based on the LSDB.
 It contains a list of only the best routes to a particular network.
 It contains a list of all neighbor routers to which a router has established
bidirectional communication.
 All routers within an area have an identical link-state database.
129. In an OSPF network which OSPF structure is used to create the neighbor
table on a router?
 adjacency database
 link-state database
 routing table
 forwarding database
130. What protocol is used in a system that consists of three elements–a

manager, agents, and an information database?
 MPLS
148
CCNA 3 V7
 SYSLOG
 SNMP
 TFTP
131. What type of traffic is described as not resilient to loss?
 data
 video
 voice
132. Refer to the exhibit. Router R1 is configured with static NAT. Addressing
on the router and the web server are correctly configured, but there is no
connectivity between the web server and users on the Internet. What is a
possible reason for this lack of connectivity?
 Interface Fa0/0 should be configured with the command ip nat outside .

 The inside global address is incorrect.
 The router NAT configuration has an incorrect inside local address.
 The NAT configuration on interface S0/0/1 is incorrect.
133. Which type of API would be used to allow authorized salespeople of an

organization access to internal sales data from their mobile devices?
 open
 partner
 public
 private
149
CCNA 3 V7
 XML
 HTML
 YAML
 JSON

single entry:
access-list 101 permit udp 192.168.100.32 0.0.0.7 host 198.133.219.76 eq telnet .
If a packet with a source address of 198.133.219.100, a destination address

of 198.133.219.170, and a protocol of 23 is received on the interface, is the
packet permitted or denied?
 denied
 permitted
136. How does virtualization help with disaster recovery within a data
center?
 Hardware does not have to be identical.

 Power is always provided.
 Less energy is consumed.
 Server provisioning is faster.
137. What protocol is a vendor-neutral Layer 2 protocol that advertises the

identity and capabilities of the host device to other connected network
devices?
 NTP
 LLDP
 SNMP
 MPLS
138. Which type of VPN uses a hub-and-spoke configuration to establish a full

mesh topology?
150
CCNA 3 V7
 MPLS VPN
 GRE over IPsec
139. What is a characteristic of the REST API?
 A. evolved into what became SOAP

 B. used for exchanging XML structured information over HTTP or SMTP
 C. considered slow, complex, and rigid
 D. most widely used API for web services

network?

141. A student, doing a summer semester of study overseas, has taken

hundreds of pictures on a smartphone and wants to back them up in case of
loss. What service or technology would support this requirement?
 Cisco ACI
 cloud services
142. Consider the following access list that allows IP phone configuration file
transfers from a particular host to a TFTP server:
R1(config)# access-list 105 permit udp host 10.0.70.23 host 10.0.54.5 range 1024
5000
R1(config)# access-list 105 deny ip any any
Which method would allow the network administrator to modify the ACL and
include FTP transfers from any source IP address?

R1(config-if)# no ip access-group 105 out
R1(config)# no access-list 105
151
CCNA 3 V7
R1(config)# access-list 105 permit udp host 10.0.70.23 host 10.0.54.5 range 1024
5000
R1(config)# access-list 105 permit tcp any host 10.0.54.5 eq 20
R1(config)# access-list 105 permit tcp any host 10.0.54.5 eq 21
R1(config)# access-list 105 deny ip any any
143. Which three statements are generally considered to be best practices in

the placement of ACLs? (Choose three.)
 Filter unwanted traffic before it travels onto a low-bandwidth link.

 Place standard ACLs close to the destination IP address of the traffic.
 Place standard ACLs close to the source IP address of the traffic.
 Place extended ACLs close to the destination IP address of the traffic.
 Place extended ACLs close to the source IP address of the traffic.
 For every inbound ACL placed on an interface, there should be a matching
outbound ACL.
144. Match the term to the web link

http://www.buycarsfromus.com/2020models/ford/suv.html#Escape
component. (Not all options are used.)
Http —-> Protocol
buycarsfromus.com/2020models/ford/suv.html#Escape —-> URN
http://www.buycarsfromus.com/2020models/ford/suv.html —-> URL
http://www.buycarsfromus.com/2020models/ford/suv.html#Escape —-> URI
#Escape —- Fragment

ccnaexecice

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

ccnaexecice

Uploaded by

Copyright:

Available Formats

1

CCNA 3 V7 MODULES 1 – 2: OSPF CONCEPTS AND CONFIGURATION EXAM

1. What is a function of OSPF hello packets?

 to send specifically requested link-state records

2. Which OPSF packet contains the different types of link-state

3. Which three statements describe features of the OSPF topology table?

 It is a link-state database that represents the network topology.

4. What does an OSPF area contain?

 routers that share the same router ID

5. What is used to facilitate hierarchical routing in OSPF?

 the use of multiple areas

7. Which step does an OSPF-enabled router take immediately after

 builds the topology table

Explanation: The OSPF operation steps are as follows:

1. Establish neighbor adjacencies

8. A network engineer has manually configured the hello interval to 15

 R1 automatically adjusts its own timers to match the R2 timers.

Explanation: The database description (DBD) packet contains an abbreviated list

13. In an OSPF network when are DR and BDR elections required?

 when the two adjacent neighbors are interconnected over a point-to-point

Explanation: When the routers are interconnected over a common Ethernet

14. When an OSPF network is converged and no network topology change

 when a network topology change is detected (incremental updates)

 a loopback interface that is configured with the highest IP address on the

 to uniquely identify the router within the OSPF domain

Explanation: OSPF router ID does not contribute to SPF algorithm calculations,

Explanation: In OSPFv2, a Cisco router uses a three-tier method to derive its

18. A network technician issues the following commands when configuring a

R1(config)# router ospf 11

What does the number 11 represent?

 the OSPF process ID on R1

Explanation: There is no autonomous system number to configure on OSPF. The

19. An OSPF router has three directly connected networks; 172.16.0.0/16,

 router(config-router)# network 172.16.1.0 0.0.255.255 area 0

Explanation: To advertise only the 172.16.1.0/16 network the wildcard mask

 R3 will be elected BDR.

Explanation: OSPF elections of a DR are based on the following in order of

 highest pritority from 1 -255 (0 = never a DR)

Explanation: The formula used to calculate the OSPF cost is as follows:

Cost = reference bandwidth / interface bandwidth

The default reference bandwidth is 10^8 (100,000,000); therefore, the formula is

Cost = 100,000,000 bps / interface bandwidth in bps

Thus the cost to reach the A LAN 172.16.1.0/24 from B is as follows:

25. What command would be used to determine if a routing protocol-

26. Refer to the exhibit. Which command did an administrator issue to

 R1# show ip ospf interface serial0/0/1

 show ip interface brief

28. Refer to the exhibit. A network administrator has configured OSPFv2 on

Explanation: If a LAN network is not advertised using OSPFv2, a remote network

 Configure a value using the router-id command.

Explanation: A Cisco router is assigned a router ID to uniquely identify it. It can be

 load balancing equal-cost paths

31. An administrator is configuring single-area OSPF on a router. One of the

32. What is the format of the router ID on an OSPF-enabled router?

 a unique router host name that is configured on the router

Explanation: A router ID is a 32-bit number formatted like an IPv4 address and

33. Question as presented:

DUAL is the algorithm used by EIGRP. In multiarea OSPF, OSPF is implemented

 HQ# copy running-config startup-config

Explanation: To modify a router-id on an OSPF-enabled router, it is necessary to

35. In an OSPFv2 configuration, what is the effect of entering the command

Explanation: Entering the command network 192.168.1.1 0.0.0.0 area 0 will

 to force that specific link to be used in the destination route

Explanation: By default, Fast Ethernet, Gigabit, and 10 Gigabit Ethernet interfaces
