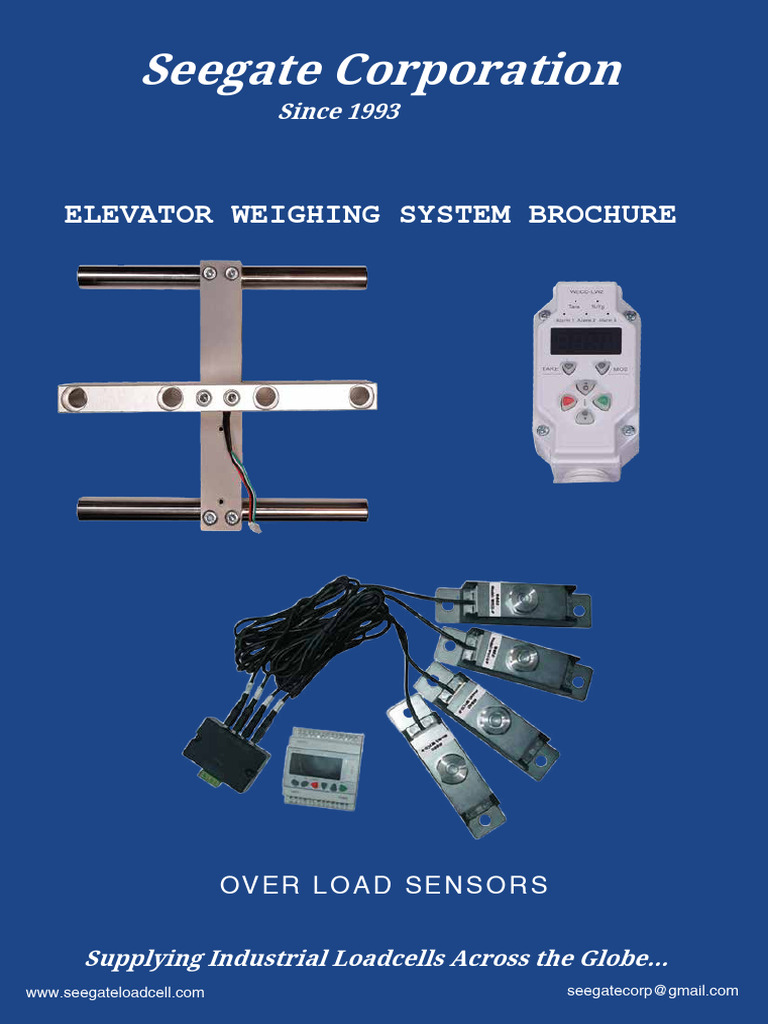

ELEVATOR WEIGHING SYSTEM BROCHURE

OV ER L O A D SE N S O R S

Supplying Industrial Loadcells Across the Globe...

www.seegateloadcell.com seegatecorp@gmail.com
OVER LOAD SENSOR (ROPE MOUNT) SE.LW2

Overload weighing system with extremely

high performance/cost ratio.

Meet requirements of EN81.

Controller configured with 6 keys and 4 digits

LED display.

The integrated control unit requires no

additional cable to connect the sensor and
control unit.

Easy installation, very quick to install

multi-rope sensors.

Suitable for steel rope with 4-16mm diameter.

INSTALLATION ON WIRE ROPES

TECHNICAL DETAILS
Power Supply Voltage AC/DC16~65V Analog Output (Optional)
Power Rating ≤4 W Galvanically Isolated ɴ

Alarm Relays 3 Hold Input 12V - 230V AC/DC

Max. Switching Voltage 250V AC Rope Diameter 4mm - 16mm
Max. Peak Current 5A Measuring Range 300kg - 2500kg
3000
Rated Current 3A Maximum Load 3500kg
5000kg
Rated Load (Resistive) in AC1 800 VA Dimensions 210mm x 230mm x 130mm
Rated Load (Inductive) in AC15 200 VA Length of Cable Set 3m (Standard)

www.seegateloadcell.com seegatecorp@gmail.com
OVER LOAD SENSOR (ROPE MOUNT) SE.LW3

ONE-FOR-ALL

Overload weighing system with extremely

high performance/cost ratio.

Meet requirements of EN81.

Controller configured with 6 keys and 4 digits

LED display.

The integrated control unit requires no

additional cable to connect the sensor and
control unit.

Easy installation, very quick to install

multi-rope sensors.

Suitable for steel rope with 4-16mm diameter.

INSTALLATION ON WIRE ROPES SE.CR.08

TECHNICAL DETAILS
Power Supply Voltage AC/DC16~65V Analog Output (Optional)
Power Rating ≤4W Galvanically Isolated ɴ

Alarm Relays 3 Hold Input 12V - 230V AC/DC

Max. Switching Voltage 250V AC Rope Diameter 4mm - 16mm
Max. Peak Current 5A Measuring Range 300kg - 3000
2500kg
Rated Current 3A Maximum Load 3500kg
5000kg
Rated Load (Resistive) in AC1 800 VA Dimensions 210mm x 230mm x 130mm
Rated Load (Inductive) in AC15 200 VA Length of Cable Set 3m (Standard)

www.seegateloadcell.com seegatecorp@gmail.com
OVER LOAD SENSOR (UNDER CABIN MOUNT) SE.LW4

SE-LW4 (Under Cabin Mount)

Three types of Calibration: Zero weight,

partial weight or full weight.

Digital programming using keyboard.

Numeric display of 4 digits.

Weight precision of 1%.

5 alarms with relay (zero load, heavy load,

overload, optical and acoustic control).

Load sensors installed under cabin base.

Wide power supply range (AC/DC 16 ~ 65V).

TECHNICAL DETAILS
o
Power Supply Voltage AC/DC16~65V Temperature Range -40 ~ 75 C
Power Rating ≤4W Measuring Channel 2
Alarm Relays 5 Bandwidth 30 HZ
Max. Switching Voltage 380V AC Sampling Rate 100 HZ
Max. Peak Current 16 A Internal Resolution Points ± 32000
Rated Current 8A Acoustic Optic, Electric Alarm Enable
Rated Load (Resistive) in AC1 2500 VA Delayed Alarm Enable
Rated Load (Inductive) in AC15 800 VA High Compensation Enable
