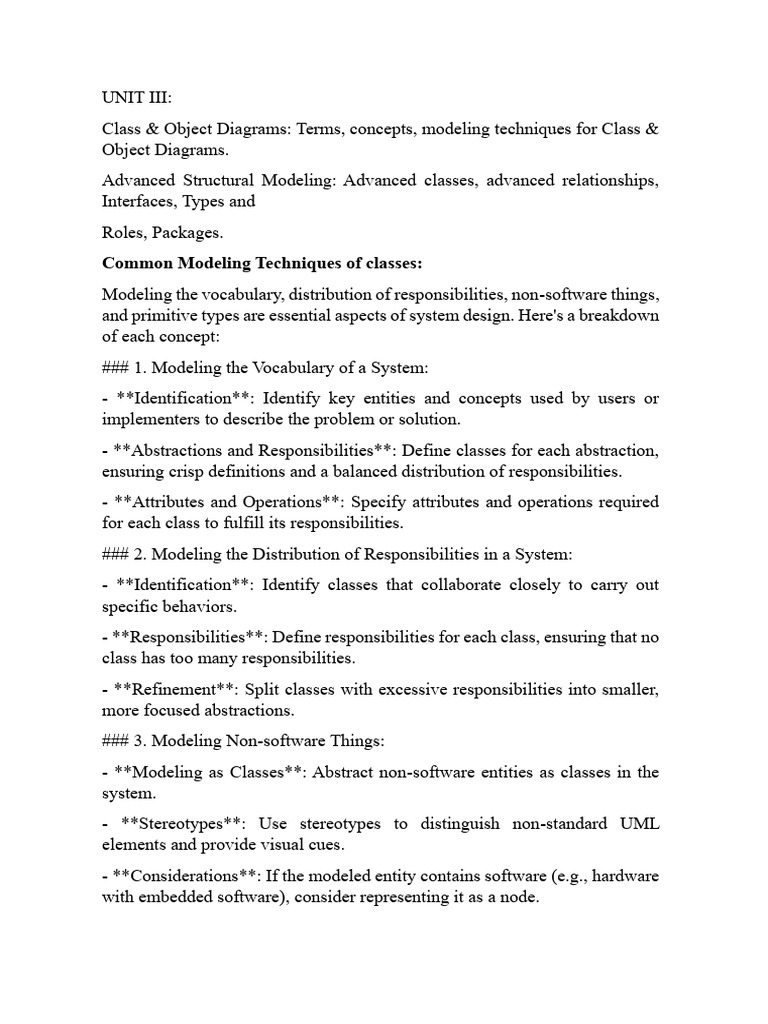

UNIT III:

Class & Object Diagrams: Terms, concepts, modeling techniques for Class &
Object Diagrams.
Advanced Structural Modeling: Advanced classes, advanced relationships,
Interfaces, Types and
Roles, Packages.
Common Modeling Techniques of classes:
Modeling the vocabulary, distribution of responsibilities, non-software things,
and primitive types are essential aspects of system design. Here's a breakdown
of each concept:
### 1. Modeling the Vocabulary of a System:
- **Identification**: Identify key entities and concepts used by users or
implementers to describe the problem or solution.
- **Abstractions and Responsibilities**: Define classes for each abstraction,
ensuring crisp definitions and a balanced distribution of responsibilities.
- **Attributes and Operations**: Specify attributes and operations required
for each class to fulfill its responsibilities.
### 2. Modeling the Distribution of Responsibilities in a System:
- **Identification**: Identify classes that collaborate closely to carry out
specific behaviors.
- **Responsibilities**: Define responsibilities for each class, ensuring that no
class has too many responsibilities.
- **Refinement**: Split classes with excessive responsibilities into smaller,
more focused abstractions.
### 3. Modeling Non-software Things:
- **Modeling as Classes**: Abstract non-software entities as classes in the
system.
- **Stereotypes**: Use stereotypes to distinguish non-standard UML
elements and provide visual cues.
- **Considerations**: If the modeled entity contains software (e.g., hardware
with embedded software), consider representing it as a node.
### 4. Modeling Primitive Types:
- **Modeling Types**: Abstract primitive types as types or enumerations
using class notation with appropriate stereotypes.
- **Constraints**: Specify constraints to define the range of values associated
with primitive types.
By following these modeling principles, designers can effectively capture
the structure, behavior, and relationships within a system, facilitating clear
communication and efficient implementation.
Forward Engineering - It is the process of transforming a model into code
through a mapping to an implementation language .
To forward engineer a class diagram
1) Identify the rules for mapping to your implantation language.
2) Depending upon the semantics of the language you have to constrain.
3) Use tagged values to specify your tagged values.
4) Use tools to forward engineer your models.
Reverse Engineering -transforming code to uml model.
To reverse engineer a class diagram
1) Identify the rules for mapping from your language.
2) Use tools point to code you would like to reverse engineer.
3) Use tool, create a class diagram by querying the model
Common Modeling Techniques of object diagrams:
Modeling object structures involves identifying mechanisms within a system
and representing them through a collaboration of classes, interfaces, and other
elements. Here's how you can model an object structure:
### 1. Identify the Mechanism:
- Recognize the function or behavior you want to model within the system.
### 2. Identify Participants:
- Determine the classes, interfaces, and other elements involved in the
collaboration.
- Establish relationships among these elements.
### 3. Scenario Representation:
- Choose a scenario that illustrates the mechanism and freeze it at a moment
in time.
- Render each participating object in the scenario.
### 4. Expose Object State:
- Display the state and attribute values of each object to understand the
scenario better.
### 5. Expose Object Links:
- Represent associations among objects by exposing the links between them.
### Example:
In the context of an autonomous robot's world model mechanism:
- Objects such as Robot, World, and Elements are involved.
- The Robot object (instance 'r') is shown in the 'moving' state, linked to the
World object ('w').
- 'w' is linked to instances of Area, representing enclosed spaces with walls
and doors.
### Forward and Reverse Engineering:
- **Forward Engineering**: Creating code from a model is theoretically
possible but of limited value in practice.
- **Reverse Engineering**: Creating a model from code is common during
debugging.
- Choose the target context, stop execution, identify relevant objects, and
represent them in an object diagram.
- Expose object states and links for clarity.
- Simplify or expand the diagram as needed for understanding.
By following these steps, designers can effectively model the structures and
behaviors of objects within a system, aiding in understanding and
development processes.
Advanced classes:
The UML provides a comprehensive set of classifiers and features to model
the structural and behavioral aspects of systems. Here's an overview of some
advanced classes and concepts in UML:
### Classifiers:
1. **Interface:** Defines a collection of operations specifying a service of a
class or component.
2. **Data Type:** Represents a type whose values have no identity, including
primitive built-in types and enumerations.
3. **Signal:** Specifies an asynchronous stimulus communicated between
instances.
4. **Component:** Represents a physical and replaceable part of a system,
providing the realization of a set of interfaces.
5. **Node:** Represents a physical element existing at runtime, typically
with memory and processing capability.
6. **Use Case:** Describes a sequence of actions performed by a system
yielding observable results for a particular actor.
7. **Subsystem:** Groups elements, where some specify behavior offered by
others within the subsystem.
### Visibility and Scope:
- **Visibility:** Specifies who can access a feature, with options including
public, protected, and private.
- **Scope:** Determines whether a feature is specific to each instance of a
classifier or shared across all instances.
### Multiplicity:
- **Multiplicity:** Specifies the number of instances a class may have,
indicating the range of allowable cardinalities.
- Multiplicity can be expressed for both classes and attributes, denoting the
number of instances or values.

### Attributes:
- Attributes can have visibility, scope, and multiplicity specified, along with
type, initial value, and changeability.
- Additional properties include changeable, addOnly, and frozen, dictating
constraints on attribute values.
### Operations:
- Operations can define visibility, scope, parameters, return type, concurrency
semantics, and other properties.
- Each operation has a signature comprising its name and parameters,
including direction, name, and type.
### Template Classes:
- Templates are parameterized elements allowing the definition of
parameterized classes.
- Template classes include slots for classes, objects, and values, serving as
parameters for instantiation.
### Standard Elements:
- UML defines four standard stereotypes for classes:
1. Metaclass: Objects are all classes.
2. Powertype: Objects are children of a given parent.
3. Stereotype: Classifier applied to other elements.
4. Utility: Class with attributes and operations class-scoped.
These advanced classes and concepts in UML provide a robust framework for
modeling various aspects of systems, facilitating effective design and
analysis.
Common modelling techniques of advanced classes:
Modeling semantics of class
Modeling the semantics of a class involves specifying various aspects of its
behavior, responsibilities, and constraints. Here's how you can approach it:
1. **Specify Responsibilities:** Identify and document the contract or
obligation of the class. This can be done by attaching a note stereotyped as
"responsibility" to the class or by adding an extra compartment in the class
icon.
2. **Specify Semantics:** Describe the semantics of the class as a whole
using structured text. This can be done by attaching a note stereotyped as
"semantics" to the class.
3. **Define Method Body:** Specify the implementation details of each
method by providing structured text or using a programming language. Attach
this information as a note to the operation using a dependency relationship.
4. **Pre- and Postconditions:** Define the pre- and postconditions of each
operation, as well as the invariants of the class as a whole. This can be done
using structured text and is attached to the operation or class using dependency
relationships. Alternatively, you can use a formal language such as OCL
(Object Constraint Language) to specify these conditions.
5. **State Machine:** If applicable, specify a state machine for the class. A
state machine describes the sequences of states an object goes through during
its lifetime in response to events. Attach the state machine diagram to the
class.
6. **Collaboration:** Specify a collaboration that represents the class. A
collaboration involves a society of roles and elements working together to
provide cooperative behavior. It includes both a structural and dynamic part,
allowing you to specify all dimensions of the class's semantics.
By following these steps and documenting the various aspects of the class's
behavior and constraints, you can effectively model the semantics of the class
in a comprehensive manner.
Advanced Relationships
A relationship is a connection among things. In object-oriented modeling, the
four most important relationships are dependencies, generalizations,
associations, and realizations.
• Graphically, a relationship is rendered as a path, with different kinds of lines
used to distinguish the different relationships.
Here's a breakdown of the advanced relationships in object-oriented
modeling:
1. **Dependency:**
- A dependency specifies that a change in the specification of one thing may
affect another thing that uses it.
 - Stereotypes include `bind`, `derive`, `friend`, `instanceOf`, `instantiate`,
`powertype`, `refine`, and `use`.
- For packages: `access` and `import`.
- For use cases: `extend` and `include`.
- For object interactions: `become`, `call`, and `copy`.
- For state machines: `send`.
- For organizing elements into subsystems and models: `trace`.
2. **Generalization:**
- A generalization is a relationship between a general thing (superclass) and
a more specific kind of that thing (subclass).
- Stereotype: `Implementation`.
- Constraints: `Complete`, `Incomplete`, `Disjoint`, and `Overlapping`.
3. **Association:**
- An association specifies that objects of one thing are connected to objects
of another.
- Basic adornments include name, role, multiplicity, and aggregation.
- Advanced adornments include navigation and qualification.
4. **Realization:**
- A realization is a semantic relationship between classifiers in which one
classifier specifies a contract that another classifier guarantees to carry out.
- Used in the context of interfaces and collaborations.
Visibility - An association between two classes, objects of one class can see
and navigate to objects of the other, unless otherwise restricted by an explicit
statement of navigation.
Qualification: A form of aggregation with strong ownership and coincident
lifetime of the parts by the whole.
Composition
• In a composite aggregation, an object may be a part of only one composite
at a time.
 • For example, in a windowing system, a Frame belongs to exactly one
Window. In a composite aggregation, the whole is responsible for the
disposition of its parts, which means that the composite must manage the
creation and destruction of its parts.
Constraints
1. implicit: The relationship is not manifest but, rather, is only conceptual.
2. ordered: the set of objects at one end of an association are in an explicit
order.
3. changeable: links between objects may be changed.
4. add Only: new links may be added from an object on the opposite end of
association.
5. frozen: a link added may not be modified or deleted.
6. Xor: over a set of associations, exactly one is man fest for each associated
object.
Common Modeling Techniques for advanced relationships:
Modeling webs of relationships in a system involves a systematic approach to
identifying, defining, and representing the various connections between
different elements. Here's a structured process to guide this modeling:
1. **Apply Use Cases and Scenarios:**
- Begin by understanding the system's requirements, functionalities, and
user interactions through the use of use cases and scenarios.
- Use these use cases and scenarios to drive the discovery of relationships
among different abstractions within the system.
2. **Model Structural Relationships:**
- Start by modeling the structural relationships, which represent the static
view of the system.
- Identify and represent associations, aggregations, compositions, and other
structural connections between classes, objects, or other elements.
3. **Identify Generalization/Specialization Relationships:**
- Look for opportunities to define generalization/specialization relationships
between different abstractions.
 - Use multiple inheritance sparingly to avoid complexity and ambiguity in
the model.
4. **Explore Dependencies:**
- Once the structural relationships are established, identify dependencies
between various elements.
- Dependencies often represent more subtle semantic connections and may
include relationships such as associations, dependencies, or realizations.
5. **Start with Basic Forms:**
- Begin by representing each kind of relationship in its basic form.
- Use stereotypes, annotations, or other advanced features only when
necessary to accurately express the intended semantics of the relationship.
6. **Consider Different Views:**
- Recognize that it's unnecessary and impractical to model all relationships
among abstractions in a single diagram.
- Instead, build up the system's relationships by considering different views
or perspectives on the system.
- Highlight interesting sets of relationships in individual diagrams, focusing
on specific aspects or interactions within the system.
Interfaces, Types and Roles
• An interface is a collection of operations that are used to specify a service of
a class or a component. Graphically, an interface is rendered (represented) as
a circle; in its expanded form, an interface may be rendered as a stereotyped
class(a class with stereotype interface)
Names
• Every interface must have a name that distinguishes it from other interfaces
• Two naming mechanism:
• A simple name (only name of the interface).
• A path name is the interface name prefixed by the name of the package in
which that interface lives represented.
Operations:
• To distinguish an interface from a class, prepend an ‗I‘ to every interface
name.
• Operations in an interface may be adorned with visibility properties,
concurrency properties, stereotypes, tagged values, and constraints.
• Interface don't have attributes. interfaces span model boundaries and it
doesn't have direct instances.
Understanding an Interface
• In the UML, you can supply much more information to an interface in order
to make it understandable and approachable.
• First, you may attach pre- and postconditions to each operation and
invariants to the class or component as a whole. By doing this, a client who
needs to use an interface will be able to understand what the interface does
and how to use it, without having to dive into an implementation.
• We can attach a state machine to the interface. You can use this state machine
to specify the legal partial ordering of an interface's operations.
• We can attach collaborations to the interface. You can use collaborations to
specify the expected behavior of the interface through a series of interaction
diagrams. Interface relationships
• An interface may participate in generalization, association, dependency and
realization relationships. Realization is a semantic relationship between two
classifiers in which one classifier specifies a contract that another classifier
guarantees to carry out.
Types and Roles
Type:
• A type is a stereotype of a class used to specify a domain of objects, together
with the operations applicable to the object of that type.
• To distinguish a type from an interface or a class, prepend a ‗T‘ to every
type.
Role
• A role names(indicates) a behavior of an entity participating in a particular
context. Or, a role is the face that an abstraction presents to the world.
 • For example, consider an instance of the class Person. Depending on the
context, that Person instance may play the role of Mother, Comforter,
PayerOfBills, Employee, Customer, Manager, Pilot, Singer, and so on.
• When an object plays a particular role, it presents a face to the world, and
clients that interact with it expect a certain behavior depending on the role that
it plays at the time.
COMMON MODELING TECHNIQUES:
1. **Modeling the Seams in a System:**
- Identify tightly coupled sets of classes and components within your system
by drawing boundaries around them.
- Refine these groupings based on the impact of change, ensuring that
classes/components that change together are grouped together.
- Analyze the operations and signals that cross these boundaries and package
related sets of these operations and signals as interfaces.
- Document collaborations by identifying the interfaces they rely on
(imports) and those they provide to others (exports) using dependency and
realization relationships.
- Document the dynamics of each interface using pre- and postconditions
for operations, as well as use cases and state machines for the interface as a
whole.
2. **Modeling Static and Dynamic Types:**
- For dynamic types, specify the different possible types of an object by
representing each type as a class stereotyped as "type" or as an interface if
only behavior is required.
- Model all the roles a class may take on by explicitly typing each role in its
association with other classes or using generalization relationships.
- In interaction diagrams, properly represent each instance of the
dynamically typed class and display the role of the instance below its name.
- Show changes in the role of an object by representing the object multiple
times for each role it plays in the interaction, connected with messages
stereotyped as "become".
 - For example, in a human resources system, instances of the class Person
may play different roles, such as Employee or Manager, which can be
represented dynamically in interaction diagrams.
Packages ―A package is a general-purpose mechanism for organizing
elements into groups.‖ Graphically, a package is rendered as a tabbed folder.
Names
• Every package must have a name that distinguishes it from other packages.
A name is a textual string.
• That name alone is known as a simple name; a path name is the package
name prefixed by the name of the package in which that package lives
• We may draw packages adorned with tagged values or with additional
compartments to expose their details.
Visibility in UML, whether it's for attributes and operations within a class or
for elements within a package, follows similar principles. Here's a breakdown
of how visibility works within a package:
1. **Public Visibility:**
- Public elements owned by a package are visible to any other package that
imports the enclosing package.
- These elements are accessible from any other part of the model that has
access to the package.
- Public elements are denoted by the symbol `+` preceding their name.
2. **Protected Visibility:**
- Protected elements owned by a package are visible only to children of that
package.
- They cannot be accessed directly from outside the package or its
subclasses.
- Protected elements are denoted by the symbol `#` preceding their name.
3. **Private Visibility:**
- Private elements owned by a package are not visible outside the package
in which they are declared.
- They are restricted in visibility to only the package in which they reside.
 - Private elements are denoted by the symbol `-` preceding their name.
By specifying the appropriate visibility symbol before the name of the element
owned by a package, you control its accessibility to other parts of the model.
This allows you to manage the encapsulation and exposure of elements within
your system effectively.
importing and exporting
In UML, the concepts of importing and exporting are essential for managing
dependencies between different packages or namespaces. Here's how they
work:
1. **Import Relationship:**
- When one package needs to use elements (such as classes, interfaces, etc.)
from another package, it establishes an import relationship.
- In UML, an import relationship is represented by a dependency adorned
with the stereotype "import."
- This import relationship allows the importing package to access the
contents of the target package.
- The import relationship effectively adds the contents of the target package
to the namespace of the importing package.
2. **Access Relationship:**
- Similar to the import relationship, the access relationship also grants access
to the contents of another package.
- However, unlike import, access does not add the contents of the target
package to the namespace of the importing package.
- It only grants visibility to the contents of the target package without
directly adding them to the namespace.
3. **Exports:**
- The public parts of a package, including its classes, interfaces, and other
elements, are referred to as its exports.
- These exported elements are visible only to the contents of other packages
that explicitly import the exporting package.
- Exports define what is made available to other parts of the system.
4. **Transitivity:**
 - Import and access dependencies are not transitive, meaning that just
because one package imports another, it does not automatically inherit the
imports of that package.
- Each package must explicitly declare its dependencies, ensuring clarity
and avoiding unintended consequences.
Generalization
• There are two kinds of relationships you can have between packages: import
and access dependencies used to import into one package elements exported
from another and generalizations, used to specify families of packages
• Generalization among packages is very much like generalization among
classes.
• Packages involved in generalization relationships follow the same principle
of substitutability as do classes. A specialized package is used.
1. facade : : Specifies a package that is only a view on some other package
2. framework : Specifies a package consisting mainly of patterns
3. stub : Specifies a package that serves as a proxy for the public contents of
another package
4. subsystem : Specifies a package representing an independent part of the
entire system being modeled
5. system : Specifies a package representing the entire system being modelled.
COMMON MODELLING TECHNIQUES
These techniques offer structured approaches to organizing and modeling
elements within a system:
1. **Modeling Groups of Elements:**
- Identify clusters of related elements within a specific architectural view.
- Encapsulate each cluster within a package, delineating boundaries.
- Determine the accessibility of elements outside the package. Mark
elements as public, protected, or private based on their intended visibility.
- Establish explicit import dependencies between packages that rely on each
other.
 - If there are specialized packages within a family, connect them to more
general packages using generalization relationships.
2. **Modeling Architectural Views:**
- Determine the significant architectural views for the system, such as
design, process, implementation, deployment, and use case views.
- Place the necessary elements and diagrams for each view into
corresponding packages.
- Further group elements within packages if needed to enhance clarity and
organization.
- Recognize dependencies across different views and ensure that each view
at the top level of the system remains accessible to others at that level.

By following these modeling techniques, you can systematically organize and

represent the various elements and views of a system, promoting clarity,
maintainability, and effective communication among stakeholders.
CASE STUDY ON AI-CRYPTANALYSIS
Certainly! Let's outline a case study on AI: Cryptanalysis, covering its
requirements and explanation in each phase of the software development
lifecycle: inception, elaboration, construction, and transition.
### Phase 1: Inception
#### Requirements:
1. **Problem Statement:** Develop an AI-based system to break
cryptographic algorithms efficiently.
2. **Functionality:**
- Analyze encrypted data.
- Decrypt messages using various cryptographic techniques.
- Optimize decryption process through AI algorithms.
3. **User Roles:**
- Cryptanalysts: Use the system to decrypt messages.
- Administrators: Manage user access and system settings.
4. **Constraints:**
 - System must adhere to encryption laws and regulations.
- Ensure data security and privacy.
5. **Success Criteria:**
- High decryption success rate.
- Performance improvement over traditional methods.
- Compliance with legal and ethical standards.
#### Explanation:
- In the inception phase, the focus is on defining the project scope, objectives,
and initial requirements.
- The team conducts preliminary research on cryptographic techniques and AI
algorithms suitable for cryptanalysis.
- Stakeholder interviews and market analysis help validate the need for such
a system and identify key functionalities.
- Initial risk assessment highlights potential challenges related to legal
compliance, data security, and algorithm accuracy.

### Phase 2: Elaboration

#### Requirements:
1. **Detailed Functionality:**
- Support for various encryption algorithms (e.g., RSA, AES).
- Integration with external databases for cipher pattern recognition.
- User-friendly interface for inputting encrypted data and viewing decrypted
results.
- Real-time feedback mechanism to improve AI model accuracy.
2. **Security Requirements:**
- Encryption of sensitive user data.
- Role-based access control.
- Protection against brute-force attacks.
3. **Performance Requirements:**
 - Scalability to handle large volumes of encrypted data.
- Response time optimization for decryption operations.
4. **Quality Attributes:**
- Accuracy: Minimize false positives and false negatives in decryption.
- Reliability: Ensure system availability and data integrity.
- Maintainability: Support for updates and enhancements.
#### Explanation:
- Elaboration involves refining and detailing the requirements identified in the
inception phase.
- Use cases, domain models, and system architecture diagrams are developed
to visualize system behavior and structure.
- The team conducts feasibility studies to evaluate technology options for AI
algorithms, encryption libraries, and database integration.
- Prototyping and proof-of-concept development help validate the technical
approach and identify potential risks early in the project.
### Phase 3: Construction
#### Requirements:
1. **System Components:**
- AI Model Development: Train machine learning models for cryptanalysis
using labeled datasets.
- Cryptographic Algorithm Implementation: Implement decryption
algorithms for various encryption schemes.
- User Interface Development: Design intuitive interfaces for inputting
encrypted data and displaying decrypted results.
- Backend Services: Develop backend services for data processing,
encryption, and decryption operations.
2. **Testing Requirements:**
- Unit Testing: Validate individual components for correctness and
reliability.
- Integration Testing: Verify interactions between system modules.
 - Performance Testing: Assess system scalability and response times under
different loads.
3. **Deployment Environment:**
- Cloud-based infrastructure for scalability and accessibility.
- Containerization for easy deployment and management.
4. **Data Management:**
- Secure storage of encrypted and decrypted data.
- Compliance with data protection regulations (e.g., GDPR, HIPAA).
#### Explanation:
- Construction focuses on building and integrating system components
according to the detailed requirements and design specifications.
- Development tasks are divided among the team members based on their
expertise and responsibilities.
- Agile methodologies such as Scrum or Kanban are employed for iterative
development and continuous integration.
- Automated testing frameworks are used to ensure the quality and reliability
of the software.
- Regular code reviews and peer feedback sessions help maintain code quality
and consistency.
### Phase 4: Transition
#### Requirements:
1. **Deployment Plan:**
- Rollout strategy for migrating from development to production
environments.
- User training and onboarding materials.
- Documentation for system administrators and end-users.
2. **Post-Deployment Support:**
- Monitoring and maintenance procedures for system health and
performance.
- Bug tracking and resolution processes.
 - Continuous improvement roadmap for future updates and enhancements.
3. **Security Measures:**
- Security audits and penetration testing to identify vulnerabilities.
- Incident response plan for handling security breaches or data leaks.
4. **User Feedback Mechanism:**
- Channels for users to provide feedback and report issues.
- Regular updates based on user suggestions and requirements.
#### Explanation:
- Transition involves preparing the system for deployment and ensuring a
smooth transition from development to production.
- Beta testing and user acceptance testing (UAT) are conducted to gather
feedback and validate the system's readiness for deployment.
- Training sessions and user documentation are provided to facilitate user
adoption and minimize operational disruptions.
- Continuous monitoring and support mechanisms are established to address
any issues that arise post-deployment.
- Feedback from users and system performance metrics inform future updates
and enhancements to the AI Cryptanalysis system.
In summary, the AI Cryptanalysis case study demonstrates the application of
software development lifecycle phases to build an AI-powered system for
breaking cryptographic algorithms. Each phase focuses on specific activities
and deliverables to ensure the successful development, deployment, and
maintenance of the system.
(OR)
In Object-Oriented Analysis and Design (OOAD), AI Cryptanalysis refers to
the process of applying Artificial Intelligence (AI) techniques to
cryptanalysis, which is the study of analyzing and deciphering encrypted
information. In the context of OOAD, AI Cryptanalysis involves designing
and developing software systems that use AI algorithms to break
cryptographic algorithms and decrypt encrypted data.
Here's what AI Cryptanalysis entails in OOAD:
1. **Analysis Phase:**
 - Identify the requirements and objectives of the AI Cryptanalysis system.
- Define the scope of the system, including the types of cryptographic
algorithms it will target for decryption.
- Analyze the potential use cases and scenarios where the AI Cryptanalysis
system will be employed.
- Gather data samples of encrypted information to train and validate AI
models.
2. **Design Phase:**
- Design the architecture of the AI Cryptanalysis system, including the
components responsible for encryption, decryption, and AI-based analysis.
- Specify the interactions between system components, such as how
encrypted data will be inputted, processed, and decrypted.
- Define the algorithms and methodologies to be used for AI-based
cryptanalysis, such as machine learning algorithms for pattern recognition and
neural networks for optimization.
- Design the user interface for interacting with the AI Cryptanalysis system,
including input forms for encrypted data and visualization of decrypted
results.
3. **Implementation Phase:**
- Develop the software components of the AI Cryptanalysis system
according to the design specifications.
- Implement AI algorithms for cryptanalysis, including training and fine-
tuning machine learning models using labeled data.
- Integrate encryption and decryption algorithms into the system, ensuring
compatibility with various cryptographic standards and protocols.
- Implement data processing mechanisms to handle large volumes of
encrypted data efficiently.
- Conduct unit testing and integration testing to verify the correctness and
functionality of the implemented components.
4. **Testing Phase:**
- Perform functional testing to validate that the AI Cryptanalysis system
meets the specified requirements and objectives.
 - Conduct performance testing to assess the system's speed and efficiency in
decrypting encrypted data.
- Test the system's robustness and reliability under different scenarios and
input conditions.
- Validate the accuracy and effectiveness of AI algorithms for cryptanalysis
through validation testing using real-world data samples.
5. **Deployment Phase:**
- Deploy the AI Cryptanalysis system in the production environment,
ensuring compatibility with the target infrastructure and security protocols.
- Provide user training and documentation to facilitate the adoption of the
system by cryptanalysts and other stakeholders.
- Monitor the system's performance and address any issues or bugs that arise
during the initial deployment phase.
- Collect feedback from users and stakeholders to identify areas for
improvement and future enhancements.
In summary, AI Cryptanalysis in OOAD involves designing, developing, and
deploying software systems that leverage AI techniques to analyze and
decipher encrypted information. This process encompasses various phases of
the software development lifecycle, from requirements analysis to
deployment and maintenance, with a focus on designing robust, efficient, and
reliable cryptanalysis solutions.
CHECK DIAGRAMS IN MAIN MATERIAL..!!!
