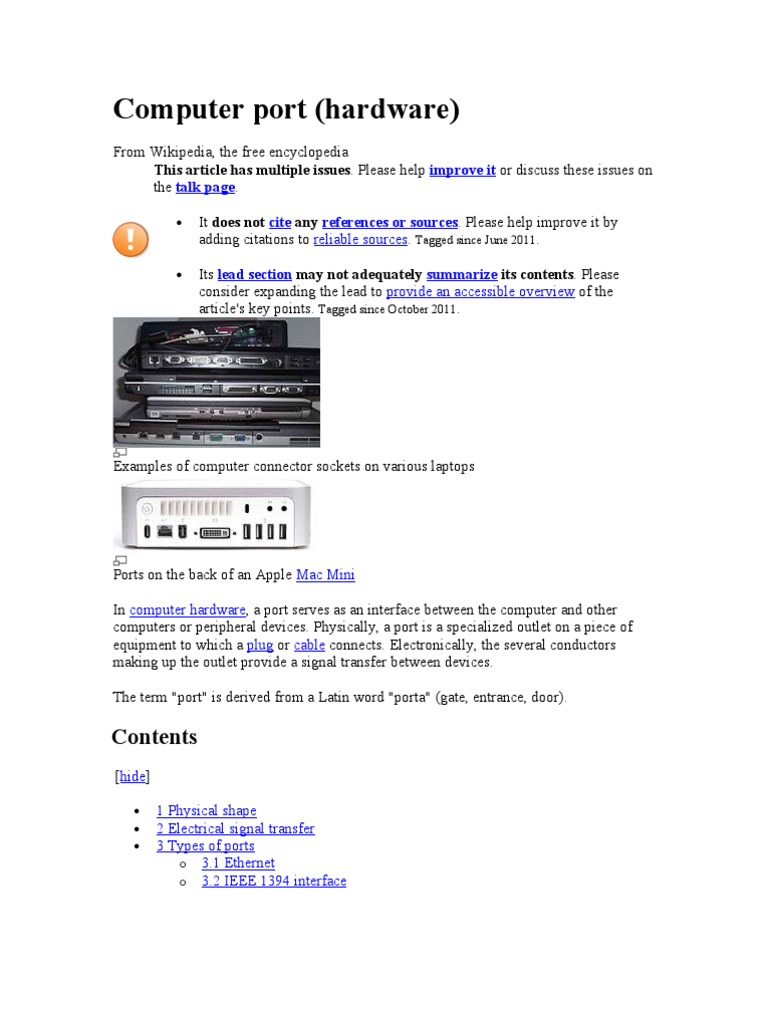

Computer port (hardware)

From Wikipedia, the free encyclopedia This article has multiple issues. Please help improve it or discuss these issues on the talk page.

It does not cite any references or sources. Please help improve it by adding citations to reliable sources. Tagged since June 2011. Its lead section may not adequately summarize its contents. Please consider expanding the lead to provide an accessible overview of the article's key points. Tagged since October 2011.

Examples of computer connector sockets on various laptops

Ports on the back of an Apple Mac Mini In computer hardware, a port serves as an interface between the computer and other computers or peripheral devices. Physically, a port is a specialized outlet on a piece of equipment to which a plug or cable connects. Electronically, the several conductors making up the outlet provide a signal transfer between devices. The term "port" is derived from a Latin word "porta" (gate, entrance, door).

Contents
[hide]

1 Physical shape 2 Electrical signal transfer 3 Types of ports o 3.1 Ethernet o 3.2 IEEE 1394 interface

3.3 Parallel 3.4 PS/2 3.5 Serial 3.6 USB 3.7 VGA 3.8 Digital Visual Interface 3.9 SCSI 3.10 TRS 4 See also 5 References
o o o o o o o o

6 External links

[edit] Physical shape

Hardware ports may be physically male or female, but female ports are much more common. Computer ports in common use cover a wide variety of shapes such as round (PS/2, etc.), rectangular (FireWire, etc.), square (Telephone plug), trapezoidal (D-Sub the old printer port was a DB-25), etc. There is some standardization to physical properties and function. For instance, most computers have a keyboard port (currently a round DIN-like outlet referred to as PS/2), into which the keyboard is connected.

[edit] Electrical signal transfer

Electronically, hardware ports can almost always be divided into two groups based on the signal transfer:

Serial ports send and receive one bit at a time via a single wire pair (Ground and +/-). Parallel ports send multiple bits at the same time over several sets of wires.

After ports are connected, they typically require handshaking, where transfer type, transfer rate, and other necessary information is shared before data are sent. Hot-swappable ports can be connected while equipment is running. Almost all ports on personal computers are hot-swappable. Plug-and-play ports are designed so that the connected devices automatically start handshaking as soon as the hot-swapping is done. USB ports and FireWire ports are plugand-play. Auto-detect or auto-detection ports are usually plug-and-play, but they offer another type of convenience. An auto-detect port may automatically determine what kind of device

has been attached, but it also determines what purpose the port itself should have. For example, some sound cards allow plugging in several different types of audio speakers; then a dialogue box pops up on the computer screen asking whether the speaker is left, right, front, or rear for surround sound installations. The user's response determines the purpose of the port, which is physically a 1/8" tip-ring-sleeve (TRS connector) minijack. Some auto-detect ports can even switch between input and output based on context. As of 2006, manufacturers have nearly standardized colors associated with ports on personal computers, although there are no guarantees. The following is a short list: Main article: PC System Design Guide

Orange, purple, or grey: Keyboard PS/2 Green: Mouse PS/2 Blue or magenta: Parallel printer DB-25 Amber: Serial DB-25 or DB-9 Pastel pink: Microphone 1/8" stereo (TRS) minijack Pastel green: Speaker 1/8" stereo (TRS) minijack

FireWire ports used with video equipment (among other devices) can be either 4-pin or 6pin. The two extra conductors in the 6-pin connection carry electrical power. This is why a self-powered device such as a camcorder often connects with a cable that is 4-pins on the camera side and 6-pins on the computer side, the two power conductors simply being ignored. This is also why laptop computers usually have only 4-pin FireWire ports, as they cannot provide enough power to meet requirements for devices needing the power provided by 6-pin connections. Optical (light) fiber, microwave, and other technologies (i.e., quantum) have different kinds of connections, as metal wires are not effective for signal transfers with these technologies. Optical connections are usually a polished glass or plastic interface, possibly with an oil that lessens refraction between the two interface surfaces. Microwaves are conducted through a pipe, which can be seen on a large scale by examining microwave towers with "funnels" on them leading to pipes. Hardware port trunking (HPT) is a technology that allows multiple hardware ports to be combined into a single group, effectively creating a single connection with a higher bandwidth, sometimes referred to as a double-barrel approach. This technology also provides a higher degree of fault tolerance because a failure on one port may just mean a slow-down rather than a dropout. By contrast, in Software Port Trunking (SPT), two agents (websites, channels, etc.) are bonded into one with the same effectiveness; i.e., ISDN B1 (64K) plus B2 (64K) equals data throughput of 128K.

[edit] Types of ports

[edit] Ethernet

Ethernet port

Ethernet over twisted pair using category 5 cable

8P8C

[edit] IEEE 1394 interface

IEEE 1394 interface

[edit] Parallel

Parallel port

IEEE 1284 36 pin female on a circuitboard

DB-25 connector commonly used for a parallel port

[edit] PS/2

PS/2 connector

Mini-DIN connector

[edit] Serial

Serial port

RS-232

[edit] USB

USB

[edit] VGA

VGA connector

D-sub 15

[edit] Digital Visual Interface

Digital Visual Interface

DVI

[edit] SCSI

SCSI

[edit] TRS

TRS connector
