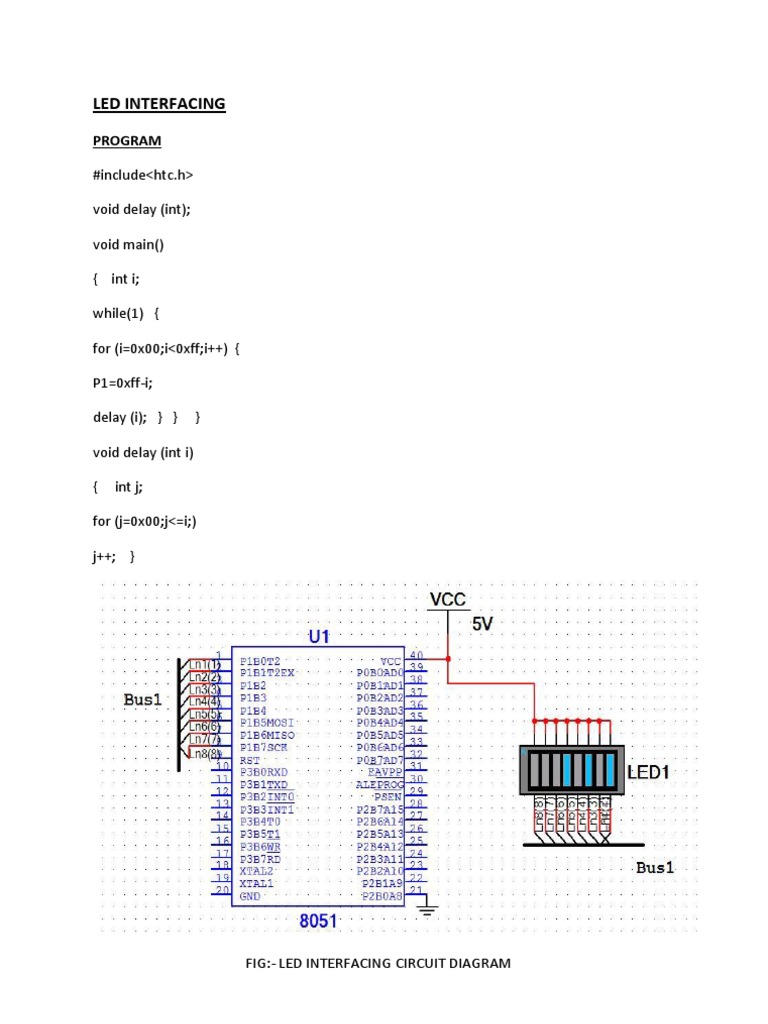

    LED INTERFACING

    PROGRAM
    #include<htc.h>
    void delay (int);
    void main()
    { int i;
    while(1) {
    for (i=0x00;i<0xff;i++) {
    P1=0xff-i;
    delay (i); } }

    void delay (int i)


    {

    int j;

    for (j=0x00;j<=i;)
    j++; }

    FIG:- LED INTERFACING CIRCUIT DIAGRAM

    HEX DISPLAY INTERFACING


    PROGRAM
    #include<htc.h>
    void delay (void);
    void main()
    {int i;
    while(1)
    {for (i=0x00;i<0xff;i++){
    P1=i;
    delay (); } } }
    void delay ()
    { int i;
    for (i=0x00;i<=0x10;)
    { i=i+0x01; }
    return ;}

    FIG:- HEX INTERFACING CIRCUIT DIAGRAM

    LCD INTERFACING
    PROGRAM
    #include<htc.h>
    void data (int);
    void clear_display (void);
    void home_csr (void);
    void delay (int);
    void main()
    { int i;
    while(1) {
    for(i=0x41;i<=0x5a;i++)
    data(i);
    clear_display ();
    home_csr();
    for(i=0x61;i<=0x7a;i++)
    data(i);
    clear_display ();
    home_csr(); } }
    void data (int i)
    { P32=0;
    P32=1;
    P30=0;
    P31=1;
    P1=i;
    delay(0x10); }
    void clear_display ()
    {P32=0;
    P32=1;

    P30=0;
    P31=0;
    P1=0x01;
    delay(0x05); }
    void home_csr ()
    { P32=0;
    P32=1;
    P30=0;
    P31=0;
    P1=0x02;
    delay(0x10); }
    void delay (int i)
    { int j;
    for (j=0x00;j<=i;)
    j++; }

    FIG:- LCD INTERFACING CIRCUIT DIAGRAM

    INTERRUPT INTERFACING
    PROGRAM
    #include<htc.h>
    void delay (int);
    void main()
    { int i=0x00;
    P3=0xff;
    P1=0x00;
    while(1)
    { if(P33)
    { for (;P33;)
    delay(0x10);
    i++;
    P1=i; } } }
    void delay (int i)
    { int j;
    for (j=0x00;j<=i;)
    { j++; }
    return ; }

    FIG:- INTERRUPT INTERFACING CIRCUIT DIAGRAM

    EXAMPLE OF 8051 SYSTEM


    TRAFFIC CONTROL LIGHT

    FIG:- CIRCUIT DIAGRAM

    PROGRAM
    #include<htc.h>
    void delay (int);
    void main ()
    { int i,f=0x05,g=0x06;
    P0=0x00;
    while(1)
    { for (i=0x00;i<=f;i++)
    { P1=i;
    P0=f-i;
    if(f-i>0x02)
    { P3=0xb4;

    delay (0x05);
    P3=0xb8;
    delay (0x05); }
    else
    { P3=0x74;
    delay (0x05);
    P3=0x78;
    delay (0x05); } }
    delay (0x10);
    P0=g;
    P1=0xff;
    P3=0x5f;
    delay (0x10);
    P1=0x00;
    P0=0x00;
    P3=0x5f;
    delay (0x10);
    P0=g;
    P1=0xff;
    P3=0x5f;
    delay (0x10);
    P1=0x00;
    P0=0x00;
    P3=0x5f;
    delay (0x10);
    P0=g;
    P1=0xff;
    P3=0x5f;

    delay (0x10);
    for (i=0x00;i<=g;i++)
    { P1=g-i;
    P0=i;
    if(g-i>0x02)
    { P3=0xd1;
    delay (0x05);
    P3=0xd2;
    delay (0x05); }
    else
    { P3=0xe1;
    delay (0x05);
    P3=0xe2;
    delay (0x05); } }
    delay (0x10);
    P1=f;
    P0=0xff;
    P3=0xa0;
    delay (0x10);
    P1=0x00;
    P0=0x00;
    P3=0xa0;
    delay (0x10);
    P1=f;
    P0=0xff;
    P3=0xa0;
    delay (0x10);
    P1=0x00;

    P0=0x00;
    P3=0xa0;
    delay (0x10);
    P1=f;
    P0=0xff;
    P3=0xa0;
    delay (0x10); } }
    void delay (int y)
    { int j;
    for (j=0x00;j<=y;)
    j++; }
