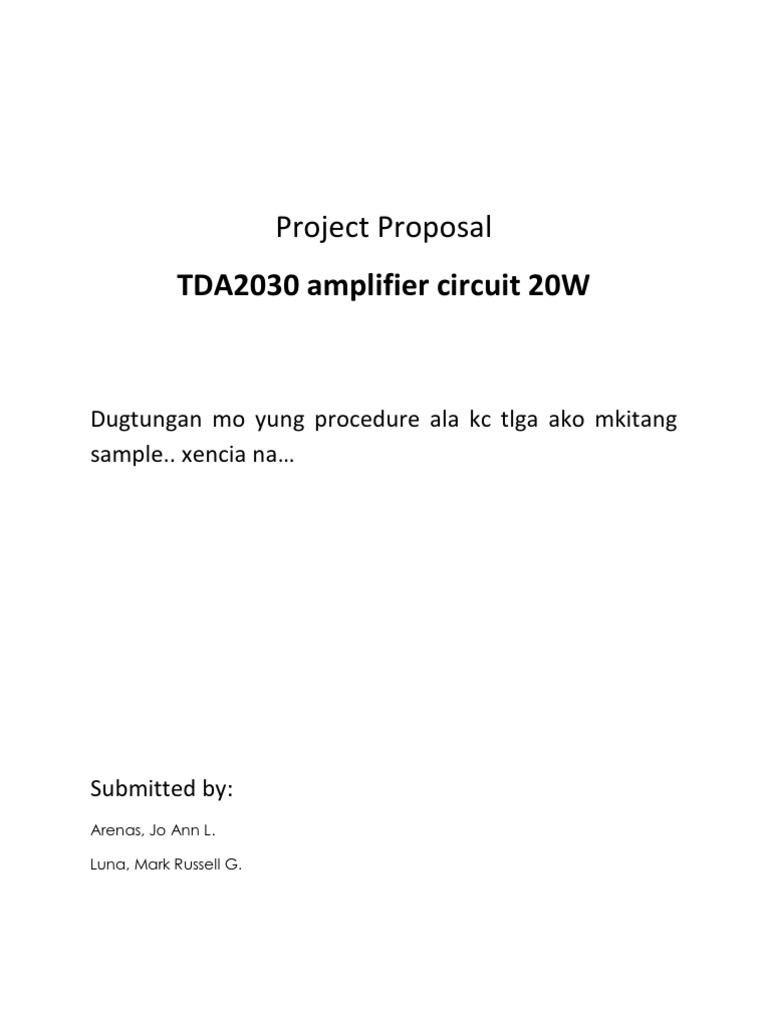

Project Proposal TDA2030 amplifier circuit 20W

Dugtungan mo yung procedure ala kc tlga ako mkitang sample.. xencia na

Submitted by:
Arenas, Jo Ann L. Luna, Mark Russell G.

Rodriguez, Julius Jerome M.

Introduction
An audio amplifier is an electronic amplifier that amplifies low-power audio signals (signals composed primarily of frequencies between 20 - 20 000 Hz, the human range of hearing) to a level suitable for driving loudspeakers and is the final stage in a typical audio playback chain. The preceding stages in such a chain are low power audio amplifiers which perform tasks like preamplification, equalization, tone control, mixing/effects, or audio sources like record players, CD players, and cassette players. Most audio amplifiers require these low-level inputs to adhere to line levels. While the input signal to an audio amplifier may measure only a few hundred microwatts, its output may be tens, hundreds, or thousands of watts.

The purpose of an amplifier is to receive a small electrical signal and enlarge or amplify it. In the case of a pre-amplifier the signal must be amplified enough to be accepted by a power amplifier.

The TDA2030 IC is affordable and makes a good replacement amplifier for low to medium audio power systems. Incidentally, it is speaker efficiency that determines how "loud" your music is. Speaker efficiency or sound pressure level (SPL) is usually quoted in dB/meter. A speaker with an SPL of 97dB/m will sound louder than a speaker with an SPL of 95dB/m. Although the TDA2030 can deliver 20 watts of output power, I deliberately reduced the output power to about 8 watts to supply 10 watt speakers. Input sensitivity is 200mV. Higher input levels naturally will give greater output, but no distortion should be heard. The gain is set by the 47k and 1.5k resistors. Most electronic devices use at least one amplifier, but there are many types of amplifiers. Most amplifiers can be classified in two ways. The first classification is by their function. This means they are basically voltage amplifiers or power amplifiers. The second classification is by their frequency response. In other words what frequencies are they designed to amplify? If you describe an amplifier by these two classifications (function and frequency response) you will have a good working description of the amplifier. You may not know what the exact circuitry is, but you will know what the amplifier does and the frequencies that it is designed to handle The TDA2030 IC is affordable and makes a good replacement amplifier for low to medium audio power systems. Incidentally, it is speaker efficiency that determines how "loud" your music is. Speaker efficiency or sound pressure level (SPL) is usually quoted in dB / meter. A speaker with an SPL of 97dB / m will sound louder than a speaker with an SPL of 95dB / m.

How does it work?

TDA2030 is a monolithic integrated circuit intended for use as a low frequency class AB amplifier. Typically it provides 14W output power (d = 0.5%) at 14V/4 at 14V or 28V, the guaranteed output power is 12W on a 4 load and 8W on a 8 . TheTDA2030 provides high output current and has very low harmonic and cross-over distortion. Further the device incorporates an original (and patented) short circuit protection system comprising an arrangement for automatically limiting the dissipated power so as to keep the working point of the output transistors within their safe operating area

TDA2030 is a very good amplifier IC for low to medium audio systems. On the other hand, speaker efficiency is another main important parameter that determines how loud the sound is. The speaker efficiency or sound pressure level (SPL - in dB/meter) will say you how loud the speaker will sound.

Procedure
In constructing an amplifier first thing you need is to look for the components needed in constructing a TDA2030 amplifier circuit. Try connecting the components on a breadboard as shown in the schematic diagram then apply input needed to see if the constructed circuit is functioning. Transfer the PCB layout on a PCB board.

List of Materials
Component Recommended. Value 22 k; 680 ; 22 k; 1; $3 R2 1 QF 22 QF 0.1 QF 100 QF Purpose Closed loop gain setting Closed loop gain setting Non inverting input biasing Frequency stability Upper frequency cutoff Input DC decoupling Inverting DC decoupling Supply voltage bypass Supply voltage bypass

R1 R2 R3 R4 R5 C1 C2 C3,C4 C5, C6

C7 C8 D1, D2

0.22 QF $TB R12 1N4001

Frequency stability Upper frequency cutoff To protect the device against output voltage spikes

Schematic Diagram

PCB Layout
