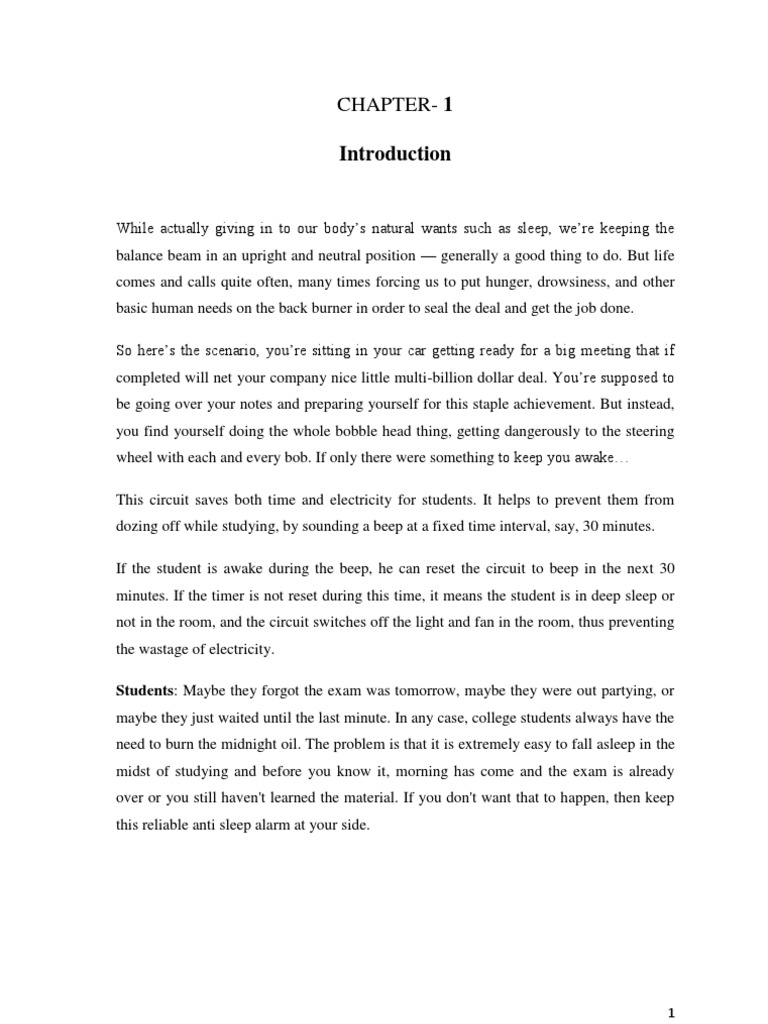

CHAPTER- 1 Introduction

While actually giving in to our bodys natural wants such as sleep, were keeping the balance beam in an upright and neutral position generally a good thing to do. But life comes and calls quite often, many times forcing us to put hunger, drowsiness, and other basic human needs on the back burner in order to seal the deal and get the job done. So heres the scenario, youre sitting in your car getting ready for a big meeting that if completed will net your company nice little multi-billion dollar deal. Youre supposed to be going over your notes and preparing yourself for this staple achievement. But instead, you find yourself doing the whole bobble head thing, getting dangerously to the steering wheel with each and every bob. If only there were something to keep you awake This circuit saves both time and electricity for students. It helps to prevent them from dozing off while studying, by sounding a beep at a fixed time interval, say, 30 minutes. If the student is awake during the beep, he can reset the circuit to beep in the next 30 minutes. If the timer is not reset during this time, it means the student is in deep sleep or not in the room, and the circuit switches off the light and fan in the room, thus preventing the wastage of electricity. Students: Maybe they forgot the exam was tomorrow, maybe they were out partying, or maybe they just waited until the last minute. In any case, college students always have the need to burn the midnight oil. The problem is that it is extremely easy to fall asleep in the midst of studying and before you know it, morning has come and the exam is already over or you still haven't learned the material. If you don't want that to happen, then keep this reliable anti sleep alarm at your side.

CHAPTER- 2 Circuit description

This circuit saves both time and electricity for students. It helps to prevent them from dozing off while studying, by sounding a beep at a fixed time interval, say, 30 minutes. If the student is awake during the beep, he can reset the circuit to beep in the next 30 minutes. If the timer is not reset during this time, it means the student is in deep sleep or not in the room, and the circuit switches off the light and fan in the room, thus preventing the wastage of electricity

2.2 Circuitry

Fig .1 Antisleep Alarm for Students

2

Things Needed for Making this Antisleep Alarm for Students

Relay Bulb Transistor or SCR Push to ON /OFF switches Resistance & capacitor Pizzo buzzer Doide IC: IC CD4020

The circuit is built around Schmitt trigger NAND gate IC CD4093 (IC1), timer IC CD4020 (IC2), transistors BC547, relay RL1 and buzzer. The Schmitt-trigger NAND gate (IC1) is configured as an astable multivibrator to generate clock for the timer (IC2). The time period can be calculated as T=1.38RC. If R=R1+VR1=15 kilo-ohms and C=C2=10 F, youll get T as 0.21 second. Timer IC CD4020 (IC2) is a 14-stage ripple counter. Around half an hour after the reset of IC1, transistors T1, T2 and T3 drive the buzzer to sound an intermediate beep. If IC2 is not reset through S1 at that time, around one minute later the output of gate N4 goes high and transistor T4 conducts. As the output of gate N4 is connected to the clock input (pin 10) of IC2 through diode D3, further counting stops and relay RL1 energises to deactivate all the appliances. This state changes only when IC1 is reset by pressing switch S1. Assemble the circuit on a generalpurpose PCB and enclose it in a suitable cabinet. Mount switch S1 and the buzzer on the front panel and the relay at the back side of the box. Place the 12V battery in the cabinet for powering the circuit. In place of the battery, you can also use a 12V DC adaptor.

CHAPTER- 3 Relay

Ch3,fig 1 Relay

3.1 Introduction
A relay is an electrically operated switch. Many relays use an electromagnet to operate a switching mechanism mechanically, but other operating principles are also used. Relays are used where it is necessary to control a circuit by a low-power signal (with complete electrical isolation between control and controlled circuits), or where several circuits must be controlled by one signal. The first relays were used in long distance telegraph circuits, repeating the signal coming in from one circuit and re-transmitting it to another. Relays
4

were used extensively in telephone exchanges and early computers to perform logical operations.

3.2 Working

Ch3,fig:-2 electromagnetic relay operation

A type of relay that can handle the high power required to directly drive an electric motor is called a contractor. Solid-state relays control power circuits with no moving parts, instead using a semiconductor device to perform switching. Relays with calibrated operating characteristics and sometimes multiple operating coils are used to protect electrical circuits from overload or faults; in modern electric power systems these functions are performed by digital instruments still called "protective relays".

CHAPTER- 4 Transistor
A transistor is a semiconductor device used to amplify and switch electronic signals. It is made of a solid piece of semiconductor material, with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals changes the current flowing through another pair of terminals. Because the controlled (output) power can be much more than the controlling (input) power, the transistor provides amplification of a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits.

The transistor is the fundamental building block of modern electronic devices, and is ubiquitous in modern electronic systems. Following its release in the early 1950s the transistor revolutionised the field of electronics, and paved the way for smaller and cheaper radios, calculators, and computers, amongst other things.

A bipolar (junction) transistor (BJT) is a three-terminal electronic device constructed of doped semiconductor material and may be used in amplifying or switching applications. Bipolar transistors are so named because their operation involves both electrons and holes. Charge flow in a BJT is due to bidirectional diffusion of charge carriers across a junction between two regions of different charge concentrations. This mode of operation is contrasted with unipolar transistors, such as field-effect transistors, in which only one carrier type is involved in charge flow due to drift. By design, most of the BJT collector current is due to the flow of charges injected from a high-concentration emitter into the base where they are minority carriers that diffuse toward the collector, and so BJTs are classified as minority-carrier devices.

4.1 Introduction

Ch 4,Fig:-1 NPN BJT with forward-biased EB junction and reverse-biased BC junction An NPN transistor can be considered as two diodes with a shared anode. In typical operation, the base-emitter junction is forward biased and the basecollector junction is reverse biased. In an NPN transistor, for example, when a positive voltage is applied to the baseemitter junction, the equilibrium between thermally generated carriers and the repelling electric field of the depletion region becomes unbalanced, allowing thermally excited electrons to inject into the base region. These electrons wander (or "diffuse") through the base from the region of high concentration near the emitter towards the region of low concentration near the collector. The electrons in the base are called minority

carriers because the base is doped p-type which would make holes the majority carrier in the base. To minimize the percentage of carriers that recombine before reaching the collectorbase junction, the transistor's base region must be thin enough that carriers can diffuse across it in much less time than the semiconductor's minority carrier lifetime. In particular, the thickness of the base must be much less than the diffusion length of the electrons. The collectorbase junction is reverse-biased, and so little electron injection occurs from the collector to the base, but electrons that diffuse through the base towards the collector are swept into the collector by the electric field in the depletion region of the collectorbase junction. The thin shared base and asymmetric collectoremitter doping is what differentiates a bipolar transistor from two separate and oppositely biased diodes connected in series.

4.2 Voltage, current, and charge control

The collectoremitter current can be viewed as being controlled by the base emitter current (current control), or by the baseemitter voltage (voltage control). These views are related by the currentvoltage relation of the baseemitter junction, which is just the usual exponential currentvoltage curve of a p-n junction (diode)

Ch 4,Fig. 2 Voltage, current, and charge control

The physical explanation for collector current is the amount of minority-carrier charge in the base region.[1][2][3] Detailed models of transistor action, such as the GummelPoon model, account for the distribution of this charge explicitly to explain transistor behavior more exactly.[4] The charge-control view easily handles phototransistors, where minority carriers in the base region are created by the absorption of photons, and handles the dynamics of turn-off, or recovery time, which depends on charge in the base region recombining. However, because base charge is not a signal that is visible at the terminals, the current- and voltage-control views are generally used in circuit design and analysis. In analog circuit design, the current-control view is sometimes used because it is approximately linear. That is, the collector current is approximately F times the base current. Some basic circuits can be designed by assuming that the emitterbase voltage is approximately constant, and that collector current is beta times the base current. However, to accurately and reliably design production BJT circuits, the voltage-control (for example, EbersMoll) model is required[1]. The voltage-control model requires an exponential function to be taken into account, but when it is linearized such that the transistor can be modelled as a transconductance, as in the EbersMoll model, design for circuits such as differential amplifiers again becomes a mostly linear problem, so the voltage-control view is often preferred. For translinear circuits, in which the exponential IV curve is key to the operation, the transistors are usually modelled as voltage controlled with transconductance proportional to collector current. In general, transistor level circuit design is performed using SPICE or a comparable analogue circuit simulator, so model complexity is usually not of much concern to the designer.

Turn-on, turn-off, and storage delay

The Bipolar transistor exhibits a few delay characteristics when turning on and off. Most transistors, and especially power transistors, exhibit long base storage time that limits maximum frequency of operation in switching applications. One method for reducing this storage time is by using a Baker clamp.

Transistor 'alpha' and 'beta'

The proportion of electrons able to cross the base and reach the collector is a measure of the BJT efficiency. The heavy doping of the emitter region and light doping of the base region cause many more electrons to be injected from the emitter into the base than holes to be injected from the base into the emitter. The common-emitter current gain is represented by F or hfe; it is approximately the ratio of the DC collector current to the DC base current in forward-active region. It is typically greater than 100 for small-signal transistors but can be smaller in transistors designed for high-power applications. Another important parameter is the common-base current gain, F. The common-base current gain is approximately the gain of current from emitter to collector in the forward-active region. This ratio usually has a value close to unity; between 0.98 and 0.998. Alpha and beta are more precisely related by the following identities (NPN transistor):

4.3 Structure

Ch4,Fig 3 Simplified cross section of a planar NPN bipolar junction transistor

Ch4,Fig 4 Die of a KSY34 high-frequency NPN transistor, base and emitter connected via bonded wires

10

A BJT consists of three differently doped semiconductor regions, the emitter region, the base region and the collector region. These regions are, respectively, p type, n type and p type in a PNP, and n type, p type and n type in a NPN transistor. Each semiconductor region is connected to a terminal, appropriately labeled: emitter (E), base (B) and collector (C). The base is physically located between the emitter and the collector and is made from lightly doped, high resistivity material. The collector surrounds the emitter region, making it almost impossible for the electrons injected into the base region to escape being collected, thus making the resulting value of very close to unity, and so, giving the transistor a large . A cross section view of a BJT indicates that the collectorbase junction has a much larger area than the emitterbase junction.

NPN

Ch4,Fig5 The symbol of an NPN Bipolar Junction Transistor.

NPN is one of the two types of bipolar transistors, in which the letters "N" (negative) and "P" (positive) refer to the majority charge carriers inside the different regions of the transistor. Most bipolar transistors used today are NPN, because electron mobility is higher than hole mobility in semiconductors, allowing greater currents and faster operation. NPN transistors consist of a layer of P-doped semiconductor (the "base") between two Ndoped layers. A small current entering the base in common-emitter mode is amplified in the collector output. In other terms, an NPN transistor is "on" when its base is pulled high relative to the emitter. The arrow in the NPN transistor symbol is on the emitter leg and points in the direction of the conventional current flow when the device is in forward active mode.

11

One mnemonic device for identifying the symbol for the NPN transistor is "not pointing in, or 'not pointing, no' "[5]

4.4 BC547
NPN general purpose transistors
FEATURES Low current (max. 100 mA) Low voltage (max. 65 V).

APPLICATIONS General purpose switching and amplification. DESCRIPTION NPN transistor in a TO-92; SOT54 plastic package. PNP complements: BC556 and BC557.

12

CHAPTER- 5 Diode 5.1 Introduction

in electronics, a diode is a two-terminal electronic component that conducts electric current in only one direction. The term usually refers to a semiconductor diode, the most common type today. This is a crystalline piece of semiconductor material connected to two electrical terminals.[1] A vacuum tube diode (now little used except in some high-power technologies) is a vacuum tube with two electrodes: a plate and a cathode.

Ch5,fig 1 diode

The most common function of a diode is to allow an electric current to pass in one direction (called the diode's forward bias direction) while blocking current in the opposite direction (the reverse direction). Thus, the diode can be thought of as an electronic version of a check valve. This unidirectional behavior is called rectification, and is used to convert alternating current to direct current, and to extract modulation from radio signals in radio receivers. However, diodes can have more complicated behavior than this simple on-off action. This is due to their complex non-linear electrical characteristics, which can be tailored by varying the construction of their P-N junction. These are exploited in special purpose diodes that perform 13

many different functions. For example, specialized diodes are used to regulate voltage (Zener diodes), to electronically tune radio and TV receivers (varactor diodes), to generate radio frequency oscillations (tunnel diodes), and to produce light (light emitting diodes). Tunnel diodes exhibit negative resistance, which makes them useful in some types of circuits.

5.2 History
Although the crystal semiconductor diode was popular before the thermionic diode, thermionic and solid state diodes were developed in parallel. In 1873 Frederick Guthrie discovered the basic principle of operation of thermionic diodes.[3] Guthrie discovered that a positively charged electroscope could be discharged by bringing a grounded piece of white-hot metal close to it (but not actually touching it). The same did not apply to a negatively charged electroscope, indicating that the current flow was only possible in one direction. Thomas Edison independently rediscovered the principle on February 13, 1880. At the time, Edison was investigating why the filaments of his carbon-filament light bulbs nearly always burned out at the positive-connected end. He had a special bulb made with a metal plate sealed into the glass envelope. Using this device, he confirmed that an invisible current flowed from the glowing filament through the vacuum to the metal plate, but only when the plate was connected to the positive supply.

14

Edison devised a circuit where his modified light bulb effectively replaced the resistor in a DC voltmeter. Edison was awarded a patent for this invention in 1884.[4] There was no apparent practical use for such a device at the time. So, the patent application was most likely simply a precaution in case someone else did find a use for the so-called Edison effect.

5.3 Thermionic and gaseous state diodes

Ch 5, Figure :3 The symbol for an indirect heated vacuum tube diode. From top to bottom, the components are the anode, the cathode, and the heater filament.

Thermionic diodes are thermionic-valve devices (also known as vacuum tubes, tubes, or valves), which are arrangements of electrodes surrounded by a vacuum within a glass envelope. Early examples were fairly similar in appearance to incandescent light bulbs. In thermionic valve diodes, a current through the heater filament indirectly heats the cathode, another internal electrode treated with a mixture of barium and strontium oxides, which are oxides of alkaline earth metals; these substances are chosen because they have a small work function. (Some valves use direct heating, in which a tungsten filament acts as both heater and cathode.) The heat causes thermionic emission of electrons into the vacuum. In forward operation, a surrounding metal electrode called the anode is positively charged so that it electrostatically attracts the emitted electrons. However, electrons are not easily released from the unheated anode surface when the voltage polarity is reversed. Hence, any reverse flow is negligible. For much of the 20th century, thermionic valve diodes were used in analog signal applications, and as rectifiers in many power supplies. Today, valve diodes are only used
15

in niche applications such as rectifiers in electric guitar and high-end audio amplifiers as well as specialized high-voltage equipment.

Semiconductor diodes

Ch 5,Fig 4: Typical diode packages in same alignment as diode symbol. Thin bar depicts the cathode.

A modern semiconductor diode is made of a crystal of semiconductor like silicon that has impurities added to it to create a region on one side that contains negative charge carriers (electrons), called n-type semiconductor, and a region on the other side that contains positive charge carriers (holes), called p-type semiconductor. The diode's terminals are attached to each of these regions. The boundary within the crystal between these two regions, called a PN junction, is where the action of the diode takes place. The crystal conducts conventional current in a direction from the p-type side (called the anode) to the n-type side (called the cathode), but not in the opposite direction. Another type of semiconductor diode, the Schottky diode, is formed from the contact between a metal and a semiconductor rather than by a p-n junction.

5.4 Currentvoltage characteristic

A semiconductor diodes behavior in a circuit is given by its currentvoltage characteristic, or IV graph (see graph below). The shape of the curve is determined by the transport of charge carriers through the so-called depletion layer or depletion region that exists at the p-n junction between differing semiconductors. When a p-n junction is first created, conduction band (mobile) electrons from the N-doped region diffuse into the P-doped region where there is a large population of holes (vacant places for electrons) with which the electrons recombine. When a mobile electron recombines with a hole, both hole and electron vanish, leaving behind an immobile positively charged donor (dopant) on the N-side and negatively charged acceptor (dopant) on the P-side. The

16

region around the p-n junction becomes depleted of charge carriers and thus behaves as an insulator.

Ch5,Fig 5 Currentvoltage characteristic

However, the width of the depletion region (called the depletion width) cannot grow without limit. For each electron-hole pair that recombines, a positively charged dopant ion is left behind in the N-doped region, and a negatively charged dopant ion is left behind in the P-doped region. As recombination proceeds more ions are created, an increasing electric field develops through the depletion zone which acts to slow and then finally stop recombination. At this point, there is a built-in potential across the depletion zone. If an external voltage is placed across the diode with the same polarity as the built-in potential, the depletion zone continues to act as an insulator, preventing any significant electric current flow (unless electron/hole pairs are actively being created in the junction by, for instance, light. see photodiode). This is the reverse bias phenomenon. However, if the polarity of the external voltage opposes the built-in potential, recombination can once again proceed, resulting in substantial electric current through the p-n junction (i.e. substantial numbers of electrons and holes recombine at the junction). For silicon diodes, the built-in potential is approximately 0.7 V (0.3 V for Germanium
17

and 0.2 V for Schottky). Thus, if an external current is passed through the diode, about 0.7 V will be developed across the diode such that the P-doped region is positive with respect to the N-doped region and the diode is said to be turned on as it has a forward bias.

A diodes 'IV characteristic' can be approximated by four regions of operation.

Ch 5,Figure :6 IV characteristics of a P-N junction diode (not to scale).

At very large reverse bias, beyond the peak inverse voltage or PIV, a process called reverse breakdown occurs which causes a large increase in current (i.e. a large number of electrons and holes are created at, and move away from the pn junction) that usually damages the device permanently. The avalanche diode is deliberately designed for use in the avalanche region. In the zener diode, the concept of PIV is not applicable. A zener diode contains a heavily doped p-n junction allowing electrons to tunnel from the valence band of the p-type material to the conduction band of the n-type material, such that the reverse voltage is clamped to a known value (called the zener voltage), and avalanche does not occur. Both devices, however, do have a limit to the maximum current and power in the clamped reverse voltage region. Also, following the end of forward

18

conduction in any diode, there is reverse current for a short time. The device does not attain its full blocking capability until the reverse current ceases. The second region, at reverse biases more positive than the PIV, has only a very small reverse saturation current. In the reverse bias region for a normal P-N rectifier diode, the current through the device is very low (in the A range). However, this is temperature dependent, and at suffiently high temperatures, a substantial amount of reverse current can be observed (mA or more). The third region is forward but small bias, where only a small forward current is conducted. As the potential difference is increased above an arbitrarily defined cut-in voltage or on-voltage or diode forward voltage drop (Vd), the diode current becomes appreciable (the level of current considered appreciable and the value of cut-in voltage depends on the application), and the diode presents a very low resistance. The current voltage curve is exponential. In a normal silicon diode at rated currents, the arbitrary cutin voltage is defined as 0.6 to 0.7 volts. The value is different for other diode types Schottky diodes can be rated as low as 0.2 V, Germanium diodes 0.25-0.3 V, and red or blue light-emitting diodes (LEDs) can have values of 1.4 V and 4.0 V respectively. At higher currents the forward voltage drop of the diode increases. A drop of 1 V to 1.5 V is typical at full rated current for power diodes.

19

CHAPTER- 6 Switch 6.1 Introduction

In electronics, a switch is an electrical component that can break an electrical circuit, interrupting the current or diverting it from one conductor to another.[1][2] The most familiar form of switch is a manually operated electromechanical device with one or more sets of electrical contacts. Each set of contacts can be in one of two states: either 'closed' meaning the contacts are touching and electricity can flow between them, or 'open', meaning the contacts are separated and nonconducting. This is called a PTM or "Push to Make" switch. A switch may be directly manipulated by a human as a control signal to a system, such as a computer keyboard button, or to control power flow in a circuit, such as a light switch. Automatically-operated switches can be used to control the motions of machines, for example, to indicate that a garage door has reached its full open position or that a machine tool is in a position to accept another workpiece. Switches may be operated by process variables such as pressure, temperature, flow, current, voltage, and force, acting as sensors in a process and used to automatically control a system. For example, a thermostat is a temperature-operated switch used to control a heating process. A switch that is operated by another electrical circuit is called a relay. Large switches may be remotely operated by a motor drive mechanism. Some switches are used to isolate electric power from a system, providing a visible point of isolation that can be pad-locked if necessary to prevent accidental operation of a machine during maintenance, or to prevent electric shock.

20

CHAPTER- 7 Resistor 7.1 Introduction

A resistor is a two-terminal electronic component that produces a voltage across its terminals that is proportional to the electric current through it in accordance with Ohm's law: V = IR Resistors are elements of electrical networks and electronic circuits and are ubiquitous in most electronic equipment. Practical resistors can be made of various compounds and films, as well as resistance wire (wire made of a high-resistivity alloy, such as nickelchrome).

Ch6,fig 1 resistor code

The primary characteristics of a resistor are the resistance, the tolerance, the maximum working voltage and the power rating. Other characteristics include temperature coefficient, noise, and inductance. Less well-known is critical resistance, the value below
21

which power dissipation limits the maximum permitted current, and above which the limit is applied voltage. Critical resistance is determined by the design, materials and dimensions of the resistor. Resistors can be integrated into hybrid and printed circuits, as well as integrated circuits. Size, and position of leads (or terminals), are relevant to equipment designers; resistors must be physically large enough not to overheat when dissipating their power

7.2 Theory of operation Ohm's law

The behavior of an ideal resistor is dictated by the relationship specified in Ohm's law:

Ohm's law states that the voltage (V) across a resistor is proportional to the current (I) through it where the constant of proportionality is the resistance (R). Equivalently, Ohm's law can be stated:

This formulation of Ohm's law states that, when a voltage (V) is maintained across a resistance (R), a current (I) will flow through the resistance. This formulation is often used in practice. For example, if V is 12 volts and R is 400 ohms, a current of 12 / 400 = 0.03 amperes will flow through the resistance R.

7.3 Series and parallel resistors

Main article: Series and parallel circuits

Resistors in a parallel configuration each have the same potential difference (voltage). To find their total equivalent resistance (Req):

22

The parallel property can be represented in equations by two vertical lines "||" (as in geometry) to simplify equations. For two resistors,

The current through resistors in series stays the same, but the voltage across each resistor can be different. The sum of the potential differences (voltage) is equal to the total voltage. To find their total resistance:

A resistor network that is a combination of parallel and series can be broken up into smaller parts that are either one or the other. For instance,

23

However, many resistor networks cannot be split up in this way. Consider a cube, each edge of which has been replaced by a resistor. For example, determining the resistance between two opposite vertices requires additional transforms, such as the Y- transform, or else matrix methods must be used for the general case. However, if all twelve resistors are equal, the corner-to-corner resistance is 56 of any one of them. The practical application to resistors is that a resistance of any non-standard value can be obtained by connecting standard values in series or in parallel.

Power dissipation
The power dissipated by a resistor (or the equivalent resistance of a resistor network) is

calculated using the following: All three equations are equivalent. The first is derived from Joule's first law. Ohms Law derives the other two from that. The total amount of heat energy released is the integral of the power over time:

24

If the average power dissipated is more than the resistor can safely dissipate, the resistor may depart from its nominal resistance and may become damaged by overheating. Excessive power dissipation may raise the temperature of the resistor to a point where it burns out, which could cause a fire in adjacent components and materials. There are flameproof resistors that fail (open circuit) before they overheat dangerously. Note that the nominal power rating of a resistor is not the same as the power that it can safely dissipate in practical use. Air circulation and proximity to a circuit board, ambient temperature, and other factors can reduce acceptable dissipation significantly. Rated power dissipation may be given for an ambient temperature of 25 C in free air. Inside an equipment case at 60 C, rated dissipation will be significantly less; a resistor dissipating a bit less than the maximum figure given by the manufacturer may still be outside the safe operating area and may prematurely fail.

25

CHAPTER- 8 Capacitor 8.1 Introduction

A capacitor (formerly known as condenser) is a passive electronic component consisting of a pair of conductors separated by a dielectric (insulator). When there is a potential difference (voltage) across the conductors, a static electric field develops in the dielectric that stores energy and produces a mechanical force between the conductors. An ideal capacitor is characterized by a single constant value, capacitance, measured in farads. This is the ratio of the electric charge on each conductor to the potential difference between them

. Capacitors are widely used in electronic circuits for blocking direct current while allowing alternating current to pass, in filter networks, for smoothing the output of power
26

supplies, in the resonant circuits that tune radios to particular frequencies and for many other purposes. The effect is greatest when there is a narrow separation between large areas of conductor, hence capacitor conductors are often called "plates", referring to an early means of construction. In practice the dielectric between the plates passes a small amount of leakage current and also has an electric field strength limit, resulting in a breakdown voltage, while the conductors and leads introduce an undesired inductance and resistance.

8.2 Operation

A capacitor consists of two conductors separated by a non-conductive region called the dielectric medium though it may be a vacuum or a semiconductor depletion region chemically identical to the conductors. A capacitor is assumed to be self-contained and isolated, with no net electric charge and no influence from any external electric field. The conductors thus hold equal and opposite charges on their facing surfaces,and the dielectric develops an electric field. In SI units, a capacitance of one farad means that one coulomb of charge on each conductor causes a voltage of one volt across the device. The capacitor is a reasonably general model for electric fields within electric circuits. An ideal capacitor is wholly characterized by a constant capacitance C, defined as the ratio of charge Q on each conductor to the voltage V between them:

27

Sometimes charge build-up affects the capacitor mechanically, causing its capacitance to vary. In this case, capacitance is defined in terms of incremental changes:

8.3 Current-voltage relation

The current i(t) through any component in an electric circuit is defined as the rate of flow of a charge q(t) passing through it, but actual charges, electrons, cannot pass through the dielectric layer of a capacitor, rather an electron accumulates on the negative plate for each one that leaves the positive plate, resulting in an electron depletion and consequent positive charge on one electrode that is equal and opposite to the accumulated negative charge on the other. Thus the charge on the electrodes is equal to the integral of the current as well as proportional to the voltage as discussed above. As with any anti derivative, a constant of integration is added to represent the initial voltage v (t0). This is the integral form of the capacitor equation,

Taking the derivative of this, and multiplying by C, yields the derivative form,

The dual of the capacitor is the inductor, which stores energy in the magnetic field rather than the electric field. Its current-voltage relation is obtained by exchanging current and voltage in the capacitor equations and replacing C with the inductance L.

DC circuits
See also: RC circuit

28

A simple resistor-capacitor circuit demonstrates charging of a capacitor.

A series circuit containing only a resistor, a capacitor, a switch and a constant DC source of voltage V0 is known as a charging circuit. If the capacitor is initially uncharged while the switch is open, and the switch is closed at t = 0, it follows from Kirchhoff's voltage law that

Taking the derivative and multiplying by C, gives a first-order differential equation,

At t = 0, the voltage across the capacitor is zero and the voltage across the resistor is V0. The initial current is then i (0) =V0 /R. With this assumption, the differential equation yields

where 0 = RC is the time constant of the system. As the capacitor reaches equilibrium with the source voltage, the voltage across the resistor and the current through the entire circuit decay exponentially. The case of

29

discharging a charged capacitor likewise demonstrates exponential decay, but with the initial capacitor voltage replacing V0 and the final voltage being zero.

AC circuits

See also: reactance (electronics) and electrical impedance#Deriving the device specific impedances

Impedance, the vector sum of reactance and resistance, describes the phase difference and the ratio of amplitudes between sinusoidally varying voltage and sinusoidally varying current at a given frequency. Fourier analysis allows any signal to be constructed from a spectrum of frequencies, whence the circuit's reaction to the various frequencies may be found. The reactance and impedance of a capacitor are respectively

where j is the imaginary unit and is the angular velocity of the sinusoidal signal. The - j phase indicates that the AC voltage V = Z I lags the AC current by 90: the positive current phase corresponds to increasing voltage as the capacitor charges; zero current corresponds to instantaneous constant voltage, etc. Note that impedance decreases with increasing capacitance and increasing frequency. This implies that a higher-frequency signal or a larger capacitor results in a lower voltage amplitude per current amplitudean AC "short circuit" or AC coupling. Conversely, for very low frequencies, the reactance will be high, so that a capacitor is nearly an open circuit in AC analysisthose frequencies have been "filtered out". Capacitors are different from resistors and inductors in that the impedance is inversely proportional to the defining characteristic, i.e. capacitance.

30

8.4 Networks
Series and parallel circuits For capacitors in parallel Capacitors in a parallel configuration each have the same applied voltage. Their capacitances add up. Charge is apportioned among them by size. Using the schematic diagram to visualize parallel plates, it is apparent that each capacitor contributes to the total surface area.

For capacitors in series

Several capacitors in series. Connected in series, the schematic diagram reveals that the separation distance, not the plate area, adds up. The capacitors each store instantaneous charge build-up equal to that of every other capacitor in the series. The total voltage difference from end to end is apportioned to each capacitor according to the inverse of its capacitance. The entire series acts as a capacitor smaller than any of its components.

Capacitors are combined in series to achieve a higher working voltage, for example for smoothing a high voltage power supply. The voltage ratings, which are based on plate separation, add up. In such an application, several series connections may in turn be connected in parallel, forming a matrix. The goal is to maximize the energy storage utility of each capacitor without overloading it. Series connection is also used to adapt electrolytic capacitors for AC use.

31

8.5 Non-ideal behavior

Capacitors deviate from the ideal capacitor equation in a number of ways. Some of these, such as leakage current and parasitic effects are linear, or can be assumed to be linear, and can be dealt with by adding virtual components to the equivalent circuit of the capacitor. The usual methods of network analysis can then be applied. In other cases, such as with breakdown voltage, the effect is non-linear and normal (i.e., linear) network analysis cannot be used, the effect must be dealt with separately. There is yet another group, which may be linear but invalidate the assumption in the analysis that capacitance is a constant. Such an example is temperature dependence.

8.6 Breakdown voltage

Above a particular electric field, known as the dielectric strength Eds, the dielectric in a capacitor becomes conductive. The voltage at which this occurs is called the breakdown voltage of the device, and is given by the product of the dielectric strength and the separation between the conductors,
Vbd = Edsd

The maximum energy that can be stored safely in a capacitor is limited by the breakdown voltage. Due to the scaling of capacitance and breakdown voltage with dielectric thickness, all capacitors made with a particular dielectric have approximately equal maximum energy density, to the extent that the dielectric dominates their volume. For air dielectric capacitors the breakdown field strength is of the order 2 to 5 MV/m; for mica the breakdown is 100 to 300 MV/m, for oil 15 to 25 MV/m, and can be much less when other materials are used for the dielectric.The dielectric is used in very thin layers and so absolute breakdown voltage of capacitors is limited. Typical ratings for capacitors used for general electronics applications range from a few volts to 100V or so. As the voltage increases, the dielectric must be thicker, making high-voltage capacitors larger than those rated for lower voltages. The breakdown voltage is critically affected by factors such as the geometry of the capacitor conductive parts; sharp edges or points increase the electric field strength at that point and can lead to a local breakdown. Once
32

this starts to happen, the breakdown will quickly "track" through the dielectric till it reaches the opposite plate and cause a short circuit.

33

CHAPTER- 9 Integrated circuit

In electronics, an integrated circuit (also known as IC, chip, or microchip) is a miniaturized electronic circuit (consisting mainly of semiconductor devices, as well as passive components) that has been manufactured in the surface of a thin substrate of semiconductor material. Integrated circuits are used in almost all electronic equipment in use today and have revolutionized the world of electronics. Computers, cellular phones, and other digital appliances are now inextricable parts of the structure of modern societies, made possible by the low cost of production of integrated circuits. A hybrid integrated circuit is a miniaturized electronic circuit constructed of individual semiconductor devices, as well as passive components, bonded to a substrate or circuit board. A monolithic integrated circuit is made of devices manufactured by diffusion of trace elements into a single piece of semiconductor substrate, a chip.

Ch9,fig 1 Integrated Circuit

34

Integrated circuits were made possible by experimental discoveries which showed that semiconductor devices could perform the functions of vacuum tubes and by mid-20thcentury technology advancements in semiconductor device fabrication. The integration of large numbers of tiny transistors into a small chip was an enormous improvement over the manual assembly of circuits using electronic components. The integrated circuit's mass production capability, reliability, and building-block approach to circuit design ensured the rapid adoption of standardized ICs in place of designs using discrete transistors. There are two main advantages of ICs over discrete circuits: cost and performance. Cost is low because the chips, with all their components, are printed as a unit by photolithography and not constructed as one transistor at a time. Furthermore, much less material is used to construct a circuit as a packaged IC die than as a discrete circuit. Performance is high since the components switch quickly and consume little power (compared to their discrete counterparts) because the components are small and close together. As of 2006, chip areas range from a few square millimeters to around 350 mm2, with up to 1 million transistors per mm2

35

CHAPTER- 10 Conclusion
This circuit saves both time and electricity for students. It helps to prevent them from dozing off while studying, by sounding a beep at a fixed time interval, say, 30 minutes. If the student is awake during the beep, he can reset the circuit to beep in the next 30 minutes. If the timer is not reset during this time, it means the student is in deep sleep or not in the room, and the circuit switches off the light and fan in the room, thus preventing the wastage of electricity.
