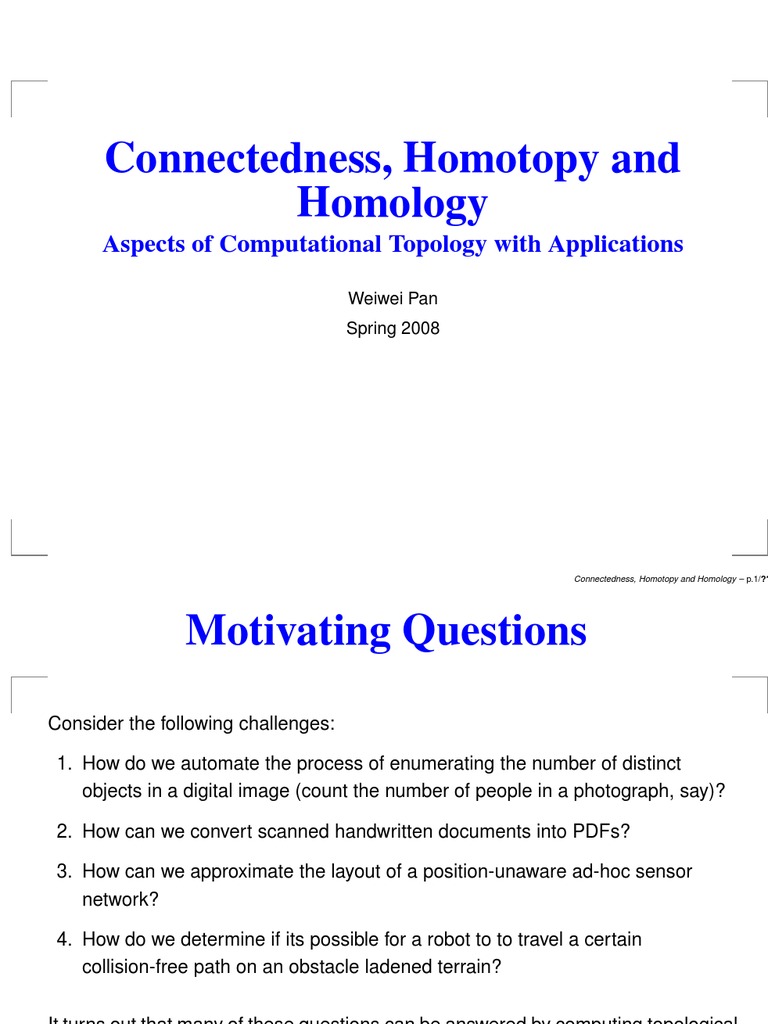

Connectedness, Homotopy and Homology

Aspects of Computational Topology with Applications

Weiwei Pan Spring 2008

Connectedness, Homotopy and Homology p.1/??

Motivating Questions
Consider the following challenges: 1. How do we automate the process of enumerating the number of distinct objects in a digital image (count the number of people in a photograph, say)? 2. How can we convert scanned handwritten documents into PDFs? 3. How can we approximate the layout of a position-unaware ad-hoc sensor network? 4. How do we determine if its possible for a robot to to travel a certain collision-free path on an obstacle ladened terrain? It turns out that many of these questions can be answered by computing topological features and properties of the input domain.

Connectedness, Homotopy and Homology p.2/??

Topology Notions
Unlike geometry, topology studies the abby (that is, distance distorting) features and properties of spaces: Geometry Convex Hull Lines Polygons Topology Path Connected component Homotopy class of paths Homotopy types

These more generalized properties of spaces still hold a lot of information!

Connectedness, Homotopy and Homology p.3/??

Connectivity and Network Sketching

The Problem: Compute virtual coordinates of wireless sensor without positioning devices. The Topology: The connectivity of the network contains enough information to capture salient topological features and to approximate the geometry of the layout. The Algorithm: (input is the communication graph of the nodes) 1. Form the Landmark Voronoi Complex (LVC). 2. Form the Combinatorial Delaunay Graph (CDG). 3. Find a planar subgraph of CDG (CDM). 4. Iteratively nd and embed longer cycles on the boundaries of a Euclidean region to determine the outer face of the CDM. Let the embedding of the outer face determine virtual coordinates for interior points.

Connectedness, Homotopy and Homology p.4/??

Example
Example. The pictures below describes a choice of a landmark set from a distribution of sensor nodes, the LVC generated by the set, the dual Delaunay graph, and the embedding of the CDM.

Connectedness, Homotopy and Homology p.5/??

Homology and Image Analysis

The Problem: Count the number of objects in images with parameters without segmentation. The Topology: Calculating the homology groups of the image based on a binary (parametrized) ltration is an effective method in image searching. The Algorithm: (input is a grayscale 2D image) 1. Generate a binary parametrized ltration using thresh-holding, {in+1 : Kn Kn+1 |0 n 225}. 2. Calculate H1 and H0 of each binary image Kn , 0 n 225. 3. Calculate H1 and H0 of the grayscale image by summing the kernels of the induced homology maps {i }. n

Connectedness, Homotopy and Homology p.6/??

Example
Example. The pictures below shows the result of a automated analysis of a MRI image by Pixcavator. The program detects one dark mass and one light mass.

Connectedness, Homotopy and Homology p.7/??

Related Papers
References
[1] S. Cabello, Y. Liu, A. Mantler and J. Snoeyink, Testing homotopy for paths in the plane, Proceedings of the eighteenth annual symposium on Computational geometry, pages 160-169, 2002. [2] S. Funke and N. Milosavlijevc, Network sketching or: how much geometry hides in connectivity? Part II, Proceedings of the eighteenth annual ACM-SIAM symposium on Discrete algorithms, pages 958-967, 2007. [3] S. Funke and C. Klein, Hole detection or: how much geometry hides in connectivity?, SCG 06: Proceedings of the 22nd annual symposium on Computational geometry, pages 377-385, 2006. [4] L. Jaillet and T. Simon, Path deformation roadmaps, The International Journal of Robotics Research, in press, 2008. [5] P. Saveliev, Topological analysis of parametric images, E-print http://users.marshall.edu/ saveliev/Research/TAPI/TAPI.pdf.

Connectedness, Homotopy and Homology p.8/??
