Digital Image Processing (using Java)

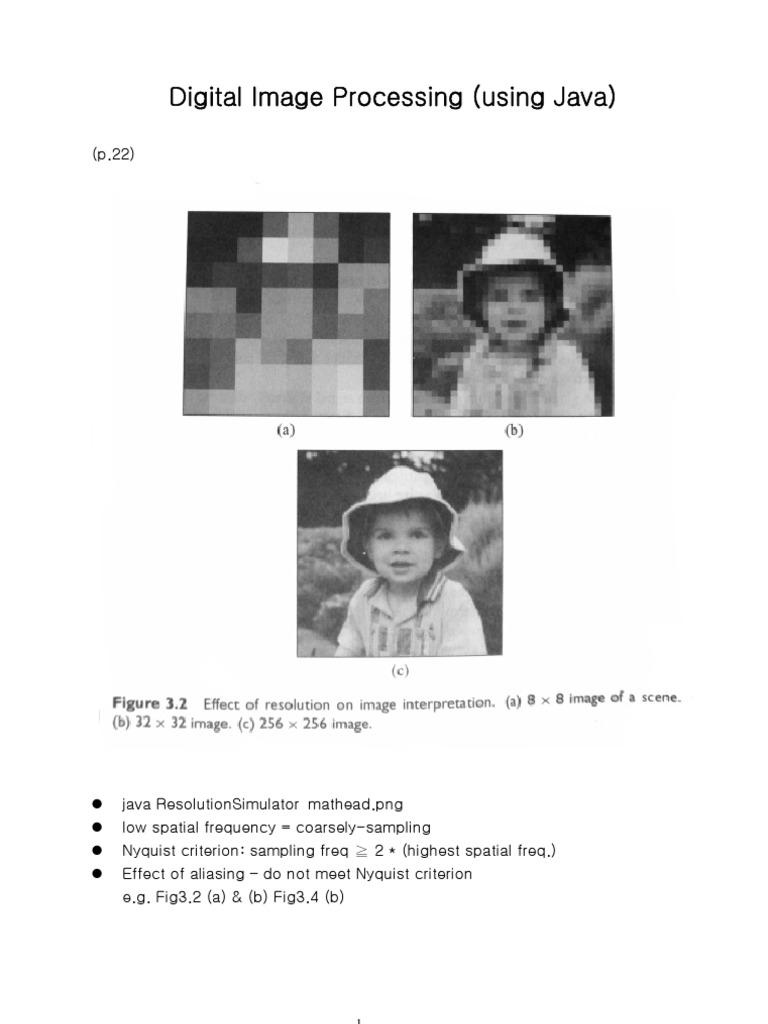

(p.22)

java ResolutionSimulator mathead.png low spatial frequency = coarsely-sampling Nyquist criterion: sampling freq 2 * (highest spatial freq.) Effect of aliasing do not meet Nyquist criterion e.g. Fig3.2 (a) & (b) Fig3.4 (b)

-1-

(p.24)

anti-aliasing a process that meets the Nyquist Criterion (p.26)

-2-

java LogPolar matthead.png 256 256

java QuantisationSimulator (p.29)


-3-

(p.30)

-4-

(p.31) HSICalc.java: RGB HIS (0~1)

(0~255)

LISTING 3.1 A program to convert RGB colours into values of hue, saturation and intensity. A conversion method from Javas Color class is used. import java.awt.Color; import java.text.DecimalFormat;

public class HSICalc { public static void main(String[] argv) { if (argv.length > 2) { int[] rgb = new int[3]; for (int i = 0; i < 3; ++i) rgb[i] = Integer.parseInt(argv[i]); float[] values = Color.RGBtoHSB(rgb[0], rgb[1], rgb[2], null); String[] labels = { "H=", "S=", "I=" }; DecimalFormat floatValue = new DecimalFormat("0.000"); for (int i = 0; i < 3; ++i) System.out.println(labels[i] + floatValue.format(values[i])); } else { System.err.println("usage: java HSICalc <r> <g> <b>"); System.exit(1); } } }

-5-

(p.34)

(p.36) java Limits LISTING 3.2 Program to print limits for the primitive types. The limits are defined as static constants in the standard Java wrapper classes Byte, Short, Integer, Float and Double. public class Limits { public static void main(String[] argv) { java.io.PrintStream s = System.out; s.println("Min byte value = " + Byte.MIN_VALUE); s.println("Max byte value = " + Byte.MAX_VALUE); s.println("Min short value = " + Short.MIN_VALUE); s.println("Max short value = " + Short.MAX_VALUE); s.println("Min int value = " + Integer.MIN_VALUE); s.println("Max int value = " + Integer.MAX_VALUE); s.println("Min float value = " + Float.MIN_VALUE); s.println("Max float value = " + Float.MAX_VALUE); s.println("Min double value = " + Double.MIN_VALUE); s.println("Max double value = " + Double.MAX_VALUE); } }
-6-

(p.37)

(p.37)

-7-

(p.38)

(p.39)

-8-

(p.40)

-9-

(p.41)

(p.42) LISTING 3.3 Example of polymorphism. public class Mean { public static void print1 (ByteImage image){ System.out.println (mean value is + image.getMeanValue()); } public static void print2 (BaseImage image){ System.out.println (mean value is + image.getMeanValue()); } public static void print3 (BaseArray array){ System.out.println (mean value is + array.getMeanValue()); } }
- 10 -

(p.79) usage: java convert infile outfile LISTING 5.6 A simple image format conversion program. public class Convert { public static void main(String[] argv) { if (argv.length > 1) { try { ImageDecoder input = ImageFile.createImageDecoder(argv[0]); BufferedImage image = input.decodeAsBufferedImage(); ImageEncoder output = ImageFile.createImageEncoder(argv[1]); output.encode(image); System.exit(0); } catch (Exception e) { System.err.println(e); System.exit(1); } } else { System.err.println("usage: java Convert <infile> <outfile>"); System.exit(1); } } } (p.85) usage: java Display imagefile LISTING 5.9 A simple image display application using Swing components. import import import import java.awt.*; java.awt.image.*; javax.swing.*; com.pearsoneduc.ip.io.*;

public class Display extends JFrame{ public Display (String filename){ super (filename); ImageDecoder input = ImageFile.createImageDecoder (filename); BufferedImage image = input.decodeAsBufferedImage();
- 11 -

Jlabel view = new Jlabel (new ImageIcon (image)); getContentPane().add(view); addWindowListener (new WindowEvent event){ public void windowClosing (WindowEvent event){ System.exit(0); } }); } public static void main (String[] argv){ if (argv.length > 0){ try { JFrame frame = new Display (argv[0]); frame.pack(); frame.setVisible (true); } catch (Exception e){ System.err.println (e); System.exit (1); } } else { System.err.println (usage: java Display imagefile); System.exit (1); } } }

(p.86) usage: java ImageViewer matthead.png LISTING 5.10 A Swing component to display images. import java.awt.*; import java.awt.image.*; import javax.swing.*; public class ImageView extends JLabel implements Scrollable{ private BufferedImage image; //image to be displayed private Dimension viewSize; //size of view, if in a JScrollPane
- 12 -

public ImageView (BufferedImage img){ image = img; int width = Math.min (256, image.getWidth()); int height = Math.min (256, image.getHeight()); viewSize = new Dimension (width, height); setPreferredSize (new Dimension (image.getWidth(), image.getHeight())); } public void paintComponent (Graphics g){ g.drawImage (image, 0, 0, this); } public void setViewSize (Dimension newSize){ viewSize.setSize (newSize); } public Dimension getPreferredScrollableViewportSize(){ return viewSize; } public int getScrollableUnitIncrement (Rectangle rect, int orient, int dir){ return 1; } public int getScrollableBlockIncrement (Rectangle rect, int orient, int dir){ if (orient == SwingConstants.HORIZONTAL) return image.getWidth() / 10; else return image.getHeight() / 10; } public boolean getScrollableTracksViewportWidth(){ return false; } public boolean getScrollableTracksViewportHeight(){ return false; } }
- 13 -

(p.88) halftoning: gray binary 1. patterning-replacing each pixel by a pattern taken from a binary font. (e.g.: fig 5.10)

2. Dithering:

Java Dither matthead.png 3. Error diffusion: Java ErrorDiffustion matthead.png

- 14 -

(p.92)

ALGORITHM 5.1 Dithering BY Floyd-Steinberg error diffusion.

threshold = (black + white) /2

for all x and y do if (x, y) < threshold then g (x, y) = black = (x, y) black else g (x, y) = white = (x, y) white end if (x+1, y) = (x+1,y) + 7/16 (x-1, y+1) = (x-1, y+1) + 3/16 (x, y+1) = (x,y+1) + 5/16 (x+1, y+1) = (x+1, y+1) + /16 end for (p.93) LISTING 5.12 Java implementation of Algorithm 5.1 public static BufferedImage errorDiffusion (BufferedImage image) { // Create a binary output image (0=black, 1=white) int w = image.getWidth()-1; int h = image.getHeight()-1; outputImage = new BufferedImage(w, h, bufferedImage.TYPE_BYTE_BINARY);
- 15 -

// Copy input image because error diffusion modifies it WritableRaster input = image.copyData(null); WritableRaster output = outputImage.getRaster(); final int threshold = 128; int value, error; for (int y = 1; y < h; ++y) for (int x = 1; x < w; ++x) { // Threshold value and compute error value = input.getSample(x, y, 0); if (value < threshold) { output.setSample(x, y, 0, 0); error = value; } else { output.setSample(x, y, 0, 1); error = value - 255; } //set to black

//set to white

// Disperse error to pixels that are ahead of us value = input.getSample(x+1, y, 0); input.setSample(x+1, y, 0, clamp(value + 0.4375f * error)); value = input.getSample(x-1, y+1, 0); input.setSample(x-1, y+1, 0, clamp(value + 0.1875f * error)); value = input.getSample(x, y+1, 0); input.setSample(x, y+1, 0, clamp(value + 0.3125f * error)); value = input.getSample(x+1, y+1, 0); input.setSample(x+1, y+1, 0, clamp(value + 0.0625f * error)); } return outputImage; } // Rounds a float to the nearest int between 0 and 255

- 16 -

public static int clamp(float value) { return Math.min(Math.max(Math.round(value), 0), 255); } ROI (region of interest) Java MeanROI matthead.png LISTING 5.13 Example of using a ROI in the calculation of mean grey level. public double meanValue(BufferedImage img) { Raster raster = img.getRaster(); double sum = 0.0; for (int y = 0; y < img.getHeight(); ++y) for (int x = 0; x < img.getWidth(); ++x) sum += raster.getSample(x, y, 0); return sum / (img.getWidth()*img.getHeight()); } public double meanValue(BufferedImage img, Rectangle region) { return meanValue(img.getSubimage(region.x, region.y, region.width, region.height)); }

(p.97) LISTING 5.14 Java code to enlarge an image by pixel replication. public static BufferedImage enlarge (BufferedImage image, int n ){ int w = n*image.getWidth(); int h = n*image.getHeight(); BufferedImage enlargedImage = new BufferedImage(w, h, image.getType()); for (int y = 0; y < h; ++y) for (int x=0; x < w; ++x) enlargedImage.setRGB(x, y, image.getRGB(x/n, y/n)); return enlargedImage; } LISTING 5.15 Java code to shrink an image by skipping pixels.
- 17 -

public static BufferedImage shrink (BufferedImage image, int n ){ int w = image.getWidth() / n; int h = image.getHeight() / n; BufferedImage shrunkdImage = new BufferedImage(w, h, image.getType()); for (int y = 0; y<h; ++y) for (int x=0; x<w; ++x) shrunkImage.setRGB(x, y, image.getRGB(x*n, y*n)); return shrunkImage; }

(p.98) LISTING 5.16 Java code for in-place horizontal reflection of an image. public static void xReflectionInPlace (BufferedImage image){ int w = image.getWidth(); int xmax = w/2; for (int y = 0; y < image.getHeight(); ++y) for (int x=0; x < xmax; ++x){ // swap value at (x,y) with its mirror image int value = image.getRGB(x, y); image.setRGB(x, y, image.getRGB(w-x-1, y)); image.setRGB(w-x-1, y, value); } }

(p.100)
- 18 -

LISTING 5.17 Java code to average a set of images. public static BufferedImage average (BufferedImage[] imgArray ){ int n = imgArray.length; int w = imgArray[0].getWidth(); //assume that they all have int h = imgArray[0].getHeight(); //the same dimensions BufferedImage average = new BufferedImage(w, h, BufferedImage.TYPE_BYTE_GRAY); for (int y = 0; y < h; ++y) for (int x=0; x < w; ++x) float sum = 0.0f; for (int I = 0; I < n; ++i) sum += imgArray[i].getRaster().getSample(x, y, 0); raster.setSample (x, y, Math.round (sum/n)); } return average; }

(p.102) Exercise 5.7 1. Write a Java program that will (a) Display an image (b) Allow the user to select a region of interest (ROI) (c) Extract this ROI from the image (d) Write the ROI to a user-specified file (p.111)

- 19 -

(p.112) IntervalTimer timer = new IntervalTimer(); Timer.start(); //some code to be timed System.out.println(timer.elapsed()); //doesnt stop the clock //more code to be timed System.out.println(timer.stop()); //stops clock MapTest1.java import java.util.Random; public class MapTest1 { public static void randomFill(short[] array) { Random random = new Random(); for (int i = 0; i < array.length; ++i) array[i] = (short) random.nextInt(256); }

public static void main(String[] argv) { int n = 512; if (argv.length > 0) n = Integer.parseInt(argv[0]); // Create image and fill it with random values

- 20 -

int numPixels = n*n; short[] image = new short[numPixels]; randomFill(image); // Perform the mapping directly IntervalTimer timer = new IntervalTimer(); timer.start(); for (int i = 0; i < numPixels; ++i) image[i] = (short) Math.round(Math.sqrt(image[i])); System.out.println("direct calculation: " + timer.stop() + " sec"); // Perform the mapping with a lookup table randomFill(image); timer.start(); short[] table = new short[256]; for (int i = 0; i < 256; ++i) table[i] = (short) Math.round(Math.sqrt(i)); for (int i = 0; i < numPixels; ++i) image[i] = table[image[i]]; System.out.println("lookup table: " + timer.stop() + " sec"); System.exit(0); } } Java MapTest1

- 21 -

(p.113)

- 22 -

public LookupOp(LookupTable table, RenderingHints hints) ex: byte[] table = new byte[256]; for (int I = 0; I < 256; ++i) table[i] = (byte) (255-i); ByteLookupTable invertTable = new ByteLookupTable(0, table); LookupOp invertOp = new LookupOp(invertTable, null); BufferedImage invertedImage = invertOp.filter(image, null); (p.116) LISTING 6.3 A Java class to perform mapping of grey levels in an image. package com.pearsoneduc.ip.op; import java.awt.image.*; public abstract class GreyMapOp implements BufferedImageOp { protected byte[] table = new byte[256]; public int getTableEntry(int i) { if (table[i] < 0) return 256 + (int) table[i]; else return (int) table[i]; } protected void setTableEntry(int i, int value) { if (value < 0) table[i] = (byte) 0; else if (value > 255) table[i] = (byte) 255; else table[i] = (byte) value; } public void computeMapping() { computeMapping(0, 255); }

- 23 -

public abstract void computeMapping(int low, int high); public BufferedImage filter(BufferedImage src, BufferedImage dest) { checkImage(src); if (dest == null) dest = createCompatibleDestImage(src, null); LookupOp operation = new LookupOp(new ByteLookupTable(0, table), null); operation.filter(src, dest); return dest; } } (p.117) LISTING 6.4 A subclass of GreyMapOp that applies a linear grey level mapping function to an image. public class LinearOp extends GreyMapOp { public LinearOp() { computeMapping(); } public LinearOp(int low, int high) { computeMapping(low, high); } public void computeMapping(int low, int high) { if (low < 0 || high > 255 || low >= high) throw new java.awt.image.ImagingOpException("invalid mapping limits"); float scaling = 255.0f / (high - low); for (int i = 0; i < 256; ++i) setTableEntry(i, Math.round(scaling*(i - low))); } }

- 24 -

GreyMap.java java GreyMap in.jpg out.jpg linear java GreyMap in. jpg out.jpg log 10 220 //logarithmic mapping of [10,220] onto [0,255] // lin: linear inv: inverted linear sq: square-root exp: exponential java GreyMapTool matthead.png Grey MapTool.java import import import import java.awt.FlowLayout; java.awt.image.BufferedImage; java.io.IOException; java.util.*;

import javax.swing.*; public class GreyMapTool extends JFrame { public GreyMapTool(String filename) throws IOException, ImageDecoderException, HistogramException { // Load image from file and create display component super("GreyMapTool: " + filename); ImageDecoder input = ImageFile.createImageDecoder(filename); BufferedImage image = input.decodeAsBufferedImage(); LinearOp op = new LinearOp(); ImageView imageView = new ImageView(image, op); // Create and store a set of grey level mapping operations Hashtable ops = new Hashtable(); ops.put("linear", op); ops.put("square-root", new SquareRootOp()); ops.put("logarithmic", new LogOp()); ops.put("exponential", new ExpOp()); ops.put("inverted", new InvertOp()); ops.put("thresholded", new ThresholdOp(128)); ops.put("equalised", new EqualiseOp(new Histogram(image))); // Create labels for the operations
- 25 -

Vector names = new Vector(); names.addElement("linear"); names.addElement("square-root"); names.addElement("logarithmic"); names.addElement("exponential"); names.addElement("inverted"); names.addElement("thresholded"); names.addElement("equalised"); // Add a control panel and a scrolling image display to the frame JPanel pane = new JPanel(); pane.setLayout(new FlowLayout()); pane.add(new GreyMapPanel(imageView, ops, names)); pane.add(new JScrollPane(imageView)); setContentPane(pane); addWindowListener(new WindowMonitor()); } public static void main(String[] argv) { if (argv.length > 0) { try { JFrame frame = new GreyMapTool(argv[0]); frame.pack(); frame.setVisible(true); } catch (Exception e) { System.err.println(e); System.exit(1); } } else { System.err.println("usage: java GreyMapTool <imagefile>"); System.exit(1); } } }

- 26 -

(p.119) ALGORITHM 6.3 Calculation of an image histogram. Create an array histogram with 2b elements for all grey levels, i , do histogram[i ] = 0; end for for all pixel coordinates, x and y, do Increment histogram[ (x,y)] by 1 end for (p.123)

- 27 -

(p.124) HistogramTool.java import import import import import import java.awt.*; java.awt.event.*; java.awt.image.*; java.io.*; javax.swing.*; javax.swing.border.*;

public class HistogramTool extends JFrame implements ActionListener { private private private private Histogram histogram; HistogramView[] view; HistogramInfoPane infoPane; JPanel mainPane; // histogram data to be displayed // plot of the histogram // displays value and frequency // contains histogram and info panel

private JMenu menu; // input/output menu private JFileChooser fileChooser = // handles selection of files new JFileChooser(System.getProperty("user.dir")); public HistogramTool(Histogram theHistogram, String description) { super(description); // labels the frame

// Create components to display histogram and information histogram = theHistogram; infoPane = new HistogramInfoPane(histogram); mainPane = new JPanel(new BorderLayout()); if (histogram.getNumBands() == 3) createMultipleViews(); // three views (R, G, B) in a tabbed pane else createSingleView(); mainPane.add(infoPane, BorderLayout.SOUTH); setContentPane(mainPane); // Add a menu bar to support image input and histogram output JMenuBar menuBar = new JMenuBar(); menuBar.setBorder(new BevelBorder(BevelBorder.RAISED)); createFileMenu();
- 28 -

menuBar.add(menu); setJMenuBar(menuBar); addWindowListener(new WindowMonitor()); } // Creates a single HistogramView object to display a // greyscale histogram and adds it to the GUI public void createSingleView() { view = new HistogramView[1]; view[0] = new HistogramView(histogram, infoPane); mainPane.add(view[0], BorderLayout.CENTER); } // Creates three HistogramView objects for the red, green // and blue bands of a colour histogram, places these in a // tabbed pane and adds the tabbed pane to the GUI public void createMultipleViews() { view = new HistogramView[3]; Color[] bandColor = { Color.red, Color.green, Color.blue }; String[] tabLabel = { "Red", "Green", "Blue" }; JTabbedPane views = new JTabbedPane(JTabbedPane.BOTTOM); for (int i = 0; i < 3; ++i) { view[i] = new HistogramView(histogram, i, infoPane); view[i].setColor(bandColor[i]); views.add(tabLabel[i], view[i]); } mainPane.add(views, BorderLayout.CENTER); } // Creates a menu to support image input, histogram output // and termination of the application public void createFileMenu() { menu = new JMenu("File"); menu.setMnemonic('F'); String[] itemName = { "Load image", "Save histogram", "Exit" };
- 29 -

char[] shortcut = { 'L', 'S', 'X' }; for (int i = 0; i < 3; ++i) { JMenuItem item = new JMenuItem(itemName[i], shortcut[i]); item.addActionListener(this); menu.add(item); } } // Handles Action events triggered by menu selections public void actionPerformed(ActionEvent event) { String command = event.getActionCommand(); if (command.startsWith("Load")) { loadImage(); repaint(); } else if (command.startsWith("Save")) { saveHistogram(); repaint(); } else if (command.equals("Exit")) { setVisible(false); dispose(); System.exit(0); } } // Loads a new image, computes its histogram and updates the GUI public void loadImage() { fileChooser.setDialogTitle("Load image"); if (fileChooser.showOpenDialog(this) == JFileChooser.APPROVE_OPTION) { // Load image and compute its histogram try { File file = fileChooser.getSelectedFile(); ImageDecoder input = ImageFile.createImageDecoder(file.getAbsolutePath());
- 30 -

BufferedImage image = input.decodeAsBufferedImage(); histogram.computeHistogram(image); setTitle(file.getName()); } catch (FileNotFoundException e) { error("File not found."); return; } catch (ImageDecoderException e) { error("Cannot read this image format."); return; } catch (IOException e) { error("Failed to read image data."); return; } catch (HistogramException e) { error("Cannot compute histogram for this image type."); return; } // Rebuild GUI mainPane.removeAll(); if (histogram.getNumBands() == 3) createMultipleViews(); else createSingleView(); mainPane.add(infoPane, BorderLayout.SOUTH); mainPane.invalidate(); validate(); pack(); } } // Saves current histogram to a file selected by user public void saveHistogram() { if (histogram.getNumBands() == 0) {
- 31 -

error("No histogram data to save!"); return; } else { fileChooser.setDialogTitle("Save histogram"); if (fileChooser.showSaveDialog(this) == JFileChooser.APPROVE_OPTION) { try { File file = fileChooser.getSelectedFile(); if (file.exists()) { int response = JOptionPane.showConfirmDialog(this, "File will be overwritten! Are you sure?", "File exists", JOptionPane.OK_CANCEL_OPTION); if (response != JOptionPane.OK_OPTION) return; } histogram.write(new FileWriter(file)); fileChooser.rescanCurrentDirectory(); } catch (IOException e) { error("Cannot open output file."); } } } } // Displays an error message in a dialog box public void error(String message) { JOptionPane.showMessageDialog(this, message, "Error", JOptionPane.ERROR_MESSAGE); } public static void main(String[] argv) { if (argv.length > 0) { try { ImageDecoder input = ImageFile.createImageDecoder(argv[0]); BufferedImage image = input.decodeAsBufferedImage(); Histogram hist = new Histogram(image); HistogramTool histTool = new HistogramTool(hist, argv[0]);
- 32 -

histTool.pack(); histTool.setVisible(true); } catch (Exception e) { System.err.println(e); System.exit(1); } } else { Histogram hist = new Histogram(); HistogramTool histTool = new HistogramTool(hist, "HistogramTool"); histTool.pack(); histTool.setVisible(true); } } }

CalcHist.java import java.awt.image.BufferedImage; import java.io.FileWriter; public class CalcHist { public static void main(String[] argv) { if (argv.length > 1) { try { ImageDecoder input = ImageFile.createImageDecoder(argv[0]); BufferedImage image = input.decodeAsBufferedImage(); Histogram histogram = new Histogram(image); FileWriter histFile = new FileWriter(argv[1]); histogram.write(histFile); if (argv.length > 2) { FileWriter cumHistFile = new FileWriter(argv[2]); histogram.writeCumulative(cumHistFile); } System.exit(0); } catch (Exception e) { System.err.println(e);
- 33 -

System.exit(1); } } else { System.err.println( "usage: java CalcHist <imageFile> <histFile> [<cumHistFile>]"); System.exit(1); } } }

Java HistogramTool (p.125)

- 34 -

(p.126)

(p.128) LISTING 6.5 A subclass of GreyMapOp that performs histogram equalisation. pckage com.pearsoneduc.ip.op; public class EqualiseOp extends GreyMapOp { /** * Constructs an EqualiseOp object using histogram data. * @param hist Histogram of the image to be equalised * @exception HistogramException if the histogram is from a colour image. */ public EqualiseOp(Histogram hist) throws HistogramException { float scale = 255.0f / hist.getNumSamples(); for (int i = 0; i < 256; ++i) table[i] = (byte) Math.round(scale*hist.getCumulativeFrequency(i)); } public void computeMapping(int low, int high) { // Does nothing - limits are meaningless in histogram equalisation } }

- 35 -

Histogram hist = new Histogram(image); EqualiseOp eq = new EqualiseOp(hist); BufferedImage eq_img = eq.filter(image, null); (p.130)

(p.135)

- 36 -

(p.136)

- 37 -

(p.138)

- 38 -

(p.142)

- 39 -

(p.144)

(p.145)

(p.146) Listing 7.1: WriteKernel.java LISTING 7.1 A simple program demonstrating how a convolution kernel can be created and written to an output stream. import java.io.OutputStreamWriter; import com.pearsoneduc.ip.op.StandardKernel; public class WriteKernel{
- 40 -

public static void main(String[] argv){ float[] data = new float[25]; float coeff = 0.04f; for (int i = 0; I < 25; ++i) data[i] = coeff; StandardKernel kernel = new StandardKernel (5, 5, data, 2); Kernel.write(new OutputStreamWriter(System.out)); } }

(p.147) Reader input = new FileReader(test.ker); Kernel kernel = StandardKernel.createJerbek(input); Listing 7.2: Convolve.java usage: java ConvolutionTool (p.152) LISTING 7.2 A convolution application with a command line interface. import import import import import java.awt.image.*; java.io.*; com.pearsoneduc.ip.io.*; com.pearsoneduc.ip.op.*; com.pearsoneduc.ip.util.IntervalTimer;


public class Convolve { public static void main(String[] argv) { if (argv.length > 5) { try { // Parse command line arguments ImageDecoder input = ImageFile.createImageDecoder(argv[0]); ImageEncoder output = ImageFile.createImageEncoder(argv[1]); Reader kernelInput = new FileReader(argv[2]); boolean normaliseKernel = (Integer.parseInt(argv[3]) != 0); int borderStrategy =
- 41 -

Math.max(1, Math.min(4, Integer.parseInt(argv[4]))); int rescaleStrategy = Math.max(1, Math.min(3, Integer.parseInt(argv[5]))); // Load image and kernel BufferedImage inputImage = input.decodeAsBufferedImage(); Kernel kernel = StandardKernel.createKernel(kernelInput, normaliseKernel); // Create convolution operator and convolve image ConvolutionOp convOp = new ConvolutionOp(kernel, borderStrategy, ConvolutionOp.SINGLE_PASS, rescaleStrategy); IntervalTimer timer = new IntervalTimer(); timer.start(); BufferedImage outputImage = convOp.filter(inputImage, null); System.out.println("Convolution finished [" + timer.stop() + " sec]"); // Write results to output file output.encode(outputImage); System.exit(0); } catch (Exception e) { System.err.println(e); System.exit(1); } } else { System.err.println("usage: java Convolve " + "<infile> <outfile> <kernel> <norm> <border> <rescale>"); System.exit(1); } } }

- 42 -

(p.153)

(p.155) low pass filtering: convolution kernel >0 e.g.: mean filter (Fig.7.12Fig.7.13), Gaussian filter ((7.13)Fig.7.14) (p.156)

- 43 -

(p.157)

- 44 -

(p.158) High pass filtering: kernel has +, - coefficients. (p.159) high boost filtering:

if c=8 => high pass filter if c is more close to 8 => sharper

(p.160) Listing 7.3: High PassKernel.java Usage:java HighPassKernel > highpass.ker LISTING 7.3 A kernel class that performs high pass filtering. public class HighPassKernel extends StandardKernel {

private static final float[] data = { -1.0f, -1.0f, -1.0f, -1.0f, 8.0f, -1.0f, -1.0f, -1.0f, -1.0f }; public HighPassKernel() { super(3, 3, data, 0);
- 45 -

} public static void main(String[] argv) { StandardKernel kernel = new HighPassKernel(); kernel.write(new java.io.OutputStreamWriter(System.out)); } }

(p.161) java GaussianKernel: generate for =1.0 Gussian filter BufferedImage outputImage = ConvolutionOp.gaussianBlur(inputImage, 3.0f); (p.162) LISTING 7.4 A kernel class to support Gaussian low pass filtering public class GaussianKernel extends StandardKernel { public GaussianKernel() { this(1.0f); } public GaussianKernel(float sigma) { super(getSize(sigma), getSize(sigma), createKernelData(sigma)); } public static int getSize(float sigma) { int radius = (int) Math.ceil(4.0f*sigma); return 2*radius+1; } public static float[] createKernelData(float sigma) { int n = (int) Math.ceil(4.0f*sigma); int size = 2*n+1; float[] data = new float[size*size]; double r, s = 2.0*sigma*sigma; float norm = 0.0f;
- 46 -

int i = 0; for (int y = -n; y <= n; ++y) for (int x = -n; x <= n; ++x, ++i) { r = Math.sqrt(x*x + y*y); data[i] = (float) Math.exp(-r*r/s); norm += data[i]; } for (i = 0; i < size*size; ++i) data[i] /= norm; return data; } public static void main(String[] argv) { float sigma = 1.0f; if (argv.length > 0) sigma = Float.valueOf(argv[0]).floatValue(); StandardKernel kernel = new GaussianKernel(sigma); kernel.write(new java.io.OutputStreamWriter(System.out)); } }

- 47 -

(p.163) LISTING 7.5 A mean filtering application. import import import import java.awt.image.*; com.pearsoneduc.ip.io.*; com.pearsoneduc.ip.op.MeanKernel; com.pearsoneduc.ip.util.IntervalTimer;

public class MeanFilter { public static void main(String[] argv) { if (argv.length > 3) { try { ImageDecoder input = ImageFile.createImageDecoder(argv[0]); ImageEncoder output = ImageFile.createImageEncoder(argv[1]); int w = Integer.parseInt(argv[2]); int h = Integer.parseInt(argv[3]); BufferedImage inputImage = input.decodeAsBufferedImage(); Kernel kernel = new MeanKernel(w, h); ConvolveOp blurOp = new ConvolveOp(kernel); IntervalTimer timer = new IntervalTimer(); timer.start(); BufferedImage outputImage = blurOp.filter(inputImage, null); System.out.println("Mean filtering finished [" + timer.stop() + " sec]"); output.encode(outputImage); System.exit(0); } catch (Exception e) { System.err.println(e); System.exit(1); } } else { System.err.println("usage: java MeanFilter <infile> <outfile> <w> <h>"); System.exit(1); } } }

- 48 -

java MeanFilter matthead.png matt-mean.png java GaussianBlur matthead.png matt-gaus.png (p.164) Edge detection: gx(x,y) = hx * (x,y), gy(x,y) = hy * (x,y),

w3 h3 1

Prewitt kernel:

Sobel kernel:

(p.165)

gradient vector

gradient magnitude:

gradient direction:

- 49 -

(p.166)

- 50 -

(p.169)

Laplacian

- 51 -

LOG (Laplacian of Gaussian) filter (p.171)

DOG (Difference of Gaussian) filter (p.172) algorithm 7.7 -Canny edge dector

(p.175) BufferedImageOp op = new CannyEdgeOp(2.0f, 50, 100); BufferedImage edgeMap = op.filter (image, null); BufferedImage mapImage = op.getGradientOrientationImage(); BufferedImage orientImage = op.getGradientOrientationImage();

- 52 -

(p.176)

mean filter:

median filter: sort the 9 elements. Find the median value. (for impulsive noise) java MedianTest matthead.png 3 3 java MinTest matthead.png 3 3 java RankFilterTool matthead.png

- 53 -

(p.184) -trimmed mean filter: f1 f2 fn2

: the number of values removed from each end of the list.

(p.186) MMSE filter:

java MMSEFilter matthead.png matt-mmse.png

(p.189)

- 54 -

(P.190)

- 55 -

(p.194)

(p.231) affine transformation

(p.232)

- 56 -

import java.awt.geom.AffineTransform AffineTransform transform = new AffineTransform(); AffineTransform scale = AffineTransform.getScaleInstance(1.5, 1.5); // increase image size by 50% double angle = Math.Pi/4.0; double x = image.getWidth()/2.0; double y = image.getHeight()/2.0; AffineTransform rotate = AffineTransform.getRotateInstance(angel, x, y); (p.233)

(p.234)

(p.235)

- 57 -

AffineTransform t = new AffineTransform(); t.setToTranslation(10,20); t.rotate(30.0*Math.PI/180.0); AffineTransform translate = AffineTransform.getTranslateInstance(5. 0); t.concatenate(translate); AffineTransform scale = AffineTransform.getScaleInstance(0.3, 0.3); t.preConcatenate(scale); (p.236)

(p.237)

- 58 -

(p.238) LISTING 9.2 Java implementation of Algorithm 9.1 public static BufferedImage rotate(BufferedImage input, double angle){ int width = input.getWidth(); int height = input.getHeight(); BufferedImage output = new BufferedImage(width, height, input.getType()); double a0 = Math.cos(angle*Math.PI/180.0); double b0 = Math.sin(angle*Math.PI/180.0); double a1 = -b0, b1 = a0; int rx, ry; for (int y = 0; y < height; ++y) for (int x = 0; x < width; ++x){ rx = (int) Math.round(a0*x + a1*y); ry = (int) Math.round(b0*x + b1*y); if (rx >= 0 && rx < width && ry >=0 && ry < height) output.setRGB(rx, ry, input.getRGB(x,y)); } return output; } (p.239)

- 59 -

(p.240)

- 60 -

(p.241)

(p.243)

- 61 -

(p.244) LISTING 9.3 A method to calculate the bounding box of a transformed image. public static Rectangle2D getBoundingBox(BufferedImage image, AffineTransform transformation){ // Apply transformation to image corners int xmax = image.getWidth()-1; int ymax = image.getHeight()-1; Point2D[] corners = new Point2D.Double[4]; Corners[0] = new Point2D.Double(, ); } java Rotate1 input.png output.png 0 62.5 java Rotate2 input.png output.png interp. angle java AffineTransformTool matthead.png (p.247)

- 62 -

(p.248)

(p.255)

- 63 -

(p.258) LISTING 10.1 A Java class to perform grey level thresholding. public class ThresholdOp extends GreyMapOp { public ThresholdOp(int threshold) { computeMapping(threshold, 255); } public ThresholdOp(int low, int high) { computeMapping(low, high); } public void setThreshold(int threshold) { computeMapping(threshold, 255); } public void setThresholds(int low, int high) { computeMapping(low, high); } public void computeMapping(int low, int high) { if (low < 0 || high > 255 || low >= high) throw new java.awt.image.ImagingOpException("invalid thresholds"); int i; for (i = 0; i < low; ++i) table[i] = (byte) 0; for (; i <= high; ++i) table[i] = (byte) 255; for (; i < 256; ++i) table[i] = (byte) 0; } } (p.259) java Threshold grey.jpg thresholded.pbm 175 java Threshold grey.jpg thresholded.pbm 92 140 java Threshold color.jpg thresholded.pbm 200 75 128

- 64 -

(p.260)

(p.261) LISTING 10.2 Java code to perform connected region labelling, taken from the RegionLabelOp class. public BufferedImage filter(BufferedImage src, BufferedImage dest) { checkImage(src); if (dest == null) dest = createCompatibleDestImage(src, null); width = src.getWidth(); height = src.getHeight(); WritableRaster in = src.copyData(null); WritableRaster out = dest.getRaster(); int n = 1; for (int y = 0; y < height; ++y) for (int x = 0; x < width; ++x) if (in.getSample(x, y, 0) > 0) { label(in, out, x, y, n); ++n; if (n > MAX_REGIONS) return dest; } return dest; } private void label(WritableRaster in, WritableRaster out,
- 65 -

int x, int y, int n) { in.setSample(x, y, 0, 0); out.setSample(x, y, 0, n); int j, k; for (int i = 0; i < connectivity; ++i) { j = x + delta[i].x; k = y + delta[i].y; if (inImage(j, k) && in.getSample(j, k, 0) > 0) label(in, out, j, k, n); } } private final boolean inImage(int x, int y) { return x >= 0 && x < width && y >= 0 && y < height; } } (p.263)

- 66 -

java RegionGrowingTool java RegionGrow


4-connet 35 threshold

test.jpg region.pbm 100 100 4 (x,y)

(p.273)

- 67 -

(p.277)

Erosion: s ( image; s stnecturing element)

(p.278)

boundary: ( s) = erosion()

- 68 -

Dilation: s

(p.282) LISTING 11.1 BinaryErodeOps filter() method. public BufferedImage filter(BufferedImage src, BufferedImage dest) { checkImage(src); if (dest == null) dest = createCompatibleDestImage(src, null); int w = src.getWidth(); int h = src.getHeight(); Raster srcRaster = src.getRaster(); WritableRaster destRaster = dest.getRaster(); // Determine range of pixels for which operation can be performed Point origin = structElement.getOrigin(null); int xmin = Math.max(origin.x, 0); int ymin = Math.max(origin.y, 0); int xmax = origin.x + w - structElement.getWidth();
- 69 -

int ymax = origin.y + h - structElement.getHeight(); xmax = Math.min(w-1, xmax); ymax = Math.min(h-1, ymax); // Fit structuring element into source image for (int y = ymin; y <= ymax; ++y) for (int x = xmin; x <= xmax; ++x) if (structElement.fits(srcRaster, x, y)) destRaster.setSample(x, y, 0, nonZeroValue); return dest; }

BinaryStructElement structElement = new BinaryStructElement(StructElementType.DIAMOND_5x5); BufferedImageOp erosion = new BinaryErodeOp(structElement); java BinaryErode reg1.jpg ero1.jpg disk.se java BinaryDilate reg1.jpg dia1.jpg disk.se

# # # # #

binary structuring element width = 5 height = 5 xorigin = 2 yorigin = 2 00|00 00|00 11|11 00|00 00|00

(p.283) Binary operations: complement:

intersection:
- 70 -

union:

(p.284) Opening = erosion dilate (p.286) closing: dilate erode (p.287) hit and miss transform:

(p.288)

- 71 -

(p.289) LISTING 11.2 filter() method of BinaryOpenOp. public BufferedImage filter(BufferedImage src, BufferedImage dest){ BinaryErodeOp erodeOp = new BinaryErodeOp(structElement); BinaryDilateOp dilateOp = new BinaryDilateOp(structElement); if (dest == null) dest = createCompatibleDestImage(src, null); return dilateOp.filter(erodeOp.filter(src, null), dest); } java BinaryOpen input.pbm result.pbm sq3x3.bas # binary structuring element # width =3 # height = 3 # xorigin = 1 # yorigin = 1 111 111 111

java HitAndMiss <image> <innerElement> <outerElement> <outfile> java BinaryMorphologyTool char_a.png 5 5 height width

- 72 -

(p.291)

- 73 -

(p.292) greyscale erosion

greyscale dilation (p.293)

- 74 -

(p.294)

top-hat transform: g = -( s).

detect peaks

open (s) detect valleys in the grey level surface closing (p.296) GreyErode GreyDilate GreyOpen GreyClose (p.297) Exercises 4. Using the classes described in this chapter, write a Java program to perform the top-hat transform. (p.301) RMS error (root-mean-square) for MXN image

- 75 -

(p.303)

entropy

(p.304)

information redundancy

compression ratio

insideContour(A,B) = A erode(A,B) outsideContour(A,B) = dilate(A,B)-A middleContour(A,B) = dilate(A,B)-erode(A,B) http://iris.usc.edu/ision-Notes/bibliogruphy/text/contents.html http://140.115.11.235/~chen/course/vision

- 76 -
