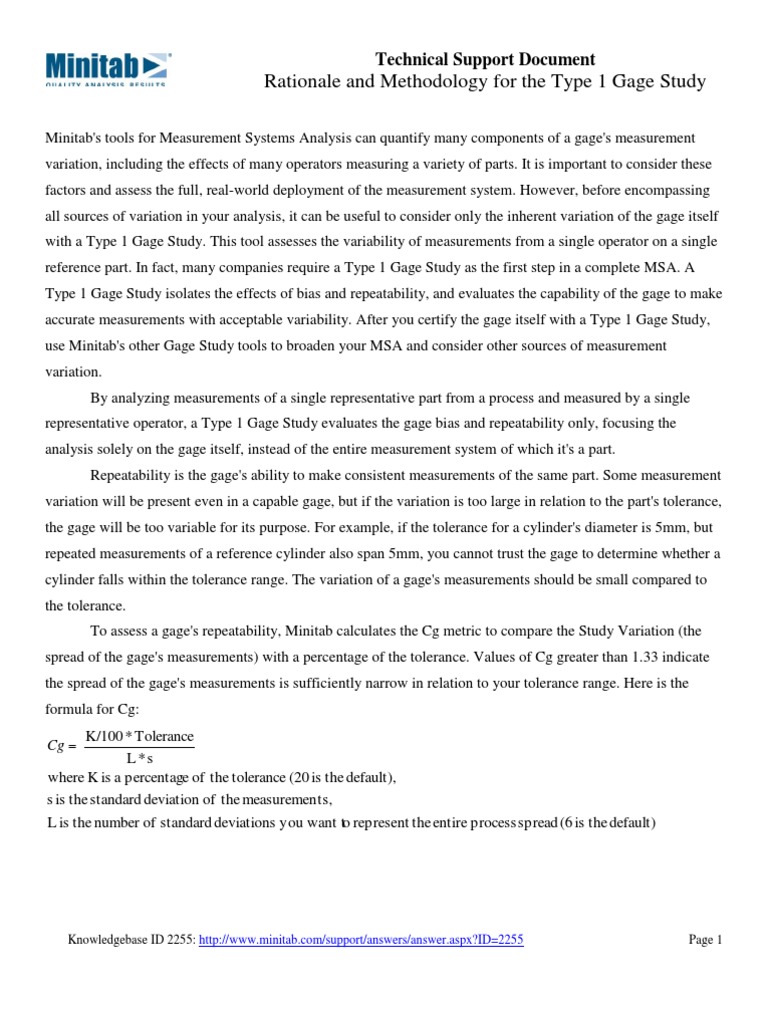

Page 1
To complement these statistics, Minitab also creates a run chart that displays all measurements, the reference value, and the range into which the study variation should fall. This range varies according to your specifications. When you provide a lower specification only, the measurements should be greater than LSL + (1.33*L/2)*(standard deviation of all measurements). When you provide an upper specification only, the measurements should be less than USL (1.33*L/2)*(standard deviation of all measurements). When you provide both specification limits, study variation should fall within a range that equals 20% of the tolerance, centered at the reference value. You have the option to change this percentage (K in the equations above; 20 is the default value), which will affect the calculations of Cg and Cgk.
