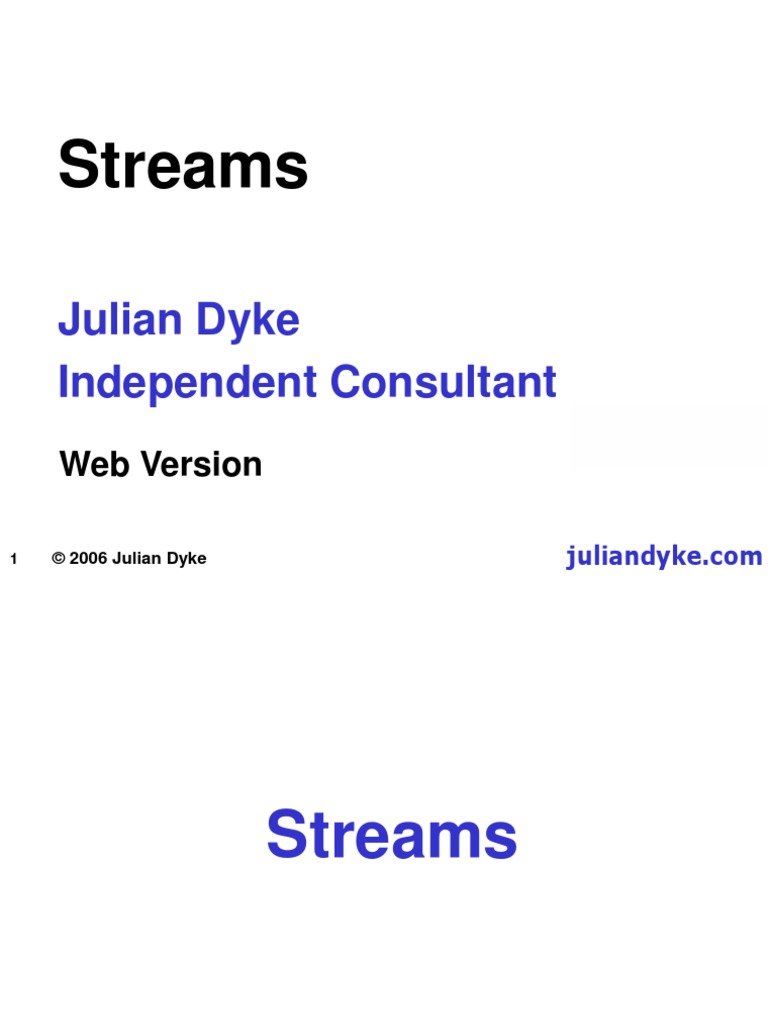

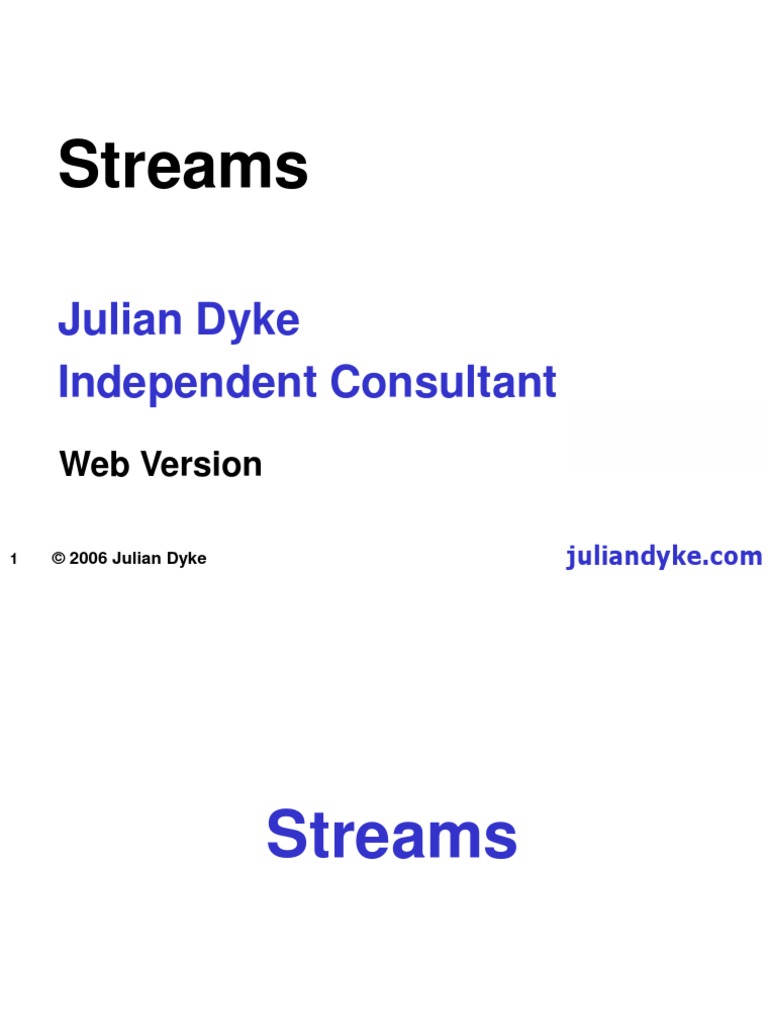

Streams

Julian Dyke Independent Consultant

Web Version
1

2006 Julian Dyke

juliandyke.com

Streams

2006 Julian Dyke

juliandyke.com

Streams Multi-Database Configuration

Source Database
Database Objects

Target Database
Propagate LCRs Streams Queue Database Objects

Streams Queue Enqueue LCRs

Capture Process

Record Changes
LGWR Log Changes

Dequeue LCRs
Apply Process

Apply Changes

Capture Changes

Online Redo Log

2006 Julian Dyke

juliandyke.com

Streams Archived Log Downstream Capture

Source Database
Database Objects

Downstream Database
Streams Queue
Enqueue LCRs

Record Changes
LGWR Log Changes Read Redo Data Online Redo Log ARCn Write Redo Data

Capture Process Capture Changes

Archived Redo Log

Copy Redo Log Files

Archived Redo Log

2006 Julian Dyke

juliandyke.com

Streams Real-Time Downstream Capture

Source Database
Database Objects
Record Changes LGWR Log Changes RFS Log Changes

Downstream Database
Streams Queue Enqueue LCRs Capture Process LGWR Write Redo Data Read Redo Data

Send Redo Data

Standby Redo Log

Online Redo Log

Archived Redo Log

2006 Julian Dyke

juliandyke.com

Streams Preparation

Used two separate servers server1 and server2 Used DBCA to create one database on each server SOURCE and TARGET

Archiving must be enabled

Used default value for GLOBAL_NAMES (FALSE) Oracle recommends setting this parameter to TRUE Installed SCOTT/TIGER schema $ORACLE_HOME/rdbms/admin/utlsampl.sql

2006 Julian Dyke

juliandyke.com

Streams Preparation

Modified TNSNAMES.ORA on both nodes

SOURCE = (DESCRIPTION = (ADDRESS = (PROTOCOL = TCP)(HOST = server1)(PORT = 1521)) (CONNECT_DATA = (SERVER = DEDICATED) (SERVICE_NAME = SOURCE) ) ) TARGET = (DESCRIPTION = (ADDRESS = (PROTOCOL = TCP)(HOST = server2)(PORT = 1521)) (CONNECT_DATA = (SERVER = DEDICATED) (SERVICE_NAME = TARGET) ) )

2006 Julian Dyke

juliandyke.com

Streams Configuration

On both source and target as SYSDBA Create STREAMS tablespace

CREATE TABLESPACE streams DATAFILE '/u01/oradata/SOURCE/streams01.dbf' SIZE 100M;

Create STRMADMIN user

CREATE USER strmadmin IDENTIFIED BY strmadmin DEFAULT TABLESPACE STREAMS QUOTA UNLIMITED ON STREAMS;

2006 Julian Dyke

juliandyke.com

Streams Configuration

On both servers as SYSDBA grant privileges to STRMADMIN

GRANT CONNECT, RESOURCE, DBA TO STRMADMIN;

EXECUTE DBMS_AQADM.GRANT_SYSTEM_PRIVILEGE( privilege => 'ENQUEUE_ANY', grantee => 'STRMADMIN', admin_option => FALSE); -

EXECUTE DBMS_AQADM.GRANT_SYSTEM_PRIVILEGE( privilege => 'DEQUEUE_ANY', grantee => 'STRMADMIN', admin_option => FALSE);
EXECUTE DBMS_AQADM.GRANT_SYSTEM_PRIVILEGE( privilege => 'MANAGE_ANY', grantee => 'STRMADMIN', admin_option => TRUE); EXECUTE DBMS_AQADM.GRANT_TYPE_ACCESS( user_name => 'STRMADMIN');

2006 Julian Dyke

juliandyke.com

Streams Configuration

Grant more privileges...

EXECUTE DBMS_RULE_ADM.GRANT_SYSTEM_PRIVILEGE( privilege => DBMS_RULE_ADM.CREATE_EVALUATION_CONTEXT_OBJ, grantee => 'STRMADMIN', grant_option => TRUE);
EXECUTE DBMS_RULE_ADM.GRANT_SYSTEM_PRIVILEGE( privilege => DBMS_RULE_ADM.CREATE_RULE_SET_OBJ, grantee => 'STRMADMIN', grant_option => TRUE); EXECUTE DBMS_RULE_ADM.GRANT_SYSTEM_PRIVILEGE( privilege => DBMS_RULE_ADM.CREATE_RULE_OBJ, grantee => 'STRMADMIN', grant_option => TRUE);

EXECUTE DBMS_RULE_ADM.GRANT_SYSTEM_PRIVILEGE( privilege => DBMS_RULE_ADM.CREATE_ANY_RULE_SET, grantee => 'STRMADMIN', grant_option => TRUE);
10

2006 Julian Dyke

juliandyke.com

Streams Configuration

Grant even more privileges...

EXECUTE DBMS_RULE_ADM.GRANT_SYSTEM_PRIVILEGE( privilege => DBMS_RULE_ADM.ALTER_ANY_RULE_SET, grantee => 'STRMADMIN', grant_option => TRUE);
EXECUTE DBMS_RULE_ADM.GRANT_SYSTEM_PRIVILEGE( privilege => DBMS_RULE_ADM.EXECUTE_ANY_RULE_SET, grantee => 'STRMADMIN', grant_option => TRUE); EXECUTE DBMS_RULE_ADM.GRANT_SYSTEM_PRIVILEGE( privilege => DBMS_RULE_ADM.CREATE_ANY_RULE, grantee => 'STRMADMIN', grant_option => TRUE);

EXECUTE DBMS_RULE_ADM.GRANT_SYSTEM_PRIVILEGE( privilege => DBMS_RULE_ADM.ALTER_ANY_RULE, grantee => 'STRMADMIN', grant_option => TRUE);
11

2006 Julian Dyke

juliandyke.com

Streams Configuration

And finally...

EXECUTE DBMS_RULE_ADM.GRANT_SYSTEM_PRIVILEGE( privilege => DBMS_RULE_ADM.EXECUTE_ANY_RULE, grantee => 'STRMADMIN', grant_option => TRUE); EXECUTE DBMS_RULE_ADM.GRANT_OBJECT_PRIVILEGE( privilege => DBMS_RULE_ADM.EXECUTE_ON_EVALUATION_CONTEXT, object_name => 'SYS.STREAMS$_EVALUATION_CONTEXT', grantee => 'STRMADMIN', grant_option => FALSE ); EXECUTE DBMS_RULE_ADM.GRANT_SYSTEM_PRIVILEGE( privilege => DBMS_RULE_ADM.EXECUTE_ANY_EVALUATION_CONTEXT, grantee => 'STRMADMIN', grant_option => TRUE);

EXECUTE DBMS_STREAMS_AUTH.GRANT_ADMIN_PRIVILEGE('STRMADMIN');

12

2006 Julian Dyke

juliandyke.com

Streams Configuration

On both servers as STRMADMIN create AQ queue table and queue

EXECUTE DBMS_STREAMS_ADM.SET_UP_QUEUE( queue_table => 'STREAMS_QUEUE', queue_name => 'STREAMS_QUEUE', queue_user => 'STRMADMIN');

On source as STRMADMIN create database link to target

CREATE DATABASE LINK TARGET CONNECT TO strmadmin IDENTIFIED BY strmadmin USING 'TARGET';

On target as STRMADMIN create database link to source

CREATE DATABASE LINK SOURCE CONNECT TO strmadmin IDENTIFIED BY strmadmin USING 'SOURCE';
13

2006 Julian Dyke

juliandyke.com

Streams Configuration

On source as STRMADMIN build Logminer dictionary

DECLARE l_scn number; BEGIN -- Build Logminer dictionary for the capture process DBMS_CAPTURE_ADM.BUILD (l_scn); -- Creates the capture based on the previous build DBMS_CAPTURE_ADM.CREATE_CAPTURE ( queue_name=>'STRMADMIN.STREAMS_QUEUE', capture_name=>'CAPTURE1', checkpoint_retention_time=>7, first_scn=>l_scn ); END; /
14

2006 Julian Dyke

juliandyke.com

Streams Configuration

On source as STRMADMIN create capture rules for SCOTT.EMP

DECLARE l_global_name varchar2(255); BEGIN -- Get the global name of the database SELECT global_name INTO l_global_name FROM global_name; -- Adds the SCOTT.EMP to the streams capture rules DBMS_STREAMS_ADM.ADD_TABLE_RULES ( table_name => 'SCOTT.EMP', streams_type => 'CAPTURE', streams_name => 'CAPTURE1', queue_name => 'STRMADMIN.STREAMS_QUEUE', include_dml => TRUE, include_ddl => TRUE, source_database => l_global_name ); END; /
15

2006 Julian Dyke

juliandyke.com

Streams Configuration

On source as STRMADMIN prepare table for instantiation

-- Prepare tables for instantiation -- Supplemental logging must be enabled on the tables BEGIN DBMS_CAPTURE_ADM.PREPARE_TABLE_INSTANTIATION ( table_name => 'SCOTT.EMP', supplemental_logging=>'keys' );

END; /

On source as STRMADMIN archive the current online redo log

ALTER SYSTEM ARCHIVE LOG CURRENT;

16

2006 Julian Dyke

juliandyke.com

Streams Configuration

On target as STRMADMIN use Data Pump to copy table

SET SERVEROUTPUT ON DECLARE l_job_handle NUMBER; l_job_state VARCHAR2(30); l_scn NUMBER;

-- Data Pump job handle -- Keeps track of job state -- SCN

BEGIN -- Get scn from source l_scn := DBMS_FLASHBACK.GET_SYSTEM_CHANGE_NUMBER@SOURCE; --Create a user-named Data Pump job to do a "table-level" import --using a network link l_job_handle := DBMS_DATAPUMP.OPEN ( operation => 'IMPORT', job_mode => 'TABLE', remote_link => 'SOURCE', job_name => 'IMPORT_SCOTT_'||TO_CHAR (SYSDATE,'SSSSS') );
17

2006 Julian Dyke

juliandyke.com

Streams Configuration

Data Pump continued...

-- Schema filter DBMS_DATAPUMP.METADATA_FILTER ( handle => l_job_handle, name => 'SCHEMA_LIST', value => '''SCOTT'' ); -- Table filter

DBMS_DATAPUMP.METADATA_FILTER ( handle => l_job_handle, name => 'NAME_LIST', value => '''EMP''' );

18

2006 Julian Dyke

juliandyke.com

Streams Configuration

Data Pump continued...

-- Set parameters DBMS_DATAPUMP.SET_PARAMETER ( handle => l_job_handle, name => 'FLASHBACK_SCN', value => l_scn ); DBMS_DATAPUMP.SET_PARAMETER ( handle => l_job_handle, name => 'TABLE_EXISTS_ACTION', value => 'REPLACE' );

19

2006 Julian Dyke

juliandyke.com

Streams Configuration

Data Pump continued...

-- Start the Datapump job DBMS_DATAPUMP.START_JOB ( handle => l_job_handle, skip_current => 0 ); DBMS_DATAPUMP.WAIT_FOR_JOB ( handle => l_job_handle, job_state => l_job_state ); DBMS_OUTPUT.PUT_LINE ('Job completed - job state = '||l_job_state);

DBMS_DATAPUMP.DETACH (handle => l_job_handle); END; /

20

2006 Julian Dyke

juliandyke.com

Streams Configuration

On target as STRMADMIN add table rules for SCOTT.EMP

DECLARE l_scn number; BEGIN DBMS_STREAMS_ADM.ADD_TABLE_RULES ( table_name => 'SCOTT.EMP', streams_type => 'APPLY', streams_name => 'APPLY1', queue_name => 'STRMADMIN.STREAMS_QUEUE', include_dml => TRUE, include_ddl => TRUE, source_database => 'SOURCE' ); END; /

21

2006 Julian Dyke

juliandyke.com

Streams Configuration

On target as STRMADMIN set table instantiation SCN

DECLARE l_scn number; BEGIN l_scn := DBMS_FLASHBACK.GET_SYSTEM_CHANGE_NUMBER (); -- Set the table instantiation SCN DBMS_APPLY_ADM.SET_TABLE_INSTANTIATION_SCN ( source_object_name => 'SCOTT.EMP', source_database_name => 'SOURCE', instantiation_scn => l_scn ); END; /

22

2006 Julian Dyke

juliandyke.com

Streams Configuration

On source as STRMADMIN add the SCOTT schema to the propagation rules

BEGIN -- add the schema to the propagation rules DBMS_STREAMS_ADM.ADD_SCHEMA_PROPAGATION_RULES ( schema_name => 'SCOTT', streams_name => 'PROPAGATE1', source_queue_name => 'STRMADMIN.STREAMS_QUEUE', destination_queue_name => 'STRMADMIN.STREAMS_QUEUE@TARGET', include_dml => TRUE, include_ddl => TRUE, queue_to_queue => TRUE, source_database => 'SOURCE' ); END; /

23

2006 Julian Dyke

juliandyke.com

Streams Configuration

On target as STRMADMIN start apply process

EXECUTE DBMS_APPLY_ADM.START_APPLY ('APPLY1');

On source as STRMADMIN start capture process

EXECUTE DBMS_CAPTURE_ADM.START_CAPTURE ('CAPTURE1');

Note - propagation is started automatically by the ADD_SCHEMA_PROPAGATION_RULES procedure

24

2006 Julian Dyke

juliandyke.com

Logical Change Records

juliandyke.com

25

2006 Julian Dyke

Logical Change Records Introduction

Two types of LCR row LCR SYS.LCR$_ROW_RECORD DDL LCR SYS.LCR$_DDL_RECORD Enqueued into an ANYDATA queue Can be Captured by capture process Constructed and enqueued by user or application Can be modified by Rule-based transformation Apply process

26

2006 Julian Dyke

juliandyke.com

Logical Change Records Example

This is an example of manual creation of an LCR

Example 1 - Create LCR on target server

As SYSDBA grant privileges to STRMADMIN user
GRANT EXECUTE ON DBMS_STREAMS_MESSAGING TO strmadmin;

As STRMADMIN create a queue table and a queue

BEGIN DBMS_STREAMS_ADM.SET_UP_QUEUE ( queue_table => 'QUEUE_TABLE2', storage_clause => NULL, queue_name => 'QUEUE2' ); END; /

27

2006 Julian Dyke

juliandyke.com

Logical Change Records Example

Create apply process

BEGIN DBMS_APPLY_ADM.CREATE_APPLY ( queue_name => 'QUEUE2', apply_name => 'APPLY2', apply_captured => FALSE, apply_user => 'SCOTT' ); END; /

28

2006 Julian Dyke

juliandyke.com

Logical Change Records Example

Create add table rules for SCOTT.EMP

BEGIN DBMS_STREAMS_ADM.ADD_TABLE_RULES ( table_name => 'SCOTT.DEPT', streams_type => 'APPLY', streams_name => 'APPLY2', queue_name => 'QUEUE2', include_dml => TRUE, include_ddl => FALSE, include_tagged_lcr => FALSE, source_database => 'SOURCE', inclusion_rule => TRUE ); END; /

29

2006 Julian Dyke

juliandyke.com

Logical Change Records Example

Do not disable apply process when an error is encountered

BEGIN DBMS_APPLY_ADM.SET_PARAMETER ( apply_name => 'APPLY2', parameter => 'DISABLE_ON_ERROR', value => 'N' ); END; /

Start apply process

EXECUTE DBMS_APPLY_ADM.START_APPLY ('APPLY2');

30

2006 Julian Dyke

juliandyke.com

Logical Change Records Example

In source database create propagation process

BEGIN -- add the schema to the propagation rules DBMS_STREAMS_ADM.ADD_SCHEMA_PROPAGATION_RULES( schema_name => 'SCOTT', streams_name => 'PROPAGATE2', source_queue_name => 'STRMADMIN.QUEUE2', destination_queue_name => 'STRMADMIN.QUEUE2@TARGET', include_dml => TRUE, include_ddl => FALSE, queue_to_queue => TRUE, source_database => 'SOURCE' ); END; /

31

2006 Julian Dyke

juliandyke.com

Logical Change Records Insert Example

Inserting a row (1 of 3)
INSERT INTO dept (deptno,dname,loc) VALUES (50,'IT','LONDON');
DECLARE l_deptno l_dname l_loc l_newvals l_row

SYS.LCR$_ROW_UNIT; SYS.LCR$_ROW_UNIT; SYS.LCR$_ROW_UNIT; SYS.LCR$_ROW_LIST; SYS.LCR$_ROW_RECORD;

BEGIN l_deptno := SYS.LCR$_ROW_UNIT ( 'DEPTNO', ANYDATA.ConvertNumber (50), DBMS_LCR.NOT_A_LOB, NULL, NULL );

32

2006 Julian Dyke

juliandyke.com

Logical Change Records Insert Example

Inserting a row (2 of 3)
l_dname := SYS.LCR$_ROW_UNIT ( 'DNAME', ANYDATA.ConvertVarchar2 ('IT'), DBMS_LCR.NOT_A_LOB, NULL, NULL ); l_loc := SYS.LCR$_ROW_UNIT ( 'LOC', ANYDATA.ConvertVarchar2 ('LONDON'), DBMS_LCR.NOT_A_LOB, NULL, NULL ); l_newvals := SYS.LCR$_ROW_LIST (l_deptno,l_dname,l_loc);

33

2006 Julian Dyke

juliandyke.com

Logical Change Records Insert Example

Inserting a row (3 of 3)
-- Construct the LCR l_row := SYS.LCR$_ROW_RECORD.CONSTRUCT ( source_database_name => 'SOURCE', command_type => 'INSERT', object_owner => 'SCOTT', object_name => 'DEPT', old_values => NULL, new_values => l_new_vals ); DBMS_STREAMS_MESSAGING.ENQUEUE ( queue_name => 'QUEUE2', payload => ANYDATA.ConvertObject (l_row) );

34

2006 Julian Dyke

juliandyke.com

Logical Change Records Update Example

Updating a row (1 of 3)
UPDATE dept SET loc = 'READING' WHERE deptno = 50;
DECLARE l_deptno l_old_loc l_new_loc l_oldvals l_newvals l_row

SYS.LCR$_ROW_UNIT; SYS.LCR$_ROW_UNIT; SYS.LCR$_ROW_UNIT; SYS.LCR$_ROW_LIST; SYS.LCR$_ROW_LIST; SYS.LCR$_ROW_RECORD;

BEGIN l_deptno := SYS.LCR$_ROW_UNIT ( 'DEPTNO', ANYDATA.ConvertNumber (50), DBMS_LCR.NOT_A_LOB, NULL, NULL );

35

2006 Julian Dyke

juliandyke.com

Logical Change Records Update Example

Updating a row (2 of 3)
l_old_loc := SYS.LCR$_ROW_UNIT ( 'LOC', ANYDATA.ConvertVarchar2 ('LONDON'), DBMS_LCR.NOT_A_LOB, NULL, NULL );

l_oldvals := SYS.LCR$_ROW_LIST (l_deptno,l_old_loc);

l_new_loc := SYS.LCR$_ROW_UNIT ( 'LOC', ANYDATA.ConvertVarchar2 ('READING'), DBMS_LCR.NOT_A_LOB, NULL, NULL ); l_newvals := SYS.LCR$_ROW_LIST (l_new_loc);
36

2006 Julian Dyke

juliandyke.com

Logical Change Records Update Example

Updating a row (3 of 3)
-- Construct the LCR l_row := SYS.LCR$_ROW_RECORD.CONSTRUCT ( source_database_name => 'SOURCE', command_type => 'UPDATE', object_owner => 'SCOTT', object_name => 'DEPT', old_values => l_old_vals, new_values => l_new_vals ); DBMS_STREAMS_MESSAGING.ENQUEUE ( queue_name => 'QUEUE2', payload => ANYDATA.ConvertObject (l_row) );

37

2006 Julian Dyke

juliandyke.com

Thank you for your interest
