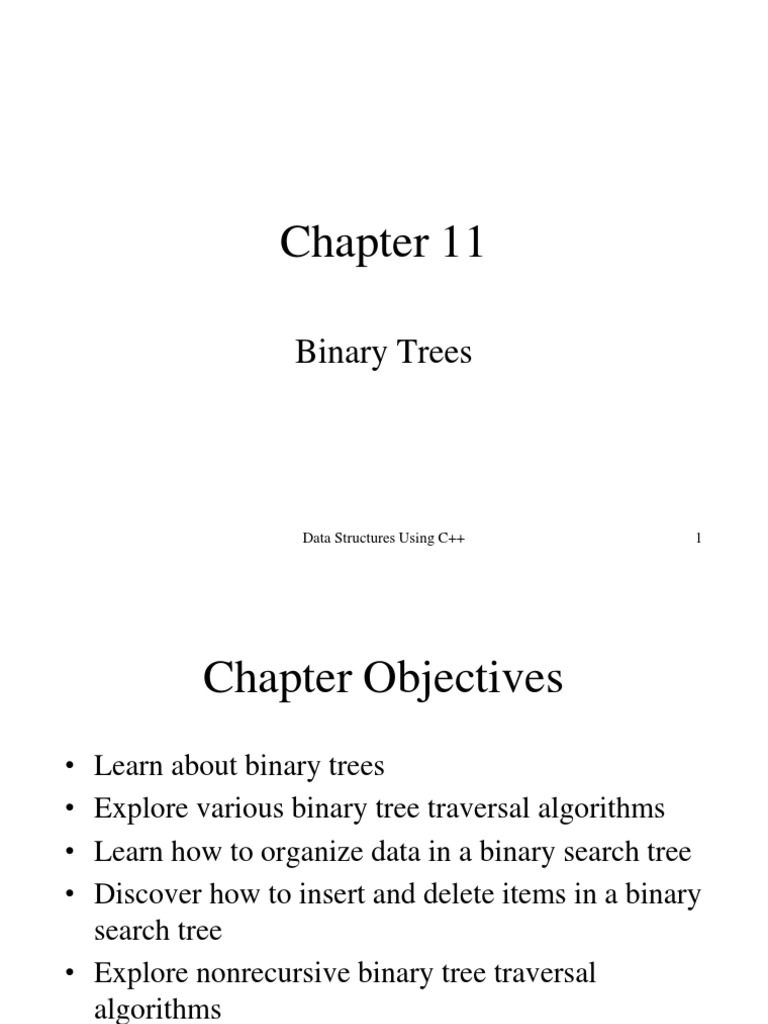

Chapter 11

Binary Trees

Data Structures Using C++

Chapter Objectives
Learn about binary trees Explore various binary tree traversal algorithms Learn how to organize data in a binary search tree Discover how to insert and delete items in a binary search tree Explore nonrecursive binary tree traversal algorithms Learn about AVL (height-balanced) trees
Data Structures Using C++ 2

Binary Trees
Definition: A binary tree, T, is either empty or such that:
T has a special node called the root node; T has two sets of nodes, LT and RT, called the left subtree and right subtree of T, respectively; LT and RT are binary trees

Data Structures Using C++

Binary Tree

Data Structures Using C++

Binary Tree With One Node

The root node of the binary tree = A

LA = empty
RA = empty

Data Structures Using C++

Binary Trees With Two Nodes

Data Structures Using C++

Binary Trees With Two Nodes

Data Structures Using C++

Various Binary Trees With Three Nodes

Data Structures Using C++

Binary Trees
Following struct defines the node of a binary tree:
template<class elemType> struct nodeType { elemType info; nodeType<elemType> *llink; nodeType<elemType> *rlink; };

Data Structures Using C++

Nodes
For each node:
Data is stored in info The pointer to the left child is stored in llink The pointer to the right child is stored in rlink

Data Structures Using C++

10

General Binary Tree

Data Structures Using C++

11

Binary Tree Definitions

Leaf: node that has no left and right children Parent: node with at least one child node Level of a node: number of branches on the path from root to node Height of a binary tree: number of nodes no the longest path from root to node
Data Structures Using C++ 12

Height of a Binary Tree

Recursive algorithm to find height of binary tree: (height(p) denotes height of binary tree with root p):
if(p is NULL) height(p) = 0 else height(p) = 1 + max(height(p->llink), height(p>rlink))
Data Structures Using C++ 13

Height of a Binary Tree

Function to implement above algorithm:
template<class elemType> int height(nodeType<elemType> *p) { if(p == NULL) return 0; else return 1 + max(height(p->llink), height(p->rlink)); }

Data Structures Using C++

14

Copy Tree
Useful operation on binary trees is to make identical copy of binary tree Use function copyTree when we overload assignment operator and implement copy constructor

Data Structures Using C++

15

Copy Tree
template<class elemType> void copyTree(nodeType<elemType>* &copiedTreeRoot, nodeType<elemType>* otherTreeRoot) { if(otherTreeRoot == NULL) copiedTreeRoot = NULL; else { copiedTreeRoot = new nodeType<elemType>; copiedTreeRoot->info = otherTreeRoot->info; copyTree(copiedTreeRoot->llink, otherTreeRoot->llink); copyTree(copiedTreeRoot->rlink, otherTreeRoot->rlink); } }//end copyTree

Data Structures Using C++

16

Binary Tree Traversal

Must start with the root, then
Visit the node first or Visit the subtrees first

Three different traversals

Inorder Preorder Postorder
Data Structures Using C++ 17

Traversals
Inorder
Traverse the left subtree Visit the node Traverse the right subtree

Preorder
Visit the node Traverse the left subtree Traverse the right subtree
Data Structures Using C++ 18

Traversals
Postorder
Traverse the left subtree Traverse the right subtree Visit the node

Data Structures Using C++

19

Binary Tree: Inorder Traversal

Data Structures Using C++

20

Binary Tree: Inorder Traversal

template<class elemType>

void inorder(nodeType<elemType> *p)

{ if(p != NULL)

{
inorder(p->llink); cout<<p->info<< ; inorder(p->rlink); } }
Data Structures Using C++ 21

Binary Tree: Traversals

template<class elemType>
void preorder(nodeType<elemType> *p) { if(p != NULL) { cout<<p->info<< ; preorder(p->llink); preorder(p->rlink); } } } template<class elemType> void postorder(nodeType<elemType> *p) { if(p != NULL) { postorder(p->llink); postorder(p->rlink); cout<<p->info<< ;

}1

Data Structures Using C++

22

Implementing Binary Trees: class binaryTreeType Functions

Public
isEmpty inorderTraversal preorderTraversal postorderTraversal treeHeight treeNodeCount treeLeavesCount destroyTree

Private
copyTree Destroy Inorder, preorder, postorder Height Max nodeCount leavesCount
23

Data Structures Using C++

Binary Search Trees

Data in each node
Larger than the data in its left child Smaller than the data in its right child

A binary search tree,t, is either empty or:

T has a special node called the root node T has two sets of nodes, LT and RT, called the left subtree and right subtree of T, respectively Key in root node larger than every key in left subtree and smaller than every key in right subtree LT and RT are binary search trees
Data Structures Using C++ 24

Binary Search Trees

Data Structures Using C++

25

Operations Performed on Binary Search Trees

Determine whether the binary search tree is empty Search the binary search tree for a particular item Insert an item in the binary search tree Delete an item from the binary search tree

Data Structures Using C++

26

Operations Performed on Binary Search Trees

Find the height of the binary search tree Find the number of nodes in the binary search tree Find the number of leaves in the binary search tree Traverse the binary search tree Copy the binary search tree
Data Structures Using C++ 27

Binary Search Tree Analysis

Worst Case: Linear tree

Data Structures Using C++

28

Binary Search Tree Analysis

Theorem: Let T be a binary search tree with n nodes, where n > 0.The average number of nodes visited in a search of T is approximately 1.39log2n Number of comparisons required to determine whether x is in T is one more than the number of comparisons required to insert x in T Number of comparisons required to insert x in T same as the number of comparisons made in unsuccessful search, reflecting that x is not in T
Data Structures Using C++ 29

Binary Search Tree Analysis

It follows that:

It is also known that:

Solving Equations (11-1) and (11-2)

Data Structures Using C++

30

Nonrecursive Inorder Traversal

Data Structures Using C++

31

Nonrecursive Inorder Traversal: General Algorithm

1.
2.

//start traversing the binary tree at // the root node while(current is not NULL or stack is nonempty) if(current is not NULL) { push current onto stack; current = current->llink; } else { pop stack into current; visit current; //visit the node current = current->rlink; //move to the //right child }
Data Structures Using C++ 32

current = root;

Nonrecursive Preorder Traversal: General Algorithm

1. current = root; //start the traversal at the root node 2. while(current is not NULL or stack is nonempty) if(current is not NULL) { visit current; push current onto stack; current = current->llink; } else { pop stack into current; current = current->rlink; //prepare to visit //the right subtree }

Data Structures Using C++

33

Nonrecursive Postorder Traversal

1. 2. 3.
4.

current = root; //start traversal at root node v = 0; if(current is NULL) the binary tree is empty if(current is not NULL) a. push current into stack; b. push 1 onto stack; c. current = current->llink; d. while(stack is not empty) if(current is not NULL and v is 0)
{

push current and 1 onto stack; current = current->llink; }

Data Structures Using C++ 34

Nonrecursive Postorder Traversal (Continued)

else {
pop stack into current and v; if(v == 1) { push current and 2 onto stack; current = current->rlink; v = 0; } else visit current; }

Data Structures Using C++

35

AVL (Height-balanced Trees)

A perfectly balanced binary tree is a binary tree such that:
The height of the left and right subtrees of the root are equal The left and right subtrees of the root are perfectly balanced binary trees

Data Structures Using C++

36

Perfectly Balanced Binary Tree

Data Structures Using C++

37

AVL (Height-balanced Trees)

An AVL tree (or height-balanced tree) is a binary search tree such that:
The height of the left and right subtrees of the root differ by at most 1 The left and right subtrees of the root are AVL trees

Data Structures Using C++

38

AVL Trees

Data Structures Using C++

39

Non-AVL Trees

Data Structures Using C++

40

Insertion Into AVL Tree

Data Structures Using C++

41

Insertion Into AVL Trees

Data Structures Using C++

42

Insertion Into AVL Trees

Data Structures Using C++

43

Insertion Into AVL Trees

Data Structures Using C++

44

Insertion Into AVL Trees

Data Structures Using C++

45

AVL Tree Rotations

Reconstruction procedure: rotating tree
left rotation and right rotation Suppose that the rotation occurs at node x

Left rotation: certain nodes from the right subtree of x move to its left subtree; the root of the right subtree of x becomes the new root of the reconstructed subtree Right rotation at x: certain nodes from the left subtree of x move to its right subtree; the root of the left subtree of x becomes the new root of the reconstructed subtree
Data Structures Using C++ 46

AVL Tree Rotations

Data Structures Using C++

47

AVL Tree Rotations

Data Structures Using C++

48

AVL Tree Rotations

Data Structures Using C++

49

AVL Tree Rotations

Data Structures Using C++

50

AVL Tree Rotations

Data Structures Using C++

51

AVL Tree Rotations

Data Structures Using C++

52

Deletion From AVL Trees

Case 1: the node to be deleted is a leaf Case 2: the node to be deleted has no right child, that is, its right subtree is empty Case 3: the node to be deleted has no left child, that is, its left subtree is empty Case 4: the node to be deleted has a left child and a right child
Data Structures Using C++ 53

Analysis: AVL Trees

Consider all the possible AVL trees of height h. Let Th be an AVL tree of height h such that Th has the fewest number of nodes. Let Thl denote the left subtree of Th and Thr denote the right subtree of Th. Then:

where | Th | denotes the number of nodes in Th.

Data Structures Using C++

54

Analysis: AVL Trees

Suppose that Thl is of height h 1 and Thr is of height h 2. Thl is an AVL tree of height h 1 such that Thl has the fewest number of nodes among all AVL trees of height h 1. Thr is an AVL tree of height h 2 that has the fewest number of nodes among all AVL trees of height h 2. Thl is of the form Th -1 and Thr is of the form Th -2. Hence:

Data Structures Using C++

55

Analysis: AVL Trees

Let Fh+2 = |Th | + 1. Then:

Called a Fibonacci sequence; solution to Fh is given by:

Hence From this it can be concluded that

Data Structures Using C++ 56

Chapter Summary
Binary trees Binary search trees Recursive traversal algorithms Nonrecursive traversal algorithms AVL trees

Data Structures Using C++

57
