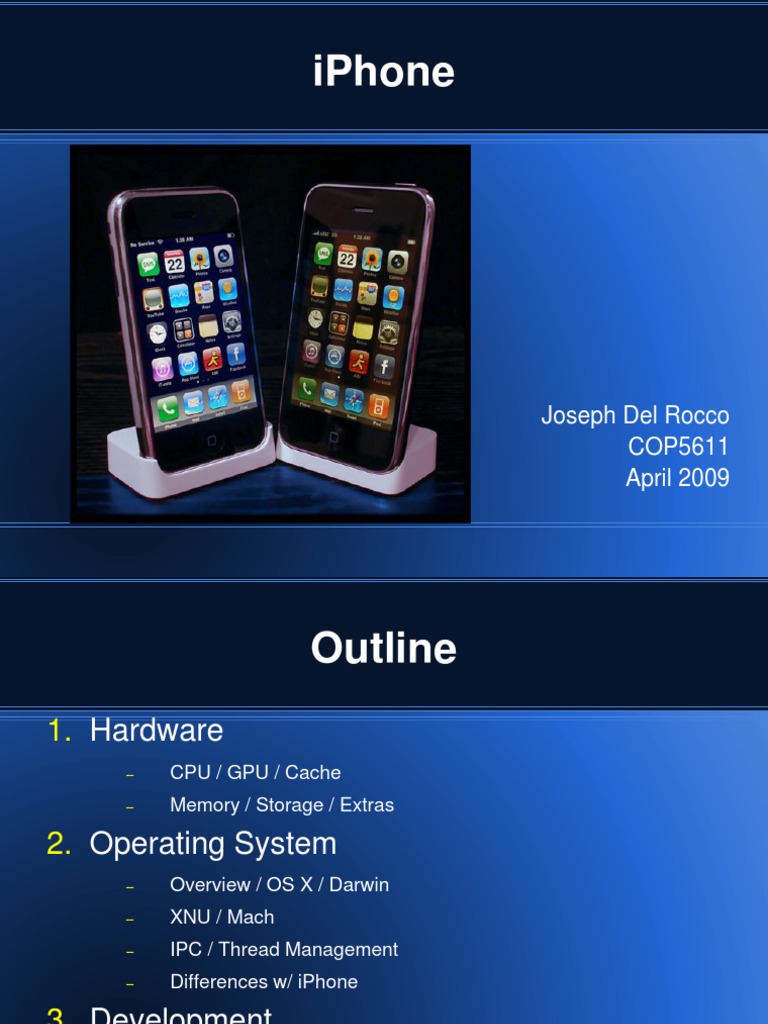

iPhone

Joseph Del Rocco COP5611 April 2009

Outline
1. Hardware

CPU / GPU / Cache

Memory / Storage / Extras

2. Operating System

Overview / OS X / Darwin
XNU / Mach IPC / Thread Management Differences w/ iPhone

3. Development

SDK / Tools / Objective-C / Examples

2

3/6/2013

Hardware (3G)

3/6/2013

Motherboard (top)

3/6/2013

Motherboard (bottom)

3/6/2013

Samsung S5L8900 (SoC)

S3C6400 3/6/2013 6

CPU / GPU Specs

ARM1176JZ(F)-S

PowerVR MBX Lite

412 MHz (620 MHz) 103MHz FS Bus

133 MHz (233 MHz) ~130m pix/s fillrate

32-bit RISC
32KB L1 (16x2 I/D) ARM TrustZone ARM Thumb

~1.7m tri/s fill rate

Anti-Aliasing Texture Compression OpenGL ES / D3D M
7

3/6/2013

L1 Cache
...evenly addressed double words are stored in one RAM, while oddly addressed double words are stored in the second RAM.
At synthesis time, the designer may choose to implement one, two or three separate RAMs. Where separate RAMs are implemented, the core can access these in parallel, hence increasing performance. [6]

3/6/2013

Memory (PoP)

DDR-SDRAM 1Gb (128MB)

(16MB reserved for GPU)

8K blocks
4 banks Speed 7.5ns@CL3 1.8V core - 1.8V I/O
9

3/6/2013

Storage
K9MCG08U5M TH58NVG6D1D (3G)

NAND Flash Memory

4GB / 8GB / 16GB

2 GB dies (x2 / x4 / x8)

--------------------------------------NOR faster non-contiguous reads, slow erase/write (read only) NAND faster erase/write, slow non-contiguous reads (serial) NAND prone to single-bit errors; error detection & correction
3/6/2013 10

Touch Screen

Broadcom BCM5974 Controller Multi-touch No stylus or non-conductive gloves

3/6/2013

11

Extras

STMicro LIS331 DL/AL Accelerometer

click & double-click wake-up motion detection acceleration (x, y, z) axes high-pass filters 2 dedicated interrupt lines

Hammerhead II PMB2525 GPS

2m steady state accuracy 2 < 50mm PCB area smart power management multi-path mitigation

3/6/2013

12

iPhone OS (?)
Remember that OS X on a Mac features a lot of applications that we dont have to ship on the iPhone.
Greg Joswiak Macworld Expo (01/2007)

The entire Mac OS is gigs, a lot is data. Take out the data -every desktop pattern, sound sample -- if you look at Safari it's not that big. It's REAL Safari, REAL OS X. We put a different user interface on it to work with a multi-touch screen...
Steve Jobs Wall Street Journal: D Conference (05/30/2007)

3/6/2013

13

OS X Lineage

3/6/2013

14

NeXTSTEP
... we at id Software developed DOOM and Quake on the NeXTSTEP 3.3 OS running on a variety of hardware for about 4 years. I still remember the wonderful time I had coding DoomEd and QuakeEd in Objective-C; there was nothing like it before and there still is no environment quite like it even today. John Romero http://rome.ro

I wrote the program using a NeXT computer. This had the advantage that there were some great tools available -it was a great computing environment in general. In fact, I could do in a couple of months what would take more like a year on other platforms, because on the NeXT, a lot of it was done for me already. Tim Berners-Lee http://www.w3.org/People/Berners-Lee/WorldWideWeb
3/6/2013 http://www.youtube.com/watch?v=j02b8Fuz73A 15

NeXTSTEP -> OPENSTEP -> Rhapsody -> Darwin -> OS X

http://www.roughlydrafted.com/RD/RDM.Tech.Q1.07/4B800F78-0F75-455A-9681-F186A4365805.html

Apple using System Software 1984 - 1999 Apple talks w/ Microsoft, Be, Sun, NeXT. Apple acquires NeXT (1996) Apple initially pushes OPENSTEP (epic fail) Rhapsody = OPENSTEP, BSD, etc. Apple rushes OS X Server v1.0 (1999) Apple forks Rhapsody as Darwin (2000) Apple releases OS X v10.0 (2001)

3/6/2013

16

Darwin & OS X

3/6/2013

17

Darwin Source

3/6/2013

18

Mac OS X Kernel: XNU

Layered
+ modular + simplicity / debugging - layers add overhead - layer order complexity (catch-22 scenarios)

Microkernel
+ ease of extending + hardware portability + reusable w/ OS layers

Hybrid / Modular
+ benefits of layered + dynamic-loaded extensions + IPC unnecessary between extensions - too many kernel extensions becomes -> monolithic
19

- performance decrease due to extensive IPC

3/6/2013

...about 70 percent of operating systems consist of device drivers, which have error rates three to seven times higher than ordinary code... [22]

XNU
FreeBSD
process model user ids, permissions, basic security policies POSIX API, BSD style system calls TCP/IP stack, BSD sockets, firewall VFS, HFS and other file systems System V IPC cryptographic framework various synchronization mechanisms

I/O Kit
dynamic matching / loading of drivers / kext numerous device families (usb, pci, ata, etc.) i/o registry object oriented abstractions of devices power management an extensive API plug-and-play and hot-plugging driver stacking

Mach
preemptive multitasking, kernel threads protected memory virtual memory management (FIFO w/ second chance) inter-process communication interrupt management kernel debugging support console I/O

3/6/2013

20

Mach

Simplified kernel structure, easier to extend & modify BSD compatible; Heterogeneous system support; Mach-O binary format Support diverse architectures; mutliprocessors (UMA, NUMA, NORMA) Network transparency; Distributed operation internally & externally Fix UNIX design of everything-as-a-file; Generalize pipes to ports
Machs design philosophy is to have a simple, extensible kernel, concentrating on communication facilities. For instance, all requests to the kernel, and all data movement among processes, are handled through one communication mechanism. Mach is therefore able to provide system-wide protection to its users by protecting the communications mechanism. Optimizing this one communications path can result in significant performance gains, and it is simpler than trying to optimize several paths. [21]

3/6/2013

21

Mach: System Components

Task
Contains virtual address space, threads, & protected access to system resources via ports.

Thread
Basic unit of execution; shares parent tasks resources.

Port
Kernel-protected communication channel with access rights. Tasks must have proper rights to use the ports. Implemented as a protected, bounded queue within kernel.

Port Set
Group of ports sharing a common message queue.

Message
Basic method of communication between threads; collection of typed data or pointers.

Memory Object
Any source of memory where memory-mapped access makes sense; Tasks access it by mapping portions into their address spaces.
3/6/2013 22

Mach: IPC

Messages contain typed data for ease of interpretation Only one task may have receive rights to a port, many tasks may have send rights Essentially, IPC message passing implemented w/ shared memory (intra-computer)

Note this mechanism can also used for process synchronization!

All other interprocess communications mechanisms in Mac OS X are implemented using Mach ports at some level - Mac OS X Technology Overview
23

3/6/2013

Mach: Task Management

One-to-One mapping of User threads to Kernel threads

Only threads that cause page faults or makes a system call is suspended, the rest continue executing Scheduler only deals w/ threads, has no knowledge of tasks (Sys-ConSco) Priority Scheduling used (0 -127); exponential average of CPU usage 32 global run queues; Per processor local queues (device driver) (priority) Time quantum varies inversely w/ total # of threads in system (thrds < cpus)

Cthreads API: create threads, destroy, wait, yield Mutual exclusion provided by spinlock mutexes Syncing w/out spinlock provided by condition variables
Cthreads Pthreads (1995)
24

3/6/2013

I/O Kit

Implemented w/ libkern to provide OOP

Recommended if software is used by the kernel itself, user-space programs, or software needs to respond directly to primary interrupts
25

3/6/2013

Background Processes
Only one iPhone application can run at a time, and third-party applications never run in the background.
iPhone Human Interface Guidelines, p16

[Here's why it's bad: battery life - it'll continue to drain your battery in the background); performance - background applications will suck up CPU cycles, slowing down your foreground application. Also not supported over the air.] [15]
Scott Forstall, VP iPhone Software, WWDC 2008

Unified Push Notification

3/6/2013

Apple provides server farm for your server apps Updates clients (badges, alert sounds, text messages)
26

So... What Did They Take Out?

OS X iPhone = considerably less than half a GB [14] OS X v10.0 = 800 MB (minimum) (2001) OS X v10.5.6 = 2.0 GB (atleast) (2009) A lot of drivers & software??? multiple file system formats, multiple drives, multiple volumes on drives, RAID, removable drives, real time system support, FireWire, CD/DVD, R/RW CD/DVD, printers, scanners, multiple users & preferences, Finder, fonts, screen savers, etc. kernel and driver-level interfaces not exposed

No garbage collector on iPhone imp. of Obj-C

ARM Thumb compiled code is quite compact (~35% smaller)
27

3/6/2013

ARM Thumb
...any code written in C could be executed successfully in Thumb state. However, device drivers and exception handlers must often be written at least partly in ARM state. [4] ...not all ARM instructions are available in the Thumb subset; [...] there's no way to access status or coprocessor registers. Also, some functions that can be accomplished in a single ARM instruction can only be simulated with a sequence of Thumb instructions. [4]
3/6/2013 28

iPhone Reference Library

...system libraries and frameworks of iPhone OS [] are a subset of the libraries and frameworks on Mac OS X. For example, there is no Carbon application environment on iPhone OS, there is no command-line access (the BSD environment), there are no printing frameworks and services, and QuickTime is absent from the platform. However, because of the nature of the devices supported by iPhone OS, there are some frameworks, both public and private, that are specific to iPhone OS.

3/6/2013

29

Mac OS X: APIs

3/6/2013

30

XCode + Interface Builder

3/6/2013

31

IB: Connecting Components

3/6/2013

32

Shark

3/6/2013

33

Objective-C
Simula C

Small Talk

Developed 1985 interchangeable software components Licensed by NeXT 1988 Used by Apple (Cocoa API)

C++

ObjC

Message Handlers vs. Methods

Dynamic Typing (use types according to runtime data)

Categories (method blocks bound @ runtime) Properties (public instance variables generate methods)

Protocols = Interfaces
34

3/6/2013

Examples

3/6/2013

35

References (Hardware)
1. http://www.apple.com/iphone/specs.html 2. http://dev.emcelettronica.com/touch-screen 3. http://www.embeddedstar.com/weblog/2007/12/05/st-lis331dl-lis331al/ 4. http://www.embedded.com/shared/printableArticle.jhtml?articleID=15200241 5. http://www.arm.com/products/CPUs/ARM1176.html 6. Lewin, Peter, May 2006, Cortex-R4: A comparison with the ARM9E processor family 7. http://www.imgtec.com/powervr/mbx.asp 8. http://www.techonline.com/product/underthehood/209000013 9. http://insidetronics.blogspot.com/ 10. http://toucharcade.com/2008/07/07/under-the-hood-the-iphones-gaming-mettle/ 11. http://reviews.cnet.com/8301-19512_7-10115256-233.html 12. http://www.eetimes.com/news/semi/showArticle.jhtml?articleID=200900740

3/6/2013

36

References (OS)
13. Silberschatz, Abraham, Greg Gagne, Peter Galvin; Operating System Concepts: 7th; John Wiley & Sons 2005 14. http://www.macworld.co.uk/ipod-itunes/news/index.cfm?newsid=16927 15. http://www.macworld.com/article/133867/2008/06/backgroundprocesses.html 16. http://en.wikipedia.org/wiki/Darwin_(operating_system) 17. http://osxbook.com/book/bonus/ancient/whatismacosx//arch_xnu.html 18. Singh, Amit; Mac OS X Internals: A Systems Approach; Addison-Wesley Professional 2006 19. http://developer.apple.com/macosx/coredata.html 20. http://www.roughlydrafted.com/RD/RDM.Tech.Q1.07/4B800F78-0F75-455A-9681-F186A4365805.html 21. http://codex.cs.yale.edu/avi/os-book/os8/online-dir/b.pdf (http://www.os-book.com) 22. Tanenbaum, Andrew S; Can We Make Operating Systems Reliable and Secure?; IEEE Computer 2006 23. http://www.w3.org/People/Berners-Lee/WorldWideWeb 24. http://rome.ro/2006/12/apple-next-merger-birthday.html

3/6/2013

37
