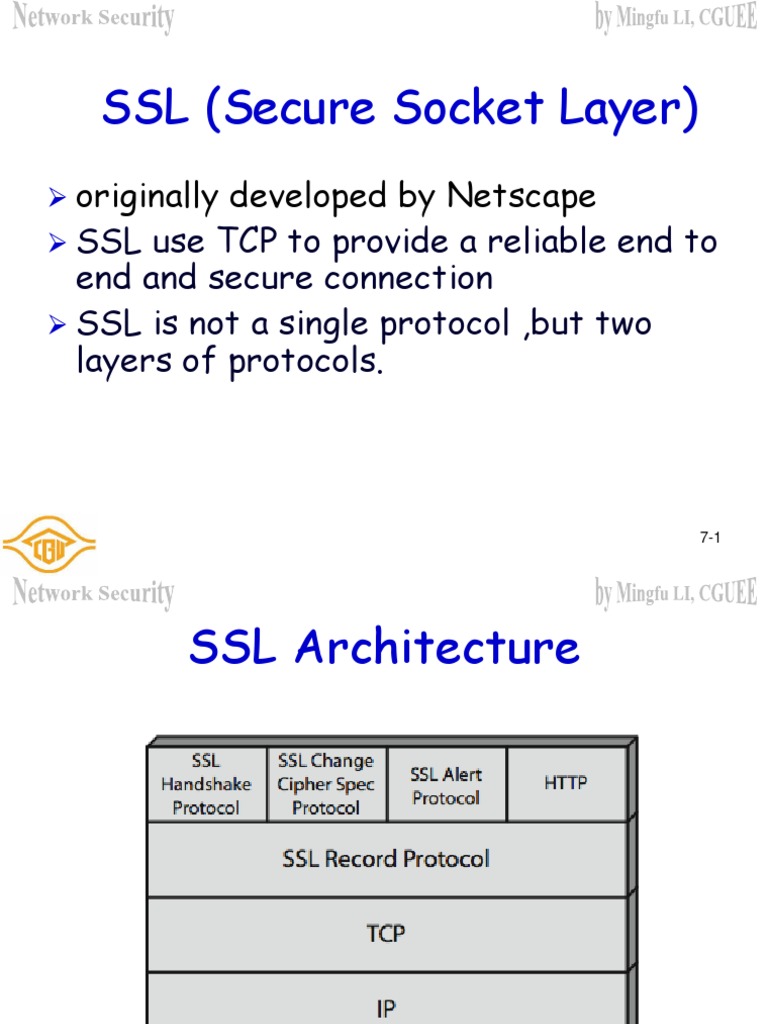

SSL (Secure Socket Layer)

originally

developed by Netscape SSL use TCP to provide a reliable end to end and secure connection SSL is not a single protocol ,but two layers of protocols.

7-1

SSL Architecture

7-2

SSL Architecture
SSL

record protocol provide basic security services to higher layers HTTP provide transfer services for client server interaction. 3 specific protocols :change cipher spec, handshake and alert protocol provide management of SSL exchange
7-3

SSL Architecture
SSL

connection

a transient, peer-to-peer, communications link associated with 1 SSL session

SSL

session

an association between client & server created by the Handshake Protocol define a set of cryptographic parameters may be shared by multiple SSL connections
7-4

 Session

state defined by parameters Session identifier: arbitrary byte sequence chosen by server Peer certificate: X509.v3 certificate of peer Compression method : any algorithm Cipher spec: data encryption algorithm Master secret:48 byte key shared by client and server Is resumable: flag indicating whether 7-5 new connection can be initiated

 Connection

state Server and client random: byte sequence chosen by server and client Server write MAC secret: secret key used in mac operation on data sent by server Client write MAC secret: Server write key: encryption key for data encrypted by server. Client write key: Sequence number:

7-6

SSL Record Protocol Services

message

confidentiality

using a MAC with shared secret key similar to HMAC but with different padding using symmetric encryption with a shared secret key defined by Handshake Protocol AES, IDEA, RC2-40, DES-40, DES, 3DES, Fortezza, RC4-40, RC4-128 message is compressed before encryption
7-7

integrity

SSL Record Protocol Operation

7-8

SSL Record Format

7-9

SSL Record Protocol Payload

7-10

SSL Change Cipher Spec Protocol

one

of 3 SSL specific protocols which use the SSL Record protocol a single message causes pending state to become current hence updating the cipher suite in use

7-11

SSL Alert Protocol

conveys SSL-related alerts to peer entity severity

specific alert

warning or fatal

compressed & encrypted like all SSL data

fatal: unexpected message, bad record mac, decompression failure, handshake failure, illegal parameter warning: close notify, no certificate, bad certificate, unsupported certificate, certificate revoked, certificate expired, certificate unknown

7-12

SSL Handshake Protocol

allows server & client to:

authenticate each other to negotiate encryption & MAC algorithms to negotiate cryptographic keys to be used

comprises a series of messages in phases

Establish Security Capabilities 2. Server Authentication and Key Exchange 3. Client Authentication and Key Exchange 4. Finish
1.
7-13

SSL Handshake Protocol

7-14
