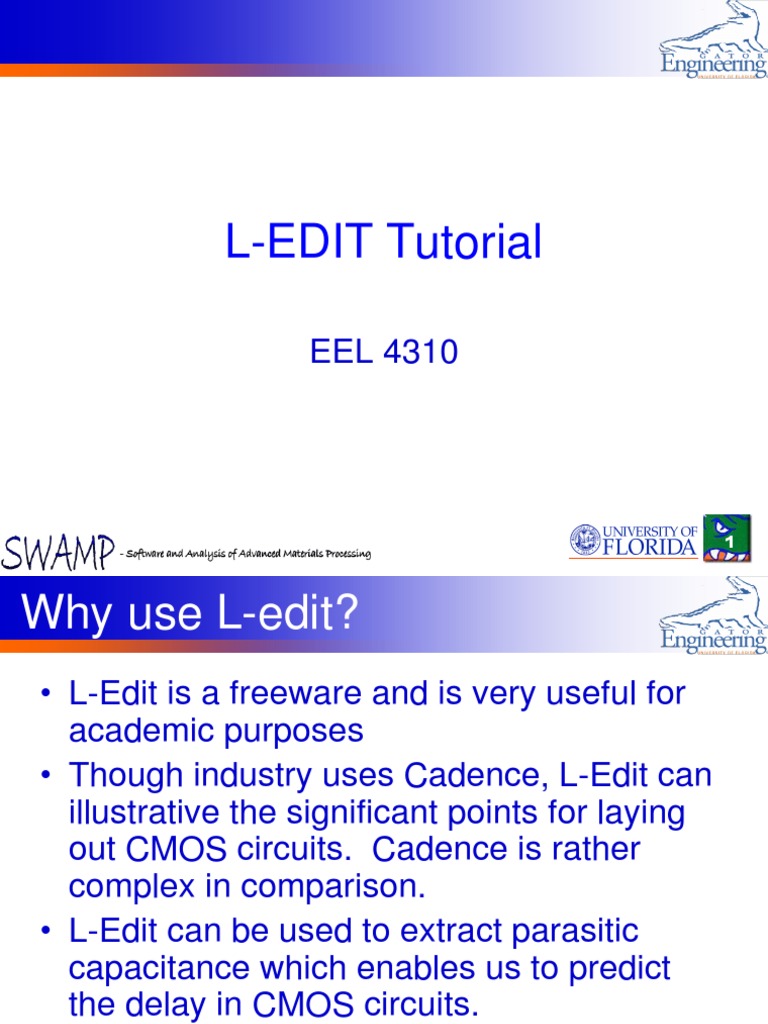

L-EDIT Tutorial

EEL 4310

Why use L-edit?

L-Edit is a freeware and is very useful for academic purposes Though industry uses Cadence, L-Edit can illustrative the significant points for laying out CMOS circuits. Cadence is rather complex in comparison. L-Edit can be used to extract parasitic capacitance which enables us to predict the delay in CMOS circuits.
2

DOWNLOAD INSTRUCTIONS The downloadable version of L-edit can be found in Dr Thompsons website. http://www.thompson.ece.ufl.edu/Fall2007/ downloads.htm Download the file from the first linkstu712.zip: Ftp site for L-Edit Pro student version You can also download L-Edit from www.tanner.com/eda
3

Setup
This version must run in 256 colors. For Windows XP users, set the display by right clicking the short cut created for Ledit and choosing properties. Then click the compatibility tab. Under display settings click 256 colors. Open L-edit

Drawing Layout
Create new Layout file
File > New. In the following open window, Browse and choose mamin08.tdb in Copy TDB setup from file area. It usually locates in ~\stu712\mosis\. Else browse to find mamin08.tdb located in the mosis folder of stu712 file

Relationship between Lambda and Microns

Setup > Design

Establishing l=.5m, therefore

2l=1m
7

To establish GRID
Zoom the window to see grid Distance between grid points is 1 lambda In order to set mouse snap to Grid :
Click Setup -> Design Click on the Grid tab Set Mouse snap grid to 1 locator unit

Now the technology is setup!

Inverter Layout
Layout Specifications: NMOS:
L = 2 Lambda, W = 6 Lambda

PMOS:
L = 2 Lambda, W = 12 Lambda

PMOS
Choose N-Well in the left palette and draw a box. In the N-Well area, draw PSelect. Notice that the size and position should obey Design Rule, which can be found at http://www.mosis.org/Technical/ Layermaps/lmscmos_scnpc.html. With the help of DRC button , the violation of design rule can be shown by right clicking the place which is highlighted. It is a good idea to run DRC at each stage of your design so that you can fix any error along the way Draw Active. Draw Poly.

10

NMOS
Do not need to draw P-Well because the empty grid of L-Edit stands for P-Well. Draw N-Select. Draw Active. Draw Poly.

11

Power Lines
Draw Vdd and Gnd Lines

12

Well Taps
For PMOS, place a small N-Select on the N-Well, add a small Active layer. From this active layer put contacts to the Metal1 layer that connects to VDD. For NMOS, on the P-Well substrate, place a small P-Select and then Active layer. From this active layer put contacts to the Metal1 layer that connects to GND.
13

Connect Poly of PMOS and NMOS. Connect source of PMOS to VDD by Metal1. Connect source of NMOS to GND by Metal 1. Connect Drain of PMOS and NMOS by Metal 1. Add an input connect between Metal1 and Poly.

14

LABELS
Label the INPUT, OUTPUT, VDD and GND using button

15

Design Rule Check

Click Tools -> DRC (or the DRC box in the toolbar) Run DRC for the total layout. Click the Write errors to file box, and give a descriptive filename Fix the errors listed. Once there is no DRC error shown, the layout is ready to be extracted.
16

Submitting HW
When submitting an L-edit file as part of a homework or project, mail it to diceel4310@gmail.com I only need the *.tdb file
