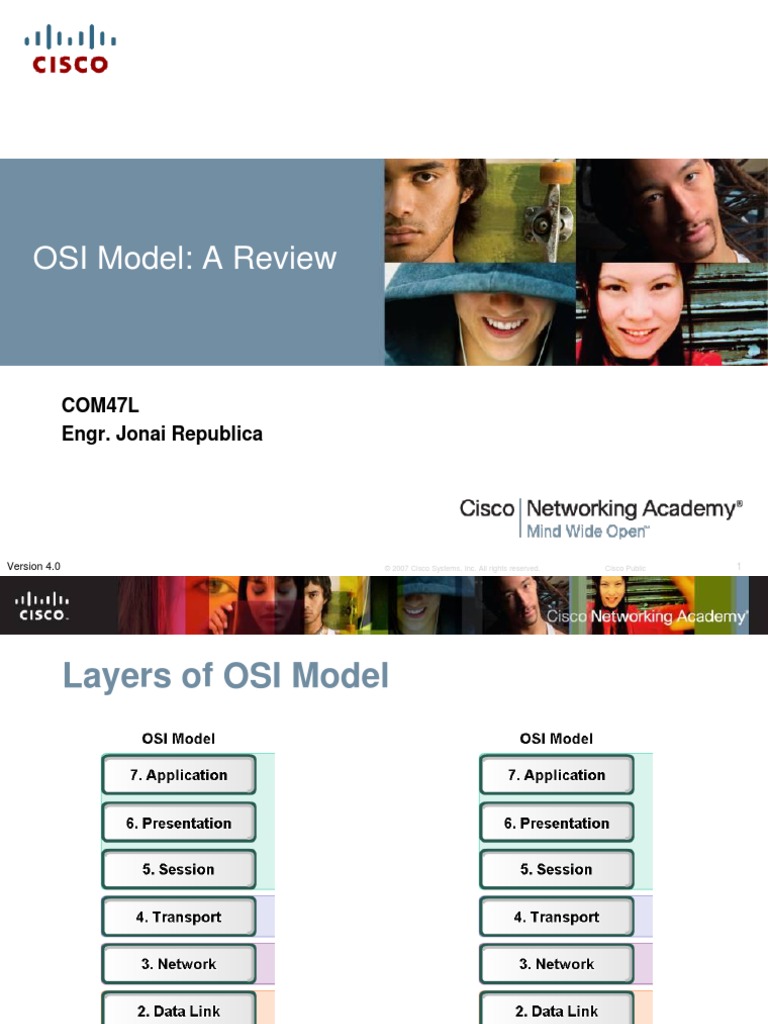

OSI Model: A Review

COM47L Engr. Jonai Republica

Version 4.0

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

Layers of OSI Model

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

OSI Data Link Layer

COM47L Engr. Jonai Republica

Version 4.0

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

Data Link Layer Accessing the Media

Transfers data between adjacent network nodes in a wide area network or between nodes on the same local area network segment.

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

Data Link Layer Accessing the Media

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

Data Link Layer Accessing the Media

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

Data Link Layer Accessing the Media

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

Data Link Layer Accessing the Media

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

Media Access Control Techniques

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

Media Access Control Techniques

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

10

TYPES OF TOPOLOGIES
Physical topology defines how the systems are physically connected. It represents the physical layout of the devices on the network.
Bus Ring Star Hybrid or tree Mesh

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

11

TYPES OF TOPOLOGIES
The Logical topology defines how the systems communicate across the physical topologies.
shared media topology token-based topology

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

12

PHYSICAL TOPOLOGY
BUS - Every packet that is sent in a bus topology is received by all systems on the network.

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

13

PHYSICAL TOPOLOGY
RING - The ring topology exists when each of the systems is connected to its respective neighbor forming a ring

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

14

PHYSICAL TOPOLOGY
STAR - the network elements are now connected to some central device

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

15

PHYSICAL TOPOLOGY
HYBRID or TREE topology is simply a combination of the other topologies.

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

16

PHYSICAL TOPOLOGY
MESH - Every system is connected to every other system.

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

17

LOGICAL TOPOLOGY

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

18

Media Access Control Techniques

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

19

Media Access Control Addressing and Framing Data Encapsulating packets into frames to facilitate the entry and exit of data on media

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

20

Media Access Control Addressing and Framing Data

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

21

Media Access Control Addressing and Framing Data

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

22

ETHERNET HISTORY
1973 - Xerox invents Ethernet (1973)
1982 - Ethernet standardized between vendors (10Mbps) 1995 - Fast Ethernet

2000 - Gigabit Ethernet

2002 - 10 Gigabit Ethernet 2007 - 100 Gb Ethernet

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

23

CSMA/CD
1973 - Xerox invents Ethernet (1973)
1982 - Ethernet standardized between vendors (10Mbps) 1995 - Fast Ethernet

2000 - Gigabit Ethernet

2002 - 10 Gigabit Ethernet 2007 - 100 Gb Ethernet

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

24

CSMA/CD
CARRIER SENSE, MULTIPLE ACCESS / COLLISION DETECTION
Carrier: network signal Sense: ability to detect Multiple Access: All devices have equal access, no priority Collision: What happens when 2 devices send at once

Detection: How computers handle collisions when they happen (resends data)

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

25

CSMA/CD

CARRIER SENSE, MULTIPLE ACCESS / COLLISION DETECTION Carrier: network signal Sense: ability to detect Multiple Access: All devices have equal access, no priority

Collision: What happens when 2 devices send at once

Detection: How computers handle collisions when they happen (resends data)
2007 Cisco Systems, Inc. All rights reserved. Cisco Public

26

Methods of communicating
1. Unicast sent to a single recipient
2. Broadcast sent to everybody 3. Multicast sent to a group

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

27

MAC Address

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

28

LAYER 1 DEVICE
HUBS
ALL COMMUNICATION is a BROADCAST 1 collision domain, 1 broadcast domain Works at the physical

Collision Domain - How many devices can send or receive at the same time

Broadcast Domain -How far a broadcast will travel before it stops

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

29

LAYER 2 DEVICE
BRIDGE
2 Collision domains learns every MAC Addresses on both sides of the network

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

30

LAYER 2 DEVICE
SWITCH
Each port is a collision domain Full duplex communication Learns MAC addresses

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

31

SWITCH CONFIGURATION

COM47L Engr. Jonai Republica

Version 4.0

2007 Cisco Systems, Inc. All rights reserved.

Cisco Public

32
