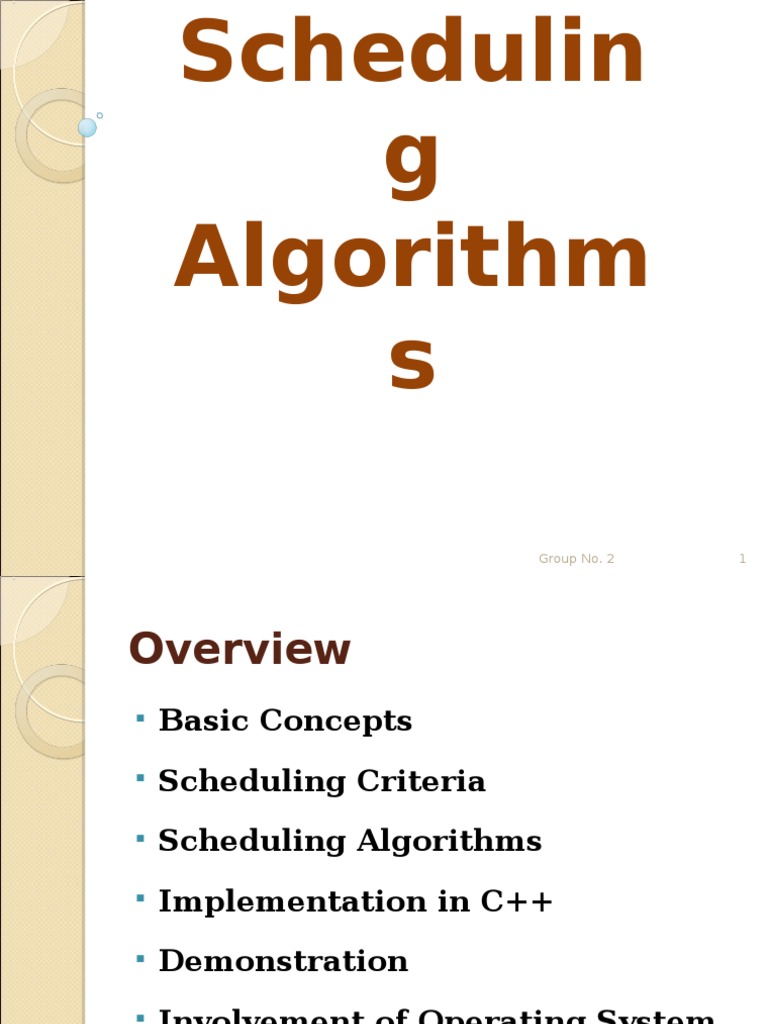

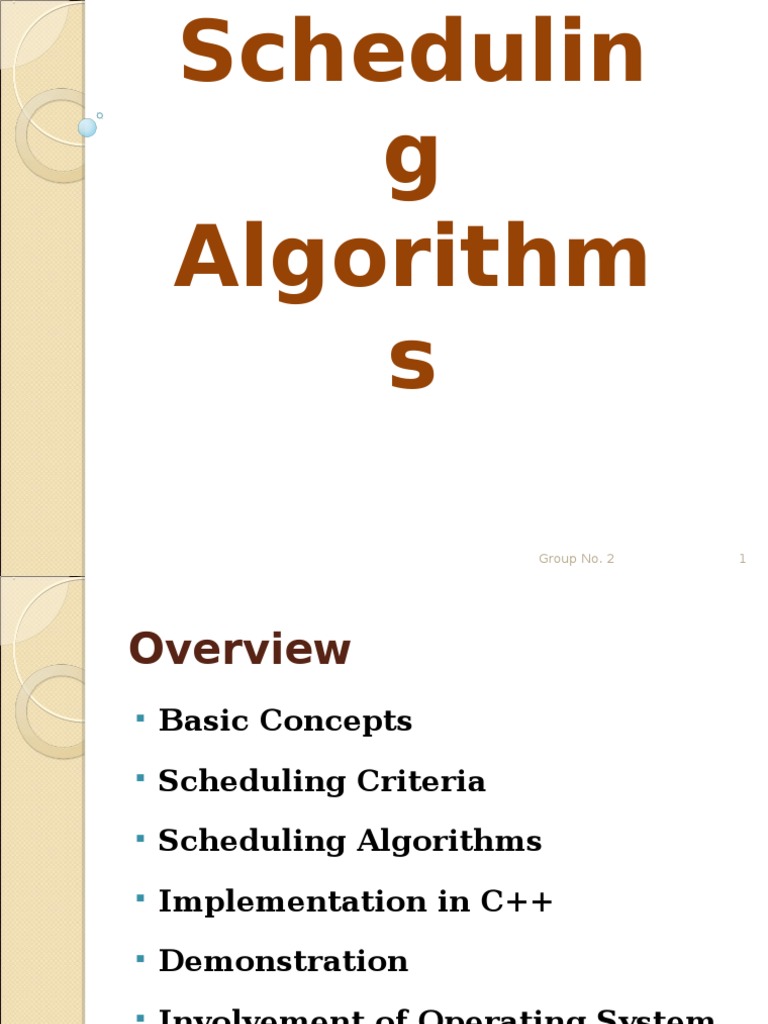

Schedulin

g
Algorithm
s
Group No. 2

Overview

Basic Concepts

Scheduling Criteria

Scheduling Algorithms

Implementation in C++

Demonstration

Involvement of Operating System

CPU Scheduling Algorithms

Basic Concepts

Main objective of multiprogramming is to

keep on running processes all the time for
maximum CPU utilization.

Scheduling is fundamental function of OS.

The task of selecting the processes in

memory that are ready to execute, and
allocating them to the CPU is performed
by the CPU Scheduler.

CPU Scheduling Algorithms

CPU Scheduler

CPU scheduling decisions may take

place when a process:
o 1. Switches from running to waiting
state
o 2. Switches from running to ready
state
o 3. Switches from waiting to ready
o 4. Terminates
Scheduling under 1 and 4 is non
preemptive.
All other scheduling is preemptive.
CPU Scheduling Algorithms

CPU Scheduler

CONT

Nonpreemptive
Once a process is allocated the CPU, it
does not leave unless:
o it has to wait, e.g., for I/O request
o it terminates
Preemptive
o OS can force (preempt) a process
from CPU at anytime
o E.g., to allocate CPU to another
higher-priority process

CPU Scheduling Algorithms

Scheduling Criteria
CPU

utilization: keep the CPU as busy

as possible
Maximize
Throughput: No of processes that
complete their execution per time unit
Maximize
Turnaround time: amount of time to
execute a particular process (time
from submission to termination)
Minimize

CPU Scheduling Algorithms

Scheduling Criteria

CONT

Waiting time: amount of time a process

has been waiting in the ready queue
(sum of time waiting in ready queue)
o Minimize
Response time amount of time it
takes from when a request was
submitted until the first response is
produced, not output (for timesharing environment)
o Minimize
CPU Scheduling Algorithms

Scheduling Algorithms

First Come, First Served

Shortest Job First

Priority

Round Robin

CPU Scheduling Algorithms

Implementation in C++

Class: cpuschedule
Attributes:
o n
number of processes
o Bu[ ] Array to store Burst
Time
o A[ ]
Array to store Arrival
Time
o Wt[ ] Array to store Waiting
Time
o Twt
Total Waiting Time
o Awt
Average Waiting Time
CPU Scheduling Algorithms

CONT

Implementation in C++
Operations
:o
Getdata() To get number of
processes and Burst Times from
the user
o Fcfs() First Come, First Served
Algorithm
o Sjf() Shortest Job First
(normal) Algorithm
o SjfP() Shortest Job First
(Preemption) Algorithm
o SjfNp() Shortest Job First (non
preemption) Algorithm
o Priority() Priority Algorithm
CPU Scheduling Algorithms

10

First Come, First

Served

Process Burst Time

P1
24
P2
3
P3
3
Suppose that the processes arrive in the
order:
P1 , P2 , P3
The Gantt Chart for the schedule is:
P1

P2
24

P3
27

30

Waiting time for P1 = 0; P2 = 24; P3 = 27

Average waiting time: (0 + 24 + 27)/3 = 17
CPU Scheduling Algorithms

11

First Come First

Served
Suppose that the processes arrive in the

CONT

order :
P2 , P3 , P1 (P1:24,P2:3,P3:3)

The Gantt chart for the schedule is:

P2

P3

P1

30

Waiting time for P1 = 6; P2 = 0; P3 = 3

Average waiting time: (6 + 0 + 3)/3 = 3

Much better than previous case
Convoy effect - short process behind long
process

CPU Scheduling Algorithms

12

Shortest Job First

Normal SJF
Process
P1

Burst Time
7

P2

P3

The Gantt Chart for SJF (Normal) is:

P2
0

P3
3

P1
7

14

Average waiting time = (0 + 3 + 7)/3 =

CPU Scheduling Algorithms
3.33

13

CONT

Shortest Job First

Non-Preemptive SJF
Process
P1

Arrival Time
0.0

Burst Time
7

P2

2.0

P3

4.0

P4

5.0

The Gantt Chart for SJF (non-preemptive)

is:
P1
P3
P2
P4
0

12

16

CPU Scheduling Algorithms

14

CONT

Shortest Job First

Preemptive SJF
Process Arrival Time
P1
0.0
P2
2.0
P3
4.0
P4
5.0
The

Burst Time
7
4
1
4

Gantt Chart for SJF (preemptive) is:

P1
0

P2
2

Average

P3
4

P2
5

P4
7

P1
11

16

waiting time = (9 + 1 + 0 +2)/4 = 3

CPU Scheduling Algorithms

15

Shortest Job First

CONT

Associate with each process the length of

its next CPU burst.
Use these lengths to schedule the process
with the shortest time.
Two schemes:
o Non-Preemptive: once CPU given to the
process it cannot be preempted until
completes its CPU burst.
o Preemptive: if a new process arrives with
CPU burst length less than remaining
time of current executing process,
preempt. This scheme is know as the
Shortest-Remaining-Time-First (SRTF).
SJF is optimal:
gives minimum average
waiting time for a given set of processes.

CPU Scheduling Algorithms

16

Priority
Process
P1
P2
P3
P4
P5

Priority
3
1
4
5
2

Gantt Chart
P2
0

Burst Time
10
1
2
1
5

P5
1

P1
6

P3
16

P4
18

19

Average waiting time = (6 + 0 + 16 + 18 +

1)/5 = 8.2
CPU Scheduling Algorithms
17

Priority

CONT

priority number (integer) is associated

with each process.
Lager the CPU burst lower the priority.
The CPU is allocated to the process with
the highest priority (smallest integer
highest priority)
Starvation
(Infinity
blocking):
low
priority processes may never execute.
Aging: as time progresses increase the
priority of the process.

CPU Scheduling Algorithms

18

Round Robin
Process
P1
P2
P3

Burst Time
24
3
3

Quantum

time = 4 milliseconds
The Gantt chart is:
P1
0

P2
4

P3
7

P1
10

P1
14

P1
18

P1
22

P1
26

30

Average

waiting time = {[0+(10-4)]

+4+7}/3 = 5.6
CPU Scheduling Algorithms

19

Round Robin

CONT

Typically, higher average turnaround

than SJF, but better response
Each process gets a small unit of CPU
time (time quantum), usually 10-100
milliseconds. After this time has
elapsed, the process is preempted and
added to the end of the ready queue.
Performance
o q large FCFS
o q small q must be large with
respect to context switch, otherwise
overhead is too high
CPU Scheduling Algorithms

20

Involvement of OS
Source Code
Compiler

Conversion
Executable

Microsoft
Windows

Microkernel

(.c)

(.i , .o)

(.exe)

(load executable
directly to memory)

Memory
CP
U
Execut
e

Scheduling
Algorithms
