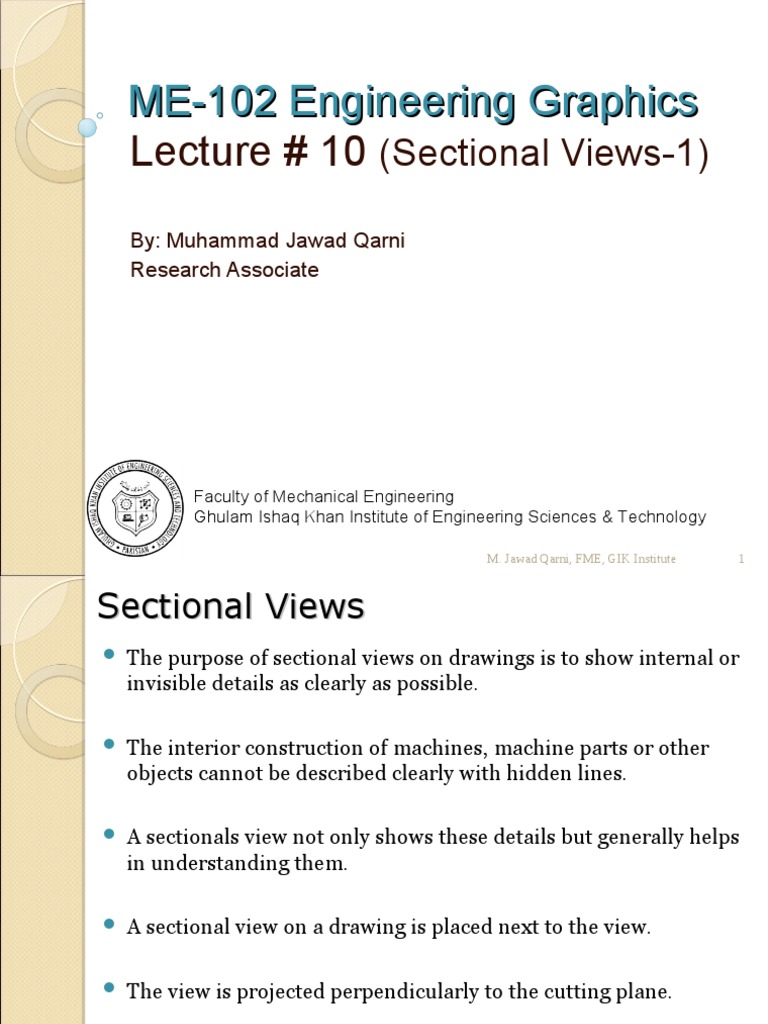

ME-102 Engineering Graphics

Lecture # 10 (Sectional Views-1)

By: Muhammad Jawad Qarni
Research Associate

Faculty of Mechanical Engineering

Ghulam Ishaq Khan Institute of Engineering Sciences & Technology

M. Jawad Qarni, FME, GIK Institute 1

Sectional Views
 The purpose of sectional views on drawings is to show internal or
invisible details as clearly as possible.

 The interior construction of machines, machine parts or other

objects cannot be described clearly with hidden lines.

 A sectionals view not only shows these details but generally helps
in understanding them.

 A sectional view on a drawing is placed next to the view.

 The view is projected perpendicularly to the cutting plane.

M. Jawad Qarni, FME, GIK Institute 2

Sectional Views (Features)
 A sectional view is made by passing an imaginary cutting plane
through an object.
 The plane is perpendicular to the line of sight.
 The portion of the object that is between the observer and the
cutting plane is thought of as having been removed.

Line of sight (LOS)

Imaginary cutting pane

Normal multi-view drawing Section view Drawing M. Jawad Qarni, FME, GIK Institute 3
 Sectional Views (Features)
 The surface that is cut by the cutting plane is shown by cross-section
lines.

 The cross-section lines are thin and may be drawn in different patterns.

Points defining cutting plane

Correct Incorrect Normal multi-view M. Jawad Qarni, FME, GIK Institute 4

Cutting Plane Lines
 Cutting plane lines, which show where the cutting plane passes through
the object, represent the edge view of the cutting plane and are drawn in
the view(s) adjacent to the section view.

PHAMTOM Line

Capital letters are places at the two

ends
M. Jawad Qarni, FME, GIK Institute 5
Cutting Plane Lines (Self Study)

M. Jawad Qarni, FME, GIK Institute 6

Cutting Plane Lines (Self Study)

M. Jawad Qarni, FME, GIK Institute 7

Multiple Sections

Cross-Hatched Lines

M. Jawad Qarni, FME, GIK Institute 8

Section Lines Technique
 The general purpose cast iron section line is sketched at a 45° angle and
spaced 1/16” (1.5 mm) to 1/8”(3 mm) or more depending on the side of
the drawing. As a general rule use 1/8” spacing. Section lines are
sketched as thin (0.35 mm or 0.016 inch). Using an H or 2H pencil.

Lines should neither be

perpendicular nor parallel.

M. Jawad Qarni, FME, GIK Institute 9

Section Line for Different Materials

M. Jawad Qarni, FME, GIK Institute 10

Treatment of Hidden Lines
 A section view reveals hidden features without the use of hidden lines
(Figure 1). Adding hidden lines to a section view complicates the drawing
defeating the purpose of using a section. There are times however when a
minimum number of hidden lines are needed to represent features other than
the primary one shown by the section (Figure 2).

M. Jawad Qarni, FME, GIK Institute 11

Sectioning

Standard
components
such as bolts
and fasteners
are not
sectioned.

M. Jawad Qarni, FME, GIK Institute 12
