Runout

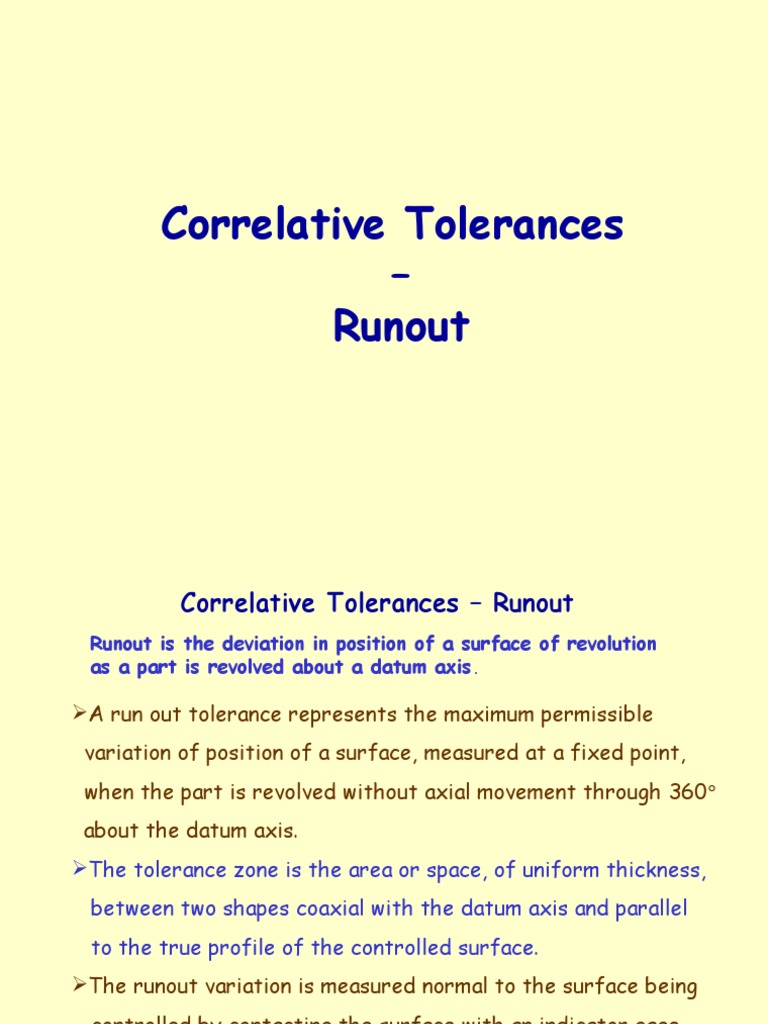

Correlative Tolerances Runout
Runout is the deviation in position of a surface of revolution
as a part is revolved about a datum axis.
Error will be shown if the surface is not flat but not perpendicular
to axis (wobbling)
No Error be indicated if the surface convex or concave but
otherwise perfect
RUNOUT OF CURVED SURFACE
Total run out concerns the runout of a complete surface, not merely
the runout of each circular element.
For measurement purposes the checking indicator must traverse the
full length or extent of the surface while the part is revolved about
its datum axis
Measurements are made over the whole surface without resetting
the indicator.
Total runout is the difference between the lowest indicator reading
in any position, and the highest reading in that or in any other
position on the same surface.
TOTAL RUNOUT
For conical surfaces the datum axis can be tilted to the taper angle
so that the measured surface becomes parallel to a surface plate
