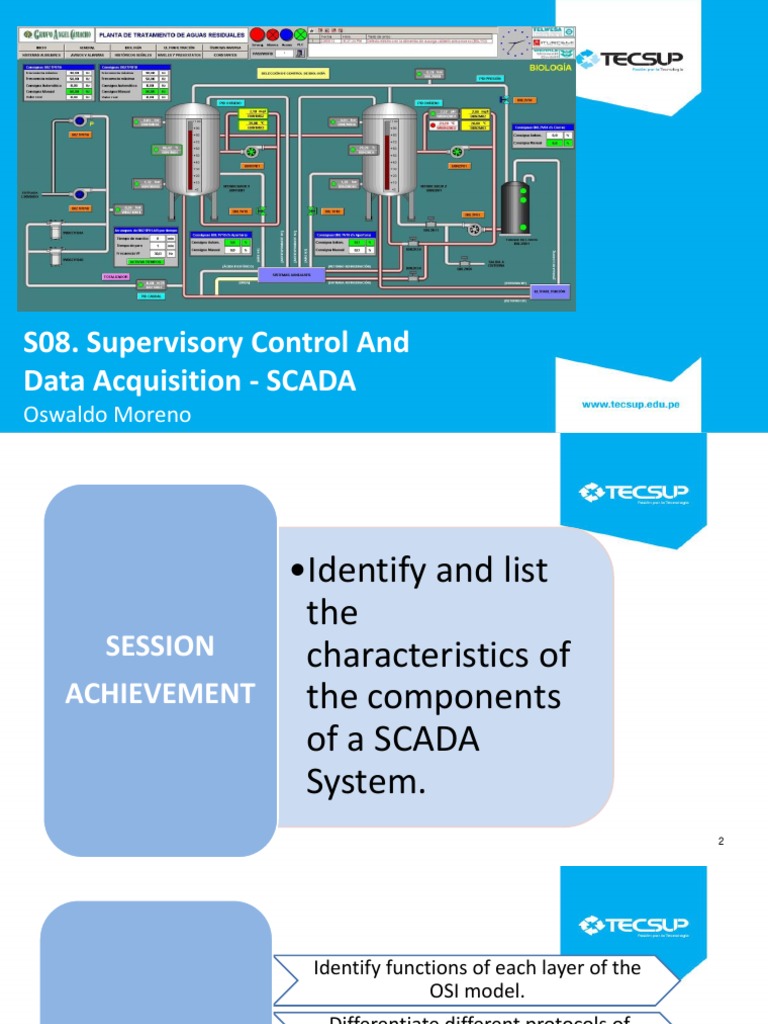

S08.

Supervisory Control And

Data Acquisition - SCADA
Oswaldo Moreno
 Identify and list
the
SESSION characteristics of
ACHIEVEMENT the components
of a SCADA
System.
2
 Identify functions of each layer of the
OSI model.
Differentiate different protocols of
industrial networks
Terminal Recognize parts of SCADA, DCS and PLC
capacities systems.
Manage concepts of supervision and
control based on the use of computers.

Configure HMI / SCADA software.

 Students handle and
apply knowledge of
electronics,
Result instrumentation and
control technologies,
using modern tools
and equipment.
4
Supervisory Control And Data Acquisition(SCADA)

CONTENTS

1. Introduction
2. Goals
3. Benefits
4. Advantage
5. Environment
6. Choice and design criteria
7. Architecture of SCADA systems
Supervisory Control And Data Acquisition(SCADA)

Introduction

SCADA: Supervisory Control and Data Acquisition

Any software tool that allows access to data remotely from a process and allows the
control of that process.
It is not a control system, but a software tool for monitoring or supervision, which
performs the task of interface between control levels (PLC) and management levels, at
a higher level.
Supervisory Control And Data Acquisition(SCADA)

Goals

SCADA systems are mainly conceived as a monitoring and command tool. Among
the main objectives can be mentioned:
Economy
Accessibility
Maintenance
Ergonomics
Management
Flexibility
Connectivity
Supervisory Control And Data Acquisition(SCADA)
Benefits
SCADA systems are human-machine interface tools and comprise a series of
functions and utilities aimed at establishing the most clear communication
possible between the process and the operator.
Supervisory Control And Data Acquisition(SCADA)
Benefits
Among the features of a tool of this type are:
Monitoring
Supervision
Data acquisition
Display alarms and events
Recording actions or recipes
Data security
Security of access
Numerical programming possibility
 Supervisory Control And Data Acquisition(SCADA)

Advantage
The advantages of automated and supervised control systems are as follows:
Creating functional applications without having to be an expert in the field
Under adverse conditions, it provides robustness and reliability to the
controlling system
Easy adaptation and future extensions
Any type of sensor / actuator can be integrated
Availability of diagnostic tools allows you to quickly locate errors
An RTU. It can operate autonomously.
Telemantenimiento.
Automatic generation and distribution of documentation
Supervisory Control And Data Acquisition(SCADA)

Advantage

Rapid system integration thanks to

standard communication systems
Ability to use email and voice
messages.
Web Technology for Internet Access
Security protocols limit access to
unauthorized personnel
Immediate notifications when an
incident is detected.
Supervisory Control And Data Acquisition(SCADA)

Environment
Supervisory Control And Data Acquisition(SCADA)

Environment

ERP (Enterprise Resource Planning): Encompasses the management part:

finance, purchasing, sales, logistics.
MES (Manufacturing Execution System): It includes quality management,
documentation, production management, maintenance and optimization.
CONTROL: Encompasses the entire automation and process control part.
Supervisory Control And Data Acquisition(SCADA)

Environment
ERP, MES, SCADA Integration
Supervisory Control And Data Acquisition(SCADA)

Choice and design criteria

The parameters influencing the survival possibilities may include the

following denominators:
Availability
Sturdiness
Security
Benefits
Maintenance
Scalability
Supervisory Control And Data Acquisition(SCADA)

Choice and design criteria

Hardware redundancy
Supervisory Control And Data Acquisition(SCADA)

Choice and design criteria

Robustness in SCADA systems
Supervisory Control And Data Acquisition(SCADA)

Choice and design criteria

Security in SCADA systems
Supervisory Control And Data Acquisition(SCADA)

Choice and design criteria

Scalability
Supervisory Control And Data Acquisition(SCADA)
Architecture of SCADA systems

Basic structure of a supervision and command system.

The transmission of data between the process system and the field elements
(sensors and actuators) is carried out by means of so-called field buses.
The current trend is to encompass communication systems on a common
basis, such as Industrial Ethernet.
Supervisory Control And Data Acquisition(SCADA)
Architecture of SCADA systems
Basic idea of a SCADA system
The functional structure of a data visualization and acquisition system
generally obeys the Master-Slave structure.
The master station communicates with the rest of the slaves, requiring a
series of actions or data.
Supervisory Control And Data Acquisition(SCADA)
Architecture of SCADA systems

A SCADA system is a software application specially designed to work on PCs in

production control
Provides communication between field devices, called RTUs
RTU: Remote Terminal Unit or Remote Units
You can find elements such as stand-alone controllers or programmable
controllers and a control center or Central Unit
MTU: Master Terminal Unit
In the MTU, the process is controlled automatically from the screen of one or
more PCs.
Supervisory Control And Data Acquisition(SCADA)
Architecture of SCADA systems
HARDWARE
Supervisory Control And Data Acquisition(SCADA)
Architecture of SCADA systems
Human Machine Interface(HMI)
Supervisory Control And Data Acquisition(SCADA)
Architecture of SCADA systems
Central Unit (MTU)
Supervisory Control And Data Acquisition(SCADA)
Architecture of SCADA systems
Remota Unit (RTU)
Supervisory Control And Data Acquisition(SCADA)
Architecture of SCADA systems
General Architecture of an RTU
Supervisory Control And Data Acquisition(SCADA)
Topologa
Punto a punto

Multipunto dedicado
Supervisory Control And Data Acquisition(SCADA)
Topology
Multipoint shared star

Multipoint shared ring

Supervisory Control And Data Acquisition(SCADA)
Software SCADA

WinCC (Siemens)
Intouch (Wonderware)
System Platform (Wonderware)
Factory Talk View (Rockwell)
Vijeo Citect (Schneider)
OPC DataHub Web SCADA (Cogent Real-Time Systems)
FAST TOOLS (Yokogawa)
Supervisory Control And Data Acquisition(SCADA)

STANDARD
ANSI/ISA 101.01-2015

31
