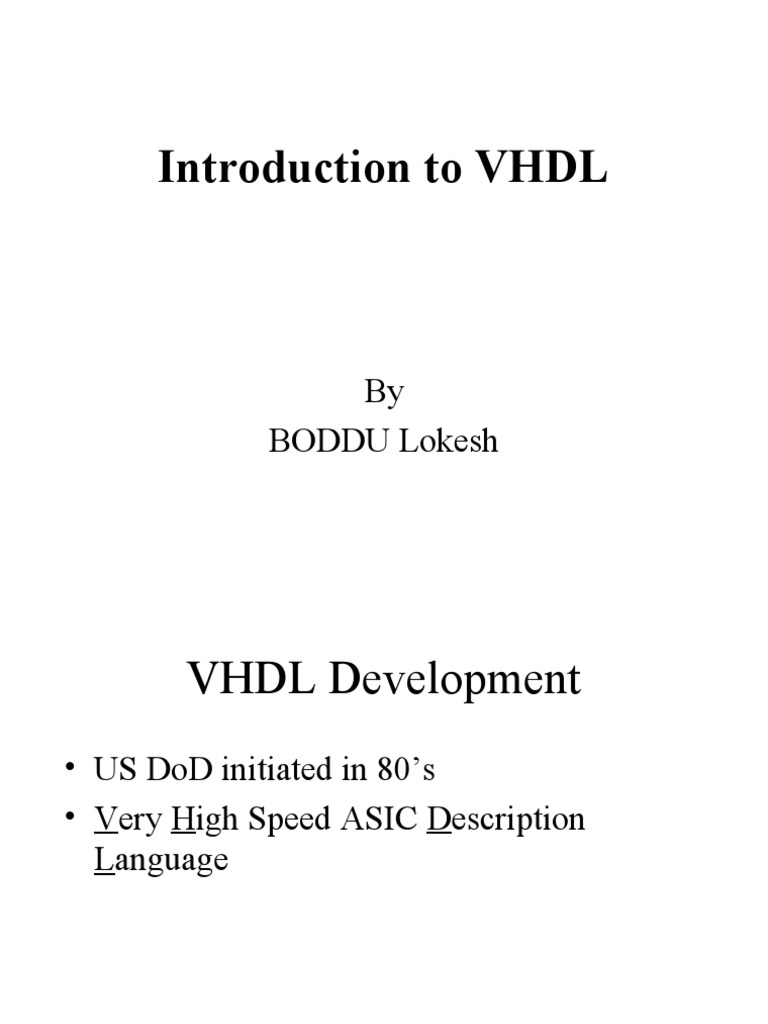

    Introduction to VHDL

    By
    BODDU Lokesh
    VHDL Development
    • US DoD initiated in 80’s
    • Very High Speed ASIC Description
    Language
    Shortly About the VHDL
    • VHDL is an acronym of VHSIC Hardware
    Description Language
    • VHSIC is an acronym of Very High Speed
    Integrated Circuits

    • A Formal Language for Specifying the


    Behavior and Structure of a Digital Circuit
    • Allows Top-Down Design
    Levels of Abstraction
    • Digital system can be represented at
    different levels of abstraction
    – Behavioral—relationship between input and
    output signals, usually boolean expressions
    – Structural—description of the collection of
    gates and connections, more like a schematic
    – Physical
    Basic Design Methodology
    Requirements

    RTL Model Simulate

    Synthesize

    Gate-level
    Model Simulate Test Bench

    ASIC or FPGA Place & Route

    Timing
    Model Simulate
    Modularity
    • Every component in VHDL is referred to as an
    entity and has a clear interface
    • The interface is called an entity declaration
    • The “internals” of the component are referred
    to as the architecture declaration
    • There can be multiple architectures at even
    different levels of abstraction associated with
    the same entity
    Basic Structure of a VHDL File
    • Entity
    – Entity declaration:
    interface to outside
    world; defines input and
    output signals
    – Architecture: describes
    the entity, contains
    processes, components
    operating concurrently
    Modeling Interfaces
    • Entity declaration
    – describes the input/output ports of a module

    entity name port names port mode (direction)

    entity reg4 is
    port ( d0, d1, d2, d3, en, clk : in bit;
    q0, q1, q2, q3 : out bit ); punctuation
    end entity reg4;

    reserved words port type


    Architecture
    • Behavioral Model:
    architecture architecture_name of NAME_OF_ENTITY is
    -- Declarations
    …..
    …..

    begin
    -- Statements
    end architecture_name;

    VHDL Description: AND gate
    entity AND2 is
    a
    port (a, b: in bit ;
    AND c
    c : out bit);
    end AND2; b

    architecture beh of AND2 is


    begin
    c <= a and b;
    end beh;
    Processes
    • Used in behavioral modeling that allows you to use sequential statements to
    describe the behavior of a system over time
    [process_label:] process [ (sensitivity_list) ]
    begin
    list of sequential statements such as:
    signal assignments
    variable assignments
    case statement
    exit statement
    if statement
    loop statement
    next statement
    null statement
    procedure call
    wait statement
    end process [process_label];
    Full Adder – using Processes
    library ieee; -- Process P2 that defines the second half adder
    use ieee.std_logic_1164.all; and the OR -- gate
    entity FULL_ADDER is P2: process (int1, int2, Cin)
    port (A, B, Cin : in std_logic; begin
    Sum, Cout : out std_logic); Sum <= int1 xor Cin;
    int3 <= int1 and Cin;
    end FULL_ADDER; Cout <= int2 or int3;
      end process;
    architecture BEHAV_FA of FULL_ADDER end BEHAV_FA;
    is
    signal int1, int2, int3: std_logic;
    begin
    -- Process P1 that defines the first half adder
    P1: process (A, B)
    begin
    int1<= A xor B;
    int2<= A and B;
    end process;
    Structural Description
    • Carries same information as a NET LIST
    • Net List = (Component instances) + (Nets)
    • Structural Description in VHDL =
    (Signals) + (Component instances + Port maps)
    • Many sophisticated features in VHDL to make it
    more versatile:
    * Variety of signal types
    * Generic components
    * Generate statements for creating arrays of component instances
    * Flexibility in binding components to design entities and architectures
    Behavioral Description
    • Procedural • Non-procedural
    (textual order => execution (textual order NOT =>
    order) execution order)
    • Sequential statements • Concurrent statements
    • Data flow (or rather data
    • Control constructs alter dependency restricts
    normal sequential flow concurrency)

    Called Behavioral Called Data flow


    description in VHDL description in VHDL
    Example: D Flip-Flop
    entity DFF is
    port (D, CLK: in bit;
    Q: out bit; QN: out bit := ‘1’) ;
    end DFF;
    D Q
    DFF
    CLK QN
    Example: DFF (contd.)
    Architecture Beh of DFF is
    begin process (CLK)
    begin if (CLK = ‘1’ then
    Q <= D after 10 ns;
    QN <= not D after 10 ns;
    endif;
    endprocess;
    end Beh;
    Concurrent Conditional
    Assignment: 4 to 1 Multiplexer
    y <= x0 when sel = 0
    else x1 when sel = 1
    else x2 when sel = 2
    else x3 when sel = 3
    x0
    x1 y
    x2
    x3
    sel
    CASE Statement:
    4 to 1 Multiplexer
    Case sel is
    when 0 => y <= x0 x0
    when 1 => y <= x1 x1 y
    x2
    when 2 => y <= x2 x3

    when 3 => y <= x3


    end case
    Variables And Signals
    Architecture sig of dummy is
    signal trigger, sum: integer := 0;
    signal sig1: integer:= 1;
    signal sig3, sig2: integer:= 2;
    begin process
    begin wait on trigger;
    sig3 <= sig1 + sig2;
    sig1 <= sig3;
    sum <= sig1;
    end process; end sig;
    VHDL for Simulation & Synthesis

    Test Vector Executable Results,


    Specification
    = Errors
    Generator

    A Series of
    Test
    Refined
    Vectors
    Models
    Final Chip
    Model
    Test Benches
    • Testing a design by simulation
    • Use a test bench model
    – an architecture body that includes an instance
    of the design under test
    – applies sequences of test values to inputs
    – monitors values on output signals
    • either using simulator
    • or with a process that verifies correct operation
    Synthesis
    • Translates register-transfer-level (RTL)
    design into gate-level netlist
    • Restrictions on coding style for RTL model
    • Tool dependent
    – see lab notes
