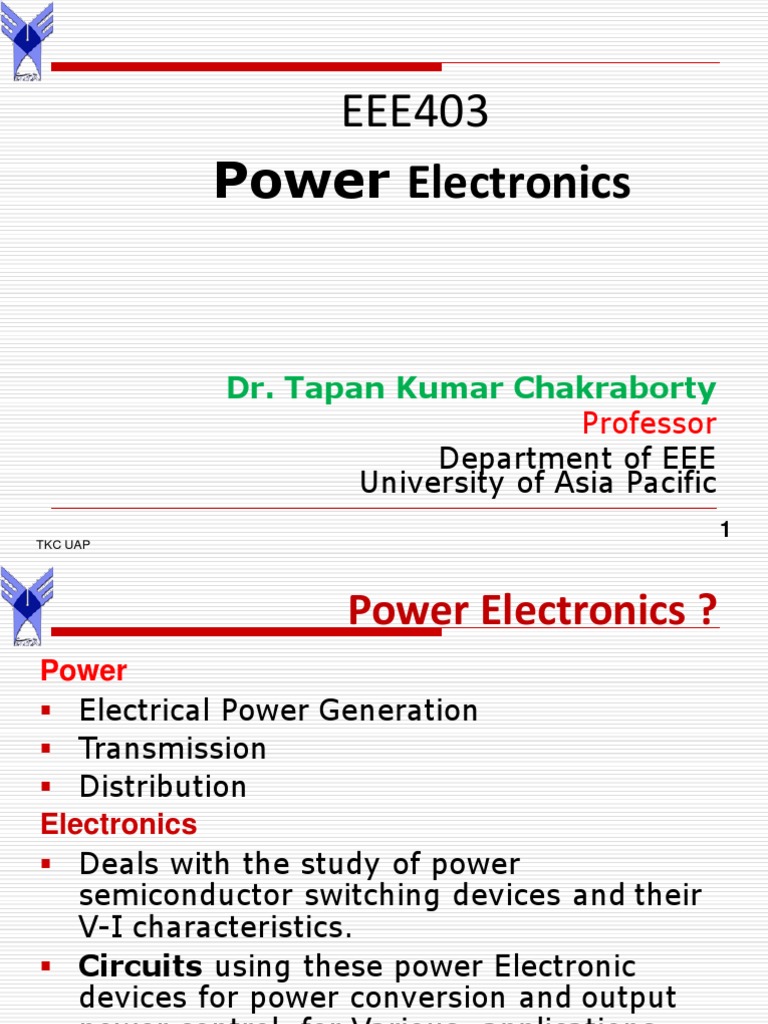

Power Electronics
2
TKC UAP
History of Power Electronics
3
TKC UAP
Applications of Power Electronics
4
TKC UAP
Applications of Power Electronics
5
TKC UAP
Applications of Power Electronics
6
TKC UAP
Power Semiconductor Switching Devices
Diodes
Bipolar Junction Transistor (BJT)
Metal-Oxide-Semiconductor Field-Effect
Transistor (MOSFET)
Insulated Gate Bipolar Transistor (IGBT)
Silicon Controlled Rectifier (SCR)
Gate Turn off Thyristor (GTO)
TRIAC
7
TKC UAP
Triggering Devices
DIAC
UJT
PUT ( Programmable Unijunction Transistor )
8
TKC UAP
Applications and Frequency Range of Power Devices
9
TKC UAP
Power Semiconductor Diode
10
TKC UAP
Diode Characteristics
11
TKC UAP
Schockley Diode Equation
Forward-biased region
Reverse-biased region
Breakdown region
TKC UAP 12
Power Diode Types
1.General purpose diodes
2.Fast Recovery Diodes
3.Schottky Diodes
Diode Ratings
Current Ratings: Less than 1A ~ 4500A
Voltage Ratings: 50 volt ~ 6000 volt
On state resistance: Around 0.32 m
Switching Time: 5 ~ 100 s
TKC UAP 13
Power BJT
TKC UAP 14
Cross Section of BJTs
TKC UAP
15
BJT Characteristics
Cutoff mode
Active mode
Saturation mode
TKC UAP
16
BJT Switching Characteristics
Internal capacitances
Turn-on time
Turn-off time
TKC UAP
17
BJT Ratings
Ratings up to 1200V / 400A.
Normally operated as a switch in
CE configuration.
Max. operating Frequency: 400Hz.
Switching time: 200 to 400sec.
On state resistance: 3.6m.
TKC UAP
18
Power MOSFET
TKC UAP
19
TKC UAP 20
n-channel Enhancement MOSFET Characteristics
Triode Saturation
Cutoff
TKC UAP 21
MOSFET Switching Characteristics
TKC UAP 22
Advantages of MOSFET
TKC UAP 23
Power MOSFET Ratings
Used in high speed power converters
like inverters & choppers.
Ratings up to 1000V / 100A.
Max. Frequency: 100KHz.
Switching time: 1.6sec.
On state resistance: 1.2m.
TKC UAP 24
IGBT ( Insulated Gate Bipolar Transistor)
TKC UAP 27
Applications of IGBT
TKC UAP 28
IGBT Ratings
TKC UAP 29
SCR (Silicon Controlled Rectifier) / Thyristor
TKC UAP 30
SCR Symbol
Three PN junctions
TKC UAP 31
Cross section of PNPN structure
TKC UAP 32
Anode current
Latching current IL
Minimum anode current
to maintain ON state
immediately after SCR has
been turned ON.
Holding current IH
Minimum anode current
to maintain ON state
TKC UAP 34
Thyristor Turn-ON
Light
High voltage
dv/dt .> high
Gate current.> applying positive gate pulse
TKC UAP 35
Thyristor Turn-OFF (Commutation )
1. Reducing anode
current below
holding current
2. Forced- commut
ation
36
TKC UAP
SCR Ratings
Line Commutated Thyristors available
up to 6000V, 4500A.
Max. Frequency: 60Hz.
Switching time: 100 to 400sec.
On state resistance: 0.45m.
TKC UAP 37
TRIAC (Triode AC )
38
TKC UAP
39
TKC UAP
I-V Characteristics of TRIAC
Turn-ON
Applying positive
or negative pulse
between Gate and
MT1
Turn-OFF
Reducing current
to zero
TKC UAP 40
Example of TRIAC Ratings
TKC UAP 41
Circuit diagram using TRIAC
TKC UAP 42
GTO (Gate turn off thyristor )
Gate turn off thyristor (GTO) is a four layer
PNPN power semiconductor switching device.
TKC UAP 43
TKC UAP 44
Advantages of GTO
There is no need for an external commutation
circuit to turn it off.
Inverter circuits built by this device are
compact and low-cost.
GTO is turned off by a negative gate pulse
Reduction in acoustic and electro-magnetic
noise
Faster turn-off
Improved efficiency
TKC UAP 45
DIAC ( Diode AC)
The DIAC is a diode that
conducts electrical current in
either direction only after its
breakover voltage, VBO, has
been reached momentarily.
TKC UAP 46
UJT ( Unijunction Transistor)
A unijunction transistor (UJT) is
a three-lead electronic
semiconductor device with
only one junction that acts
exclusively as an electrically
controlled switch.
TKC UAP 48
= Intrinsic
stand off
ratio
TKC UAP 49
PUT (Programmable Unijunction Transistor
50
TKC UAP
51
TKC UAP
Application of PUT
52
TKC UAP
Different types of Power Converters
53
TKC UAP
