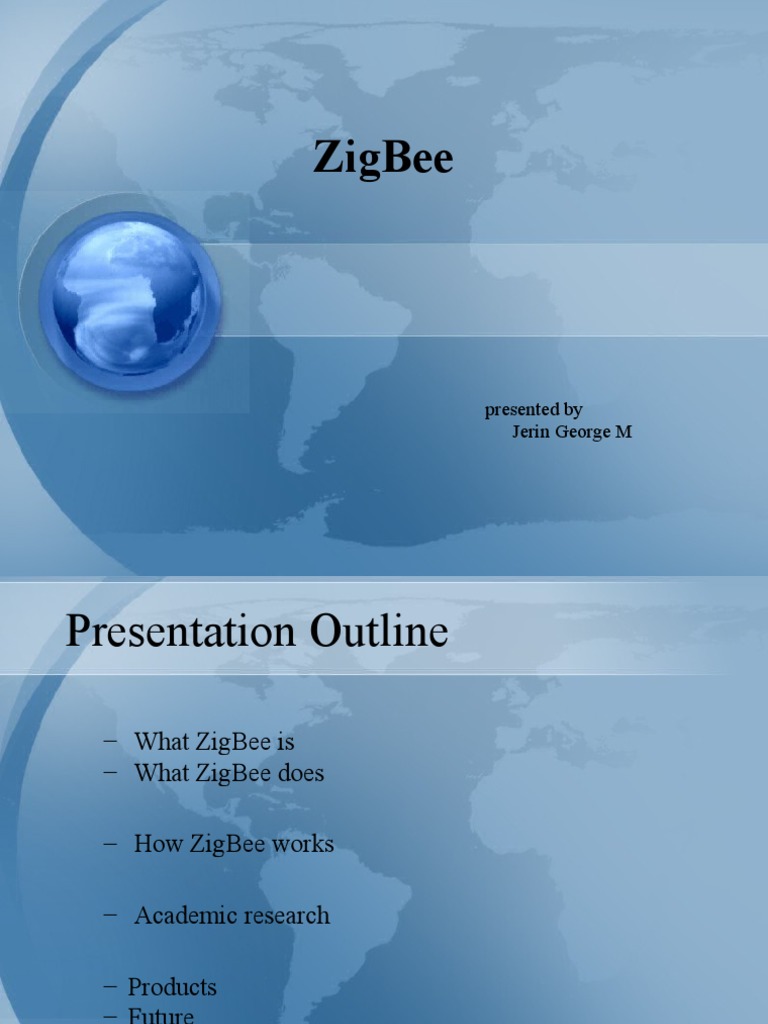

ZigBee

presented by
Jerin George M
Presentation Outline

– What ZigBee is
– What ZigBee does

– How ZigBee works

– Academic research

– Products
– Future

2
 The ZigBee Name

• Named for erratic, zig-zagging patterns of bees

between flowers
• Symbolizes communication between nodes in
a mesh network
• Network components analogous to queen bee,
drones, worker bees

3
What is ZigBee?
• Technological Standard Created for Control
and Sensor Networks
• Based on the IEEE 802.15.4 Standard
• Created by the ZigBee Alliance

4
The 802 Wireless Space

5
ZigBee and Other Wireless
Technologies

6
ZigBee Aims
• Low data rate
• Low power consumption
• Small packet devices

7
ZigBee Frequencies
• Operates in Unlicensed Bands
• ISM 2.4 GHz Global Band at 250kbps
• 868 MHz European Band at 20kbps
• 915 MHz North American Band at 40kbps

8
What Does ZigBee Do?
• Designed for wireless controls and sensors
• Operates in Personal Area Networks
(PAN’s) and device-to-device networks
• Connectivity between small packet devices
• Control of lights, switches, thermostats,
appliances, etc.

9
How ZigBee Works
• Topology
– Star
– Cluster Tree
– Mesh
• Network coordinator, routers, end devices

10
How ZigBee Works
• States of operation
– Active
– Sleep
• Devices
– Full Function Devices (FFD’s)
– Reduced Function Devices (RFD’s)
• Modes of operation
– Beacon
– Non-beacon

11
Modes of operation

Non-beacon network communication

Beacon network communication

12
ZigBee Security

MAC FRAME KEY SEQ ENCRYPYED MAC PAYLOAD MIC

HDR CONT CONT

• MAC data provides integrity protection

NWK FRAME KEY SEQ ENCRYPYED MAC PAYLOAD MIC

HDR CONT CONT

• NWK header is masked to set non static bits to zero and

then the NWK frame is protected .

13
ZigBee Network Configuration

14

The ZigBee Network Coordinator
The ZigBee Network Node

• Sets up a network
•Designed for battery powered or
• Transmits network beacons
high energy savings
• Manages network nodes
•Searches for available networks
• Stores network node information
•Transfers data from its application
• Routes messages between paired nodes
as necessary
• Typically operates in the receive state
•Determines whether data is
pending
•Requests data from the network
coordinator
•Can sleep for extended periods
15
 Responsibilities of the ZIGBEE nwk
layer
• Starting a network:
• Joining and leaving a network
• Configuring a new device
• Addressing
• Synchronization within a network
• Security
• Routing


16
 ZigBee Mesh Networking

Slide Courtesy of

17
 ZigBee Mesh Networking

Slide Courtesy of

18
 ZigBee Mesh Networking

Slide Courtesy of

19
 ZigBee Mesh Networking

Slide Courtesy of

20
 ZigBee Mesh Networking

Slide Courtesy of

21
 ZigBee overview

•DSSS
•11 chips/ symbol
•62.5 K symbols/s
•4 Bits/ symbol
•Peak Information Rate
•~128 Kbit/second
•New slave enumeration = 30ms
typically
• Sleeping slave changing to
active = 15ms typically
• Active slave channel access time
= 15ms typically

22
Academic Research
Research in ZigBee is being conducted in
different fields:

• Wireless and sensor networks

• Wireless communications
• Neuroengineering

23
ZigBee Products
• Development Kits
• Sensors
• Transceivers
• Modules

24
Current ZigBee Uses
• Environmental Monitoring
• Agricultural Monitoring
• Home Automation Still on Horizon

25
ZigBee’s Future

Source: http://www.zigbee.org/imwp/idms/popups/pop_download.asp?ContentID=7092
26
The
End
