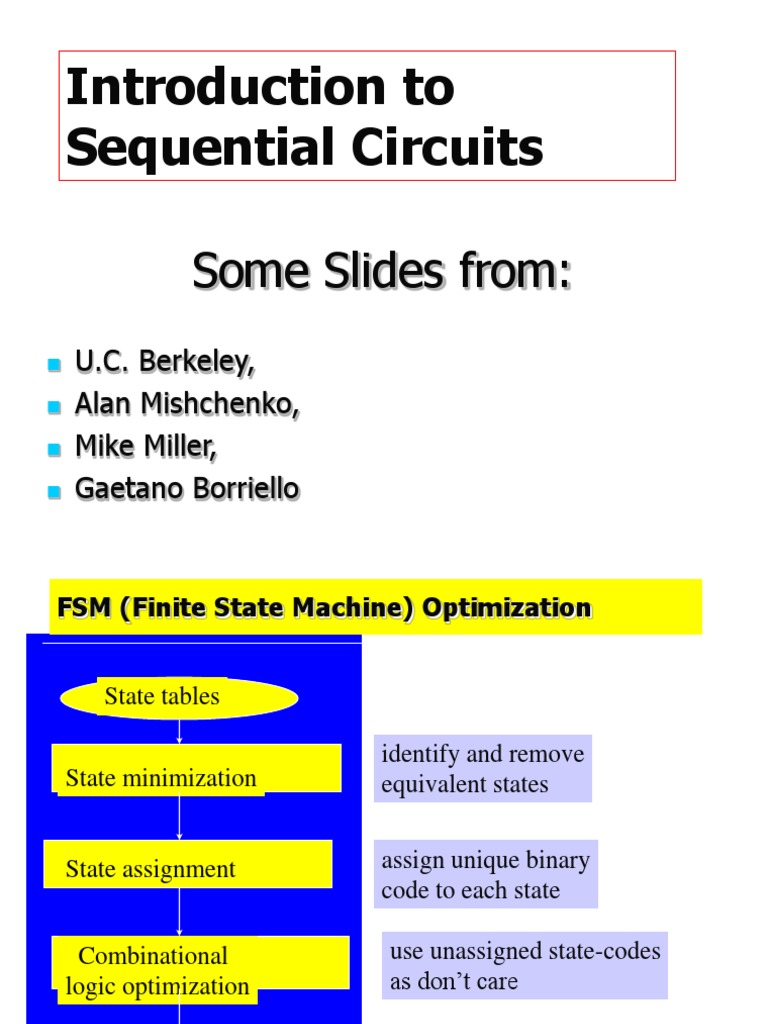

Introduction to

Sequential Circuits

Some Slides from:

 U.C. Berkeley,
 Alan Mishchenko,
 Mike Miller,
 Gaetano Borriello
FSM (Finite State Machine) Optimization

State tables

identify and remove

State minimization equivalent states

State assignment assign unique binary

code to each state

Combinational use unassigned state-codes

logic optimization as don’t care

net-list
 Sequential Circuits
 Sequential Circuits
 Primitive sequential elements
 Combinational logic
 Models for representing sequential circuits
 Finite-state machines (Moore and Mealy)
 Representation of memory (states)
 Changes in state (transitions)
 Basic sequential circuits
 Shift registers
 Counters
 Design procedure
 State diagrams
 State transition table
 Next state functions
 State Assignment
 Choose bit vectors to assign to each “symbolic” state
 With n state bits for m states there are 2n! / (2n – m)!
state assignments [log n <= m <= 2n]
 2n codes possible for 1st state, 2n–1 for 2nd, 2n–2 for 3rd, …
 Huge number even for small values of n and m
 Intractable for state machines of any size
 Heuristics are necessary for practical solutions
 Optimize some metric for the combinational logic
 Size (amount of logic and number of FFs)
 Speed (depth of logic and fanout)
 Dependencies (decomposition)
 State Assignment Strategies
 Possible Strategies
 Sequential – just number states as they appear in the
state table
 Random – pick random codes
 One-hot – use as many state bits as there are states
(bit=1 –> state)
 Output – use outputs to help encode states (counters)
 Heuristic – rules of thumb that seem to work in most
cases
 No guarantee of optimality – an intractable problem
 One-hot State Assignment
 Simple
 Easy to encode, debug
 Small Logic Functions
 Each state function requires only predecessor state bits
as input
 Good for Programmable Devices
 Lots of flip-flops readily available
 Simple functions with small support (signals its
dependent upon)
 Impractical for Large Machines
 Too many states require too many flip-flops
 Decompose FSMs into smaller pieces that can be one-hot
encoded
 Many Slight Variations to One-hot – “two hot”
Heuristics for State Assignment
 Adjacent codes to states that share a common
next state
 Group 1's in next state map

 Adjacent codes to states that share a common

ancestor state
 Group 1's in next state map

 Adjacent codes to states that have a common

output behavior
 Group 1's in output map
 General Approach to Heuristic
State Assignment
 All current methods are variants of this
 1) Determine which states “attract” each other (weighted pairs)
 2) Generate constraints on codes (which should be in same cube)
 3) Place codes on Boolean cube so as to maximize constraints
satisfied (weighted sum)

 Different weights make sense depending on whether we

are optimizing for two-level or multi-level forms

 Can't consider all possible embeddings of state clusters in

Boolean cube
 Heuristics for ordering embedding
 To prune search for best embedding
 Expand cube (more state bits) to satisfy more constraints
Output-Based Encoding
 Reuse outputs as state bits - use outputs
to help distinguish states

 Why create new functions for state bits when

output can serve as well

 Fits in nicely with synchronous Mealy

implementations
 Example of KISS Format

Inputs Present State Next State Outputs

C TL TS ST H F
0 – – HG HG 0 00 10
– 0 – HG HG 0 00 10
1 1 – HG HY 1 00 10
– – 0 HY HY 0 01 10
– – 1 HY FG 1 01 10
1 0 – FG FG 0 10 00
0 – – FG FY 1 10 00
– 1 – FG FY 1 10 00
– – 0 FY FY 0 10 01
– – 1 FY HG 1 10 01

HG = ST’ H1’ H0’ F1 F0’ + ST H1 H0’ F1’ F0 Output patterns are unique to states, we do not
HY = ST H1’ H0’ F1 F0’ + ST’ H1’ H0 F1 F0’ need ANY state bits – implement 5 functions
FG = ST H1’ H0 F1 F0’ + ST’ H1 H0’ F1’ F0’ (one for each output) instead of 7 (outputs plus
HY = ST H1 H0’ F1’ F0’ + ST’ H1 H0’ F1’ F0 2 state bits)
 Current State Assignment
Approaches
 For tight encodings using close to the minimum number of
state bits
 Best of 10 random seems to be adequate (averages as well as
heuristics)
 Heuristic approaches are not even close to optimality
 Used in custom chip design
 One-hot encoding
 Easy for small state machines
 Generates small equations with easy to estimate complexity
 Common in FPGAs and other programmable logic
 Output-based encoding
 Ad hoc - no tools
 Most common approach taken by human designers
 Yields very small circuits for most FSMs
State Assignment = Various Methods
 Assign unique code to each state to produce logic-level description
 utilize unassigned codes effectively as don’t cares

 Choice for S state machine

 minimum-bit encoding

log S
 maximum-bit encoding
 one-hot encoding

 using one bit per state

 something in between
 Modern techniques
 hypercube embedding of face constraint derived for collections of
states (Kiss,Nova)
 adjacency embedding guided by weights derived between state pairs
(Mustang)
Hypercube Embedding Technique
 Observation : one -hot encoding is the easiest
to decode
Am I in state 2,5,12 or 17?
binary : x4’x3’x2’x1x0’(00010) +
x4’x3’x2x1’x0 (00101) +
x4’x3x2x1’x0’(01100) +
x4x3’x2’x1’x0 (10001)
one hot : x2+x5+x12+x17
But one hot uses too many flip flops.
 Exploit this observation
1. two-level minimization after one hot
encoding identifies useful state group for
decoding
2. assigning the states in each group to a single
face of the hypercube allows a single product
term to decode the group to states.
FSM Optimization
01 00
S2 -0 S3
11 01 1- 0- 10
-0 -1
S1 S4
11

PI Combinational PO
Logic

v1 u1
PS NS
v2 u2
State Group Identification
Ex: state machine
input current-state next state output
0 start S6 00
0 S2 S5 00
0 S3 S5 00
0 S4 S6 00
0 S5 start 10
0 S6 start 01
0 S7 S5 00
1 start S4 01
1 S2 S3 10
1 S3 S7 10
1 S4 S6 10
1 S5 S2 00
1 S6 S2 00
1 S7 S6 00
Symbolic Implicant : represent a transition from
one or more state to a next state under some input
condition.
Representation of Symbolic Implicant

Symbolic cover representation is related to a

multiple-valued logic.
Positional cube notation : a p multiple-valued
logic is represented as P bits
(V1,V2,...,Vp)
Ex: V = 4 for 5-value logic
(00010)
represent a set of values by one string
V = 2 or V = 4
(01010)
Minimization of Multi-valued Logic

Find a minimum multiple-valued-input cover

- espresso

Ex: A minimal multiple-valued-input cover

0 0110001 0000100 00
0 1001000 0000010 00
1 0001001 0000010 10
 State Group
Consider the first symbolic implicant
0 0110001 0000100 00
 This implicant shows that input “0” maps

“state-2” or “state-3” or “state-7” into “state-5”

and assert output “00”
 This example shows the effect of symbolic logic
minimization is to group together the states that are
mapped by some input into the same next-state and assert
the same output.
 We call it “state group” if we give encodings to

the states in the state group in adjacent binary

logic and no other states in the group face, then the states
group can be implemented as a cube.
Group Face

 group face : the minimal dimension subspace containing the

encoding assigned to that group.
Ex: 0010 0**0 group face
0100
0110
 Hyper-cube Embedding
c

b state groups :
a
{2,5,12,17}
{2,6,17}
12 17
6
5 2

2 17
wrong!
6
5 12
 Hyper-cube Embedding
c

b state groups :
a
6 17 {2, 6, 17}
{2, 4, 5}
2

5 4
6 17
2 4
wrong!

5
Hyper-cube Embedding

 Advantage :
 use two-level logic minimizer to identify good state
group
 almost all of the advantage of one-hot encoding,
but fewer state-bit
Adjacency-Based State Assignment

Basic algorithm:
(1) Assign weight w(s,t) to each pair of states
 weight reflects desire of placing states
adjacent on the hypercube
(2) Define cost function for assignment of codes
to the states
 penalize weights for the distance between the state codes

eg. w(s,t) * distance(enc(s),enc(t))

(3) Find assignment of codes which minimize
this cost function summed over all pairs of
states.
 heuristic to find an initial solution

 pair-wise interchange (simulated annealing)

to improve solution
Adjacency-Based State Assignment

 Mustang : weight assignment technique based on loosely

maximizing common cube factors
How to Assign Weight to State Pair

 Assign weights to state pairs based on ability to extract

a common-cube factor if these two states are adjacent
on the hyper-cube.
Fan-Out-Oriented
(examine present-state pairs)
 Present state pair transition to the same next state

S1 S3

S2

$$$ S1 S2 $$$$
$$$ S3 S2 $$$$

Add n to w(S1,S3) because of S2

Fan-Out-Oriented

 present states pair asserts the same output

S1 S3
$/j $/j
S2 S4
$$$ S1 S2 $$$1$
$$$ S3 S4 $$$1$

Add 1 to w(S1 , S3) because of output j

Fanin-Oriented (exam next state pair)
 The same present state causes transition to next state
pair.

S1

S2 S4

$$$ S1 S2 $$$$
$$$ S1 S4 $$$$

Add n/2 to w(S2,S4) because of S1

Fanin-Oriented (exam next state pair)
 The same input causes transition to next state pair.

S1 S3
i i
S2 S4

$0$ S1 S2 $$$$
$0$ S3 S4 $$$$

Add 1 to w(S2,S4) because of input i

Which Method Is Better?
 Which is better?

• FSMs have no useful two-level

face constraints => adjacency-embedding

• FSMs have many two-level

face constraints => face-embedding
 Summary
 Models for representing sequential circuits
 Abstraction of sequential elements
 Finite state machines and their state diagrams
 Inputs/outputs
 Mealy, Moore, and synchronous Mealy machines
 Finite state machine design procedure
 Deriving state diagram
 Deriving state transition table
 Determining next state and output functions
 Implementing combinational logic
 Implementation of sequential logic
 State minimization
 State assignment
 Support in programmable logic devices
 Some Tools
History: Combinational Logic  single FSM 
Hierarchy of FSM’s VIS (“handles”
hierarchy)
Facilities for managing
networks of FSMs

Sequential Circuit Optimization

(single machine)

MISII
SIS Sequential Circuit
Partitioning
Facilities for handling latches
